O2 Xda Atom Getting Started

Download

Contents

Chapter 1 Before using your O2 Xda Atom 8

1.1 What’s in the box? 8

1.2 Familiarizing yourself with your Xda Atom 9

1.3 Features 11

1.4 Key functions 12

1.5 Display information 13

Chapter 2 Getting started 26

2.1 Insert the battery & SIM card 26

2.2 SIM card 27

2.3 Battery 27

2.4 Switching the device on or off 29

2.5 Screen taping & calibration 29

2.6 Screen Orientation 30

2.7 Entering information 30

2.8 Recording a message 34

2.9 Data backup 3

2.10 Memory expansion 35

2.11 Resetting your Xda Atom 35

2.12 Power management 36

Chapter 3 Synchronization 38

3.1 About synchronization 38

3.2 Installing ActiveSync 39

3.3 Choose your connection type 40

3.4 Synchronizing information 41

3.5 ActiveSync Errors 4

Chapter 4 Getting connected 46

4.1 Making a connection 46

4.2 Connecting to the Internet 60

Chapter 5 Basic phone functions 62

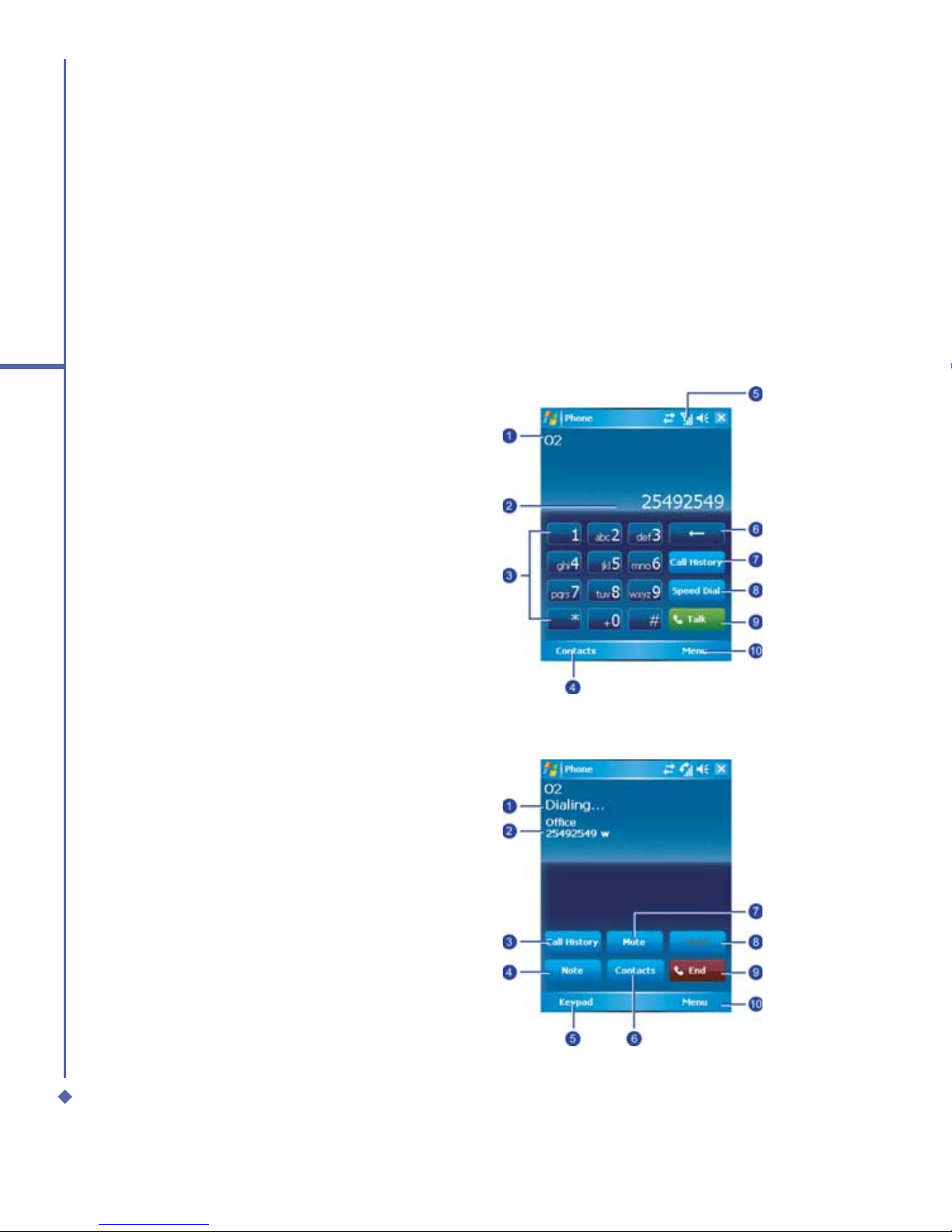

5.1 Making a call 65

5.2 Ending a call 68

5.3 Receiving/Ignoring a call 68

5.4 International calls 68

5.5 Emergency calls 69

5.6 In-call options 69

5.7 Contacts information 71

5.8 Device security 74

Chapter 6 Messaging 78

6.1 Text 79

6.2 Multimedia messages (MMS) 84

6.3 Voicemail 92

6.4 E-mail 93

6.5 Pocket MSN 10

Chapter 7 Camera 106

7.1 Capture mode 107

7.2 Setup menu 110

7.3 Photo Album 113

7.4 View mode 115

7.5 Edit mode 118

Chapter 8 O2 MediaPlus & Equalizer 126

8.1 My Radio 128

8.2 My Music 130

8.3 My Pictures 132

8.4 My Videos 133

8.5 My Settings 134

8.6 Equalizer 138

Chapter 9 Windows mobile applications 142

9.1 Outlook 142

9.2 Word Mobile 149

9.3 Excel Mobile 150

9.4 PowerPoint Mobile 151

9.5 Pictures & Videos 153

9.6 Calculator 154

9.7 Games 154

9.8 File Explorer 155

9.9 Searching Files 155

Chapter 10 Applications 158

10.1 O2 Connect 158

10.2 O

SMS Plus 160

10.3 ClearVue PDF 162

10.4 JAVA Midlet 163

Chapter 11 Settings 166

11.1 Personal settings 167

11.2 System settings 176

11.3 Connections settings 178

Chapter 12 Managing your Xda Atom 180

12.1 Self Diagnostics 180

12.2 Auto-Conﬁgurator 180

12.3 Setup Wizard 181

12.4 Download Agent 182

12.5 Installing my own applications 182

Chapter 13 Don’t panic 186

13.1 In plain English 186

13.2 Troubleshooting 187

13.3 Vital statistics 188

Chapter 14 The important safety bit at the back 190

14.1 Safety information 190

14.2 Phone care 190

14.3 Driving safety 192

14.4 Electronic devices 192

14.5 Other safety guidelines 193

14.6 Cautions 19

14.7 About this guide 194

Index 195

Chapter 1

Before using your O2 Xda Atom

1.1 What’s in the box?

1.2 Familiarizing yourself with your Xda Atom

1.3 Features

1.4 Key functions

1.5 Display information

Before using your O

Xda Atom

1. Before using your O2 Xda Atom

1.1 What’s in the box?

Thank you for selecting O2 Xda Atom. Please check if your package comes with the following items. If any of them is missing, please contact your retailer.

• Xda Atom – your Windows Mobile-based Pocket PC phone

• Universal AC adapter with four plugs for different countries

#ONTENTS

-ICROSOFT/UTLOOK

-ICROSOFT!CTIVE3YNC

8DA!TOMUSERMANUAL

8DA!TOM

#OMPANION#$





(















 











• Companion CD

• Warranty Card

Xda Atom

LIMITEDWARRANTY STATEMENT

-¨«ÃÁ©®ÑúnÒOî-

PERNYATAAN JAMINAN TERBATAS

8DA!TOM

• Quick Start Guide

8DA!TOM

5SERMANUAL

• User Manual

• Additional Stylus

• USB cable

• High quality stereo wired headset

• Battery

Before using your O

Xda Atom

1.2 Familiarizing yourself with your Xda Atom

No. Item Description

1 Volume Press up/down to increase/decrease the volume.

2 Talk/Send Press to make or receive a call.

3 Windows Start menu Press to bring up the Start menu.

4 Stereo speakers

Instead of using earphones, you can play sounds or music through the built-in stereo speakers.

5 Notification LEDs

Indicates charging, GSM/GPRS status, Bluetooth, WiFi and notification for other phone events (e.g. message arrival).

6 Touch screen Use the stylus or pointed objects to select items on the screen.

7 Navigation pad

Press to move up/down and right/left through any of the drop-down menus or program instructions; confirm your selection by pressing

the centre key (See 1.4 Keypad functions).

8 End Press to end a call.

MediaPlus Quick access key to O2 MediaPlus.

10 Infrared port

Enables you to exchange files or data with other devices without cables or wires.

11 Record

Press and hold to record a voice note. Press and release immediately to access Notes.

12 Camera Press the button to launch Camera.

Before using your O

Xda Atom

No. Item Description

13 Camera lens The CMOS camera supports 2-mega-pixel color.

14 Self-portrait mirror The preview mirror for self-portrait.

15 Flash light White LED strobe flash.

16 Battery cover Push and slide out the battery cover to replace the Li-ion battery.

17 Stylus & stylus holder The stylus slot holds your stylus when it is not in use.

18 Power Press to turn your Xda Atom on/off.

19 Mini SD card slot

Insert Mini SD card here. This is an optional accessory. For more

information, please see 2.10 Memory Expansion.

20 Strap hole You can hook your strap.

21 Soft reset

Press here with the stylus to soft reset your Xda Atom. For more

information about hard reset, please see 2.11 Resetting your Xda Atom.

22 Mini USB connector

Use this connector to synchronize information with your desktop PC, transmit data or recharge the battery.

23 Earphone plug

Plug in stereo headset and allows you to listen to audio files or use the phone’s hands-free kit.

Before using your O

Xda Atom

1.3 Features

Like a standard cell phone, your Xda Atom supports basic dialing features. However, it also integrates Personal Digital Assistant (PDA) capability. The following section provides more information about the phone’s features:

• Touch screen: 2.7” TFT LCD display with 65536 colours effective. (Hardware support 262K colours).

• 5-way navigation key.

• Windows Start menu key and O

MediaPlus key.

• Stereo speaker (with receiver) & Omni-directional mono microphone.

• Mini-USB connector for connection and battery charging.

• Camera: 2 mega pixels.

• Connections: IrDA, Bluetooth, and Wireless LAN.

• Microsoft Windows Mobile 5.0: Pocket MSN, Pocket Outlook, Pocket Explorer, and Ofﬁce tools (Word, Excel, and PowerPoint). Also features Windows Media Player 10, Terminal Service Client, Pictures & Videos, calculator, games, ActiveSync, and File Explorer.

• O

programs: O2 connect, O2 SMS Plus and O2 MediaPlus.

• Other programs: FM Radio, Java, Equalizer DirectShow plug-in, AutoConﬁgurator, Setup Wizard, Self Diagnostics, GPRS Monitor, and ClearVue PDF viewer.

Before using your O

Xda Atom

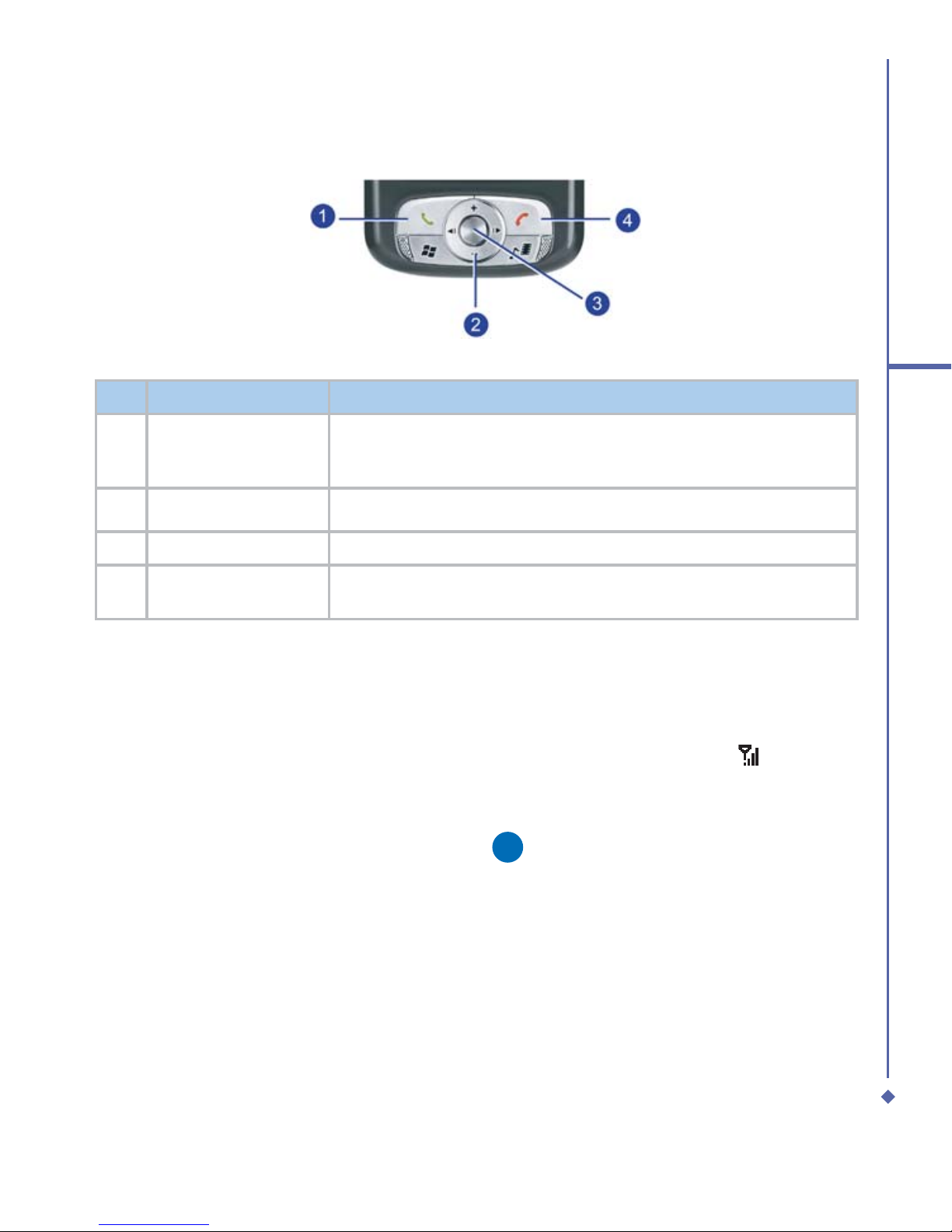

1.4 Key functions

Key Description

Scroll up or move the cursor up on the screen.

Scroll down or move the cursor down on the screen.

Move the cursor to the right.

Move the cursor to the left.

Confirm your selection.

Pick up calls and make new calls.

Hang up calls or press and immediately release to return to the Today screen.

Bring up the program list.

Press to access O2 MediaPlus.

Before using your O

Xda Atom

1.5 Display information

The screen displays the following information:

Start menu Status & icon area

Main Display

Command bar

Pop up menu

Windows Start menu

Tap on the Windows Start menu on top left of the screen to bring up a menu. To return to the

Today screen at any time, Tap Start > Today.

Status & icon area

This area shows your current mode, for example, whether you are under Phone mode or MSN –Sign In mode. The rest of the area displays notiﬁcation icons such as time, signal strength, message arrival, etc.

Main Display

Depending on the current mode or program, this area shows the major features of the mode. On the Today screen, this area contains shortcuts to certain programs. To change the Today screen settings, tap Start > Settings > Today.

Command bar

Depending on the mode, this area contains different features such as input panel and commands to create or edit a ﬁle.

Pop up menu

This feature allows you to quickly access an item. To access a pop up menu, simply tap on the icon on the screen and tap again to perform an action. To cancel it, tap other places on the screen.

Before using your O

Xda Atom

Start menu area

Tap Start to bring up a list of menu options.

No. Description

1 Quick access to a program.

2 Recently accessed programs.

Access programs folder. Please refer to the following Programs table for a detailed

program list.

4 Device settings. Please refer to the following Settings tabe for a detailed setting list.

5 Help information.

Before using your O

Xda Atom

Programs

Your Xda Atom contains a list of programs, allowing you to get the most out of your phone.

Icons Programs Description

Games Provides games such as Bubblebreaker and Solitaire.

ActiveSync Synchronize information between your Xda Atom and a PC.

Auto Configurator Configures your network operator setting.

Calculator Perform mathematical calculations.

Camera Take photos and shoot video clips.

ClearVue PDF Support viewing of PDF files.

Download Agent Manages your downloaded content for installation.

Equalizer Edit your sound profile to play back songs.

Excel Mobile Create, view and edit Excel files.

File Explorer View all the files on your Xda Atom.

FM Radio Enables you to listen to the radio.

Modem Link Links your Xda Atom to a modem.

Notes Create notes, drawing, and recordings manually or by typing.

O2 Connect

Connect to O2 website and download the latest software updates.

Before using your O

Xda Atom

Icons Programs Description

O2 MediaPlus

Integrate Windows MediaPlayer with Radio and Pictures & Photos programs. An outstanding integrated interface for quick access.

O2 SMS Plus

Besides SMS messaging services, also provides chat and vCard sending features.

Pictures & Videos View your images and videos.

Pocket MSN Access for MSN services.

PowerPoint Mobile

View PowerPoint files on your Xda Atom.

Voice Speed Dial Record a voice speed dial.

Search Search for a program or file on your Xda Atom.

Self Diagnostics Runs diagnostic to test your system.

Setup Wizard Set up your personal information.

SIM Contacts Copies Contacts on your SIM card to your Xda Atom.

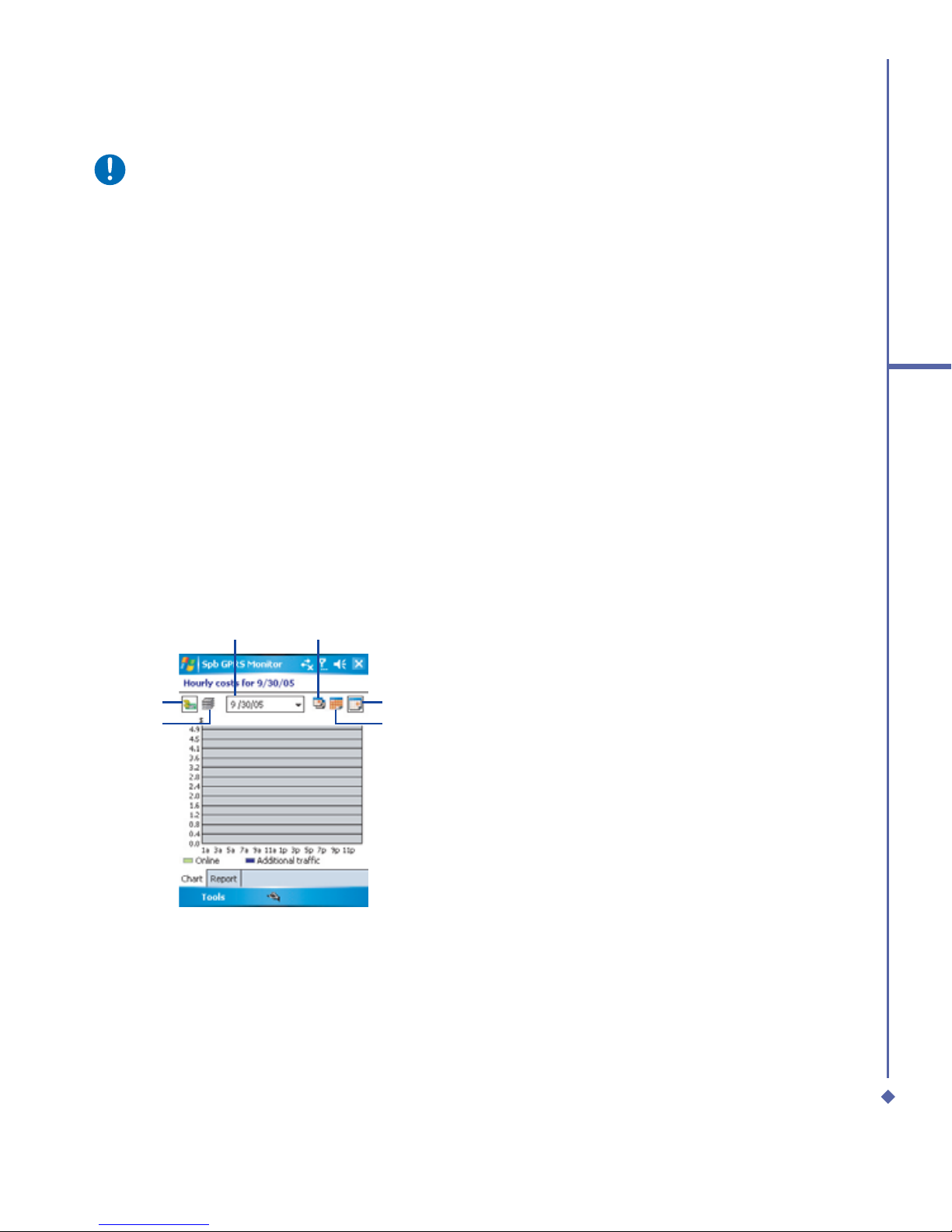

Spb GPRS Monitor

Keeps track of your GPRS daily traffic.

Tasks

Keeps track of your appointments and creates meeting requests.

Terminal Service Allows you to connect to a defined terminal server.

Word Mobile Create, view and edit Word files.

Photo Album View your photos and videos on your Xda Atom.

Before using your O

Xda Atom

Icons Programs Description

Photo Editor Edit your photos on your Xda Atom.

Java Install and run your Java applications.

Settings menu

The Settings menu lists a range of different applications.

Personal

Icons Settings Description

Buttons Assigns an application program to a hardware button.

Input Sets up the input method option of your Xda Atom.

Menus Customizes the Start menu list.

MSN Options

Provides complete MSN settings such as passwords, Hotmail account, and Messenger.

Owner Information Displays and set your personal information.

Password

Restricts access to your Xda Atom and prevents unauthorized use.

Phone Configures your Xda Atom settings.

Sounds & Notifications

Customizes the notification type, event and volume.

Today

Arranges the appearance and items displayed on the Today screen.

Voice Speed Dial Manages voice tags for contacts or applications.

Before using your O

Xda Atom

System

Icons Settings Description

About Shows important information relating to your Xda Atom.

Backlight

Configures the backlight settings and adjusts the brightness level to save power.

Certificates

Information about the certificate issuer and the expiration date.

Clock & Alarms Sets the time and alarms.

Error Reporting Reports your system errors to Microsoft help centre.

GPS Configures the GPS settings.

Memory

Displays the memory allocation status and the programs that are currently running.

Power Battery status and settings.

Regional Settings Customizes the formats and settings for the region you use.

Remove Programs Removes programs from your Xda Atom.

Screen Set orientation of your screen and re-calibrate for alignment.

System Info Displays your system information.

Before using your O

Xda Atom

Connections

Icons Settings Description

Band Switch

Select a different frequency band.

The changing of band selection from Automatic to any other value may affect the ability of your handset to operate at its optimal level and incorrect band selection may result in reception failure.

Beam Set your Xda Atom to receive or disable IrDA signals.

Bluetooth Set up Bluetooth connection.

Connections Configure connection settings.

CSD Line Type Set up CSD line type and connection element.

GPRS Setting Select the GPRS authentication method.

Network Cards Configure the network adapters.

Wi-Fi Utility Connects with other device via Wireless LAN.

Before using your O

Xda Atom

Status and icons area

This area indicates the application or menu you are using:

When you go from the Today screen to the Calendar screen, the area changes from Start to Calendar.

The icons display is on the top right of the Today screen. Please refer to the following table for some of the more frequently encountered icons. Alternatively, tap the icon with your stylus and its deﬁnition will be displays; this will also enable you to change its settings.

Type Icons Description

Battery

Battery full

Low battery

Battery alert

Battery charging

Calls

Call forward

Call on hold

Data call

Missed call

Voice call

Wi-Fi network in range

Before using your O

Xda Atom

Type Icons Description

Connection

/ %

GPRS/EDGE in range

GPRS/EDGE connected

Bluetooth

Wi-Fi on

Radio connected / Radio off

Signal Strength

Strong signal

No signal

Roaming

Message

New SMS message(s)

New voice mail(s)

New instant message(s)

Volume

System volume

Phone volume

Ringer on

Ringer off

Please note

Your Xda Atom is designed to notify you in a number of ways including an alert tone,

vibration, an icon on the screen or a ﬂash of light. To choose reminder types and sounds for your Xda Atom, tap Start > Settings > Personal > Sounds & Notiﬁcations.

Before using your O

Xda Atom

Main Display

The main body of the Today screen displays the following items for quick access and convenient viewing:

No. Function Description

1 Time and Date View the time and date or Tap to change time and set alarms.

2 Owner Information Tap to display your contact information.

3 Message notification Informs you of an incoming message.

4 Task reminder Reminds you of a task to be accomplished.

Appointments reminder

Reminds you of an appointment.

6 Pocket MSN Sign-In Quick access to the MSN messenger and MSN Hotmail

7 Device lock

Displays the device lock status. This feature prevents your screen and keypad from being accidentally touched or pressed.

Before using your O

Xda Atom

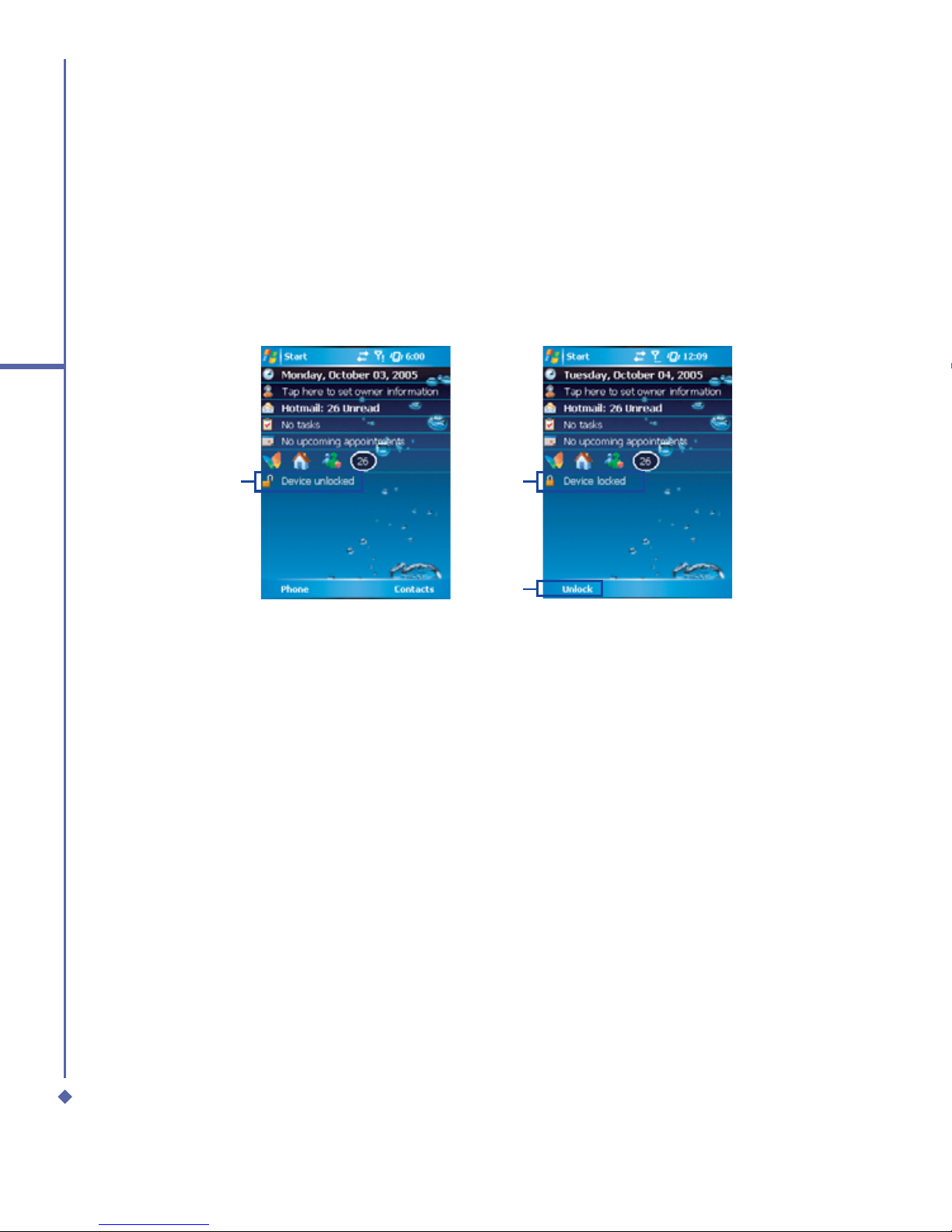

To lock/unlock your Xda Atom:

1. Tap Device Unlocked to lock the phone; the screen will now display

Device locked.

2. Tap Unlock on the command bar to unlock the phone and tap the Unlock button on the screen again to conﬁrm. Now the screen indicates Device

unlocked.

Before using your O

Xda Atom

Chapter 2

Getting started

2.1 Insert the battery & SIM card

2.2 SIM card

2.3 Battery

2.4 Switching the device on or off

2.5 Screen taping & calibration

2.6 Screen Orientation

2.7 Entering information

2.8 Recording a message

2.9 Data backup

2.10 Memory expansion

2.11 Resetting your Xda Atom

2.12 Power management

Getting started

2. Getting started

Before start using your Xda Atom, you need a fully charged battery and a valid SIM card.

2.1 Insert the battery &

SIM card

1. Look at the back of your Xda Atom. Gently press down and slide out the rear cover in the direction shown below.

2. Hook and lift the battery upward as shown below in order to remove it.

3. Unlock the SIM card holder by pushing it to the right and lifting it up Insert the SIM card with the metallic part facing down and the clipped corner in the right direction.

4. Gently press down the SIM card holder and lock it by pushing to the left. Make sure the holder does not bounce back upwards.

5. Insert the battery and rear cover back accordingly by reversing the above Steps 2 and 1.

Getting started

2.2 SIM card

Before using your Xda Atom, you must contact a network operator to get a personal SIM (Subscriber Identity Module).

The SIM card contain your Xda Atom number, the services included in your subscription, and your personal data such as your phonebook and messages. The phone is unusable (except for emergency calls) until a valid SIM card is inserted. Your Xda Atom will display a warning message if the SIM card is not inserted properly.

Please note

If the phone or the SIM card is lost

or stolen, you should contact your network operator immediately in order to prevent unauthorized use.

Copy SIM contacts to phone memory

To copy your SIM contacts to your Xda Atom, tap Start > Programs > SIM contacts >

Copy Now button.

2.3 Battery

Your Xda Atom contains a removable and rechargeable Li-ion polymer battery. Battery life will depend on your actual usage, network coverage and whether the device is on standby mode.

Battery life estimates:

• Talk-time: 5.5 hrs.

• Standby: 150 hrs (approximate.).

The above timings are based on assumption that user only uses one function at a time. Battery life may also vary depending on how frequently user switch between functions.

For battery safety, please refer to 13 The important safety bit at the Back.

Please note

Using any battery pack or AC adapter

(charger) not speciﬁed/endorsed by O2 on this phone may be dangerous and may invalidate any warranty and approval given to the phone. Unplug the charger from the power supply when it is not in use.

Getting started

Charging the battery

A new battery must be fully charged (for 8 hours) before being used for the ﬁrst time. You may charge the battery in the following ways:

• AC Adapter: Connect the battery charger to a suitable main power socket and the charger plug into the connector of your Xda Atom. Note on the orientation when plug in.

• USB Cable: Connect your Xda Atom to your PC’s USB port with the USB cable supplied in your package as shown below.

Please note

• When charging, make sure that the phone has its battery inserted. Place the battery’s

metallic end towards phone’s metallic part. Please refer to 2.1 Insert the Battery & SIM card on insertion the battery correctly.

• During charging, the LED lights up amber. When charging is completed, the amber light goes off.

Getting started

Checking the battery

The battery indicator displays the charge level of the battery. Check the icon at the top right corner of the Today screen.

•

Full battery power

•

Low battery power

•

Battery empty

•

Battery charging

Low battery indication

When the battery voltage falls below the working level, a warning message appears on the screen and a warning tone sounds to alert you if you activate the warning sounds

for system events (Please see 11. Setttings).

Save the data you are working on at the moment, perform synchronization with your PC, and turn off your Xda Atom. (For more

details about data safety, please see 2.9 Data Backup).

2.4 Switching the device

on or off

• Press the Power button on the top of

the phone to switch on your device. When you switch on the device for the ﬁrst time, your device will power up and automatically begin the initiation/

calibration process. See 2.5 Screen tapping & calibration for further details.

• To switch off your device, press the

Power button again.

Please note

Switching off your device will suspends

the screen display and the device enters sleep mode to save battery power. When your device is in sleep mode, press the Power button to wake up the device; the device will then display the Today screen.

2.5 Screen taping & calibration

When you ﬁrst start up your Xda Atom, you will be asked to calibrate the screen by tapping the centre of a cross with your stylus as it moves around the screen. This process ensures that, when you tap the screen with your stylus, the tapped item is activated.

Re-calibrate the screen

If your Xda Atom does not respond accurately to screen taps, you will need to re-calibrate it:

1. Tap Start > Settings > System tab >

Screen.

2. Tap the Align Screen button on the

General tab to re-calibrate the screen as described above.

Please note

When aligning the touch screen, tap

the target ﬁrmly and accurately.

Getting started

2.6 Screen Orientation

To switch the orientation of your touch screen between the Portrait mode and the Landscape mode:

Portrait mode Landscape mode

1. Tap Start > Settings > System tab > Screen.

2. On the General tab, select the Orientation by tapping Portrait, Landscape (right- handed), and Landscape (left-handed).

The Portrait mode allows you to get a better view or a better operation of certain programs on your Xda Atom, while Landscape may be optimal for viewing longer text ﬁles.

2.7 Entering information

You can enter information on your Xda Atom in the following ways:

• Synchronizing: Using ActiveSync, exchange information between your PC and device.

(For more information, see 3 Synchronization).

• Typing: Using the input panel or the keyboard, enter typed text into the device. You can do this by tapping keys on the screen soft keyboard, by pressing the keyboard, or by using the handwriting recognition software

• Writing: Using the stylus, write directly on the screen.

• Drawing: Using the stylus, draw directly on the screen.

• Recording: Create a stand-alone recording or embed a recording into a document or note.

Block Recognizer

With the Block Recognizer, you can input character strokes (using the stylus) that are similar to those used on other devices.

Getting started

1. Tap the arrow next to the keyboard, and then Block Recognizer.

2. Write a letter in the box. When you write a letter, it is converted to typed text that appears on the screen. For speciﬁc instructions on using Block Recognizer, tap the question mark next to the writing area.

Keyboard

To show or hide the input panel, tap the input panel button. To see your choices, tap the arrow next to the input panel button. Tap the arrow next to the Input Panel button, and then Keyboard.

1. To type lowercase letters, tap the keys with the stylus. To type a single uppercase letter or symbol, tap the Shift key. To tap multiple uppercase letters or symbols, tap the CAP key. You can also tap and hold the stylus on the key and drag up to type a single uppercase letter.

2. To add a space, in addition to tapping the space bar, you can also tap and hold any key and then drag the stylus to the right. To backspace one character, instead of tapping the backspace key, you can also tap and hold any key and then drag the stylus to the left across at least two other characters.

3. To insert a carriage return, tap and hold the stylus anywhere on the keyboard and drag down. When you use the input panel, your Xda Atom anticipates the word you are typing or writing and displays it above the input panel. When you tap the displayed word, it is automatically inserted into your text at the insertion point. The more you use your Xda Atom, the more words it learns to anticipate.

Please note

To change the keyboard size displayed on the screen, tap the arrow beside the

keyboard icon and select Options. Under the Input screen, you may select either Large keys or Small keys by taping on its radio button.

Getting started

4. To change word suggestion options, such as the number of words suggested at one time, tap Start > Settings > the Personal tab > Input > the Word Completion tab. Alternatively, tap the input panel icon and then Options… > the Word Completion tab.

Letter Recognizer

With the Letter Recognizer, you can write letters using the stylus just as you would on paper.

1. Tap the arrow next to the input panel button, and then Letter Recognizer.

2. Write a letter in the box.

When you write a letter, it is converted to typed text that appears on the screen. For speciﬁc instructions on using Letter Recognizer, with Letter Recognizer open, tap the question mark next to the writing area.

Transcriber

Transcriber allows you to write anywhere on

the screen using the stylus just as you would write on paper. Unlike Letter Recognizer and Block Recognizer, you can write a sentence or more than one sentence. Pause and let Transcriber change the written characters to typed characters.

1. Tap the arrow next to the input panel button, and then Transcriber.

2. Write anywhere on the screen. For speciﬁc instructions on using Transcriber, with Transcriber open, tap the question mark in the lower right-hand corner of the screen.

To punctuate in Transcriber:

1. Tap the keyboard button on the tool bar.

2. Tap the desired punctuation.

3. Tap the keyboard button again to hide the keyboard.

To learn writing in Transcriber:

1. Tap

on the tool bar.

2. A Letter Shapes Selector screen will appear:

• At the bottom of the screen, select the character you wish to explore.

• At the top of the screen, tap the picture of this character. It will slowly redraw, showing the writing sequence.

• Select how often you write the character using that method. When you ﬁnish the selecting all the letters, you can save these as a proﬁle by tapping File > Save, and enter a name for the proﬁle.

Using Proﬁles

Letter Shape Selector supports two

proﬁles: Master or Guest:

• Master is typically used by the primary user. This proﬁle is unaffected by any Guest user settings.

• Guest is for temporary device usage by another person.

Getting started

Writing on the screen

In any program that accepts writing, such as

Notes, and in the Notes tab in Calendar, Contacts, and Tasks, you can use your

stylus to write directly on the screen. Write as you would on paper. You can edit and format what you have written and convert the information into typed text at a later time.

Tap the pen button to switch to writing mode. This action displays lines on the screen to help you write. Some programs that accept writing may not have the pen button. See the manual for each particular program to ﬁnd out how to switch to writing mode.

Please note

T9 is the entry mode, that is, when

you enter a word, the T9 tries to automatically match the letters you have selected with the most likely completed word.

Tips for good recognition:

1. Write clearly.

2. Write on the lines and draw descanters below the line. Write the cross of the “t” and apostrophes below the top line so that they are not confused with the word above. Write periods and commas above the bottom line.

3. For better recognition, use a zoom level of 150% or higher by tapping input panel icon > Options… > Options tab to change the zoom level.

4. Write the letters of a word closely and leave big gaps between words so that the device can easily tell where words begin and end.

5. Hyphenated words, foreign words that use special characters such as accents, and some punctuation cannot be converted. If you edit or add to a word after attempting to recognize it, the new writing will not be included if you attempt to recognize it again.

Drawing on the screen

You can draw on the screen in the same way that you write on the screen. The difference between writing and drawing on the screen is how you select items and how they can be edited. For example, selected drawings can be re-sized, while writing cannot.

To create a drawing:

Cross three ruled lines on your ﬁrst stroke. A drawing box appears. Subsequent strokes in, or touching, the drawing box become part of the drawing. Drawings that do not cross three ruled lines will be treated as writing.

Getting started

To select a drawing:

If you want to edit or format a drawing, you must select it ﬁrst.

1. Tap and hold the stylus on the drawing until the selection handle appears. To select multiple drawings, deselect the pen button and then drag to select the drawings you want.

2. You can cut, copy, and paste selected drawings by tapping and holding the selected drawing and then tapping an editing command on the pop up menu, or by tapping the command on the Edit menu. To re-size a drawing, make sure the Pen button is not selected, and drag a selection handle. To change the zoom level so it is easier to work or view your drawing, tap Tools and then select a zoom level.

2.8 Recording a message

In any program where you can write or draw on the screen, you can also quickly capture thoughts, reminders, and phone numbers by recording a message. In Calendar, Tasks, and Contacts, you can include a recording in the Notes tab.

In the Notes program, you can either create a stand-alone recording, or include a recording in a written note. If you want to include the recording in a note, open the note ﬁrst.

In the Messaging program, you can also add a recording to an E-mail message.

To create a recording:

1. To add a recording to a note, open

the note before recording. Tap Start > Programs > Notes.

2. If there is no Record/Playback toolbar,

tap Menu > View Recording Toolbar.

3. Hold your device’s microphone near your mouth or another sound source.

4. To start recording, tap

5. To stop recording, tap

. The new recording appears in the note list or as an embedded icon.

6. To play a recording, tap in the open note or tap the recording in the note list.

You can also access the Record/Playback toolbar by pressing the Record button, which is the ﬁrst button from the top on the right side of your Pocket PC.

To quickly create a recording, hold down the Record button. When you hear the beep, begin your recording. Release the button when you are ﬁnished.

The new recording is stored in the open note, or as a stand-alone recording, if no

note is opened.

Getting started

2.9 Data backup

Your Xda Atom supports 64MB RAM capacity; however, you may need to back up data and any new programs that you install in the RAM to guard against data loss. To back up your Contact, Calendar, etc., please set up the synchronization partnership with your PC and connect Xda Atom with PC. ActiveSync will start automatically.

2.10 Memory expansion

To expand your Xda Atom’s memory, please insert a MiniSD card into the card slot on the top of the phone in the direction indicated below. Make sure the card is inserted correctly.

Please note

Your Xda Atom does not come with

a MiniSD card supplied. This is an optional accessory. Please contact your supplier for further details.

2.11 Resetting your Xda

Atom

Your Xda Atom can be reset in the following two ways: a soft reset or a hard reset. Executing soft reset allows you to reboot your Xda Atom; only some data in opened programs may be lost. Your Xda Atom returns to the same status as the last time you used it. However, a hard reset turns the battery off, returns the device to its default settings, and deletes all programs, ﬁles, contacts and other information you have saved to the device. It is therefore extremely important to back up data to a storage card or your computer on a regular basis in case a hard reset has to be performed.

To perform a soft reset

If your Xda Atom responds slowly, stops responding, or freezes, you can soft reset it. A soft reset causes the Xda Atom to restart and re-adjust memory allocation. Unsaved data in any opened applications may be lost. Use the stylus to press and hold the Reset button, as shown below.

Getting started

A hard reset clears memory, deletes all data (such as owner information under Setup Wizard and AutoConﬁgurator) and restores the Xda Atom to its default settings. The action will erase all data that you have created and programs you have installed, but will keep all the preinstalled programs that were in the phone when your Xda Atom was ﬁrst delivered to you. Press and hold the power button, and then use the stylus to press the soft reset button at the same time. Be sure you have backed up all your data in an mini SD card or on your PC before performing a hard reset.

2.12 Power management

To reduce the power consumption of your Xda Atom, you may change the backlight duration and brightness level. Also, you can save more power by setting the phone to turn off automatically if it is not in use for a speciﬁc period of time.

To check battery power level:

Tap Start > Settings > System tab > Power > Battery tab. A bar indicates the

remaining battery power level.

To turn off the device automatically:

Tap Start > Settings > System tab > Power > Advanced and select the duration

before your Xda Atom turns off by itself. This feature controls the screen standby time.

To reduce the brightness level:

Tap Start > Settings > System tab > Backlight > Brightness tab and adjust the

brightness level from 1 to10 (the darkest to brightest).

To adjust the backlight duration:

Tap Start > Settings > System tab > Backlight > Battery Power or AC Power

tab to select backlight duration and condition for backlight on/off under either battery or AC power supply.

Chapter 3

Synchronization

3.1 About synchronization

3.2 Installing ActiveSync

3.3 Choose your connection type

3.4 Synchronizing information

3.5 ActiveSync Errors

Synchronization

3. Synchronization

3.1 About synchronization

With ActiveSync on both your PC and mobile device, you can synchronize information between a PC or Microsoft® Exchange Server and your Xda Atom. First, you must install ActiveSync 4.1 on the PC. Then you can:

• Synchronize information so that you have the latest information in all locations.

• Change synchronization settings and the synchronization schedule.

• Copy ﬁles between your

Xda Atom and a

PC.

• Add and remove programs on your

Xda

Atom.

Once you install ActiveSync 4.1 on your PC, you will be prompted to connect your device and create a synchronization relationship with the device by using a cable, Bluetooth, or infrared connection. While you are setting up this relationship you can choose the information you want to synchronize with either your PC or with

Microsoft® Exchange Server. After the

synchronization relationship is created, you can also connect your device to Microsoft® Exchange Server by using a modem or a network (Ethernet) card.

USB/Bluetooth/IrDA

Phone data PC data

Synchronization

3.2 Installing ActiveSync

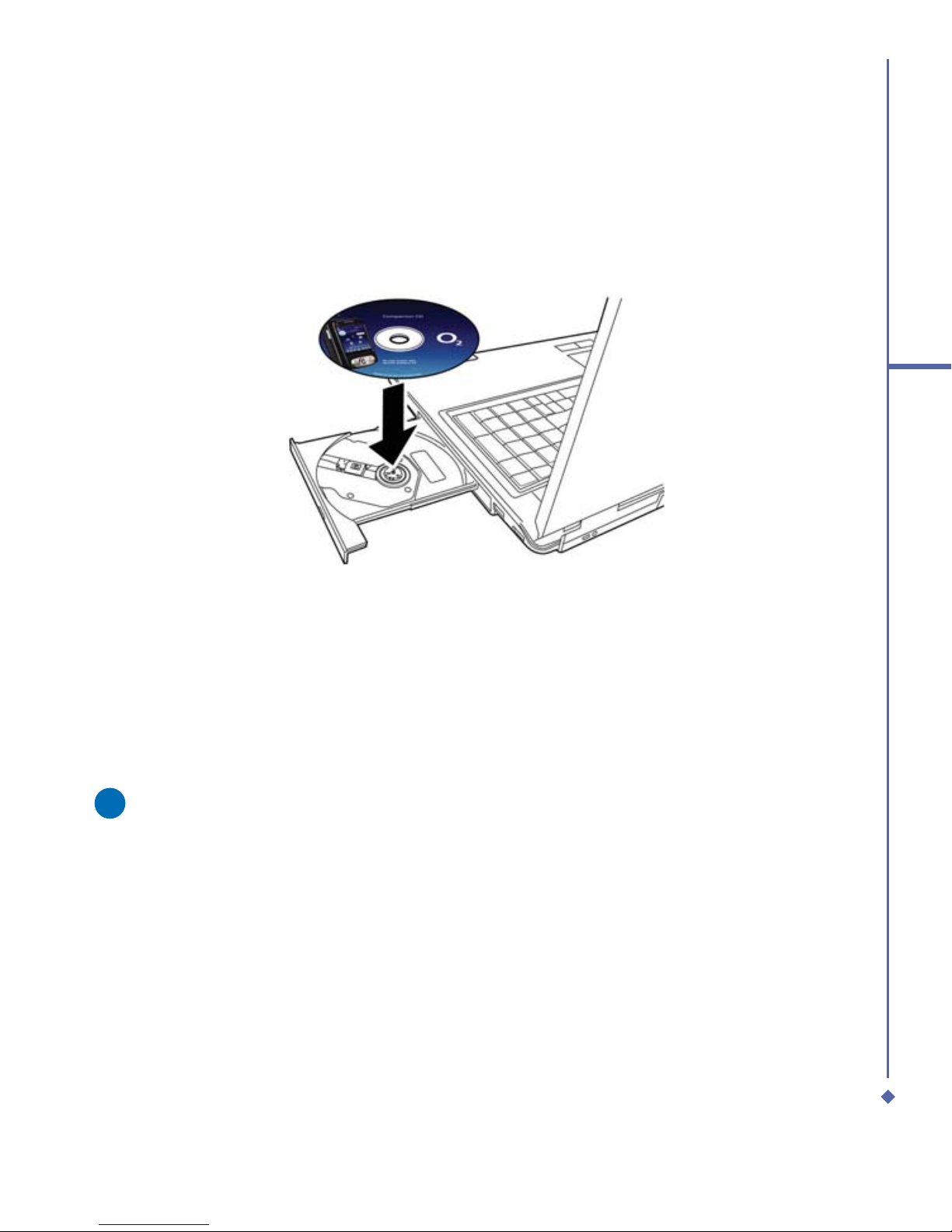

Before you start synchronizing information with your PC, install ActiveSync 4.1 on your PC from the Xda Atom Companion CD included in your package. ActiveSync is preinstalled in your phone and ready for use when the phone is delivered.

Please note

To install ActiveSync 4.1 in your PC,

please follow the instructions given when you run the Companion CD.

Once your PC installed ActiveSync, you will be asked to build a partnership with your Xda Atom using one of the following connection methods:

• USB cable

• Infrared

• Bluetooth

Synchronization

3.3 Choose your

connection type

USB cable

1. Your Xda Atom is designed to connect with other devices via a Mini-USB connector. This is a common cable type, and the baud and/or cable type is set automatically. You can manually change the connection settings as described below. The next time you connect your device to the PC, this new setting will be used. Tap Start > Programs > ActiveSync.

2. Tap the Menu tab > Connections.

3. Select

USB in the drop-down menus and

activate Synchronize all PCs using this

connection feature.

Infrared connection

Your phone is designed to receive and exchange information and ﬁles with other mobile devices via infrared wireless communication. If you want to use an IR connection, make sure your PC is IrDA compliant; that is, your PC must have an IR port. The types of data you can send or receive include graphics, images, sound clips, videos, calendar and notes.

To turn on the infrared connection:

Tap Start > Settings > the Connections tab > Beam and conﬁrm to receive all incoming beams. Please make sure there is no obstacle between the devices in order to prevent interference.

Once you activate the feature to receive all incoming beams, your phone detects all incoming infrared (IR) beams and prompts your phone to accept them. If you do not wish your phone to detect or receive beams, uncheck the Receive all incoming beams.

Warning

Do not expose your eyes directly to the

IR infrared beam or allow it to interfere with other IR devices.

To synchronize via IR connection:

1. To receive infrared beams, follow the instructions in ActiveSync Help on the PC to set up your PC.

2. Line up the infrared (IR) ports of your Xda Atom and your PC within close range without any obstacle between them.

3. On the device, tap Start > Programs > ActiveSync.

4. Tap the Menu tab > Connect via IR.

5. Tap Sync.

Synchronization

Bluetooth connection

Your Xda Atom is designed with Bluetooth wireless connectivity technology, which allows your phone to connect to a Bluetoothcompatible device within 10 meters. For best connection results, it is suggested that you connect the device to the PC using USB to establish a synchronization relationship before connecting via Bluetooth.

To synchronize via Bluetooth connection:

1. Follow the instructions in ActiveSync Help on the PC for conﬁguring Bluetooth

on your PC to support ActiveSync.

2. On the Xda Atom, tap Start > Programs > ActiveSync.

3. Tap the Menu tab> Connect via Bluetooth. Make sure that the device and the computer are within a short enough distance of one another.

4. Tap Sync.

5. When you have ﬁnished, tap the Menu tab > Disconnect Bluetooth.

6. To preserve battery power, turn off Bluetooth.

Please note

If this is the ﬁrst time that you have

connected to this PC via Bluetooth, you must ﬁrst activate the Bluetooth wizard on the Xda Atom and set up a Bluetooth partnership with the PC: Tap Start > Settings > Connections > Bluetooth.

For more details, please refer to 4. Getting Connected.

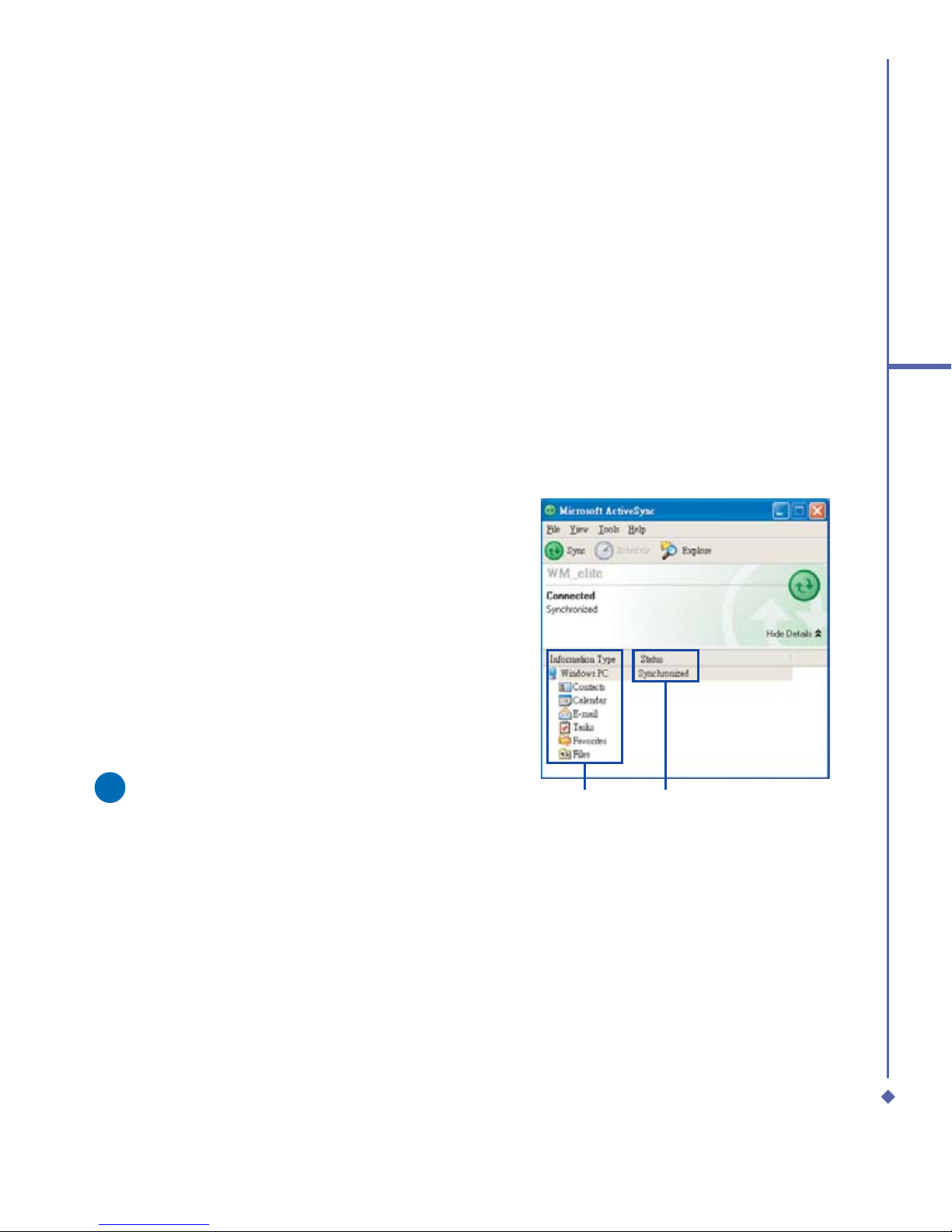

3.4 Synchronizing information

Once you’ve established the connection partnership between your Xda Atom and the other mobile device, you can start synchronization. The information you can synchronize includes Outlook E-mail, Calendar, Contacts, Tasks and Notes. To select a speciﬁc data source, tap Start >

Programs > ActiveSync > the Menu tab > Options. Open the ActiveSync application

on your PC, and turn the synchronization for speciﬁc information types on or off as necessary.

Information for sychronization

Status of sychronization

Synchronization

Outlook E-mail

After you have selected Inbox for synchronization in ActiveSync, Microsoft® Outlook E-mail messages are synchronized as part of the general synchronization process. During synchronization:

• Messages are updated from the Inbox

folder on your PC or the Microsoft

Exchange server to the Inbox folder of the Outlook E-mail account on your device. You can only synchronize information directly with an Microsoft® Exchange Server if you are running Microsoft® Outlook® 2002 or later. By default, you’ll receive messages from the last three days only, the ﬁrst 100 lines of each new message, and ﬁle attachments of less than 100KB in size.

• Messages in the Outbox folder on your

device are transferred to Exchange or Outlook and then sent from those programs.

• The messages on the two computers are linked. When you delete a message on your Xda Atom, it is deleted from your PC the next time you synchronize.

• Messages in subfolders in other E-mail folders in Outlook are synchronized only if they have been selected for synchronization in ActiveSync. For information on initiating Outlook E-mail synchronization or changing synchronization settings, see ActiveSync Help on the PC or Connections Help.

Please note

Text messages (SMS) and Multimedia

messages (MMS) are not received through synchronization. Instead, they are sent to your device via your network operator.

Calendar

• You can synchronize calendar items on your Xda Atom with calendar items on your PC or Microsoft® Exchange Server. You can only synchronize information directly with an Microsoft® Exchange Server if you are running Microsoft® Outlook® 2002 or later. Calendar synchronization is automatically selected in ActiveSync.

• Calendar items entered on one computer are copied to the other during synchronization. Handwritten notes and drawings are saved as metaﬁles (pictures).

Contacts

• Contacts stored on your Xda Atom can be synchronized with Outlook contacts stored on your PC or with Microsoft® Outlook® 2002 or later.

• New items entered in one location are copied to the other during synchronization. Handwritten notes and drawings are saved as pictures when synchronizing with your PC, but are removed when synchronizing with a server. For more information on synchronization, see ActiveSync Help on the PC.

Synchronization

Tasks

• Tasks stored on your device can be synchronized with Outlook on your PC. Task synchronization is automatically selected in ActiveSync.

• New items entered on one computer are copied to your phone during synchronization. Handwritten notes and drawings are saved as metaﬁles (pictures). For more information on synchronization, see ActiveSync Help on the PC.

Notes

Notes can be synchronized between your

PC and Xda Atom either through notes synchronization or ﬁle synchronization. Notes synchronization synchronizes the notes on your Xda Atom with Outlook Notes on your PC. File synchronization synchronizes all notes on your Xda Atom with the My Documents folder on your PC.

To synchronize your notes through notes synchronization, ﬁrst select the Notes information type for synchronization in ActiveSync. The next time you synchronize, all notes in My Documents and its subfolder on your device will appear in Outlook Notes on your PC. Notes that contain only text will appear as regular notes in Outlook on your PC, while notes containing written text or drawings will appear in the device format. In addition, all notes in the Notes group in Outlook on the PC will appear in Notes on the device.

To synchronize your notes as ﬁles, in ActiveSync, select the Files information type for synchronization and clear the

Notes information type. When you select Files, the My Documents folder is created

on your PC’s desktop. All .pwi ﬁles placed in the My Documents folder on your device and all .doc ﬁles placed in the \My Documents folder on your PC will be synchronized. Password-protected ﬁles cannot be synchronized. ActiveSync converts documents during synchronization. For more information on synchronization or ﬁle conversion, see ActiveSync Help on the PC.

Please note

When you delete or change an item

on either your PC or device, the item is changed or deleted in the other location the next time you synchronize. If you synchronize your notes using ﬁle synchronization and then later decide to use notes synchronization, all of your notes will be synchronized with Outlook on your PC and will no longer be stored in the My Documents folder.

Synchronization

3.5 ActiveSync Errors

Whenever ActiveSync cannot successfully synchronize your information, it displays an error on your Xda Atom and your PC.

Viewing error information

Press the Action button when the error text is displayed. ActiveSync will then display more information about the error that has occurred.

Some types of errors can interfere with automatic synchronization. If you suspect that a scheduled automatic synchronization has not occurred, you should attempt to manually synchronize your information. Successfully completing manual synchronization will reset automatic synchronization. For more information, see the Synchronizing Information section of ActiveSync Help on your PC.

Please note

Most ﬁrewall applications are intended

to block network trafﬁc and secure the PC from incoming network connections. Since ActiveSync uses TCP ports for data transfer with Devices, to avoid this potential experience, you will need to manually allow this trafﬁc to be un-blocked by Firewall applications for the Device using ActiveSync. You will need to add ActiveSync application processes into the Firewall Programs Exception List.

Chapter 4

Getting connected

4.1 Making a connection

4.2 Connecting to the Internet

Getting connected

4. Getting connected

Your Xda Atom has powerful networking functions that enable you to connect to the Internet using a number of different methods, for example, GPRS network or a Bluetooth modem. You can also use an external modem with this device to access the Internet.

You can set up connections to the Internet and to a corporate network at work to browse the Internet, send and receive E-mail, use instant messages, and synchronize with ActiveSync.

There are two types of connection settings: My ISP and My Work Network. My ISP settings are used to connect to the Internet, and My Work Network settings can be used to connect to any private network, such as a corporate network. Fill in the settings and you are ready to connect to the Internet.

4.1 Making a connection

The simplest way to get your Xda Atom connected to the network is to activate

AutoConﬁgurator (Please refer to 12.2 Auto- Conﬁgurator). Below are the options you can

change manually:

CSD Line Type

This program allows you to choose the line type when you make a circuit switch data connection.

To change a CSD Line type:

1. Tap the Start > Settings > Connections > CSD Line Type.

2. Deﬁne the value for Data Rate. In Connection element, choose a type

from that drop-down menu. Tap OK.

Please note

The default setting on your Xda Atom is

set for optimal use. Do not change this setting unless you have trouble using the circuit switch data connection.

GPRS

The General Packet Radio Service (GPRS) allows information to be sent and received across a mobile telephone network. To use GPRS service, you need to choose between the following two authentication methods:

• PAP authentication: Password

Authentication Protocol is a simple authentication protocol that is used to verify a user to a remote access server of an ISP (Internet Network operator).

• CHAP authentication: Challenge

Handshake Authentication Protocol is used to negotiate the most secure form of encrypted authentication supported by both server and client.

Conﬁguring GPRS

To select an authentication method:

1. Tap Start > Settings > Connections > GPRS Settings > the Authentication

tab.

2. Select PAP authentication or CHAP

authentication and tap OK.

To choose GPRS slot:

1. Tap Start > Settings > Connections > GPRS Settings > the GPRS-Setting tab.

2. Select a slot and tap OK.

Getting connected

Please note

Changing these settings may cause

a data communication failure. Please consult your network operator before altering these settings.

Shortcut for ending GPRS

To end GPRS connection immediately, press and hold End key.

SPB GPRS Monitor

This program allows you to monitor GPRS trafﬁc and cost in an hourly, daily, monthly and yearly view.

To monitor GPRS trafﬁc:

1. Tap Start > Programs > Spb GPRS Monitor > Chart.

2. Select an icon to view its details:

Hourly costs

Hourly trafﬁc

Date

Monthly trafﬁc

Daily trafﬁc

Hourly trafﬁc

To view the GPRS report:

Tap Start > Programs > Spb GPRS Monitor > the Report tab.

Bluetooth

With Bluetooth capability, devices can exchange information within a distance of about 10 meters without requiring a physical connection. Bluetooth is a short-range wireless communications technology.

Unlike infrared, you don’t need to line up the devices to beam information with Bluetooth. The devices only need to be within a range of about 10 meters of each other. You can even beam information to a device in a different room, as long as it is within range. The software preinstalled in your Xda Atom allows you to use Bluetooth in the following ways:

• Exchange information, such as ﬁles, appointments, tasks, and contact cards, between devices that have Bluetooth capabilities. For example, if you and a co-worker each have a device with Bluetooth, you can beam items between your devices; these items could include ﬁles, contact cards, appointments, tasks, etc.

• Create a dial-up modem connection between your device and a Bluetooth phone. You can then use the Bluetooth phone as a modem.

Getting connected

Bluetooth settings

To access the Bluetooth settings screen, tap Start > Settings > Connections tab > Bluetooth.

To turn Bluetooth on or off, check/uncheck the Turn on Bluetooth option.

With Bluetooth off, you cannot use Bluetooth to either send or receive information. You might want to turn the radio off at times in order to conserve the battery power, or in situations where radio use is prohibited, for example on airplanes and in hospitals.

By default, the Bluetooth is turned off. If you turn it on, and then turn off your device, the Bluetooth radio also turns off. When you turn on your device again, the Bluetooth radio automatically turns on the radio. If you wish to turn on the radio, turn off Bluetooth ﬁrst, and then turn on the radio.

To make your device discoverable, check

Make this device discoverable to other devices option.

If the Bluetooth radio is turned on, then all of the other Bluetooth devices within range (about 10 meters) can detect your device and attempt to beam information to it, establish a bond, or use a Bluetooth service. In this mode, other devices can detect your device whether or not a bond has been created; however, in order to receive a beam from another device, you must accept it on your device.

Other Bluetooth devices can now detect your device and attempt to beam information to it, establish a bond, or use a Bluetooth service. Note that, to receive beamed information, you must accept it on your device by selecting Discoverable; this also turns on your Bluetooth radio.

If you no longer want your device to be discoverable, uncheck the Turn on

Bluetooth option or uncheck the Make this device discoverable to other devices

option to leave the radio on, but not allow detection by other devices.

Bonds

To exchange information in a secure manner, you may use a bond to create a relationship between your Xda Atom and another Bluetooth device. To create a bond, you need to enter the same personal identiﬁcation number (PIN) on the two devices that you want to bond. You need only create a bond once between two devices. Once a bond is created, the devices recognize the bond and are able to exchange information without your needing to enter a PIN again.

To create a Bond:

You can create a bond between your device and another device that has Bluetooth. Once you do this, Bluetooth doesn’t need to be in discoverable mode in order for you to beam information between the two devices; you only need to have the Bluetooth radio turned on.

Getting connected

1. Tap Start > Settings > Connections tab.

2. Tap Bluetooth > Devices tab > New Partnership. Your device searches for other Bluetooth devices and displays them in the list.

3. Tap the name of the other device in the list, and then Next.

4. In PIN, enter a PIN of between 1 and 16 characters and tap Next.

5. Enter the same PIN on the other device.

6. If necessary, in Name, edit the name of the other device.

7. Tap Finish.

Please note

Make sure that the two devices are

within 10 meters of one another and that Bluetooth is in discoverable mode on both devices.

To accept a Bond:

1. Make sure that Bluetooth is turned on and in discoverable mode.

2. When prompted to bond with the other device, tap OK.

3. In PIN, enter a PIN of between 1 and 16 characters, and tap Next. You must enter the same PIN that was entered on the device requesting the bond.

4. If you want, in Name, edit the name of the device requesting the bond.

5. Tap Finish.

The bond is created. You can now exchange information with the other device.

To rename a Bond:

1. Tap Start > Settings > Connections tab.

2. Tap Bluetooth > Devices tab.

3. Tap the bond to rename.

4. In Name, enter a new name for the bond.

5. Tap Finish.

To delete a Bond:

1. Tap Start > Settings > Connections tab.

2. Tap Bluetooth > Devices tab.

3. Tap and hold the bond to delete.

4. Tap Delete.

Beaming Information with Bluetooth:

1. Tap and hold an item to beam, such as

an appointment in Calendar, a task in

Tasks

, a contact card in Contacts, or a

ﬁle in File Manager.

2. Tap Beam [type of item].

3. Tap the device to which you want to send the beam. The item is beamed to the device you selected.

If the device that you want to beam to does not appear in the list, make sure that it is turned on, in discoverable mode, and within 10 meters (10 meters) of your device. Also, make sure that your Bluetooth is turned on.

Getting connected

Receiving a Bluetooth Beam:

1. Make sure that your device is conﬁgured to receive incoming beams and that Bluetooth is in discoverable mode.

2. Make sure that your device is within 10 meters of the device beaming the information.

3. When prompted to receive an incoming beam, tap Yes. The information is now stored on your device.

Using a Bluetooth Phone as a Modem:

You can use a phone that has Bluetooth capabilities as a modem for your device. To do this, you create a Bluetooth modem connection on your device and then send information to the phone by using Bluetooth. The phone relays the information over the phone line and then sends back to your device any information that you had requested over the connection.

Once you create a modem connection to the Bluetooth phone, you can reuse it whenever you want to use the phone as a modem.

1. Make sure that the Bluetooth phone is turned on, that your device’s and the phone’s Bluetooth radios are turned on, and that your device and the phone are within 10 meters (10 meters) of one another.

2. If you have not already done so, create a Bluetooth phone connection using the method described below:

3. Tap Start > Settings > Connections tab > Connections > Add a new modem connection.

4. Enter a name for the connection.

5. In the Select a modem list, tap Bluetooth > Next.

6. Make sure that the phone is discoverable. Some phones may also need to be pairable in order to accept a bonding request.

7. If the phone appears in the My Connections list, skip to step 14. If not, tap New and follow the remaining steps.

8. In the list, tap the phone and then Next.

9. In PIN, enter a PIN of between 1 and 16 characters, and tap Next.

10. Enter the same PIN on the phone.

11 . If you want, in Name, edit the name of

the phone.

12. Tap Finish.

13. In the My Connections list, tap the phone, and then Next.

14. Enter the phone number to dial for this connection and tap Next.

15. In User name, Password, and Domain, enter the logon information for this connection and tap Finish.

16. Start using the program that uses the Bluetooth phone connection; for example Inbox to send and receive e-mail, or Internet Explorer to browse the Web.

Getting connected

Bluetooth headset

To set up your Xda Atom with a Bluetooth headset, you may refer to the user guide coming with your Bluetooth headset and the following instructions:

1. Tap Start > Settings > Connections tab > Bluetooth > Mode tab and check

Turn on Bluetooth and Make the device discoverable to other devices.

2. Tap > Settings > Connections tab > Bluetooth > Devices tab and tap New

Partnership to scan for other Bluetooth devices.

3. Your Xda Atom starts scanning for Bluetooth devices.

Getting connected

4. Enter the Passkey for the located Bluetooth Device. For Passkey information, please refer to documents coming with your Bluetooth headset.

5. Deﬁne the display name and the type of service your Bluetooth device offers.



Getting connected

6. When you ﬁnish setup, you will see the Bluetooth device displayed in the menu.

7. Also, there will be a Bluetooth headset icon indicating the active connection status.

Getting connected

Wireless LAN

Wireless LAN is a type of local area network that communicates between two devices by high frequency radio waves. Your phone supports Wireless LAN, which is IEEE

802.11b compliant. While delivered, your

phone has a preinstalled program, Wi-Fi, allowing you to conﬁgure Wireless LAN settings.

To check your Wi-Fi status:

Tap Start > Settings > Wi-Fi > Wi-Fi Status tab and you may see the details of your phone’s wireless LAN connection, including

Status, ESSID, BSSID, BSS Mode, Channel, Data Rate, IP Address, and Signal Strength.

To conﬁgure Wi-Fi settings:

Tap Start > Settings > Wi-Fi > Setting tab and scroll to set the desired value/mode for the following setting items: Adhoc Channel,

Preamble, Data Rate, Power Save, Power Strength, and Auto Power off. Tab the Set

button to conﬁrm your setting.

To update IP info:

Tap Start > Settings > Wi-Fi > IP Info tab > Renew or Ping button to update IP information or locate the IP address of the other device.

To search IP address:

Tap Start > Settings > Wi-Fi > Site Survey tab > Re-scan button to search the ESSID,

RSSI, BSS and Channel of the Wireless LAN.

Please note

While this feature is not in use, please

disable it to save power.

Network Cards Settings

You can connect directly to an Ethernet network by inserting a network (Ethernet) card. Once connected, you can view the Internet or an intranet, or download e-mail. Make sure that you purchase and conﬁgure a network card that is compatible with your Xda Atom.

To set up your network card:

1. Insert the network card into your Xda Atom.

2. The ﬁrst time you insert the card, Network Settings will appear automatically. To change it later on, tap Start > Settings > the Connections tab > Network Cards.

3. To enter speciﬁc server information, tap the appropriate adapter.

4. To start a connection, insert the network card, and begin using the desired program.

Getting connected

To change network card settings:

1. Tap Start > Settings > the Connections tab > Network Cards.

2. In the My network card connects to drop-down list, tap either The Internet or Work. If you are connecting to your ISP at home, tap The Internet. If you are connecting to a private network such as a corporate network at work, tap Work.

3. Tap the appropriate adapter in the Tap an adapter to modify settings: box. The IP address will now appear in the IP Address box on the IP Address tab.

4. To change TCP/IP settings if your ISP or private network does not use dynamically-assigned IP addresses, tap Use speciﬁc IP address and enter the requested information. Contact your ISP or network administrator to get the IP address, subnet mask, and/or default gateway (if needed).

5. To change DNS and WINS settings if your ISP or private network does not use dynamically-assigned IP addresses, tap the Name Servers tab and enter the requested information. Servers that require an assigned IP address may also require a way to map computer names to IP address. DNS and WINS are the resolution options supported on your Xda Atom.

Terminal Services Client

Using the Terminal Services Client, you can log onto a PC running Terminal Services or Remote Desktop and use all of the programs available on that PC from your mobile device. For example, instead of running Pocket Word, you can run the PC version of Word and access all of the .doc ﬁles on that PC from your Xda Atom.

Connecting to a Terminal Server

Start a remote connection to the server via a GPRS or Wireless LAN connection:

1. Tap Start > Programs > Terminal Services Client.

2. To connect to a server you have previously connected to, deﬁne a server in Recent servers. To connect to a new server, enter the server’s name in the Server box. Select the Limit size of server desktop to ﬁt on this screen check box only when using applications that have been speciﬁcally sized for use with the Xda Atom.

3. Tap Connect.

Please note

If the network administrator has

conﬁgured Terminal Services Client to reconnect to disconnected sessions, and you previously disconnected from a Terminal Server without ending the session, the Terminal Services Client reconnects to that session.

Getting connected

Navigating within Terminal Services Client

Once connected to the server, the PC’s screen may more than ﬁll your mobile device’s screen. If scroll bars are displayed on the server’s screen, you will see more than one set of scroll bars on your Xda Atom: one to scroll information on the PC, and one to scroll the PC display through the Terminal Services window in Terminal Services Client.

To ensure that you are scrolling the PC display through Terminal Services Client, use the ﬁve directional buttons at the bottom of the Terminal Services Client screen.

To better ﬁt information onto your mobile device’s screen, select Limit size of server desktop to ﬁt on this screen. For best effect, programs on the desktop computer should be maximized.

Disconnecting without ending a session:

The following commands must be accessed from the Start menu in the Terminal Services window used to access the PC’s commands. Do not use the Start menu on your Xda Atom.

1. In the Terminal Services window on your PC, tap Start > Shutdown.

2. Tap Disconnect.

If your administrator has conﬁgured Terminal Services Client to reconnect to disconnected sessions, you will be reconnected to this session the next time you connect to this server.

Getting connected

Disconnecting and ending a session:

1. In the Terminal Services Client window, tap Start > Shutdown.

2. Tap Log Off.

Modem Link

This utility will enable your device to simulate a wireless modem, and allow your PC/Notebook be connected to a wireless network. Before creating a new modem via the selected connection type, you still need to install the drivers on your PC/ Notebook. For more details about the drivers installation and the minimum requirements of your PC/Notebook, please refer to the companion CD.

1. Tap Start > Programs > Modem link.

2. Select a connection type.

3. Connect your device via infrared to a

notebook PC or desktop PC, and then tap Start.

Please note

Before you press the Start button,

please make sure that your device has a GPRS SIM card installed, and that you have connected this device to your PC/Notebook by IrDA connection and disabled the ActiveSync.

Settings on your PC

Contact your Network Operator to get the APN (Access Point Name). Before you start using your Wireless Modem with an IrDA connection, you need to create a new modem on your PC ﬁrst:

1. Click Start > Settings > Control Panel > Phone and Modem Options.

2. Add a new modem by selecting the Modem tab.

3. Enable the checkbox: Do not detect my modem; I will select it from a list.

4. Select Standard Modem Types in the

Manufacturers ﬁeld, select Standard 33600 bps Modem, then select Next.

5. Select your modem port and click Next.

6. When a Modem installation is ﬁnished! screen appears, click Finish to go back to the Modem tab mentioned in Step 2. Now you can see a Standard 33600 bps Modem in the modem list.

7. Highlight the modem you just created, click the Properties button, and select the Advanced tab.

8. Enter the complete string in the Extra initialization commands: ﬁeld: AT+CGDC ONT=1,”IP”,”APN”,””,0,0.

9. Remember to click the Change Default Preferences button after entering the required string as mentioned above.

10. Click the General tab and set the Float control by selecting None from the dropdown list. Keep pressing OK until the modem installation wizard exits.

Getting connected

A new standard modem is now set up successfully on your PC, but you still need to create a new dial-up connection:

1. Click Start > Settings > Control Panel > Network and Dial-up Connections > Make New Connection.

2. To continue, tap Next.

3. Select Dial-up to the Internet. Tap Next.

4. Enable the option I want to set up my

Internet connection manually, or I want to connect through a local area network (LAN) button, and Next.

5. Select I connect through a phone line and a modem option, and then Next.

6. Enable the Use area code and dialing rules checkbox and enter the telephone

number *99#, and then Next.

7. Enter the username and password you use to log on to your ISP, and then click Next.

8. Enter a name for this connection, and then Next.

9. Select No when the installation wizard asks you to set up an Internet mail account, and then click Next.

10. After the installation is completed, click Finish.

Connecting via USB Port

As with connection via USB Port, you need to check the following before you start using the Wireless Modem on your Xda Atom via USB connection:

• Make sure that a GPRS enabled SIM card is inserted in your Xda Atom.

• Disable the ActiveSync com port connection of your PC.

• Disable the Infrared function by tapping the Start menu > Settings > the Connections tab > Beam, and then uncheck Receive all incoming beams.

• Connect your Xda Atom to your PC USB connection (using the USB sync cable).

Before setting up a USB modem, you must verify that you have the two ﬁles, USBMDM and USBModem_Dialer on the Companion CD. Insert the Companion CD into the CDRom of your PC and perform the settings as follows:

1. Tap the Start menu > Programs > Wireless Modem.

2. Select the USB connection type from the drop-down list and insert the USB cable adapter.

3. Tap the Start button on the Wireless Modem screen of your Xda Atom.

4. A Found New Hardware message will pop up on your desktop PC.

5. Select the Display a list of the known

drivers for this device so that I can choose a speciﬁc driver option, and

then click Next.

6. Select Modem from the Hardware types list, and then Next.

7. Click the Have Disk button, and then Next.

Getting connected

8. Select the recognized USB Modem in

the Models list, and then Next. After the installation is completed, select Finish.

9. After the installation, a new USB modem will be found in the Modem list by tapping

Start > Settings > Control Panel > Phone and Modem options on your PC.

10. Double click the USBModem_Dialer ﬁle on the Companion CD and set the GPRS settings (enter the APN assigned by your ISP) in the blank text box and press Dial to start the connection.

Connect via Bluetooth

Before starting to use your Xda Atom as a Bluetooth modem, you must be sure that your PC is a Bluetooth-enabled device. In addition, you still need to check the following:

• Make sure that a GPRS enabled SIM card is inserted in your Xda Atom.

• Disable the ActiveSync BT port connection of your PC.

• Disable the Infrared function by tapping the Start menu > Settings > the Connections tab > Beam. Uncheck Receive all incoming beams.

1. To begin, select the Start menu > Programs > Wireless Modem.

2. Select the Bluetooth connection type from the drop-down list, and tap the Start button.

3. Open your Xda Atom from the Bluetooth application installed on your PC.

The interface of the Bluetooth application installed on your PC will vary, depending on the Bluetooth module that was embedded in or attached to your PC when you purchased it. Follow the installation instructions given in the connected Bluetooth device’s manual.

VPN

The VPN is the network that allows authorized users to access and transmit data.

To create a VPN connection:

1. Tap Start > Settings > the Connections tab > Connections and select Add a new VPN server connection.

2. Enter the VPN server IP and tap Next.

3. Select the way to authenticate IPSec/ L2TP connections and tap Next.

4. Enter My VPN details and tap Advanced tab to continue further setup or Finish to exit.

USB cable

To access the Internet, you may connect your device to a PC via a USB cable. Make sure that the PC you are connected to the Internet.

Getting connected

4.2 Connecting to the Internet

Once connected, you can use Pocket Internet Explorer to surf the Internet. While surﬁng, you can also download ﬁles and programs to be installed on your device from the Internet or intranet. During synchronization with your PC, download your favorite links and mobile favorites that are stored in the Favorites folder in Internet Explorer on the PC. To synchronize and download your favorite links from your PC, in your PC’s ActiveSync, select Favorites in the Tools menu > Options > Sync options.

Browsing the Internet

Open the Pocket Internet Explorer screen by tapping Start > Internet Explorer.

1. In the address bar that appears at the top of the screen, enter the Web address you want to connect to. Tap

to choose from previously entered

addresses.

2. Tap Back to go back to the previous page.

3. Tap Menu > Refresh to refresh the web page on the screen.

4. Tap Menu > Home to go back to the Home page.

5. Tap Favorites, and the favorite address you want to view. To add a favorite link while using your Xda Atom, go to the page you want to add, tap and hold on the page, and tap Add to Favorites on the pop-up menu.

Chapter 5

Basic phone functions

5.1 Making a call

5.2 Ending a call

5.3 Receiving/Ignoring a call

5.4 International calls

5.5 Emergency calls

5.6 In-call options

5.7 Contacts information

5.8 Phone security

Basic phone functions

5. Basic phone functions

Like a standard mobile phone, you can use your Xda Atom to make/receive calls and send SMS messages. You can also take notes while talking, dial directly from Contacts, and easily transfer contacts between your SIM card and your Xda Atom.

The Phone Dialer screen

To access the Phone Dialer screen, tap Start > Phone, or tap Phone on the Today screen. From this screen, you can access Contacts, Call History, Speed Dial, and more options under Menu. The Phone Dialer screen has the following features:

1. The name of the network provider

2. The number you entered

3. Touch screen keypad

4. Contacts list

5. Signal strength

6. Clear numbers

7. Quick dial a number

8. Received, dialed and missed call history

9. Make/End a call

10. Access more options

When a call is connected, the screen displays the following:

1. The calling status

2. The name and number of the contact you are calling

3. Received, dialed and missed call histroy

4. Create a note for the call

5. Return to the Phone Dialer screen

6. Contact list

7. Mute the call

8. Hold the call

9. End the call

10. Access more options

Basic phone functions

The navigation pad and dialing

No. Item Description

1 Call key

Press to activate the Phone Dialer screen, dial a phone number or accept an incoming call. During a call, press and hold to turn the speakerphone ON or OFF.

2 Navigation key Press for 4 ways (Up/Down/Left/Right) navigation through a list.

3 Centre key Press to select a menu item.

4 End call

Press to end a call, return to standby screen or end a GPRS connection.

Entering your PIN

Most SIM cards are preset with a PIN (Personal Identiﬁcation Number). This PIN is provided by Network Operator, which you need to enter whenever you use your device.

1. Enter the preset PIN assigned by Network Operator.

2. Tap Enter.

If your PIN is entered incorrectly three times, the SIM card will be blocked. If this happens, you can unblock it with the PIN Unblocking Key (PUK) from Network Operator.

Checking your connection

By default, your Xda Atom will automatically connect to your registered network once you

have inserted a SIM card and entered the required PIN code. An icon indicates that you are connected to a Network Operator network, or an afﬁliated provider. A full strength signal is indicated by

. The stronger the signal strength, the more bars the icon shows; no bars indicates no signal.

Warning

In many countries you are required by

law to turn off your phone on board an aircraft. Turning off the power of your Xda Atom doesn’t turn off the phone function. You must turn on the Flight Mode in order to disconnect the connection to the wireless network.

Basic phone functions

Turning on the Flight Mode

To turn off your wireless connection to an active network, you can switch your phone connection mode to Flight mode. You can turn the Flight Mode on or off while keeping your Xda Atom turned on.

1. While using any program on your Xda Atom, tap

in the status & icons area.

2. Tap Turn on ﬂight mode in the popup menu to disconnect to an active network.

3. Tap Turn off ﬂight mode to receive calls.

Adjusting the phone volume

You may adjust phone volume in the following ways:

1. During a call, press the volume buttons on the side of your device.

2. Alternatively, tap

to bring up a pop up

menu. You can select to adjust:

• Ring volume

• Device volume

• Vibrate mode: If this feature is activated,

appears in the status and icon area.

• Mute/Unmute the phone by tapping On/Off.

Adjusting the conversation phone volume should only be done during a call. Adjusting the volume at another time will affect the ring, notiﬁcation, and MP3 sound levels.

Basic phone functions

5.1 Making a call

With your Xda Atom, you can make a call by entering the phone number, or selecting a number from Contacts, Speed Dial, and Call History.

Making a call from the Phone Dialer screen

1. Press or tap Phone on the Today screen to bring up the Phone Dialer screen.

2. Tap the number on the keypad, then tap the Talk button or press the

Input digits

Erase the input digits

Please note

If you tap a wrong number, you can back space by tapping the back arrow key to erase

individual numbers one at a time.

Basic phone functions

Making a call from Contacts

1. Tap Contacts on the Today screen or Phone Dialer screen.

2. Tap the entry, and then tap Call or Call Mobile.

To view/search the contact list:

When you access Contacts, you see a contact list. You may select to view your contacts in the following ways:

• Tap

Menu > Sort by and select Name

or Company.

• Tap Menu > Filter and select All

contacts, Recently viewed or No categories.

• Tap Menu > Options. Set up the List view settings by selecting Show alphabetical index or Show contact names only.

To search for a contact, tap the Enter a name or number bar, and enter the ﬁrst

letter of the desired contact’s name. A list of names with similar letters will be displayed. Scroll up or down to the desired item.

Basic phone functions

Making a call from Call History:

1. In the Phone Dialer screen, tap Call History.

2. Find a number from different Call History types by tapping Menu > Filter and select All Calls, Missed, Outgoing, Incoming, and By Caller.

3. Alternatively, scroll to the number by using the up/down navigation keys and press the centre navigation key to select the number.

4. Scroll to Call Mobile and press the centre navigation key to call the number.

Call History icons include:

Incoming calls Outgoing calls Missed calls

Making a call from Speed Dial

The Speed Dial enables you to call frequently-used numbers with a single tap. To create a Speed Dial entry, you must have the number already stored in the Contacts.

From the Phone Dialer screen, tap

Speed Dial > Menu tab > New.

2. Tap the desired contact name and number.

3. In the Location ﬁeld, tap the ▲/▼ arrows to select an available location to assign as the new Speed Dial entry. (The ﬁrst Speed Dial location is reserved for your voice mail).

Basic phone functions

By memorizing a number’s position in the Speed Dial list, you can dial the number by pressing and holding its position number. By default, the Location function will give you the next available position in the Speed Dial setting screen. If you want to put a number in a position that is already occupied, the new number will replace the number already there.

Please note

To delete a Speed Dial entry, go to

the Speed Dial list, tap and hold the contact name in the box to the right of the assigned speed dial number, and then tap Delete.

Checking your Voice Mail

By default, the ﬁrst Speed Dial location is your voice mailbox. When you insert your SIM card into your Xda Atom, it will automatically detect and set, by default, the voice mailbox number of your network operator.

On the Phone Dialer screen, tap Speed Dial and select Voice Mail, and then press or tap Call to call the voice mail centre.

5.2 Ending a call

Once an incoming or outgoing call is in progress, you can press the , or tap End on the Phone Dialer screen to hang up.

Please note

Alternatively, press the silver button on

the wired stereo headset to end a call.

5.3 Receiving/Ignoring a call

When you receive a phone call, a notiﬁcation message will appear.

To answer the incoming call, tap Answer, or press the

To ignore or reject a call, tap Ignore or press

to mute the phone and reject the call. This may divert the call to your voice mail, depending on your network operator.

Please note

Alternatively, press the silver button on

the wired stereo headset to receive a

call. Please see 5.6 In-call options.

5.4 International calls

When you make an international call from any country, you need to insert a special international access code. If you enter the “+” symbol as a preﬁx before the number you are calling, then you do not need to enter the access code for the country you are calling from.

To make an international call:

1. Tap and hold the 0 key until the + sign

appears. The + replaces the international preﬁx of the country that you are calling from.

2. Enter the full phone number you want to

dial. It should include the country code, area code (without the leading zero), and phone number.

3. Tap Talk or press the

Basic phone functions

5.5 Emergency calls

Enter the international emergency number 112, then tap Ta lk or press the .

Additional emergency numbers may be included on your SIM card. Contact your network operator for more information.

If your Atom has been put into Device Lock mode, you have to unlock the device ﬁrst before placing emergency call. (Refer to Page 23, Section 1.5)

1. Press the “Unlock” on Left soft key.

2. Press again “Unlock” appear on the middle of screen.

5.6 In-call options

Adjusting the earpiece volume

During a call, you can adjust the earpiece volume on your wired stereo headset by turning the volume button to the right/left to increase/decrease the volume (with the silver button facing towards you).

- Volume +

Send/End button

Turning on the speakerphone

Your device has a speakerphone allowing you to talk hands-free or let other people listen to the conversation.

1. During the call, press and hold the

or tap the Menu tab > Turn

Speakerphone On.

2. To turn the speakerphone off, tap the feature again.

Warning

To avoid damage to your hearing, do

not hold your Xda Atom against your ear when it is in speakerphone mode.

Muting a call

When there is an incoming call, you may mute your microphone by pressing the Mute button on the Phone Dialer screen or tap

Menu tab > Mute.

Putting a call on hold

During a call, you may choose to put the call on hold to receive or make a second call.

To put a call on hold, tap Hold or tap Menu >

Hold.

To accept/end another incoming call:

1. Tap Answer to take the 2nd call and put the 1st one on hold.

2. To end the 2nd call and go back to the 1st one, tap End or press the

To swap between two calls, tap Swap or tap the Menu tab > Swap.

Setting up conference calls

In either of the following two situations, you can set up a conference call:

• When you put a call on hold, dial a 2nd number and wait for it to be picked up.

• When you accept a 2nd incoming call and the ﬁrst one still in progress.

Basic phone functions

To make a conference call:

1. In either of the above two situations, tap Conference.

2. If the conference connection is successful, the word Conference will appear at the top of

the Phone Dialer screen.

3. To add additional people to your conference call, tap Hold to enter the new number, and then tap Resume to return and continue.

Adding a note

Regardless of whether you call from the Phone Dialer screen, Contacts, Call History, or Speed Dial, you can take notes during/after a call. The note can be saved as an attachment to your call in one of the Call History folders.

Writing a note

1. During/After a call, tap Note.

Use any of the input methods to record

your note and then tap OK. You can ﬁnish your note during or after the call.

Viewing a note

1. In the Call History list, tap and hold the desired number, then tap View Note in the pop-up menu. The icon indicates a note.

2. Alternatively, go to Notes, and then tap the name of the ﬁle in the list.

Basic phone functions

5.7 Contacts information

Contacts can be imported in the following ways:

• From your SIM card: Use your SIM card in your Xda Atom and another device; while using the other device you create one or more new contacts on the SIM card.

• From your Call History: New contact numbers can be found in incoming or missed calls.

Why import contacts?

• You can back up your SIM numbers to your Xda Atom.

• When setting Speed Dial numbers, these must be based on the contacts in Contacts, not on the SIM card.

• Creating contacts in Contacts creates more detailed records.

• Only Contacts can have Photo Contacts for individual contact entry.

SIM Contacts

To copy your SIM contacts to Contacts on your phone:

1. To open SIM Contacts, tap Start > Programs > SIM Contacts. Wait for your SIM card contents to load.

2. After the SIM contents have loaded, tap Copy Now to copy your new SIM contacts to Contacts.

Basic phone functions

Call History

To view the Call History, tap Phone on the Today screen and tap Call History on the Phone Dialer screen.

Alternatively, you can add a new contact when you just ended a call. Tap Menu tab > Save to Contacts. Enter the caller’s name and other information and tap OK when you ﬁnish editing.

Alternatively, go to Call History, tap and hold the number to bring up the pop up menu and select Save to Contacts.

Please note

When the contact is created, the call details in the Call History will be amended and

displayed under the name, not the phone number.

Photo Contacts

Photo Contacts allows you to assign still or animated photos to the entries in your Contacts.

When a person (for whom you have previously assigned a photo in Photo Contacts) calls you, that photo will appear on your Xda Atom’s incoming call screen. Use the rich set of features provided to have the photos displayed with the size, position, and animated template you want.

Creating a new photo contact

You can create a photo contact in the following ways:

1. Tap Contacts on the Today screen or Tap Phone > Contacts button> New tab.

2. Enter the Contact’s name and other information.

Basic phone functions

3. Scroll to the Picture ﬁeld and tap Select a picture.

4. Tap on a desired picture and it will be assigned to the entry. (To delete the picture, from the Contacts edit screen, tap Menu tab > Remove Pictures).

Alternatively, you can assign a picture to a contact.

Tap Start > Programs > Pictures &

Videos > My Pictures folder.

Tap the desired picture to view and tap

Menu > Save > Save to Contact.

Basic phone functions

5.8 Device security

You can guarantee your phone’s security by making use of the following security features:

Device lock

The keypad lock turns off the keypad functionality. This is a helpful feature if, for example, your Xda Atom is turned off and put in your pocket, and you don’t want it from being pressed accidentally.

1. Tap Device unlocked on the Today screen to lock the keypad.

2. Once you lock the phone, this area displays Device locked.

3. To unlock your keypad, tap Unlock on the bottom left of the Today screen and tap Unlock again to conﬁrm.

Basic phone functions

Device lock

This phone lock feature protects your Xda Atom from unauthorized access to your personal data. When phone lock is activated, your Xda Atom will automatically lock after a speciﬁed period of inactivity. A screen will be displayed requiring your Xda Atom’s “lock password” to be entered before access is granted.

Tap Start > Settings > Personal tab >

Password.

Check the Prompt if device unused

for option and set the prompt notiﬁcation tiome.

3. Select the type of password you would like to use: Simple 4 digit or Strong alphanumeric. A strong password must have at least 7 characters that are a combination of uppercase and lowercase letters, numerals, and punctuation.

Enter the password, and, if necessary,

conﬁrm the password.

To disable the Phone lock feature of your Xda Atom, uncheck the Prompt if device unused for option.

In case you forget your password, you can provide a password hint in the Hint tab under the Password tab.

Basic phone functions

Locking your SIM card

You can protect your Xda Atom from unauthorized use by assigning a PIN (Personal Identiﬁcation Number). Your ﬁrst PIN is assigned by Network Operator.

1. Tap Start > Phone or alternatively tap the Phone button on the Today screen.

2. On the Phone Dialer screen, tap Menu tab > Options > Phone tab.

3. Check the Require PIN when phone is used option.

4. To change the PIN at any time, tap Change PIN.

Chapter 6

Messaging

6.1 Text

6.2 Multimedia messages (MMS)

6.3 Voicemail

6.4 E-mail

6.5 Pocket MSN

Messaging

6. Messaging

You can receive E-mail and text messages in Messaging. Text messages are sent and received through your network operator by using a phone number as the message address.

Your phone supports the following messaging services:

• SMS (Short Messaging Service) allows you to send short messages. To send an SMS message, your must register for SMS service with your network operator. For more information, please contact your network provider.

• MMS (Multimedia Messaging Service) allows you to send multimedia messages. In a MMS message, you can include text, pictures, photos, sound ﬁles or recorded voice. To send an MMS message, your must register and conﬁgure the MMS service with your network operator. For more information, please contact your network provider.

• Chat allows you to send messages back and forth with friends. This feature is network dependent. This feature is supported by the O2 SMS Plus application.

• Voice Mail: You can forward a call to your voice mail box when you are unable to receive a call. The voice mail centre will send you a notiﬁcation.

• E-mail: You can send or receive E-mails with your Xda Atom by either synchronizing your Outlook E-mails or connecting to the Internet.

• IM (Instant Messaging service): Your Xda Atom is equipped with Pocket MSN application. To send instant messages, you need to connect to the Internet.

Messaging

6.1 Text

Write a text message

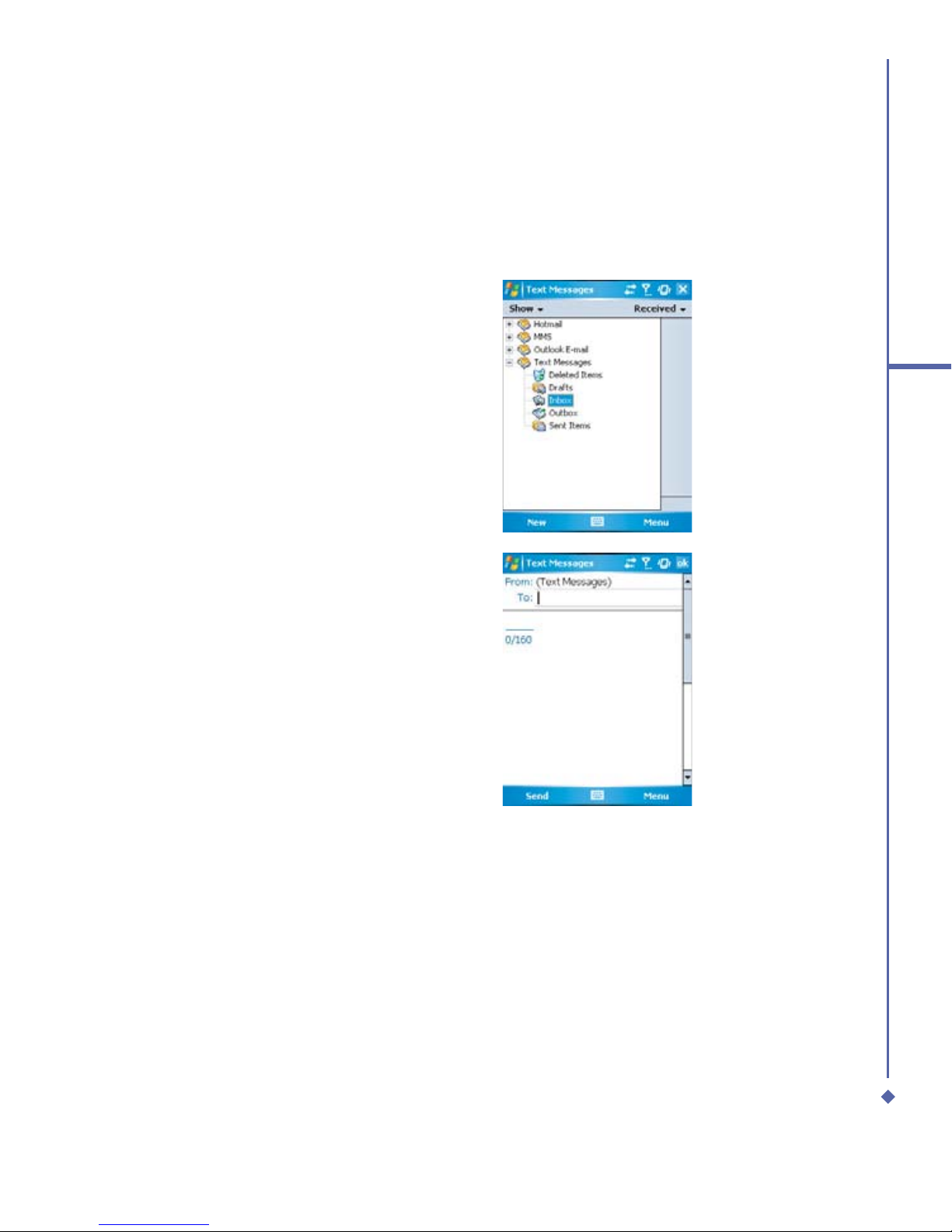

To create a text message:

1. Tap Start > Messaging and select Inbox folder.

2. Tap New tab and add recipients in the To: ﬁeld. Alternatively, tap Menu tab > Add Recipient.

Messaging

3. Tap on the edit screen and start editing.

For the entry method, please refer to 2.6 Entering information.

4. To add predeﬁned text, tap Menu > My Text and select a text.

5. When you ﬁnish editing the text, you can start the spell check by tapping Menu > Spell Check.

6. To save the message to the draft box, tap Menu > Save to Draft.

7. Before you send the message, you can choose to receive a delivery notiﬁcation by tapping Menu > Message Options and checking the Request message delivery notiﬁcation box.

8. To send the message, tap Send.

Messaging

Read messages

Text messages are automatically received when your phone is turned on. Otherwise, messages are held by your network operator until the next time your phone is connected to the operator network.

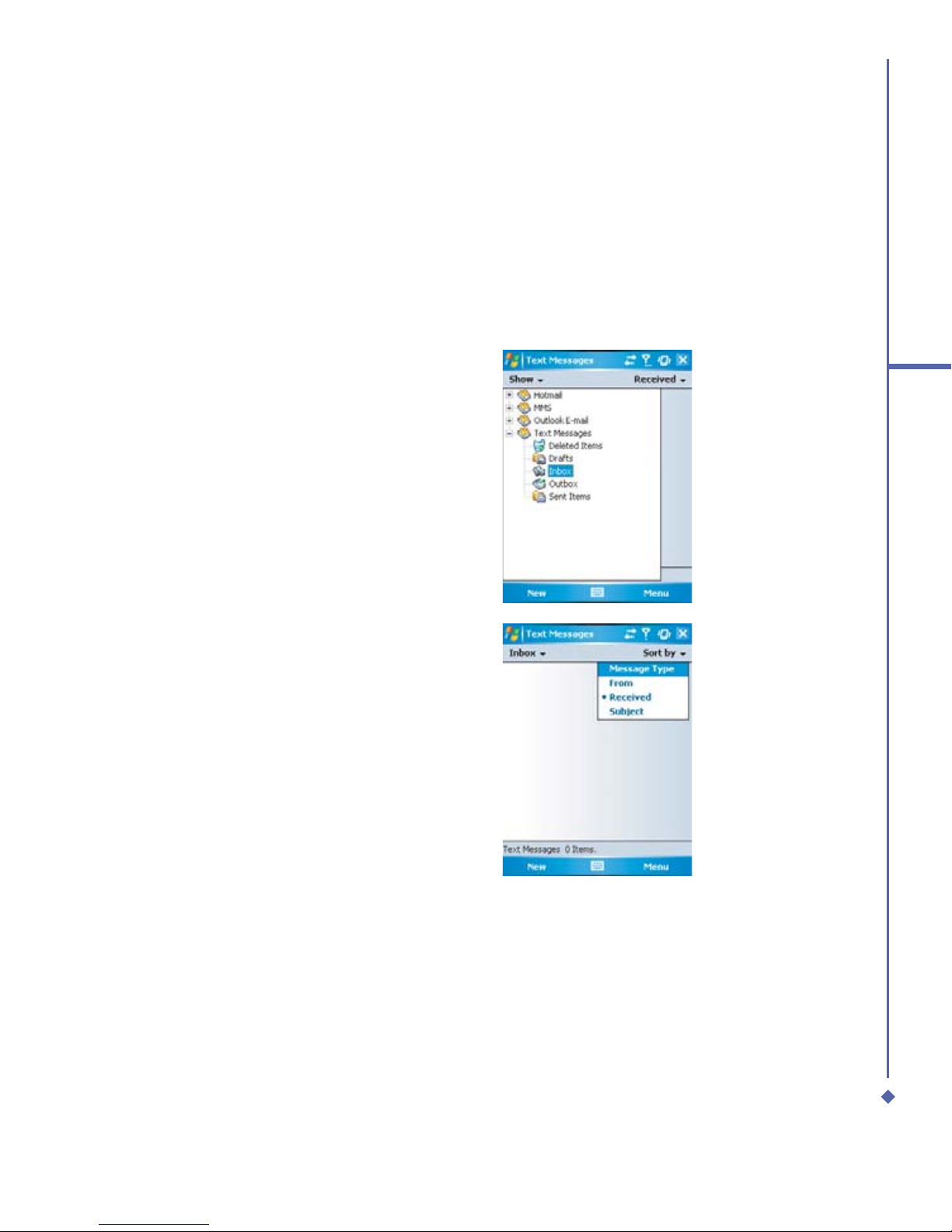

To read text message(s):

1. Tap Start > Messaging.

2. Select Text Messages folder and sub-folder under Text Messages, for example, Inbox, Outbox, Sent Items, or Deleted Items.

3. Select how you want to sort the messages.

Messaging

4. Tap Menu to access more options:

• Tap Switch Accounts to switch your

current account to Outlook E-mail, Hotmail, or MMS.

• Tap Tools to Manage Folders,

Empty Deleted Items, Clear “Text Messages”, create a New Account,

and more Options (to change settings for Accounts, Message, Address, and Storage).

Messaging

Settings

Text Message settings allows you to customize your Accounts, Message, Address and Storage.

• Accounts: Tap an account to change settings. For example, tap Text

Messages to change Request delivery notiﬁcations and Use Unicode when necessary. Tap New Account to set up

a new account, or tap Signatures… to use signatures to designate accounts.

• Message: Set up the following messaging features—When replying

to e-mail, include body, Keep copies of sent items in Sent folder, and the display After deleting or moving a message feature.

Messaging

• Address: Select whether to get E-

mails from all the contacts with E-mail addresses; alternatively, you can verify names by deﬁning their E-mail addresses.

• Storage: Check the memory space

of your phone, storage card and attachments, Store attachments on storage card and specify how you want to empty your deleted items.

6.2 Multimedia messages (MMS)

Your Xda Atom allows you to create and share your own MMS messages (complete with photos, videos, text, and audio) with your friends and family. You can even use the Xda Atom’s built-in camera to snap photos and send them immediately by composing an MMS message.

Messaging

Launching the MMS composer screen

You can access MMS directly by tapping Start > Messaging and selecting the MMS folder. Your device also provides you with several ways to launch the MMS composer screen:

• From Pictures & Photos: Select any picture in the My Pictures folder, tap Menu > Send and select an account

—MMS. At this point you will be directed to the MMS composer

screen in Messaging.

• From Camera (Optional): Capture a picture or a video clip. Select the ﬁle and send it via MMS.

Please note

You must conﬁgure the proﬁles, connections and downloading settings before you can

send and receive MMS messages.

Create an MMS message

In the Inbox, you will see messages listed with the following parameters:

• Receive from

• Time when the message was received

• Subject of the message

Creating an MMS Message

MMS messages are created by combing various slides. Each slide can consist of a photo, an audio or video clip, audio, or text.

1. Tap Start > Messaging > MMS folder. In the MMS Inbox, tap New. You will automatically be taken to a blank MMS compose screen.

Messaging

2. Enter the recipient’s address To: and

the Subject of the message.

Scroll up to view the Bcc and Cc ﬁelds.

3. Tap Menu to view more options: tap

Insert Picture/Video or Menu > Insert > Picture to access the image selection screen.

4. Select an image and insert to your

message. You can also insert an audio ﬁle or text.

Messaging

5. Tap Menu to get more editing options.

For details, please refer to the following MMS menu options.

The MMS compose screen menu includes the following options:

Items Description

Add Recipient Add a new contact from your Contacts list.

Check Names

This option helps you to search for the names beginning with the letters of the alphabet that you entered in the To, Bcc, or Cc fields.

Insert (Picture, Video, Audio, or Sound Recorder)

Select the file type that you would like to insert into your message. If the message contains an audio or image file, then the video file cannot be inserted.

• If you select to insert Sound Recorder, a record screen displays:

Record time in seconds

Play

Tap Menu > Select and specify the file name and save the file.

Messaging

Items Description

My Text

A list of pre-defined texts, which can be inserted into your MMS message.

Remove Recipient/ Subject, Picture/ Video/Audio/Text)

Depending on the cursor location, the Remove item varies. If the cursor is on the Insert Audio field, then this item shows Remove Audio.

Slides (Insert, Delete, Next, Previous, Duration)

You can create/delete slides in your message, navigate between the next and previous slide, or specify the display duration of each slide.

Messaging

Items Description

Options

More options include

• Background Color: Select a background color from a color palette

for your message.

• Message options: You can change settings for Priority, Validity period (maximum, 12 hours, 1 day, 1 week, and 1 month), reception of a Delivery report or Read report.

• Message settings: Under the General tab, you can modify settings for profile and data connection. A profile contains connection details such as the address of the MMS server, gateway, username, and password for authentication by the gateway, IP address and port number. You can also specify the Message Size and download type (Manual or Automatic under the Send/Receive field). While under the Advanced tab, you can configure to download messages depending on whether they have been set as Personal,

Informational, Advertisement or Automatic.

Preview To view the composed message before sending, tap Replay.

Save to Drafts Save the message to your drafts folder.

Cancel Message

To cancel the sending of the composed message and return to Inbox. Before canceling, you can save the message to the drafts folder.

About

The information about the software can be obtained from this feature. The company name, the version, the build number and the release date of the software are displayed.

Messaging

MMS folder options:

Within each message box, you can tap and hold on an individual message to see various options.

Items Description

Delete

Delete the selected message. The deleted message will be stored in the

Deleted Items folder.

Reply to the sender only of the selected message. When selecting this option, you are taken to the compose message page where you can compose a message to be sent as a reply. You can change the subject and other fields.

Reply All

Reply to all the senders and recipients present in the Cc and Bcc fields. You can change the subject and other fields.

Forward

Forward the selected message to other recipients. On selecting this option, you are taken to the page where your original message is retained, and you can then edit it before sending. You can change the subject and other fields.

Move

Move the selected message to a different folder. The folder list is displayed to select the folder where the message is to be moved to.

Mark as Read/ Unread

Mark the selected message as read or unread. The read and unread feature depends on whether the message is read or not.

Download Message Download the message from the server.

Send/Receive Refresh and download the pending messages.

Switch Accounts Switch between different accounts (SMS, MMS or Outlook)

Messaging

Items Description

Tools

This option helps you to Manage Folders, Empty Deleted Items, Clear “MMS”, create New Account, and access more features.

• Manage Folders: On selecting this option, you get the list of MMS folders, where you can create new folders, rename, delete and view the folder options.

Please note

The system folders (including Inbox, Deleted Items, Drafts,

Outbox, and Sent Items) cannot be deleted.

• Empty Deleted Items: An alert message asks if you want to delete all messages permanently, which cannot be recovered once deleted.

• Clear MMS: To clear all the messages and subfolders under the MMS folder. Tap Yes to confirm deleting.

• New Account: To create a new E-mail account.

• Options: You can edit the settings for your account and messages,

address book and storage. Please refer to Settings under 6.1 Text.

Messaging

Read MMS messages

You have several options when viewing a message:

1. Use the playback controls (Play/Pause, Stop) to view the message. You can pause it

anytime during playback.

2. Tap Objects to see a list of ﬁles. If you want to save a particular ﬁle, tap it, and then choose Save from the Tools menu.

3. To view the slides manually, use the navigation buttons to scroll through the message.

6.3 Voicemail

Most mobile network operators offer this external voice mail service to their subscribers. This function enables you to divert received calls to a voice mail centre where callers can leave voice messages under the following circumstances:

• if your phone is switched off or is not able to receive signals;

• if you did not answer the call;

• if you are currently on the phone

You will be notiﬁed of a voice mail message by an icon in the Today screen. If the voice mail service is not included in your mobile network operator’s package, you will have to subscribe to the service separately and conﬁgure the settings manually. The voice mail service is network dependent. Contact your mobile network operator for more details.

Please note

The voice mail service is SIM card and network dependent.

To call the voice mail centre

Tap Phone > Speed Dial and call from Speed Dial 1. Alternatively, enter the voice mail centre number on the Phone Dialer screen and tap Talk or press Call key.

Please note

For more details about Speed Dial, please refer to 5.1 Making a call.

Messaging

6.4 E-mail

The Outlook E-mail account on your Xda Atom is used to store messages that you send and receive through synchronization with a PC. Account names appear when you open the folder list, which is located on the left, under the navigation bar, in the message list view.

You can receive E-mail and text messages in Messaging. E-mail messages are sent by using an address that you receive from your Internet network operator (ISP), an E-mail network operator, or your employer. You can also send and receive E-mail by synchronizing with your PC, or by connecting to a Post Ofﬁce Protocol 3 (POP3) or Internet Message Access Protocol 4 (IMAP4) mail server. Aside from the default Outlook E-mail account, you need to manually set up other E-mail accounts.

How you download copies of messages depends on how you are receiving messages:

• If you receive E-mail messages through a remote E-mail server, follow the instructions as

described in the following Downloading messages from a server.

• If you receive E-mail messages through ActiveSync, begin synchronization. For more

information, please refer to 3. Synchronization.

With synchronization, messages are synchronized between your Xda Atom and the PC

by using ActiveSync and Microsoft Exchange or Outlook. For more information, see 3. Synchronization.

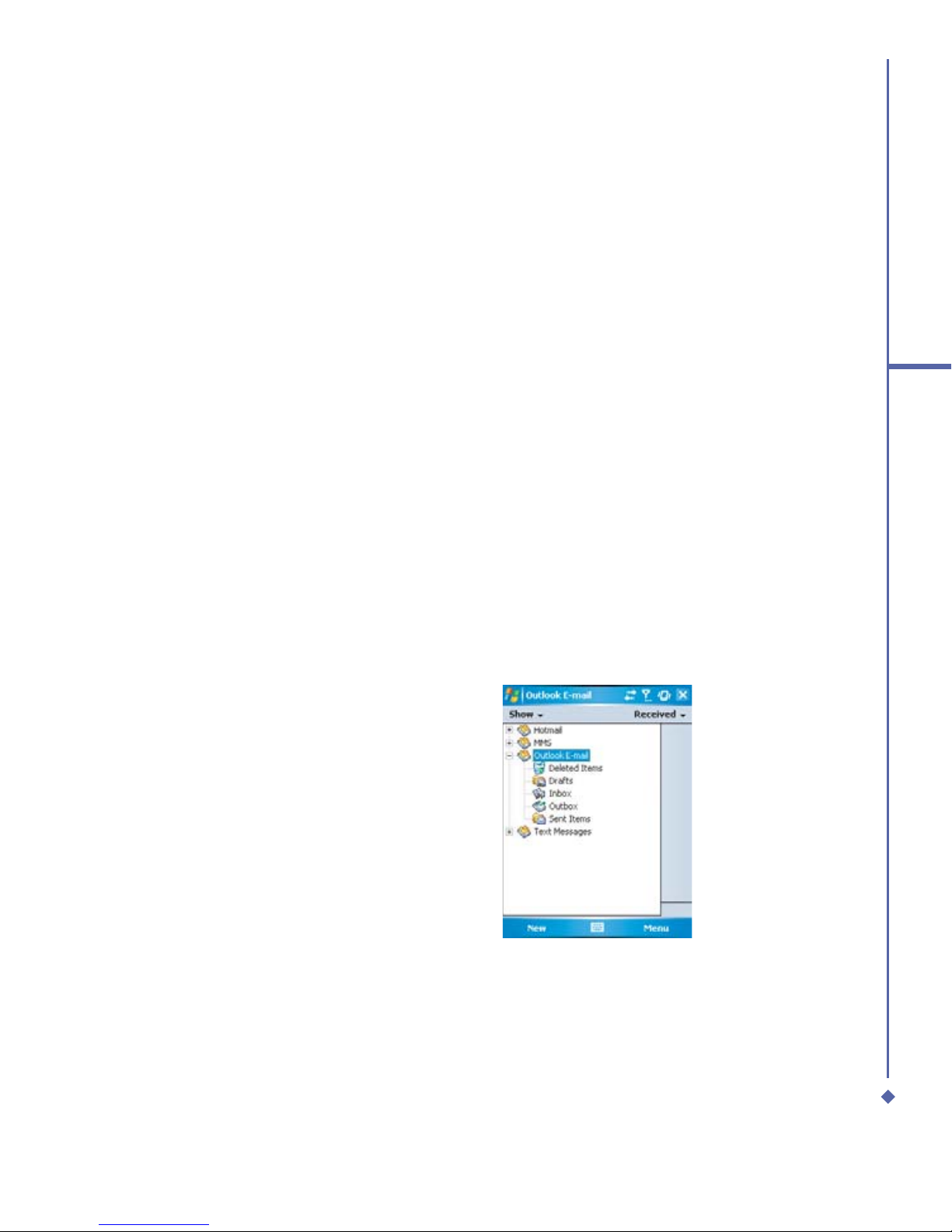

Setting up an account:

1. Open Messaging on your Xda Atom by tapping Start > Messaging.

2. Select the Outlook E-mail folder.

Messaging

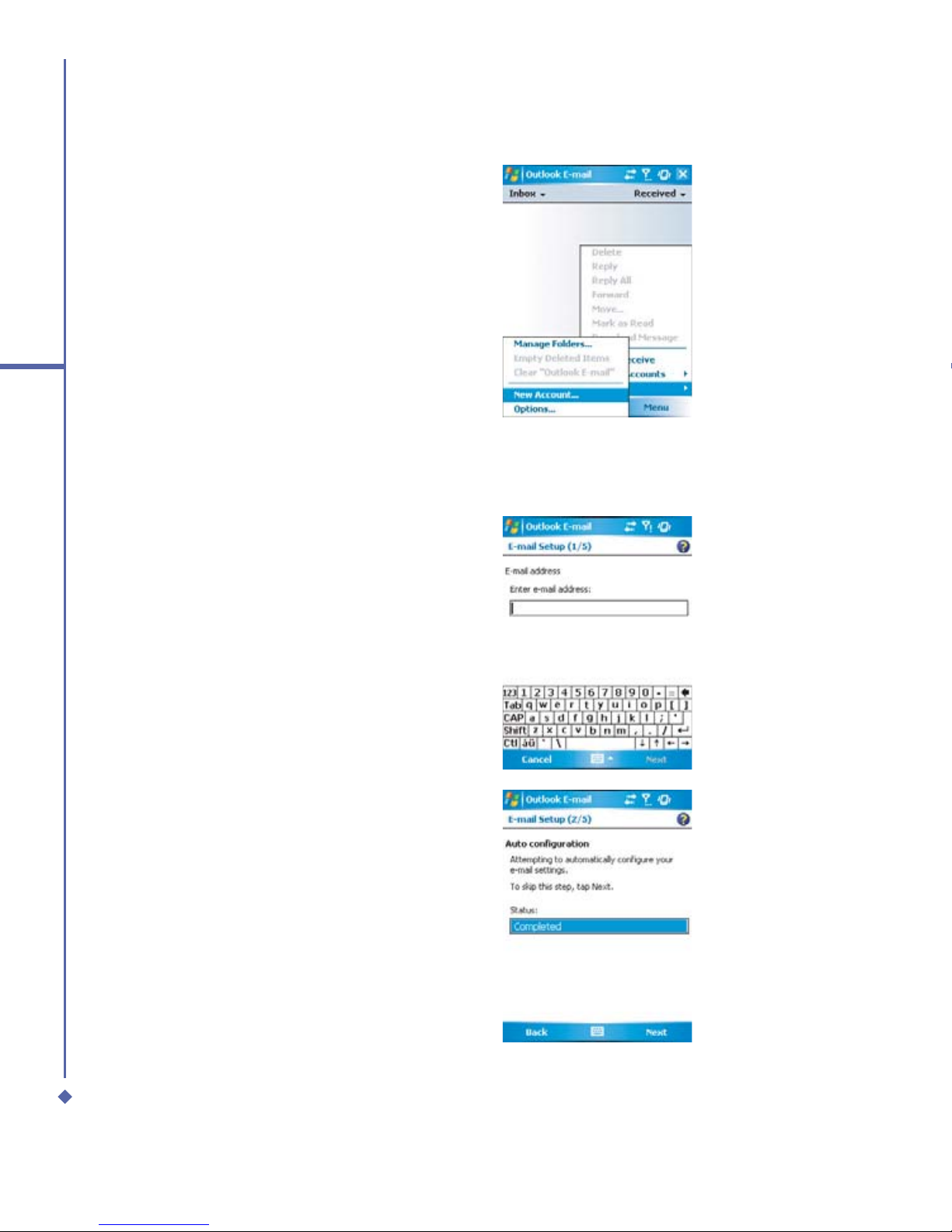

3. Tap Menu > Tools > New Account and

set up an account.

4. The E-mail Setup screen will prompt

you to ﬁll in the necessary information to complete the setup.

5. Fill in your E-mail address, and tap

Next.

6. The E-mail Setup will attempt to

connect your Xda Atom to your E-mail server and automatically download the necessary connection settings. If the auto conﬁguration is unsuccessful, contact your ISP or network administrator. If you know your email settings, press Next to proceed.

Messaging

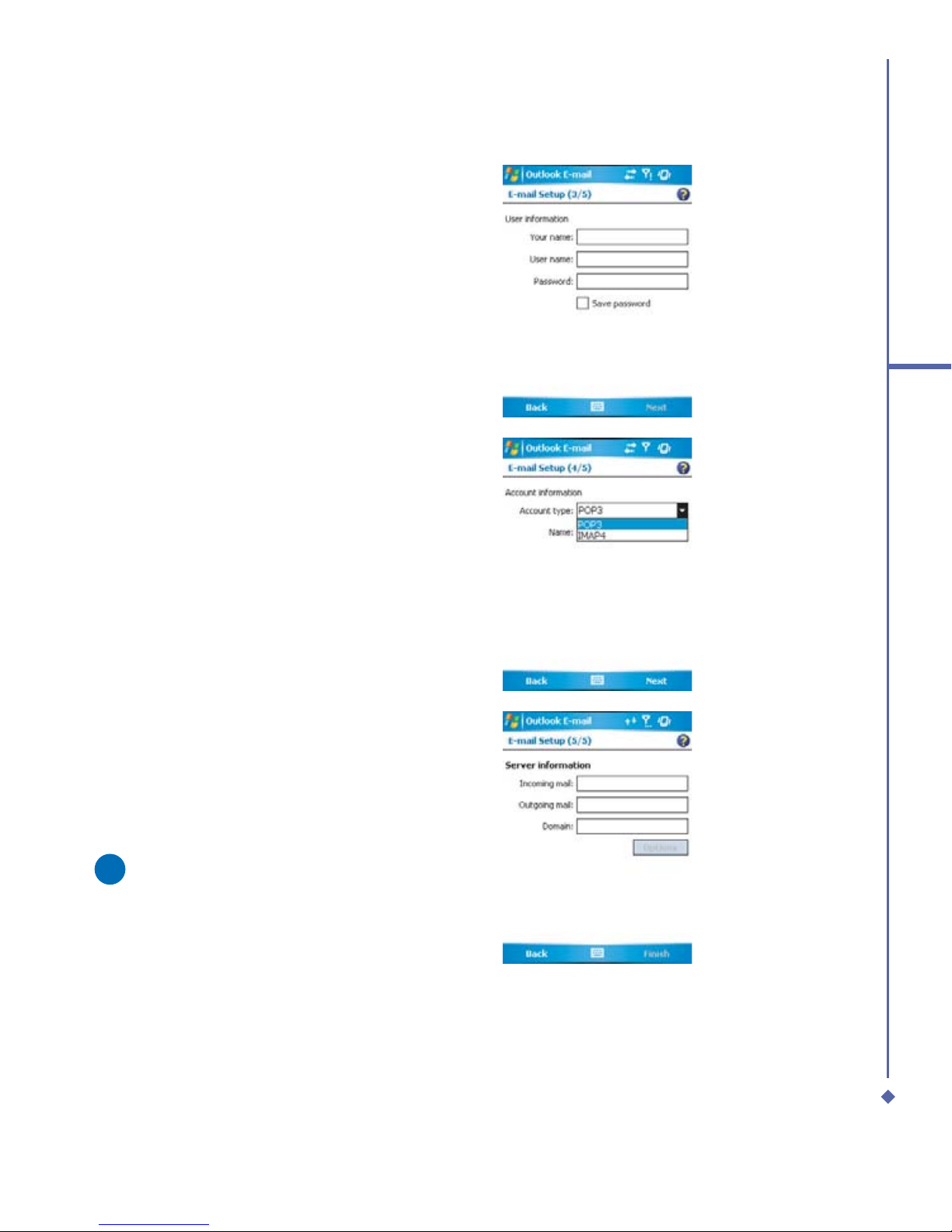

7. Enter Your name, User name and Password, and tap Next. If you check the Save password box, your device will not ask for your password the next time you log in to an E-mail account. However, other people can access your account if you lose the device.

8. Select the appropriate Account type that your E-mail provider supports (POP3 or IMAP4). Enter a Name for your E-mail account, and tap Next.

9. Enter your E-mail provider’s server name information for Incoming mail and Outgoing mail, and tap Finish.

Please note

For security reason, some ﬁxed line

ISPs may restrict access of their outgoing mail servers to their own ISP network infrastructure. In this case, you may need to use the Outgoing mail server (if available) provided by your mobile operator.

Messaging

When you ﬁnish, your new E-mail account will be displayed under this menu. You can start connecting to your E-mail server at this point. You can set up several E-mail accounts, including your Outlook E-mail account.

Please note

To delete an account, go to the account’s folder. Tap and hold the account’s name and

tap delete.

Downloading messages from a server

In Messaging, select Outlook E-mail or another account to open a connection to the Internet or your corporate network, depending on the account.

1. Select an account and ensure that the account you want to use is selected (marked by a bullet).

2. Tap Menu > Download Message. The messages on your device and E-mail server are synchronized. New messages are downloaded to your Xda Atom Inbox folder, messages in your Xda Atom Outbox folder are sent, and messages that have been deleted from the server are removed from your Xda Atom Inbox. Tap a message in the message list to open it. For E-mail viewing menu options, please refer to the following section.

To cancel downloading a message, tap Menu > Do not download.

3. If you read a message you can mark it as read or unread by tapping Menu > Mark as Read or Mark as Unread.

4. When ﬁnished, tap Accounts > Disconnect.

Messaging

E-mail viewing screen options:

After you select an E-mail from an account, tap Menu to access the following options:

Items Description

Delete

Delete the selected message. The deleted message will be stored in the

Deleted Items folder.

Reply All

Reply to all the senders and recipients present in the Cc and Bcc fields. You can change subject and other fields.

Forward

Move

Move the selected message to a different folder. The folder list is displayed to select the folder where the message is to be moved to.

Mark as Read/ Unread

Mark the selected message as read or unread. The read and unread feature depends on whether the message is read or not.

Download Message Download the message from the server.

Save to Contacts Create a new entry in your Contacts list.

Send/Receive Refresh and download the pending messages.

Languages Open a list of languages to select from.

Messaging

Receiving attachments

An attachment sent with an E-mail message or downloaded from the server appears as an icon at the bottom of the message in its own window panel. Tapping the attachment icon opens the attachment if it has been fully downloaded. You can mark an attachment for downloading (IMAP4 account only) the next time you connect.

For Outlook E-mail attachment through synchronization:

1. Start ActiveSync on your PC.

2. Click File > Mobile Device and then select your mobile device.

3. Click Tools > and then click Options.

4. Select the message account > Settings, and then select Include File Attachments.

Through a remote IMAP4 E-mail server:

1. From Messaging, tap Accounts > Accounts... > IMAP4.

2. Tap Next until you reach Server Information > Options.

3. Tap Next twice > Get full copy of messages and When getting full copy get attachments.

Embedded images and objects cannot be received as attachments. An embedded message can be viewed as an attachment when using IMAP4 to receive E-mail. However, this feature does not work if TNEF (Transport Neutral Encapsulated Format) is enabled so that you can receive meeting requests.

Messaging

Creating an E-mail

1. Tap Start > Messaging and select Outlook E-Mail, or the desired E-mail

account. For account menu options, please refer to the following section.

2. Tap New.

3. Enter the E-mail address of one or

more recipients, separating them with a semicolon. To access addresses and phone numbers from Contacts, tap To or tap Menu > Add Recipient….

4. Enter your message. To quickly add common messages, tap My Text and tap a desired message.

5. To check spelling, tap Menu > Spell Check. For E-mail composer menu options, please refer to the following E-mail composer menu options.

6. Tap Send. If you are working ofﬂine,

the message is moved to the Outbox folder and will be sent the next time you connect.

100

Messaging

Account menu options:

When you select an account, tap Menu to access the following options:

Items Description

Delete

Delete the selected message. The deleted message will be stored in the

Deleted Items folder.

Reply All

Reply to all the senders and recipients present in the Cc and Bcc fields. You can change subject and other fields.

Forward

Move

Move the selected message to a different folder. The folder list is displayed to select the folder where the message is to be moved to.

Mark as Read/ Unread

Mark the selected message as read or unread. The read and unread feature depends on whether the message is read or not.

Download Message Download the message from the server.

Send/Receive Refresh and download the pending messages.

Switch Accounts Switch between different accounts (SMS, MMS or Outlook).

O2 Xda Atom Getting Started

Specifications and Main Features

Frequently Asked Questions

User Manual
