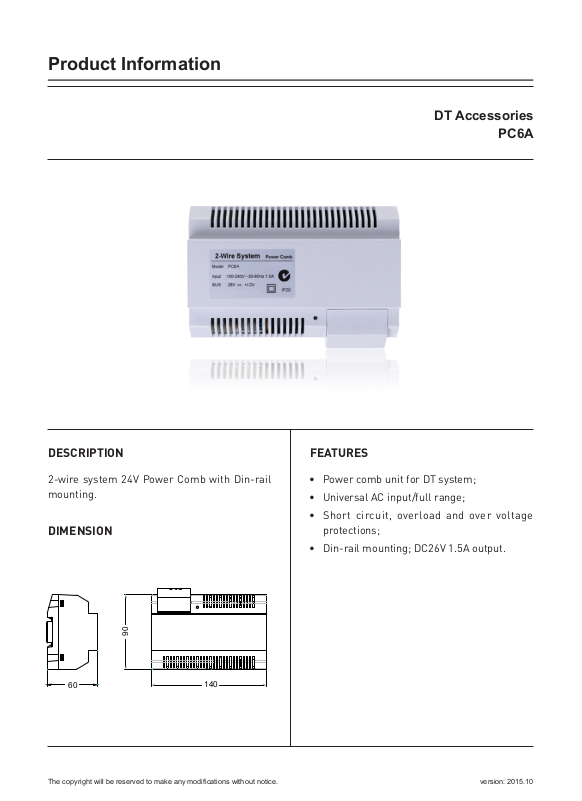

PC6A

DESCRIPTION FEATURES

2-wire system 24V Power Comb with Din-rail
mounting.

DIMENSION

90

60

The copyright will be reserved to make any modications without notice. version: 2015.10

140

• Power comb unit for DT system;

• Universal AC input/full range;

• Short circuit, overload and over voltage

protections;

• Din-rail mounting; DC26V 1.5A output.

DT Accessories

PG

PG

N L L

LED

CN2

1 2 3

BUS(IM) BUS(DS)

N L

100~240 Vac

L

PC6A

PARTS AND FUNCTIONS SPECIFICATION

PG: Earth ground port.

N: AC input.

L: AC input.

LED: power indicator,always on when plug in

power.

CN: bus control terminal.

BUS(IM): indoor monitor connection terminal.

BUS(DS): door station connection terminal.

The copyright will be reserved to make any modications without notice.The copyright will be reserved to make any modications without notice. version: 2015.10

Input Voltage: 100~240Vac

Input Frequency: 50~60Hz

Rated Output Voltage: DC 26V±2V

Rated Output Current: 1.5A

Working Temperature: -200C~550C

SW Port Input Voltage: Max.230Vac, 2A

Dimension: 140*90*60mm
