Product Information
DT Accessories
DT-SCU
DESCRIPTION
2-wire system CCTV camera control unit.
DIMENSION
90.00
60.00
72
FEATURES
► Camera controller for DT system;
► Support normal CCTV and DT-CAM;
1.Parts and Functions
DIP switch
RS485
ON
123456
INDICATORS BUTTONS
BUS(IN)
BUS(OUT)
ON
123456
2-Wire System
Model: SCU
Power In-Use
CAM(1~4)
Camera Interface
CAM1 CAM2
CAM3 CAM4
CAM1
CAM2
CAM4
CAM3
RS485:
CAM1~2:
CAM3~4:
BUS(IN):
BUS(OUT):
BUTTONS:
Reserved.
Connect to regular analog CCTV(the following called TYPE A Camera).
Connect to 2 wire camera(the following called TYPE B Camera ).
Connect to the bus line, no polarity.
Connect to the bus line, no polarity.
Press CAM1~CAM4 button, it can control the corresponding video output.
INDICATORS:
1.Power:
2.In-Use:
Working indicator, always on when the SCU work normally.
Video output indicator, always on when the SCU output the video.
3.CAM(1~4):
Video output indicator.
2. Unit Mounting

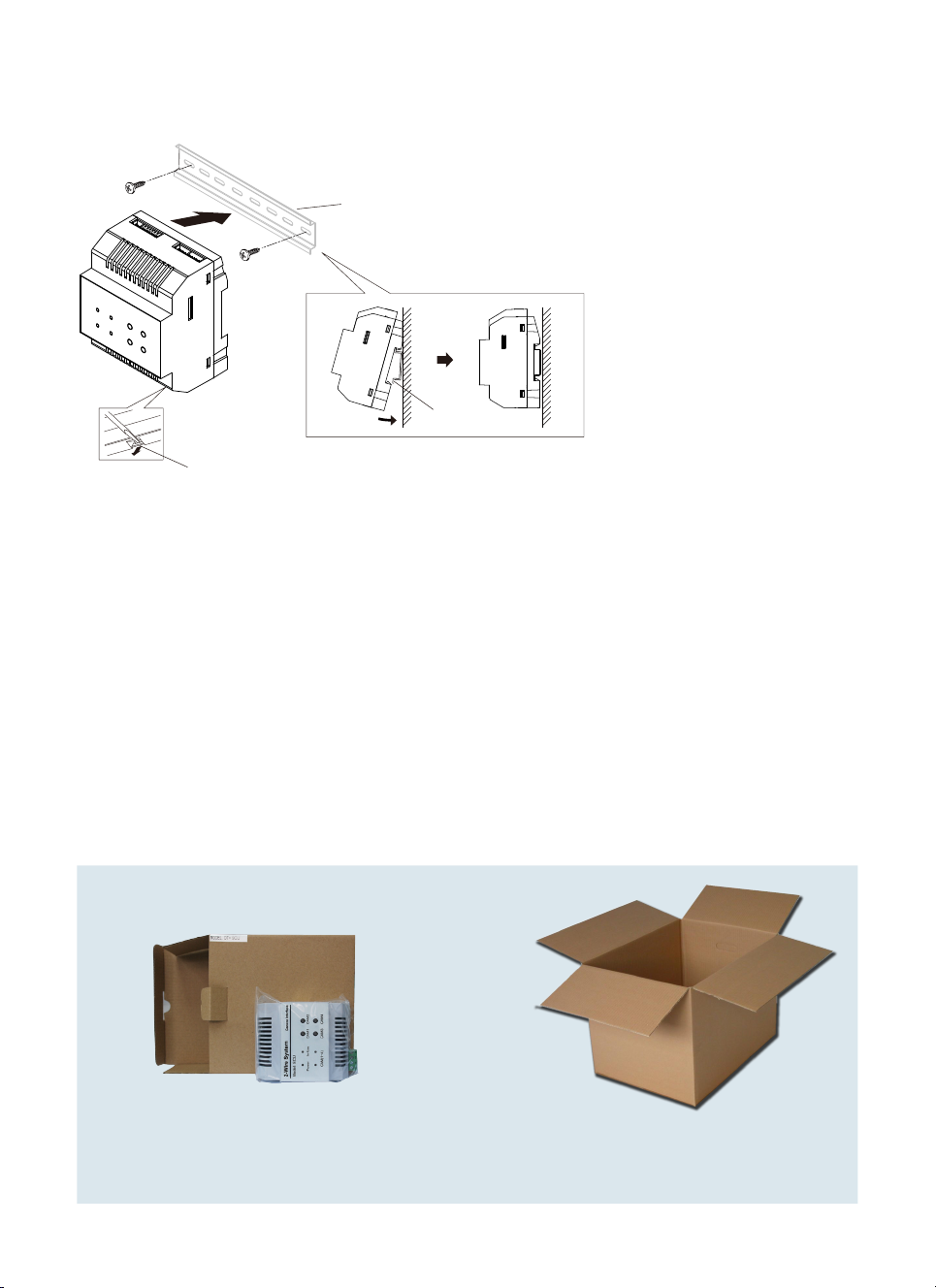

Din rail
Step1: Mount the din rail to
the wall with screws ;
Step2: Pull down the mounting
buckle,then hang the unit on
Din rail
Mounting Buckle
din rail.
3. Specification
●Power Supply : DC 26V
●Power Consumption: Standby 0.4W; Working status 0.8W~1W
●Working temperature: -15ºC ~ +55ºC
●Wiring: 2 wire,non-polarity
●Dimension: 90(H)X72(W)X60(D)mm
4. Packing Information
Dimensions: 73(H)×73(W)×108(D)mm
Gross Weight: 0.23Kg
Carton: 530 (H)×340 (W)×258 (D)mm
Quantity: 56PCS
