DT-RLC
Relay actuator
User Manual
DT-RLC
GND NO COM NC
POWER IN-USE
2-WIRE SYSTEM
12V S2 S1 GND
BUS BUS
RISER
1
2
3
Please read this manual carefully before using the product you purchase, and
keep it well for future use.We reserve the right to modify the specification in
this manual at any time without notice.
1.About DT-RLC Unit
Discription:
The relay actuator DT-RLC is a unlock function device designed for DT system to
control door locks. It has the features as follows:
•Allows to open gate door locks;
•Support high power-consumption lock;
•With congurable unlock timed output;
•Support exit control button.
2. Parts and Name
BUS
12V
S2
S1
GND
1
2
3
DIP
lock Control
Jumper
1
2
3
POWER
IN-USE
COM
GND
NC
NO
DT-RLC
GND NO COM NC
POWER IN-USE
2-WIRE SYSTEM
12V S2 S1 GND
BUS BUS
RISER
+12V:12V power output. Can be used to power the lock.
ON
2 3
1
1 2 3
DIP
S2:Reserved.
S1:Exit button contact. Short this contact and the GND to unlock.
GND:The common Ground of the other 3 contacts: S1, S2 and +12V.
-1-
NC:The normally-closed contact to COM.
COM: The common contact of the unlock relay.
NO: The normally-open contact to COM.
Lock Control Jumper: To select the lock type: see section 5,6.
POWER:Working indicator,it will light up when plugs in power supply.
IN-USE:Unlock indicator,it will light up when unlock.
Bus:Connect to the bus line, no polarity.
DIP :Used for setting the address of the RLC.
2. Unit Mounting
DT-RLC
GND NO COM NC
POWER IN-USE
2-WIRE SYSTEM
12V S2 S1 GND
BUS BUS
1
2
3
RISER
DIN Rail Mounting
3. How to set the unlock delay time
1). Power-on within 5 seconds, short-circuit S2 up to 3 seconds, the IN-USE indicator
ash.
2). Short-circuit S1 up to 3 seconds, and the IN-USE indicator always light.
3). Short-circuit again S2, at this time,the short-circuit time equal to unlock delay time.
(the IN-USE indicator ashes once per second, Less than two seconds by one second
calculation; The maximum setting time is 30 seconds.)
4). After S2 released, saved unlock delay, and exit the setting.
-2-
4. DIP Switch Setting
ON
ON
1
2 3
ON
ON
ON
ON

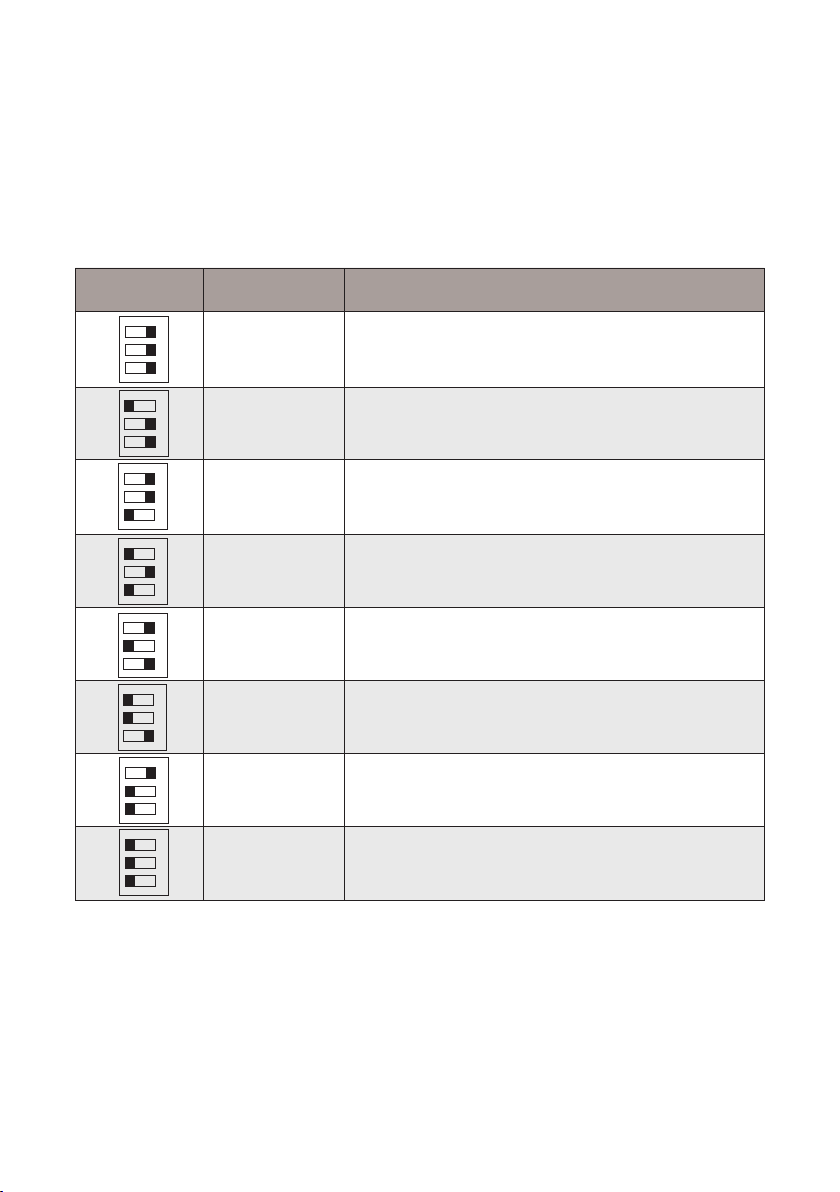

The DIP switch in the back of the panel is used to set the address of the RLC. Please
refer to the followings for more detail informations about the DIP settings:
DIP settings for lock.
DIP Bit State Descriptions
ON
2 3
OFF,OFF,OFF Applies to door station1 & lock 1
1
ON
2 3
OFF,OFF,ON Applies to door station1 & lock 2
1
2 3
ON,OFF,OFF Applies to door station2 & lock 1
1
2 3
ON,OFF,ON Applies to door station2 & lock 2
1
OFF,ON,OFF Applies to door station3 & lock 1
2 3
1
OFF,ON,ON Applies to door station3 & lock 2
2 3
ON,ON,OFF Applies to door station4 & lock 1
1
2 3
1
ON,ON,ONApplies to door station4 & lock 2
-3-

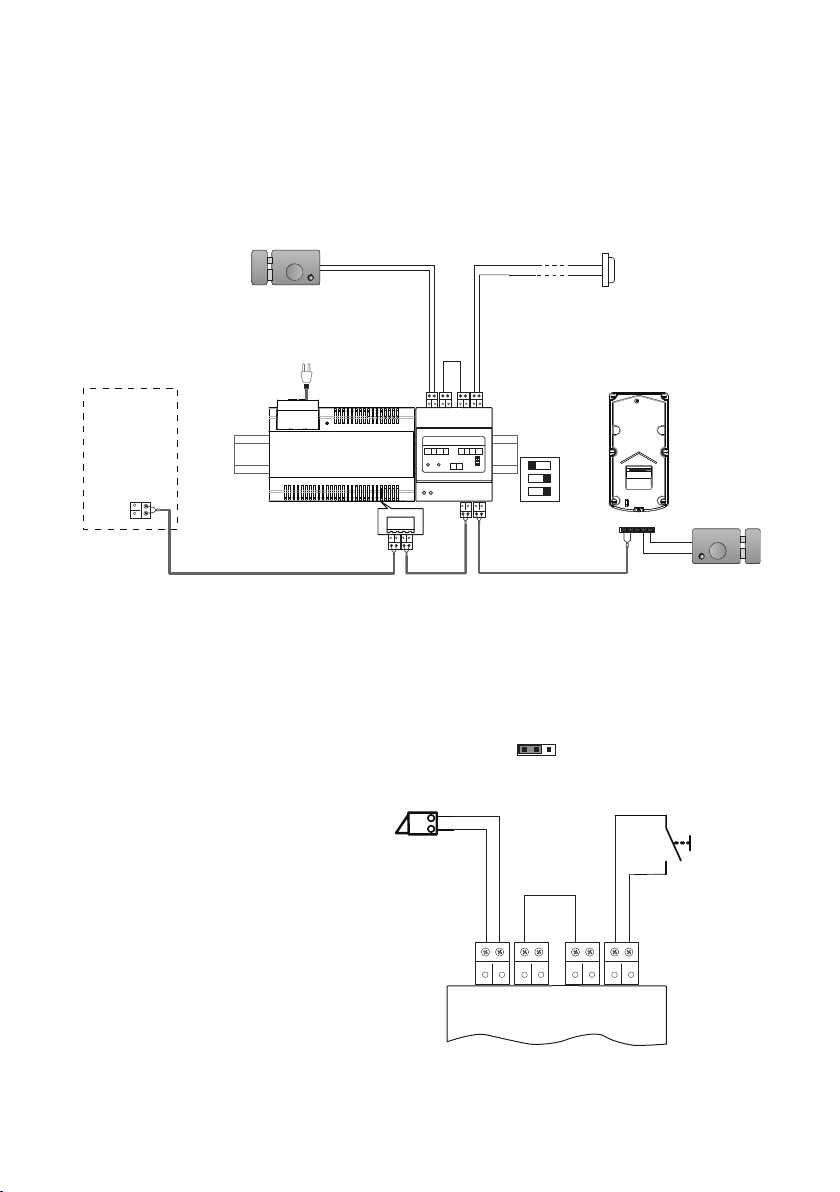

5. Internal powered lock connection(only suitable for Power-on-
DIP
to-unlock type)
DT-RLC control the second lock of door station 1
E-lock
AC~
monitor
DT-RLC connect lock
Note:
1. When DT-RLC connect Electronic
lock, the jumper position in 1-2.
2. When DT-RLC connect E-magnetic
lock, the jumper position in 2-3.
+
-
PC6
BUS(IM) BUS(DS)
E-lock
DT-RLC
GND COM NC
POWER IN-USE
NCCOMNOGND
2-WIRE SYSTEM
NO
12V S2 S1 GND
BUS
BUS
+
-
GNDS1S212V
1
2
3
RISER
ON
1 2 3
Jumper position in 1-2
Exit Button
2 3
1
1# Camera
(Device Address:0)
L1 L2 PL S+ S-
-
+
*
Exit Button
NCCOMNOGND
GNDS1S212V
DT-RLC
-4-
6. External Power Supply powered lock connection
BUS(IM) BUS(DS)
PC6
Exit Button
GNDS1S212V
NCCOMNOGND
AC~
monitor
-
+
L1 L2 PL S+ S-
adaptor for the lock
E-lock
1# Camera
(Device Address:0)
-
+
NO
POWER IN-USE
BUS
GND COM NC
DT-RLC
2-WIRE SYSTEM
12V S2 S1 GND
BUS
RISER
1
2
3
DIP

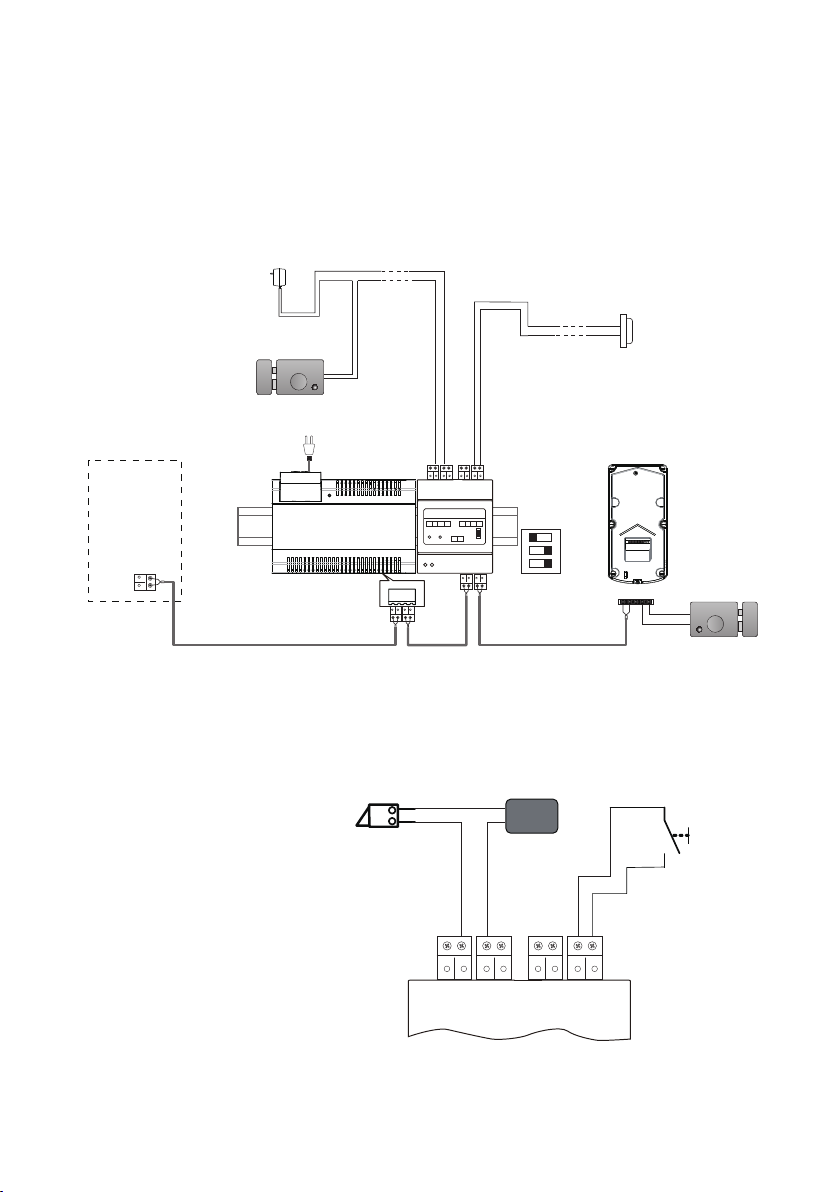

A. Power-on-to-unlock type:
DT-RLC control the second lock of door station 1
ON
2 3
1
DT-RLC connect lock
Note:
1. Here's lock type is
Electronic lock.
E-lock
-
+
POWER
SUPPLY
Exit Button
*
NCCOMNOGND
DT-RLC
-5-
GNDS1S212V

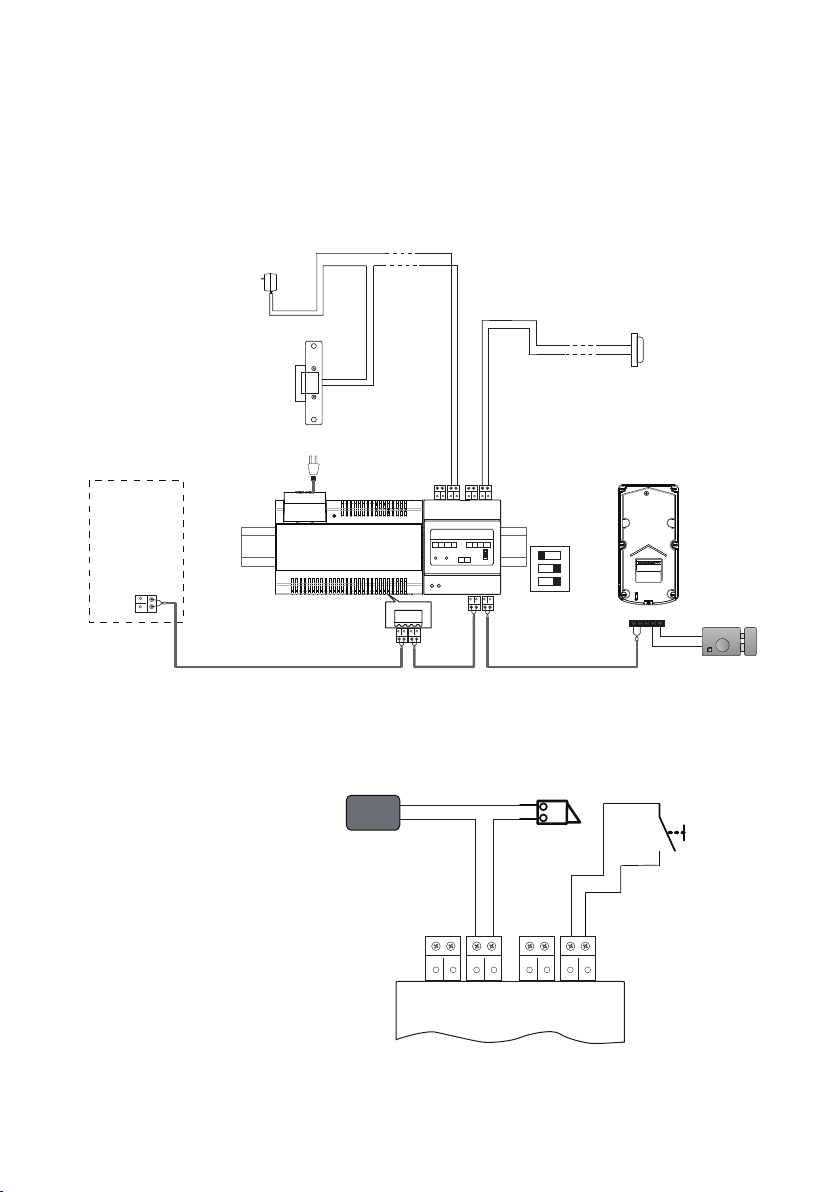

B.Power-off-to-unlock type:
DIP
DT-RLC control the second lock of door station 1
adaptor for the lock
monitor
DT-RLC connect lock
Note:
1. Here's lock type is
E-magnetic lock.
EM-lock
AC~
-
+
PC6
POWER
SUPPLY
BUS(IM) BUS(DS)
DT-RLC
GND COM NC
POWER IN-USE
Exit Button
1# Camera
(Device Address:0)
GNDS1S212V
NCCOMNOGND
2-WIRE SYSTEM
NO
12V S2 S1 GND
1
2
3
RISER
BUS
BUS
ON
2 3
1
L1 L2 PL S+ S-
-
+
-
+
EM-
LOCK
Exit Button
*
NCCOMNOGND
GNDS1S212V
DT-RLC
-6-
7. Specification
•Power Supply : DC24V;
•Unlocking Time: 1~30s(Default 1s);
•Lock Power supply: 12Vdc, 450mA(Internal Power);
•Working Temperature: -100C~+400C;
•Dimension: 89(H)×71(W)×45(D)mm.
The design and specications can be changed without notice to the user. Right to interpret
and copyright of this manual are preserved.
DT-ENG-RLC-V1 20140715
