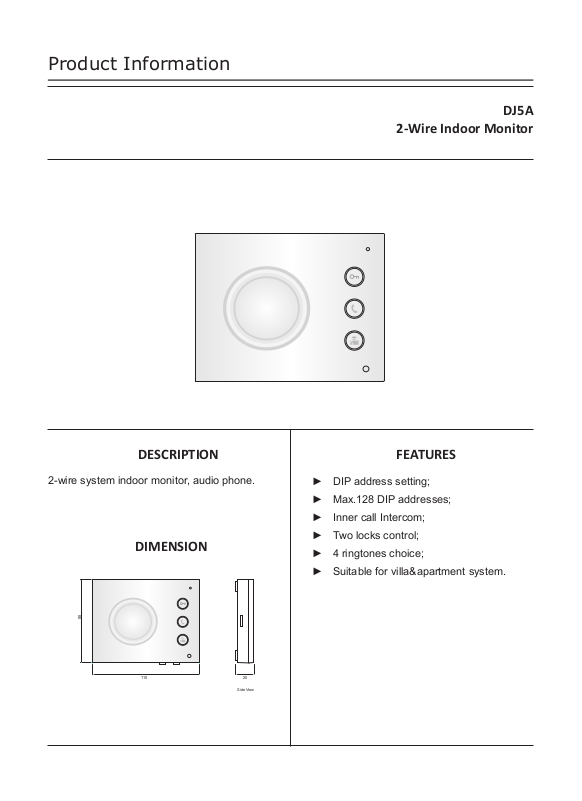

DJ5A

2-Wire Indoor Monitor

DESCRIPTION FEATURES

2-wire system indoor monitor, audio phone.

DIMENSION

88

110 20

Side View

► DIP address setting;

► Max.128 DIP addresses;

► Inner call Intercom;

► Two locks control;

► 4 ringtones choice;

► Suitable for villa&apartment system.

1. Parts and Functions

Speaker

Talk volume
controller

Tone volume
controller

Microphone

Unlock button

Talk button

Unlock 2nd/Intercom button

Indicator

Key functions

Speaker Send out voice from the visitor.

Microphone Receive voice from the user.

Unlock button Press to release the door.

Talk button Press to communicate hands free with visitor

During calling/talking state, press Unlock 2nd button to

Unlock 2nd button/
Intercom button

Indicator Power and working indicator.

Tone volume
contronller

Talk volume
contronller

release the second door;

In standby mode, press Call button to activate the intercom
call.

Adjust the tone volume.

Adjust the talk volume.

Side View

Terminal Descriptions

L2 L1

L1, L2

1 2 3

1 2 3 4 5 6

ON

ON DIP

L1,L2:Bus terminal.

DIP2

DIP1(Bit1~6):

DIP2(Bit1~3):

DIP1

Used to User Code setting

Used to Slave Monitor Address

or Extended Address setting

.

.
