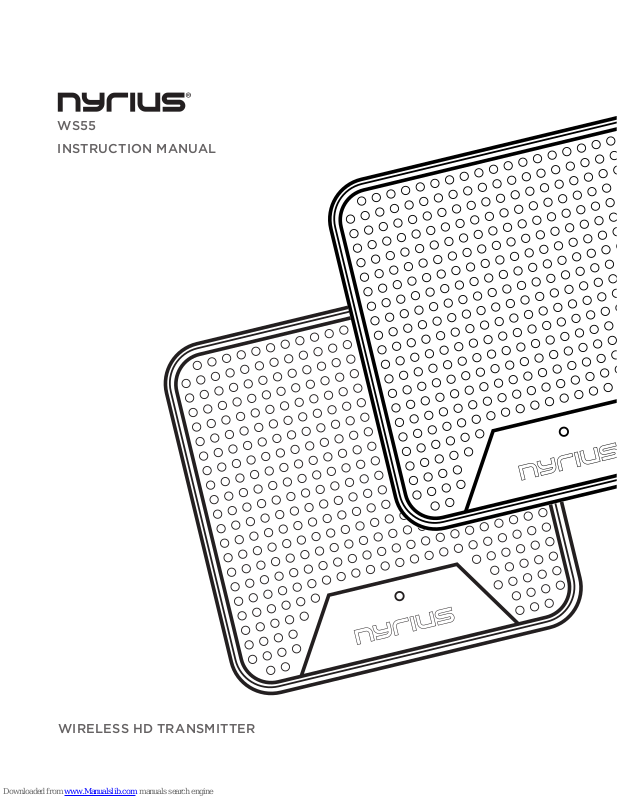

WS55
INSTRUCTION MANUAL
WIRELESS HD TRANSMITTER
WHAT'S INCLUDED ........................................................................................................................... 3
OVERVIEW .......................................................................................................................................... 3
INS TALL ATION ................................................................................................................................... 4
LED BEHAVIOR ...................................................................................................................................7
WALL MOUNTING.............................................................................................................................. 9
TROUBLESHOOTING .......................................................................................................................10
SPECIFICATIONS .............................................................................................................................. 13
FCC STATEMENT ...............................................................................................................................14
IC STATEMENT ...................................................................................................................................14
SAFETY INFORMATION .................................................................................................................. 15
WARRANTY ........................................................................................................................................ 16
CONTENT
OVERVIEW
IR OUTHDMI IN HDMI OUT
HDMI 1 HDMI 2
IR OUT
IR OUT IR INPOWER POWER
HDMI IN
HDMI IN
HDMI OUT
HDMI OUT HDMI OUT
30° 30°
5-10cm
30° 30°
5-10cm
3
WHAT'S INCLUDED
• Digital Wireless HD Transmitter
• Digital Wireless HD Receiver
• 1 External IR Receiver
• 1 External IR Emitter
• 2x 100-240V AC Power Adapters
• 5ft HDMI Cable
• 2x Screws/Screw Anchors
• 1 Year Warranty
• Lifetime Customer Support
TRANSMITTER RECEIVER
4
INSTALLATION
SPLASH SCREENS
RECEIVER
SPLASH SCREENS
DEVICE
RECEIVER
IR OUTHDMI IN HDMI OUT
TRANSMITTER
HDMI 1 HDMI 2
RECEIVER
TRANSMITTER
5
SPLASH SCREENS
LED Behavior
DEVICE
RECEIVER
IR OUTHDMI IN HDMI OUT
TRANSMITTER
HDMI 1 HDMI 2
HDTV
DEVICE
TOP VIEW
TRANSMITTER
RECEIVER
30° 30°
5-10cm
DEVICE
IR
IR sensor must be in front
of IR window of device.
IR OUTHDMI IN HDMI OUT
HDMI 1 HDMI 2
LED Behavior
DEVICE
RECEIVER
IR OUTHDMI IN HDMI OUT
TRANSMITTER
TRANSMITTER
HDMI 1 HDMI 2
HDTV
DEVICE
TOP VIEW
TRANSMITTER
RECEIVER
30° 30°
5-10cm
DEVICE
IR
IR sensor must be in front
of IR window of device.
IR EXTENDER SETUP
OPTIONAL: HDTV TO TRANSMITTER
6
SPLASH SCREENS
CONNECTING SCREEN:
Receiver is searching for
Transmitter. Please wait.
TROUBLESHOOTING
SCREEN:
Receiver has not yet found
Transmitter, please check
the displayed tips to ensure
connection.
PAIRING MODE SCREEN:
Receiver has entered manual
pairing mode.
7
LED BEHAVIOR
IR EXTENDER
1. Plug the external IR emitter into the IR OUT socket on the back of the transmitter
2. Place the IR remote extender bubble in front of the HD device
LED Behavior
DEVICE
RECEIVER
IR OUTHDMI IN HDMI OUT
TRANSMITTER
HDMI 1 HDMI 2
DEVICE
TOP VIEW
TRANSMITTER
30° 30°
5-10cm
DEVICE
IR
IR sensor must be in front
of IR window of device.
CONNECTING SCREEN:
Receiver is searching for
Transmitter. Please wait.
TROUBLESHOOTING SCREEN:
Receiver has not yet found
Transmitter, please check the
displayed tips to ensure connection.
PAIRING MODE SCREEN:
Receiver has entered manual
pairing mode.
LED Behavior
WHEN CONNECTED:
LED will remain solid white permanently
WHEN NOT CONNECTED:
LED will turn on for 1 second, then off for
3 seconds and repeat
Pairing Button:
To use to pair with additional receivers or to
manually repair included Transmitter and
Receiver.
NOTE: Tranmitter and Receiver are already
paired when manufactured.
WHEN CONNECTED:
LED will remain solid white
permanently
WHEN NOT CONNECTED:
LED will turn on for 1 second,
then off for 3 seconds and
repeat
PAIRING BUTTON:
Use to pair with additional
receivers or to manually
re-pair included Transmitter
and Receiver.
NOTE: Transmitter and
Receiver are already paired
when manufactured.
8
3. Plug the external IR receiver into the IR IN socket on the back of the receiver
4. Place the IR remote receiver bubble in front of the TV
LED Behavior
RECEIVER
HDTV
30° 30°
5-10cm
TV
IR
TOP VIEW
TRANSMITTER
30° 30°
5-10cm
DEVICE
IR
IR sensor must be in front
of IR window of device.
9
WALL MOUNTING
1. Drill pilot holes. 2. Insert the supplied two Anchors into
the wall.
3. Insert two screws into the anchors.
Leave 1/8” length for mounting the
Transmitter or receiver.
4. Place WS55 main holes over the
protruding screws and slide down into
position.
Transmitter. Please wait.
TROUBLESHOOTING SCREEN:
Receiver has not yet found
Transmitter, please check the
displayed tips to ensure connection.
PAIRING MODE SCREEN:
Receiver has entered manual
pairing mode.
WHEN CONNECTED:
LED will remain solid white permanently
WHEN NOT CONNECTED:
LED will turn on for 1 second, then off for
3 seconds and repeat
Pairing Button:
To use to pair with additional receivers or to
manually repair included Transmitter and
Receiver.
NOTE: Tranmitter and Receiver are already
paired when manufactured.
10
TROUBLESHOOTING
No Video Check the status of the Link LEDs, and check if the HD device is working normally.
Check the HDMI cable is undamaged and is plugged into the correct socket.
Check that the correct HDMI output has been selected from the HD device’s menu and
that the HDMI cable is plugged into the correct output socket.
Check that the correct HDMI input has been selected from the TV menu and that the
HDMI cable is plugged into the input socket selected.
Make sure that it is the Receiver that is connected to the HDTV display, and the
Transmitter that is connected to your HD device.
Power LED
OFF
Make sure the power cable is connected to a known good outlet. Ensure it is rmly
connected to the WS55. Always used the provided power adapter.
Transmitter
Video LED
OFF
Check the HD device is powered on.
Make sure the Transmitter is powered on. Make sure the HD device is on, connected
to the HDMI socket and outputting a supported resolution (1080p, 1080i, 720p, 720i,
576p, 576i, 480p).
Receiver
Video LED is
ON
Part of the system is not properly connected or the signal received is not of good
enough quality/strength.
Make sure the HD display is connected, switched ON and set to the right channel/input
(e.g. HDMI channel).
Check that the HDMI cable is undamaged and is plugged into the correct socket.
Transmitter /
Receiver Link
LED Flashes
Make sure the Transmitter and Receiver are not positioned too far apart. Move them
closer together to check minimum effective range.
Make sure the HD device is switched ON and had been connected to Transmitter.
Bad Picture Make sure the HDMI cables used are undamaged and that you can get a good picture
when the source is connected directly to the display with an HDMI cable.
Move Transmitter and Receiver closer together. Restart the HD device or reconnect the
HDMI cable.
Bad Audio/
No Audio
Make sure that the source is outputting supported audio formats. If the audio signal
drops out, restart the audio source and reconnect the HDMI cable. Make sure there is
no 5.8GHz wireless phone within 50cm of the Receiver.
Some phones use substandard transmission schemes which can cause unwanted
interference.
Other Issues/
Unresolved
Issues
If any other issue occurs or if the above issues persist, try switching OFF both
Transmitter and Receiver and repeating the link set-up process.
11
FAQ
Thank you for your purchase of the Nyrius WS55. If you require any assistance please
review the below Frequently Asked Questions.
1. WHAT DOES THE STATUS OF THE LED'S MEAN?
SOLID WHITE LINKED Transmitter/Receiver is linked.
FLASHING WHITE SEARCHING Transmitter/Receiver not in range.
2. NO HDMI INPUT CONNECTED.
SOLID RED POWER ON The WS55 is now powered on and will begin connecting shortly.
FLASHING RED (Transmitter) PAIRING MODE The WS55 transmitter has now entered
pairing mode and will attempt to pair to a receiver which is also in pairing mode.
2. WHAT IS THE MAXIMUM TRANSMISSION RANGE?
The maximum range is 40 feet line of sight. If transmitting through walls or obstacles
the range will be reduced.
3. WHAT STEPS CAN I TAKE IF THE IR EXTENDER IS NOT WORKING?
For proper IR Extender conguration please refer to the included Quick Start Guide.
To locate the IR sensor on your device, please contact the manufacturer of your HDMI
enabled product. (E.G. Cable box, Blu-ray Player, DVD Player).
4. HOW DO I TRANSMIT TO MULTIPLE RECEIVERS?
The WS55 can transmit to up to four receivers simultaneously. Please visit Nyrius.com
for more information on adding additional WS55RX to your setup.
WS55
WS55
12
5. THE WS55 APPEARS WARM AFTER PROLONGED USE.
To transmit 3D or Full HD content wirelessly, the WS55 must process a large amount
of data. Due to this, the unit may run at warmer temperatures than other electronic
devices. We have designed the housing to provide proper ventilation to the unit as well
as have designed the electronic components to withstand temperatures up to 80°C. To
ensure maximum performance ensure both the Transmitter and Receiver are placed in
well ventilated areas that do not exceed 30°C.
6. WHAT ARE THE TROUBLESHOOTING STEPS IF NO VIDEO IS DISPLAYED?
The Transmitter/Receiver may require a few seconds to connect. Ensure the correct
HDMI video input is selected on your TV and that your HDMI cables are connected
properly. Check that your video resolution from the source device is set to 1080p,
1080i, 720p, 576p, or 480p. Please ensure the WS55 is not located near a wireless
access point as interference may affect connectivity.
13
SPECIFICATIONS
SUPPORTED VIDEO RESOLUTION 1080p, 1080i, 720p, 576p, 480p
3D COMPATIBLE Yes
AUDIO FORMATS PCM 2CH, Dolby 5.1
PORTS & INTERFACES Transmitter: HDMI input, HDMI Loop
Through (Output), Micro USB (for power),
2.5mm Jack (for IR Emitter)
Receiver: HDMI Output, Micro USB (for
power), 3.5mm Jack (for IR Emitter)
WIRELESS RANGE 40ft (clear line of sight)
TRANSMISSION FREQUENCIES 802.11 a,b,g,n ; 5.8GHz (Band 1 & 4)
SYSTEM LATENCY < 500ms (average 150ms)
IR FREQUENCY 30-60KHz
ANTENNA High Performance Internal Antennas
WIRELESS TECHNOLOGY ORION GigaXtreme
ENVIRONMENTAL REQUIREMENTS Recommended to keep a distance of 1.5m
from other wireless products.
Operating temperature: 0° to 40° C,
Storage temperature -10 ℃ ~ +55° C,
Relative humidity: 15 ~ 80% RH
SOURCE COMPATIBILITY Any source containing an HDMI port
DISPLAY COMPATIBILITY Any high-denition television or projector
with HDMI including popular models from
these manufacturers: Samsung, Sony,
Sharp, Vizio, Hitachi, JVC, LG, Mitsubishi,
Panasonic etc.
WALL MOUNTABLE Yes, Transmitter/Receiver have built-in
keyhole slots
REMOTE CONTROL No
POWER SUPPLY DC 5V/1A (Energy efcient)
TRANSMITTER DIMENSIONS 3.4 x 3.3 x 0.9 inches; 87.5 x 83.5 x 25 mm
RECEIVER DIMENSIONS 3.4 x 3.3 x 0.9 inches; 87.5 x 83.5 x 25 mm
CERTIFICATIONS FCC, ICES, CUL, UL
14
FCC STATEMENT
This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions:
This device may not cause harmful interference, and
This device must accept any interference received, including
interference that may cause undesired operation.
WARNING:
This equipment has been tested and is found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected
Consult the dealer or an experienced radio/TV technician for help
WARNING:
Changes or modications not expressly approved by the party responsible for
compliance with the FCC Rules could void the user’s authority to operate
this equipment.
IC STATEMENT
Industry Canada Statement
This class B digital apparatus complies with Canadian ICES-003.
This device complies with Industry Canada license-exempt RSS standard(s). Operation
is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause
undesired operation of the device.
15
SAFETY INFORMATION
Read all instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including ampliers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not t into your outlet, consult an electrician
for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specied by the manufacturer.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualied service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged. Liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
Apparatus shall not be exposed to dripping or splashing, and that no objects lled with
liquids, such as vases, shall be placed on the apparatus.
The battery shall not be exposed to excessive heat such as sunshine, re or the like.
The direct plug-in adapter is used as disconnect device, the disconnect device shall
remain readily operable.
WARNING: The battery is recyclable. Batteries shall not be exposed to heat such areas.
WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to
rain or moisture.
This marking indicates that this product should not be disposed with other household wastes
throughout North America. To prevent possible harm to the environment or human health from
uncontrolled waste disposal,recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and collection systems or contact
the retailer where the product was purchased. They can take this product for environmental
safe recycling.
16
WARRANTY
Thank you for choosing Nyrius! We guarantee your investment in our products is a solid one. Our
products come with a complete one-year parts and labor warranty. High performance components
combined with quality craftsmanship allow us to maintain the highest possible production standards.
All items are guaranteed against defects in materials and craftsmanship. Nyrius has outstanding quality
control; if something should go wrong with any of our products, we will repair it free of charge within the
warranty period. If the product cannot be repaired, we will replace the product. In the event that Nyrius
replaces a product under warranty, the replacement would only carry the original warranty from the
original date of purchase.
Warranty Exclusions:
Nyrius products are warrantied for parts and labor for one year from date of original purchase, and are
subject to the terms and conditions of the warranty. Any refurbished products that are discontinued hold
a 90 day warranty from the date of original purchase. Nyrius warranties are valid for the original owner
and are non-transferable.
• Any defects caused or repairs required as a result of abusive operation, negligence, accident,
improper installation or inappropriate use as outlined in the owner’s manual.
• Any product tampered with, modied, adjusted, or repaired by any party other than Nyrius.
• Damage caused or repairs required as a result of the use with items not specied or approved
by Nyrius, including but not limited to chemical cleaning agents.
• Any cosmetic damage to the surface or exterior that has been defaced or caused by normal
wear and tear.
• Any damage caused by external or environmental conditions, including but not limited to
transmission line/power line voltage, or liquid spillage.
• Any product received without an appropriate model and serial number.
• Any products used for rental or commercial purposes.
• Any installation, set up and/or programming charges.
To Obtain Warranty Service
Should your product require warranty service, please contact us at www.nyrius.com/contact or call us at
1-888-738-4237 to set up a Return Authorization. Products returned without a valid Return Authorization
number will be refused.
Nyrius products must be returned in their original packaging. Our products are packaged specially to
protect them from any damage during shipping, and without this packaging the return shipment could
get damaged.
This warranty does not cover the shipping cost, insurance, or any other incidental charges. Products
shipped for warranty service must be pre-paid by the customer, and Nyrius will cover the cost to ship the
repaired or replaced product back to the customer.
Loading...
