NXP Laboratories UK JN5148M0 User Manual

Download

bit RISC CPU, up to 32MIPs with

bit DACs, 2

Lead

•

Data Sheet – JN5148-001-Myy

IEEE802.15.4/ZigBee Module Family

Overview

The JN5148-001-Myy family is a range of ultra low power, high performance surface mount modules targeted at ZigBee PRO networking applications, enabling users to realise products with minimum time to market and at the lowest cost. They remove the need for expensive and lengthy development of custom RF board designs and test suites. The modules use Jennic’s JN5148 wireless microcontroller to provide a comprehensive solution with large memory, high CPU and radio performance and all RF components included. All that is required to develop and manufacture wireless control or sensing products is to connect a power supply and peripherals such as switches, actuators and sensors, considerably simplifying product development.

Three module variants are available: JN5148-001-M00 with an integrated antenna, JN5148-001-M03 with an antenna connector and the JN5148-001-M04 with an antenna connector, power amplifier and LNA for extended range. The modules can implement networking stacks such as ZigBee PRO as well as customer applications

Module Block Diagram

128kB Serial Flash Memory

SPI

2-wire serial

Timers

UARTs

4-Wire Audio

Sleep Counters

12-bit ADC,

comparators

11-bit DACs, temp sensor

Power

External Antenna

Integrated Antenna

uFl

Connector

uFl

Connector

Matching

M00 Option

Matching

M03 Option

PA / LNA

M04 Option

Matching

2.4GHz Radio

Power

Management

XTAL

JN5148 chip

Watchdog timer

O-QPSK Modem

IEEE802.15.4

MAC

Accelerator

128-bit AES

Encryption

Accelerator

RAM

128kB

RISC CPU

32-byte

OTP eFuse

ROM

128kB

Benefits

Microminiature module solutions

Ready to use in products

Minimises product development

time

No RF test required for systems

Compliant with FCC part 15

rules, IC Canada RSS 210e, ETSI ETS 300-328 and Japan ARIB STD-T66

Production volumes supplied

pre-programmed with application software

Applications

Robust and secure low power

wireless applications

ZigBee PRO networks

Home and commercial building

automation

Utilities metering (e.g. AMR)

Location Aware services (e.g.

Asset Tracking)

Toys and gaming peripherals

Industrial systems

Telemetry Remote Control

Features: Module

• 2.4GHz IEEE802.15.4 & ZigBee compatible

•

Sleep current (with active sleep

timer) 2.6µA

•

JN5148-001-M00/03

up to 1km range (Ext antenna) M00: integral antenna 18x32mm M03: uFl connector 18x30mm

o TX power +2.5dBm o Receiver sensitivity –95dBm o TX current 15mA o RX current 17.5mA o 2.3-3.6V operation

•

JN5148-001-M04

up to 4km range (Ext Antenna)

o 20dBm TX power o Receiver sensitivity -98dBm o uFl connector o TX current 110mA o RX current 23mA o 18x41mm o 2.7-3.6V operation

Features: Microcontroller

• 32-

low power

• 128kB ROM stores system code

• 128kB RAM stores system data and

bootloaded program code

• 4Mbit serial flash for program code

and data

• On chip OTP efuse

• JTAG debug interface

• 4-input 12-bit ADC, 2 12-

comparators

• 3 application timer/counters,

3 system timers

• 2 UARTs

• SPI port with 5 selects

• 2-wire serial interface

• 4-wire digital audio interface

• Watchdog timer

•

Up to 21 DIO

Industrial temp (-40°C to +85°C)

-free and RoHS compliant

JN-DS-JN5148-001-Myy 1v1 © Jennic 2009

Jennic

JennicJennic

Contents

1. Introduction 3

1.1. Variants 3

1.2. Regulatory Approvals 3

2. Specifications 4

3. Product Development 5

3.1. JN5148 Single Chip Wireless Microcontroller 5

4. Pin Configurations 6

4.1. Pin Assignment 7

4.2. Pin Descriptions 8

4.2.1 Power Supplies 8

4.2.2 SPI Memory Connections 8

5. Electrical Characteristics 9

5.1. Maximum Ratings 9

5.2. Operating Conditions 9

5.3. Reflow Profile 10

Appendix A Additional Information

A.1 Outline Drawing 11 A.2 Module PCB Footprint 14 A.3 Ordering Information 15 A.4 Tape and Reel Information: 16 A.4.1 Tape Orientation and dimensions 16 A.4.2 Cover tape details 16 A.4.3 Leader and Trailer 17 A.4.4 Reel Dimensions: 17 A.5 Related Documents 17 A.6 Federal Communication Commission Interference Statement 18 A.6.1 Antennas to be approved by FCC for use with JN5148 modules 19 A.6.2 High Power Module usage limitation 20 A.6.3 High Power Module channel restriction 20 A.6.4 FCC End Product Labelling 20 A.7 Industry Canada Statement 20 A.7.1 Industry Canada End Product Labelling 20 A.8 European R & TTE Directive 1999/5/EC Statement 20 A.9 RoHS Compliance 21 A.10 Status Information 21 A.11 Disclaimers 22 A.12 Version Control 23

ii JN-DS-JN5148-001-Myy 1v1 © Jennic 2009

Jennic

JennicJennic

1. Introduction

The JN5148-001-Myy module family provides designers with a ready made component which allows IEEE802.15.4 [1] wireless applications, using Jennic’s JenNet networking protocol or ZigBee PRO, to be quickly and easily included in product designs. The modules integrate all of the RF components required, removing the need to perform expensive RF design and test. Products can be designed by simply connecting sensors and switches to the module IO pins. The modules use Jennic’s single chip IEEE802.15.4 Wireless Microcontroller, allowing designers to make use of the extensive chip development support material. Hence, this range of modules allows designers to bring wireless applications to market in the minimum time with significantly reduced development effort and cost.

Three variants are available: JN5148-001-M00 (standard module with integral antenna), JN5148-001-M03 (standard module with uFl connector for use with external antennae) and JN5148-001-M04 (high RF power with uFL connector, improved sensitivity module for evaluation of extended range applications). All modules will have FCC modular approvals and be compliant with EU regulations. The variants available are described below.

1.1. Variants

Variant Description FCCID

JN5148-001-M00 Standard Power, integrated antenna TYOJN5148M0

JN5148-001-M03 Standard Power, uFl connector TYOJN5148M3

JN5148-001-M04 High Power, uFl connector TYOJN5148M4

1.2. Regulatory Approvals

All module types will be tested against the requirements of European standard ETS 300 328 v1.7.1 and a Notified Body statement of opinion for this standard is available on request. The High Power module with M04 suffix will be approved for use in Europe with reduced output power: +10dBm EIRP is the maximum permitted in Europe.

Additionally, modules with M00, M03 and M04 suffixes will have received FCC “Modular Approvals”, in compliance with CFR 47 FCC part 15 regulations and in accordance to FCC Public notice DA00-1407. The modules are approved for use with a number of antennas; refer to section Appendix A.6.1 for details. See Appendix A.6 for details on the conditions applying to this modular approval. The modular approvals notice and test reports are available on request.

The high power module variant is classified as ‘mobile’ device pursuant with FCC § 2.1091 and must not be used at a distance of less than 20 cm (8”) from any person.

In addition, all modules will have Industry Canada RSS210e Issue 7 (June 2007) certification.

Jennic

JennicJennic

2. Specifications

Most specification parameters for the modules are specified in the chip datasheet - JN-DS- JN5148 Wireless Microcontroller Datasheet, [2]. Where there are differences, the parameters are defined here.

VDD=3.0V @ +25°C

Typical DC Characteristics Notes

Deep sleep current 1.3uA 1.3uA

Sleep current 2.6uA 2.6uA With active sleep timer

Radio transmit current 15mA 110mA CPU in doze, radio transmitting

Radio receive current 17.5mA 23mA CPU in doze, radio receiving

Centre frequency accuracy +/-25ppm +/-25ppm

Typical RF Characteristics Notes

Receive sensitivity -95dBm -98dBm

Maximum Transmit power +2.5dBm 18dBm Nominal (Note 1)

Transmit power at 3.6V 20dBm With Vdd=3.6V

Maximum input signal +5dBm -5dBm

RSSI range

RF Port impedance – uFl connector 50 ohm 50 ohm 2.4 - 2.5GHz

VSWR (max) 2:1 2:1 2.4 - 2.5GHz

Peripherals Notes

Master SPI port 5 selects 3 selects 250kHz - 16MHz

Slave SPI port

Two UARTs

Two-wire serial I/F (compatible with SMbus & I2C)

Two programmable Timer/Counters with capture/compare facility, Tick timer

Two programmable Sleep Timers

Digital IO lines (multiplexed with UARTs, timers and SPI selects)

Four channel Analogue-to-Digital converter

Two channel Digital-to-Analogue converter

Two programmable analogue comparators

Internal temperature sensor and battery monitor

JN5148-001-

M00/03

-95 to -10 dBm

 

21 19

 

JN5148-001-

M04

-105 to -20 dBm

Additional +/-15ppm allowance for temperature and ageing

Nominal for 1% PER, as per

802.15.4 section 6.5.3.3 (Note 1)

For 1% PER, measured as sensitivity

250kHz - 8MHz

16550 compatible

Up to 400kHz

16MHz clock

32kHz clock

12-bit, up to 100ks/s

Ultra low power mode for sleep

The performance of all peripherals is defined in the JN-DS- JN5148 Wireless Microcontroller Datasheet [2] Note 1: Sensitivity is defined for conducted measurements on connectorised modules. Modules with an integrated antenna have approximately 4 dB less e.i.r.p and reciprocal receive sensitivity.

4 JN-DS-JN5148-001-Myy 1v1 © Jennic 2009

Jennic

JennicJennic

3. Product Development

Jennic supplies all the development tools and networking stacks needed to enable end-product development to occur quickly and efficiently. These are all freely available from Jennic’s support website: http://www.jennic.com/support/ . A range of evaluation/developer kits is also available, allowing products to be quickly bread boarded. Efficient development of software applications is enabled by the provision of a complete, unlimited, software developer kit. Together with the available libraries for the IEEE802.15.4 MAC and the ZigBee network stack, this package provides everything required to develop application code and to trial it with hardware representative of the final module.

The modules can be user programmed for both in development and in production using software supplied by Jennic. They can also be supplied ready loaded with customer defined software if required. Access to the on-chip peripherals, MAC and network stack software is provided through specific APIs. This information is available on the Jennic support website, together with many example applications, user guides, reference manuals and application notes.

3.1. JN5148 Single Chip Wireless Microcontroller

The JN5148-001-Myy series is constructed around the JN5148-001 single chip wireless microcontroller, which includes the radio system, a 32-bit RISC CPU, ROM and RAM memory and a range of analogue and digital peripherals.

The chip is described fully in JN-DS- JN5148 Wireless Microcontroller Datasheet [2].

The module also includes a 4Mbit serial flash memory, which holds the application code that is loaded into the JN5148 during the boot sequence and provides static data storage, required by the application.

Jennic

JennicJennic

4. Pin Configurations

ADC4 DAC1

DAC2

COMP2+

COMP2-

SPICLK SPIMISO SPIMOSI

SPISSZ

DIO0/SPISEL1

DIO1/SPISEL2 DIO2/SPISEL3

SPISSM

SPISWP

DIO3/SPISEL4

17 18 19 20 21 22 23 24 25 26

VDD

GND

VSSA

ADC3

ADC2

ADC1

COMP1+

COMP1-

DIO20/RXD1

DIO19/TXD1 DIO18/RTS1

DIO17/CTS1

DIO16

DIO15/SIF_D DIO14/SIF_CLK

RESETN

DIO13/TIM1_OUT

DIO12/TIM1_CAP

DIO6/TXD0

DIO4/CTS0

DIO5/RTS0

DIO7/RXD0

DIO8/TIM0GT

Figure 1: Pin Configuration (top view)

Note that the same basic pin configuration applies for all module designs. However, DIO3/SPISEL4 and DIO2/SPISEL3 are not available on the high power modules.

6 JN-DS-JN5148-001-Myy 1v1 © Jennic 2009

DIO11/TIM1GT

DIO9/TIM0_CAP

DIO10/TIM0_OUT

4.1. Pin Assignment

Signal Function Alternative Function

1 ADC4 Analogue to Digital input

2 DAC1 Digital to Analogue output

3 DAC2 Digital to Analogue output

Jennic

JennicJennic

4 COMP2+

5 COMP2-

6 SPICLK SPI master clock out

7 SPIMISO SPI Master In/Slave Out

8 SPIMOSI SPI Master Out/Slave In

9 SPISSZ SPI select from module - SS0 (output)

10 DIO0/SPISEL1 SPI Slave Select1 (output) General Purpose Digital I/O DIO0

11 DIO1/SPISEL2 SPI Slave Select2 (output) General Purpose Digital I/O DIO1

12 DIO2/SPISEL3* SPI Slave Select3 (output) General Purpose Digital I/O DIO2 *

13 SPISSM SPI select to FLASH (input)

14 SPISWP FLASH write protect (input)

15 DIO3/SPISEL4* SPI Slave Select4 (output) General Purpose Digital I/O DIO3*

16 DIO4/CTS0 UART0 Clear To Send (input) /TCK (JTAG) General Purpose Digital I/O DIO4

17 DIO5/RTS0 UART0 Request To Send (output) /TMS(JTAG) General Purpose Digital I/O DIO5

18 DIO6/TXD0 UART0 Transmit Data (output) /TDO(JTAG) General Purpose Digital I/O DIO6

Comparator 2 inputs

19 DIO7/RXD0 UART0 Receive Data (input) / TDI(JTAG) General Purpose Digital I/O DIO7

20 DIO8/TIM0GT Timer0 clock/gate (input) General Purpose Digital I/O DIO8

21 DIO9/TIM0_CAP Timer0 capture (input) General Purpose Digital I/O DIO9

22 DIO10/TIM0_OUT Timer0 PWM (output) General Purpose Digital I/O DIO10

23 DIO11/TIM1GT Timer1 clock/gate (input) General Purpose Digital I/O DIO11

24 VDD 3V power

25 GND Digital ground

26 VSSA Analogue ground

27 DIO12/TIM1_CAP Timer1 capture (input) General Purpose Digital I/O DIO12

28 DIO13/TIM1_OUT Timer1 PWM (output) General Purpose Digital I/O DIO13

29 RESETN Active low reset

30 DIO14/SIF_CLK Serial Interface clock / Intelligent peripheral

General Purpose Digital I/O DIO14

Jennic

JennicJennic

Signal Function Alternative Function

31 DIO15/SIF_D Serial Interface data / Intelligent Peripheral data

output

32 DIO16 Intelligent Peripheral data in General Purpose Digital I/O

33 DIO17CTS1

34 DIO18/RTS1 UART1 Request To Send (output)/ Intelligent

35 DIO19/TXD1 UART1 Transmit Data (output) General Purpose Digital I/O DIO19

36 DIO20/RXD1 UART1 Receive Data (input) General Purpose Digital I/O DIO20

37 COMP1-

38 COMP1+

39 ADC1 Analogue to Digital input

40 ADC2 Analogue to Digital input

41 ADC3 Analogue to Digital input

*: These two pins are not connected for High power modules

UART1 Clear To Send (input)/ Intelligent Peripheral device select

Peripheral Interrupt

Comparator 1 inputs

General Purpose Digital I/O DIO15

General Purpose Digital I/O DIO17

General Purpose Digital I/O DIO18

4.2. Pin Descriptions

All pins behave as described in the JN-DS- JN5148 Wireless Microcontroller Datasheet [2], with the exception of the following:

4.2.1 Power Supplies

A single power supply pin, VDD is provided. Separate analogue (VSSA) and digital (GND) grounds are provided. These should be connected together at the module pins.

4.2.2 SPI Memory Connections

SPISWP is a write protect pin for the serial flash memory. This should be held low to inhibit writes to the flash device.

SPISSZ is connected to SPI Slave Select 0 on the JN5148.

SPISSM is connected to the Slave Select pin on the memory.

This configuration allows the flash memory device to be programmed using an external SPI programmer if required. For programming in this mode, the JN5148 should be held in reset by taking RESETN low. Two potential flash 4MB memory devices may be used in the module, the Numonyx M25P40 and the SST SST25VF040B.

The memory can also be programmed over the UART by using the flash programmer software provided by Jennic. This is available as part of the Software Developer kit and libraries available from Jennic’s support website –

www.jennic.com/support. To enter this programming mode, SPIMISO (pin 7) should be held low whilst the chip is

reset. Once programming has finished, the chip should be reset, when it will execute the new code downloaded.

For normal operation of the module and programming over the UART, SPISSZ should be connected to SPISSM.

8 JN-DS-JN5148-001-Myy 1v1 © Jennic 2009

Jennic

JennicJennic

5. Electrical Characteristics

In most cases, the Electrical Characteristics are the same for both module and chip. They are described in detail in the chip datasheet. Where there are differences, they are detailed below.

5.1. Maximum Ratings

Exceeding these conditions will result in damage to the device.

Parameter Min Max

Device supply voltage VDD -0.3V 3.6V

Voltage on analogue pins VREF, ADC1-4, DAC1-2, COMP1M, COMP1P, COMP2M, COMP2P, IBIAS

Voltage on 5v tolerant digital pins DIO0-DIO8 & DIO11-20, RESETN

Voltage on 3v tolerant digital pins DIO9, DIO10, SPISSM, SPISWP, SPICLK, SPIMOSI, SPIMISO, SPISSZ

Storage temperature -40ºC 150ºC

ESD rating

1) Testing for Human Body Model discharge is performed as specified in JEDEC Standard JESD22-A114.

2) Testing for Machine Model discharge is performed as specified in JEDEC Standard JESD11-A115.

3) Testing for Charged Device Model discharge is performed as specified in JEDEC Standard JESD22-C101.

This device is sensitive to ESD and should only be handled using ESD precautions.

Human Body Model 1 2.0kV

Machine Model

Charged Device Model

-0.3V VDD + 0.3V

-0.3V Lower of (VDD + 2V) and

5.5V

-0.3V VDD + 0.3V

200V

500V

5.2. Operating Conditions

Supply Min Max

VDD (Module M00/M03) 2.3V 3.6V

VDD (Module M04) 2.7V 3.6V

Ambient temperature range

-40°C 85°C

Jennic

JennicJennic

5.3. Reflow Profile

For reflow soldering, it is recommended to follow the reflow profile in figure 2 as a guide, as well as the paste manufacturers guidelines on peak flow temperature, soak times, time above liquidus and ramp rates.

Temperature 25~160 ºC 160~190 ºC > 220º C 230~Pk. Pk. Temp

(235ºC)

Target Time (s) 90~130 30~60 20~50 10~15 160~270

Figure 2: Recommended solder reflow profile

10 JN-DS-JN5148-001-Myy 1v1 © Jennic 2009

Appendix A Additional Information

A.1 Outline Drawing

18mm

Jennic

JennicJennic

32.2mm

Thickness: 3.5mm

2.54 mm

2.76 mm

Figure 3 JN5148-001-M00 Outline Drawing

1.27 mm

2.54

Jennic

JennicJennic

18mm

9.76mm

6.58 mm

30mm

Thickness: 3.5mm

2.54 mm

2.76 mm

Figure 4 JN5148-001-M03 Outline Drawing

1.27 mm

2.54 mm

12 JN-DS-JN5148-001-Myy 1v1 © Jennic 2009

Jennic

JennicJennic

18mm

7.2mm

4.05mm

40.5mm

2.54

1.27 mm

2.54 mm

2.76

Thickness: 3.5mm

Figure 5 JN5148-001-M04 Outline Drawing

Jennic

JennicJennic

A.2 Module PCB Footprint

All dimensions are in mm.

Note: All modules have the same footprint.

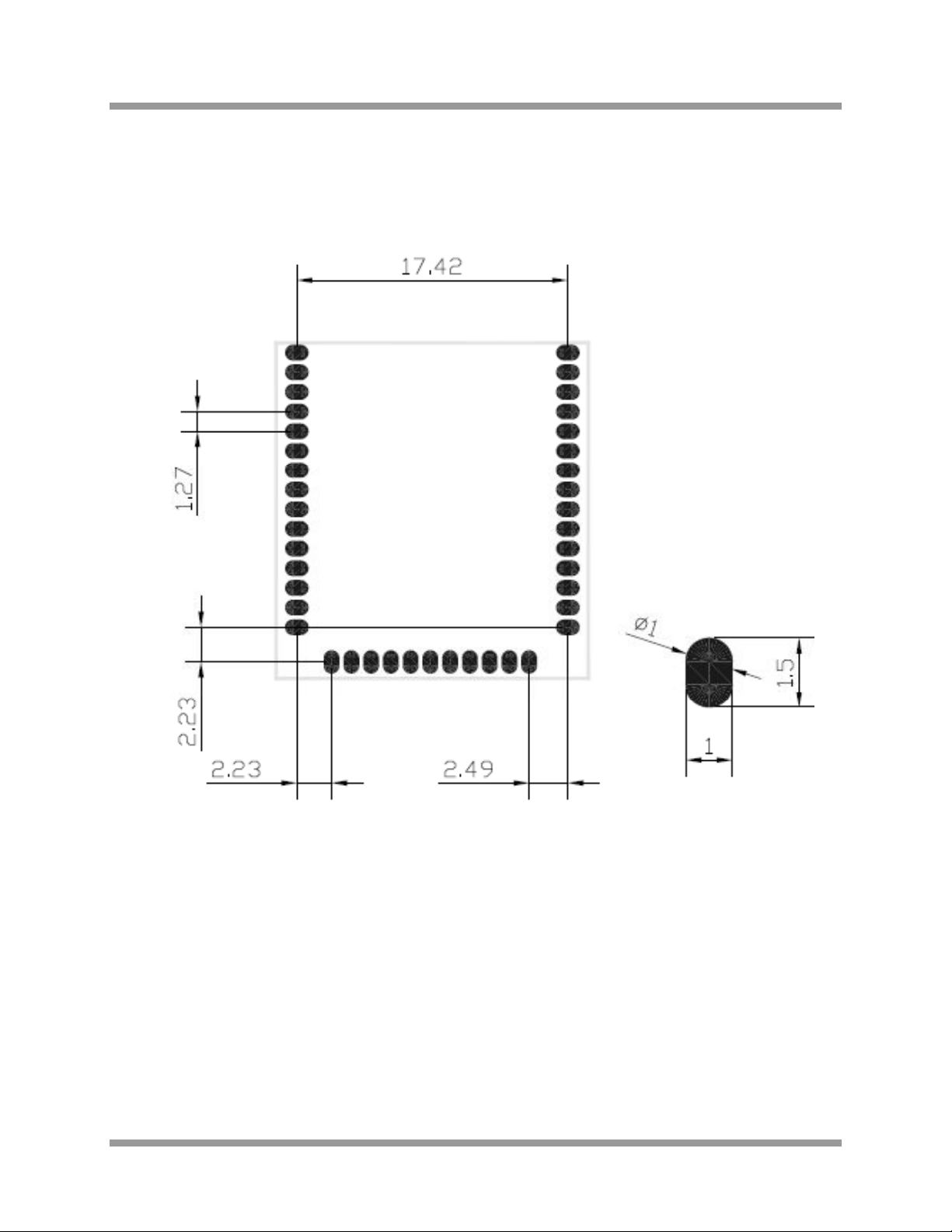

Figure 6 Module PCB footprint

RF note for –M00 modules with integral antenna: No components, ground plane or tracks on any layer of the mother board should be placed within 20mm of the 3 free sides of the antenna. Tracks etc may be placed adjacent to the can, but should not extend past the can towards the antenna end of the module for 20mm from the antenna.

14 JN-DS-JN5148-001-Myy 1v1 © Jennic 2009

Jennic

Shipping

Module Type

IC ID Number

Jennic

JennicJennic

A.3 Ordering Information

JN5148 - 001 - MY1Y2 Y3

Where this Data Sheet is denoted as “Advanced” or “Preliminary”, devices will be either Engineering Samples or Prototypes. Devices of this status have an Rx suffix after the module type to identify revision of silicon during these product phases - for example JN5148-001-M00R1-T.

X Tape mounted samples up to 50 pieces T Tape Mounted 500 pieces reel

00 Standard Power, Integral antenna 03 Standard Power, uFl connector 04 High power, uFl connector

Label line 1: Label line 2: FCC ID Number Label line 3: Part Name Label line 4: Barcode Label Label line 5: YYWWTNNNNN (see below)

Identifier Description Format

IC: 7438A

CYO5148M0

FCC ID: TYOJN5148M0

JN51XX - XXX - XXX JENNIC

YY Year 06(example) WW Week 45(example) T Module type NNNNN Serial

YYWWTNNNNN

Number

Figure 7: Example module labelling for FCC approved modules

Jennic

JennicJennic

A.4 Tape and Reel Information:

A.4.1 Tape Orientation and dimensions

All dimensions are in mm

Module type: A B W F E P0 P1 P2 T Cover Tape

width (W)

JN5148-001-M00 18.4 32.6 44 20.2 1.75 4.0 2.0 24.0 3.4 37.5

JN5148-001-M03 18.4 30.4 44 20.2 1.75 4.0 2.0 24.0 3.4 37.5

JN5148-001-M04 18.5 40.9 56 26.2 1.75 4.0 2.0 24.0 3.4 49.5

Tolerance ±0.1 ±0.1 ±0.3 ±0.1 +0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1

A.4.2 Cover tape details

Thickness (T) 0.061mm

Surface resistivity (component side) 104 to 107 Ohms/sq

Surface resistivity (component side) Non-conductive

Backing type: Polyester

Adhesive type: PSA

Sealing: Room ambient

A.4.3 Leader and Trailer

A.4.4 Reel Dimensions:

All dimensions are in mm.

Jennic

JennicJennic

300 MM300 MM

Module type: A B C N W (min)

JN5148-xxx-M00/03 330 ±1.0 2.2±0.5 13 ±0.2 100 +0.1 44.5 ±0.3

JN5148-xxx-M04 330 ±1.0 2.2±0.5 13 ±0.2 100 +0.1 56.5 ±0.3

A.5 Related Documents

[1] IEEE Std 802.15.4-2003 IEEE Standard for Information Technology – Part 15.4 Wireless Medium Access Control

(MAC) and Physical Layer (PHY) Specifications for Low-Rate Wireless Personal Area Networks (LR-WPANs)

[2] JN-DS- JN5148 Wireless Microcontroller Datasheet

[3] JN-RM-2002 802.15.4 Stack API

Jennic

JennicJennic

A.6 Federal Communication Commission Interference Statement

This equipment will have been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device will comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

WARNING! FCC Radiation Exposure Statement:

This portable equipment with its antenna complies with FCC’s RF radiation exposure limits set forth for an uncontrolled environment. To maintain compliance follow the instructions below;

1. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

2. Avoid direct contact to the antenna, or keep it to a minimum while using this equipment.

This transmitter module is authorized to be used in other devices only by OEM integrators under the following condition:

The transmitter module must not be co-located with any other antenna or transmitter.

As long as the above condition is met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.).

A.6.1 Antennas to be approved by FCC for use with JN5148 modules

Jennic

JennicJennic

1 Aveslink Technology, Inc E-0360-AT Patch Antenna - outdoor 18 RP-N

2 Aveslink Technology, Inc E-0260-AT Patch Antenna - outdoor 15 RP-N

3 Aveslink Technology, Inc E-1050-AT Vertical - outdoor colinear 15 RP-N

4 Aveslink Technology, Inc E-1040-AT Vertical - outdoor colinear 12 RP-N

5 Aveslink Technology, Inc E-0100-AC Patch Antenna - flying lead 10 RP-SMA

6 Aveslink Technology, Inc E-1030-AT Vertical - outdoor colinear 9 RP-N

7 Aveslink Technology, Inc E-1020-AT Vertical - outdoor colinear 7 RP-N

8 Aveslink Technology, Inc E-1710-GC Vertical - swivel 7 RP-SMA

9 Aveslink Technology, Inc E-1710-GM Vertical - swivel 7 RP-TNC

10 Aveslink Technology, Inc E-1511-GC Vertical - swivel 5 RP-SMA

11 Aveslink Technology, Inc E-0030-AA Patch Antenna - flying lead 4 uFL

12 Aveslink Technology, Inc E-0030-AC Patch Antenna - flying lead 4 RP-SMA

13 Aveslink Technology, Inc E-1204-AC Ceiling antenna - flying lead 4 RP-SMA

14 Aveslink Technology, Inc E-1520-CA Vertical - bulkhead- flying lead

15 Aveslink Technology, Inc E-1520-GC Vertical - swivel 4 RP-SMA

16 Aveslink Technology, Inc E-1450-GC Vertical-swivel mount 4 RP-SMA

19 Aveslink Technology, Inc E-0901-AA Embedded - flying lead 2.5 uFL

22 Hyperlink Technology HG2402RD-RSF Vertical - knuckle antenna 2.2 RP-SMA

23 Aveslink Technology, Inc E-0005-AC Vertical- flying lead 2 RP-SMA

24 Aveslink Technology, Inc E-2411-GC Vertical - swivel 2 RP-SMA

25 Aveslink Technology, Inc E-2410-CA Vertical - bulkhead- flying lead

26 Aveslink Technology, Inc E-2410-GC Vertical - swivel 2 RP-SMA

27 Aveslink Technology, Inc E-2820-CA Vertical - bulkhead- flying lead

28 Aveslink Technology, Inc E-2820-GC Vertical - swivel 2 RP-SMA

29 Aveslink Technology, Inc E-0903-AX Embedded - nickel silver strip 2 None

30 Aveslink Technology, Inc E-0904-AX Embedded - nickel silver strip 2 None

31 Embedded Antenna Design FBKR35068-RS-KR Vertical - knuckle antenna 2 RP-SMA

35 Aveslink Technology, Inc E-6170-DA Vertical - right angle 1 uFL

Brand Model Number Description Gain (dBi) Connector type

4 uFL

Nearson S152CL-L-PX-2450S Vertical - knuckle-flying lead 4 uFL

Antenna Factor ANT-2.4-CW-RCL Vertical - knuckle antenna 2.9 RP-SMA

Antenna Factor ANT-2.4-CW-RCT-RP Vertical - knuckle antenna 2.2 RP-SMA

Antennova 2010B6090-01 Vertical - knuckle antenna 2.2 RP-SMA

2 uFL

Nearson S131CL-L-PX-2450S Vertical - knuckle-flying lead 2 uFL

Laird Technologies WRR2400-IP04 Vertical - knuckle-flying lead 1.5 uFL

Laird Technologies WRR2400-RPSMA Vertical - knuckle-flying lead 1.3 RP-SMA

Laird Technologies WCR2400-SMRP Vertical - knuckle antenna 1 RP-SMA

These antennae or versions with alternative connectors may be used to meet European regulations.

This device has been designed to operate with the antennas listed above, and having a maximum gain of 4.4 dBi. Antennas not included in this list or having a gain greater than 4.4 dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms.

Jennic

JennicJennic

A.6.2 High Power Module usage limitation

The high power module variants are classified as ‘mobile’ device pursuant with FCC § 2.1091 and must not be used at a distance of < 20 cm (8”) from any nearby people.

IMPORTANT NOTE: In the event that these conditions can not be met (for certain configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization.

The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user manual of the end product.

The user manual for the end product must include the following information in a prominent location;

“To comply with FCC’s RF radiation exposure requirements, the antenna(s) used for this transmitter must not be colocated or operating in conjunction with any other antenna or transmitter.”

A.6.3 High Power Module channel restriction

The FCC grant for the TYOJN5148M4 does not permit the use of channel 26. Access to channel 26 is forbidden by the 802.15.4 MAC layer when the JN5148 chip is in high power mode. High power mode enables the use of DIO2 and DIO3 to control the external RX/TX switching necessary when using a high power module. Users will not be able to access channel 26 when using the JN5148-001-M04 module under any circumstances.

A.6.4 FCC End Product Labelling

The final ‘end product’ should be labelled in a visible area with the following:

“Contains TX FCC ID: TYOJN5148M0, TYOJN5148M3 or TYOJN5148M4 ” to reflect the version of the module being used inside the product.

A.7 Industry Canada Statement

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.

These modules have been designed to operate with antennas having a maximum gain of 18 dBi. Antennas having a gain greater than 18 dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms.

As long as the above condition is met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc).

A.7.1 Industry Canada End Product Labelling

For Industry Canada purposes the following should be used.

“Contains Industry Canada ID IC: 7438A-CYO5148M0, IC: 7438A-CYO5148M3 or IC: 7438A-CYO5148M4” to reflect the version of the module being used inside the product.

A.8 European R & TTE Directive 1999/5/EC Statement

All modules listed in this datasheet will be compliant with ETSI EN 300 328V1.7.1 (2006/05) and will be subject to a Notified Body Opinion.

Jennic

JennicJennic

The modules will be approved for use with the antennas listed in the following table. The high power module M04 is limited to an antenna with a gain of 2.2 dBi or less.

Brand Model Number Description Gain Connector type

Antenna Factor ANT-2.4-CW-RCL Vertical - knuckle antenna 2.9dBi RP-SMA

Antenna Factor ANT-2.4-CW-RCT-SS Vertical - knuckle antenna 2.2dBi SMA

Laird Technologies WCR2400-SMA Vertical - knuckle antenna 1.0dBi SMA

Laird Technologies WRR2400-IP04 Vertical - knuckle-flying lead 1.5dBi uFL

Embedded Antenna Design BKR2400 Vertical - knuckle antenna 2.0dBi SMA

Antennova Titanis Vertical - knuckle antenna 4.4dBi SMA

Nearson S131CL-L-PX-2450S Vertical - knuckle-flying lead 2.0dBi uFL

Nearson S152CL-L-PX-2450S Vertical - knuckle-flying lead 4.0dBi uFL

Aveslink Technology, Inc E-0030-AA Patch Antenna - flying lead 4dBi uFL

Aveslink Technology, Inc E-0030-AB Patch Antenna - flying lead 4dBi SMA

Aveslink Technology, Inc E-1204-AB Ceiling antenna - flying lead 4dBi SMA

Aveslink Technology, Inc E-0005-AB Vertical- flying lead 2dBi SMA

Aveslink Technology, Inc E-1450-GB Vertical-swivel mount 4dBi SMA

Aveslink Technology, Inc E-1450-GC Vertical-swivel mount 4dBi RP-SMA

Aveslink Technology, Inc E-1520-CA Vertical - bulkhead- flying lead 4dBi uFL

Aveslink Technology, Inc E-1520-GB Vertical - swivel 4dBi SMA

Aveslink Technology, Inc E-1520-GC Vertical - swivel 4dBi RP-SMA

Aveslink Technology, Inc E-2411-GB Vertical - swivel 2dBi SMA

Aveslink Technology, Inc E-2410-CA Vertical - bulkhead- flying lead 2dBi uFL

Aveslink Technology, Inc E-2410-GB Vertical - swivel 2dBi SMA

Aveslink Technology, Inc E-2410-GC Vertical - swivel 2dBi RP-SMA

Aveslink Technology, Inc E-2410-HA Vertical - swivel -flying lead 2dBi uFL

Aveslink Technology, Inc E-2820-CA Vertical - bulkhead- flying lead 2dBi uFL

Aveslink Technology, Inc E-2820-GB Vertical - swivel 2dBi SMA

Aveslink Technology, Inc E-2820-GC Vertical - swivel 2dBi RP-SMA

Aveslink Technology, Inc E-6170-DA Vertical - right angle 1dBi uFL

Aveslink Technology, Inc E-0901-AA Embedded - flying lead 2.5dBi uFL

Hyperlink Technologies HG2402RD-RSF Vertical – tilt and swivel 2.2dBi RP-SMA

A.9 RoHS Compliance

JN5148-001-Myy devices meet the requirements of Directive 2002/95/EC of the European Parliament and of the Council on the Restriction of Hazardous Substance (RoHS).

The JN5148-001-M00, M03 and M04 modules meet the requirements of Chinese RoHS requirements SJ/T11363-

2006.

Full data can be found on the Jennic support website at www.jennic.com/support

A.10 Status Information

The status of this Data Sheet is Preliminary. Jennic products progress according to the following format:

Jennic

JennicJennic

Advanced

The Data Sheet shows the specification of a product in planning or in development. The functionality and electrical performance specifications are target values and may be used as a guide to the final specification. Jennic reserves the right to make changes to the product specification at anytime without notice.

Preliminary

The Data Sheet shows the specification of a product that is commercially available, but is not yet fully qualified. The functionality of the product is final. The electrical performance specifications are target values and may used as a guide to the final specification. Modules are identified with an Rx suffix, for example JN5148-001-M00R2. Jennic reserves the right to make changes to the product specification at anytime without notice.

Production

This is the final Data Sheet for the product. All functional and electrical performance specifications, including minimum and maximum values are final. This Data Sheet supersedes all previous document versions. Jennic reserves the right to make changes to the product specification at anytime to improve its performance.

A.11 Disclaimers

The contents of this document are subject to change without notice. Jennic reserves the right to make changes, without notice, in the products, including circuits and/or software, described or contained therein. Information contained in this document regarding device applications and the like is intended through suggestion only and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications.

Jennic warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with Jennic’s standard warranty. Testing and other quality control techniques are used to the extent Jennic deems necessary to support this warranty. Except where mandatory by government requirements, testing of all parameters of each product is not necessarily performed.

Jennic assumes no responsibility or liability for the use of any of these products, conveys no license or title under any patent, copyright, or mask work right to these products, and makes no representations or warranties that these products are free from patent, copyright, or mask work infringement, unless otherwise specified.

Jennic products are not intended for use in life support systems, appliances or systems where malfunction of these products can reasonably be expected to result in personal injury, death or severe property or environmental damage. Jennic customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Jennic for any damages resulting from such use.

All products are sold subject to Jennic's terms and conditions of sale supplied at the time of order acknowledgment.

All trademarks are the property of their respective owners.

A.12 Version Control

Version Notes

1.0 1st Issue of Advanced Datasheet

1.1 1st Issue of Preliminary Datasheet, minor parametric changes and addition of Apendix A6.3

Jennic

JennicJennic

Jennic Ltd

Furnival Street

Sheffield

S1 4QT

United Kingdom

Tel: +44 (0)114 281 2655

Fax: +44 (0) 114 281 2951

E-mail: info@jennic.com

For the contact details of your local Jennic office or distributor, refer to the Jennic web site:

www.jennic.com

NXP Laboratories UK JN5148M0 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
