NXP CATV C-family
for the Chinese
SARFT standard
Connecting people,
protecting your network
Specially designed for the Chinese Hybrid Fiber Coax (HFC) infrastructure, NXP CATV C-family
offers you a total solution for cable TV networks. It is both flexible enough for connecting rural
communities as part of China’s ‘Connecting every village’ program and powerful enough for
upgrading major cities from analog to high-end digital services. All C-type devices are compliant
with the Chinese State Administration for Radio, Film and Television (SARFT) standard, and cover
most HFC applications in the 550 - 870 MHz range.
Products
Ñ
BGY588C, BGE788C and CGY888C push-pull amplifiers
Ñ
BGD712C, CGD944C and CGD942C power doublers
Ñ
BGO807C optical receiver
Benefits
Ñ
Compliant with Chinese SARFT HFC networks standard
Ñ
Transparent cap allows confirmation of product authenticity
Ñ
Rugged construction
Ñ
Highest ‘by Design’ internal ESD protection
Features
Ñ
Excellent linearity, stability and reliability
Ñ
High power gain
Ñ
Extremely low noise
Ñ
Silicon Nitride passivity
Ñ
GaAs HFET dies for high end devices
Further extending our high quality CATV portfolio, this new
family lets you address an even wider range of
HFC applications. Dedicated solutions for the implementation
of CATV systems in China, our C-type devices deliver the
performance you need for modern TV infrastructures.
The BGY588C, BGE788C and BGD712C devices cover
the frequency range from 550 MHz to 750 MHz. Extending
the C-family portfolio into the high-end segment,
the CGD944C, CGD942C, CGY888C and BGO807C operate
between 40 MHz and 870 MHz and have been specifically
tested under Chinese raster conditions. Manufactured using
our GaAs HFET die process, the CGD942C and CGD944C are
high-gain, high-performance 870 MHz power doublers.
They are capable of satisfying the demanding requirements
of top-end applications including high-power optical nodes.
Our GaAs HFET MMIC dies are providing ‘by design’
the best ESD protection levels with no needs for external
TVS components normally used with GaAs pHEMT devices.
All CATV C-type devices feature a transparent cap that makes
it easy to distinguish them from counterfeit products.
C-family application information
bra820
IN
port
OUT
port
BGY588C
BGE788C
CGY888C
EQ PAD
bra821
IN
port
OUT
port
BGD712C BGY785A
BGY787
EQ PAD
NXP C-family by application
Application
Optical node
Ordinary optical receiver
Distribution amplifier
Line extender amplifier
Terminating amplifier
BGY588C BGE788C CGY888C BGD712C BGO807C CGD944C CGD942C
• • •
BGY588C and BGE788C
The last stage of an HFC network structure is called
a terminating amplifier or ‘user amplifier’ as it is close to
the subscribers. Each terminating amplifier requires a single
• • • •
• • • •
• • • •
• • • •
module such as BGY588C for 550 MHz, BGE788C for 750 MHz
and CGY888C for 870 Mhz systems. These modules are fitting
perfectly in the Chinese ‘Connecting to Every Village’ projects.
BGD712C
The BGD712C is a 750 MHz, 18 dB power doubler module.
It has been designed for 750 MHz optical nodes including
ordinary or optical receivers and distribution amplifiers.
It can also be used in line extender amplifiers together with
a 750 MHz push-pull module, such as BGY785A or BGY787.
As such it can be used widely in Chinese ‘Connecting to Every
Village’ projects.

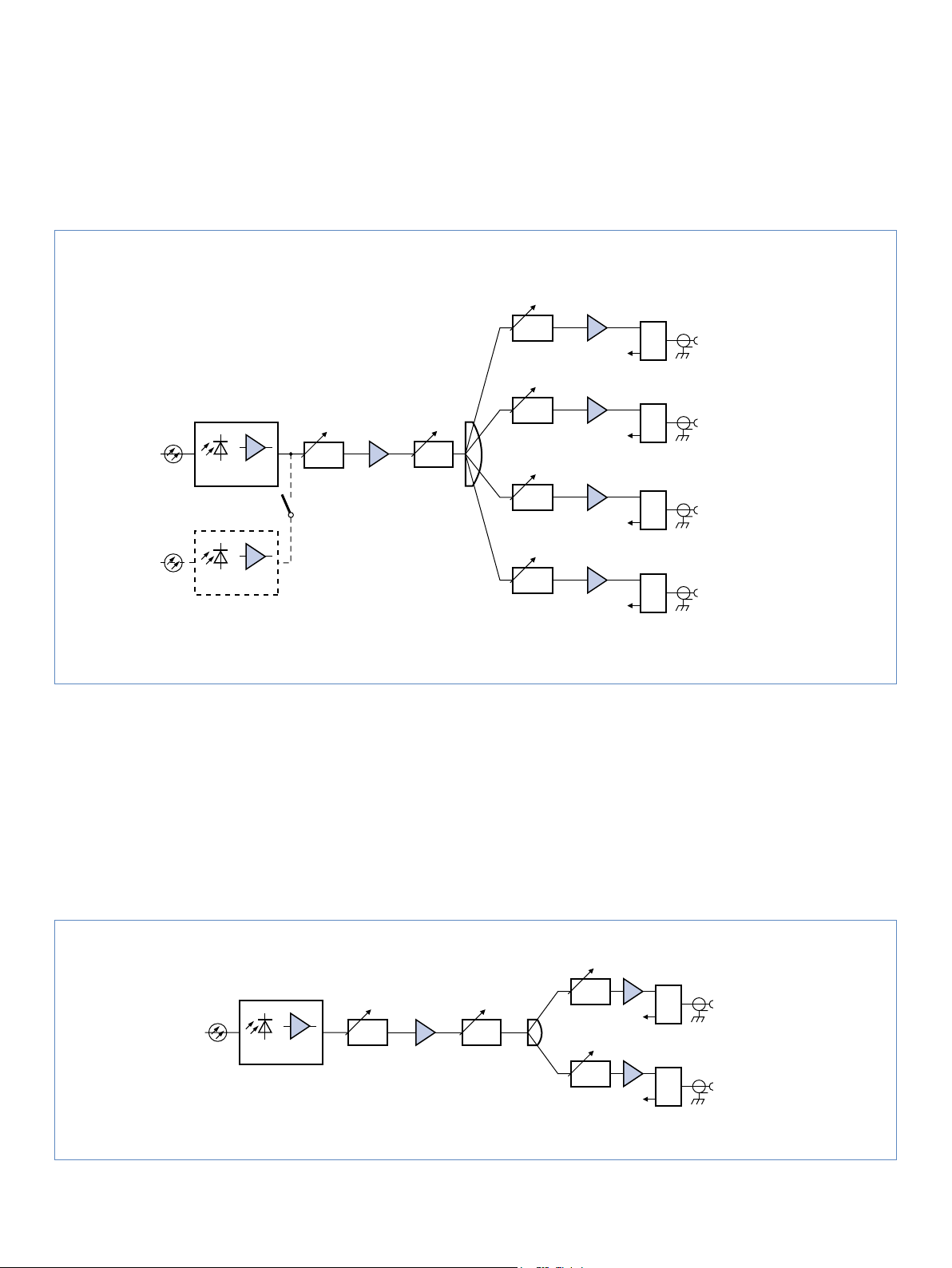

bra822
(N + 1)
RF switch
BGY885A
BGD812
BGY887
CGY887
BGO807C
BGO807C
CGD942C/CGD944C
H
L
OUT
port 1
CGD942C/CGD944C
H
L
OUT
port 2
CGD942C/CGD944C
H
L
OUT
port 3
CGD942C/CGD944C
H
L
OUT
port 4
EQ
PAD
PAD
PAD
PAD
PAD
bra823
BGY885A
BGO807C
BGD812
H
L
OUT
port 1
BGD812
H
L
OUT
port 2
EQ PAD
PAD
PAD
CGD944C and CGD942C
Our full GaAs power doublers modules, CGD942C and
CGD944C offer high output power and better CTB and
CSO than other modules. Designed for high-end HFC
networks containing optical nodes with multiple out-ports,
these modules enable each port to directly cover at least
125 subscribers. These two devices are ideal when used in
upgrading HFC networks to 870 Mhz.
BGO807C
BGO807C is an integrated optical receiver module that
provides high output levels and includes an integrated
temperature compensated circuitry. In your optical node
design, BGO807C enables a high performance/ price ratio and
ruggedness. When upgrading an HFC network from analog to
digital our BGO807C is the perfect fit.

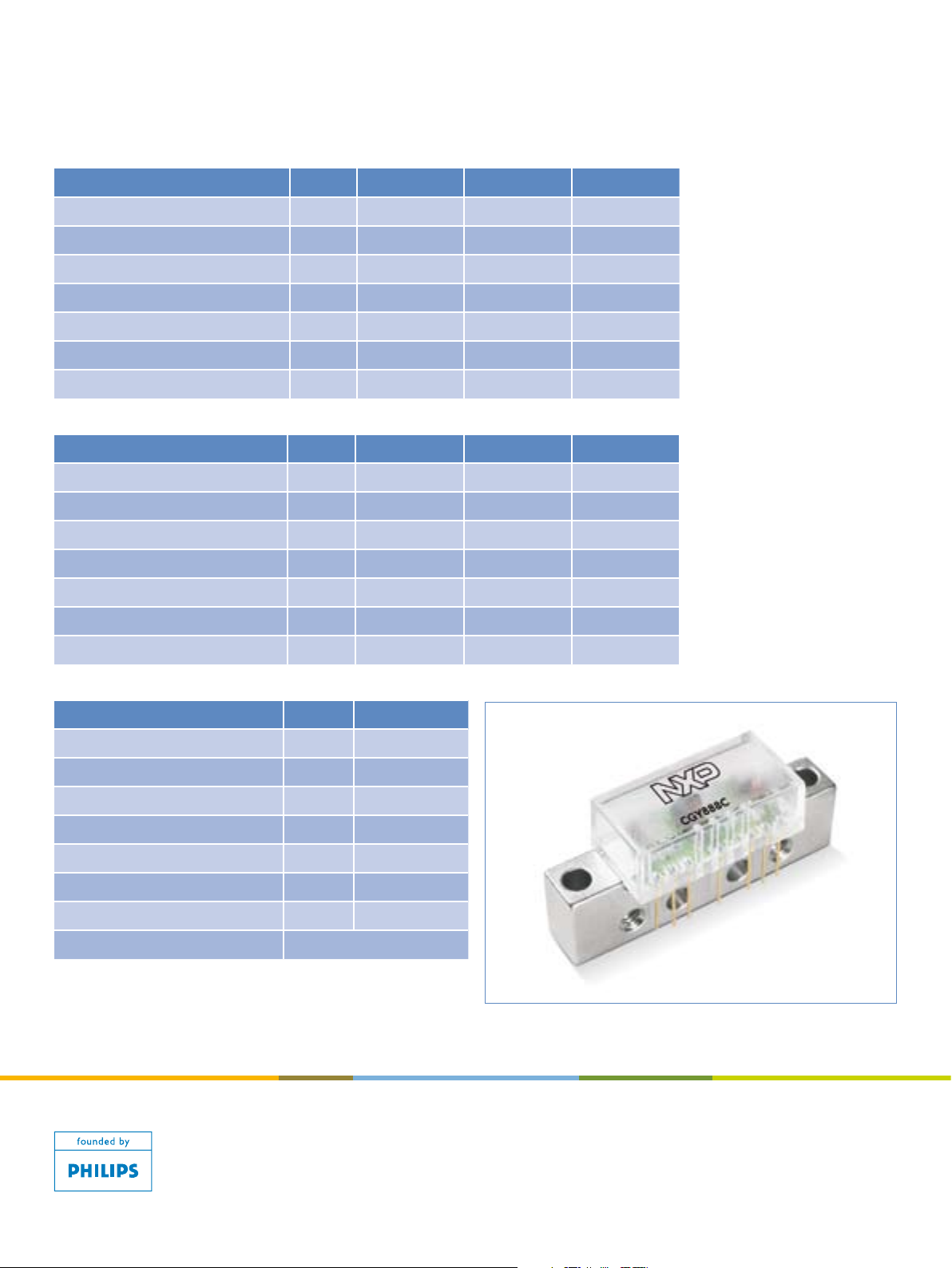

Connecting people, protecting your network
NXP CATV C-family for the Chinese SARFT standard
Push-pull amplifiers
Parameters BGY588C BGE788C CGY888C
Power gain (dB) typ. 34,5 34,2 35,5
Slope cable equivalent (dB) range 0.2 - 1.7 0.3 - 2.3 1.5 typ.
Composite triple beat (dB) max. -57 -49 -66
Composite 2nd order distortion (dB) max. -62 -52 -64
Noise (@ fmax) (dB) max. 8 8 3 typ.
Total current comsumption (mA) typ. 325 305 280
Frequency range (MHz) range 40 - 550 40 - 750 40 - 870
Power doublers
Parameters BGD712C CGD944C CGD942C
Power gain (dB) typ. 18,5 25 23
Slope cable equivalent (dB) range 0.5 - 1.5 1 - 2 1 - 2
Composite triple beat (dB) max. -62 -66 -66
Composite 2nd order distortion (dB) max. -63 -67 -67
Noise (@ fmax) (dB) max. 7 5 5
Total current comsumption (mA) typ. 395 450 450
Frequency range (MHz) range 40 - 750 40 - 870 40 - 870
Optical receiver
Parameters BGO807C
Responsivity (Rmin) min. 800
Slope cable equivalent (dB) range 0 - 2
Composite triple beat (dB) max. -71
Composite 2nd order distortion (dB) max. -55
Noise (@ fmax) (dB) max. 8,5
Total current comsumption (mA) typ. 190
Frequency range (MHz) range 40 - 870
Connector - / SC0 / FC0
