AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

Rev. 2.3 — 7 December 2020 Application note 534622

Document information

Information Content

Keywords EdgeLock SE05x, EdgeLock SE05x Plug & Trust Middleware, Visual Studio

projects

Abstract This document explains how to get started with EdgeLock SE05x Plug &

Trust middleware using the Visual Studio project examples. It provides detailed instructions to run the Microsoft Visual Studio projects using the CMake-based build system included in the EdgeLock SE05x Plug & Trust middleware.

NXP Semiconductors

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

Revision history

Revision number

1.0 2019-06-08 First document release

1.1 2019-06-20 Update of board figures

2.0 2019-11-25 Update of CMake buld system materials

2.1 2019-12-17 Corrected OM-SE05xARD J14 jumper setting

2.2 2020-11-19 Update for EdgeLock SE051

2.3 2020-12-07 Updated to the latest template and fixed broken URLs

Date Description

AN12398

Application note Rev. 2.3 — 7 December 2020

534622 2 / 34

NXP Semiconductors

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

1 How to use this document

The Plug & Trust middleware package is delivered with the CMake files that include the set of directives and instructions describing the project's source files and targets. The CMake architecture allows developers to build files for their platform and native build environment and run exactly the same project example on PC/Windows/Linux and embedded targets.

This document provides detailed instructions to run Visual Studio examples provided in the Plug & Trust middleware using FRDM-K64F and OM-SE05xARD boards. The main body of this document should be used in this sequence:

1. Order board samples. Section 2 contains the ordering details of the boards required in this document

2. Setup your boards. Section 3 describes how to setup the OM-SE05xARD and FRDMK64F boards.

3. Run project examples. Go to Section 4 for instructions to import and run EdgeLock SE05x Visual Studio project examples.

Supplementary material has been provided in the appendices.

AN12398

Application note Rev. 2.3 — 7 December 2020

534622 3 / 34

NXP Semiconductors

2 Hardware required

The EdgeLock SE05x works as an auxiliary security device attached to a host controller, communicating with through an I²C interface. To follow the instructions provided in this document, you need an EdgeLock SE05x development board and a FRDM-K64F MCU board, acting as a host controller.

EdgeLock SE05x development boards ordering details

The EdgeLock SE05x support package provides development boards for evaluating EdgeLock SE050 and EdgeLock SE051 features. Select the development board of the product you want to evaluate. Table 1 details the ordering details of the EdgeLock SE05x development boards.

Table 1. EdgeLock SE05x development boards.

Part number 12NC Description Picture

OM-SE050ARD 935383282598 SE050 Arduino

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

compatible development kit

OM-SE051ARD 935399187598 SE051 Arduino

compatible development kit

Note: The pictures in this guide will show EdgeLock SE050, but EdgeLock SE051 can be used as well with the same configuration.

FRDM-K64F MCU board ordering details

Table 2 details the ordering details for the FRDM-K64F board.

Table 2. FRDM-K64F details

Part number 12NC Content Picture

FRDM-64F 935326293598 Freedom development

platform for Kinetis K64, K63 and K24 MCUs

Application note Rev. 2.3 — 7 December 2020

534622 4 / 34

NXP Semiconductors

3 Boards setup

This section explains how to prepare the OM-SE05xARD boards and FRDM-K64F board to run the Plug & Trust middleware project examples. This consists of:

1. Update FRDM-K64F with DAPLIink firmware.

2. OM-SE05xARD jumper configuration.

3. OM-SE05xARD and FRDM-K64F board connection.

3.1 Update FRDM-K64F board with DAPLink firmware

Arm Mbed DAPLink is an open-source software project that enables programming and debugging application software running on Arm Cortex CPUs. DAPLink runs an opensource bootloader and enables developers with drag-and-drop programming, a serial port and CMSIS-DAP based debugging.

Note: To debug MCUXpresso project examples, we need to flash FRDM-K64F with DAPLink firmware. If your FRDM-K64F board already includes DAPLink firmware, you can skip these steps.

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

To flash DAPLink firmware, follow these steps:

1. Go to NXP OpenSDA site

2. Scroll down and select FRDM-K64F board from the Download - OpenSDA bootloader and application drop down list as indicated in Figure 1:

Figure 1. DAPLink firmware update - select board

Application note Rev. 2.3 — 7 December 2020

534622 5 / 34

NXP Semiconductors

3. Download the latest DAPLink firmware version as shown in Figure 2:

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

Figure 2. DAPLink firmware update - select bootloader

4. Start the board's bootloader mode. To do so, (1) keep reset button pressed while (2) connecting the USB cable to the SDA USB port and release it after 1s (Figure 3):

Figure 3. Enter bootloader mode

Application note Rev. 2.3 — 7 December 2020

534622 6 / 34

NXP Semiconductors

5. Drag and drop or copy and paste the binary file into the BOOTLOADER drive from

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

your computer file explorer as shown in Figure 4. The FRDM-K64F will automatically un-mount after the drag and drop operation.

Figure 4. Enter bootloader mode

6. Un-plug and re-plug the USB cable from the SDA USB port without keeping reset button pressed.

7. Check the category Ports (COM & LTP) from your computer Device Manager to ensure that new devices have been properly detected and their driver correctly installed by your computer OS.

Figure 5. Enter bootloader mode

Note: In case the device does not show up in your Device Manager, please download the latest bootloader version, as shown in Figure 2, or check / exchange the USB cables used.

Application note Rev. 2.3 — 7 December 2020

534622 7 / 34

NXP Semiconductors

3.2 OM-SE05xARD jumper configuration

The OM-SE05xARD boards have jumpers that allow you to configure the I2C interface of EdgeLock SE05x secure elements via the Arduino header. Configure the jumper settings as shown in Figure 6 to enable this option.

Note: For more information about the jumper settings, refer to AN12395 (OM- SE050ARD) and AN13016 (OM-SE051ARD) respectively.

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

Figure 6. Jumper configuration for FRDM-K64F

3.3 OM-SE05xARD and FRDM-K64F board connection

The OM-SE05xARD boards and FRDM-K64F board can be directly connected using the Arduino connectors. The OM-SE05xARD boards come with male connectors while the FRDM-K64F board comes with female headers.

Mount any OM-SE05xARD board on top of the FRDM-K64F as shown in Figure 7:

Figure 7. Arduino connectors of OM-SE05xARD and FRDM-K64F boards

Double check that the two boards are connected as shown in Figure 8:

Application note Rev. 2.3 — 7 December 2020

534622 8 / 34

NXP Semiconductors

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

Figure 8. OM-SE05xARD mounted in FRDM-K64F board

Note: Refer to Figure 6 for OM-SE05xARD jumper configuration.

Application note Rev. 2.3 — 7 December 2020

534622 9 / 34

NXP Semiconductors

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

AN12398

4 Run Plug & Trust middleware Visual Studio project examples

This section explains how to run Plug & Trust middleware Visual Studio project examples using the CMake-based build system.

4.1 Prerequisites

The following tools are required to run the Plug & Trust middleware Visual Studio projects:

1. Install Visual Studio 2017 version, or higher, in your laptop. For reference, Section 5 illustrates how Visual Studio 2017 version can be installed, but the same procedure can be applied for more recent versions.

2. Install CMake. For reference, Section 6 illustrates the detailed installation instructions.

3. Install Python 3.7.x 32-bit version, or higher, in your laptop. For reference, Section 7 illustrates how Python 3.7.x 32-bit version can be installed, but the same procedure can be applied for more recent versions.

4.2 Download Plug & Trust middleware

Follow these steps to download the Plug & Trust middleware in your local machine:

1. Download Plug & Trust middleware from the NXP website.

2. Create a folder called se050_middleware in C: directory as shown in Figure 9:

Figure 9. Create se050_middleware folder

Application note Rev. 2.3 — 7 December 2020

534622 10 / 34

NXP Semiconductors

3. Unzip the Plug & Trust middleware inside the se050_middleware folder. After

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

unzipping, you will see a folder called simw-top created. The contents of the simwtop directory should look as shown in Figure 10:

Figure 10. Unzip se050 middleware

Note: It is recommended to keep se050_middleware with the shortest path possible and without spaces in it. This avoids some issues that could appear when building the middleware if the path contains spaces.

4.3 Build Plug & Trust middleware project examples

The Plug & Trust middleware uses CMake for building the project examples into your local machine. To build Plug & Trust middleware, open a Command Prompt and use the following steps as shown in Figure 11:

1. Go to folder with the unzipped SE050 middleware: (1) Send >> cd C:\se050_middleware\simw-top\scripts

2. Define the environment: (2) Send >> env_setup.bat

Application note Rev. 2.3 — 7 December 2020

534622 11 / 34

NXP Semiconductors

3. Generate the Plug & Trust middleware project examples:

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

(3) Send >> python create_cmake_projects.py

Note: This command may take a few seconds to complete.

Figure 11. Generate Plug & Trust middleware project examples

4. Your project directory should now contain two folders: a (1) simw-top folder and a (2) simw-top_build folder as shown in Figure 12:

Figure 12. SE050 middleware project structure

4.4 Flash FRDM-K64F with VCOM software

The VCOM software allows the FRDM-K64F board to be used as a bridge between the Windows machine and the EdgeLock SE05x and enables the execution of the EdgeLock SE05x ssscli tool and other utilities from the laptop. To flash the VCOM software into the FRDM-K64F, follow these steps:

Application note Rev. 2.3 — 7 December 2020

534622 12 / 34

NXP Semiconductors

1. Unplug and plug again the USB cable to the openSDA USB port as shown in

2. When you plug the board, your laptop should recognize the board as an external drive

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

Figure 13:

Figure 13. Unplug and plug OpenSDA port

as shown in Figure 14:

Figure 14. FRDM-K64F drive

Application note Rev. 2.3 — 7 December 2020

534622 13 / 34

NXP Semiconductors

3. Flash the VCOM software to FRDM-K64F. The VCOM software binary can be found

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

in the Plug & Trust middleware package, inside the simw-top\binaries folder as shown in Figure 15:

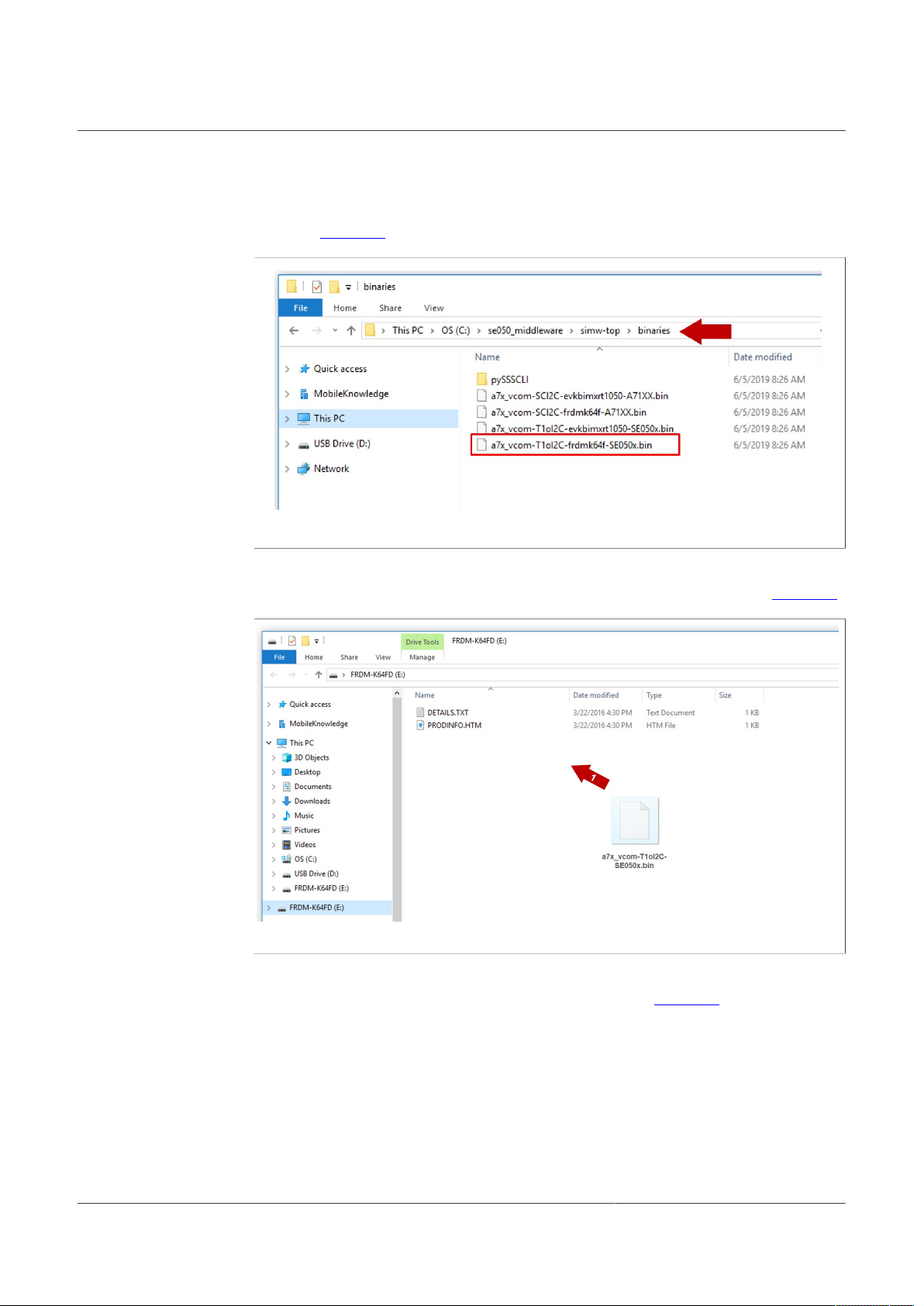

Figure 15. VCOM binary folder

4. Drag and drop or copy and paste the a7x_vcom-T1oI2C-frdmk64f-SE050x.bin file into the FRDM-K64F drive from your computer file explorer as shown in Figure 16:

Figure 16. Drag and drop VCOM binary

5. The serial and VCOM ports should be recognized by your Device Manager. To check that the ports are recognized, follow the steps indicated in Figure 17:

a. Unplug the USB cable from the OpenSDA USB port. b. Plug the USB cable to the OpenSDA USB port. c. Check that the serial port is recognized in the category Ports (COM & LTP). In

this document, it is recognized as USB Serial Device (COM7) but this naming might change depending on your computer. Therefore, it is important that you

Application note Rev. 2.3 — 7 December 2020

534622 14 / 34

NXP Semiconductors

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

identify which device is recognized at the moment you plug the SDA USB port to

the computer. d. Plug the USB cable to the K64F USB port. e. Check that the VCOM port is recognized in the category Ports (COM & LTP).

In this document, it is recognized as Virtual Com Port (COM8) but this naming

might change depending on your computer (e.g. It could also appear named as

USB Serial Device). Therefore, it is important that you identify which device is

recognized at the moment you plug the K64F USB port to the computer.

Figure 17. Check VCOM and serial ports

4.5 Execute EdgeLock SE05x Visual Studio project examples

This section explains how to run the Plug & Trust middleware project example called se05x_minimal. The se05x_minimal project outputs the memory left in EdgeLock SE05x security IC.

Note: The execution of the se05x_minimal project is shown as an example. The steps detailed in this section can be replicated to run any other project example included as part of the Plug & Trust middleware.

To execute the se05x_minimal test example, follow these steps:

Application note Rev. 2.3 — 7 December 2020

534622 15 / 34

NXP Semiconductors

1. Connect the FRDM-K64F board to your laptop as shown in Figure 18. Check that

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

your Windows Device Manager recognizes FRDM-K64F board as shown in Figure 17. Refer to Figure 6 for OM-SE05xARD jumper configuration.

Figure 18. Plug OpenSDA and USB FRDM-K64F ports.

Application note Rev. 2.3 — 7 December 2020

534622 16 / 34

NXP Semiconductors

2. Open the CMake configuration menu as shown in Figure 19 and ensure that all the

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

flags are set properly for your use case. a. Open a command prompt and go to the directory where the Plug & Trust

middleware is built.

Send: cd C\se050_middleware\simw-top_build\se_x86 b. Open the cmake configuration interface.

Send: cmake-gui .

Figure 19. Open the CMake configuration interface

This step allows the user to customize the compilation options, for example:

• In the SE05X_Ver field you can change the version of the SE: being 03_XX for the

EdgeLock SE050 and 06_00 for the EdgeLock SE051.

• You can change Log field to set the desired log level for your use case: Default,

Verbose or Silent as shown in Figure 20.

Figure 20. Review CMake configuration

Application note Rev. 2.3 — 7 December 2020

534622 17 / 34

NXP Semiconductors

3. Go to the C:\se050_middleware\simw-top_build\se_x86 directory. Double

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

If you have edited any of the parameters in the menu, before exiting press the buttons Configure and Generate to apply the changes. For more information about the CMake options please refer the CMake section of Plug & Trust middleware documentation: simw-top/doc/scripts/

cmake_options.html

click the PlugAndTrustMW.sln Visual Studio project solution as shown in Figure 21:

Figure 21. Open PlugAndTrustMW.sln Visual Studio project solution

4. The Visual Studio IDE will open with the Plug & Trust middleware project examples included in the workspace as can be seen in Figure 22:

Figure 22. PlugAndTrustMW.sln Visual Studio project workspace

Application note Rev. 2.3 — 7 December 2020

534622 18 / 34

NXP Semiconductors

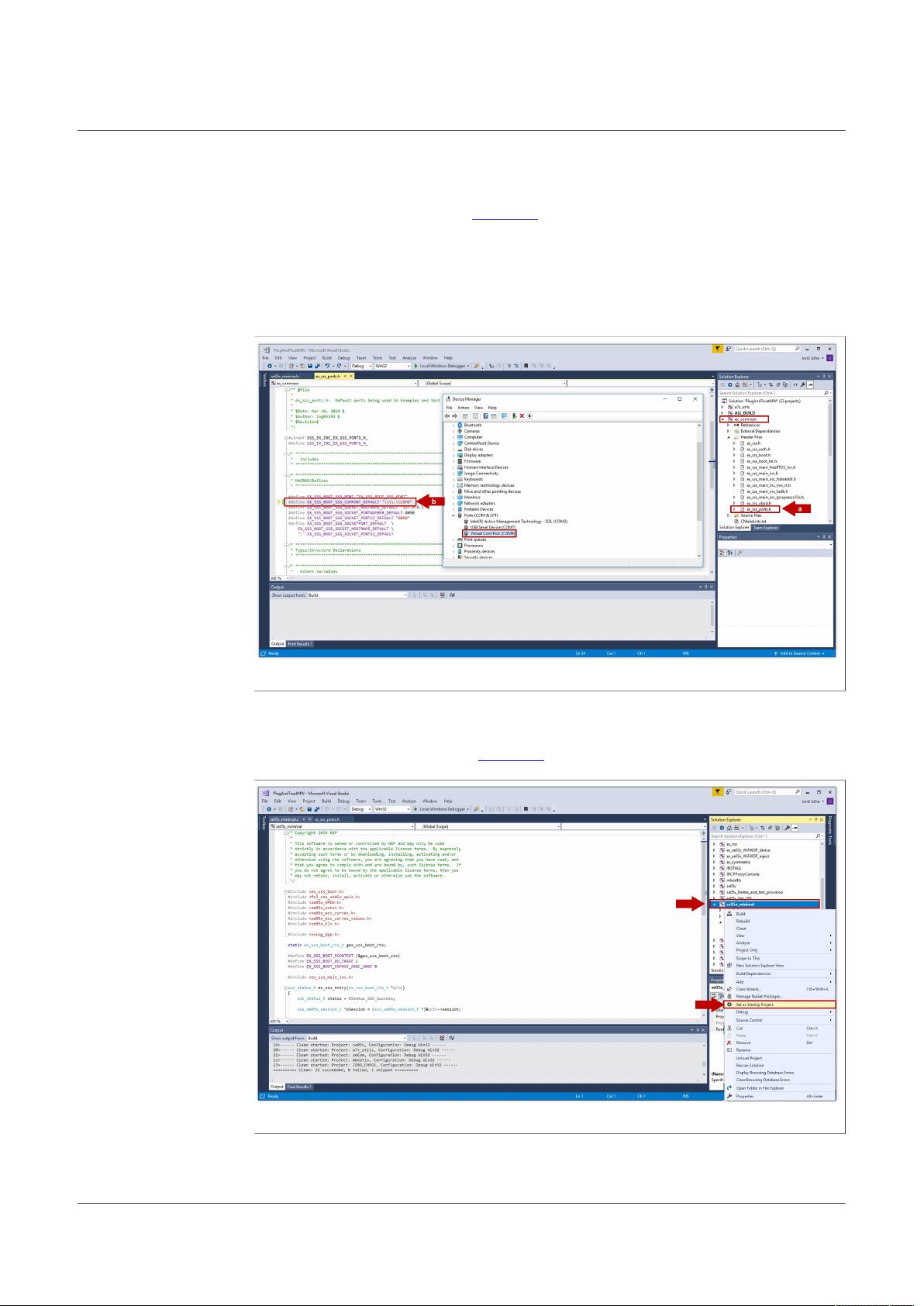

5. Change the VCOM port number in the Plug & Trust middleware project. To do so,

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

follow the instructions shown in Figure 23: a. Go to the ex_common project and open the ex_sss_ports.h file inside the

headers directory.

b. Change #define EX_SSS_BOOT_SSS_COMPORT_DEFAULT "\\\\.\\COMx"

with the port COM number your laptop assigned to your FRDM-K64F. In this setup, the COM number is COM9.

Figure 23. Change VCOM port number in your solution

6. Select the se05x_minimal project from the Solution Explorer window located on the right-hand side of the Visual Studio IDE. Do right-click on the project and click on Set as StartUp project as shown in Figure 24:

Figure 24. Set se05x_minimal as StartUp project

Application note Rev. 2.3 — 7 December 2020

534622 19 / 34

NXP Semiconductors

7. Right click on the se05x_minimal project and build it by clicking the build option as

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

shown in Figure 25.

Figure 25. Build se05x_minimal project

8. Click on Local Windows Debugger button in the top menu to run se05x_minimal project as shown in Figure 26. The project will be executed after the project building process has finished.

Figure 26. Run se05x_minimal project

Application note Rev. 2.3 — 7 December 2020

534622 20 / 34

NXP Semiconductors

9. If the se05x_minimal project runs successfully, a Console window will be opened.

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

The logs in this Console window indicate the available memory in EdgeLock SE05x security IC (in this case, 592) as can be seen in Figure 27:

Figure 27. Verify that se05x_minimal project is running

10.The same operation can be repeated with any of the other Plug & Trust middleware project examples.

Application note Rev. 2.3 — 7 December 2020

534622 21 / 34

NXP Semiconductors

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

5 Appendix A: Install Visual Studio

Visual Studio is Microsoft's fully-featured IDE for Android, iOS, Windows, web, and cloud. Visual Studio 2017 introduces rich support for CMake, including cross-platform CMake projects.

This section explains how to install Visual Studio 2017 version, but the same procedure can be applied for more recent versions.

1. Go to Visual Studio site.

2. Select (1) Windows and click on Community 2017 in the Download Visual Studio button as shown in Figure 28:

AN12398

Figure 28. Download Visual Studio IDE

Application note Rev. 2.3 — 7 December 2020

534622 22 / 34

NXP Semiconductors

3. An *.exe installer will download to your laptop. Double click on the installer file and

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

follow the setup wizard until the installation is completed. This process might take a few minutes. Figure 29 shows Visual Studio installation wizard as an example:

Figure 29. Visual Studio IDE installation wizard

4. As part of the Visual Studio setup, it is mandatory that you enable the installation of Desktop development with C++. Select (1) Desktop development with C++ and (2) click install as shown in Figure 30:

Figure 30. Select desktop development with C++

Application note Rev. 2.3 — 7 December 2020

534622 23 / 34

NXP Semiconductors

5. Visual C++ Tools for CMake is installed by default as part of the Desktop development

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

with C++ workload. This process might take several minutes. Figure 31 shows Visual Studio installation wizard as an example:

Figure 31. Install desktop development with C++

6. After the installation is completed, you might be asked to reboot your system as shown in Figure 32:

Figure 32. Visual Studio installation - reboot

Application note Rev. 2.3 — 7 December 2020

534622 24 / 34

NXP Semiconductors

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

6 Appendix B: Install CMake

CMake is an open-source, cross-platform family of tools that helps you build C/C++ projects on multiple platforms using a compiler-independent method. It has minimal dependencies, requiring only a C++ compiler on its own build system. SE05x middleware leverages on CMake to generate native makefiles and workspaces that can be used in the compiler environment of your choice.

To install CMake:

1. Go to CMake downloads page: https://cmake.org/download/

2. Scroll down and select your binary distribution. For this guide, the binary distribution is Windows as shown in Figure 33:

AN12398

Figure 33. Download CMake

Application note Rev. 2.3 — 7 December 2020

534622 25 / 34

NXP Semiconductors

3. Double click on the downloaded installer file. Windows Defender SmartScreen might

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

pop-up the wizard shown in Figure 34:

Figure 34. Execute CMake installer

4. If this is your case: Click (1) on More info and then (2) click on Run anyway as shown in Figure 35:

Figure 35. Run the CMake installer (II)

Application note Rev. 2.3 — 7 December 2020

534622 26 / 34

NXP Semiconductors

5. The CMake installation wizard will open. Click (1) Next and (2) accept the End-User

6. As part of the CMake setup, (1) Add Cmake to the system PATH for all users and

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

License Agreement as shown in Figure 36:

Figure 36. CMake installation wizard

(2) click Next as shown in Figure 37:

Figure 37. Add CMake path

Application note Rev. 2.3 — 7 December 2020

534622 27 / 34

NXP Semiconductors

7. Select a destination folder, (1) click Next and then (2) click Install as shown in

8. Wait a few seconds until the installation is completed and click Finish as shown in

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

Figure 38:

Figure 38. Install CMake

Figure 39:

Figure 39. Complete CMake installation

Application note Rev. 2.3 — 7 December 2020

534622 28 / 34

NXP Semiconductors

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

7 Appendix C: Install Python

This section explains how to install Python 3.7.x 32-bit version, but the same procedure can be applied for more recent versions. Follow these steps to install Python in your local machine:

1. Go to https://www.python.org/downloads and download Python v.3.7.x 32 bit

version. Make sure you download Python v3.7.x 32 bit version.

AN12398

Figure 40. Download Python 3.7.x 32 bit version

Application note Rev. 2.3 — 7 December 2020

534622 29 / 34

NXP Semiconductors

2. Double click on the downloaded installer file. Select the "Install launcher for all users"

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

and "Add Python 3.7 to Path" options and click Install Now as indicated in Figure 41:

Figure 41. Install Python 3.5.x 32 bit for Windows

3. Wait a few seconds until the installation is completed as indicated in Figure 42

Figure 42. Python 3.5.x 32 bit installation completed

Application note Rev. 2.3 — 7 December 2020

534622 30 / 34

NXP Semiconductors

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

8 Legal information

8.1 Definitions

Draft — A draft status on a document indicates that the content is still

under internal review and subject to formal approval, which may result in modifications or additions. NXP Semiconductors does not give any representations or warranties as to the accuracy or completeness of information included in a draft version of a document and shall have no liability for the consequences of use of such information.

8.2 Disclaimers

Limited warranty and liability — Information in this document is believed

to be accurate and reliable. However, NXP Semiconductors does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. NXP Semiconductors takes no responsibility for the content in this document if provided by an information source outside of NXP Semiconductors. In no event shall NXP Semiconductors be liable for any indirect, incidental, punitive, special or consequential damages (including - without limitation - lost profits, lost savings, business interruption, costs related to the removal or replacement of any products or rework charges) whether or not such damages are based on tort (including negligence), warranty, breach of contract or any other legal theory. Notwithstanding any damages that customer might incur for any reason whatsoever, NXP Semiconductors’ aggregate and cumulative liability towards customer for the products described herein shall be limited in accordance with the Terms and conditions of commercial sale of NXP Semiconductors.

Right to make changes — NXP Semiconductors reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof.

Suitability for use — NXP Semiconductors products are not designed, authorized or warranted to be suitable for use in life support, life-critical or safety-critical systems or equipment, nor in applications where failure or malfunction of an NXP Semiconductors product can reasonably be expected to result in personal injury, death or severe property or environmental damage. NXP Semiconductors and its suppliers accept no liability for inclusion and/or use of NXP Semiconductors products in such equipment or applications and therefore such inclusion and/or use is at the customer’s own risk.

Applications — Applications that are described herein for any of these products are for illustrative purposes only. NXP Semiconductors makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Customers are responsible for the design and operation of their applications and products using NXP Semiconductors products, and NXP Semiconductors accepts no liability for any assistance with applications or customer product design. It is customer’s sole responsibility to determine whether the NXP Semiconductors product is suitable and fit for the customer’s applications and products planned, as well as for the planned application and use of customer’s third party customer(s). Customers should provide appropriate design and operating safeguards to minimize the risks associated with their applications and products. NXP Semiconductors does not accept any liability related to any default, damage, costs or problem which is based

AN12398

on any weakness or default in the customer’s applications or products, or the application or use by customer’s third party customer(s). Customer is responsible for doing all necessary testing for the customer’s applications and products using NXP Semiconductors products in order to avoid a default of the applications and the products or of the application or use by customer’s third party customer(s). NXP does not accept any liability in this respect.

Export control — This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from competent authorities.

Evaluation products — This product is provided on an “as is” and “with all faults” basis for evaluation purposes only. NXP Semiconductors, its affiliates and their suppliers expressly disclaim all warranties, whether express, implied or statutory, including but not limited to the implied warranties of non-infringement, merchantability and fitness for a particular purpose. The entire risk as to the quality, or arising out of the use or performance, of this product remains with customer. In no event shall NXP Semiconductors, its affiliates or their suppliers be liable to customer for any special, indirect, consequential, punitive or incidental damages (including without limitation damages for loss of business, business interruption, loss of use, loss of data or information, and the like) arising out the use of or inability to use the product, whether or not based on tort (including negligence), strict liability, breach of contract, breach of warranty or any other theory, even if advised of the possibility of such damages. Notwithstanding any damages that customer might incur for any reason whatsoever (including without limitation, all damages referenced above and all direct or general damages), the entire liability of NXP Semiconductors, its affiliates and their suppliers and customer’s exclusive remedy for all of the foregoing shall be limited to actual damages incurred by customer based on reasonable reliance up to the greater of the amount actually paid by customer for the product or five dollars (US$5.00). The foregoing limitations, exclusions and disclaimers shall apply to the maximum extent permitted by applicable law, even if any remedy fails of its essential purpose.

Translations — A non-English (translated) version of a document is for reference only. The English version shall prevail in case of any discrepancy between the translated and English versions.

Security — Customer understands that all NXP products may be subject to unidentified or documented vulnerabilities. Customer is responsible for the design and operation of its applications and products throughout their lifecycles to reduce the effect of these vulnerabilities on customer’s applications and products. Customer’s responsibility also extends to other open and/or proprietary technologies supported by NXP products for use in customer’s applications. NXP accepts no liability for any vulnerability. Customer should regularly check security updates from NXP and follow up appropriately. Customer shall select products with security features that best meet rules, regulations, and standards of the intended application and make the ultimate design decisions regarding its products and is solely responsible for compliance with all legal, regulatory, and security related requirements concerning its products, regardless of any information or support that may be provided by NXP. NXP has a Product Security Incident Response Team (PSIRT) (reachable at PSIRT@nxp.com) that manages the investigation, reporting, and solution release to security vulnerabilities of NXP products.

8.3 Trademarks

Notice: All referenced brands, product names, service names and trademarks are the property of their respective owners.

Application note Rev. 2.3 — 7 December 2020

534622 31 / 34

NXP Semiconductors

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

AN12398

Tables

Tab. 1. EdgeLock SE05x development boards. ............ 4 Tab. 2. FRDM-K64F details ...........................................4

Application note Rev. 2.3 — 7 December 2020

534622 32 / 34

NXP Semiconductors

Figures

AN12398

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

Fig. 1. DAPLink firmware update - select board ...........5

Fig. 2. DAPLink firmware update - select

bootloader ..........................................................6

Fig. 3. Enter bootloader mode ......................................6

Fig. 4. Enter bootloader mode ......................................7

Fig. 5. Enter bootloader mode ......................................7

Fig. 6. Jumper configuration for FRDM-K64F ...............8

Fig. 7. Arduino connectors of OM-SE05xARD and

FRDM-K64F boards .......................................... 8

Fig. 8. OM-SE05xARD mounted in FRDM-K64F

board ................................................................. 9

Fig. 9. Create se050_middleware folder .................... 10

Fig. 10. Unzip se050 middleware .................................11

Fig. 11. Generate Plug & Trust middleware project

examples ......................................................... 12

Fig. 12. SE050 middleware project structure ............... 12

Fig. 13. Unplug and plug OpenSDA port ......................13

Fig. 14. FRDM-K64F drive ........................................... 13

Fig. 15. VCOM binary folder ........................................ 14

Fig. 16. Drag and drop VCOM binary .......................... 14

Fig. 17. Check VCOM and serial ports ........................ 15

Fig. 18. Plug OpenSDA and USB FRDM-K64F

ports. ................................................................16

Fig. 19. Open the CMake configuration interface ......... 17

Fig. 20. Review CMake configuration ...........................17

Fig. 21. Open PlugAndTrustMW.sln Visual Studio

project solution ................................................ 18

Fig. 22. PlugAndTrustMW.sln Visual Studio project

workspace ....................................................... 18

Fig. 23. Change VCOM port number in your

solution ............................................................ 19

Fig. 24. Set se05x_minimal as StartUp project ............ 19

Fig. 25. Build se05x_minimal project ............................20

Fig. 26. Run se05x_minimal project .............................20

Fig. 27. Verify that se05x_minimal project is running ... 21

Fig. 28. Download Visual Studio IDE ........................... 22

Fig. 29. Visual Studio IDE installation wizard ............... 23

Fig. 30. Select desktop development with C++ ............ 23

Fig. 31. Install desktop development with C++ .............24

Fig. 32. Visual Studio installation - reboot .................... 24

Fig. 33. Download CMake ............................................25

Fig. 34. Execute CMake installer ................................. 26

Fig. 35. Run the CMake installer (II) ............................ 26

Fig. 36. CMake installation wizard ............................... 27

Fig. 37. Add CMake path ............................................. 27

Fig. 38. Install CMake .................................................. 28

Fig. 39. Complete CMake installation ...........................28

Fig. 40. Download Python 3.7.x 32 bit version ............. 29

Fig. 41. Install Python 3.5.x 32 bit for Windows ........... 30

Fig. 42. Python 3.5.x 32 bit installation completed ....... 30

Application note Rev. 2.3 — 7 December 2020

534622 33 / 34

NXP Semiconductors

EdgeLockTM SE05x Quick start guide with Visual Studio project examples

1 How to use this document ................................. 3

2 Hardware required .............................................. 4

3 Boards setup ....................................................... 5

3.1 Update FRDM-K64F board with DAPLink

firmware ............................................................. 5

3.2 OM-SE05xARD jumper configuration ................ 8

3.3 OM-SE05xARD and FRDM-K64F board

connection ..........................................................8

4 Run Plug & Trust middleware Visual

Studio project examples .................................. 10

4.1 Prerequisites .................................................... 10

4.2 Download Plug & Trust middleware ................. 10

4.3 Build Plug & Trust middleware project

examples ..........................................................11

4.4 Flash FRDM-K64F with VCOM software ......... 12

4.5 Execute EdgeLock SE05x Visual Studio

project examples ............................................. 15

5 Appendix A: Install Visual Studio .................... 22

6 Appendix B: Install CMake ............................... 25

7 Appendix C: Install Python .............................. 29

8 Legal information .............................................. 31

AN12398

Please be aware that important notices concerning this document and the product(s) described herein, have been included in section 'Legal information'.

For more information, please visit: http://www.nxp.com For sales office addresses, please send an email to: salesaddresses@nxp.com

Date of release: 7 December 2020

Document identifier: AN12398

Document number: 534622

NXP AN12398 Quick Start Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

1 How to use this document

2 Hardware required

3 Boards setup

3.1 Update FRDM-K64F board with DAPLink firmware

4 Run Plug & Trust middleware Visual Studio project examples

4.1 Prerequisites

4.2 Download Plug & Trust middleware

4.3 Build Plug & Trust middleware project examples

4.4 Flash FRDM-K64F with VCOM software

4.5 Execute EdgeLock SE05x Visual Studio project examples

5 Appendix A: Install Visual Studio

6 Appendix B: Install CMake

7 Appendix C: Install Python

8 Legal information

Tables

Figures

Contents
