Getting Started
Congratulations!
You’ve purchased one of the most advanced and easy to setup control systems available. The NX-RM610’s built-in library includes
thousands of different brands and models of remote controls. In
most systems, all you have to do to setup the NX-RM610 is enter
which brands and models you own. If you own a component too
new to be in the library, the NX-RM610 uses advanced learning
technology to quickly set each NX-RM610 button, one at a time.
Setting up your NX-RM610 to replace all your existing remote controls can be done in a few minutes. Basic Setup is described on
pages 5 to 13.
The NX-RM610’s exciting advanced features automate and customize operation in many ways. You could use Macro Setup to
power on all of your components and start the show with the press
of one button! With the N-RM610’s unique Favorite Channel capability, you can tune in a channel with the press of one button
instead of entering the entire channel number. Any of the button
names on the display can be edited, as you like. It is best to delay
any Advanced Setup (described on pages 14 to 36) until after you
finish Basic Setup.
Battery Installation
Remove the battery compartment cover by pressing up the cover
lock. Insert four AAA batteries into the battery compartment as
shown in the diagram.
NX-RM610
2
NX-RM610_Remote_Manual 10/6/08 4:04 PM Page 4
Button Layout
NX-RM610
3
*Note: When a command, macro or favorite channel is being
transmitted, an icon will appear in the right corner of the display.
While the NX-RM610 is “busy”, it will ignore a button push.
LIGHT
Button
POWER
ON
Button
MAIN
Button
takes you
to the
MAIN
Menu.
Screen
Labeled
Display
Buttons
Screen
Labeled
Display
Buttons
Transmitting
“Busy” Signal
Indicator*
PAGE
Buttons
change the
page of
Display
Buttons.
PAGE
Numbers
FUNCTION
Buttons
FAVORITE
CHANNEL
Button
TITLE
POWER
OFF
Button
NX-RM610_Remote_Manual 10/6/08 4:04 PM Page 5
Selecting a New DEVICE Changes
All Button Commands Instantly
The NX-RM610 can operate twenty different devices even though
it is only one remote control. Let’s try it now! Press the MAIN
button, then press the TV DEVICE button.
The top of the screen changes from MAIN to TV. Now all of the
buttons change their function to operate a TV. Press the PAGE
button. Watch the labels of the display buttons change with each
press. There are four pages of display buttons already labeled for
TV operation. To operate another component (e. g., VCR, DVD etc.),
press the MAIN button to return to the MAIN menu. The MAIN
menu displays ten of your Devices on the screen. Simply press
one of the screen-labeled Device buttons to operate another device.
If you don’t see the device name you want, then use the PAGE
buttons to display the remaining ten devices on page 2 of the
MAIN menu.
Light Button
Press the LIGHT button to backlight all the buttons. To turn off the
back-lighting, press the LIGHT button again, or just wait ten
seconds (the back-lighting automatically shuts itself off).
NX-RM610
4
MAIN
Button
TV
DEVICE
Button
LIGHT
Button
NX-RM610_Remote_Manual 10/6/08 4:04 PM Page 6
Basic Setup
You can start setting up your NX-RM610 using either the
Pre-Programmed Method or the Learning Method. However, all
the buttons of the NX-RM610 are setup at once with the
Pre-Programmed Method, so it is usually faster than the
one-button-at-a-time Learning Method.
Pre-Programmed Method
1
Power on the A/V component you wish to setup, so that you can
test codes by sending power off commands.
2
Refer to the pre-programmed code tables on pages 37 - 58 and write
down the code numbers listed for your A/V component. The code
numbers are listed by categories of devices, then by brand. See page
37 for a category list. Code tables with model numbers are available
at www.nxgtech.com in the NX-RM610 area.
3
Press and hold both the MAIN and ENT (Enter) buttons for
approximately three seconds. The top of the display will show
”SETUP”. You are in SETUP mode now.
Note: You have 30 seconds to perform a step while you are in
SETUP mode. If you don’t press a button within that time, the
NX-RM610 will time out and return to normal operation.
NX-RM610
5
MAIN
Button
ENT
Button
NX-RM610_Remote_Manual 10/6/08 4:04 PM Page 7
4
Press the P-PRO button to select the Pre-Programmed Method.
The display changes so that you can select which Device button
to setup.
5
Press the device button you’d like to setup.
The bottom of the display will now flash ”FROM TABLE”.
NX-RM610
6
P-PRO
Button
First ten
Device
Names
Press the
Page buttton
to display the
other ten
Device
names.
NX-RM610_Remote_Manual 10/6/08 4:04 PM Page 8
6
In this step you select which code table to use. Thus, you can program a device named “TV” with codes from the CABLE code tables
and a device named “VIDEO” with codes from the TV code table.
If you don’t see the code table you need, press the PAGE buttons
to reveal the other page of code table categories, then select the
code table you want to use.
Note: Each name that appears in the display may include several
types of components. For example, the AUX category includes
many types of custom installation devices. See page 37 for a list
of component types each Code Table contains.
7
Point the NX-RM610 at the component, then enter the first threedigit code number from your notes using the numbered buttons.
After you enter each three-digit number, look at the component to
see if it turned off.
Continue to enter code numbers until the component turns off.
For Example: I have a Sony TV. I found the code numbers 070,
139, 147, 126, 185, 194 and 085 under Sony in the TV TABLE.
Using the numbered buttons on the NX-RM610, I entered 070
and looked at the TV. It didn’t turnoff, so I entered 139, then 147
and so on, until I found the code that powered off the TV.
NX-RM610
7
Use the
number buttons
to enter
the
code
number
NX-RM610_Remote_Manual 10/6/08 4:04 PM Page 9
NX-RM610
8
SAVE
Button
MAIN
Button
Scan Up to the
next Code Number
Press Power
On or Power
Off to test if
the device
powers off.
Down to the
previous Code
Number
Note: If a component fails to turn off after you have entered all of
the code numbers listed for your brand your component might
actually be manufactured by another brand. You can scan through
the other brands in the table using the UP and DOWN buttons to
change the code number displayed, then tapping either the Power
ON, OFF or any other button to see if the component responds to
any command. Alternatively, you can opt to use the Learning
Method on Page 9 if you can’t find a code set in the
built-in database.
8
When the component turns off, save the code number you entered
by pressing the SAVE button that appears on the screen.
9
Exit SETUP mode by pressing the MAIN button two times. When the
display shows “MAIN”, you are back in normal operating mode.
Code Number
You Entered
NX-RM610_Remote_Manual 10/6/08 4:04 PM Page 10
9
Repeat steps one through nine for each of your devices. Test all the
commands you’ve programmed. If you are missing any commands,
use the learning method, described next:
Learning Method
The NX-RM610 can learn commands from your old remote controls
one-button-at-a-time on any button of any device, on the MAIN or
FAV LCD buttons or on the MAIN hard buttons, by following these
simple steps:
1

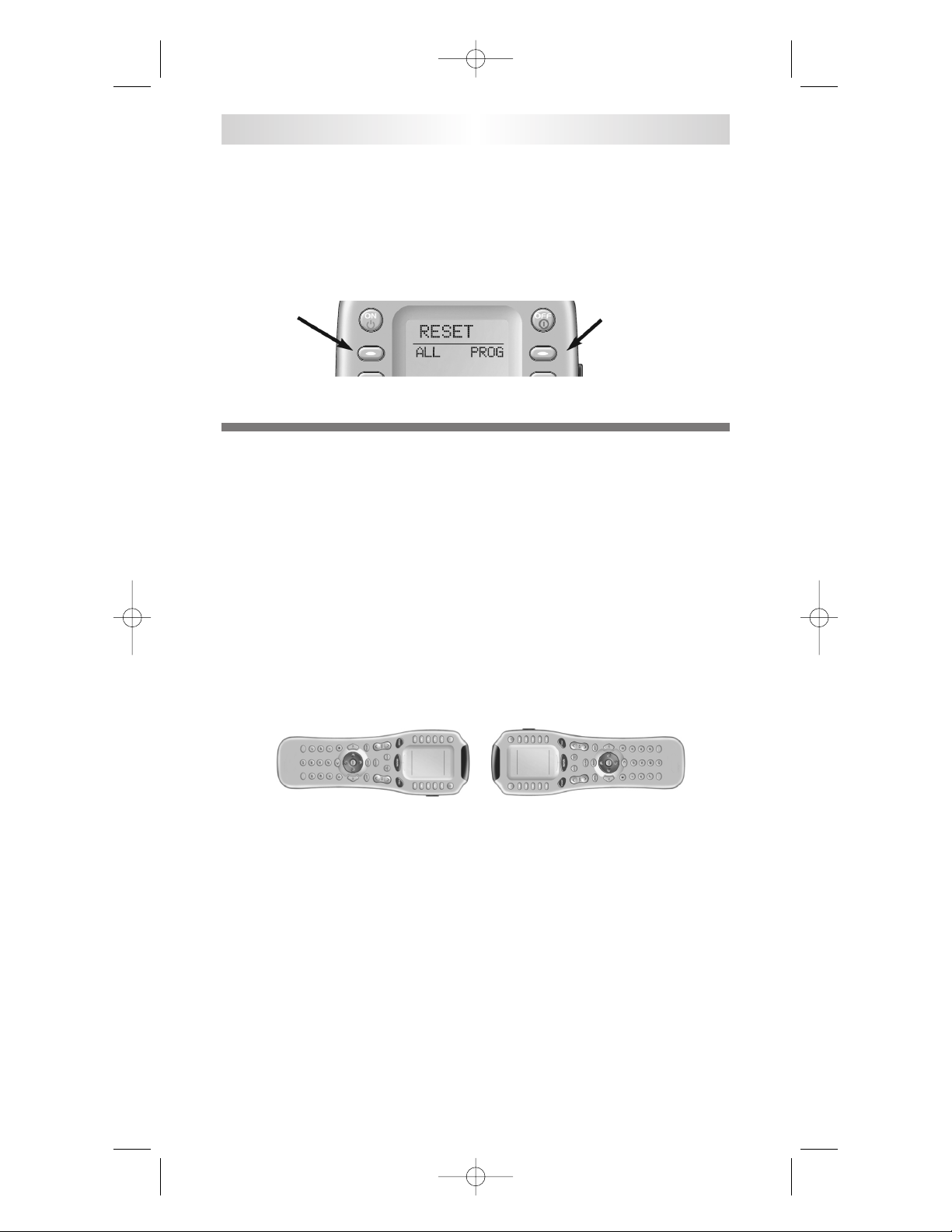

Line-up the NX-RM610 with your old remote control,
head-to-head, one or two inches apart.
2
On the NX-RM610, press and hold the MAIN and ENT (Enter) buttons
at the same time for approximately three seconds. The top of the
display will show “SETUP”. You are in SETUP mode now.
Note: You have 30 seconds to perform a step while you are in
SETUP mode. If you don’t press a button within that time, the
NX-RM610 will time out and return to normal operation.
3
Press the LEARN button.
The top of the screen will change to “LEARN”.
NX-RM610
9
LEARN
Button
NX-RM610_Remote_Manual 10/6/08 4:04 PM Page 11
4
The display will show a list of the first ten devices. If you would like
to teach a command to a device on Page 2, press the PAGE button.
Select the device you would like to teach commands to by pressing
the Device button.
5
You’ve selected the Device you want. Now select any button you
want to teach a command to (if it is on another page, press the
page button).
Note: The only buttons
you can’t teach IR commands are the PAGE,
MAIN and FAV buttons.
6
Once you press a button, the top of the display will change from
“LEARN” to “READY”.
NX-RM610
10
First ten
Device
Names
Press the
Page button
to display
the other ten
Device
names.
Press any Button
First ten
Device
Names
Press the
Page button
to display
the other ten
Device
names.
NX-RM610_Remote_Manual 10/6/08 4:04 PM Page 12
7
Press and hold the button you want on your old remote control
until the display changes to either “GOOD” or “FAILED”.
If the “GOOD” label appears on top of the display, you were
successful. Now, press the next button you wish to teach. Keep
repeating steps 6 through 7 until you have learned all the buttons
you want.
If the “FAILED” label appears on top of the display, try to teach the
same button in NX-RM610 once again by repeating steps 6-7.
8
Continue to teach any commands from any of your remote controls
by repeating steps 5-7 (to go back to step five, press MAIN once).
9
Once you completed teaching all the buttons, return to normal
operation by pressing the MAIN button twice. Test all your new
commands. If any of them don’t work, try learning again using
these notes:
Move to another room. Plasma TVs, sunlight, halogen or quartz
lighting can interfere with the learning process.
Although the old remote control seems to work fine, change the
batteries to fresh alkaline batteries.
Vary the distance between the remote controls gradually. Try
1/4”, 1”, 2”and so on, up to 4 feet.
Tap the button on the original remote control instead of pressing
and holding it during the learning process.
NX-RM610
11
NX-RM610_Remote_Manual 10/6/08 4:04 PM Page 13
Volume Control Punch Through
In most home entertainment systems, the sound volume is only
controlled by one device. In some systems, it is the TV speakers
that make the sound, so you would use the TV device on the
NX-RM610 to raise and lower the volume. In another system, it
might be a surround sound receiver and speakers that control the
sound, so you would use the N-RM610’s AUDIO device to adjust
the volume. Constantly switching the N-RM610 to TV or AUDIO
to adjust the volume is inconvenient in daily life.
You can use Punch Through to set the NX-RM610’s volume buttons
to always control the sound in your system. That way when the
NX-RM610 is set to VCR or DVD, the volume up, down and mute
buttons will work perfectly without switching back to AUDIO or TV.
Here’s how:
1
Enter Setup mode by pressing and holding both MAIN and ENT for
three seconds. The top of the display show you are in SETUP mode
now.
Note: You have 30 seconds for each step, otherwise the
NX-RM610 will time out automatically.
2
Press the PUNCH button.
3
Press the VOL button. The display confirms by displaying “VOL” at
the top of the screen. This sets up the group of three buttons
(Volume Up, Volume Down and Mute) in one action!
The bottom of the display flashes “PUNCH TO”
NX-RM610
12
Select the
Transport group
(Play, Pause,
Stop, Rew,
FFwd)
Select the MENU
group (Menu,
Guide, Info, Exit,
Up, Down, Left,
Right, Sel)
Select the VOLUME group (Vol
Up, Down &
Mute)
Select the
POWER group
(ON and OFF)
Select the
CHANNEL group
(Channel Up,
Channel Down
and PREVCH)
NX-RM610_Remote_Manual 10/6/08 4:04 PM Page 14
NX-RM610
13
Select
the Device
you want to
“Punch To“
Press the
Page button
to display
the other ten
Device
names
4
Press the device button for the device that doesn’t have volume
control commands yet (i. e., DVD). This is the device you are going
to PUNCH TO for the volume and mute commands.
Note: If you wish to PUNCH to the MAIN device, press the
POWER OFF button at this time.
5
The bottom of the display will then flash “PUNCH FROM”. Now you
select the device that has the volume commands you want (i. e., TV
for systems using the TV speakers, AUDIO for systems with
surround sound receivers). The bottom of the display will flash
“SAVED”.
6
Repeat steps 3-5 until all your devices operate the volume perfectly.
Press the MAIN button twice to return to normal operating mode and
test your Punch Through settings.
Note: The Punch Through feature is not limited to volume and
can also be applied to channel or other functions. If you find
yourself switching to a particular device frequently to use a group
of controls, consider using Punch Through for another group, as
listed here:
POWER - Power On and Power Off
MENU - Menu, Guide, Info, Exit and the four cursor buttons.
VOL - Volume Up, Volume Down and Mute
CH - Channel Up, Channel Down, Previous Channel, all of the numeric
PLAY- Play, Stop, Pause, Rewind and Fast Forward
NX-RM610_Remote_Manual 10/6/08 4:04 PM Page 15
Advanced Operation
Setting Backlight Options
You can adjust the amount of time that the NX-RM610 backlight
stays on by entering the SETUP mode, then pressing the LIGHT
button on the display. Then enter the amount of time you would like
the light to stay on using the number pad (0-99 seconds). After
making your selection, press the SAVE button.
If you don’t want backlighting at all (this extends battery life), press
the ON button that appears on the screen. The ON will change to
OFF. Press the SAVE button. Exit the setup mode by pressing the
MAIN button.
The FAV Button
When you press the FAV button, the display changes to a list of
your favorite TV channels. Each button can be set to instantly select
the channel on your TV. There are five pages of ten favorite channel
buttons for a total of 50. Simply touch the PAGE or the FAV button
to display the other pages of favorite channels. To return to the last
device you viewed, press MAIN once (a second press will take you
to the MAIN menu).
To setup your Favorite Channel buttons go to page 21.
NX-RM610
14
Favorite
Channel
Buttons
FAV
Button
NX-RM610_Remote_Manual 10/6/08 4:04 PM Page 16
NX-RM610
15
Cursor
Up & Down
Buttons
MAIN
Button
Adjusting Contrast
You can make the text darker by pressing both the MAIN and
cursor UP buttons at the same time. To make the text appear
lighter, press both the MAIN and cursor DOWN buttons at the same
time.
Transmitting (Busy Signal) Icon
When a command is being transmitted, an icon will appear
in the top right corner of the display. It is a useful aid
when setting up Macros and FAVs, since it flashes with
every step of a sequence of commands.
Contrast set low. Contrast set high.
NX-RM610_Remote_Manual 10/6/08 4:04 PM Page 17
NX-RM610
16
Advanced Setup
After you’ve finished all your basic setup, you can choose to make
operation easier by customizing the NX-RM610 just the way you
want, using the Advanced Setup features described in this section.
Editing Button Labels
You can change the name of any of the display buttons (including
Favorite Channels) by following these steps:
1
Press and hold both the MAIN and ENT (Enter) buttons for
approximately three seconds. The top of the display will show
“SETUP”. You are in SETUP mode now.
Note: You have 30 seconds to perform a step while you are in
SETUP mode. If you don’t press a button within that time, the
NX-RM610 will time out and return to normal operation.
2
Press the EDIT button.
3
The display changes to the EDIT menu. Press the TEXT button.
Note: The screen displays the list of devices and “EDIT” will
appear at the top of the screen.
TEXT
Button
EDIT
Button
NX-RM610_Remote_Manual 10/6/08 4:04 PM Page 18
4
Navigate to the device and page where there is a button label you
want to EDIT, selecting between the FAV, MAIN, DEVICE, then using
the PAGE button. Press the button you wish to edit. The first
character of your button label blinks.
5
Change the character by
using any of the number
keys. Each press of
the same number button
selects the next character
of that number’s group, as
shown here.
Once the character you want
appears, move to the next
space by pressing the
RIGHT cursor button.
NX-RM610
17
RIGHT Cursor
button
moves blinking
character right.
LEFT Cursor
button
moves blinking
character left.
UP Cursor
button deletes ALL text.
DOWN Cursor button
deletes the currently
blinking character.
Blinking
Character
EDIT flashes
at the bottom
of the screen.
NX-RM610_Remote_Manual 10/6/08 4:04 PM Page 19
6
When you are finished editing the button, press the button you edited
and “SAVED” will flash at the bottom of the display.
7
To change any other button labels on the same device, press the next
button, then repeat steps 5-7. If you wish to edit a button on another
device, press the MAIN button once, then repeat Steps 3-7.
8
Once you’ve finished editing buttons, press the MAIN button four
times to return to normal operation.
Edit the MAIN Menu Title or a MAIN Menu Device Label
You can change the title of the MAIN Menu or a MAIN Menu device
label by following these steps after you’ve entered TEXT Edit mode
(described in the steps one through four in the preceding pages).
1
Once you’ve entered TEXT Edit mode, the top of the screen displays
EDIT and the first ten devices of the MAIN Menu. There are five pages
you can access via the Page UP or DOWN buttons. When the top of
the screen says EDIT, pressing a device button jumps to the pages for
that device so that you can edit a device’s LCD buttons normally.
However, if you continue to tap the Page button, the top of the screen
will change from EDIT to MAIN. While it says MAIN, there are two
pages of LCD buttons. The first two list the Devices of the MAIN Menu
and enable you to change the device names when pressed. The last
page titled MAIN has only one entry for the LCD buttons; “MAIN”.
When you press the corresponding hard button, you can re-label the
MAIN title to the room the NX-RM610 controls.
2
Select the title to edit by pressing the adjacent hard button.
3
Edit the text (described on steps 4 and 5 on page 17).
4
Press the button you edited to save the changes. Here’s an example:
NX-RM610
18
The MAIN Menu title
has been changed to
DEN, MAIN button is
pressed, the user is
reminded that this is
the DEN remote.
Each of the MAIN menu
device buttons has been
custom labeled for the activities the user likes to use in
the DEN. Unused devices
are renamed with spaces
and the pages of the unused
devices are hidden so that
an accidental press of a
blank button does nothing.
NX-RM610_Remote_Manual 10/6/08 4:04 PM Page 20
Loading...
