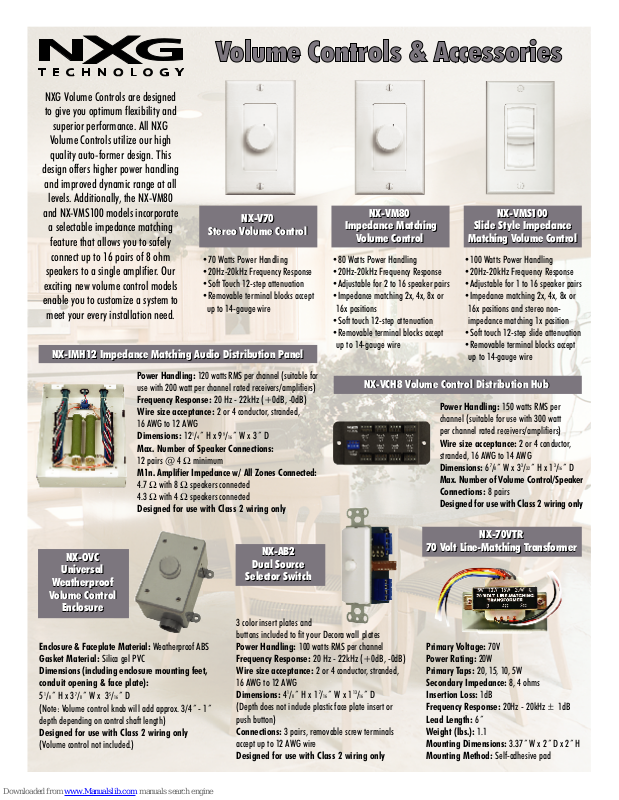

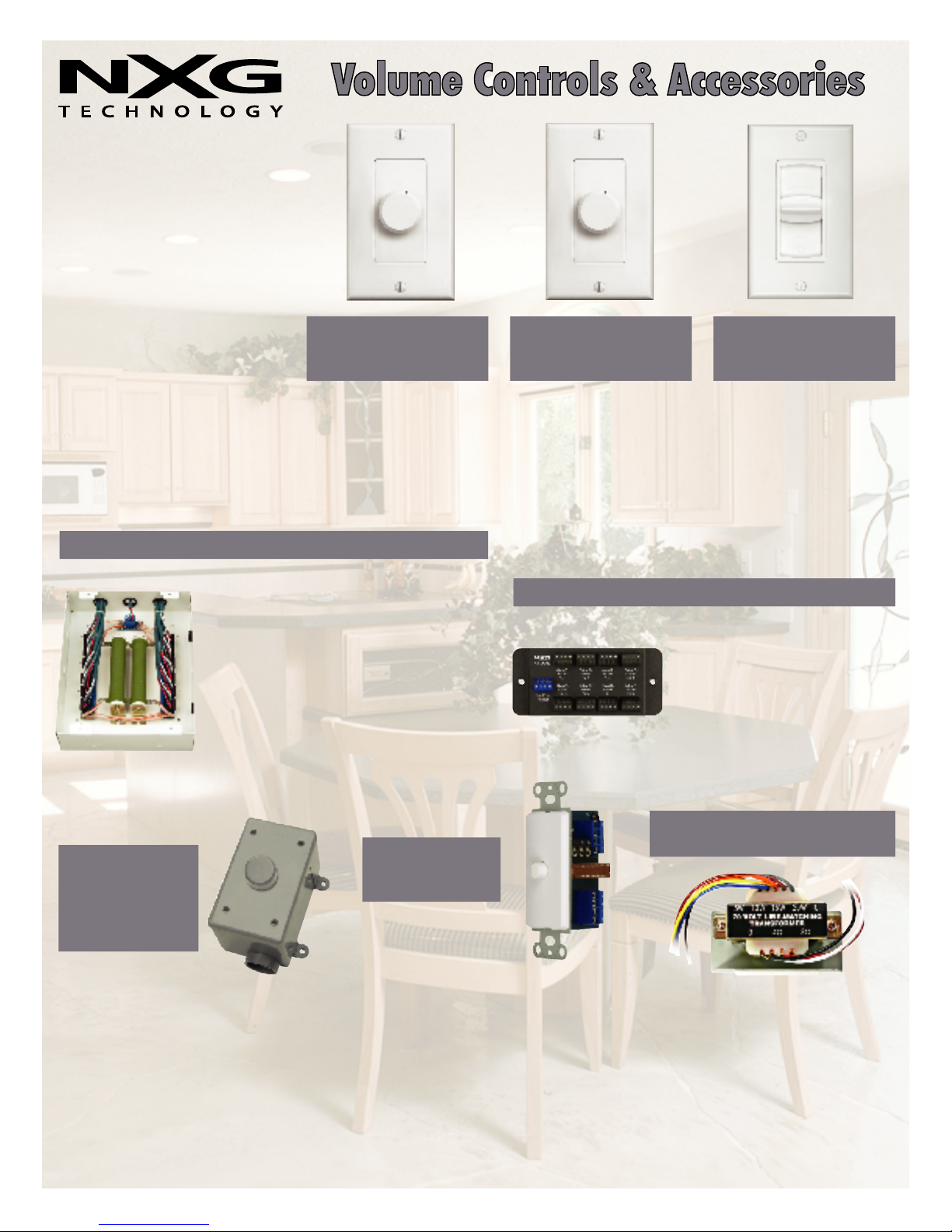

NXG Volume Controls are designed
to give you optimum flexibility and
superior performance. All NXG
Volume Controls utilize our high
quality auto-former design. This
design offers higher power handling
and improved dynamic range at all
levels. Additionally, the NX-VM80
and NX-VMS100 models incorporate
a selectable impedance matching
Stereo Volume Control
Stereo Volume Control
NX-V70
NX-V70
feature that allows you to safely
connect up to 16 pairs of 8 ohm
speakers to a single amplifier. Our
exciting new volume control models
enable you to customize a system to
meet your every installation need.
NX-IMH12 Impedance Matching Audio Distribution Panel
NX-IMH12 Impedance Matching Audio Distribution Panel
•70 Watts Power Handling
•20Hz-20kHz Frequency Response
•Soft Touch 12-step attenuation
•Removable terminal blocks accept
up to 14-gauge wire
NX-VM80
NX-VM80
Impedance Matching
Impedance Matching
Volume Control
Volume Control
•80 Watts Power Handling
•20Hz-20kHz Frequency Response
•Adjustable for 2 to 16 speaker pairs
•Impedance matching 2x, 4x, 8x or
16x positions
•Soft touch 12-step attenuation
•Removable terminal blocks accept
up to 14-gauge wire
NX-VMS100
NX-VMS100
Slide Style Impedance
Slide Style Impedance
Matching Volume Control
Matching Volume Control
•100 Watts Power Handling
•20Hz-20kHz Frequency Response
•Adjustable for 1 to 16 speaker pairs
•Impedance matching 2x, 4x, 8x or
16x positions and stereo nonimpedance matching 1x position
•Soft touch 12-step slide attenuation
•Removable terminal blocks accept
up to 14-gauge wire
Power Handling: 120 watts RMS per channel (suitable for
use with 200 watt per channel rated receivers/amplifiers)
Frequency Response: 20 Hz - 22kHz (+0dB, -0dB)
Wire size acceptance: 2 or 4 conductor, stranded,
16 AWG to 12 AWG
Dimensions: 121/4˝ H x 99/16˝ W x 3˝ D
Max. Number of Speaker Connections:
12 pairs @ 4 Ω minimum
M1n. Amplifier Impedance w/ All Zones Connected:
4.7 Ω with 8 Ω speakers connected
4.3 Ω with 4 Ω speakers connected
Designed for use with Class 2 wiring only
NX-OVC
NX-OVC
Universal
Universal
Weatherproof
Weatherproof
Volume Control
Volume Control
Enclosure
Enclosure
Enclosure &Faceplate Material: Weatherproof ABS
Gasket Material: Silica gel PVC
Dimensions (including enclosure mounting feet,
conduit opening & face plate):
51/8˝ H x 37/8˝ W x 35/16˝ D
(Note: Volume control knob will add approx. 3/4˝- 1˝
depth depending on control shaft length)
Designed for use with Class 2 wiring only
(Volume control not included.)
NX-VCH8 Volume Control Distribution Hub
NX-VCH8 Volume Control Distribution Hub
NX-AB2
NX-AB2
Dual Source
Dual Source
Selector Switch
Selector Switch
3 color insert plates and
buttons included to fit your Decora wall plates
Power Handling: 100 watts RMS per channel
Frequency Response: 20 Hz - 22kHz (+0dB, -0dB)
Wire size acceptance: 2 or 4 conductor, stranded,
16 AWG to 12 AWG
Dimensions: 41/8˝ H x 17/16˝ W x 113/16˝ D
(Depth does not include plastic face plate insert or
push button)
Connections: 3 pairs, removable screw terminals
accept up to 12 AWGwire
Designed for use with Class 2 wiring only
Power Handling: 150 watts RMS per
channel (suitable for use with 300 watt
per channel rated receivers/amplifiers)
Wire size acceptance: 2 or 4 conductor,
stranded, 16 AWG to 14 AWG
Dimensions: 67/8˝ W x 33/32˝ H x 13/16˝ D
Max. Number of Volume Control/Speaker
Connections: 8 pairs
Designed for use with Class 2 wiring only
NX-70VTR
NX-70VTR
70 Volt Line-Matching Transformer
70 Volt Line-Matching Transformer
Primary Voltage: 70V
Power Rating: 20W
Primary Taps: 20, 15, 10, 5W
Secondary Impedance: 8, 4 ohms
Insertion Loss: 1dB
Frequency Response: 20Hz - 20kHz ± 1dB
Lead Length: 6˝
Weight (lbs.): 1.1
Mounting Dimensions: 3.37˝W x 2˝ D x 2˝H
Mounting Method: Self-adhesive pad
