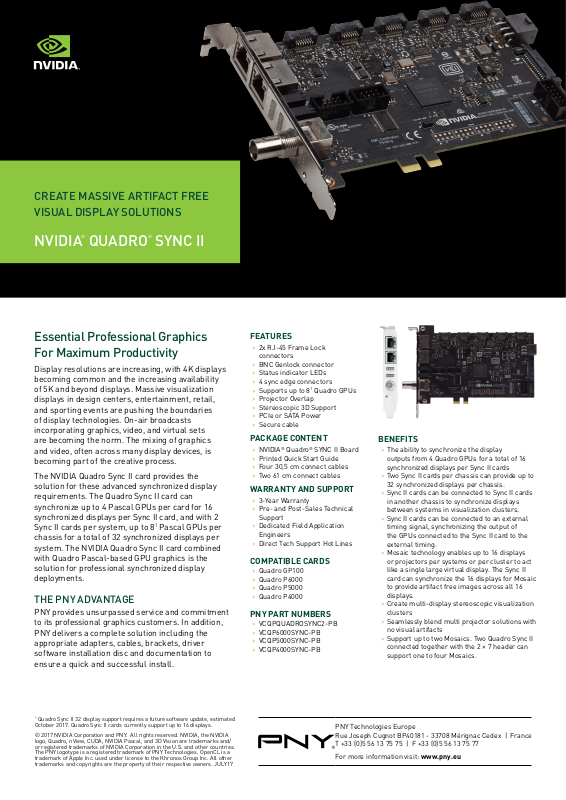

Nvidia VCQPQUADROSYNC2-PB Product Data Sheet

CREATE MASSIVE ARTIFACT FREE
VISUAL DISPLAY SOLUTIONS

NVIDIA® QUADRO® SYNC II

Essential Professional Graphics
For Maximum Productivity

Display resolutions are increasing, with 4K displays
becoming common and the increasing availability
of 5K and beyond displays. Massive visualization
displays in design centers, entertainment, retail,
and sporting events are pushing the boundaries
of display technologies. On-air broadcasts
incorporating graphics, video, and virtual sets
are becoming the norm. The mixing of graphics
and video, often across many display devices, is
becoming part of the creative process.

The NVIDIA Quadro Sync II card provides the
solution for these advanced synchronized display
requirements. The Quadro Sync II card can
synchronize up to 4 Pascal GPUs per card for 16
synchronized displays per Sync II card, and with 2
Sync II cards per system, up to 81 Pascal GPUs per
chassis for a total of 32 synchronized displays per
system. The NVIDIA Quadro Sync II card combined
with Quadro Pascal-based GPU graphics is the
solution for professional synchronized display
deployments.

THE PNY ADVANTAGE

PNY provides unsurpassed service and commitment
to its professional graphics customers. In addition,
PNY delivers a complete solution including the
appropriate adapters, cables, brackets, driver
software installation disc and documentation to
ensure a quick and successful install.

FE ATURES

> 2x RJ-45 Frame Lock

connectors

> BNC Genlock connector
> Status indicator LEDs
> 4 sync edge connectors
> Supports up to 81 Quadro GPUs
> Projector Overlap
> Stereoscopic 3D Support
> PCIe or SATA Power
> Secure cable

PACKAGE CONTENT

> NVIDIA® Quadro® SYNC II Board
> Printed Quick Start Guide
> Four 30,5 cm connect cables
> Two 61 cm connect cables

WARRANTY AND SUPPORT

> 3-Year Warranty
> Pre- and Post-Sales Technical

Support

> Dedicated Field Application

Engineers

> Direct Tech Support Hot Lines

COMPATIBLE CARDS

> Quadro GP100
> Quadro P6000
> Quadro P5000
> Quadro P4000

PNY PART NUMBERS

> VCQPQUADROSYNC2-PB
> VCQP6000SYNC-PB
> VCQP5000SYNC-PB
> VCQP4000SYNC-PB

BENEFITS

> The ability to synchronize the display

outputs from 4 Quadro GPUs for a total of 16
synchronized displays per Sync II cards

> Two Sync II cards per chassis can provide up to

32 synchronized displays per chassis.

> Sync II cards can be connected to Sync II cards

in another chassis to synchronize displays
between systems in visualization clusters.

> Sync II cards can be connected to an external

timing signal, synchronizing the output of
the GPUs connected to the Sync II card to the
external timing.

> Mosaic technology enables up to 16 displays

or projectors per systems or per cluster to act
like a single large virtual display. The Sync II
card can synchronize the 16 displays for Mosaic
to provide artifact free images across all 16
displays.

> Create multi-display stereoscopic visualization

clusters

> Seamlessly blend multi projector solutions with

no visual artifacts

> Support up to two Mosaics. Two Quadro Sync II

connected together with the 2 × 7 header can
support one to four Mosaics.

1

Quadro Sync II 32 display support requires a future software update, estimated

October 2017. Quadro Sync II cards currently support up to 16 displays.

© 2017 NVIDIA Corporation and PNY. All rights reserved. NVIDIA, the NVIDIA
logo, Quadro, nView, CUDA, NVIDIA Pascal, and 3D Vision are trademarks and/
or registered trademarks of NVIDIA Corporation in the U.S. and other countries.
The PNY logotype is a registered trademark of PNY Technologies. OpenCL is a
trademark of Apple Inc. used under license to the Khronos Group Inc. All other
trademarks and copyrights are the property of their respective owners. JULY17
