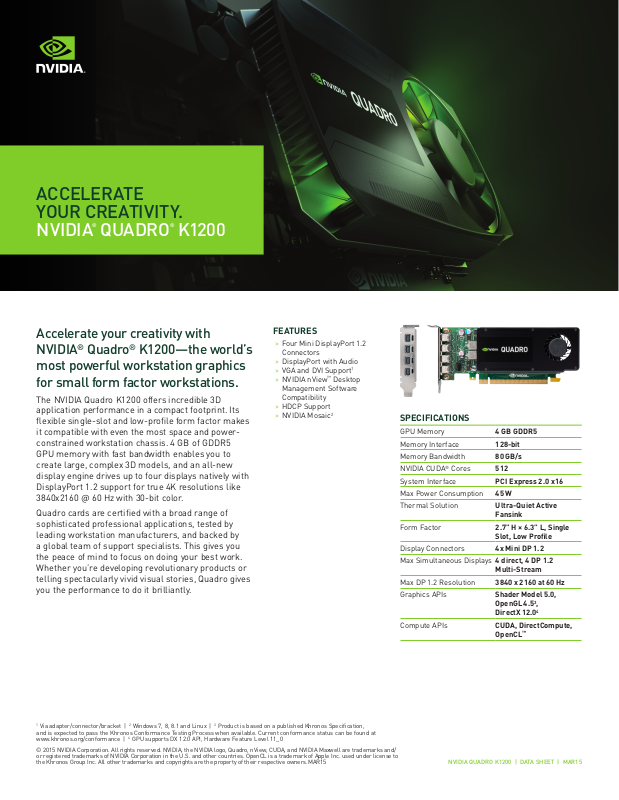

Nvidia 490-BCWN Product Data Sheet

ACCELERATE
YOUR CREATIVITY.

NVIDIA® QUADRO® K1200

Accelerate your creativity with
NVIDIA® Quadro® K1200—the world’s
most powerful workstation graphics
for small form factor workstations.

The NVIDIA Quadro K1200 offers incredible 3D
application performance in a compact footprint. Its
flexible single-slot and low-profile form factor makes
it compatible with even the most space and power­constrained workstation chassis. 4 GB of GDDR5
GPU memory with fast bandwidth enables you to
create large, complex 3D models, and an all-new
display engine drives up to four displays natively with
DisplayPort 1.2 support for true 4K resolutions like
3840x2160  60 Hz with 30-bit color.

Quadro cards are certified with a broad range of
sophisticated professional applications, tested by
leading workstation manufacturers, and backed by
a global team of support specialists. This gives you
the peace of mind to focus on doing your best work.
Whether you’re developing revolutionary products or
telling spectacularly vivid visual stories, Quadro gives
you the performance to do it brilliantly.

FEATURES

> Four Mini DisplayPort 1.2

Connectors

> DisplayPort with Audio
> VGA and DVI Support
> NVIDIA nView™ Desktop

Management Software

Compatibility

> HDCP Support
> NVIDIA Mosaic2

1

SPECIFICATIONS

GPU Memory 4 GB GDDR5
Memory Interface 128-bit
Memory Bandwidth 80 GB/s
NVIDIA CUDA® Cores 512
System Interface PCI Express 2.0 x16
Max Power Consumption 45 W
Thermal Solution Ultra-Quiet Active

Form Factor 2.7” H × 6.3” L, Single

Display Connectors 4x Mini DP 1.2
Max Simultaneous Displays 4 direct, 4 DP 1.2

Max DP 1.2 Resolution 3840 x 2160 at 60 Hz
Graphics APIs Shader Model 5.0,

Compute APIs CUDA, DirectCompute,

Fansink

Slot, Low Profile

Multi-Stream

OpenGL 4.53,
DirectX 12.0

OpenCL

4

™

1

Via adapter/connector/bracket | 2 Windows 7, 8, 8.1 and Linux | 3 Product is based on a published Khronos Specification,
and is expected to pass the Khronos Conformance Testing Process when available. Current conformance status can be found at
www.khronos.org/conformance | 4 GPU supports DX 12.0 API, Hardware Feature Level 11_0

© 2015 NVIDIA Corporation. All rights reserved. NVIDIA, the NVIDIA logo, Quadro, nView, CUDA, and NVIDIA Maxwell are trademarks and/
or registered trademarks of NVIDIA Corporation in the U.S. and other countries. OpenCL is a trademark of Apple Inc. used under license to
the Khronos Group Inc. All other trademarks and copyrights are the property of their respective owners.MAR15

NVIDIA QUADRO K1200 | DATA SHEET | MAR15
