nvent RayClic-E Installation Instructions Manual

APPROVALS

WARNING:

718K Pipe Heating Cable
877Z De-Icing and Snow Melting
Not UL Listed with XL-Trace
heating cable for buried piping

RayClic-E

RayClic End Seal Kit Installation Instructions

DESCRIPTION

This end seal is for use with nVent RAYCHEM IceStop, XL-Trace,
HWAT and RaySol heating cables. Materials for one end seal
termination are included in this kit. The appropriate nVent
RAYCHEM power connection kit must also be used. These
installation instructions should be used in conjunction with the
IceStop, XL-Trace, HWAT and RaySol System Installation and
Operation Manuals. For technical support contact your nVent

representative or call nVent (800)545-6258.

Note: The nVent RAYCHEM RayClic-E end seal can be installed
only once; it cannot be removed from the heating cable. Do not
use until ready for final installation.

TOOLS REQUIRED

• Utility knife

• Diagonal cutters

-w

With HWAT, IceStop, and
XL-Trace heating cables

APPROVED

Class I, Div. 2, Groups A, B, C, D
hazardous locations with GM-XT only

KIT CONTENTS

Qty Description

1 Gel-filled end seal

This component is an electrical device that
must be installed correctly to ensure proper
operation and to prevent shock or fire. Read
these important warnings and carefully follow
all the installation instructions.

• To minimize the danger of fire from
sustained electrical arcing if the heating
cable is damaged or improperly installed,
and to comply with the requirements of

nVent, agency certifications, and national
electrical codes, ground-fault equipment
protection must be used. Arcing may not be
stopped by conventional circuit breakers.

• Bus wires will short if they contact each
other. Keep bus wires separated.

• The black heating cable core is conductive
and can short. It must be properly insulated
and kept dry.

• Component approvals and performance are
based on the use of nVent-specified parts
only. Do not use substitute parts or vinyl
electrical tape.

• Use only fire-resistant insulation materials
such as fiberglass wrap.

• Leave these instructions with end user for
reference and future use.

1

1"

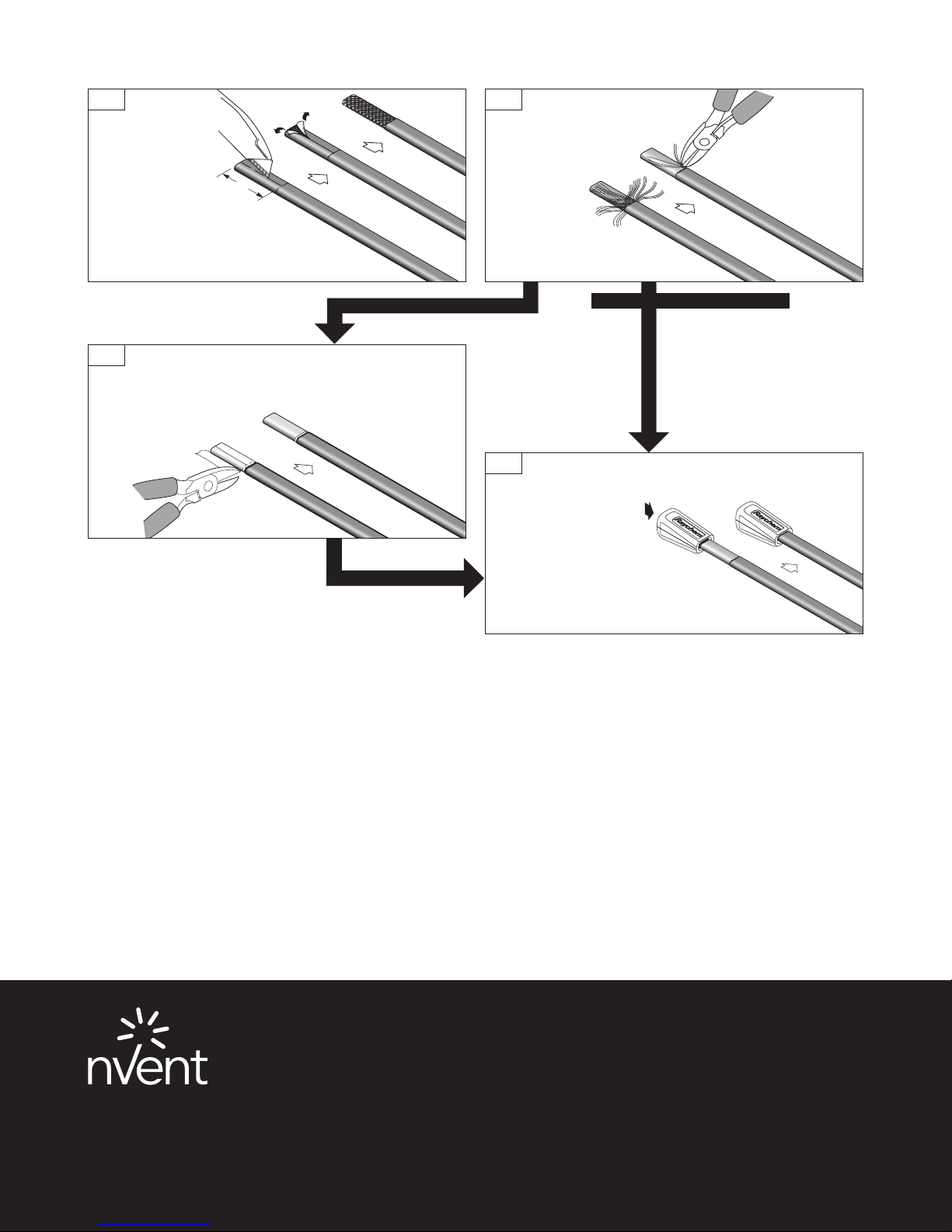

• Score down and around outer
jacket 1 inch from the end.

• Remove the outer jacket.

• Do not cut or damage inner jacket.

2

• Remove exposed braid.

HWAT

2A

• Using wire cutters, cut away aluminum wrap close to
braid and outer jacket.

IceStop, XL-Trace, and RaySol

3

• Push end seal completely onto heating cable.

Note: The end seal can be
installed only once; it cannot
be removed from the heating
cable. Do not use until ready
for final installation.
