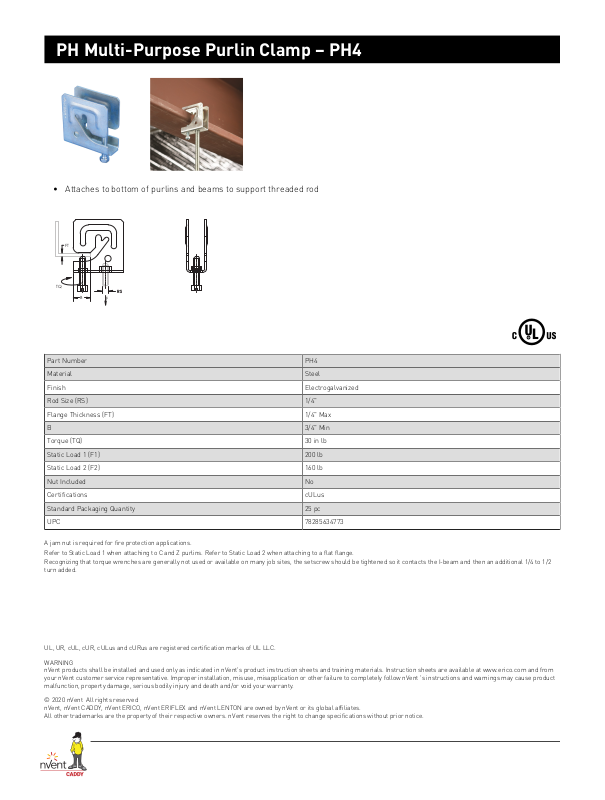

PH Multi-Purpose Purlin Clamp–PH4
FT
TQ
RSRSRS
F
B
• Attaches to bottom of purlins and beams to support threaded rod
Part Number PH4
Material Steel
Finish Electrogalvanized
Rod Size (RS) 1/4"
Flange Thickness (FT) 1/4" Max
B 3/4" Min
Torque (TQ) 30 in lb
Static Load 1 (F1) 200 lb
Static Load 2 (F2) 160 lb
Nut Included No
Certifications cULus
Standard Packaging Quantity 25 pc
UPC 78285634773
A jam nut is required for fire protection applications.
Refer to Static Load 1 when attaching to C and Z purlins. Refer to Static Load 2 when attaching to a flat flange.
Recognizing that torque wrenches are generally not used or available on many job sites, the setscrew should be tightened so it contacts the I-beam and then an additional 1/4 to 1/2
turn added.
UL, UR, cUL, cUR, cULus and cURus are registered certification marks of UL LLC.
WARNING
nVent products shall be installed and used only as indicated in nVent's product instruction sheets and training materials. Instruction sheets are available at www.erico.com and from
your nVent customer service representative. Improper installation, misuse, misapplication or other failure to completely follow nVent 's instructions and warnings may cause product
malfunction, property damage, serious bodily injury and death and/or void your warranty.
© 2020nVentAll rights reserved
nVent, nVent CADDY, nVent ERICO, nVent ERIFLEX and nVent LENTON are owned by nVent or its global affiliates.
All other trademarks are the property of their respective owners. nVent reserves the right to change specifications without prior notice.
