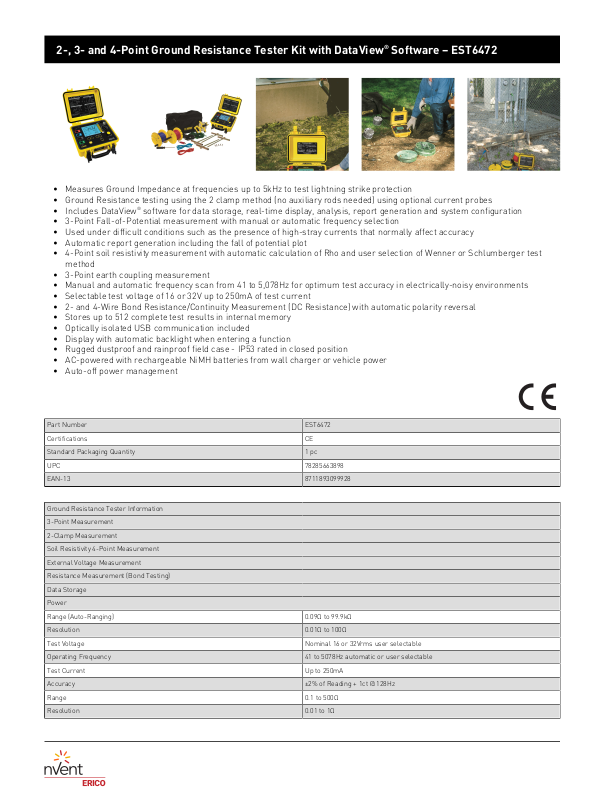

2-, 3- and 4-Point Ground Resistance Tester Kit with DataView® Software–EST6472
• Measures Ground Impedance at frequencies up to 5kHz to test lightning strike protection
• Ground Resistance testing using the 2 clamp method (no auxiliary rods needed) using optional current probes
• Includes DataView® software for data storage, real-time display, analysis, report generation and system configuration
• 3-Point Fall-of-Potential measurement with manual or automatic frequency selection
• Used under difficult conditions such as the presence of high-stray currents that normally affect accuracy
• Automatic report generation including the fall of potential plot
• 4-Point soil resistivity measurement with automatic calculation of Rho and user selection of Wenner or Schlumberger test
method
• 3-Point earth coupling measurement
• Manual and automatic frequency scan from 41 to 5,078Hz for optimum test accuracy in electrically-noisy environments
• Selectable test voltage of 16 or 32V up to 250mA of test current
• 2- and 4-Wire Bond Resistance/Continuity Measurement (DC Resistance) with automatic polarity reversal
• Stores up to 512 complete test results in internal memory
• Optically isolated USB communication included
• Display with automatic backlight when entering a function
• Rugged dustproof and rainproof field case - IP53 rated in closed position
• AC-powered with rechargeable NiMH batteries from wall charger or vehicle power
• Auto-off power management
Part Number EST6472
Certifications CE
Standard Packaging Quantity 1 pc
UPC 78285663898
EAN-13 8711893099928
Ground Resistance Tester Information
3-Point Measurement
2-Clamp Measurement
Soil Resistivity 4-Point Measurement
External Voltage Measurement
Resistance Measurement (Bond Testing)
Data Storage
Power
Range (Auto-Ranging) 0.09Ω to 99.9kΩ
Resolution 0.01Ω to 100Ω
Test Voltage Nominal 16 or 32Vrms user selectable
Operating Frequency 41 to 5078Hz automatic or user selectable
Test Current Up to 250mA
Accuracy ±2% of Reading + 1ct @ 128Hz
Range 0.1 to 500Ω
Resolution 0.01 to 1Ω
Page 2
Ground Resistance Tester Information
3-Point Measurement
2-Clamp Measurement
Soil Resistivity 4-Point Measurement
External Voltage Measurement
Resistance Measurement (Bond Testing)
Data Storage
Power
Operating Frequency Auto: 1367Hz; Manual: 128Hz-1367Hz-1611Hz-1758Hz
Test Method
Wenner or Schlumberger selectable with automatic calculation of test results in Ωmeters
Range (Auto-Ranging) 0.01 to 99.99kΩ; ρ max: 999kΩm
Resolution 0.01 to 100Ω
Test Voltage 16 or 32V user selectable
Operating Frequency From 41 to 128Hz selectable
Range (Auto-Ranging) 0.1 to 65.0VAC/DC – DC to 440Hz
Accuracy ±2% of Reading + 1ct
Measurement Type
2-Pole (with lead resistance compensation) or 4-Pole (Kelvin sensing) user
selectable
Range (Auto-Ranging) 2-Pole 0.02Ω to 99.99kΩ; 4-Pole 0.02Ω to 99.99kΩ
Accuracy ±2% of Reading + 2cts
Test Voltage 16VDC (+, - or auto polarity)
Test Current Up to 250mA max
Memory Capacity 512 test results (64KB)
Power Source 9.6V rechargeable battery pack (included)
Recharging Source 110/220 50/60Hz external charger with 18Vdc, 1.9A output
Kit includes: Two 300’ (91.4 m) color-coded leads on spools (red and blue), two 5' (1.5 m) color-coded leads (red and blue), two 100’ (30.5 m) color-coded leads (green and black), four
14.5” (368 mm) T-shaped auxiliary ground electrodes, one set of five-spaded lugs, one 100’ (30.5 m) tape measure, and one carrying bag.
Ground Resistance Tester Clamp-On Probe is not included and must be ordered separately.
