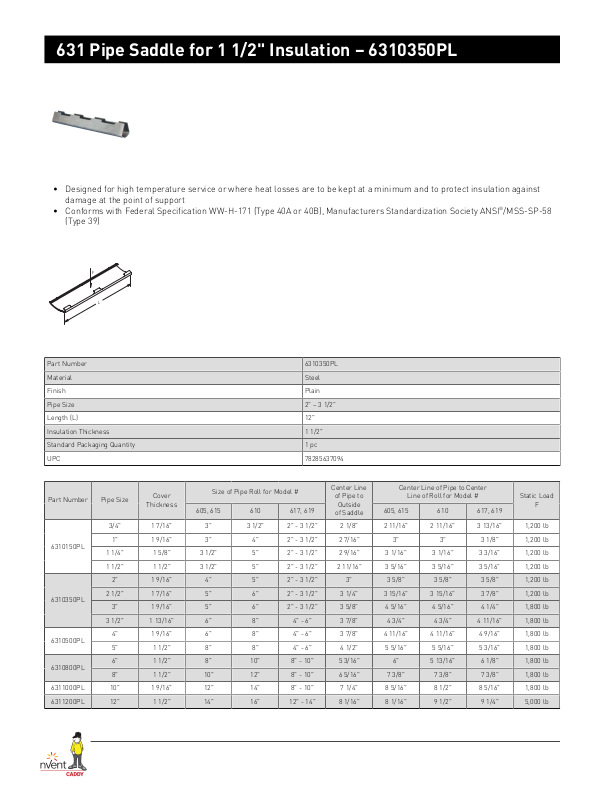

nVent 6310350PL Specification
631 Pipe Saddle for 1 1/2" Insulation–6310350PL
L
F
• Designed for high temperature service or where heat losses are to be kept at a minimum and to protect insulation against
damage at the point of support
• Conforms with Federal Specification WW-H-171 (Type 40A or 40B), Manufacturers Standardization Society ANSI®/MSS-SP-58
(Type 39)
Part Number 6310350PL
Material Steel
Finish Plain
Pipe Size 2" – 3 1/2"
Length (L) 12"
Insulation Thickness 1 1/2"
Standard Packaging Quantity 1 pc
UPC 78285637094
Part Number Pipe Size
3/4" 1 7/16" 3" 3 1/2" 2" - 3 1/2" 2 1/8" 2 11/16" 2 11/16" 3 13/16" 1,200 lb
6310150PL
6310350PL
6310500PL
6310800PL
6311000PL 10" 1 9/16" 12" 14" 8" - 10" 7 1/4" 8 5/16" 8 1/2" 8 5/16" 1,800 lb
6311200PL 12" 1 1/2" 14" 16" 12" - 14" 8 1/16" 8 1/16" 9 1/2" 9 1/4" 5,000 lb
1" 1 9/16" 3" 4" 2" - 3 1/2" 2 7/16" 3" 3" 3 1/8" 1,200 lb
1 1/4" 1 5/8" 3 1/2" 5" 2" - 3 1/2" 2 9/16" 3 1/16" 3 1/16" 3 3/16" 1,200 lb
1 1/2" 1 1/2" 3 1/2" 5" 2" - 3 1/2" 2 11/16" 3 5/16" 3 5/16" 3 5/16" 1,200 lb
2" 1 9/16" 4" 5" 2" - 3 1/2" 3" 3 5/8" 3 5/8" 3 5/8" 1,200 lb
2 1/2" 1 7/16" 5" 6" 2" - 3 1/2" 3 1/4" 3 15/16" 3 15/16" 3 7/8" 1,200 lb
3" 1 9/16" 5" 6" 2" - 3 1/2" 3 5/8" 4 5/16" 4 5/16" 4 1/4" 1,800 lb
3 1/2" 1 13/16" 6" 8" 4" - 6" 3 7/8" 4 3/4" 4 3/4" 4 11/16" 1,800 lb
4" 1 9/16" 6" 8" 4" - 6" 3 7/8" 4 11/16" 4 11/16" 4 9/16" 1,800 lb
5" 1 1/2" 8" 8" 4" - 6" 4 1/2" 5 5/16" 5 5/16" 5 3/16" 1,800 lb
6" 1 1/2" 8" 10" 8" - 10" 5 3/16" 6" 5 13/16" 6 1/8" 1,800 lb
8" 1 1/2" 10" 12" 8" - 10" 6 5/16" 7 3/8" 7 3/8" 7 3/8" 1,800 lb
Cover
Thickness
Size of Pipe Roll for Model #
605, 615 610 617, 619
Center Line
of Pipe to
Outside
of Saddle
Center Line of Pipe to Center
Line of Roll for Model #
605, 615 610 617, 619
Static Load
F
Center Line of Pipe to Center
Line of Roll for Model #
605, 615 610 617, 619
Static Load
F
Part Number Pipe Size
Cover
Thickness
Size of Pipe Roll for Model #
605, 615 610 617, 619
Center Line
of Pipe to
Outside
of Saddle
6311400PL 14" 1 1/2" 16" 18" 12" - 14" 8 7/8" 8 7/8" 10 1/2" 10 3/16" 5,000 lb
6311600PL 16" 1 1/2" 18" 20" 16" - 20" 9 7/8" 11 5/16" 11 5/16" 11 3/16" 5,000 lb
6311800PL 18" 1 1/2" 20" - 16" - 20" 10 7/8" 12 3/8" - 12 1/4" 5,000 lb
6312000PL 20" 1 1/2" 24" - 24" - 26" 11 3/4" 13 11/16" - 13 3/16" 7,200 lb
6312400PL 24" 1 1/2" 30" - 22" - 30" 13 5/8" 16 7/16" - 15 3/8" 7,200 lb
Maximum recommended loads are applicable only when the saddle is used on a flat bearing surface and tack welded to the pipe. When a saddle is used with a pipe roll, the maximum
load given for the pipe roll applies to the saddle.
Install in accordance with applicable code.
ANSI is a registered trademark of American National Standards Institute.
