Page 1

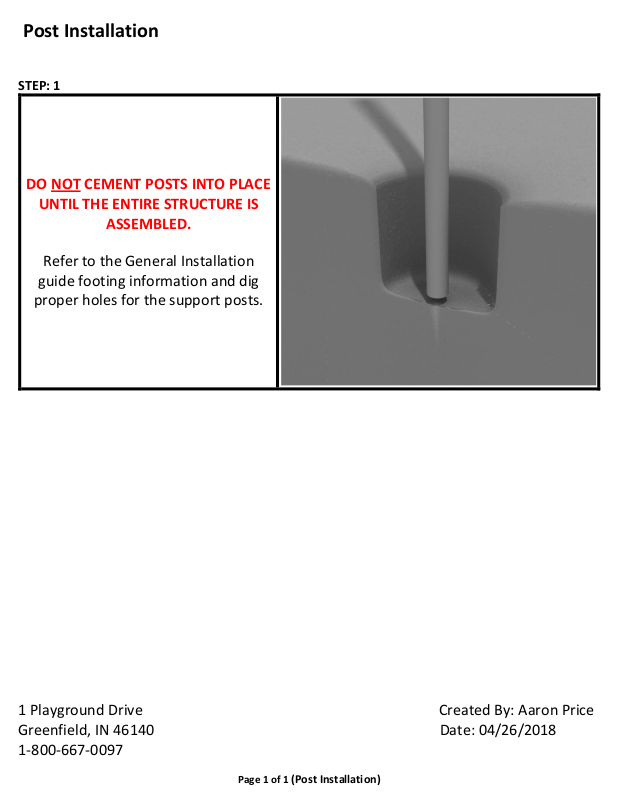

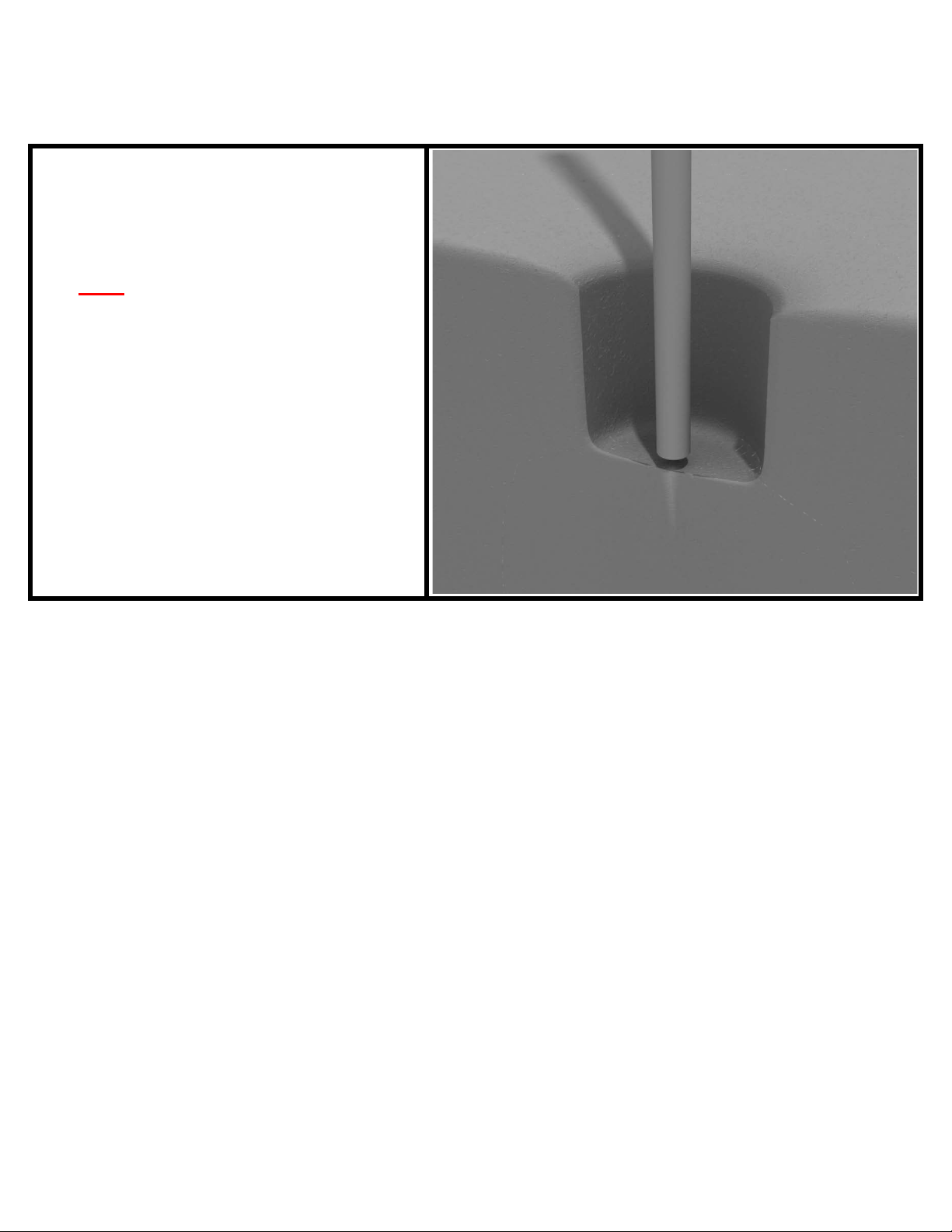

Post Installation
STEP: 1
DO NOT CEMENT POSTS INTO PLACE
UNTIL THE ENTIRE STRUCTURE IS
ASSEMBLED.
Refer to the General Installation
guide footing information and dig
proper holes for the support posts.
1 Playground Drive Created By: Aaron Price
Greenfield, IN 46140 Date: 04/26/2018
1-800-667-0097
Page 1 of 1 (Post Installation)
Page 2

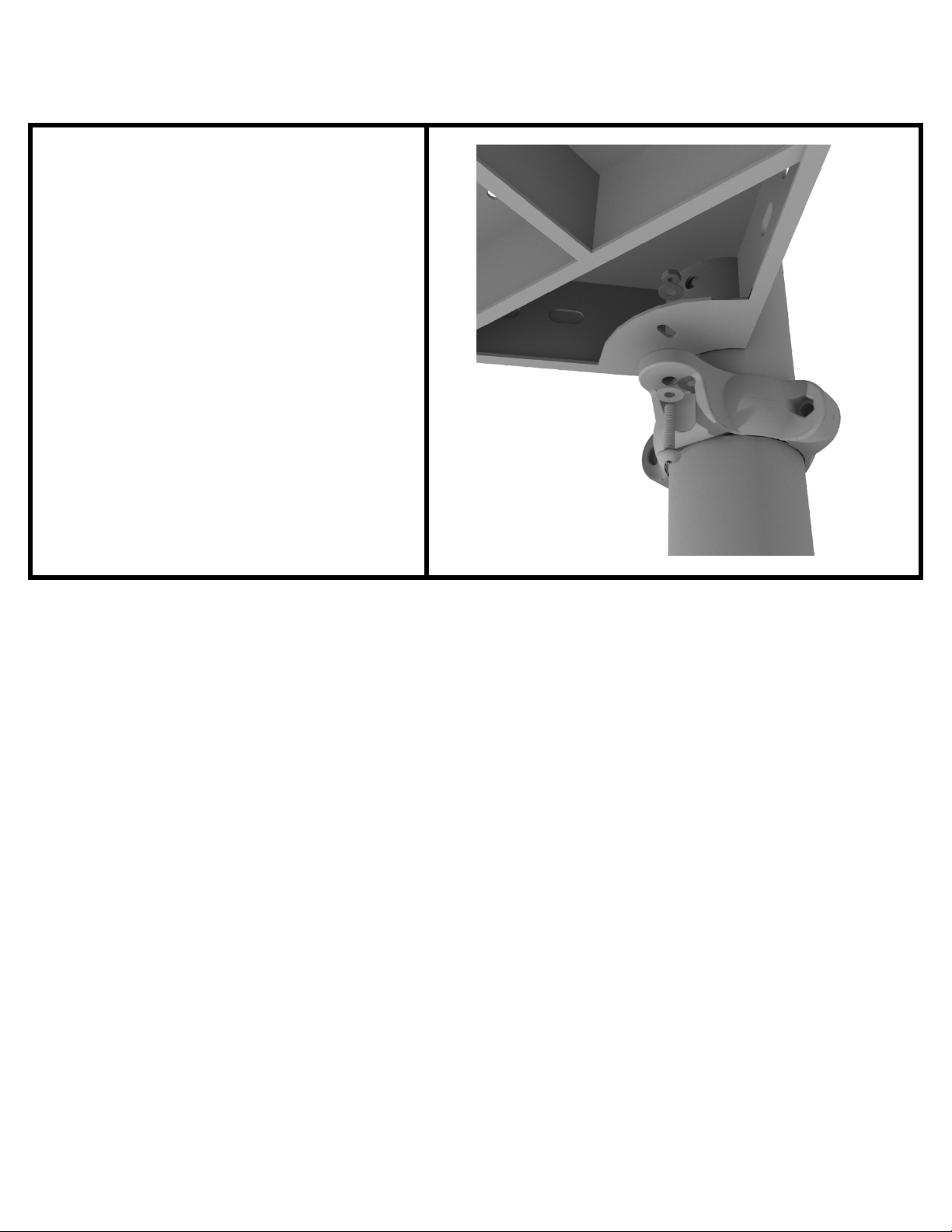

Square Deck Installation
STEP: 1
After the posts are in place, using
four (4) M10*35 bolts, eight (8) M10
washers, and four (4) M10 lock nuts,
attach each square deck to each preattached deck clamp as shown in the
image.
Deck clamps are pre-attached to the
posts and should not be altered in
any way.
1 Playground Drive Created By: Aaron Price
Greenfield, IN 46140 Date: 3/19/2018
1-800-667-0097
Page 1 of 1 (Square Deck Installation)
Page 3

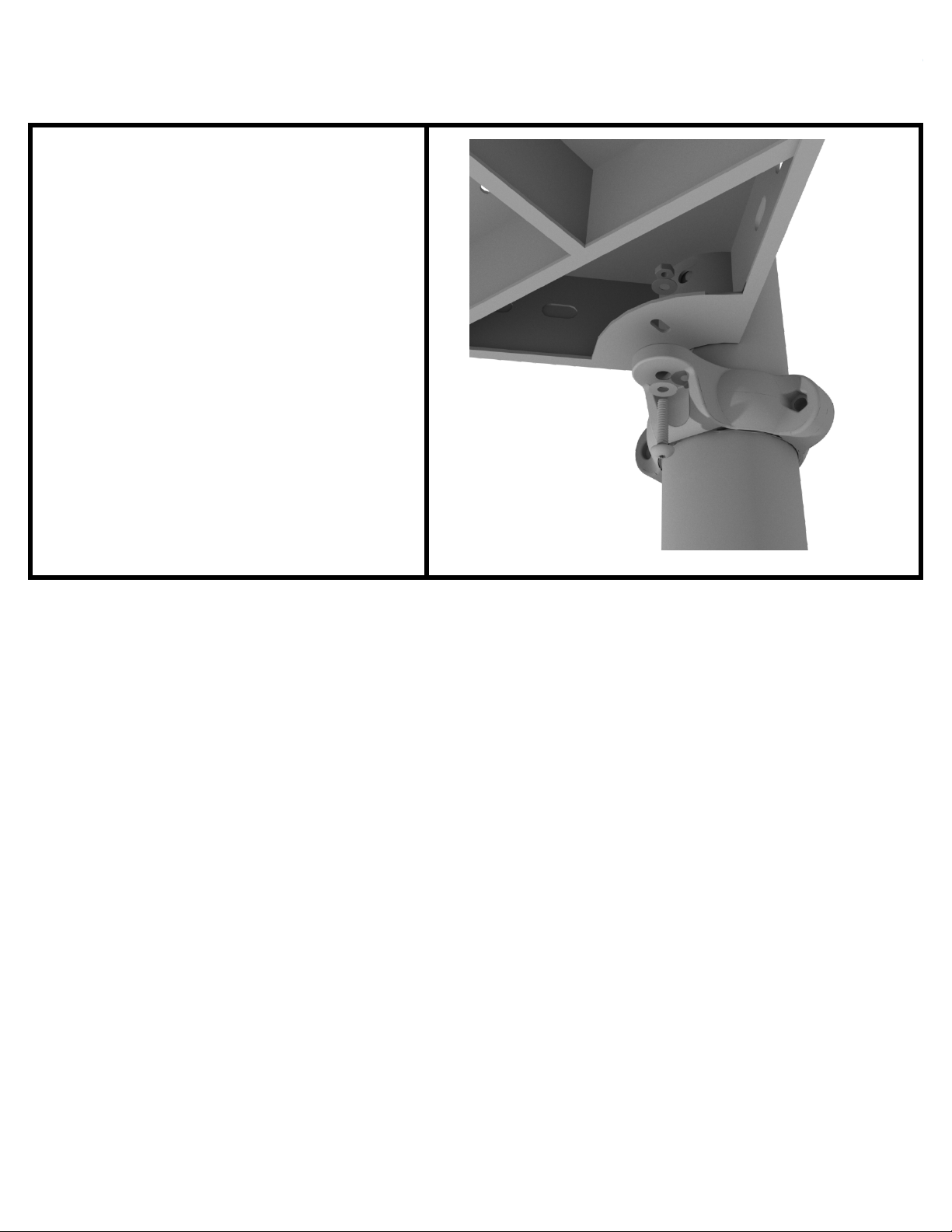

Rectangle Deck Installation
STEP: 1
After the posts are in place, using
four (4) M10*35 bolts, eight (8) M10
washers, and four (4) M10 lock nuts,
attach the rectangle deck to each
pre-attached deck clamp as shown in
the image.
Deck clamps are pre-attached to the
posts and should not be altered in
any way.
1 Playground Drive Created By: Aaron Price
Greenfield, IN 46140 Date: 03/19/2018
1-800-667-0097
Page 1 of 1 (Rectangle Deck Installation)
Page 4
3.5-inch Clamp Installation Guide
3.5-inch Flat Clamp
Connect half of the flat clamp to the
component using one (1) M8*40
bolt. Then, using the other half of the
flat clamp and the hardware
provided in the clamp hardware bag,
attach the other half of the tube
clamp around the post.
3.5-inch Tube Clamp
Connect half of the clamp to the
component using one (1) M8*30
bolt. Then, using the other half of the
tube clamp and the hardware
provided in the clamp hardware bag,
attach the other half of the tube
clamp around the post.
1 Playground Drive Created By: Aaron Price
Greenfield, IN 46140 Date: 03/28/2018
1-800-667-0097
Page 1 of 2 (3.5-inch Clamp Installation Guide)
Page 5

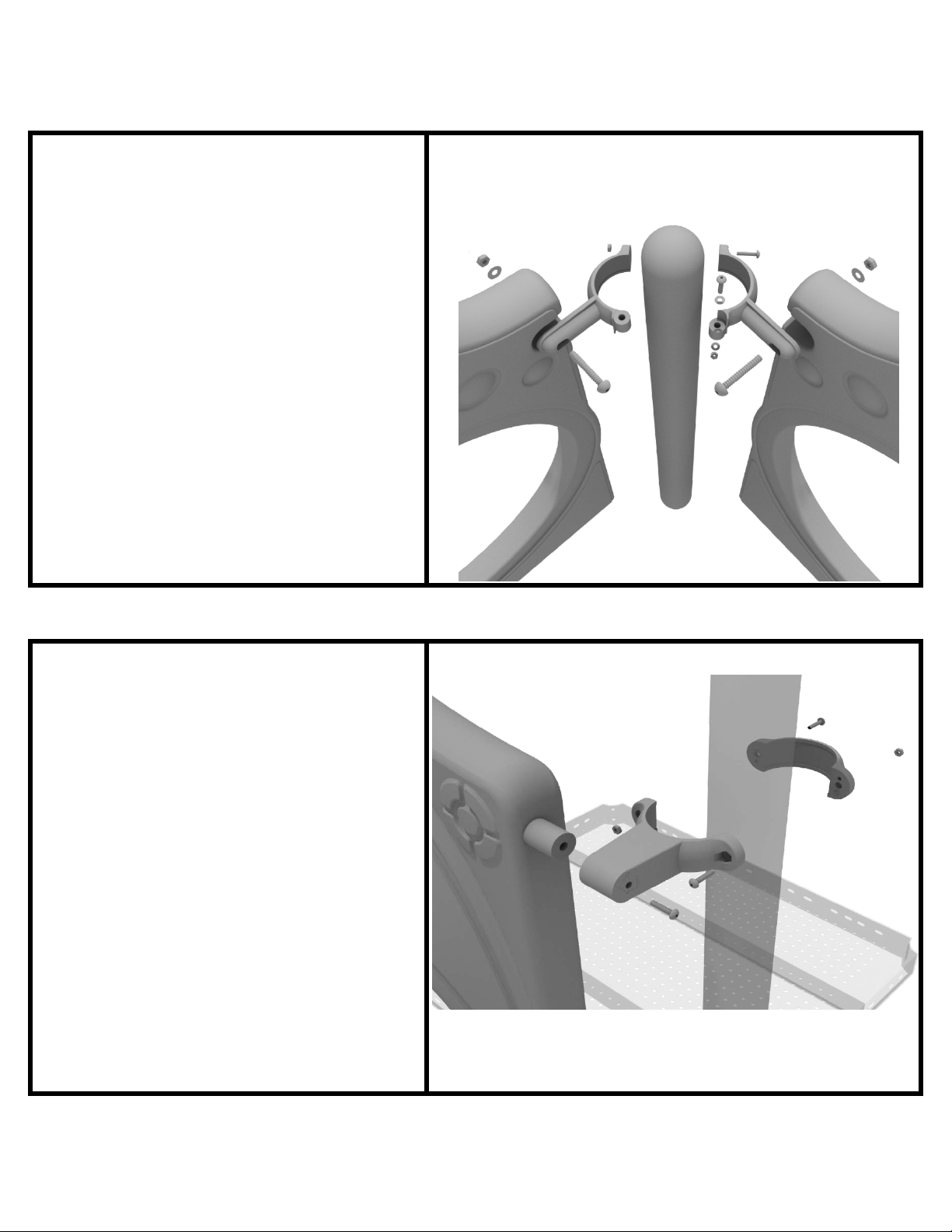

3.5-inch Clamp Installation Guide
3.5-inch 90-Degree Flat Clamp
Connect half of the flat clamp to one
panel using one (1) M8*40 bolt.
Then, using the other half of the flat
clamp and the hardware provided in
the clamp hardware bag, attach the
other half of the tube clamp around
the post. Then, attach the next panel
to the other side of the clamp using
the same process.

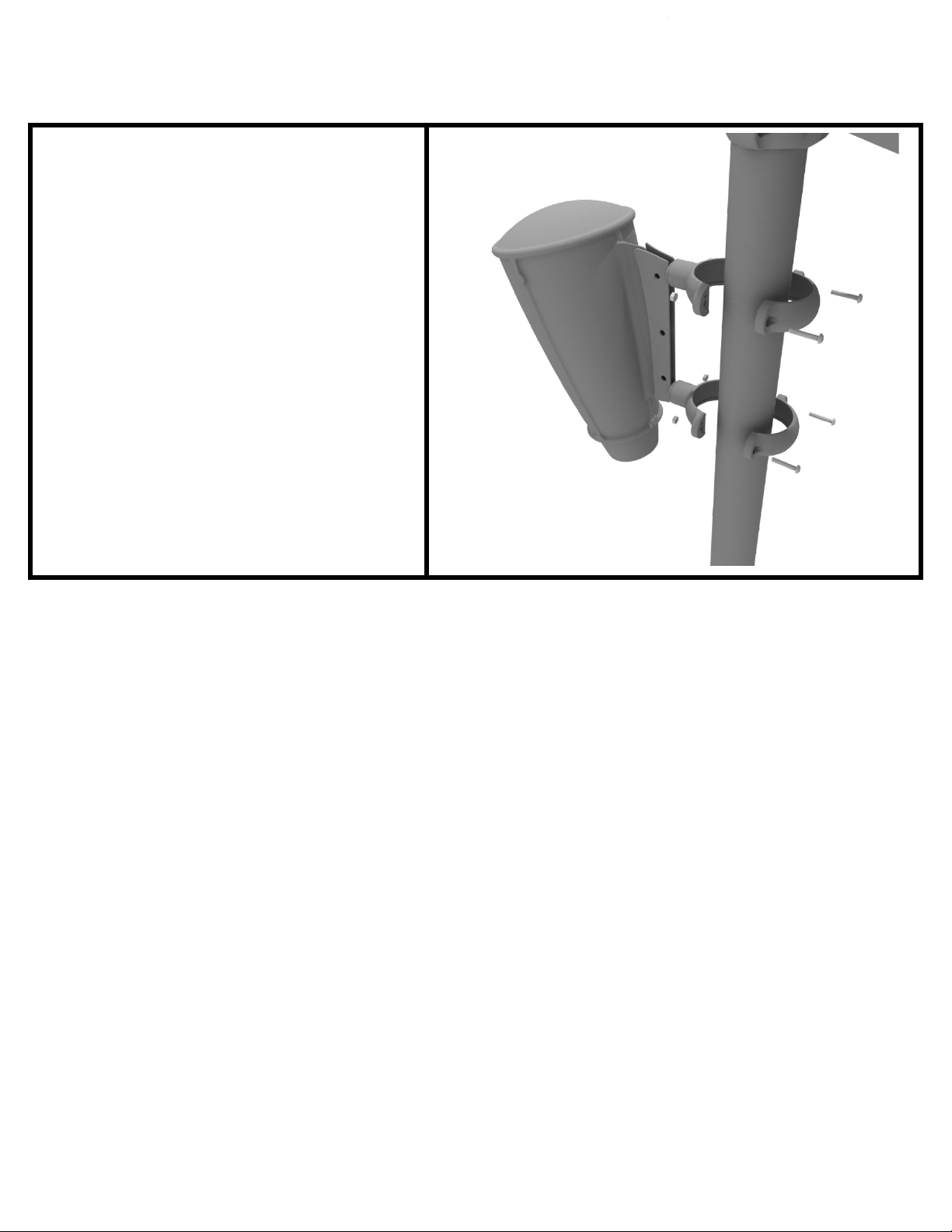

3.5-inch Double Slide Clamp
Connect half of the double slide
clamp to the double slide hood using
one (1) M8*30 bolt. Then, using the
other half of the clamp and the
hardware provided in the clamp
hardware bag, attach the other half
of the tube clamp around the post.
1 Playground Drive Created By: Aaron Price
Greenfield, IN 46140 Date: 03/28/2018
1-800-667-0097
Page 2 of 2 (3.5-inch Clamp Installation Guide)
Page 6

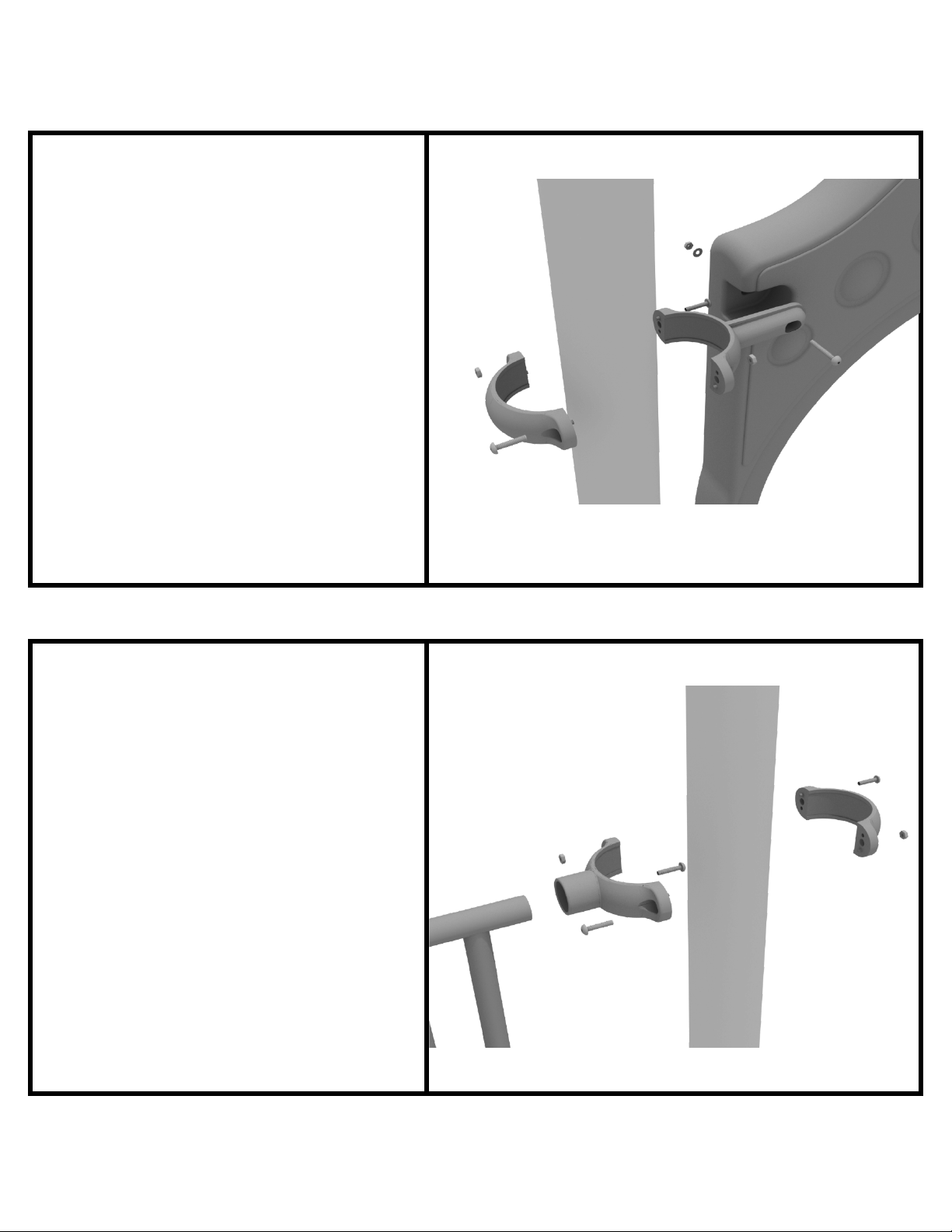

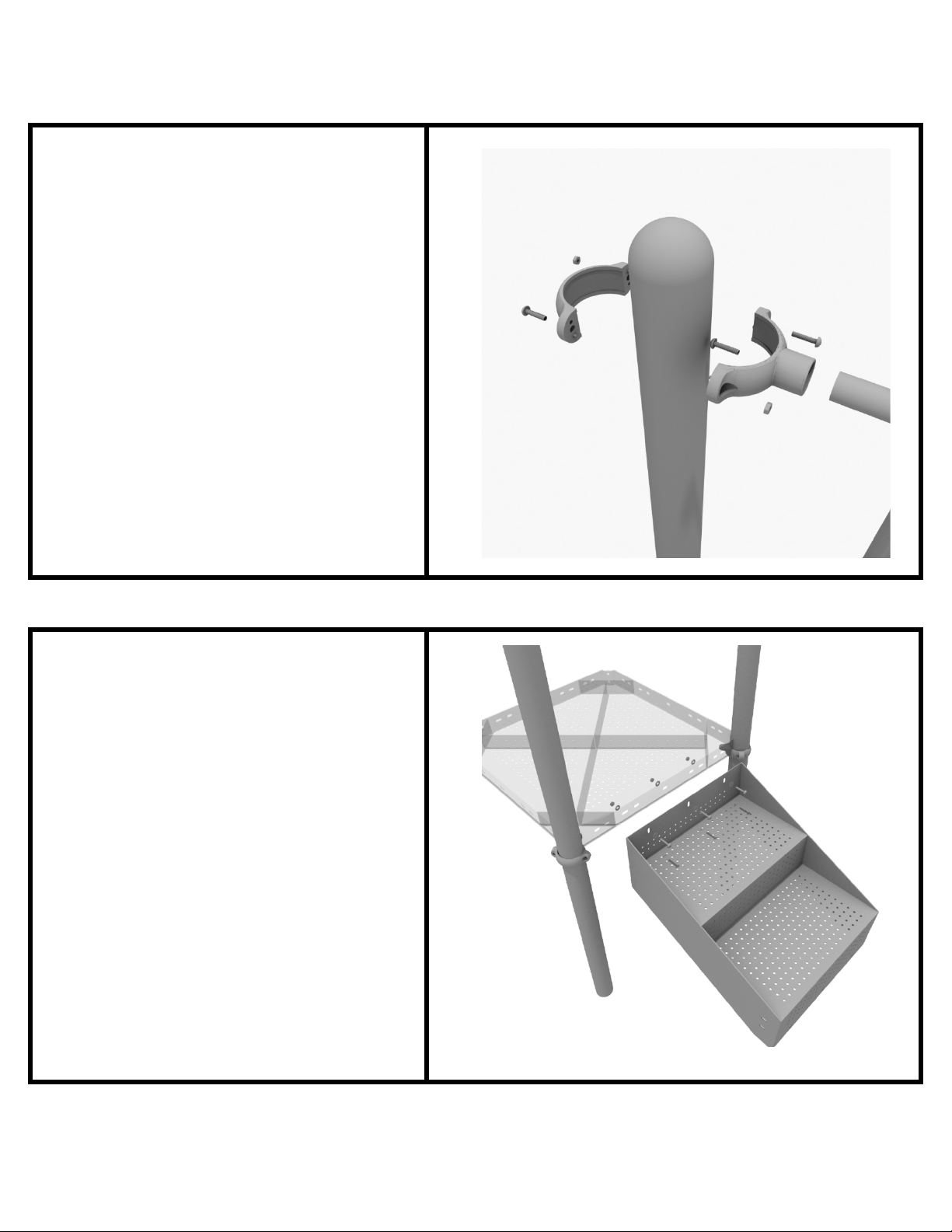

36” Transfer Station (for 3.5” post) Install
STEP: 1
Connect half of the 3.5-inch tube
clamp to the handrail using one (1)
M8*30 bolt. Set the handrail into
place, then attach the second half of
the clamp using the hardware
provided in the clamp bag. Repeat
this process for the other handrail.
STEP: 2
Using three (3) M10*25 bolts, six (6)
M10 washers, and three (3) M10 lock
nuts, attach the top of the stairs to
the square deck.
1 Playground Drive Created By: Aaron Price
Greenfield, IN 46140 Date Modified: 3/13/18
1-800-667-0097
Page 1 of 5 (36” Transfer Station (for 3.5” post) Install)
Page 7

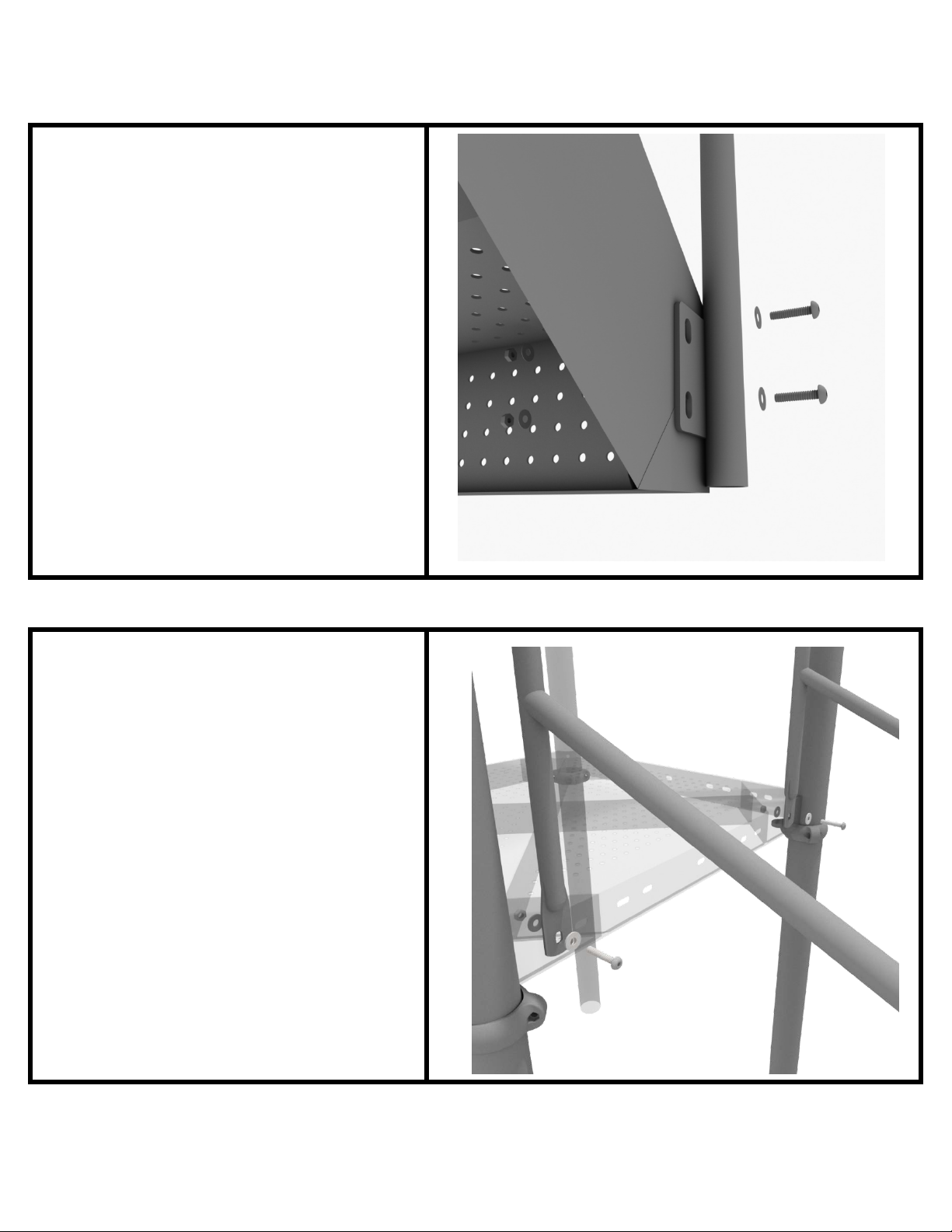

36” Transfer Station (for 3.5” post) Install

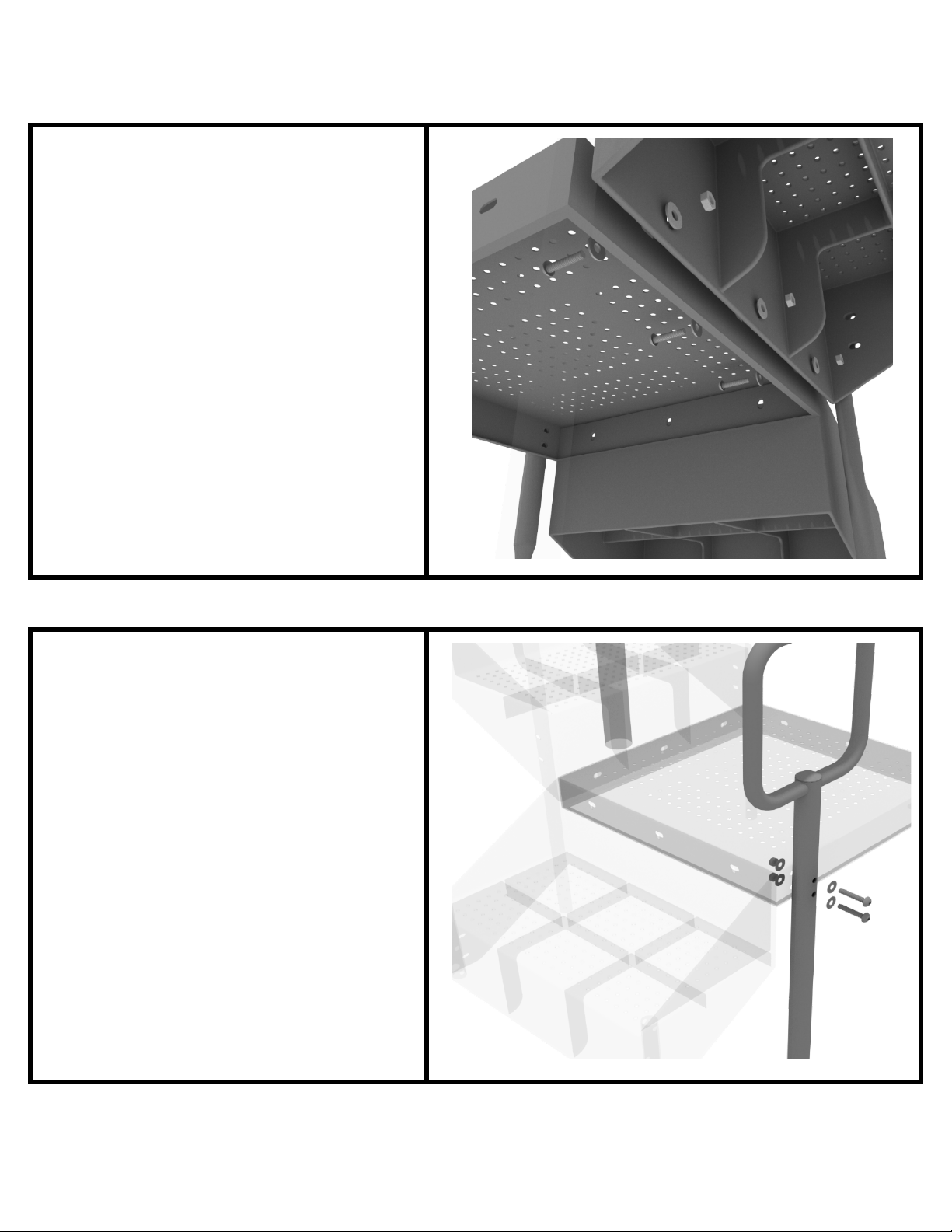

STEP: 3
Using four (4) M10*25 bolts, eight (8)
M10 washers, and four (4) M10 lock
nuts, connect the bottom of the
handrails to the bottom of the 3-foot
transfer stair.
STEP: 4
Using two (2) M10*25 bolts, four (4)
M10 washers, two (2) lock nuts,
attach the handrail to the square
deck.
1 Playground Drive Created By: Aaron Price
Greenfield, IN 46140 Date Modified: 3/13/18
1-800-667-0097
Page 2 of 5 (36” Transfer Station (for 3.5” post) Install)
Page 8
36” Transfer Station (for 3.5” post) Install

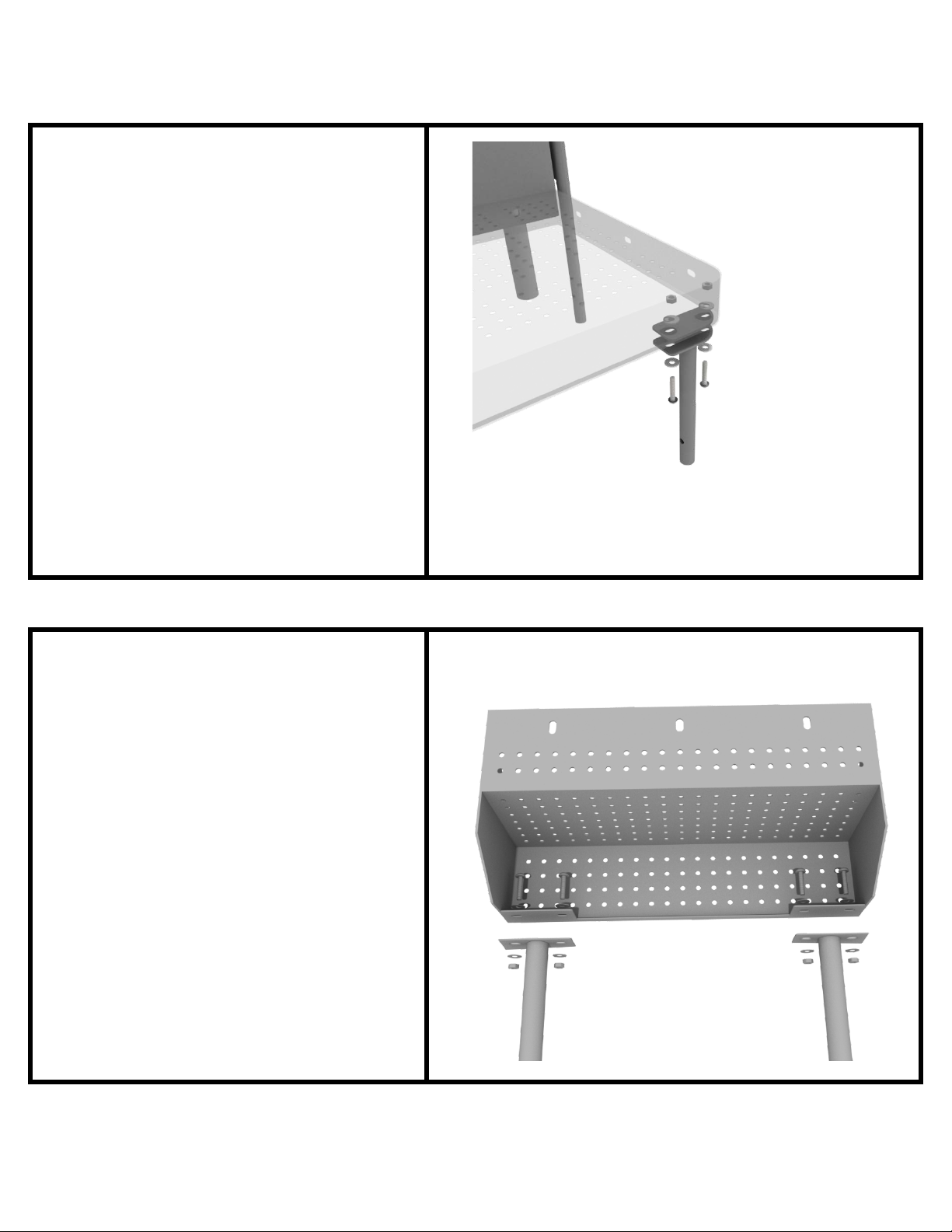

STEP: 5
Using three (3) M10*25 bolts, six (6)
M10 washers, and three (3) M10 lock
nuts, attach the ADA transfer deck to
the base of the 3-foot ADA transfer
stair.
STEP: 6
See general installation guide
regarding footing information for the
transfer deck handrail & mount.
Using two (2) M10*65 bolts, four (4)
M10 washers, and two (2) M10 lock
nuts, attach the transfer handrail to
the ADA transfer deck.
1 Playground Drive Created By: Aaron Price
Greenfield, IN 46140 Date Modified: 3/13/18
1-800-667-0097
Page 3 of 5 (36” Transfer Station (for 3.5” post) Install)
Page 9
36” Transfer Station (for 3.5” post) Install

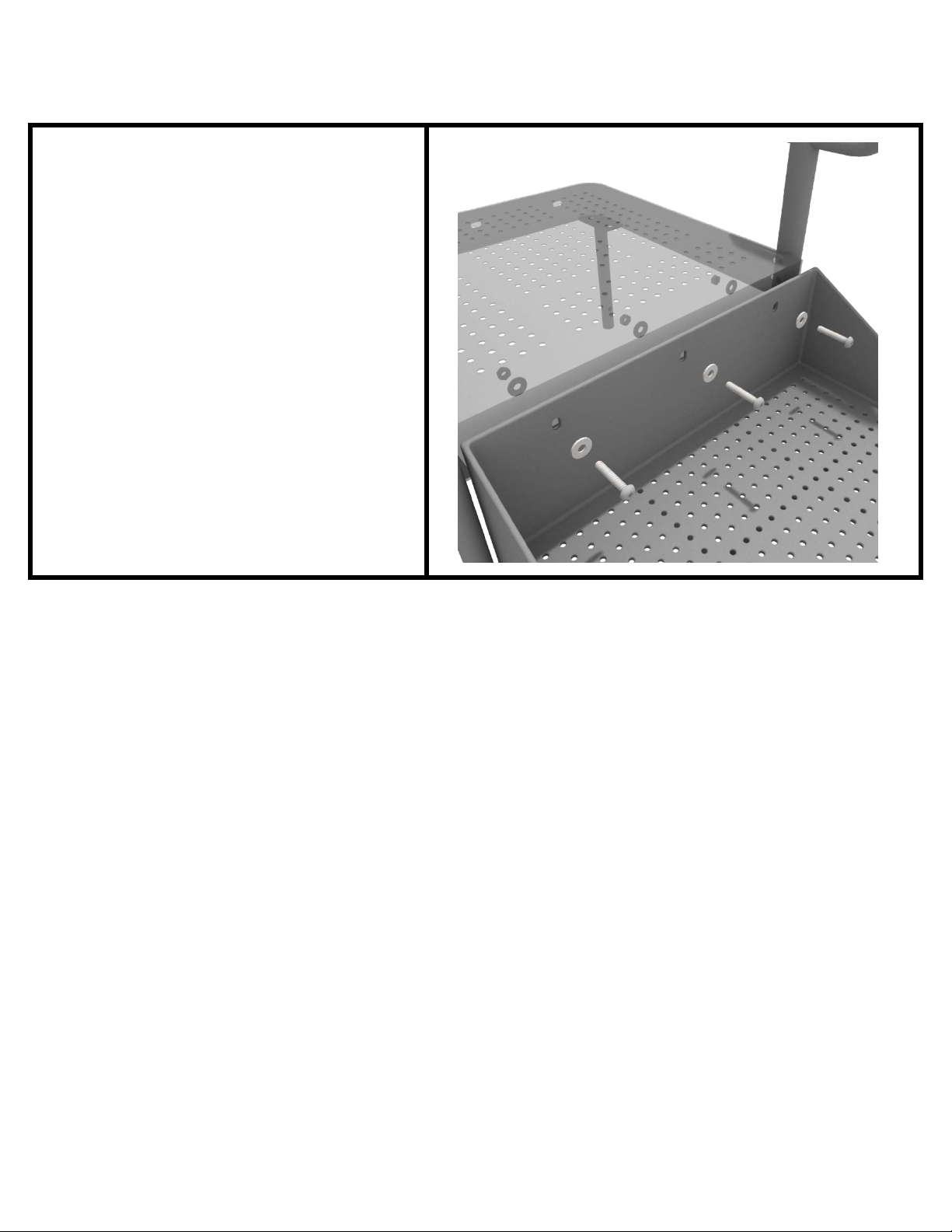

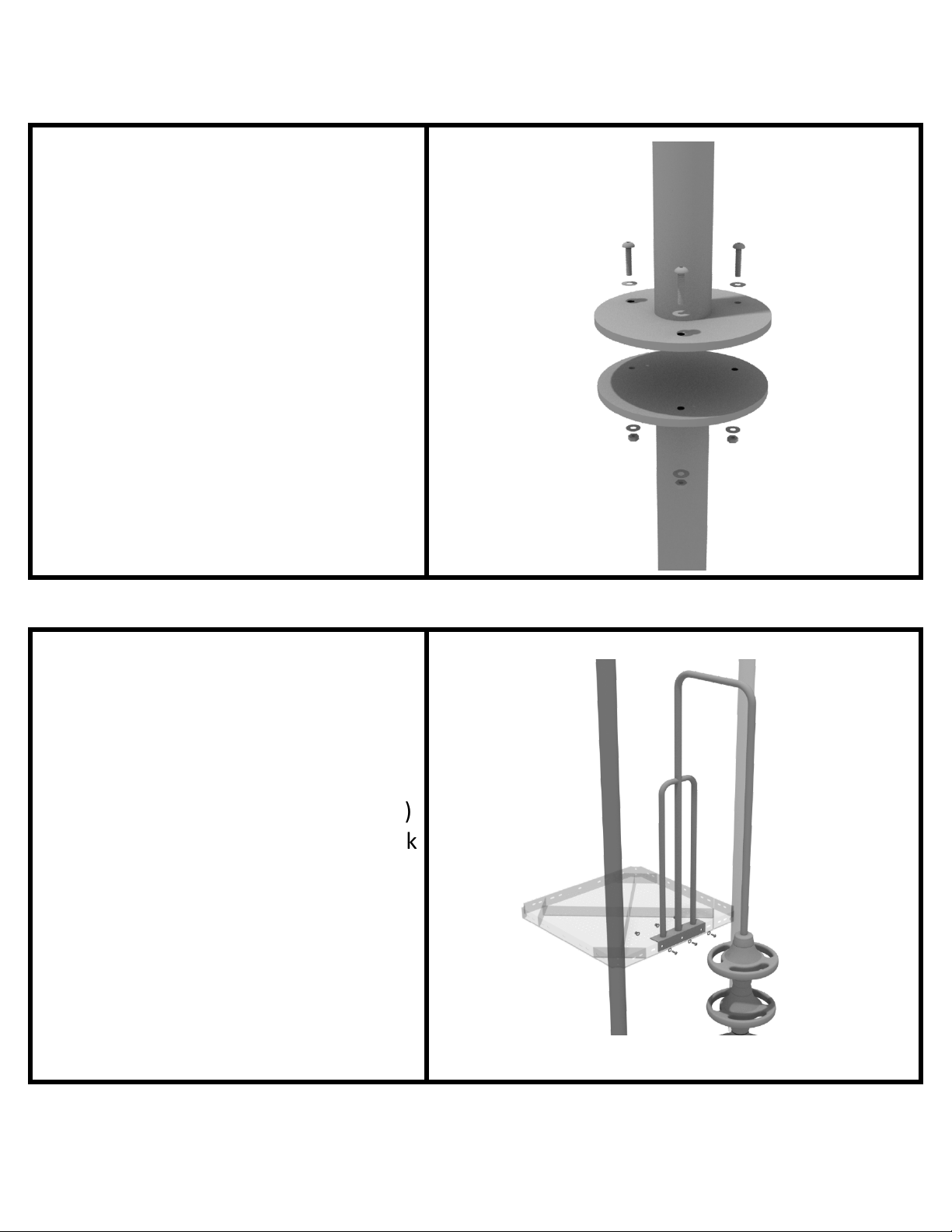

STEP: 7
Using two (2) M10*25 bolts, four (4)
M10 washers, and two (2) lock nuts,
attach the transfer deck mount to
the ADA transfer deck.
STEP: 8
See general installation guide
regarding footing information for the
ADA transfer step mount. Using two
(2) M10 bolts, four (4) M10 washers,
and two (2) M10 lock nuts, attach the
transfer step to each ADA transfer
step mount.
1 Playground Drive Created By: Aaron Price
Greenfield, IN 46140 Date Modified: 3/13/18
1-800-667-0097
Page 4 of 5 (36” Transfer Station (for 3.5” post) Install)
Page 10
36” Transfer Station (for 3.5” post) Install
STEP: 9
Using three (3) M10*25 bolts, six (6)
M10 washers, and three (3) M10
washers, attach the top of the ADA
transfer step to the ADA transfer
deck.
1 Playground Drive Created By: Aaron Price
Greenfield, IN 46140 Date Modified: 3/13/18
1-800-667-0097
Page 5 of 5 (36” Transfer Station (for 3.5” post) Install)
Page 11

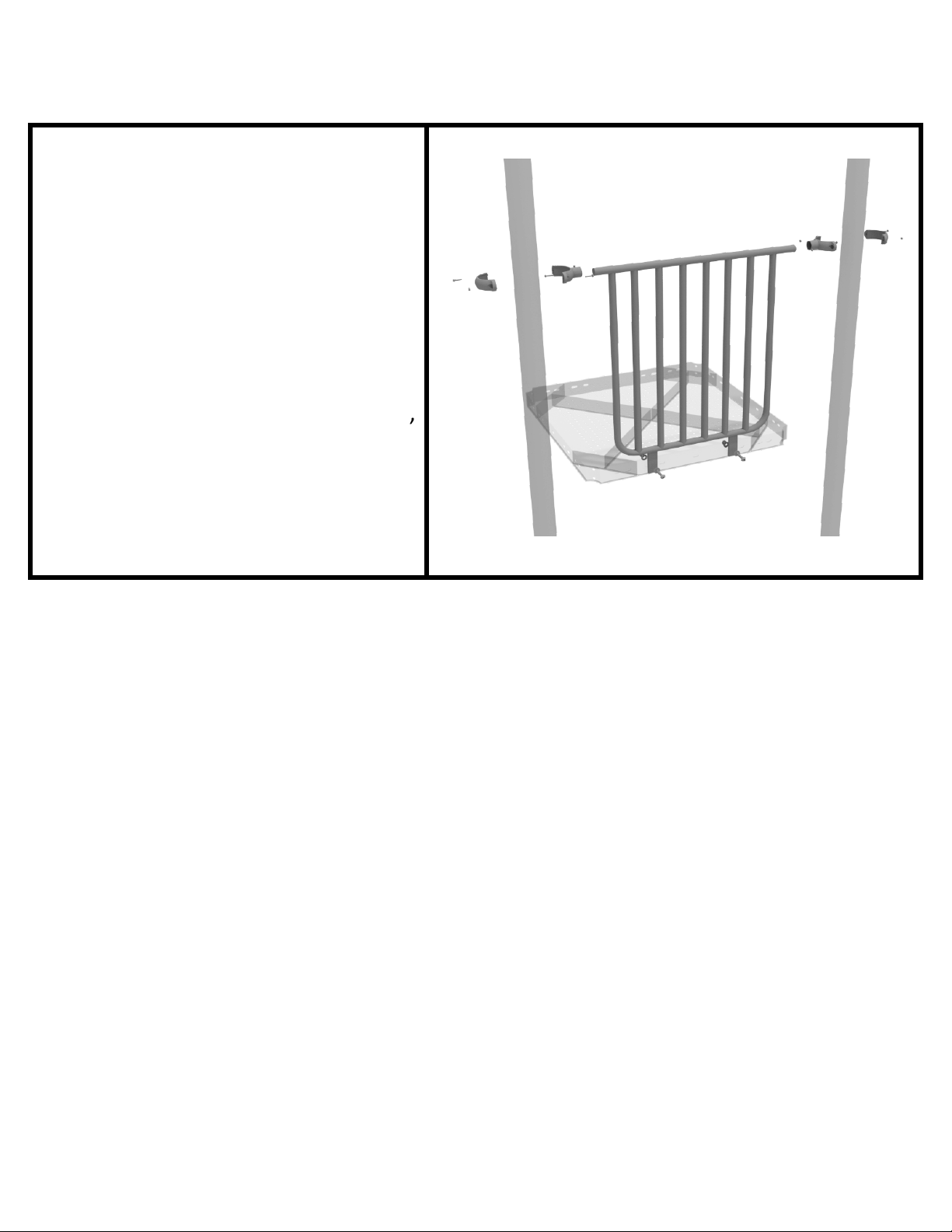

3.5-inch Metal Barrier Installation
STEP: 1
Attach the metal barrier to the
designated posts using two (2) tube
clamps two (2) M8*30 bolts. Then,
attach the bottom of the metal
barrier to the deck using two (2)
M10*25 bolts, four (4) M10 washers,
and two (2) M10 lock nuts.
1 Playground Drive Created By: Aaron Price
Greenfield, IN 46140 Date: 04/05/2018
1-800-667-0097
Page 1 of 1 (3.5-inch Metal Barrier Installation)
Page 12
3-foot Single Wave Slide Installation
STEP: 1
Take one (1) 3.5-inch flat clamp, and
loosely attach it around a post using
the bolts and nuts provided in the
clamp hardware bag. Repeat this
process on the other post. Then, use
one (1) M8*40 bolt, one (1) M8
washer, and one (1) M8 lock nut to
attach each side of the slide hood to
each clamp. Leave bolts loose until
slide is in place.
STEP: 2
See general installation guide
regarding footing information for the
slide end mount. Using two (2)
M8*20, two (M8) spring washers.
And two (2) M8 washers, attach the
slide to the slide support post.
1 Playground Drive Created By: Aaron Price
Greenfield, IN 46140 Date: 3/19/2018
1-800-667-0097
Page 1 of 2 (3-foot Single Wave Slide Installation)
Page 13
3-foot Single Wave Slide Installation

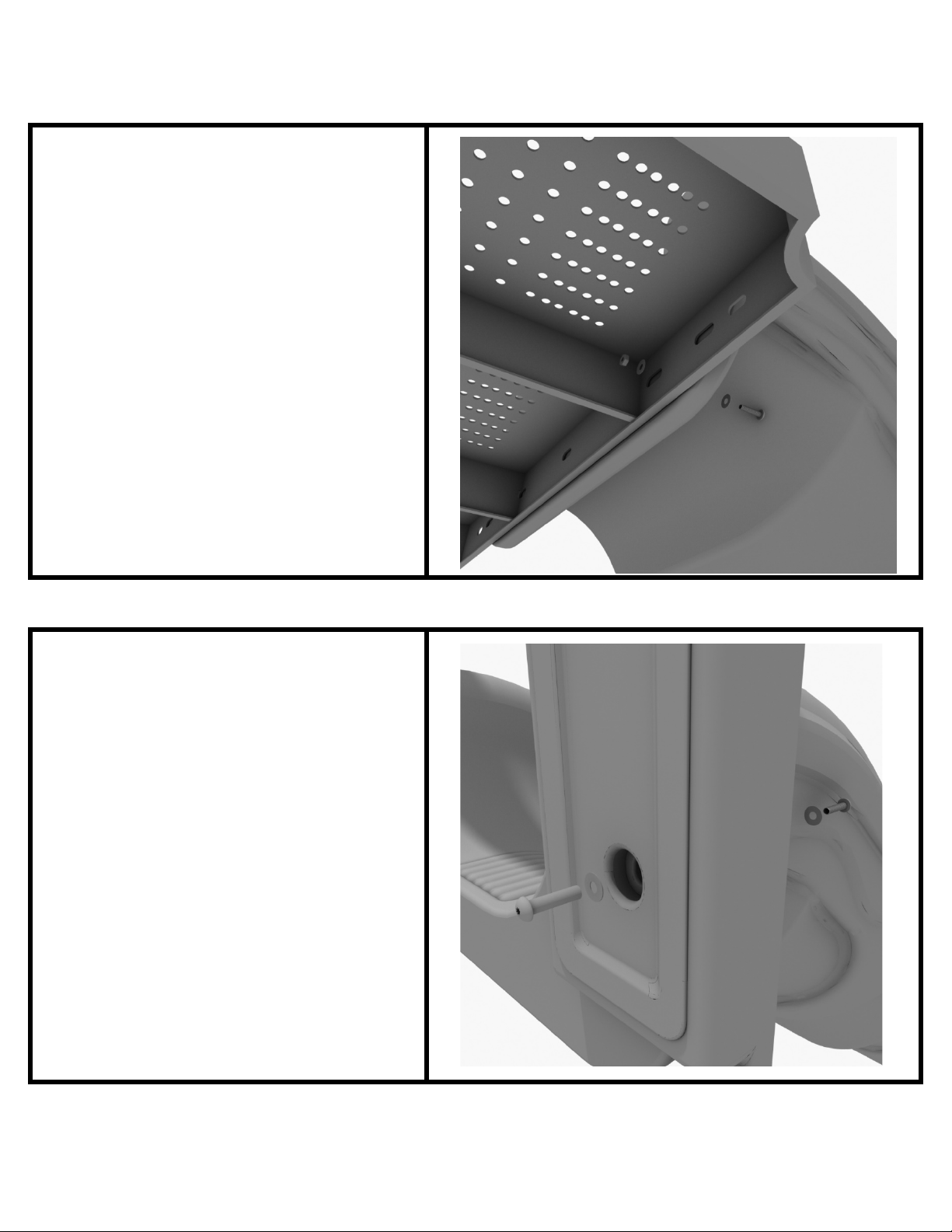

STEP: 3
To attach a single slide to a deck, use
two (2) M10*45 bolts, four (4) M10
washers, and two (2) M10 lock nuts.
Repeat this process for the other side
of the slide. Repeat this process for
each single slide.
STEP: 4
Using two (2) M8*45 bolts, two (2)
M8 washer, two (2) M12 washers,
and one (1) M12 inner hex spiral nut,
attach the slide to the slide hood.
Repeat this process for the other side
of the slide.
1 Playground Drive Created By: Aaron Price
Greenfield, IN 46140 Date: 3/19/2018
1-800-667-0097
Page 2 of 2 (3-foot Single Wave Slide Installation)
Page 14

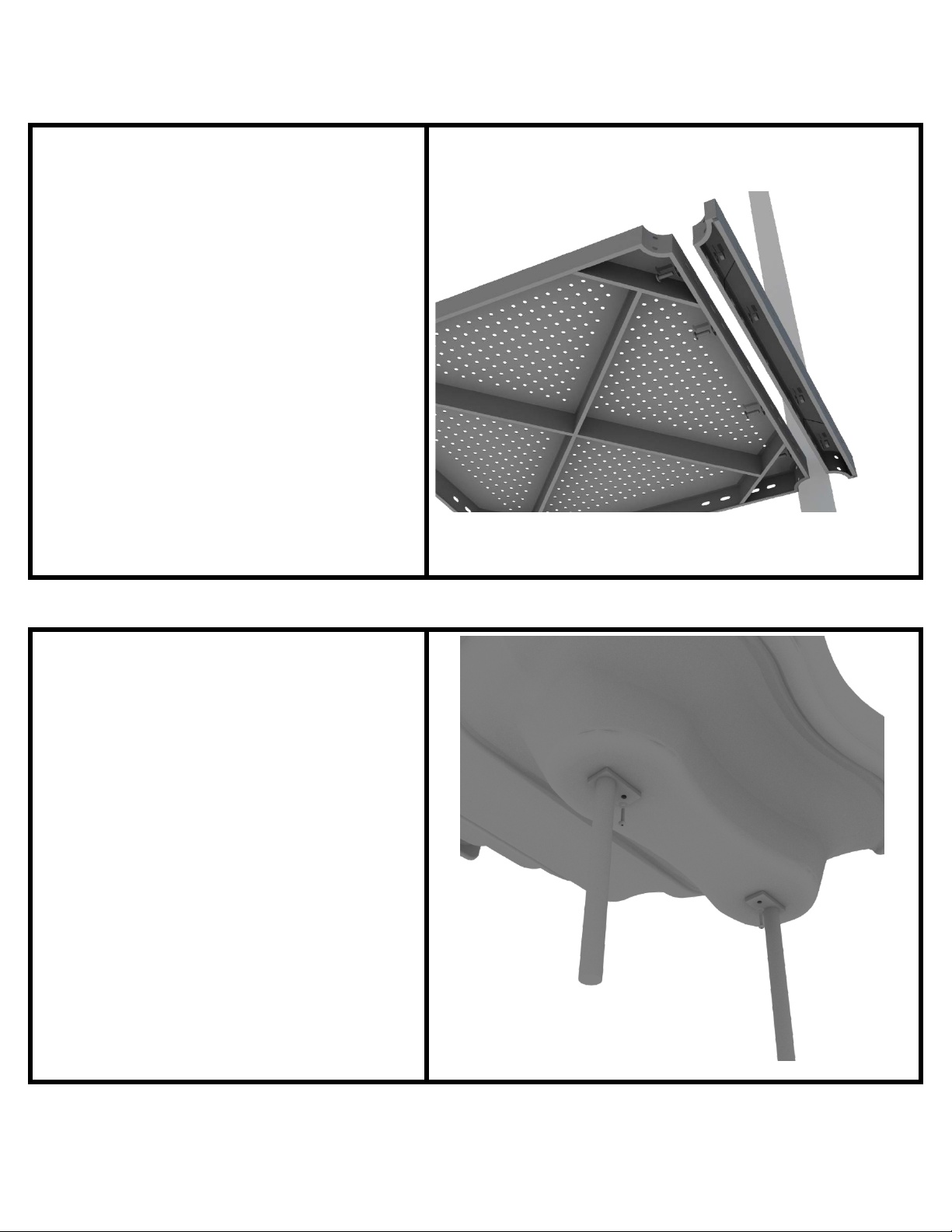

4-foot Double Wave Slide Installation
STEP: 1
Attach the deck climber extension to
the proper deck using four (4)
M10*25 bolts, eight (8) M10
washers, and four (4) M10 lock nuts.
STEP: 2
Then, See general installation guide
regarding footing information for the
double slide end mounts. Using two
(2) M8*20 bolts, two (2) M8 spring
gaskets, and two (2) M8 washers,
attach the slide end mounts to the
double slide.
1 Playground Drive Created By: Aaron Price
Greenfield, IN 46140 Date: 04/10/2018
1-800-667-0097
Page 1 of 2 (4-foot Double Wave Slide Installation)

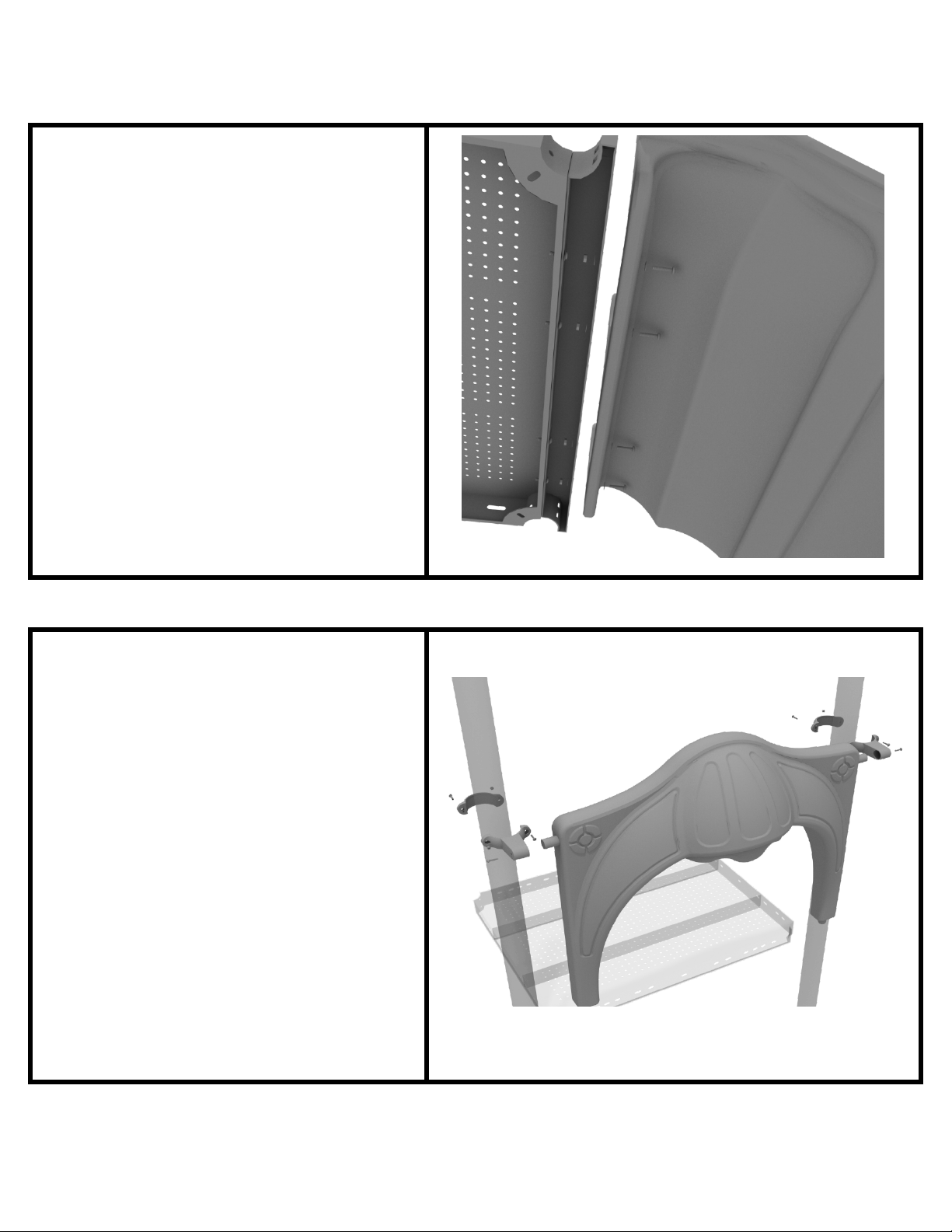

Page 15
4-foot Double Wave Slide Installation
STEP: 3
Then, attach the slide to the deck
extension using four (4) M10*45
bolts, eight (8) M10 washers, and
four (4) M10 lock nuts.
STEP: 4
Once the slide is attached, take the
double slide hood and insert hood
into the top of the slide, and then
attach the top using two (2) double
slide clamps, and two (2) M8*30
bolts.
1 Playground Drive Created By: Aaron Price
Greenfield, IN 46140 Date: 04/10/2018
1-800-667-0097
Page 2 of 2 (4-foot Double Wave Slide Installation)
Page 16

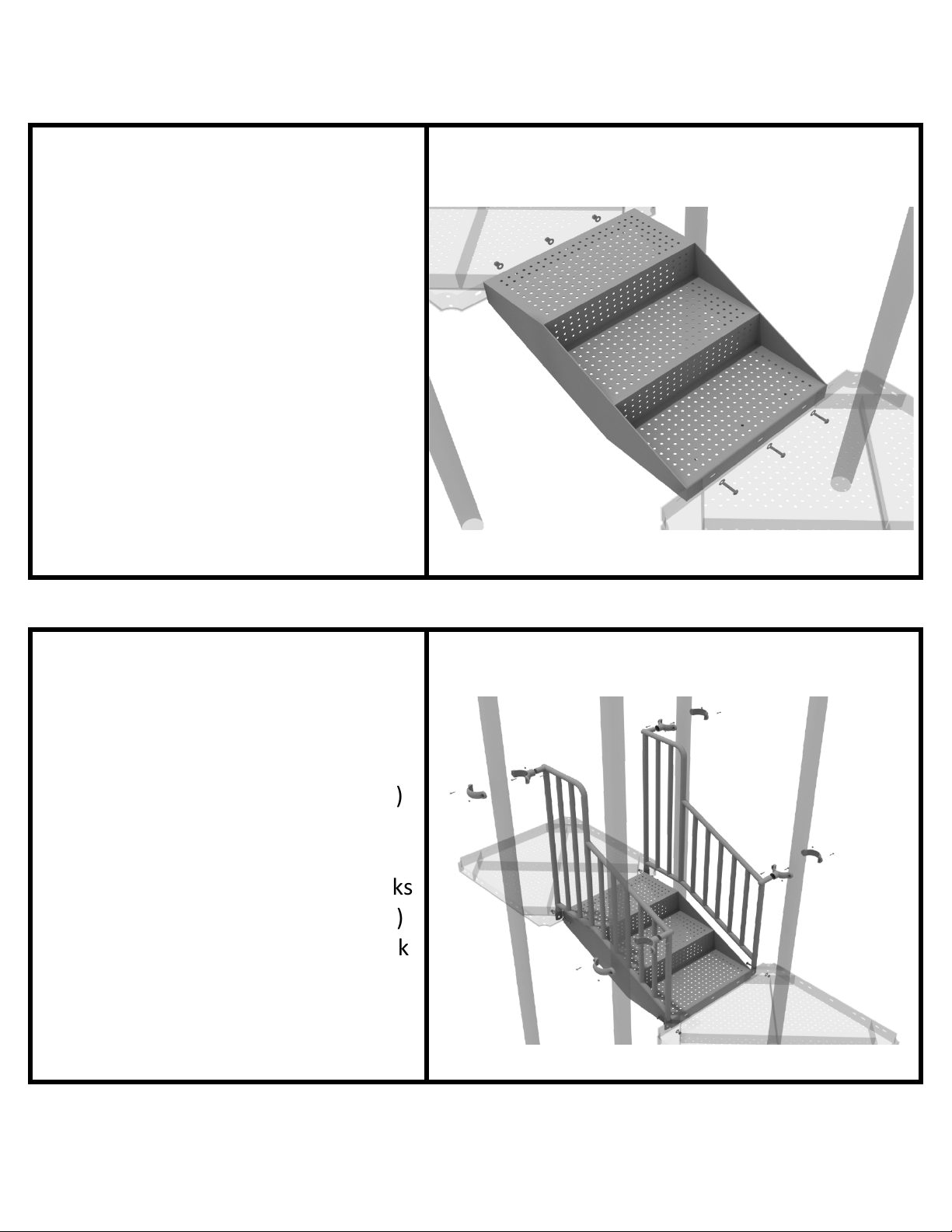

12-inch Middle Stair Installation
STEP: 1
Using eight (6) M10*25 bolts, twelve
(12) M10 washers, and six (6) M10
lock nuts, attach the 12-inch middle
stair to the assigned decks.
STEP: 2
Then, once the stair is in place,
attach the 12-inch connection
handrail to the posts using four (4)
3.5-inch tube clamps, and four (4)
M8*30 bolts. Then, attach the
bottom of the handrails to the decks
using one (1) M10*25 bolt, two (2)
M10 washers, and one (1) M10 lock
nut for each attachment point.
1 Playground Drive Created By: Aaron Price
Greenfield, IN 46140 Date: 03/29/2018
1-800-667-0097
Page 1 of 1 (12-inch Middle Stair Installation)
Page 17

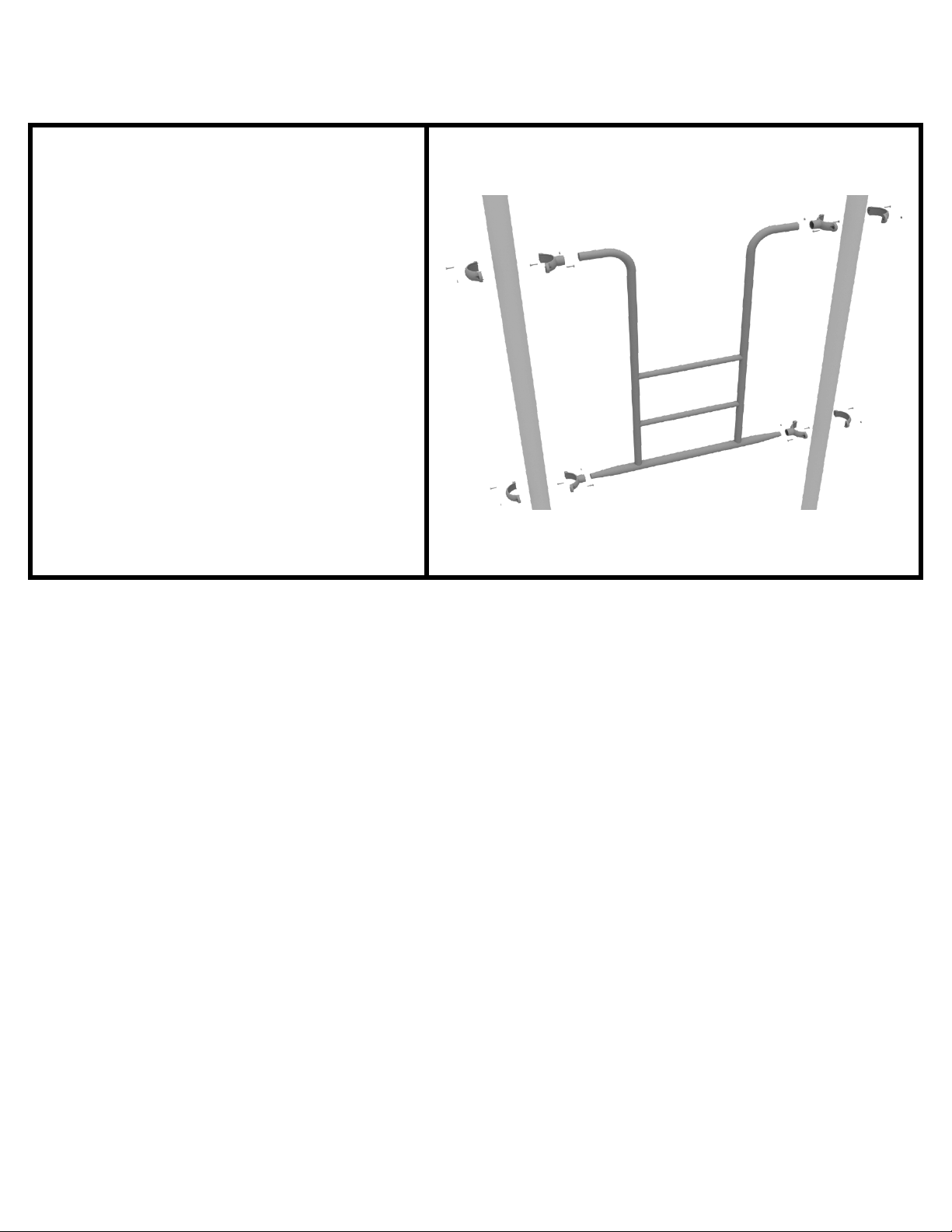

Overhead Access Ladder Installation
STEP: 1
Attach the Overhead Access Ladder
to the designated posts by connect
half of the tube clamp to the ladder
using one (1) M8*30 bolt. Repeat this
process for each attachment point.
Set the ladder into place, then attach
the second half of the clamp around
the post.
1 Playground Drive Created By: Aaron Price
Greenfield, IN 46140 Date: 04/18/2018
1-800-667-0097
Page 1 of 1 (Overhead Access Ladder Installation)
Page 18

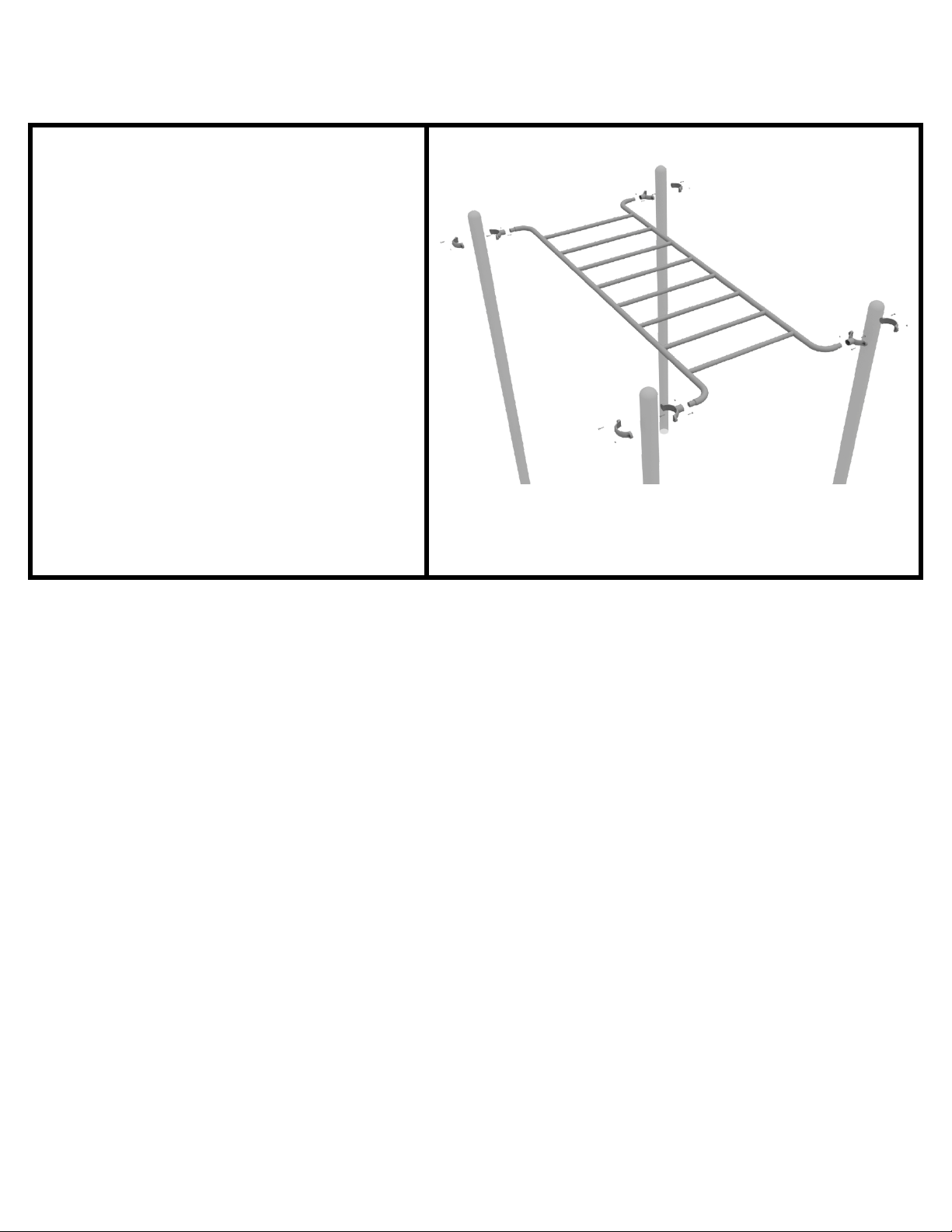

Straight Rung Overhead Ladder Installation
STEP: 1
Attach the Overhead Straight Ladder
to the designated posts by connect
half of the tube clamp to the ladder
using one (1) M8*30 bolt. Repeat this
process for each attachment point.
Set the ladder into place, then attach
the second half of the clamp around
the post.
1 Playground Drive Created By: Aaron Price
Greenfield, IN 46140 Date: 03/21/2018
1-800-667-0097
Page 1 of 1 (Straight Rung Overhead Ladder Installation)
Page 19

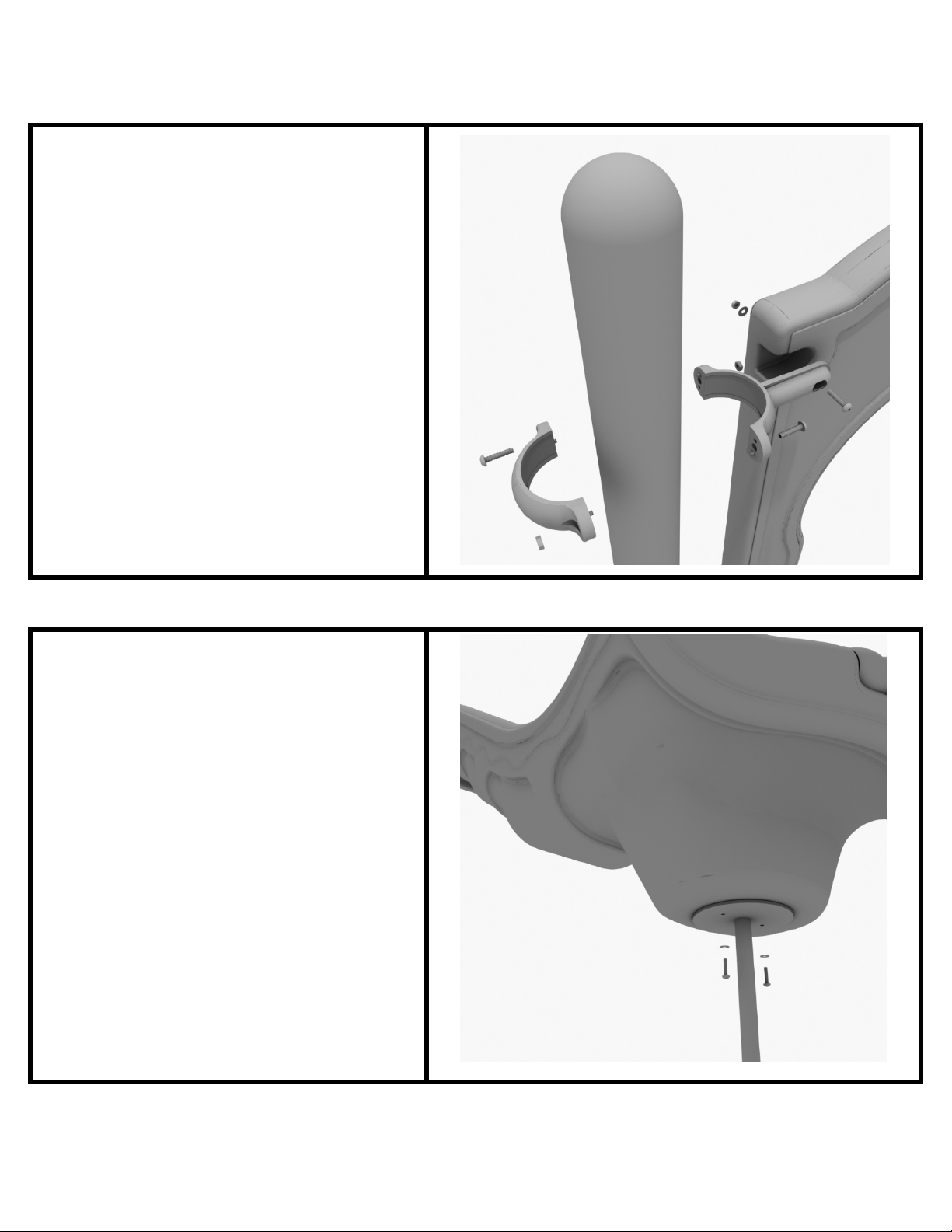

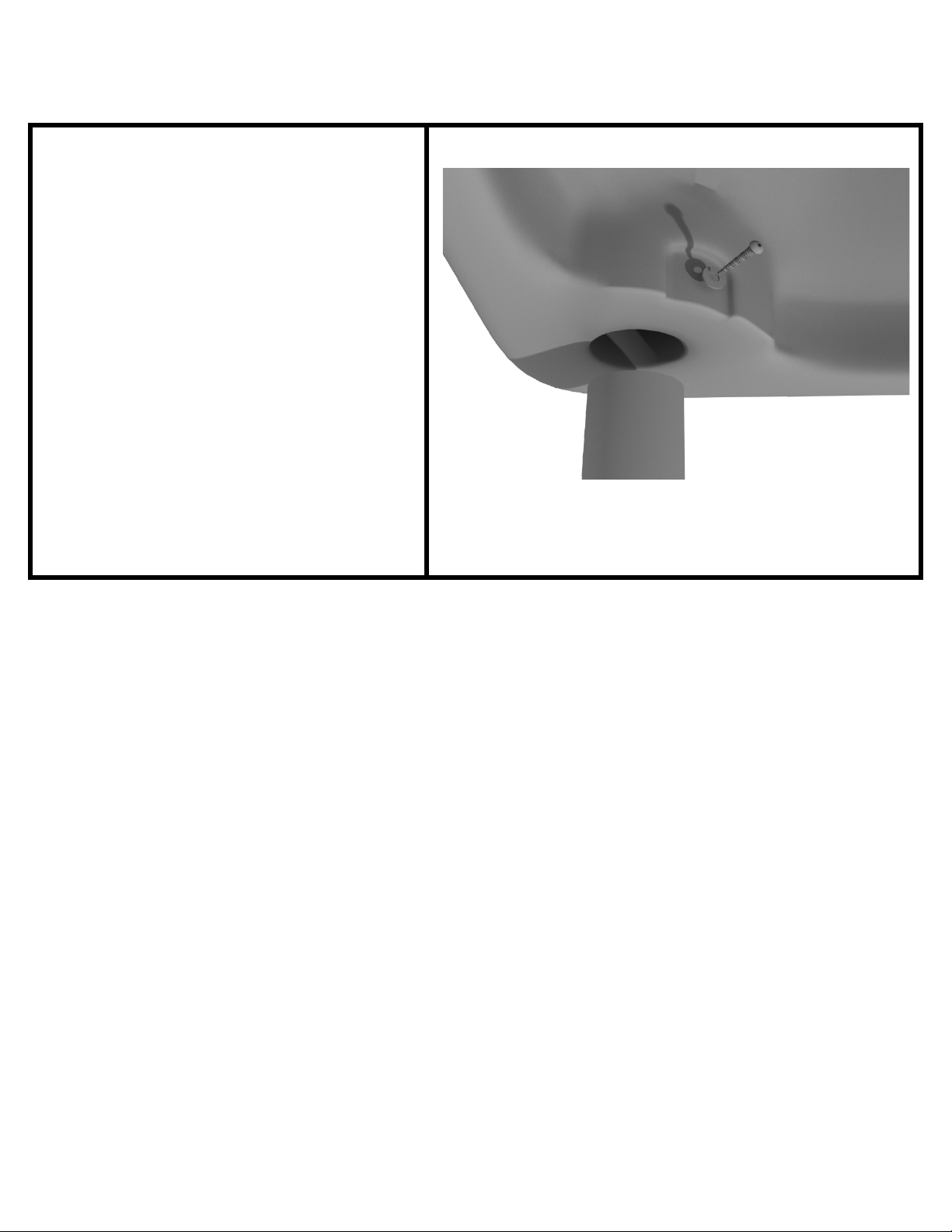

Pod Climber Installation
STEP: 1
See general installation guide
regarding footing information for the
pod climber. Attach the circle end
mount to the bottom of the climber
using the pre-attached hardware.
Each attachment uses three (3)
M10*20 bolts, three (3) M10 spring
gaskets, and one (3) M10 large
gaskets.
STEP: 2
Using three (3) M10*25 bolts, six (6)
M10 washers, and three (3) M10 lock
nuts, attach the pod climber to the
deck.
1 Playground Drive Created By: Aaron Price
Greenfield, IN 46140 Date: 03/20/2018
1-800-667-0097
Page 1 of 1 (Pod Climber Installation)
Page 20
Line Roof Installation
STEP: 1
Set the line roof on top of the posts.
Take four (4) self-tapping screws and
drill them through the notch at each
corner of the roof, into the support
posts.
1 Playground Drive Created By: Aaron Price
Greenfield, IN 46140 Date: 03/19/2018
1-800-667-0097
Page 1 of 1 (Line Roof Installation)
Page 21

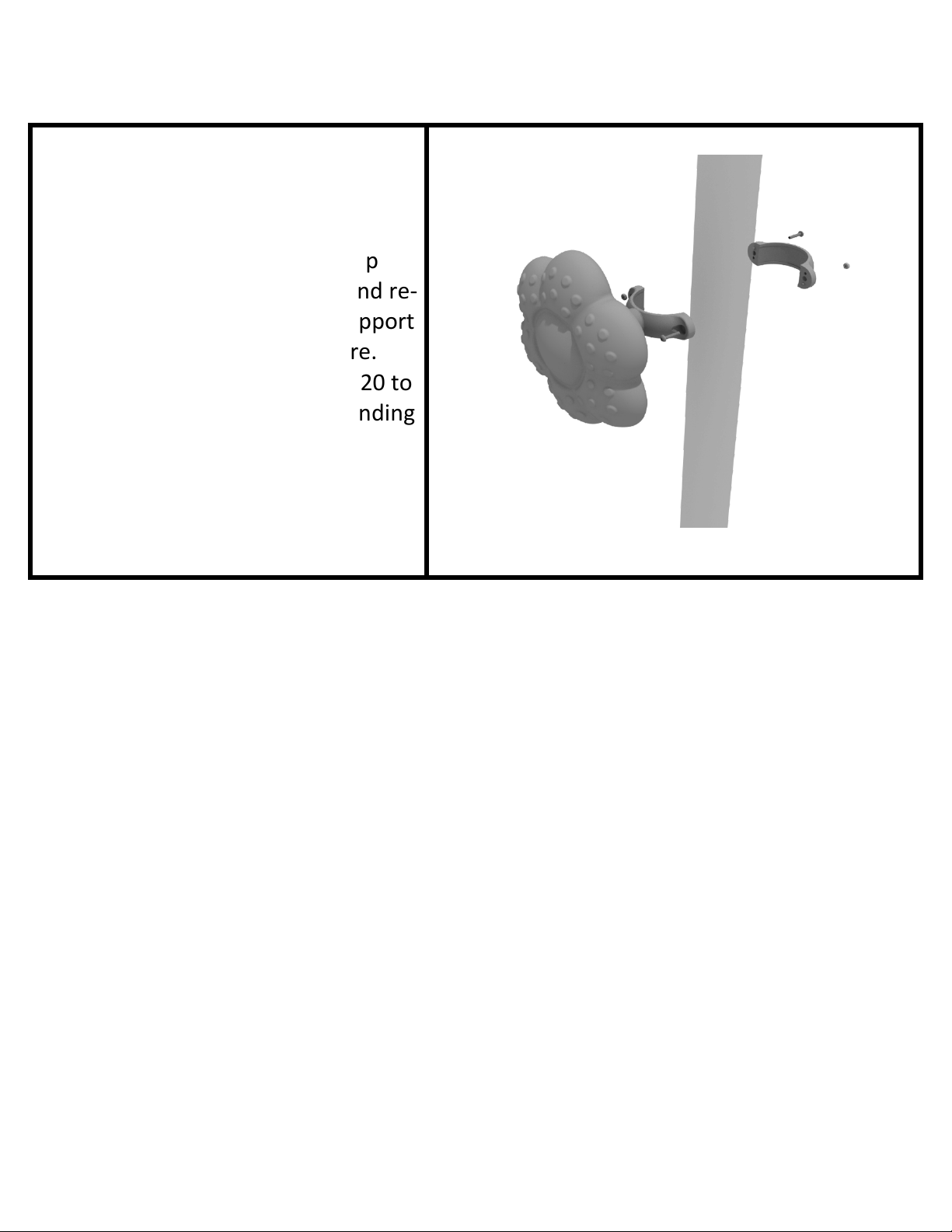

Rain Wheel Installation
STEP: 1
Detach half of the tube clamp
connected to the Rain Wheel, and re-
attach the clamp around the support
post, as shown in the picture.
Recommended install height is 20 to
36 inches above surfacing depending
on age range.
1 Playground Drive Created By: Aaron Price
Greenfield, IN 46140 Date: 03/29/2018
1-800-667-0097
Page 1 of 1 (Rain Wheel Installation)
Page 22
Single Drum Installation
STEP: 1
Detach half of the tube clamps
connected to the Single Drum, and
re-attach the clamps around the
support post, as shown in the image.
Recommended install height is 20 to
36 inches above surfacing depending
on age range.
1 Playground Drive Created By: Aaron Price
Greenfield, IN 46140 Date: 04/18/2018
1-800-667-0097
Page 1 of 1 (Single Drum Installation)
Loading...
