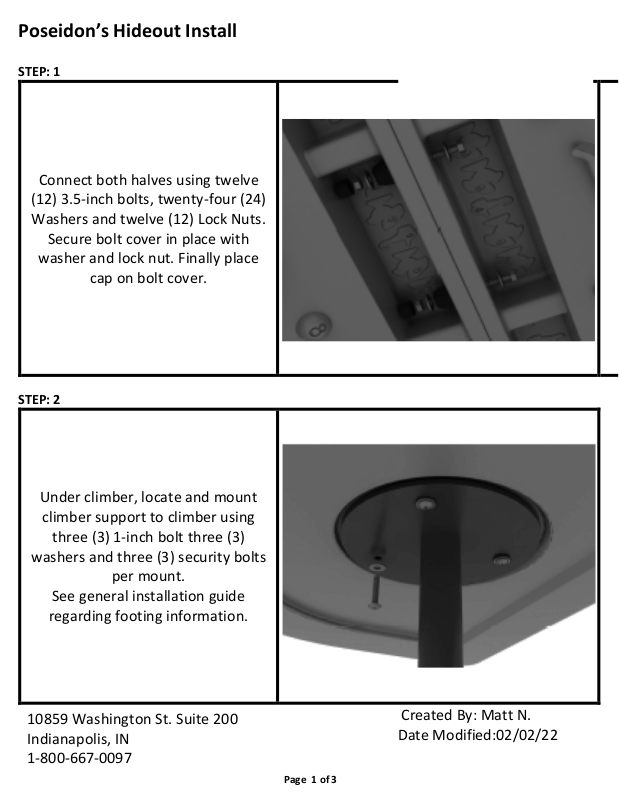

Poseidon’s Hideout Install

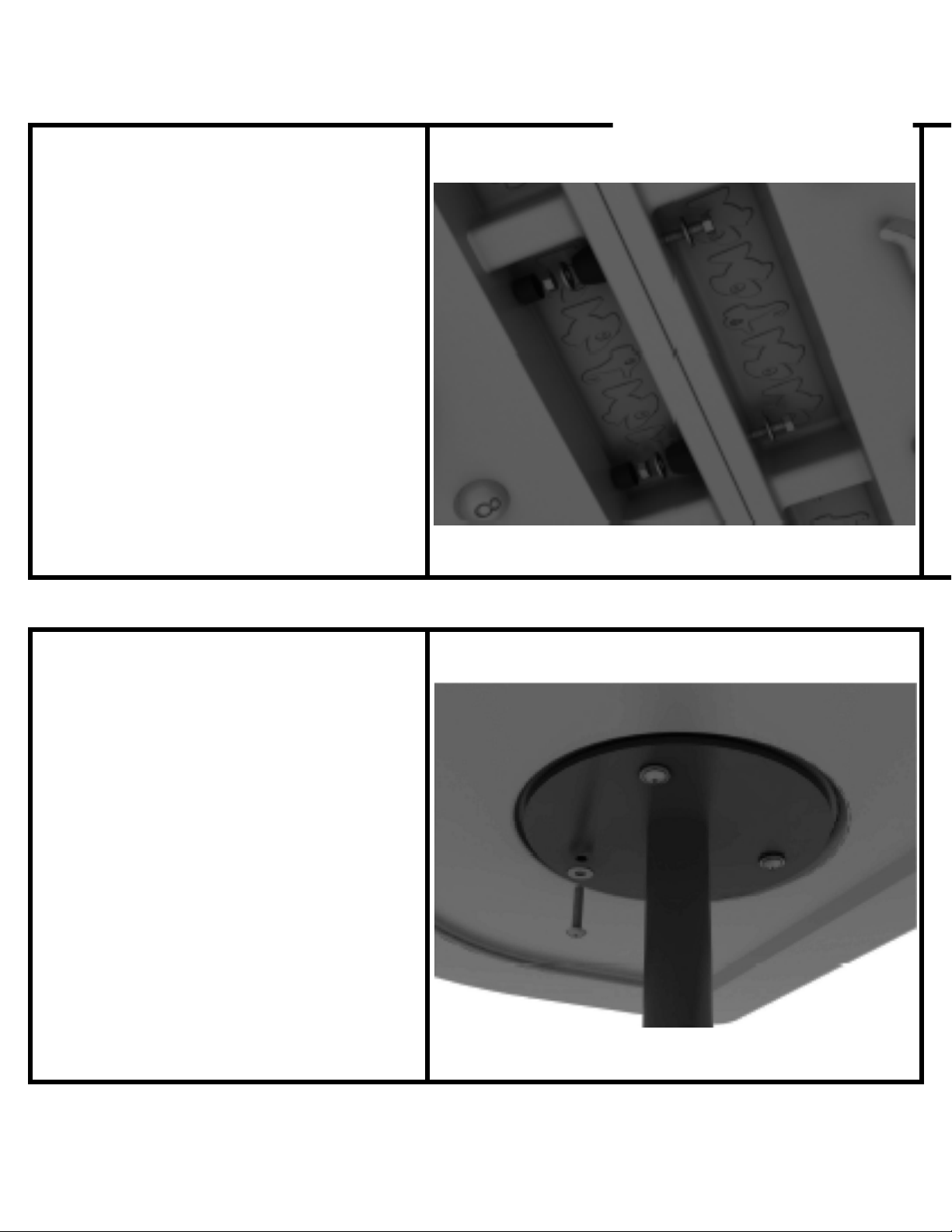

Connect both halves using twelve
(12) 3.5-inch bolts, twenty-four (24)
Washers and twelve (12) Lock Nuts.
Secure bolt cover in place with
washer and lock nut. Finally place
cap on bolt cover.
Under climber, locate and mount
climber support to climber using
three (3) 1-inch bolt three (3)
washers and three (3) security bolts
per mount.
See general installation guide
regarding footing information.
STEP: 1
STEP: 2
10859 Washington St. Suite 200
Indianapolis, IN
1-800-667-0097
Created By: Matt N.
Date Modified:02/02/22
Page 1 of 3
Page 2
Surface Mount Install
Refer to the General Installation
Guide for information on footings for
a primary support post. Once
concrete has been set, mark your
drill placement by using the
mounting bracket holes, then bore
out an appropriately sized anchor
point in the concrete.

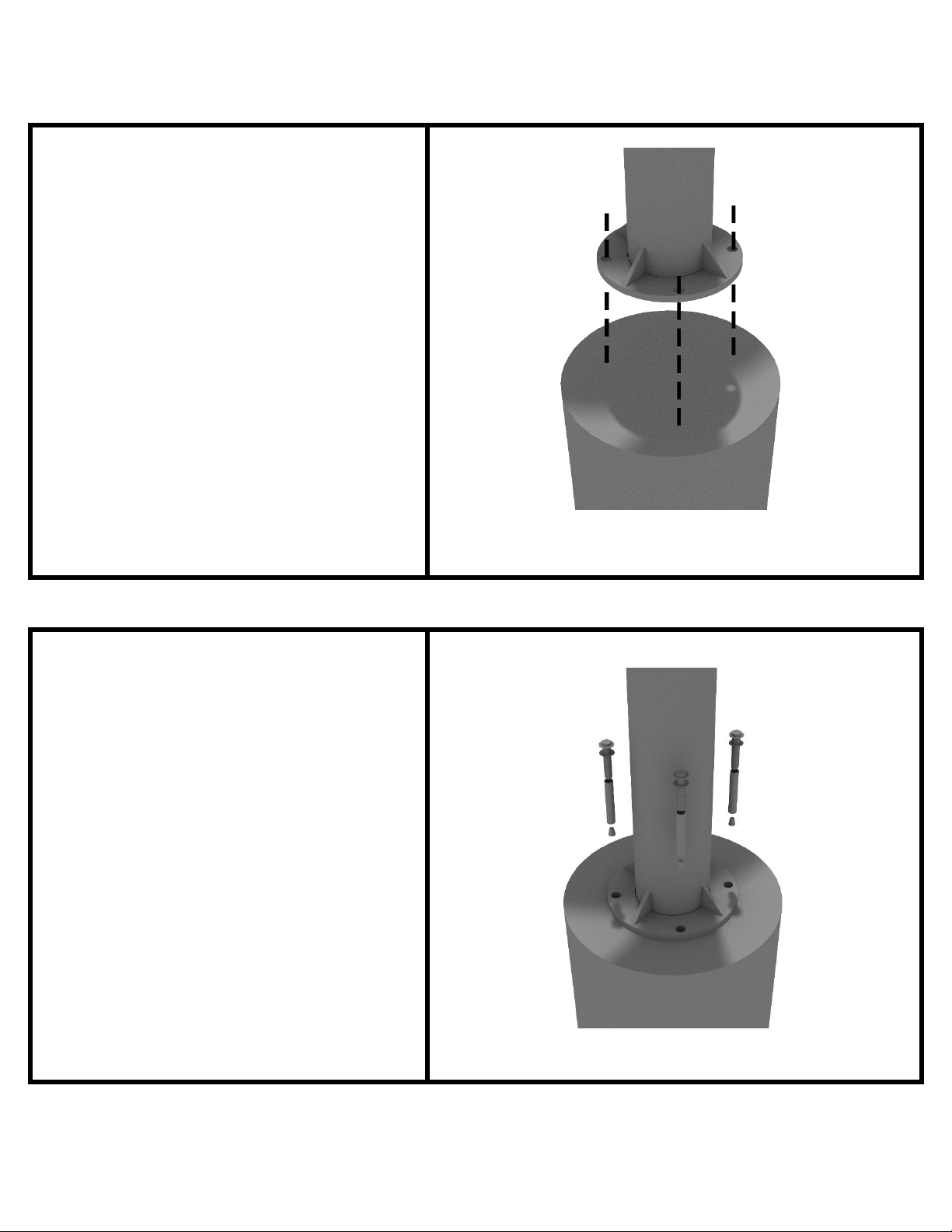

Place the equipment mounting plate
back over the holes and insert the
Concrete Anchor Bolts (Not
Supplied). Install Anchor Bolts as
directed by anchor bolt
manufacturer.
STEP: 1
STEP: 2
10859 Washington St. Suite 200
Indianapolis, IN
1-800-667-0097
Created By: Gage B.
Date Modified: 03/21/19
Page 2 of 3
Page 3

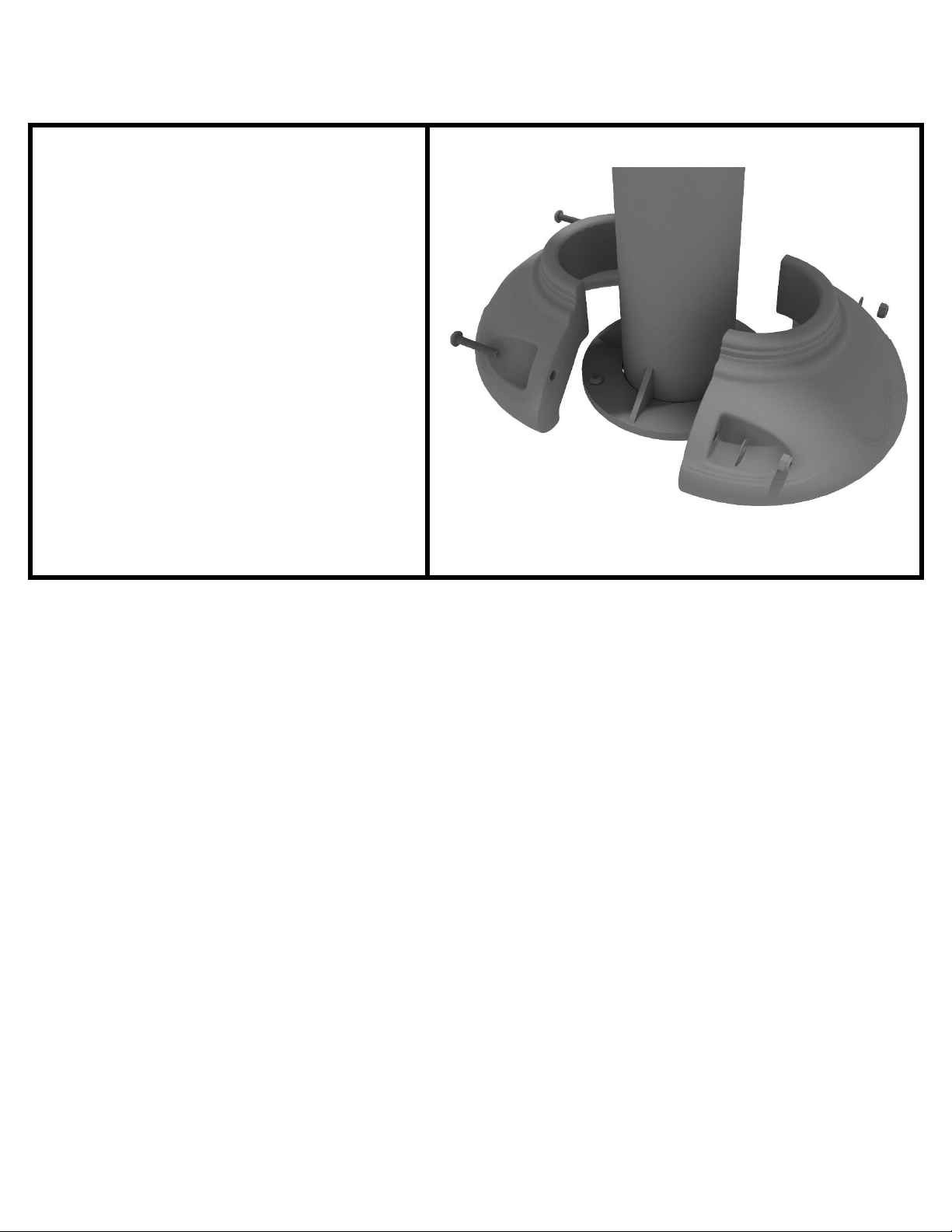

Connect plastic mount cover over the
surface mount plate and bolt the two
pieces together using the supplied
hardware.
Surface Mount Install
STEP: 3
10859 Washington St. Suite 200
Indianapolis, IN
1-800-667-0097
Created By: Gage B.
Date Modified: 03/21/19
Page 3 of 3
