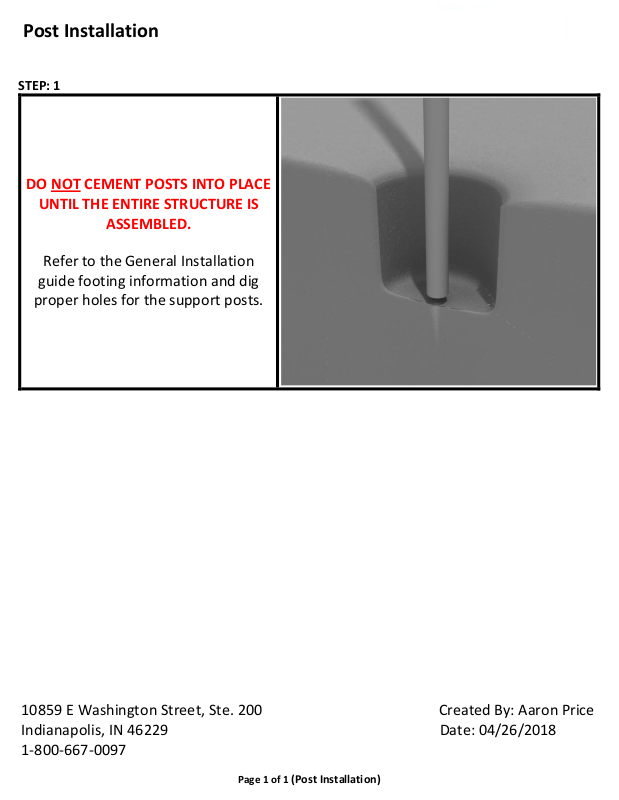

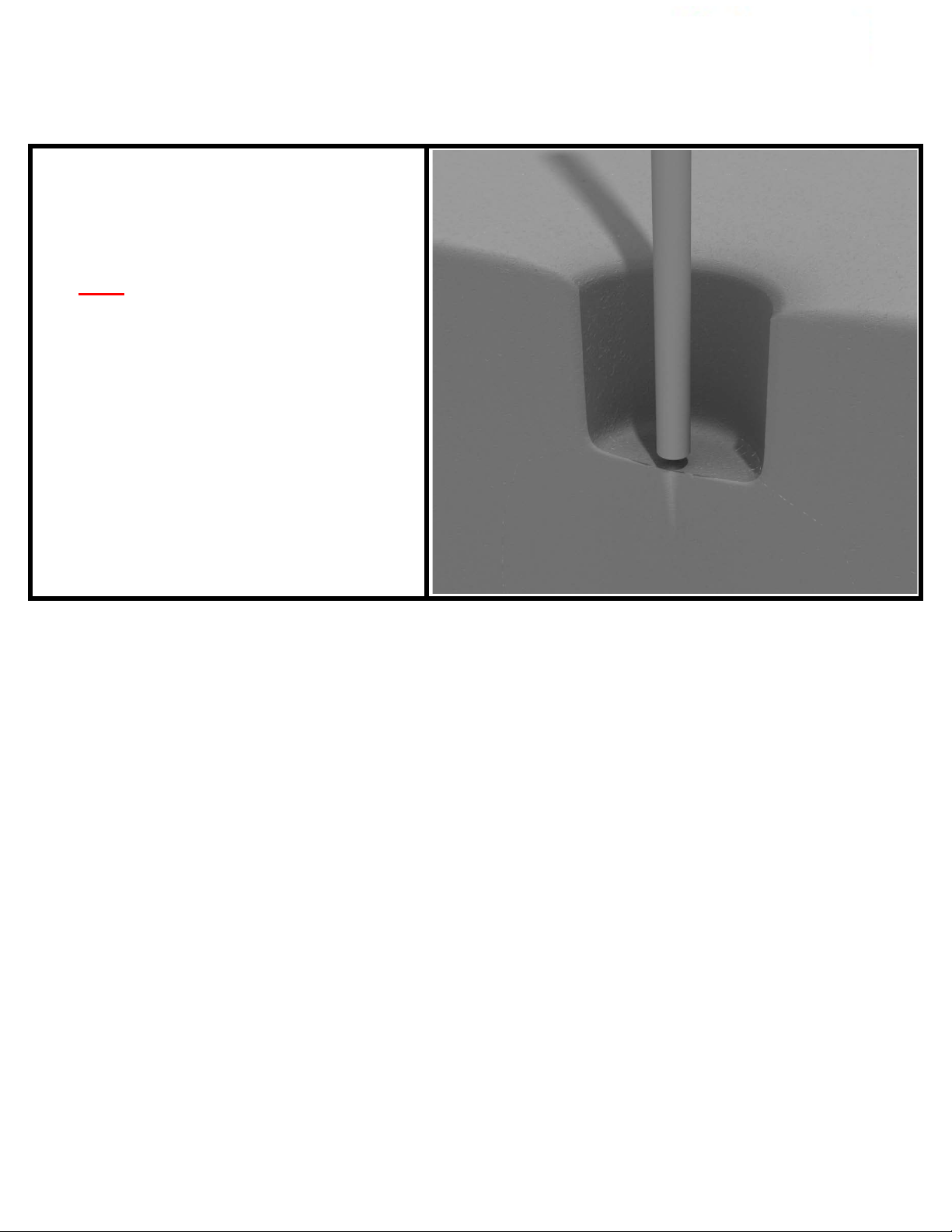

Post Installation

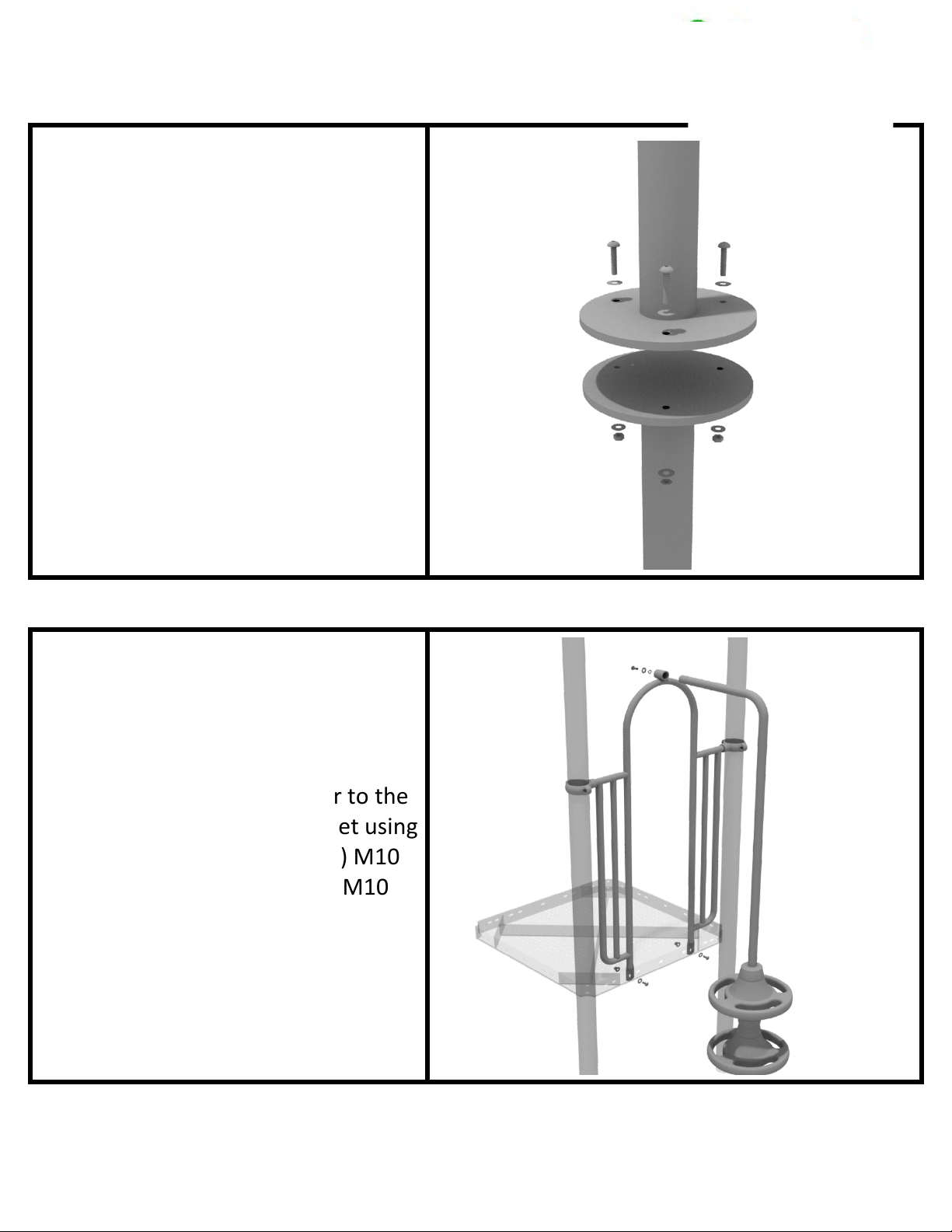

STEP: 1
DO NOT CEMENT POSTS INTO PLACE
UNTIL THE ENTIRE STRUCTURE IS
ASSEMBLED.
Refer to the General Installation
guide footing information and dig
proper holes for the support posts.
10859 E Washington Street, Ste. 200
Indianapolis, IN 46229
1-800-667-0097
Page 1 of 1 (Post Installation)
Created By: Aaron Price
Date: 04/26/2018
Page 2
Square Deck Installation
STEP: 1

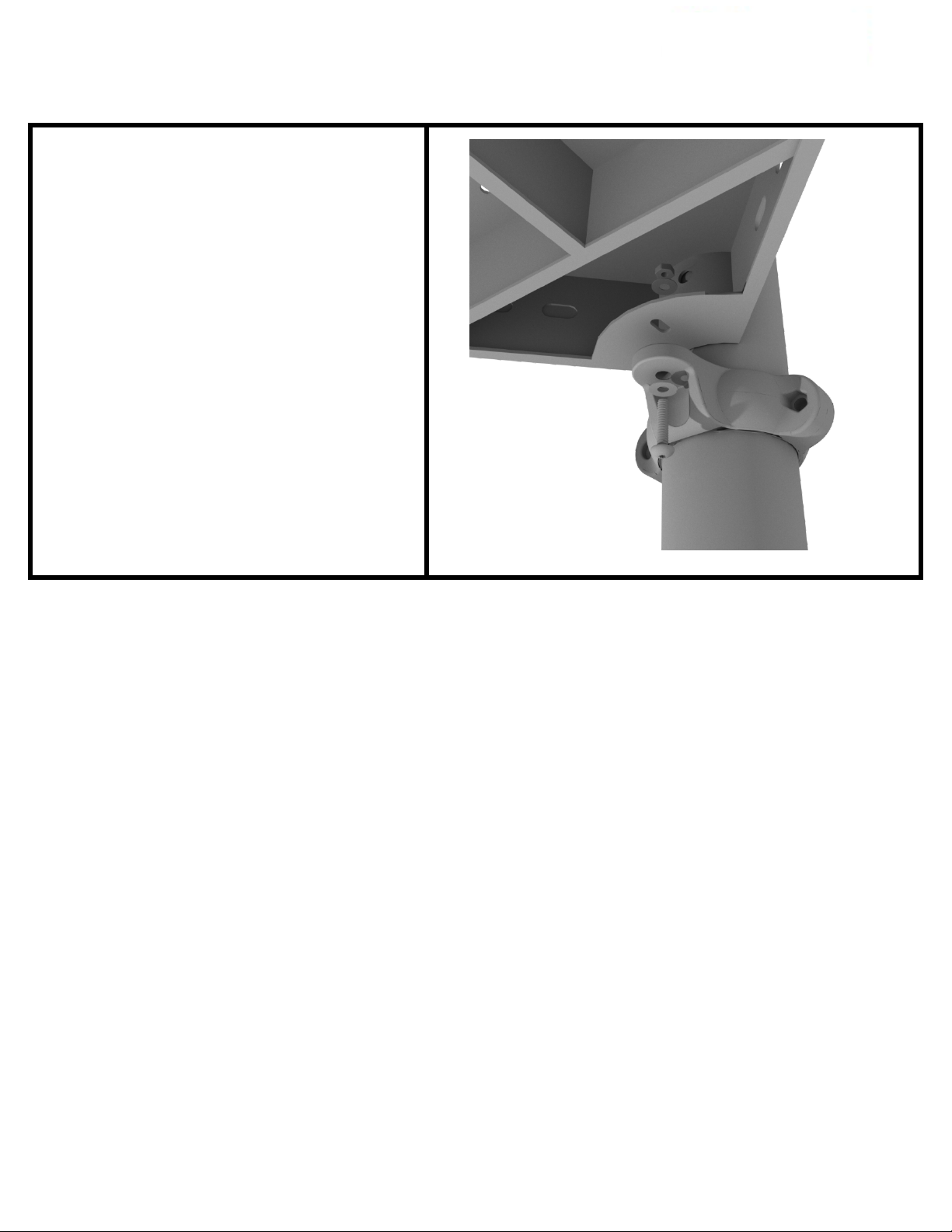

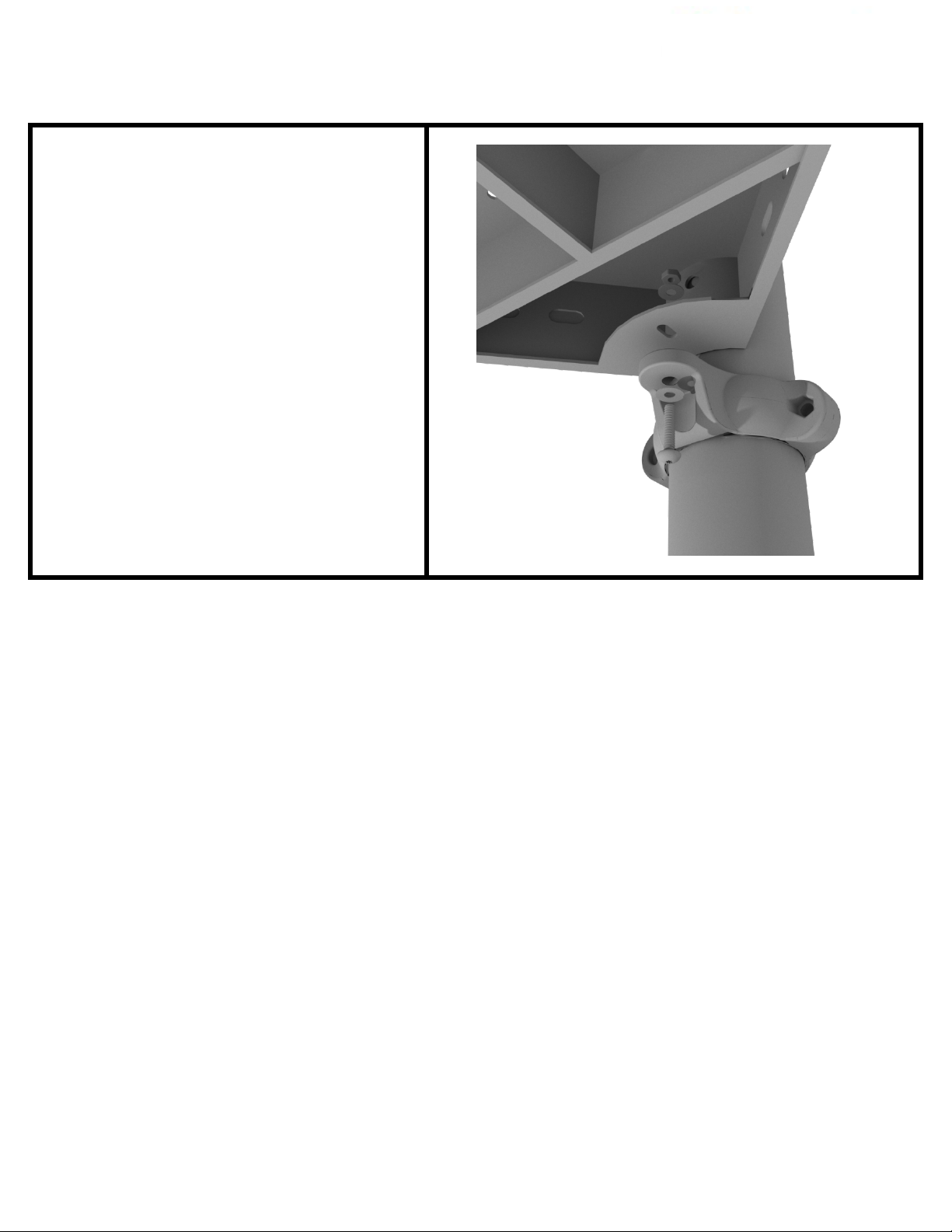

After the posts are in place, using
four (4) M10*35 bolts, eight (8) M10
washers, and four (4) M10 lock nuts,
attach each square deck to each preattached deck clamp as shown in the
image.
D
eck clamps are pre-attached to the
posts and should not be altered in
any way.
10859 E Washington Street, Ste. 200
Indianapolis, IN 46229
1-800-667-0097
Page 1 of 1 (Square Deck Installation)
Created By: Aaron Price
Date: 3/19/2018
Page 3

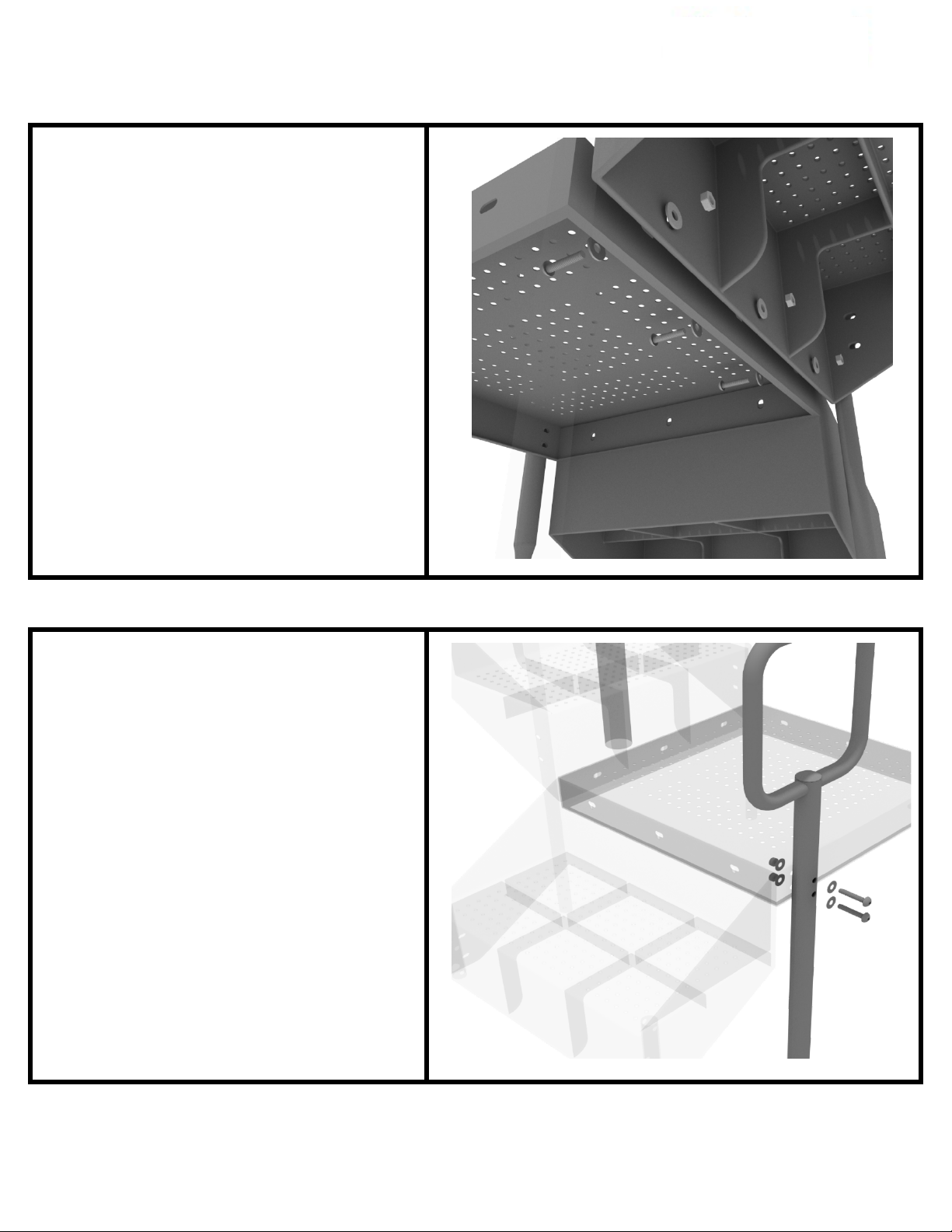

Rectangle Deck Installation
STEP: 1
After the posts are in place, using
four (4) M10*35 bolts, eight (8) M10
washers, and four (4) M10 lock nuts,
attach the rectangle deck to each
pre-attached deck clamp as shown in
the image.
D
eck clamps are pre-attached to the
posts and should not be altered in
any way.
10859 E Washington Street, Ste. 200
Indianapolis, IN 46229
1-800-667-0097
Page 1 of 1 (Rectangle Deck Installation)
Created By: Aaron Price
Date: 03/19/2018
Page 4

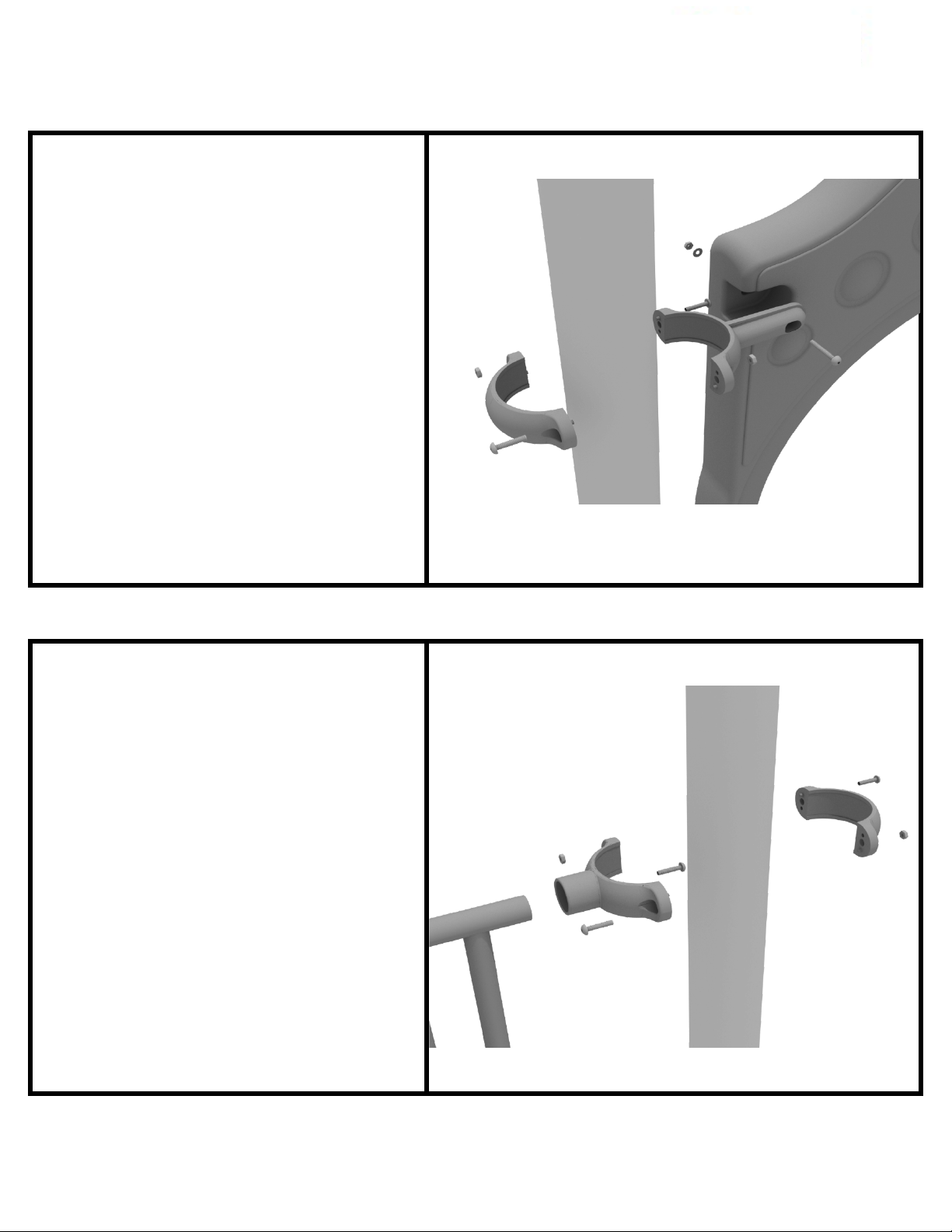

3.5-inch Clamp Installation Guide
3.5-inch Flat Clamp

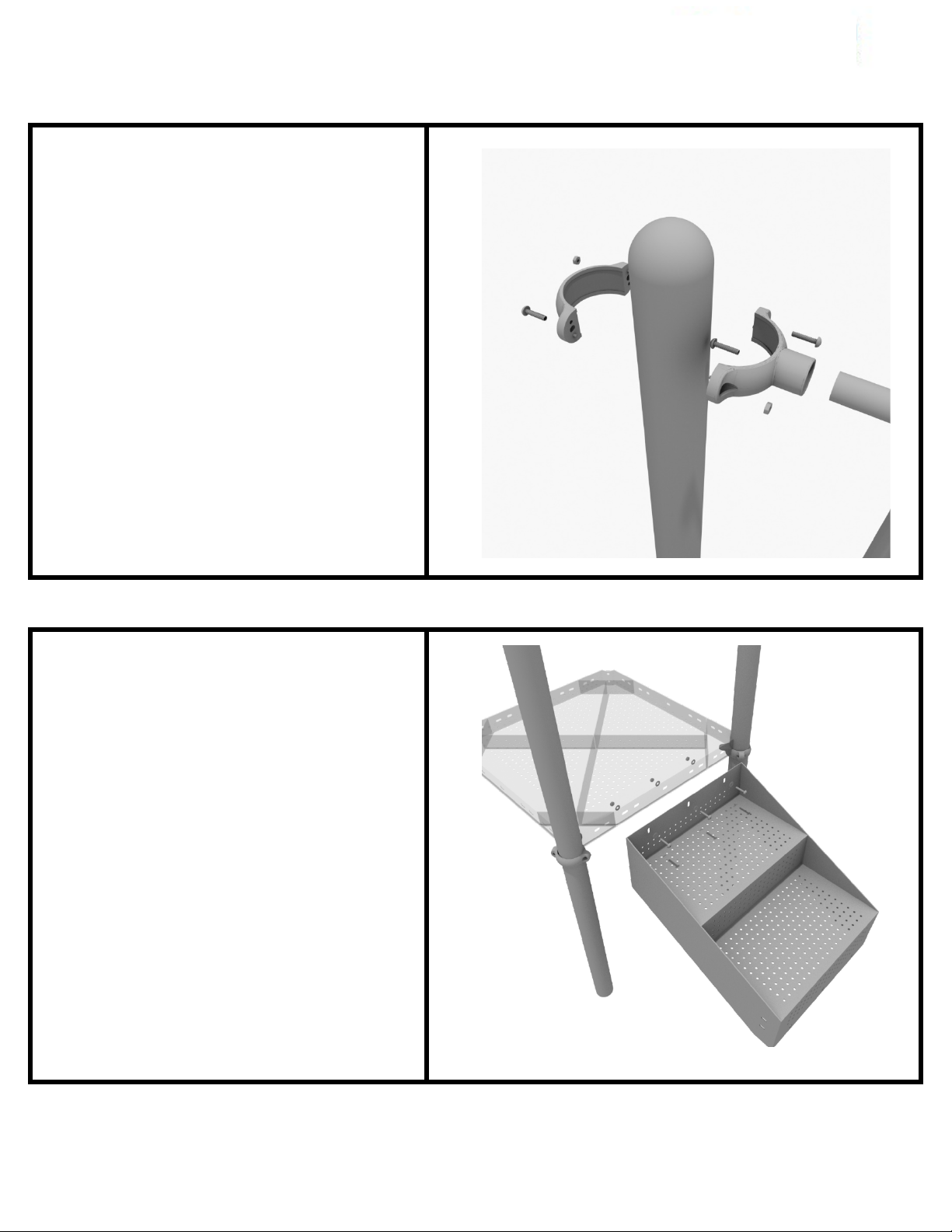

Connect half of the flat clamp to the
component using one (1) M8*40
bolt. Then, using the other half of the
flat clamp and the hardware
provided in the clamp hardware bag,
attach the other half of the tube
clamp around the post.
3.5-inch Tube Clamp
Connect half of the clamp to the
component using one (1) M8*30
bolt. Then, using the other half of the
tube clamp and the hardware
provided in the clamp hardware bag,
attach the other half of the tube
clamp around the post.
10859 E Washington Street, Ste. 200
Indianapolis, IN 46229
1-800-667-0097
Page 1 of 2 (3.5-inch Clamp Installation Guide)
Created By: Aaron Price
Date: 03/28/2018
Page 5
3.5-inch Clamp Installation Guide
3.5-inch 90-Degree Flat Clamp
Connect half of the flat clamp to one
panel using one (1) M8*40 bolt.
Then, using the other half of the flat
clamp and the hardware provided in
the clamp hardware bag, attach the
other half of the tube clamp around
the post. Then, attach the next panel
to the other side of the clamp using
the same process.
3.5-inch Double Slide Clamp
Connect half of the double slide
clamp to the double slide hood using
one (1) M8*30 bolt. Then, using the
other half of the clamp and the
hardware provided in the clamp
hardware bag, attach the other half
of the tube clamp around the post.
10859 E Washington Street, Ste. 200
Indianapolis, IN 46229
1-800-667-0097
Page 2 of 2 (3.5-inch Clamp Installation Guide)
Created By: Aaron Price
Date: 03/28/2018
Page 6

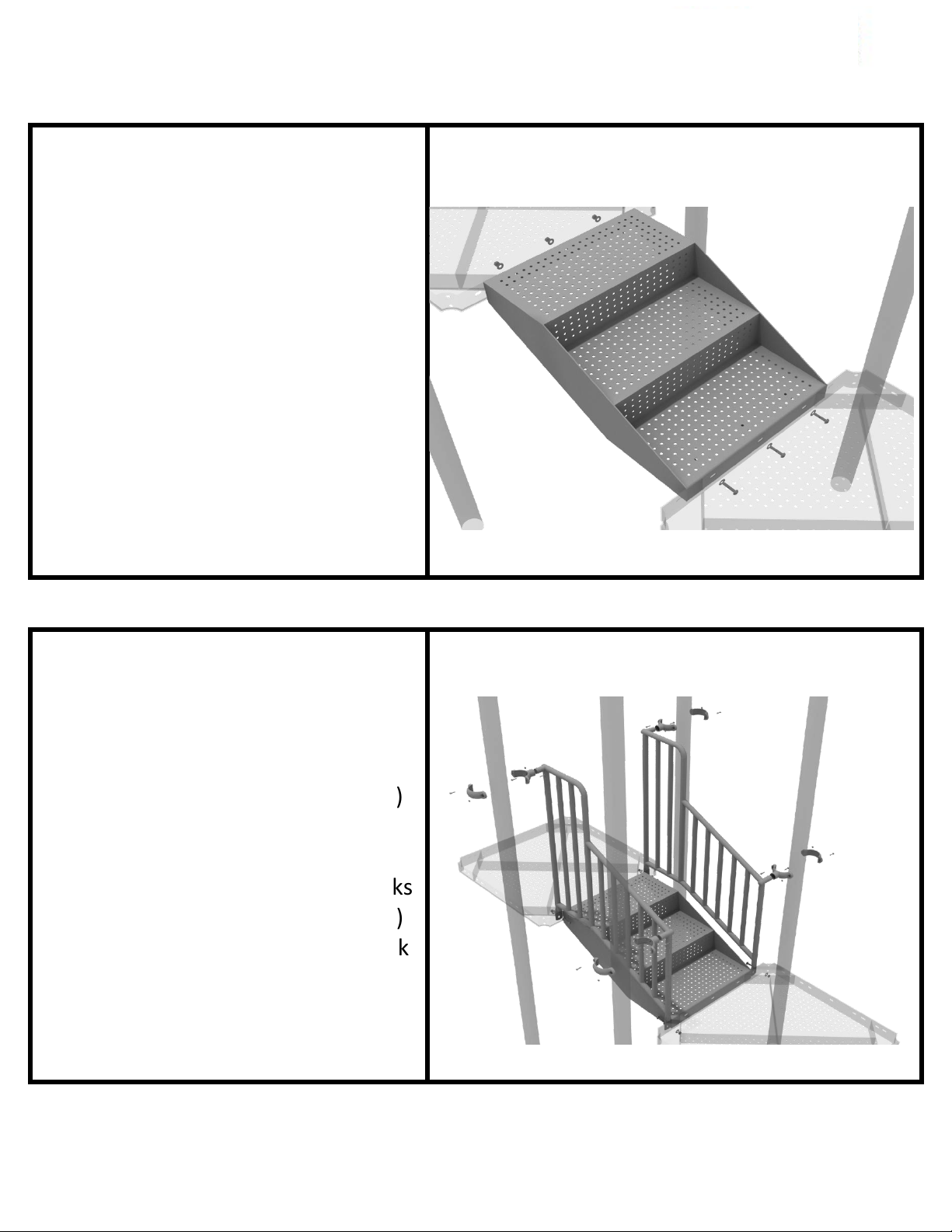

36” Transfer Station (for 3.5” post) Install
STEP: 1
Connect half of the 3.5-inch tube
clamp to the handrail using one (1)
M8*30 bolt. Set the handrail into
place, then attach the second half of
the clamp using the hardware
provided in the clamp bag. Repeat
this process for the other handrail.
STEP: 2
Using three (3) M10*25 bolts, six (6)
M10 washers, and three (3) M10 lock
nuts, attach the top of the stairs to
the square deck.
10859 E Washington Street, Ste. 200
Indianapolis, IN 46229
1-800-667-0097
Page 1 of 5 (36” Transfer Station (for 3.5” post) Install)
Created By: Aaron Price
Date Modified: 3/13/18
Page 7
36” Transfer Station (for 3.5” post) Install

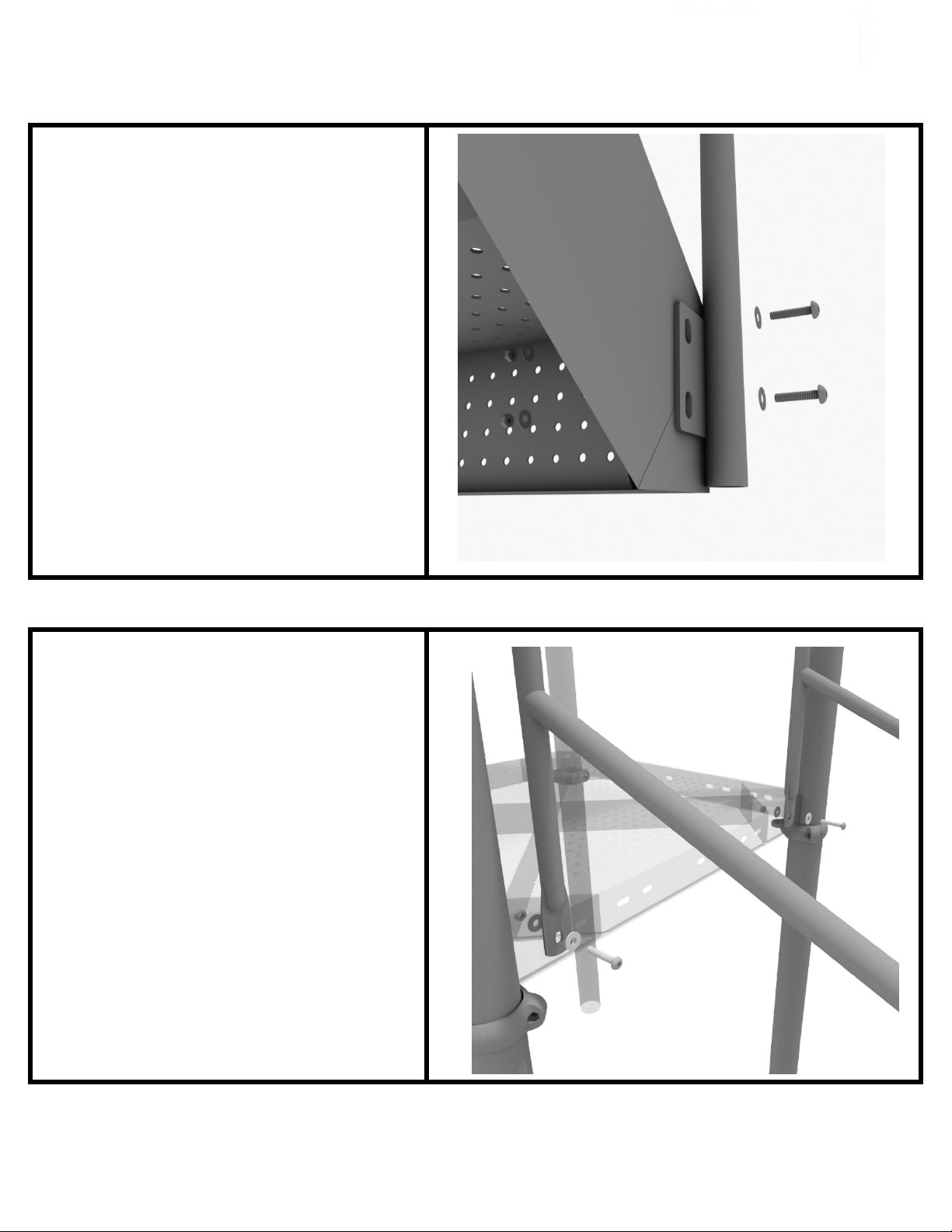

STEP: 3
Using four (4) M10*25 bolts, eight (8)
M10 washers, and four (4) M10 lock
nuts, connect the bottom of the
handrails to the bottom of the 3-foot
transfer stair.
STEP: 4
Using two (2) M10*25 bolts, four (4)
M10 washers, two (2) lock nuts,
attach the handrail to the square
deck.
10859 E Washington Street, Ste. 200
Indianapolis, IN 46229
1-800-667-0097
Page 2 of 5 (36” Transfer Station (for 3.5” post) Install)
Created By: Aaron Price
Date Modified: 3/13/18
Page 8
36” Transfer Station (for 3.5” post) Install
STEP: 5
Using three (3) M10*25 bolts, six (6)
M10 washers, and three (3) M10 lock
nuts, attach the ADA transfer deck to
the base of the 3-foot ADA transfer
stair.
STEP: 6
See general installation guide
regarding footing information for the
transfer deck handrail & mount.
Using two (2) M10*65 bolts, four (4)
10 washers, and two (2) M10 lock
M
nuts, attach the transfer handrail to
the ADA transfer deck.
10859 E Washington Street, Ste. 200
Indianapolis, IN 46229
1-800-667-0097
Page 3 of 5 (36” Transfer Station (for 3.5” post) Install)
Created By: Aaron Price
Date Modified: 3/13/18
Page 9
36” Transfer Station (for 3.5” post) Install

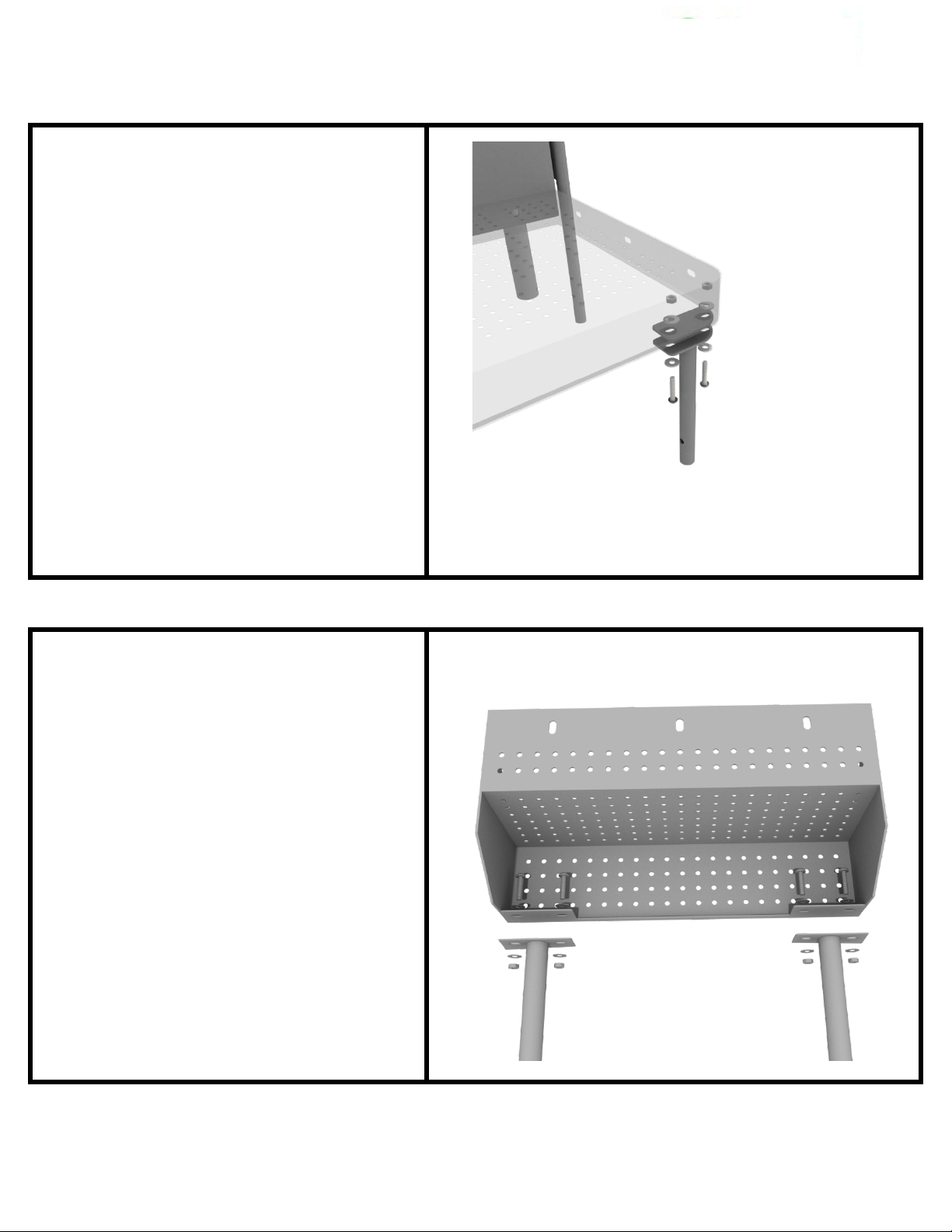

STEP: 7
Using two (2) M10*25 bolts, four (4)
M10 washers, and two (2) lock nuts,
attach the transfer deck mount to
the ADA transfer deck.
STEP: 8
See general installation guide
regarding footing information for the
ADA transfer step mount. Using two
(2) M10 bolts, four (4) M10 washers,
and two (2) M10 lock nuts, attach the
transfer step to each ADA transfer
step mount.
10859 E Washington Street, Ste. 200
Indianapolis, IN 46229
1-800-667-0097
Page 4 of 5 (36” Transfer Station (for 3.5” post) Install)
Created By: Aaron Price
Date Modified: 3/13/18
Page 10
36” Transfer Station (for 3.5” post) Install
STEP: 9
Using three (3) M10*25 bolts, six (6)
M10 washers, and three (3) M10
washers, attach the top of the ADA
transfer step to the ADA transfer
deck.
10859 E Washington Street, Ste. 200
Indianapolis, IN 46229
1-800-667-0097
Page 5 of 5 (36” Transfer Station (for 3.5” post) Install)
Created By: Aaron Price
Date Modified: 3/13/18
Page 11
D-Rail Installation
Take two (2) 3.5-inch tube clamps
and connect half of the clamps both
ends of the D-Rail using one (1)
M8*30 bolt. Then, using the other
half of the tube clamp and the
hardware provided in the clamp
hardware bag, attach the other half
of the tube clamp around the post to
the D-Rail. Repeat this process for
the other D-Rail.
STEP: 1
10859 E Washington Street, Ste. 200
Indianapolis, IN 46229
1-800-667-0097
Page 1 of 1 (D-Rail Installation)
Created By: Aaron Price
Date: 03/21/2018
Page 12
Pebble Climber Installation
See general installation guide
regarding footing information.
Pebble climber requires a 12” x 18”
footing.
STEP: 1
10859 E Washington Street, Ste. 200
Indianapolis, IN 46229
1-800-667-0097
Page 1 of 1 (Pebble Climber Installation)
Created By: Aaron Price
Date: 04/19/2018
Page 13

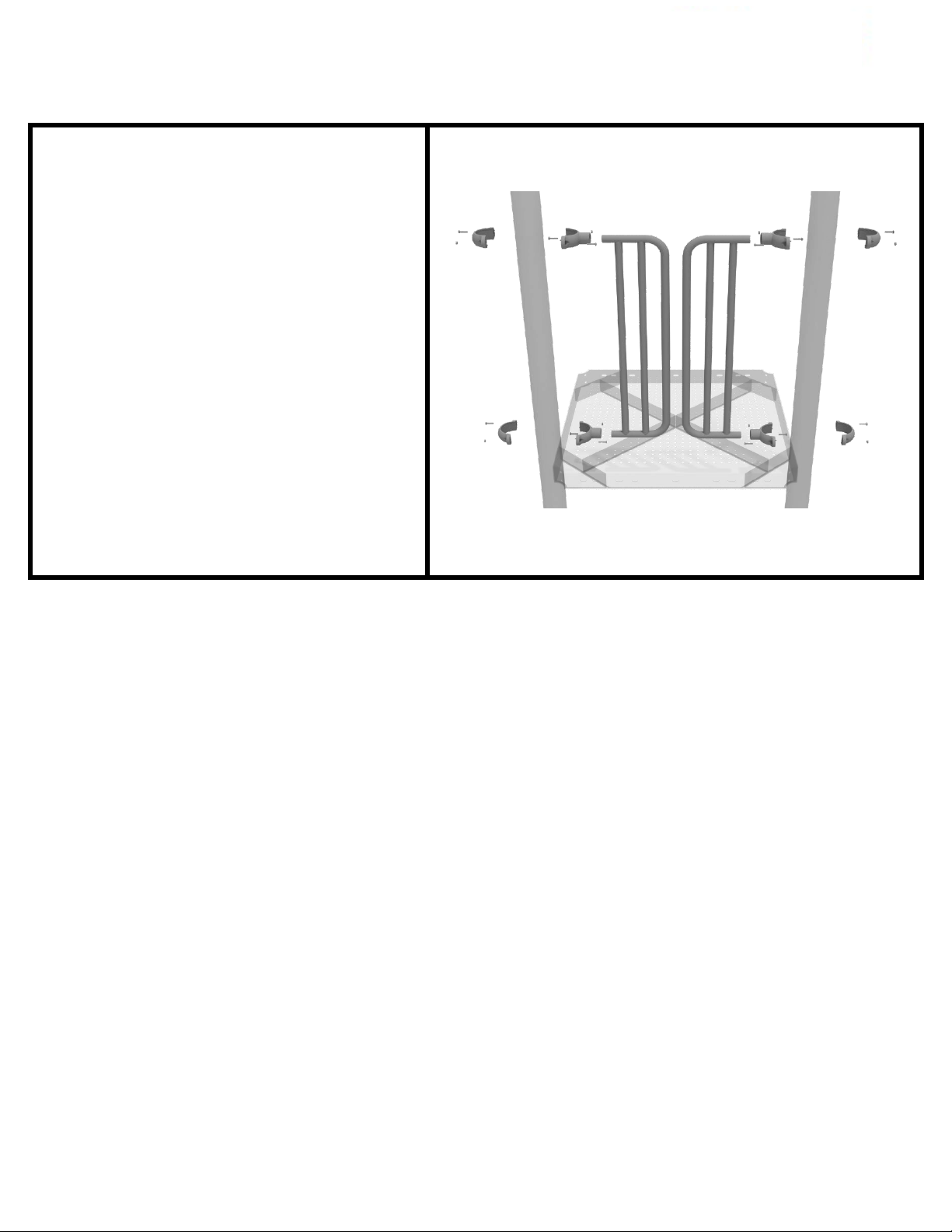

12-inch Middle Stair Installation
Using eight (6) M10*25 bolts, twelve
(12) M10 washers, and six (6) M10
lock nuts, attach the 12-inch middle
stair to the assigned decks.
Then, once the stair is in place,
attach the 12-inch connection
handrail to the posts using four (4)
3.5-inch tube clamps, and four (4)
M8*30 bolts. Then, attach the
bottom of the handrails to the decks
using one (1) M10*25 bolt, two (2)
M10 washers, and one (1) M10 lock
nut for each attachment point.
STEP: 1
STEP: 2
10859 E Washington Street, Ste. 200
Indianapolis, IN 46229
1-800-667-0097
Page 1 of 1 (12-inch Middle Stair Installation)
Created By: Aaron Price
Date: 03/29/2018
Page 14

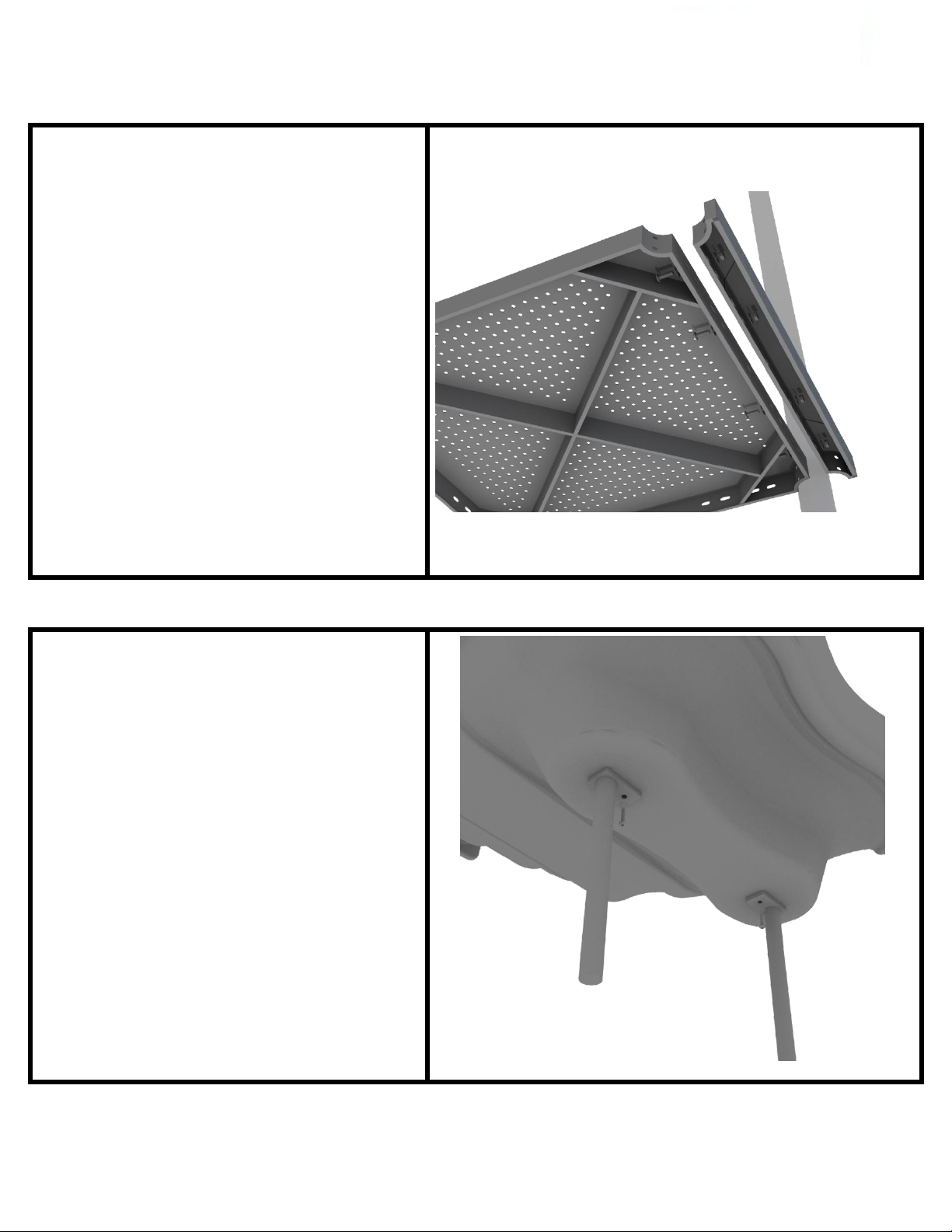

4-foot Double Wave Slide Installation
Attach the deck climber extension to
the proper deck using four (4)
M10*25 bolts, eight (8) M10
washers, and four (4) M10 lock nuts.
Then, See general installation guide
regarding footing information for the
double slide end mounts. Using two
(2) M8*20 bolts, two (2) M8 spring
gaskets, and two (2) M8 washers,
attach the slide end mounts to the
double slide.
STEP: 1
STEP: 2
10859 E Washington Street, Ste. 200
Indianapolis, IN 46229
1-800-667-0097
Page 1 of 2 (4-foot Double Wave Slide Installation)
Created By: Aaron Price
Date: 04/10/2018
Page 15
4-foot Double Wave Slide Installation
Then, attach the slide to the deck
extension using four (4) M10*45
bolts, eight (8) M10 washers, and
four (4) M10 lock nuts.
Once the slide is attached, take the
double slide hood and insert hood
into the top of the slide, and then
attach the top using two (2) double
slide clamps, and two (2) M8*30
bolts.
STEP: 3
STEP: 4
10859 E Washington Street, Ste. 200
Indianapolis, IN 46229
1-800-667-0097
Page 2 of 2 (4-foot Double Wave Slide Installation)
Created By: Aaron Price
Date: 04/10/2018
Page 16

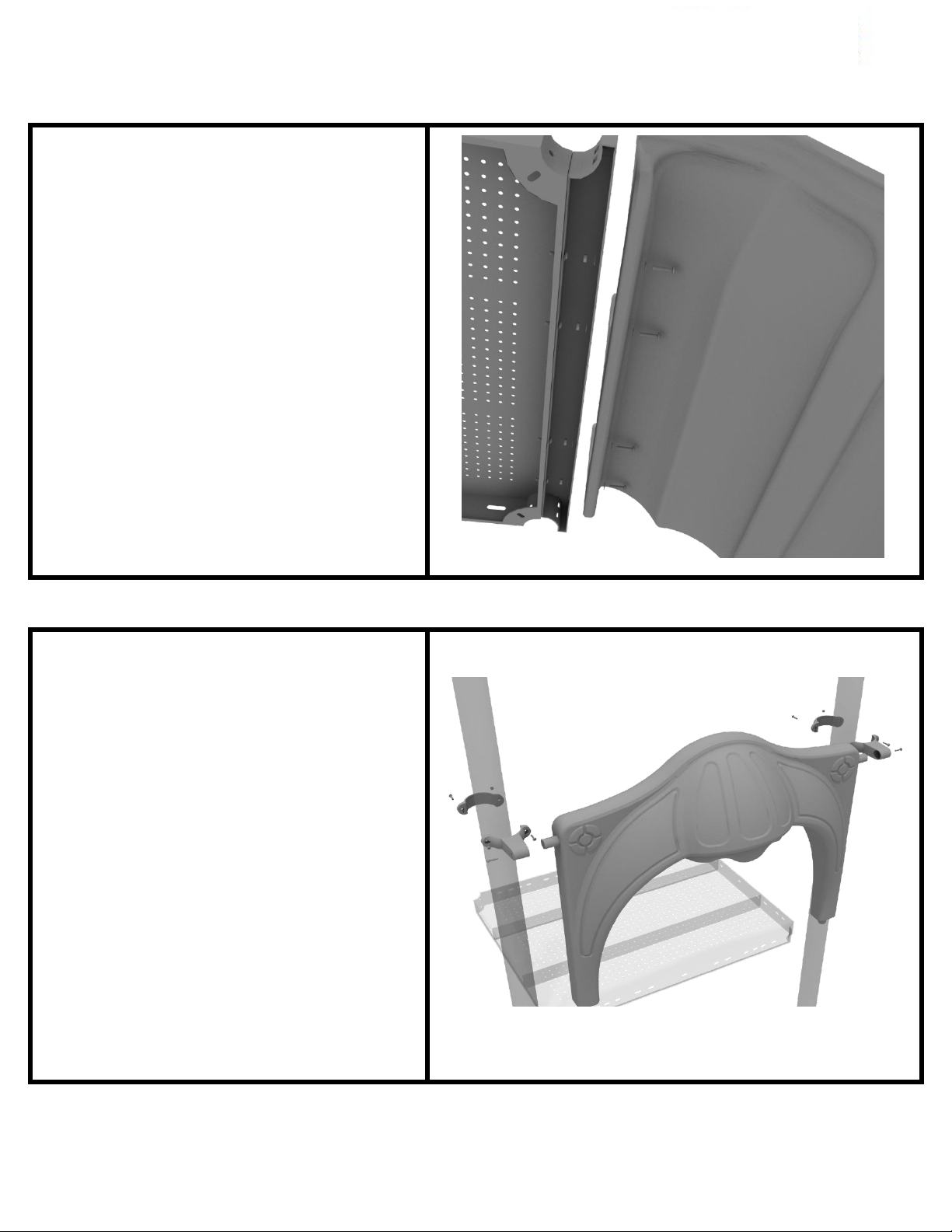

3.5-inch Maze Panel Installation
Connect the bottom of the panel to
the deck using two (2) M10*50 bolts,
four (4) M10 washers, and two (2)
M10 lock nuts. Then attach the top
of the panel to the posts using two
(2) flat clamps.
STEP: 1
10859 E Washington Street, Ste. 200
Indianapolis, IN 46229
1-800-667-0097
Page 1 of 1 (3.5-inch Maze Panel Installation)
Created By: Aaron Price
Date: 03/23/2018
Page 17

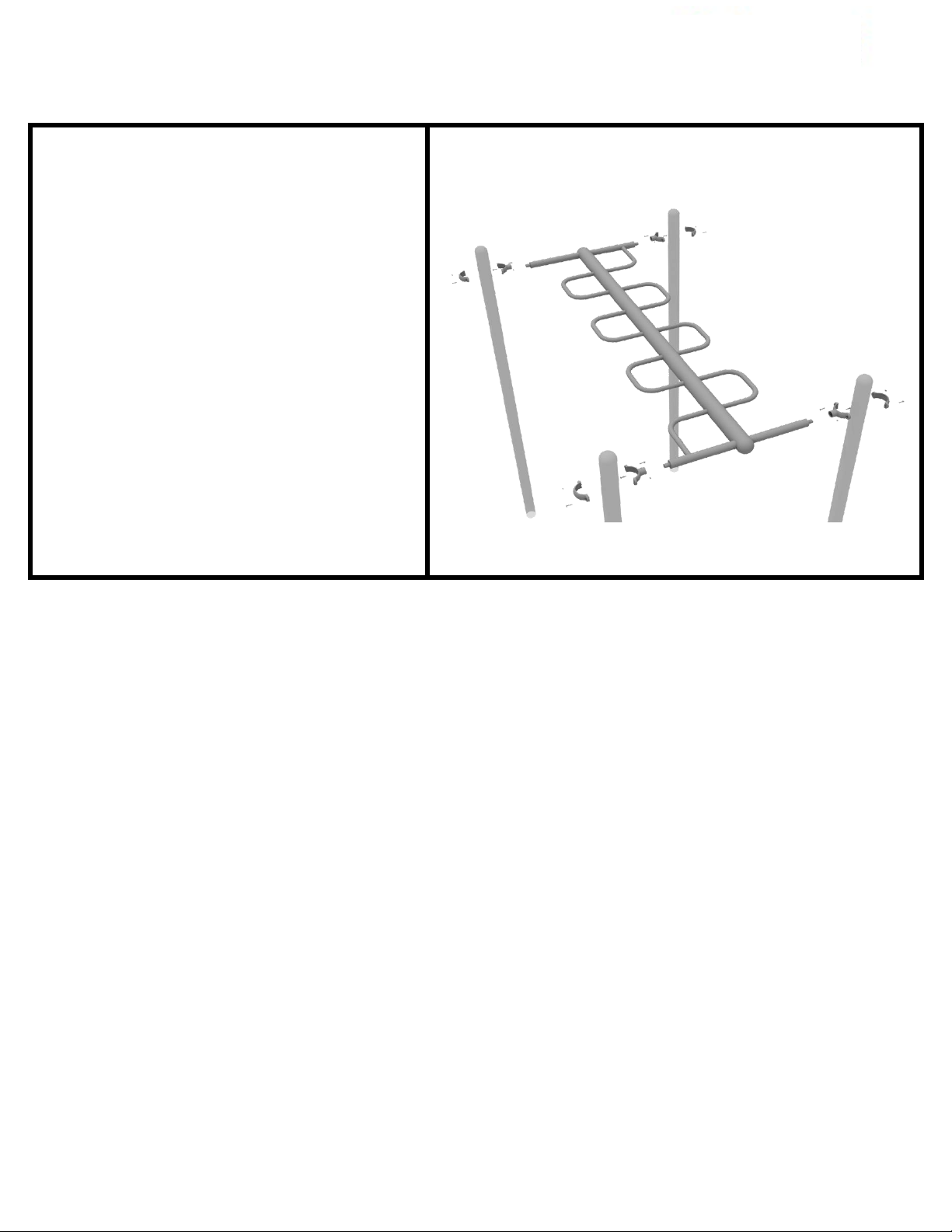

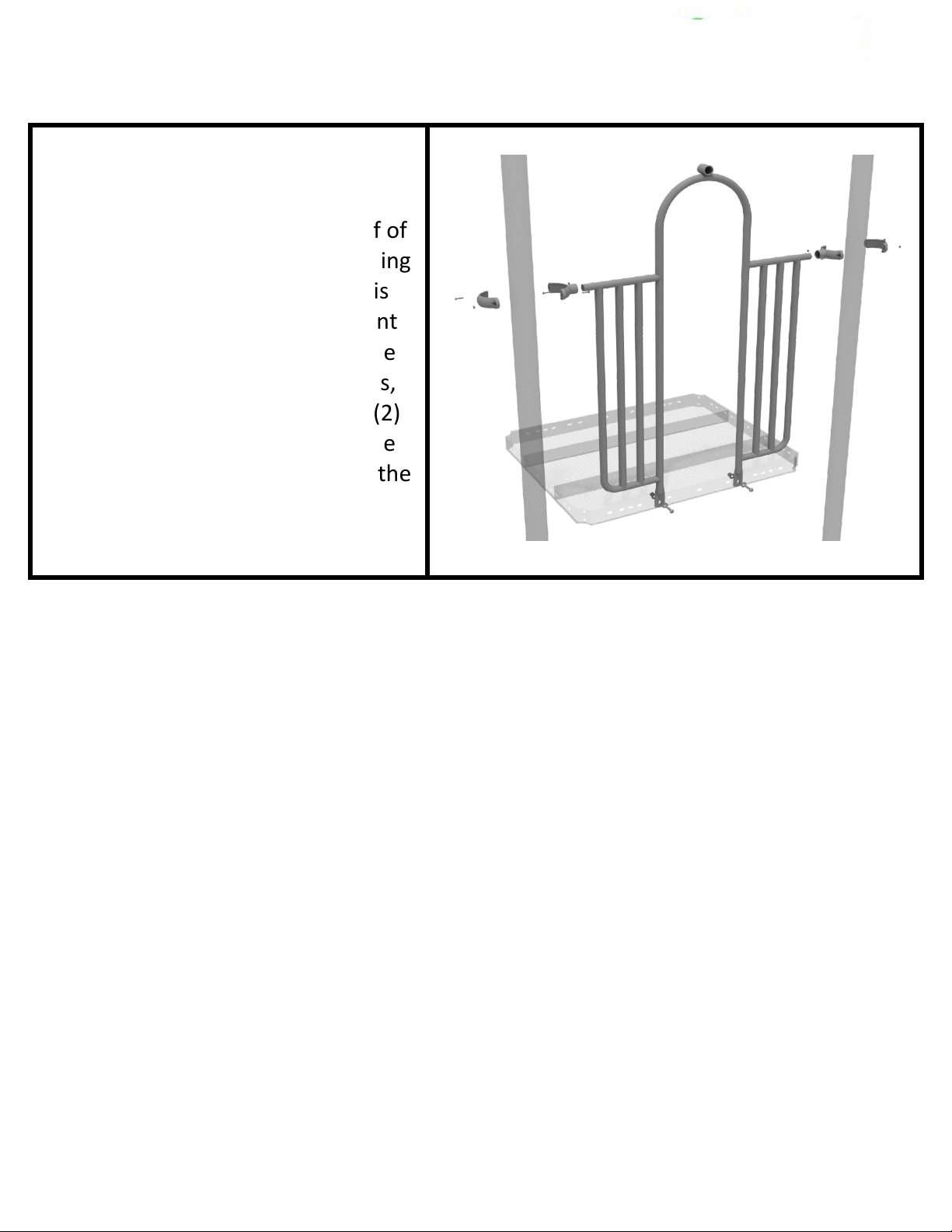

4.5-inch 2-Clamp Arch Rail Installation
Attach the Arch Rail to the
designated posts by connect half of
the tube clamp to the arch rail using
one (1) M8*30 bolt. Repeat this
process for each post attachment
point. Then, attach the rail to the
deck using two (2) M10*25 bolts,
four (4) M10 washers, and two (2)
M10 lock nuts. Finally, attach the
second half of the clamp around the
post.
STEP: 1
10859 E Washington Street, Ste. 200
Indianapolis, IN 46229
1-800-667-0097
Page 1 of 1 (4.5-inch 2-Clamp Arch Rail Installation)
Created By: Aaron Price
Date: 03/21/2018
Page 18

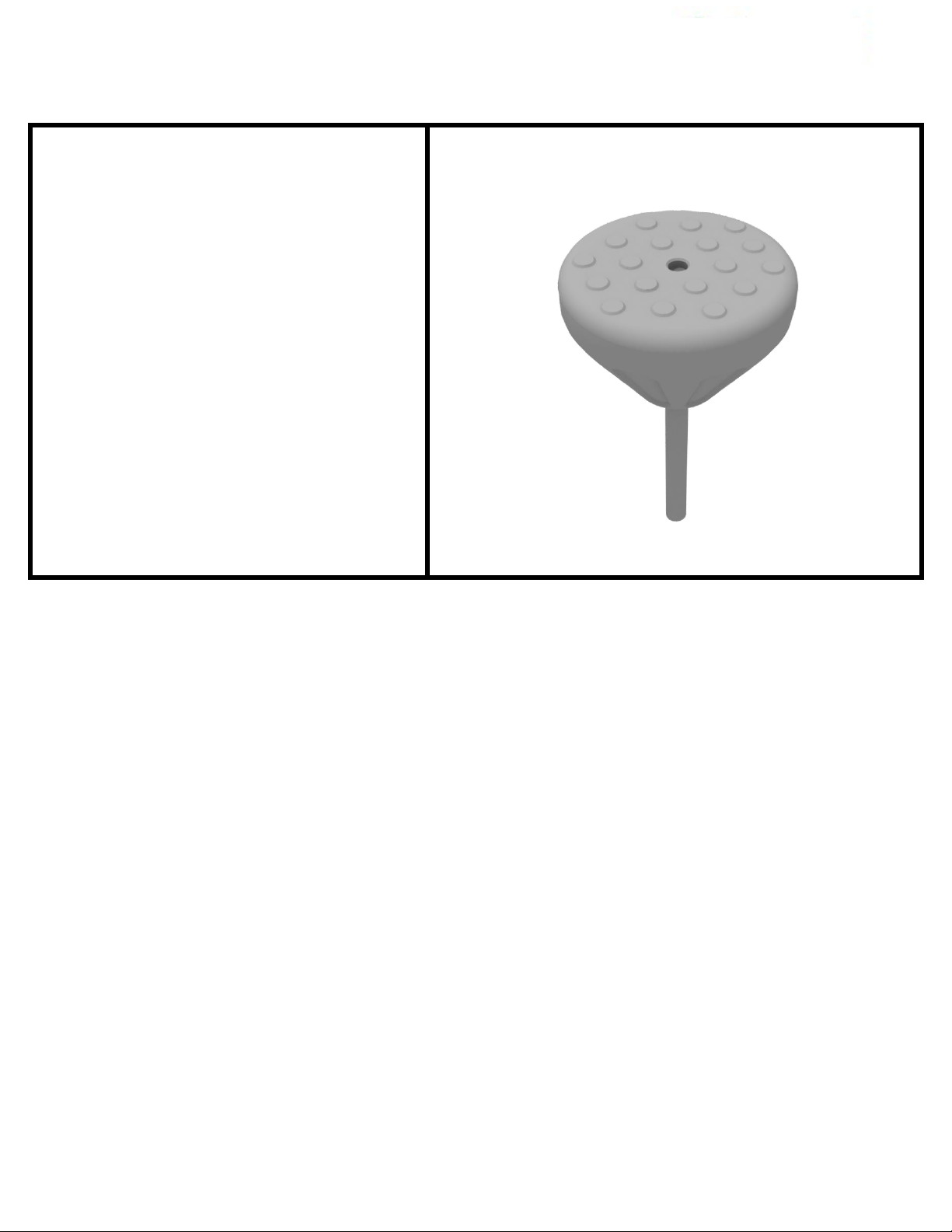

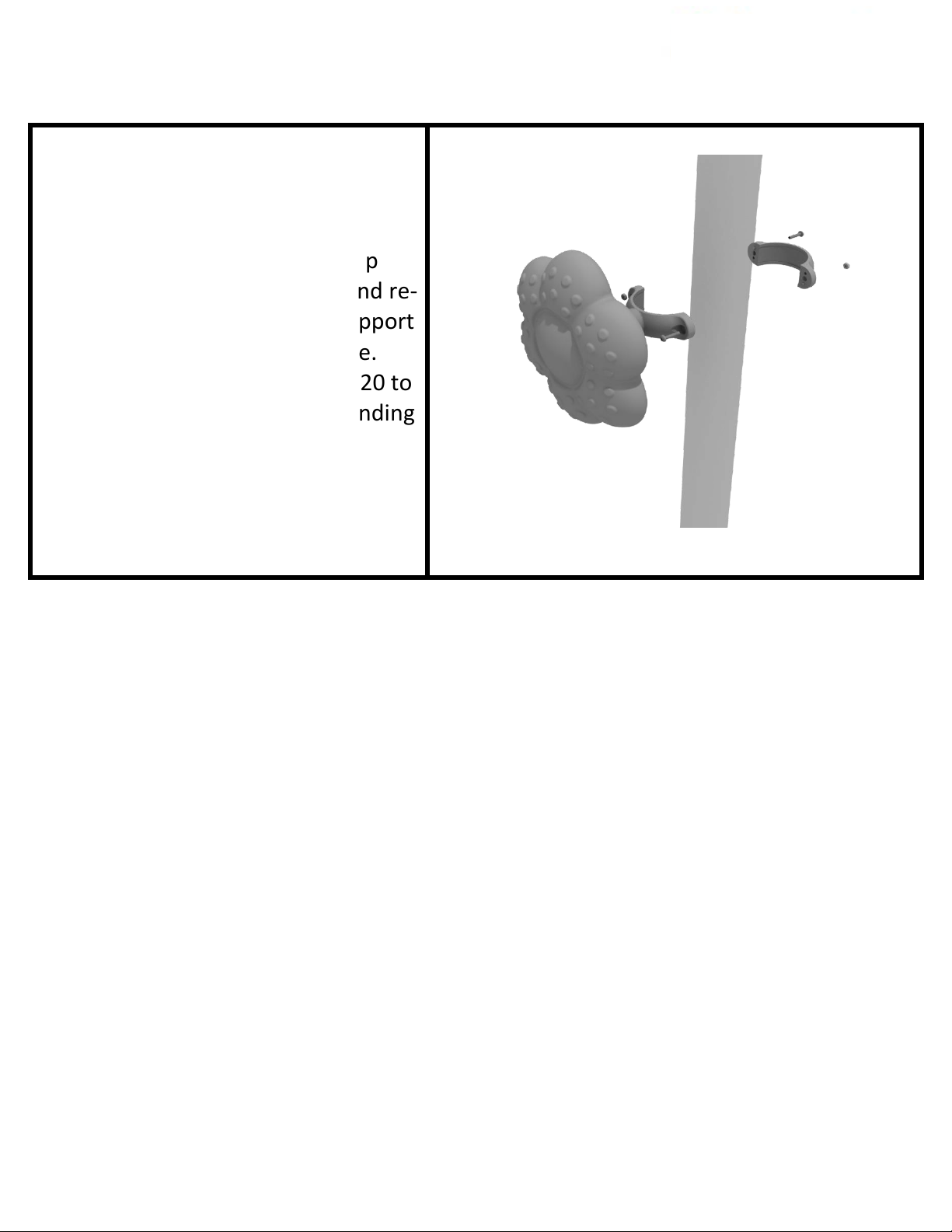

Pod Climber Installation
See general installation guide
regarding footing information for the
pod climber. Attach the circle end
mount to the bottom of the climber
using the pre-attached hardware.
Each attachment uses three (3)
M10*20 bolts, three (3) M10 spring
gaskets, and one (3) M10 large
gaskets.
Attach the top of the climber to the
designated arch rail top bracket using
one (1) M10*20 bolt, one (1) M10
spring washer, and one (1) M10
washer.
STEP: 1
STEP: 2
10859 E Washington Street, Ste. 200
Indianapolis, IN 46229
1-800-667-0097
Page 1 of 1 (Pod Climber Installation)
Created By: Aaron Price
Date: 03/21/2018
Page 19
Overhead Snake Loop Ladder Installation
Attach the Overhead Snake Ladder to
the designated posts by connect half
of the tube clamp to the ladder using
one (1) M8*30 bolt. Repeat this
process for each attachment point.
Set the ladder into place, then attach
the second half of the clamp around
the post.
STEP: 1
10859 E Washington Street, Ste. 200
Indianapolis, IN 46229
1-800-667-0097
Page 1 of 1 (Overhead Snake Loop Ladder Installation)
Created By: Aaron Price
Date: 03/21/2018
Page 20

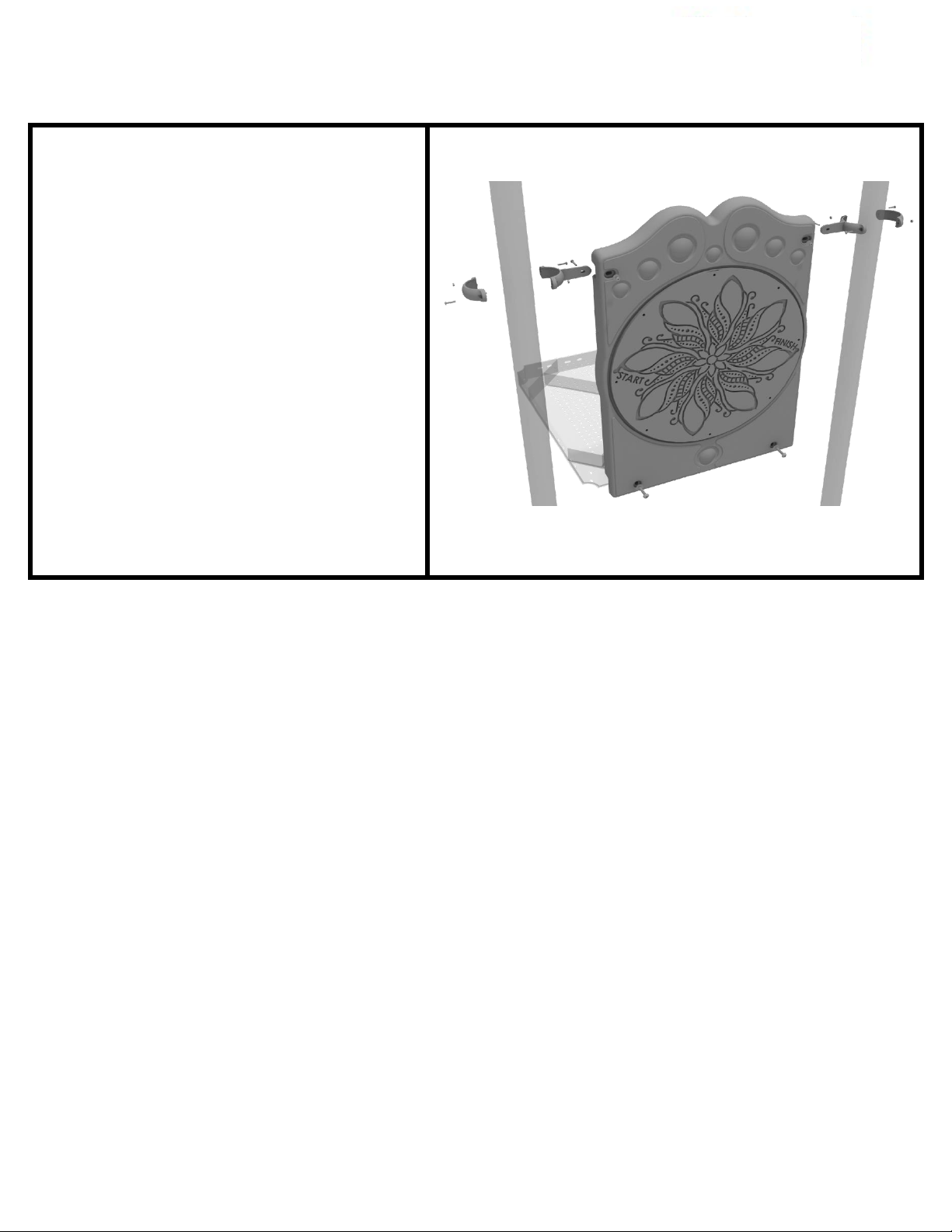

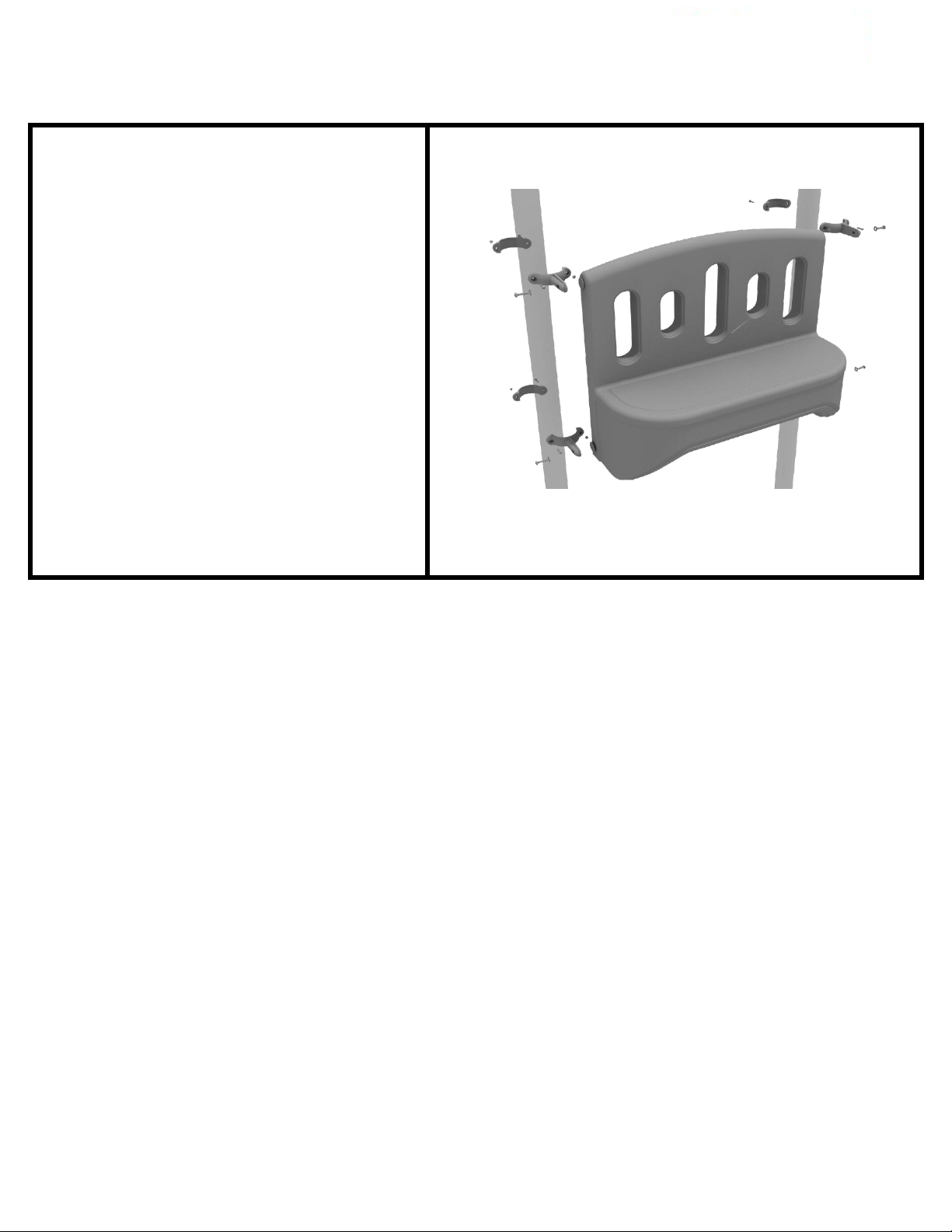

3.5inch Bench Panel Installation
Attach the Bench Panel to the
designated posts using four (4) 3.5-
inch flat clamps, and four (4) M8*25
bolts.
STEP: 1
10859 E Washington Street, Ste. 200
Indianapolis, IN 46229
1-800-667-0097
Page 1 of 1 (3.5inch Bench Panel Installation)
Created By: Aaron Price
Date: 03/21/2018
Page 21
Rain Wheel Installation
Detach half of the tube clamp
connected to the Rain Wheel, and re-
attach the clamp around the support
post, as shown in the picture.
Recommended install height is 20 to
36 inches above surfacing depending
on age range.
STEP: 1
10859 E Washington Street, Ste. 200
Indianapolis, IN 46229
1-800-667-0097
Page 1 of 1 (Rain Wheel Installation)
Created By: Aaron Price
Date: 03/29/2018
Loading...
