Page 1

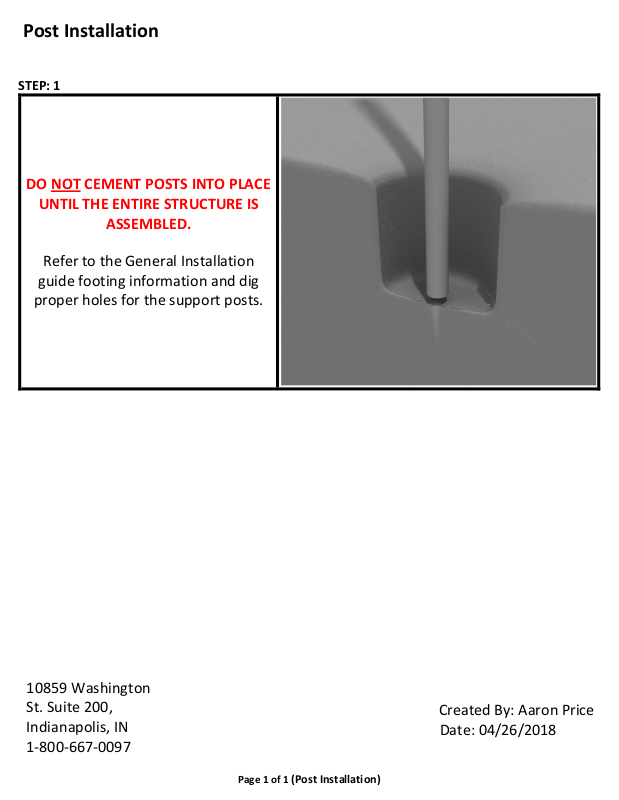

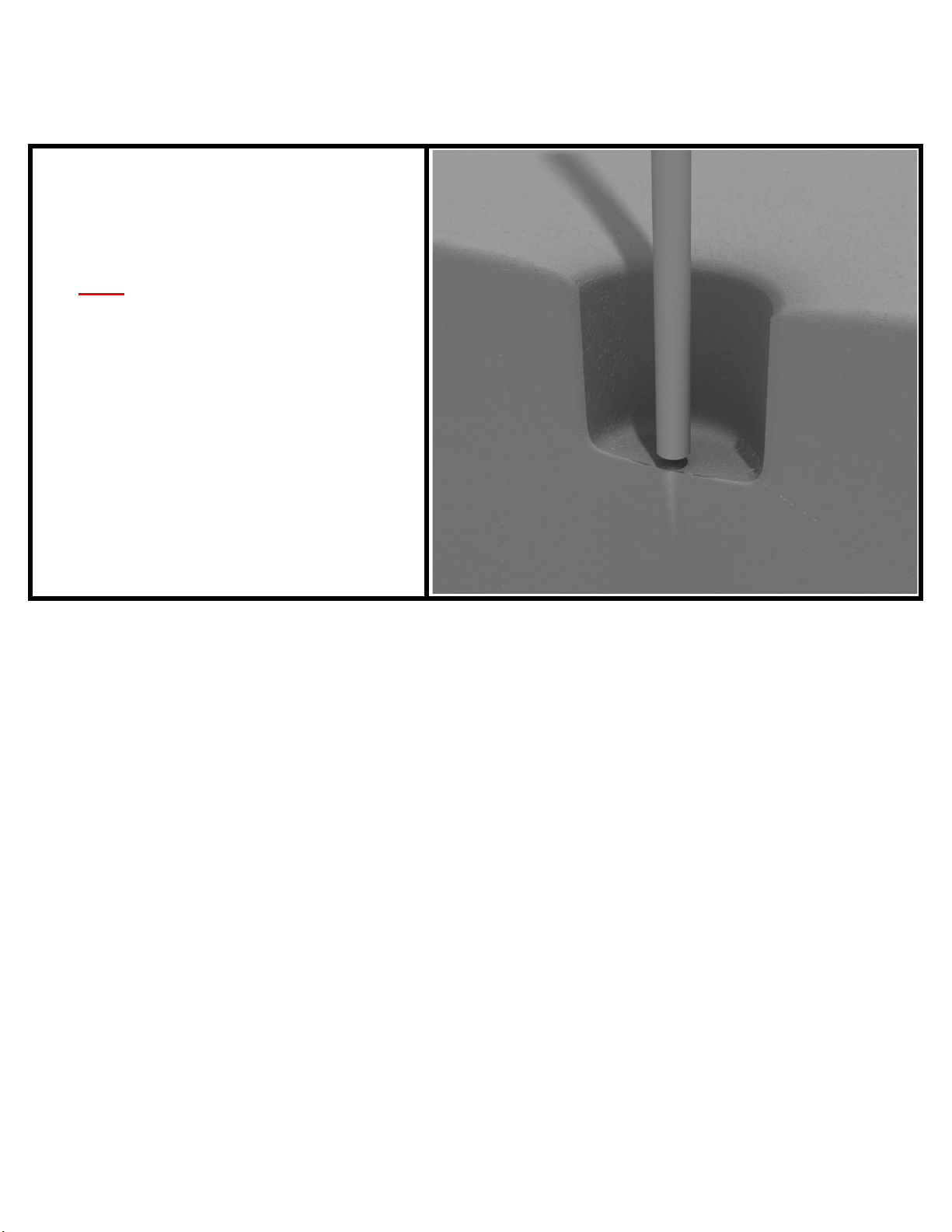

Post Installation
STEP: 1
DO NOT CEMENT POSTS INTO PLACE
UNTIL THE ENTIRE STRUCTURE IS
ASSEMBLED.
Refer to the General Installation
guide footing information and dig
proper holes for the support posts.
10859 Washington
St. Suite 200,
Indianapolis, IN
1-800-667-0097
Created By: Aaron Price
Date: 04/26/2018
Page 1 of 1 (Post Installation)
Page 2
3.5-inch Clamp Installation Examples
The following three pages will include examples of how to install some of the most
common types of Clamps that are present on our structures that use 3.5-inch outside
diameter posts. The structure that you are assembling might not require all the types of
clamps listed in these examples.
T
he Install Guides for specific components that come later in this document might
call for a specific type of clamp (a tube clamp for example), those sections will not include
detailed instructions for the clamps and should direct you back to this section for more
detailed information.

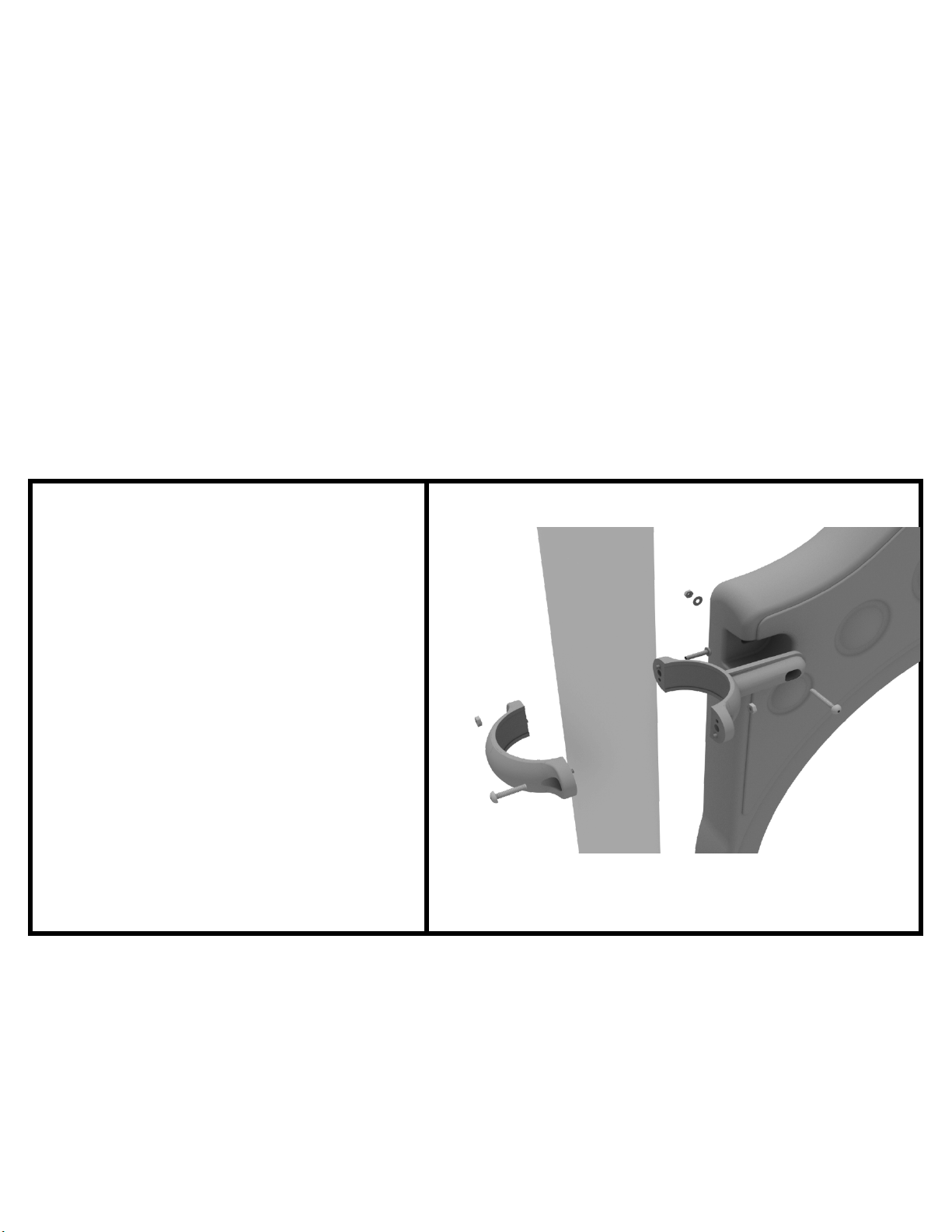

3.

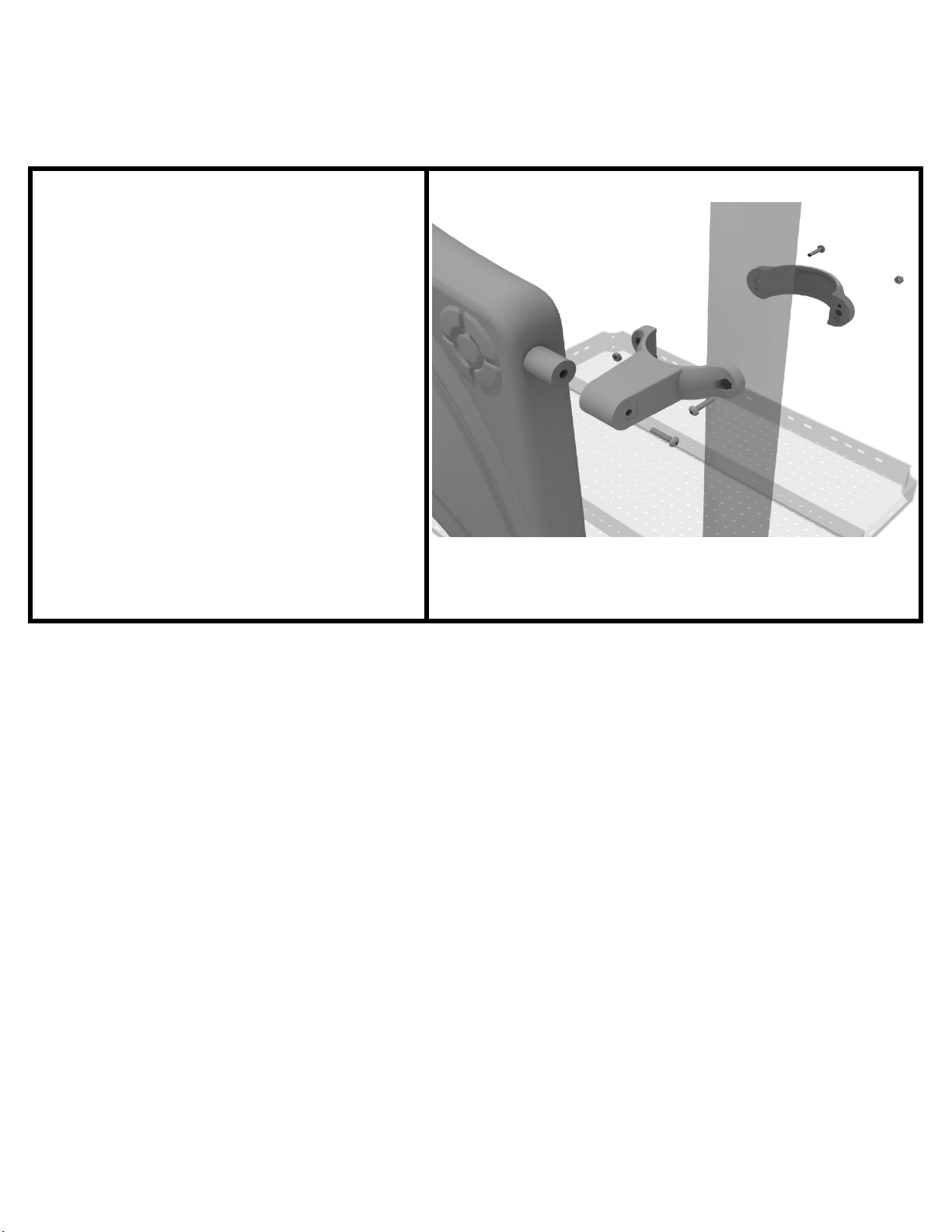

5-inch Flat Clamp Install Example
Connect half of the flat clamp to the
component using one (1) M8*40
bolt. Then, using the other half of the
flat clamp and the hardware
provided in the clamp hardware bag,
attach the backside of the flat clamp
around the post.
10859 Washington St. Suite
200, Indianapolis, IN
1-800-667-0097
Page 1 of 3 (3.5-inch Clamp Installation Examples)
Created By: Derick H
Date: 11/01/2018
Page 3
3.5-inch Clamp Installation Examples

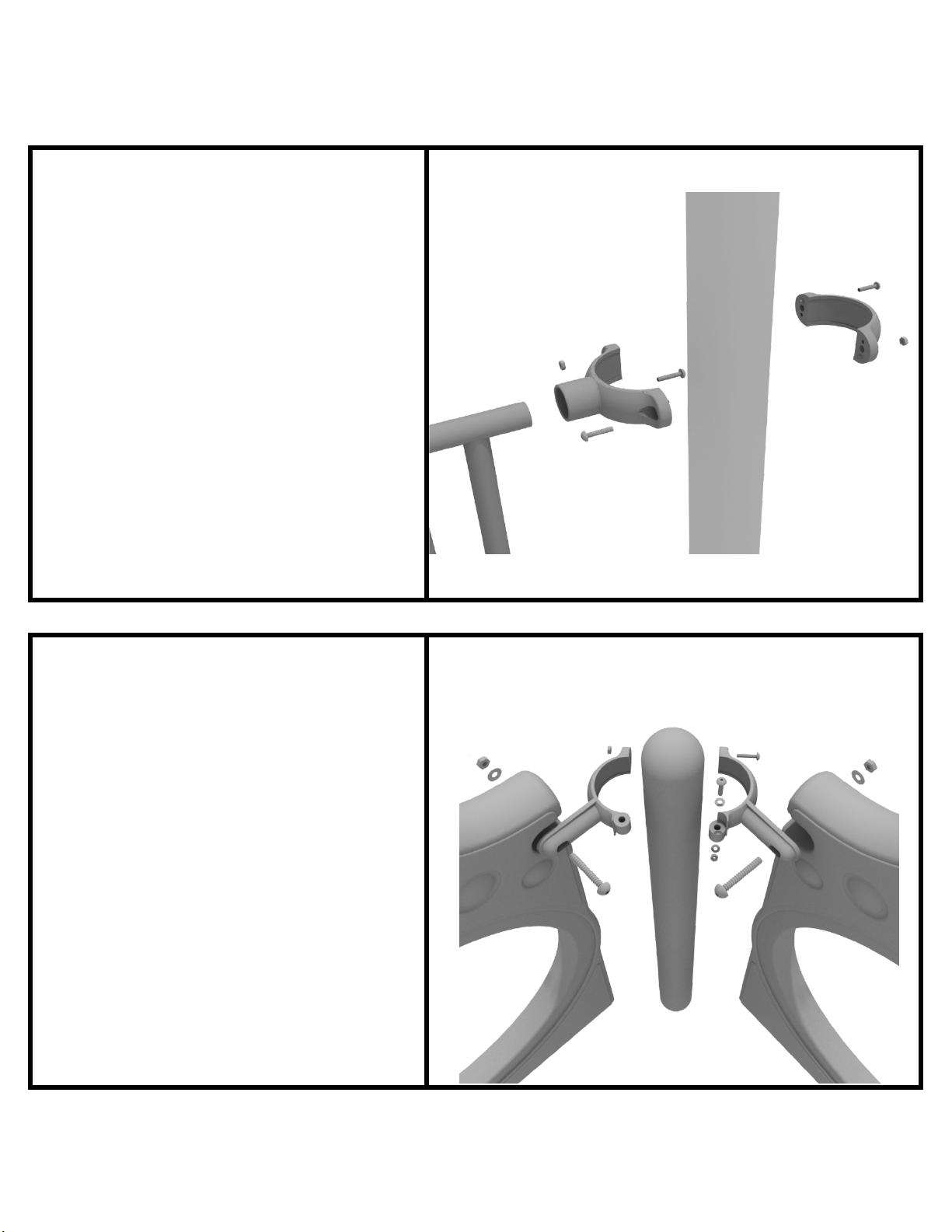

3.5-inch Tube Clamp Install Example
Connect half of the clamp to the
component using one (1) M8*30
bolt. Then, using the other half of the
tube clamp and the hardware
provided in the clamp hardware bag,
attach the backside of the tube
clamp around the post.
3.5-inch 90-Degree Flat Clamp Install Example
Connect half of the flat clamp to one
panel using one (1) M8*40 bolt.
Then, using the other half of the flat
clamp and the hardware provided in
the clamp hardware bag, attach the
other half of the tube clamp around
the post. Then, attach the next panel
to the other side of the clamp using
the same process.
10859 Washington St. Suite
200, Indianapolis, IN
1-800-667-0097
Page 2 of 3 (3.5-inch Clamp Installation Examples)
Created By: Derick H
Date: 11/01/2018
Page 4
3.5-inch Clamp Installation Examples

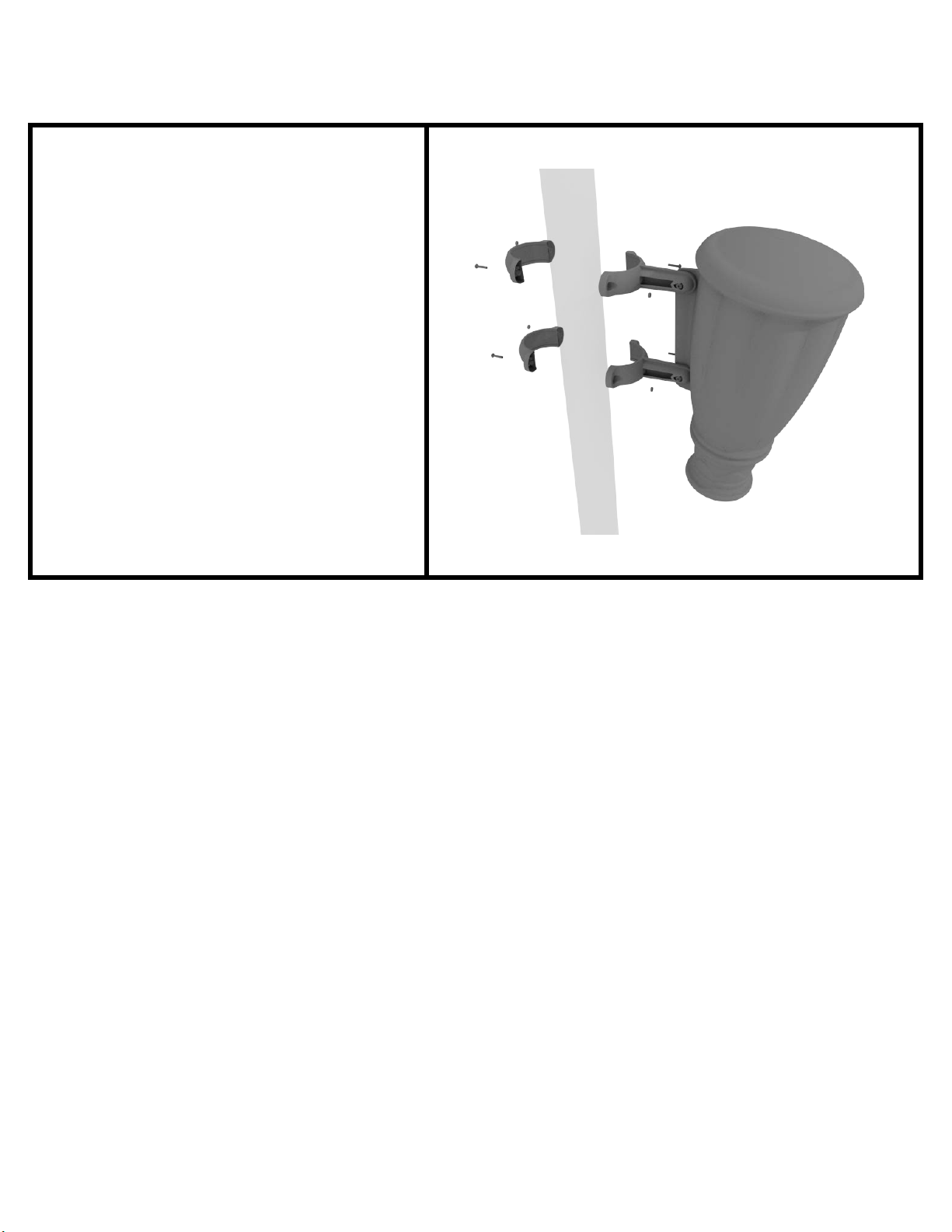

3.5-inch Double Slide Clamp Install Example
Connect half of the double slide
clamp to the double slide hood using
one (1) M8*30 bolt. Then, using the
other half of the clamp and the
hardware provided in the clamp
hardware bag, attach the backside of
the double slide clamp around the
post.
10859 Washington St. Suite
200, Indianapolis, IN
1-800-667-0097
Page 3 of 3 (3.5-inch Clamp Installation Examples)
Created By: Derick H
Date: 11/01/2018
Page 5
36” Transfer Station (for 3.5” post) Install

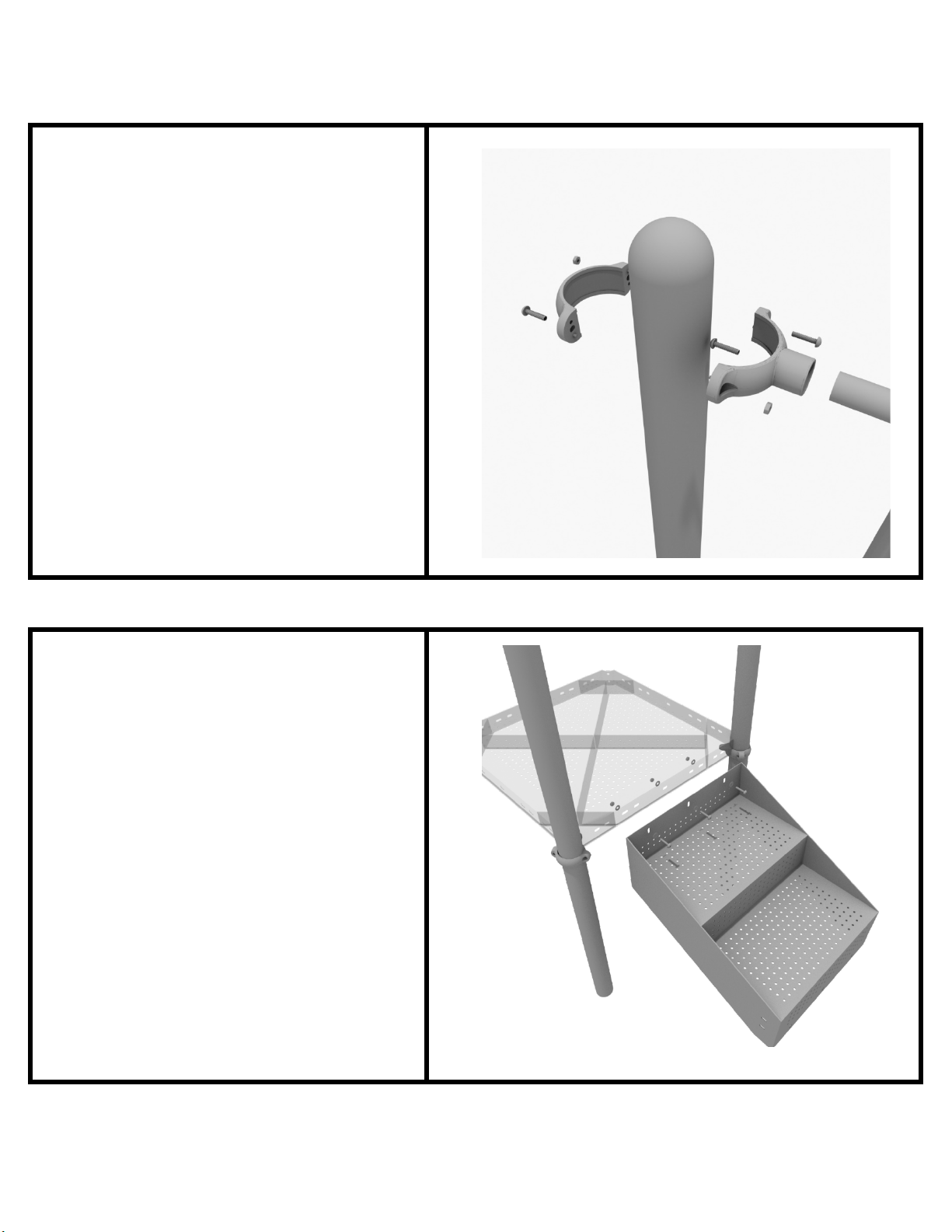

STEP: 1
Connect half of the 3.5-inch tube
clamp to the handrail using one (1)
M8*30 bolt. Set the handrail into
place, then attach the second half of
the clamp using the hardware
provided in the clamp bag. Repeat
this process for the other handrail.
STEP: 2
Using three (3) M10*25 bolts, six (6)
M10 washers, and three (3) M10 lock
nuts, attach the top of the stairs to
the square deck.
10859 Washington St. Suite
200, Indianapolis, IN
1-800-667-0097
Page 1 of 5 (36” Transfer Station (for 3.5” post) Install)
Created By: Aaron Price
Date Modified: 3/13/18
Page 6

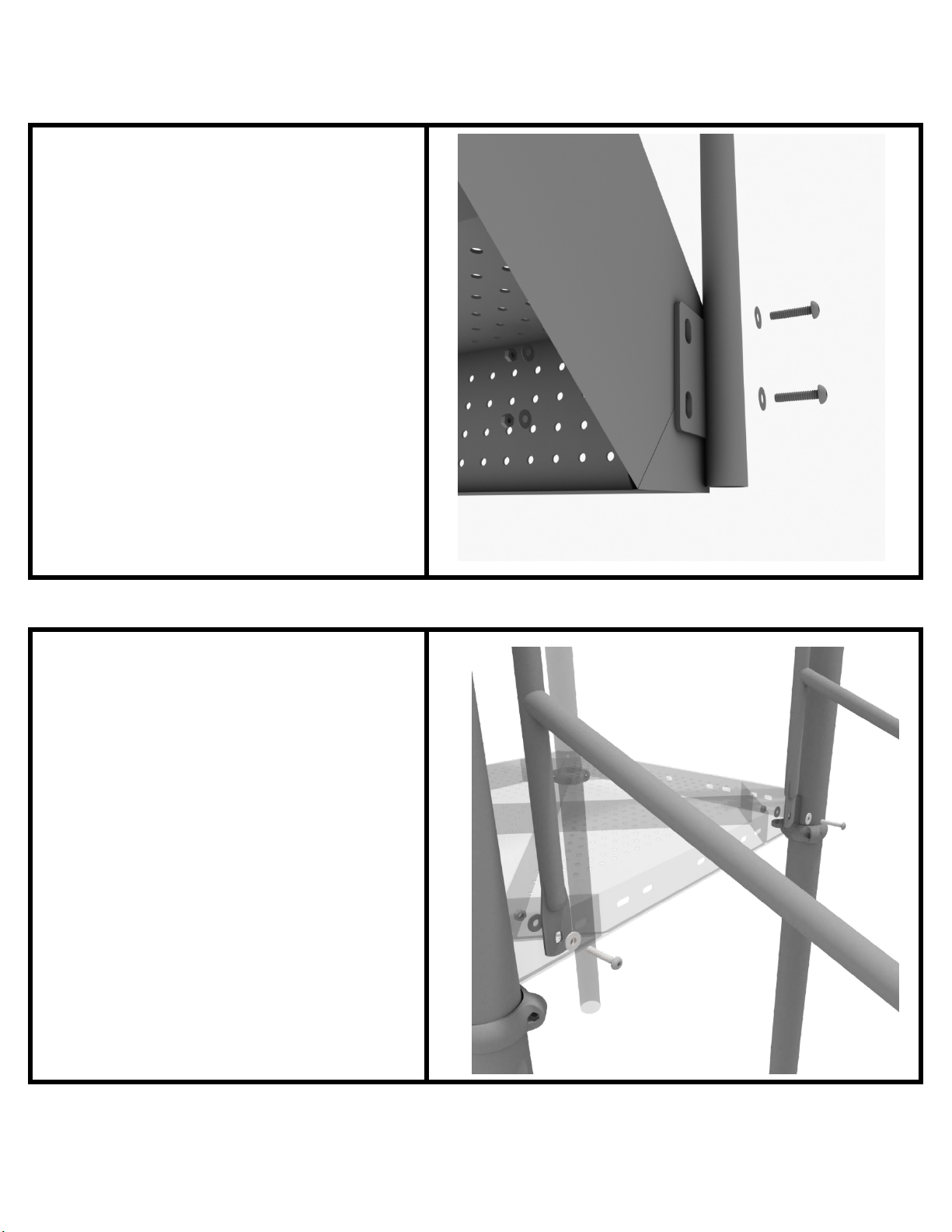

36” Transfer Station (for 3.5” post) Install

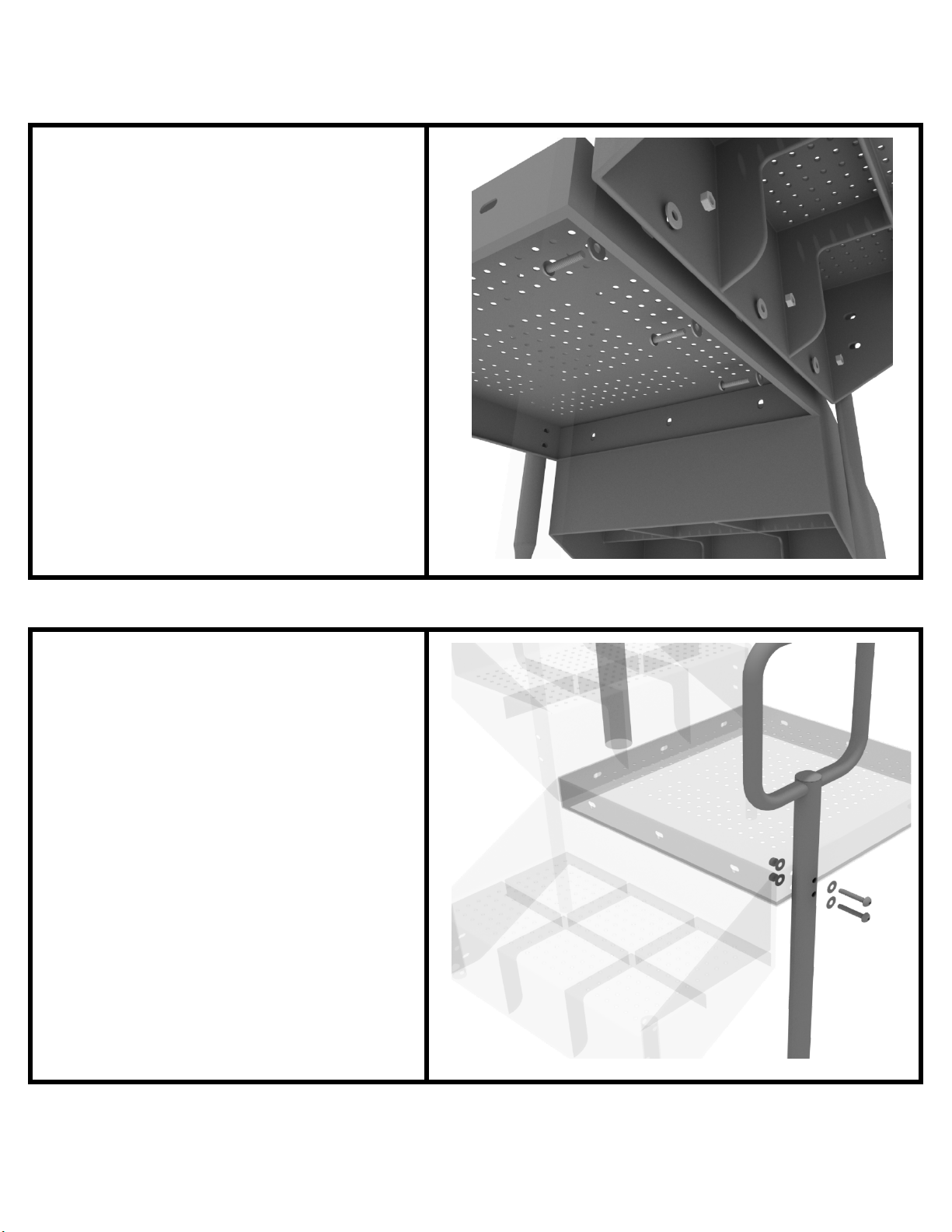

STEP: 3
Using four (4) M10*25 bolts, eight (8)
M10 washers, and four (4) M10 lock
nuts, connect the bottom of the
handrails to the bottom of the 3-foot
transfer stair.
STEP: 4
Using two (2) M10*25 bolts, four (4)
M10 washers, two (2) lock nuts,
attach the handrail to the square
deck.
10859 Washington St. Suite
200, Indianapolis, IN
1-800-667-0097
Page 2 of 5 (36” Transfer Station (for 3.5” post) Install)
Created By: Aaron Price
Date Modified: 3/13/18
Page 7
36” Transfer Station (for 3.5” post) Install

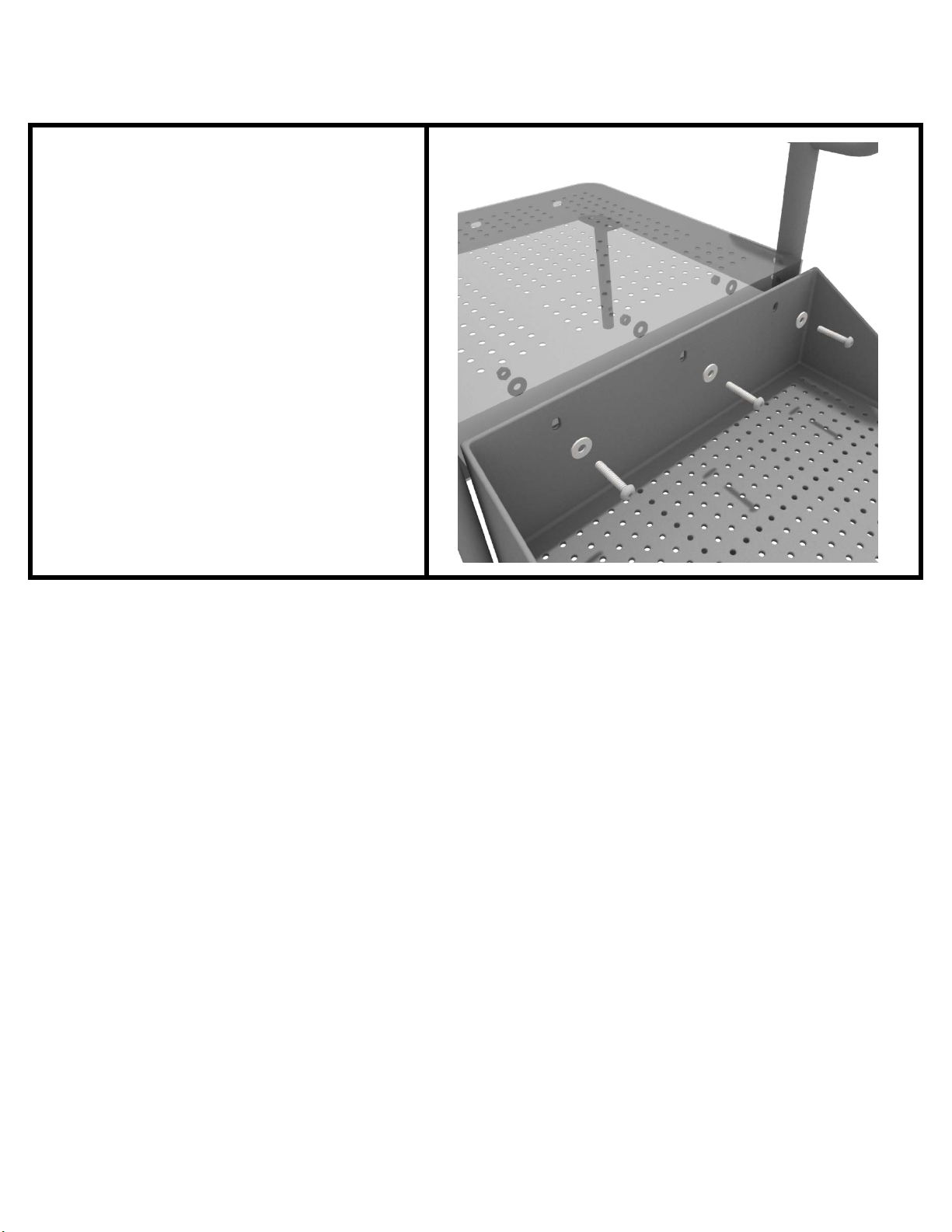

STEP: 5
Using three (3) M10*25 bolts, six (6)
M10 washers, and three (3) M10 lock
nuts, attach the ADA transfer deck to
the base of the 3-foot ADA transfer
stair.
STEP: 6
See general installation guide
regarding footing information for the
transfer deck handrail & mount.
Using two (2) M10*65 bolts, four (4)
10 washers, and two (2) M10 lock
M
nuts, attach the transfer handrail to
the ADA transfer deck.
10859 Washington St. Suite
200, Indianapolis, IN
1-800-667-0097
Page 3 of 5 (36” Transfer Station (for 3.5” post) Install)
Created By: Aaron Price
Date Modified: 3/13/18
Page 8
36” Transfer Station (for 3.5” post) Install

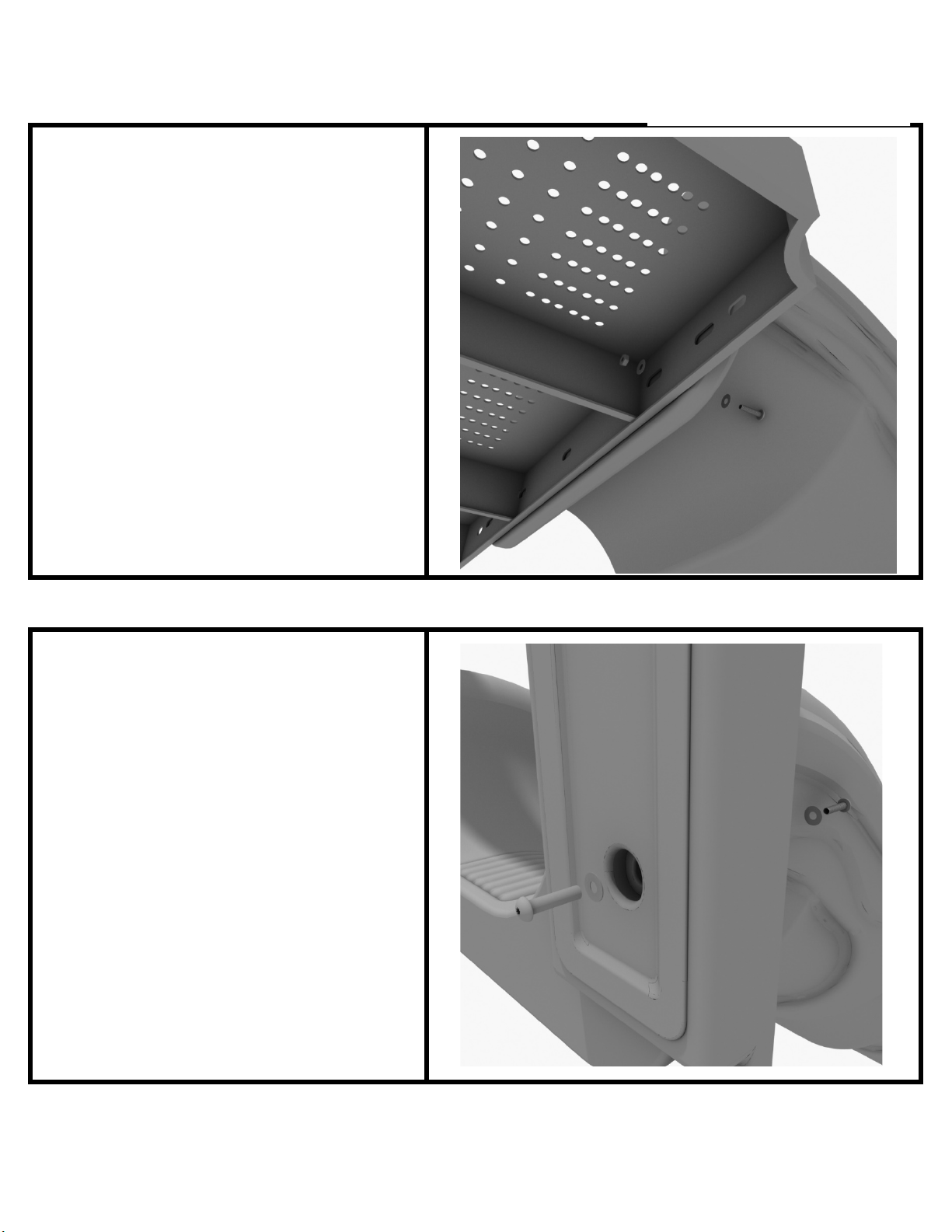

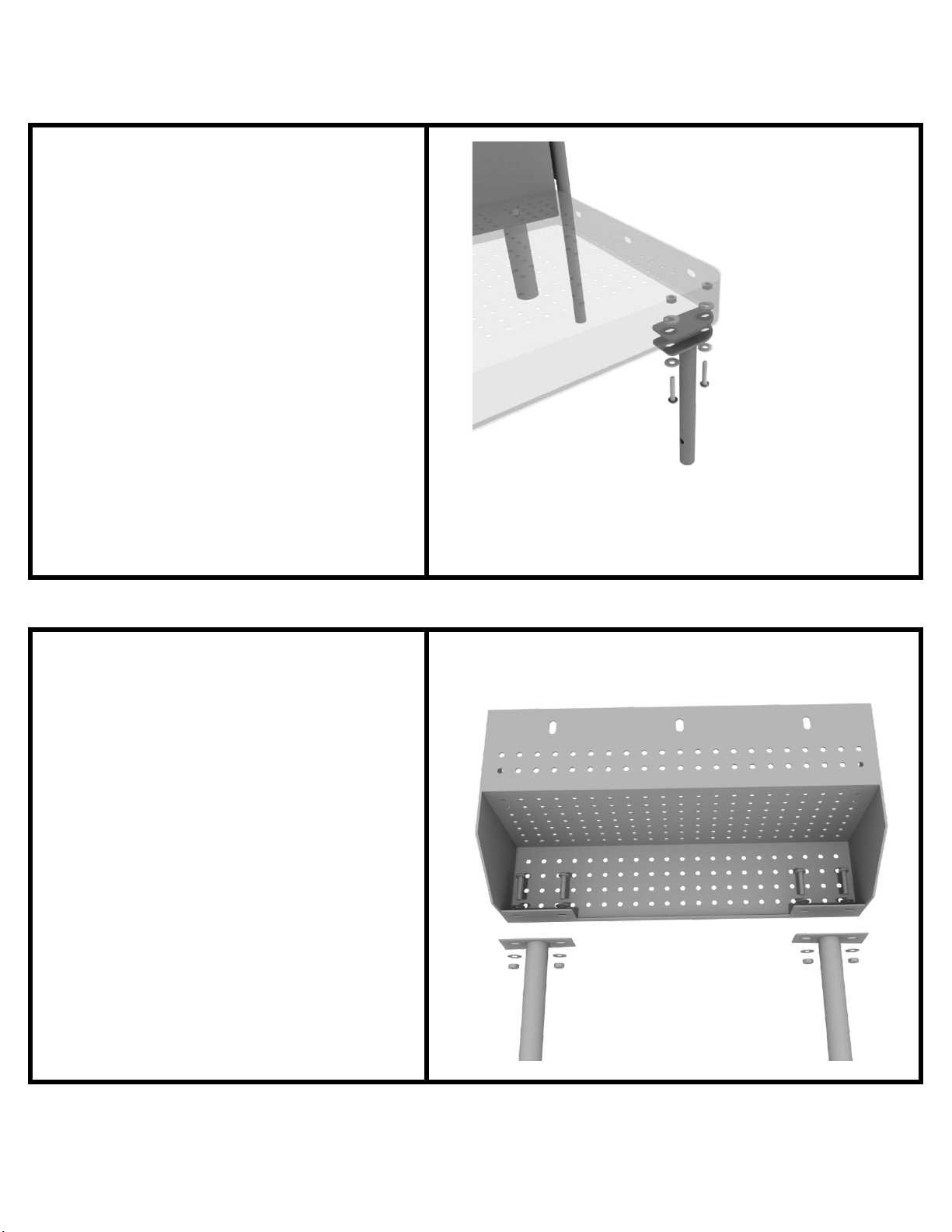

STEP: 7
Using two (2) M10*25 bolts, four (4)
M10 washers, and two (2) lock nuts,
attach the transfer deck mount to
the ADA transfer deck.
STEP: 8
See general installation guide
regarding footing information for the
ADA transfer step mount. Using two
(2) M10 bolts, four (4) M10 washers,
and two (2) M10 lock nuts, attach the
transfer step to each ADA transfer
step mount.
10859 Washington St. Suite
200, Indianapolis, IN
1-800-667-0097
Page 4 of 5 (36” Transfer Station (for 3.5” post) Install)
Created By: Aaron Price
Date Modified: 3/13/18
Page 9
36” Transfer Station (for 3.5” post) Install
STEP: 9
Using three (3) M10*25 bolts, six (6)
M10 washers, and three (3) M10
washers, attach the top of the ADA
transfer step to the ADA transfer
deck.
10859 Washington St. Suite
200, Indianapolis, IN
1-800-667-0097
Page 5 of 5 (36” Transfer Station (for 3.5” post) Install)
Created By: Aaron Price
Date Modified: 3/13/18
Page 10

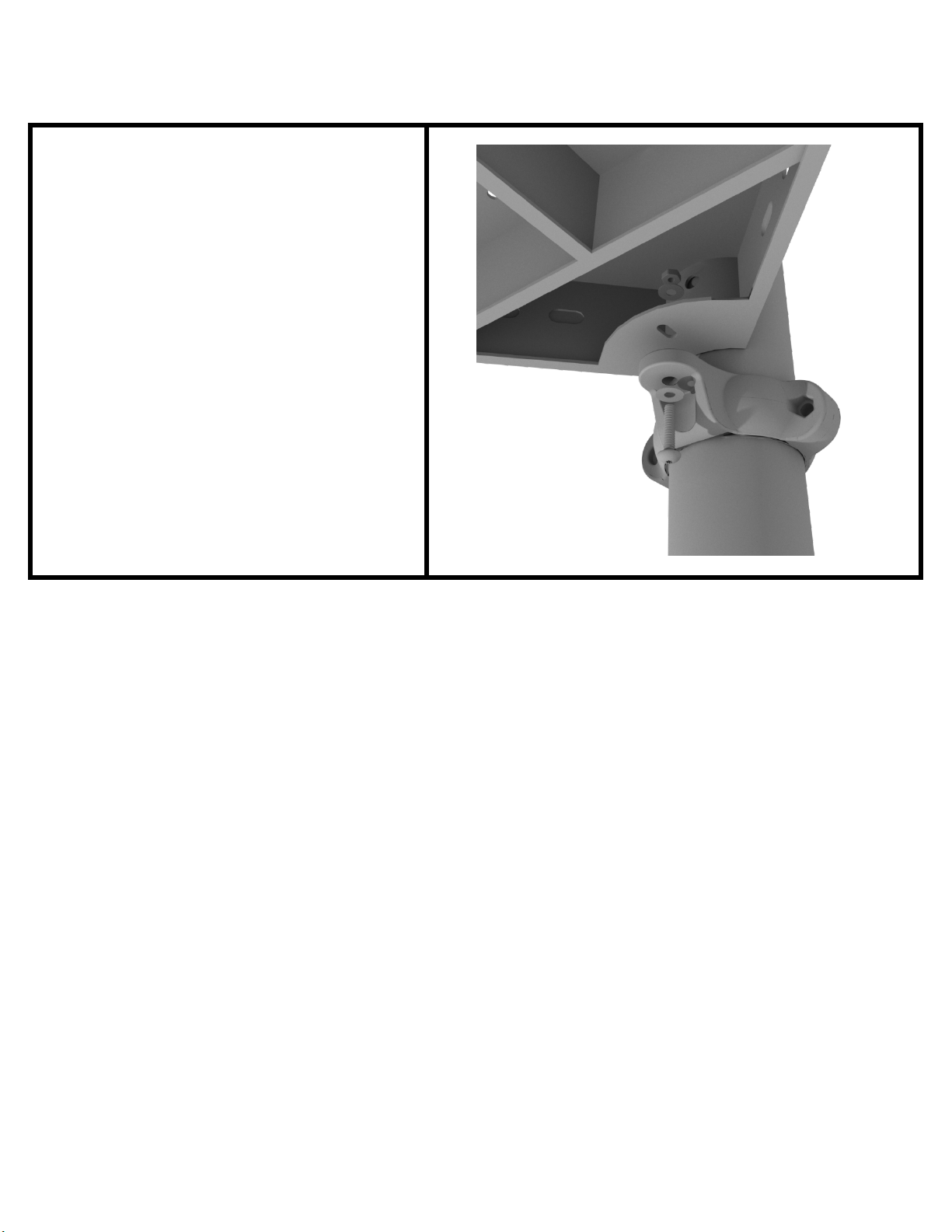

Square Deck Installation

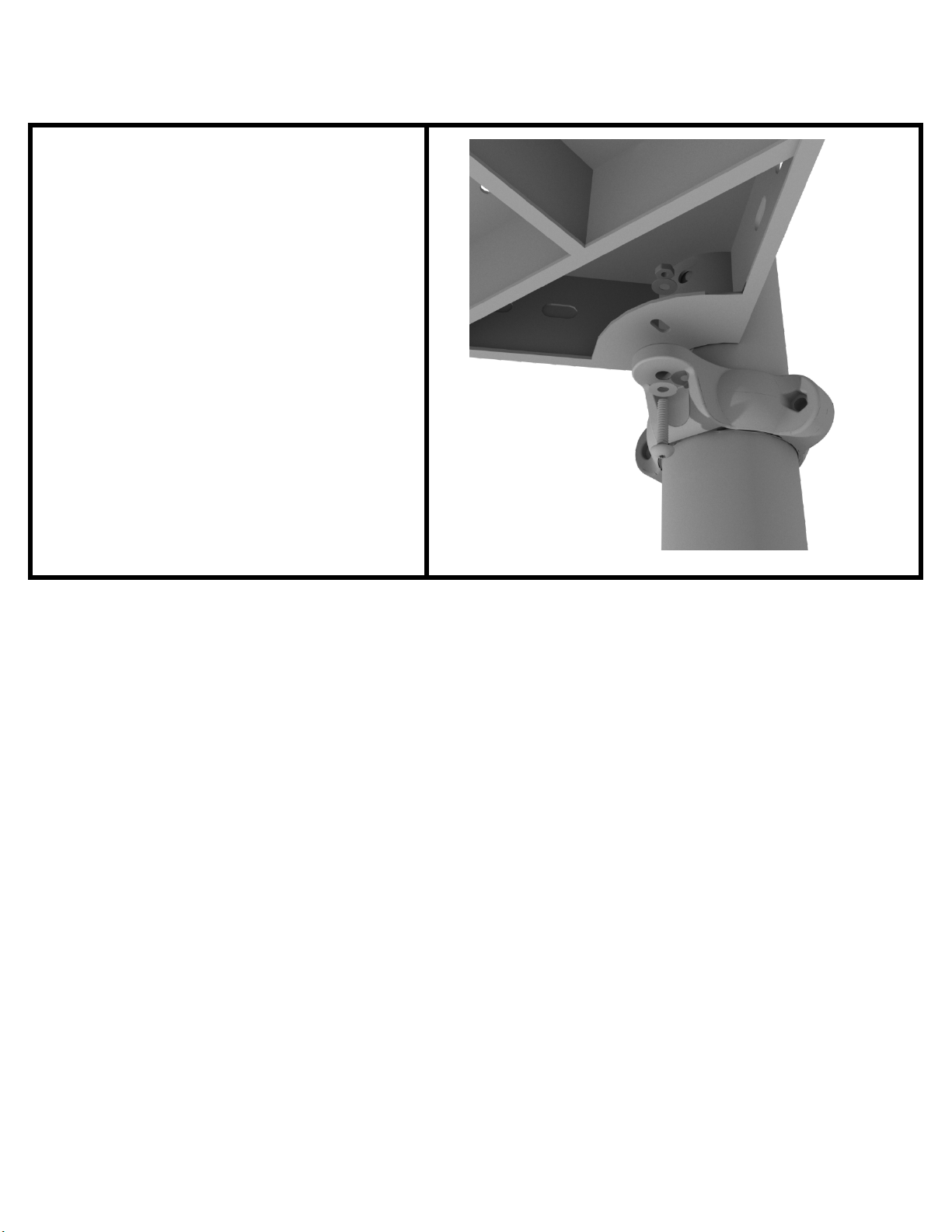

STEP: 1
After the posts are in place, using
four (4) M10*35 Bolts, eight (8) M10
Washers, and four (4) M10 Lock
Nuts, attach each square deck to
each pre-attached deck clamp as
shown in the image.
Deck clamps are pre-attached to the
posts and should not be altered in
any way.
10859 Washington
St. Suite 200,
Indianapolis, IN
1-800-667-0097
Page 1 of 1 (Square Deck Installation)
C
reated By: Aaron Price
Date: 3/19/2018
Page 11
Rectangle Deck Installation
STEP: 1
After the posts are in place, using
four (4) M10*35 bolts, eight (8) M10
washers, and four (4) M10 lock nuts,
attach the rectangle deck to each
pre-attached deck clamp as shown in
the image.
D
eck clamps are pre-attached to the
posts and should not be altered in
any way.
10859 Washington St. Suite
200, Indianapolis, IN
1-800-667-0097
Page 1 of 1 (Rectangle Deck Installation)
Created By: Aaron Price
Date: 03/19/2018
Page 12

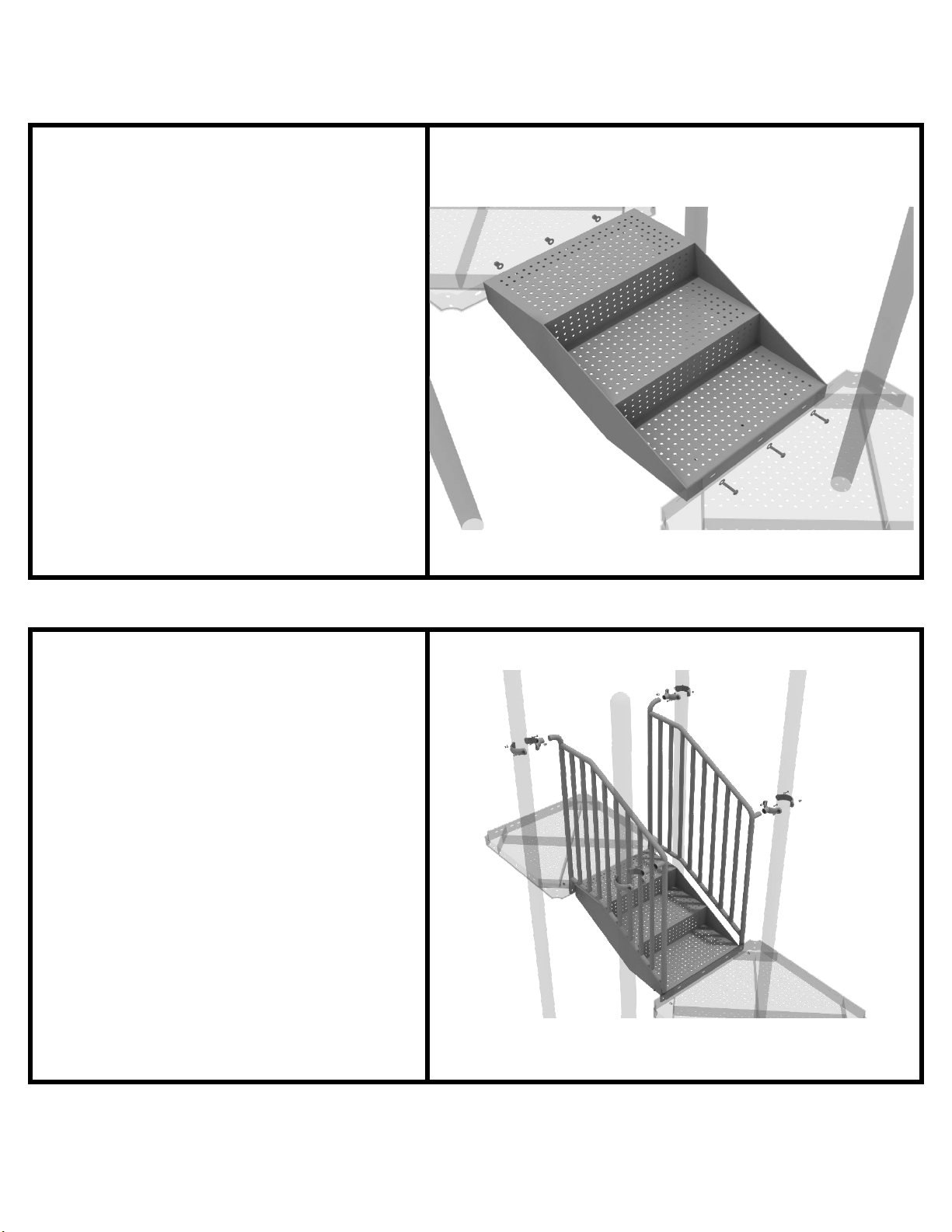

1-Foot Middle Stair Installation
Using eight (6) M10*25 bolts, twelve
(12) M10 washers, and six (6) M10
lock nuts, attach the 12-inch middle
stair to the assigned decks.
Then, once the stair is in place,
attach the 12-inch connection
handrail to the posts using four (4)
3.5-inch tube clamps, and four (4)
M8*30 bolts. Then, attach the
bottom of the handrails to the decks
using one (1) M10*25 bolt, two (2)
M10 washers, and one (1) M10 lock
nut for each attachment point.
STEP: 1
STEP: 2
10859 Washington St. Suite
200, Indianapolis, IN
1-800-667-0097
Page 1 of 1 (1-Foot Middle Stair Installation)
Created By: Aaron Price
Date: 03/29/2018
Page 13

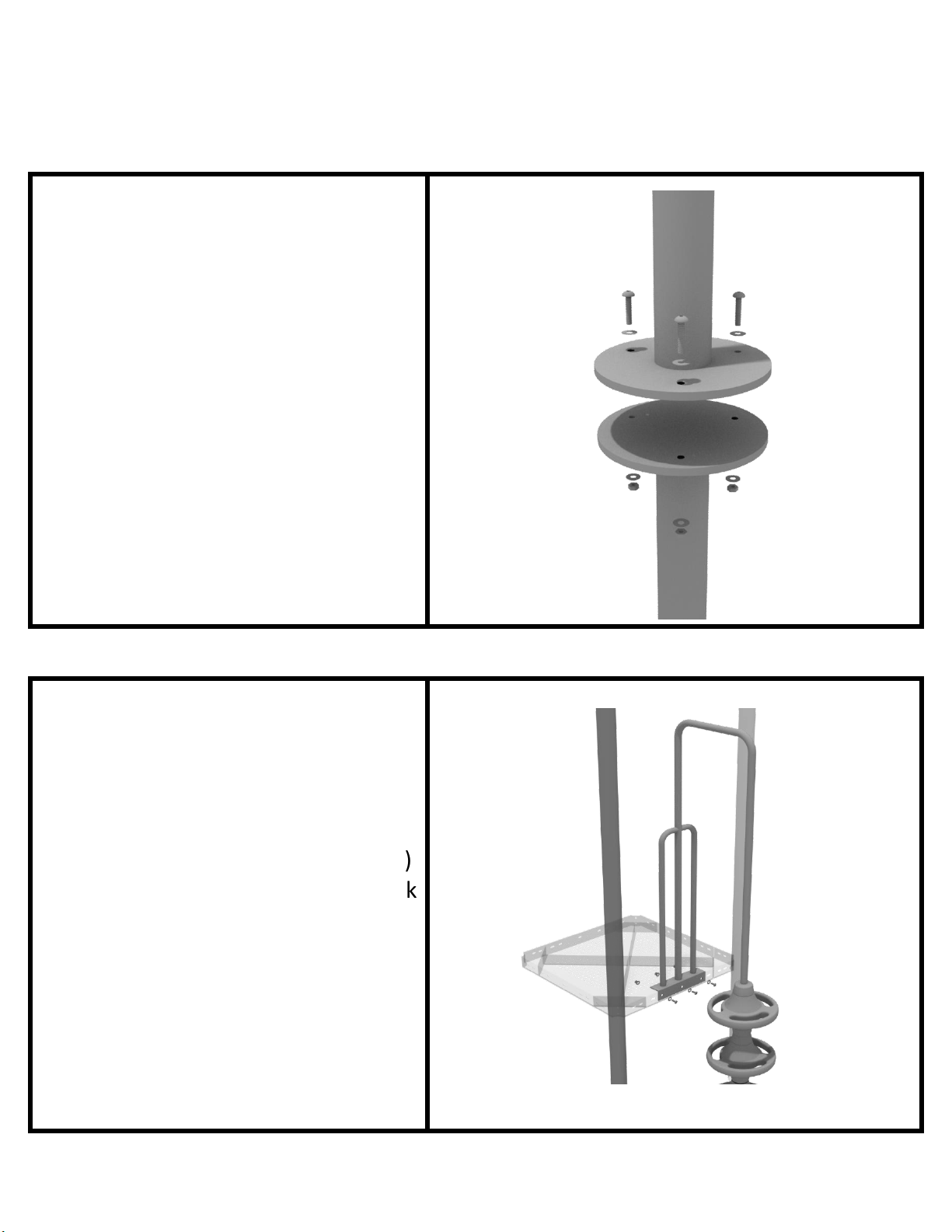

Pod Climber Installation
See general installation guide
regarding footing information for the
pod climber. Attach the circle end
mount to the bottom of the climber
using the pre-attached hardware.
Each attachment uses three (3)
M10*20 bolts, three (3) M10 spring
gaskets, and one (3) M10 large
gaskets.
Using three (3) M10*25 bolts, six (6)
M10 washers, and three (3) M10 lock
nuts, attach the pod climber to the
deck.
STEP: 1
STEP: 2
Created By: Aaron Price
Page 1 of 2 (Pod Climber Installation)
Page 14
10859 Washington St. Suite
200, Indianapolis, IN
1-800-667-0097
Date: 03/20/2018
Page 2 of 2 (Pod Climber Installation)
Page 15
3-foot Single Wave Slide Installation

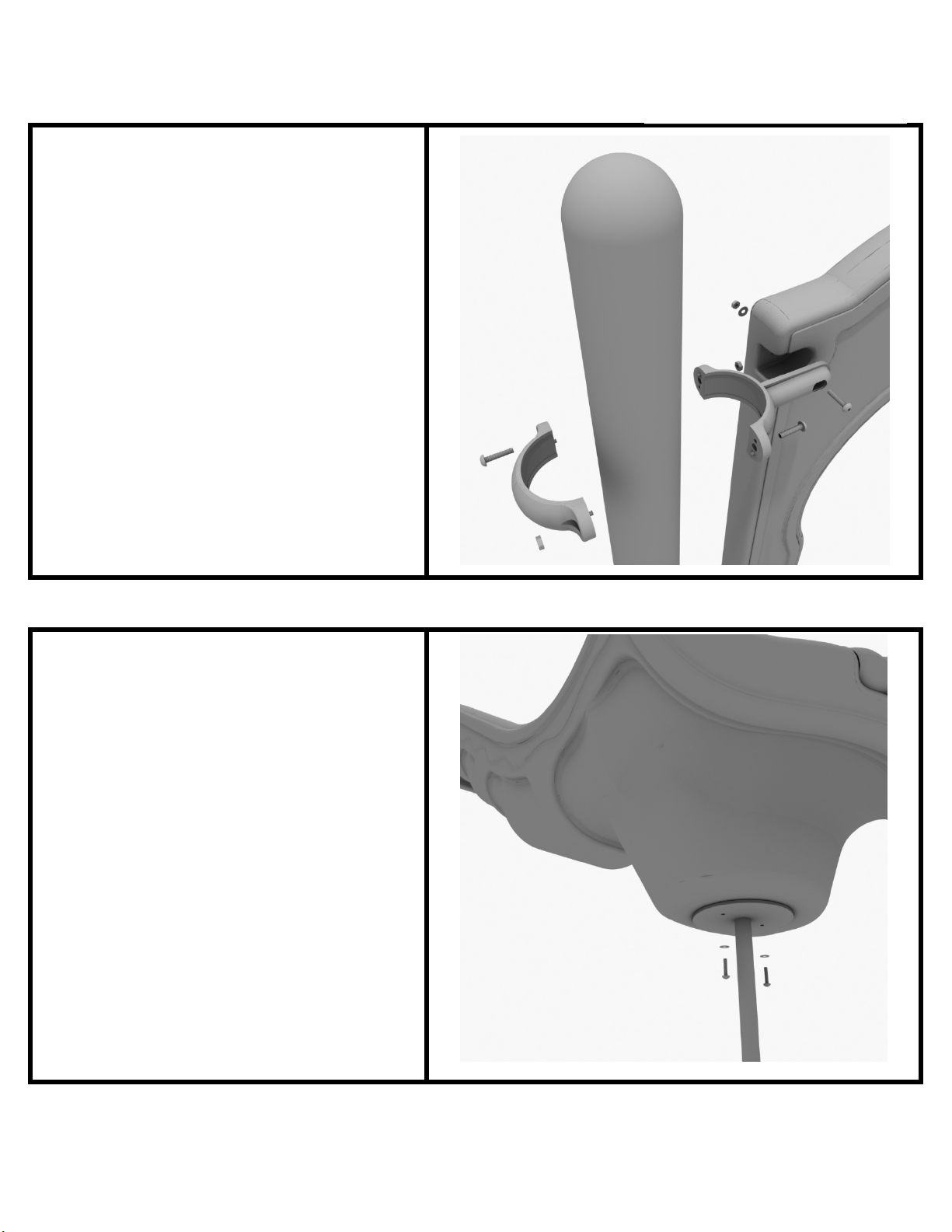

STEP: 1
Take one (1) 3.5-inch flat clamp, and
loosely attach it around a post using
the bolts and nuts provided in the
clamp hardware bag. Repeat this
process on the other post. Then, use
one (1) M8*40 bolt, one (1) M8
washer, and one (1) M8 lock nut to
attach each side of the slide hood to
each clamp. Leave bolts loose until
slide is in place.

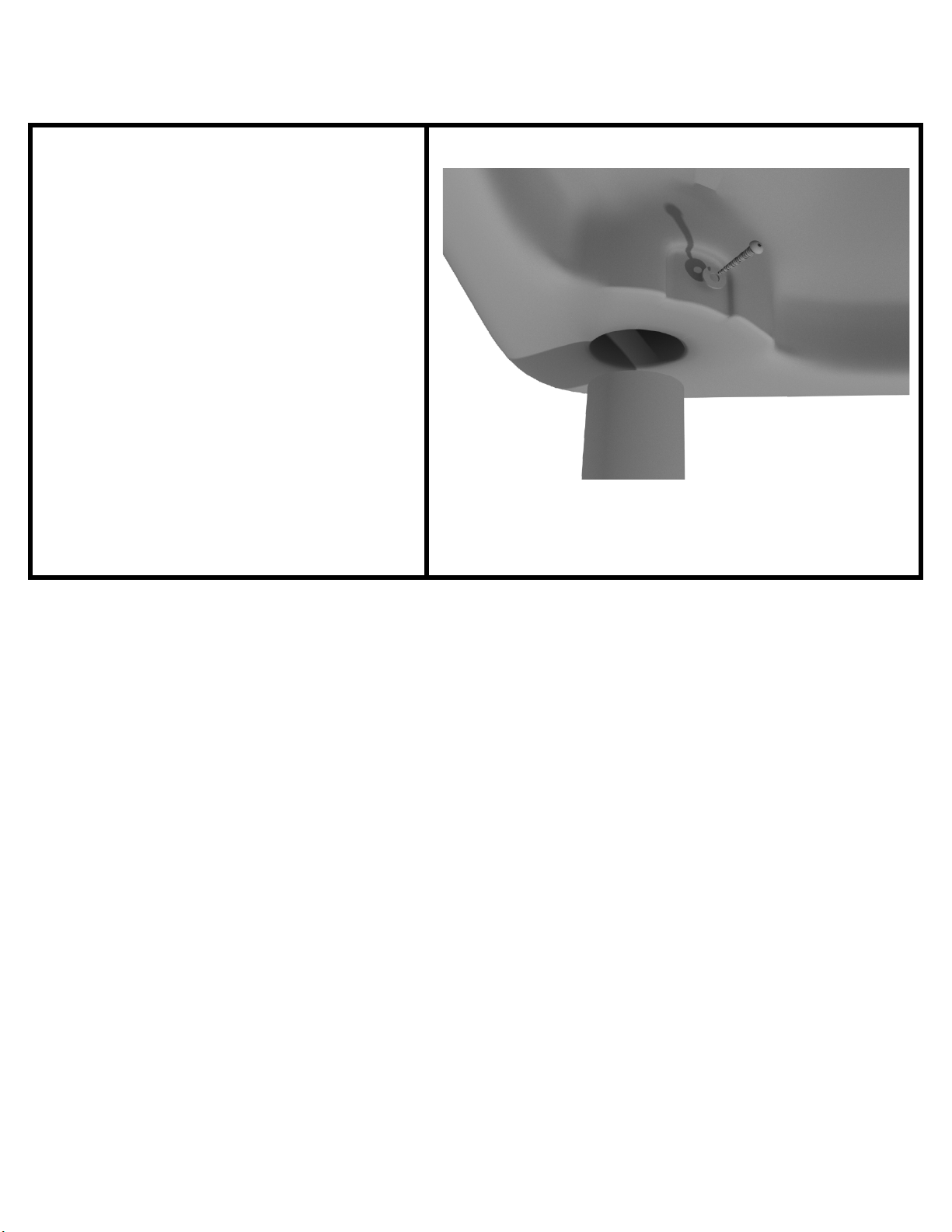

STEP: 2
See general installation guide
regarding footing information for the
slide end mount. Using two (2)
M8*20, two (M8) spring washers.
And two (2) M8 washers, attach the
slide to the slide support post.
10859 Washington St. Suite
200, Indianapolis, IN
1-800-667-0097
Page 1 of 2 (3-foot Single Wave Slide Installation)
Created By: Aaron Price
Date: 3/19/2018
Page 16
3-foot Single Wave Slide Installation
STEP: 3
To attach a single slide to a deck, use
two (2) M10*45 bolts, four (4) M10
washers, and two (2) M10 lock nuts.
Repeat this process for the other side
of the slide. Repeat this process for
each single slide.
STEP: 4
Using two (2) M8*45 bolts, two (2)
M8 washer, two (2) M12 washers,
and one (1) M12 inner hex spiral nut,
attach the slide to the slide hood.
Repeat this process for the other side
of the slide.
10859 Washington St. Suite
200, Indianapolis, IN
1-800-667-0097
Page 2 of 2 (3-foot Single Wave Slide Installation)
Created By: Aaron Price
Date: 3/19/2018
Page 17
4-foot Double Wave Slide Installation

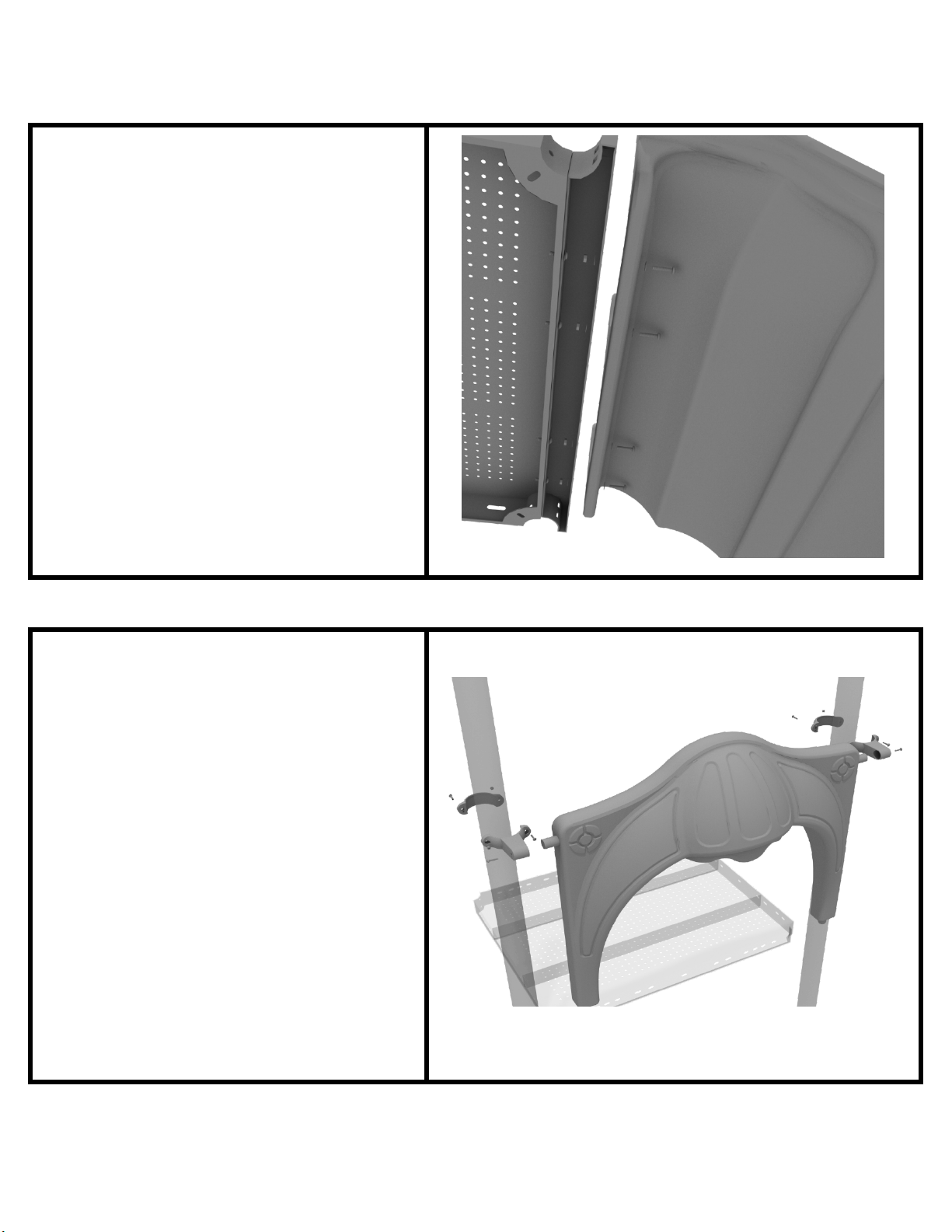

STEP: 1
Attach the deck climber extension to
the proper deck using four (4)
M10*25 bolts, eight (8) M10
washers, and four (4) M10 lock nuts.
STEP: 2
Then, See general installation guide
regarding footing information for the
double slide end mounts. Using two
(2) M8*20 bolts, two (2) M8 spring
gaskets, and two (2) M8 washers,
attach the slide end mounts to the
double slide.
10859 Washington St. Suite
200, Indianapolis, IN
1-800-667-0097
Page 1 of 2 (4-foot Double Wave Slide Installation)
Created By: Aaron Price
Date: 04/10/2018
Page 18
4-foot Double Wave Slide Installation

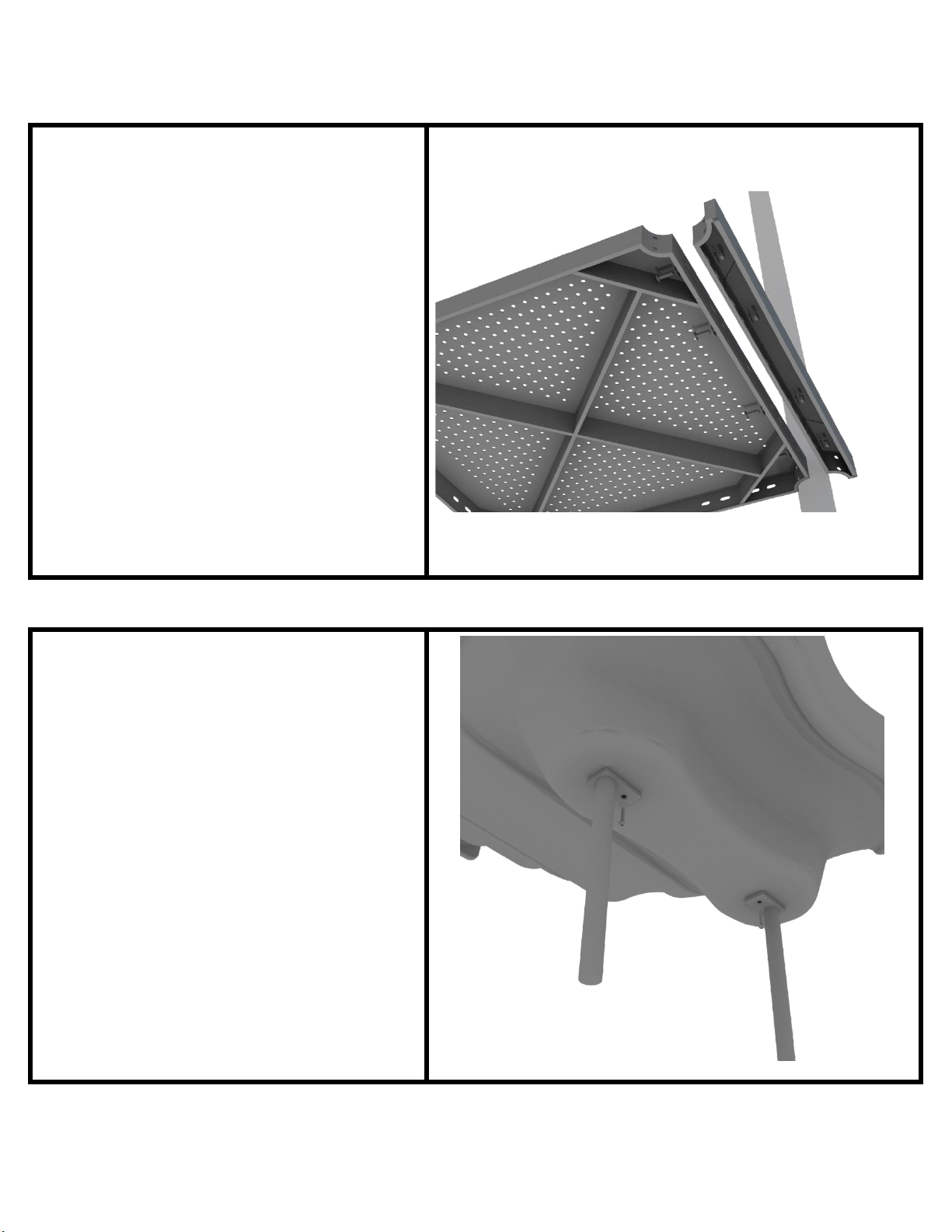

STEP: 3
Then, attach the slide to the deck
extension using four (4) M10*45
bolts, eight (8) M10 washers, and
four (4) M10 lock nuts.
STEP: 4
Once the slide is attached, take the
double slide hood and insert hood
into the top of the slide, and then
attach the top using two (2) double
slide clamps, and two (2) M8*30
bolts.
10859 Washington St. Suite
200, Indianapolis, IN
1-800-667-0097
Page 2 of 2 (4-foot Double Wave Slide Installation)
Created By: Aaron Price
Date: 04/10/2018
Page 19

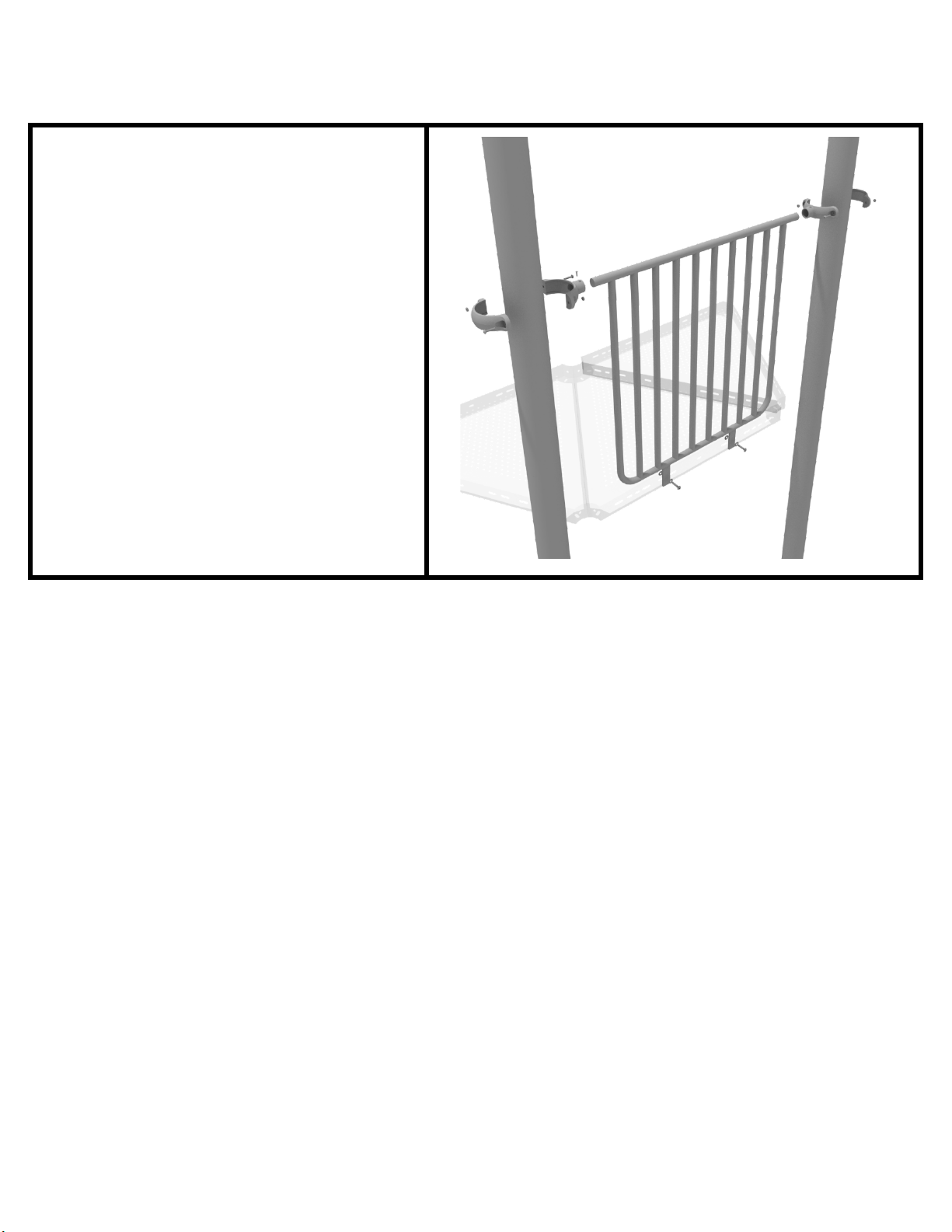

4.5-inch Metal Barrier Installation
STEP: 1
Attach two tube clamps to the metal
barrier using two (2) M4*25 self-
tapping screws and attach those
clamps to the proper support posts.
Then, attach the bottom of the metal
barrier to the deck using two (2)
M10*25 bolts, four (4) M10 washers,
and two (2) M10 lock nuts.
10859 Washington St. Suite
200, Indianapolis, IN
1-800-667-0097
Page 1 of 1 (4.5-inch Metal Barrier Installation)
Created By: Aaron Price
Date: 03/21/2018
Page 20

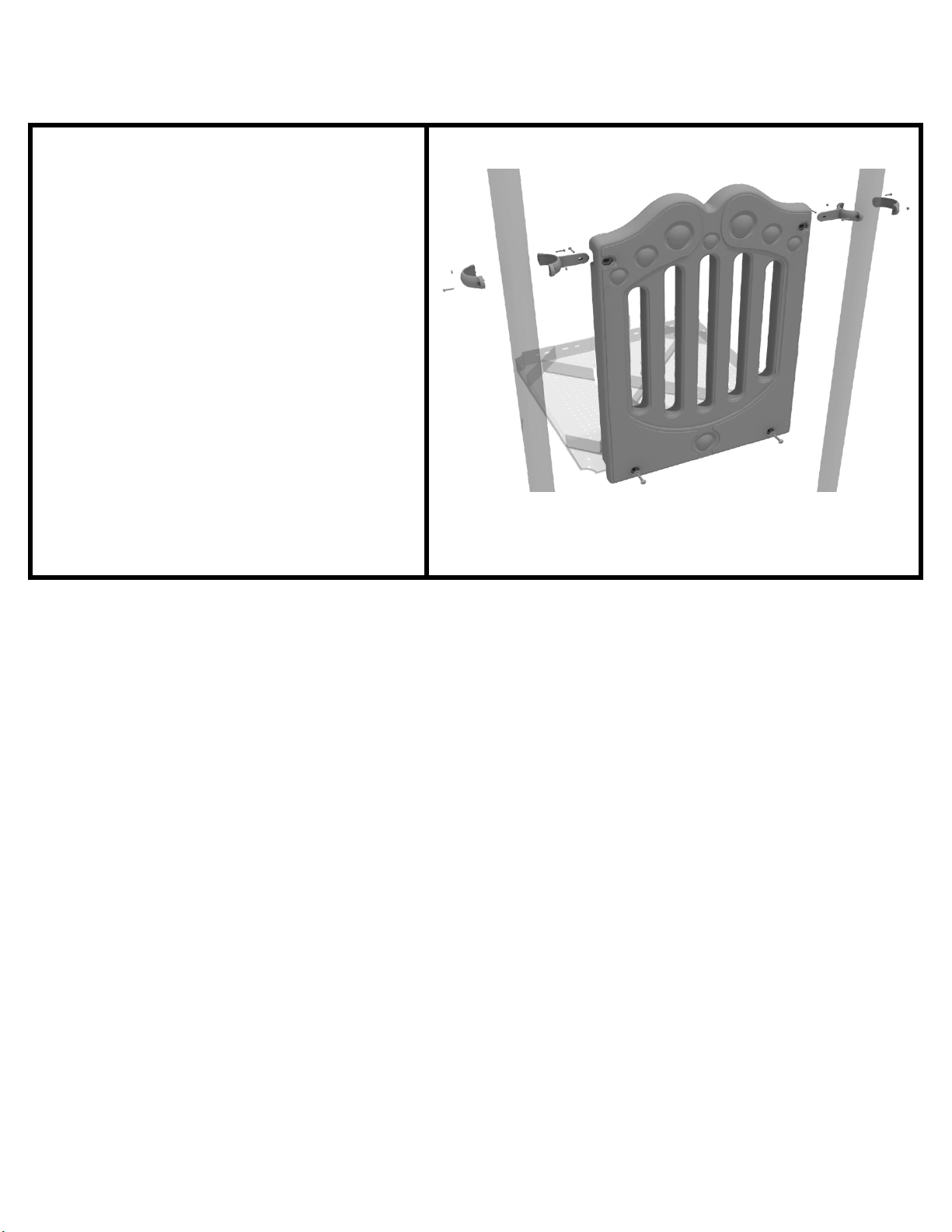

3.5-inch Line Panel Installation
STEP: 1
Connect the bottom of the panel to
the deck using two (2) M10*50 bolts,
four (4) M10 washers, and two (2)
M10 lock nuts. Then attach the top
of the panel to the posts using two
(2) flat clamps.
10859 Washington St. Suite
200, Indianapolis, IN
1-800-667-0097
Page 1 of 1 (3.5-inch Line Panel Installation)
Created By: Aaron Price
Date: 04/19/2018
Page 21

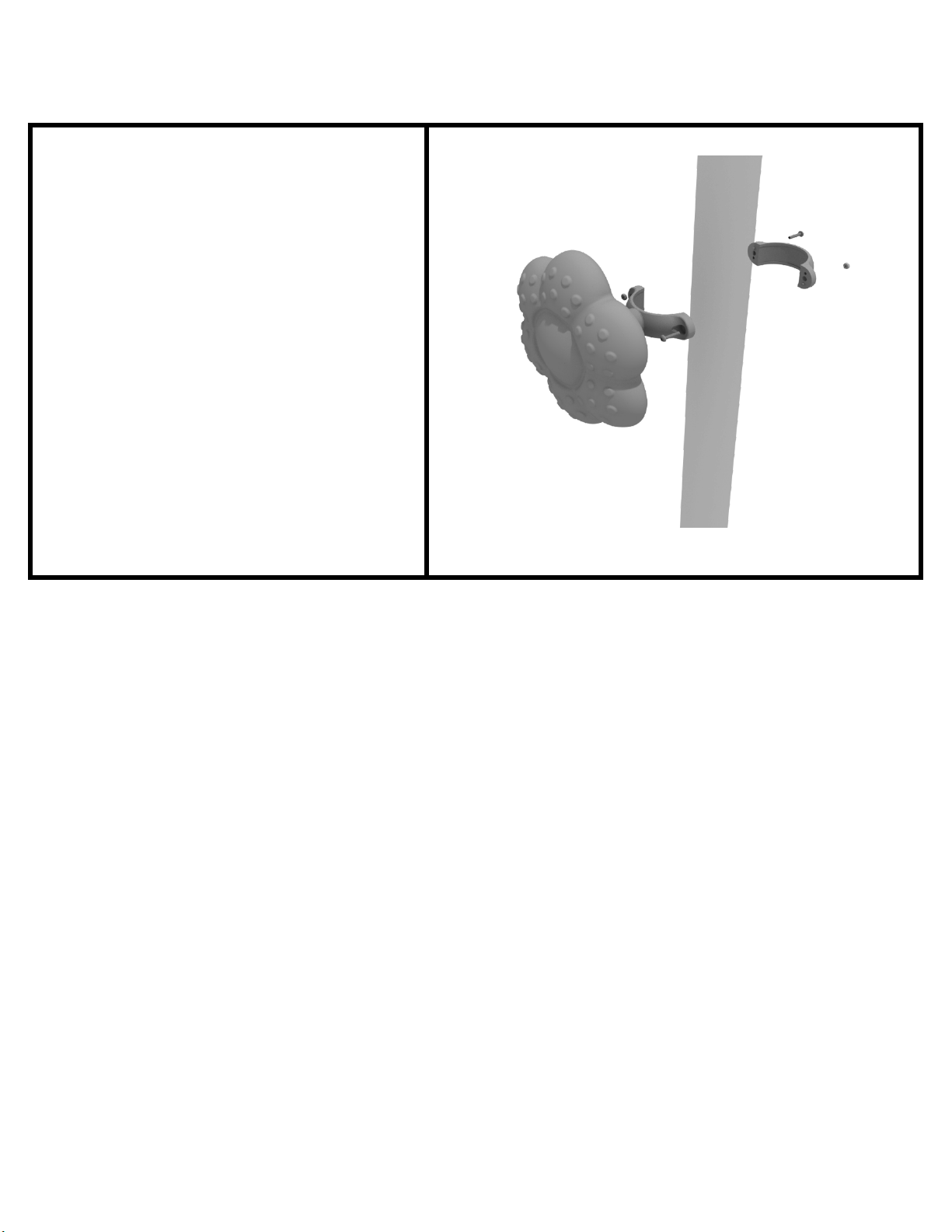

Rain Wheel Installation
Detach half of the
tube clamp
connected to the Rain Wheel, and re-
attach the clamp around the support
post, as shown in the picture.
Recommended install height is 20 to
36 inches above surfacing depending
on age range.
We recommend using Thread-locking
fluid on bolts connecting Rain wheel
to clamp to prevent hardware from
loosening over time.
(Thread-locker not supplied)
10859 Washington St. Suite
200, Indianapolis, IN
1-800-667-0097
Page 1 of 1 (Rain Wheel Installation)
C
reated By: Aaron Price
Date: 03/29/2018
Page 22
Single Drum Installation
Detach half of the tube clamps
connected to the Single Drum, and
re-attach the clamps around the
support post, as shown in the image.
Recommended install height is 20 to
36 inches above surfacing depending
on age range.
We recommend using Thread-
locking fluid on bolts connecting
Single Drum to clamp to prevent
hardware from loosening over time.
(Thread-locker not supplied)
10859 Washington
St. Suite 200,
Indianapolis, IN
1-800-667-0097
Created By: Jordan B
Date: 02/09/2022
Page 1 of 1 (Single Drum Installation)
Page 23
Line Roof Installation
STEP: 1
Set the line roof on top of the posts.
Take four (4) self-tapping screws and
drill them through the notch at each
corner of the roof, into the support
posts.
10859 Washington St. Suite
200, Indianapolis, IN
1-800-667-0097
Created By: Aaron Price
Date: 03/19/2018
Page 1 of 1 (Line Roof Installation)
Loading...
