Page 1
Models:
NCO3
NCO5, NCO5V
Revised: 01-27-2020
Page 2
Model NCO3 & NCO5
Half-Size Electric Convection Oven
Unpacking .......................................................................................................................... 1
Maintenance ....................................................................................................................... 1
Installation .......................................................................................................................... 2
Operating Instructions ......................................................................................................... 3
Parts List ............................................................................................................................. 4
Electrical Schematic ........................................................................................................... 5
Warranty ............................................................................................................................ 6
Page 3
UNPACKING -
Examine the interior of the unit to make sure all packing materials are removed before the unit is
plugged into an electrical outlet. Examine the interior and exterior to determine whether any
damage was incurred during delivery. If so, notify the carrier immediately to file a damage
claim. All NU-VU equipment is carefully tested and inspected prior to shipment. When accepted
for delivery by carrier, the responsibility for safe arrival at the destination is assumed by the
carrier.
CAUTION:
Should any damage be found, do not attempt to operate the unit. Call your dealer immediately to
arrange for service.
MAINTENANCE -
The equipment has been designed to require minimum maintenance and has been constructed to
meet industry electrical safety and sanitation standards.
Non-toxic chemical cleaners or mild detergents are recommended for cleaning of fixtures. Do
not use steel wool of any kind. Steel wool particles will work into the grains of the metal
causing corrosion. Also, these particles can cause a health hazard. Should scouring be required,
use a non-abrasive type of cleaner. Do not use caustic solutions on your equipment. Hosing or
steaming should not be necessary to keep these fixtures clean and sanitary. Do not allow water
or steam to come into contact with electrical components.
CAUTION:
Be sure to disconnect power source and allow oven to cool before cleaning and servicing the
unit. Liability for improper or careless use is the responsibility of the equipment owner or
persons servicing the unit, including the authorized service agent.
PAGE 1
Page 4
INSTALLATION –
OnlyTheNCO5VcanbeinstallventlesswiththeOptionalfactoryVentlesssysteminstall
The(V)suffixwillbepartofthemodelnameontheplatetobeinstallventless
Ventless Testing have been conducted in accordance with EPA Methods 202 (Referencing
Methods 1, 2, 3B, 4, 5). These test were performed on January 30, 2019 by Intertek using raw
protein. Results are used to determine compliance with Section 59 of UL710 B, the Standard for
Recirculating Systems. The emission test results after 8 hrs. Were equal to 4.237 mg/m3,
anything above 5 mg/ m3 requires ventilation.
The ovens must be installed with a proper ventilation according with the local building code.
Attach the Appliance Legs to the base of the unit if your Oven will sit on a table or counter. Legs are not necessary
if the unit is to be fastened and sealed to the table or counter surface. Move the unit into the position where it is to be
operated. Check to determine that the power source is the same voltage and phase as that indicated on the label on
the side of the unit; if the voltage and/or phase is not the same call NU-VU for instructions on changing the voltage
and/or phase of your equipment.
The NU-VU NCO5 is normally equipped for either 208 volt or 240 volt operation in single phase configurations.
The NU-VU NCO3 comes with a factory installed cord and plug for 120 volt op eration. A NEMA 5-20 receptacle is
required to power the NCO3 using the factory supplied cord and plug.
IMPORTANT: DO NOT INSTALL UNIT IF THE POWER SOURCE DOES NOT COINCIDE WITH THE UNIT
LABEL!!!
Connect your unit according to all national and local electrical codes, either through a plug-type connection or direct
wiring. All connections must be made with COPPER WIRE ONLY in the correct gauge for the application. Provide
enough slack in the wiring to allow for equipment to be moved about during the initial installation, and any future
maintenance or required service work.

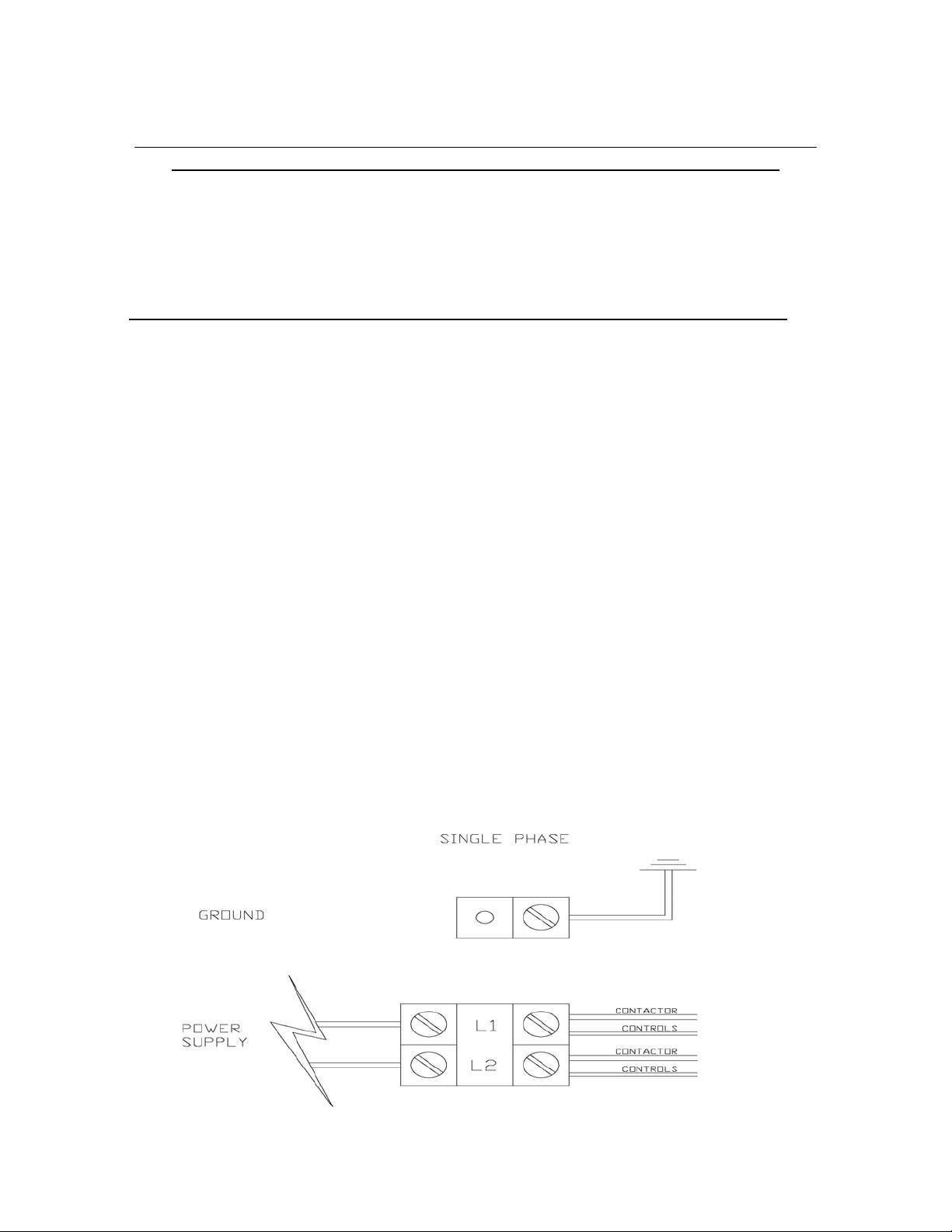

Your qualified installer or electrician should remove the Side Access Panel of the unit to expose the Power Terminal
Block connections. A copy of the unit's wiring schematic is attached to the inside of the unit near the power terminal
connections as well as in this manual.
IMPORTANT: ALL POWER SHOULD BE TURNED OFF AT THE WALL
BREAKER WHILE THE UNIT IS BEING CONNECTED!!!
PAGE 2
Page 5
OPERATING INSTRUCTIONS -
1. Close oven door and push ON/OFF rocker switch to “ON” position. Blower and Elements
will not operate if the door is open.
2. Turn thermostat knob to desired temperature setting and allow oven to preheat. The indicator
light will go out when the set temperature has been reached.
3. For best results, allow oven to preheat for 15 – 20 minutes after oven has reached set
temperature when first turned on or after it has been off for an extended period of time.
4. Load product, close oven door and set timer to desired time by turning the knob clockwise
past the desired time and then counter-clockwise to the desired time. The alarm will sound
after the timer has counted down. To silence the alarm, turn timer knob fully counterclockwise.
PAGE 3
Page 6
PARTS LIST FOR NCO3 & NCO5
ITEM DESCRIPTION PART NUMBER
1 ....................................................... On\Off Switch (NCO3) ........................................... 50-1355
1 ....................................................... On\Off Switch (NCO5) ........................................... 66-3008
2 ................................................................. Thermostat .................................................... 66-1159
3............................................................. Thermostat Knob ................................................. 50-0727
4 ..................................................... 60 Minute Timer (NCO3) ..................................... 50-1094-B
4 ..................................................... 60 Minute Timer (NCO5) ......................................... 66-1116
5.................................................................. Timer Knob ...................................................... 50-1277
6 ............................................ Blower and Motor Assembly (NCO3) ............................... 250-1059
6 ............................................ Blower and Motor Assembly (NCO5) ............................... 250-1066
7 .......................................................... Pilot Light (NCO3) .......................................... 50-0029-A
7 .......................................................... Pilot Light (NCO5) .............................................. 50-0030
8 ..................................................................... Alarm ....................................................... 252-1022
9.............................................................. Hi-Limit Switch ................................................. 66-1047
10 .......................................................... Cord Set (NCO3) ................................................ 50-0375
11 ................................................... Heating Element (NCO3) ......................................... 60-0205
11.............................................. Heating Element (NCO5) (208V) ................................... 60-0208
11.............................................. Heating Element (NCO5) (240V) ................................... 60-0209
12 ............................................................ Resetable Fuse ................................................. 66-1097
13 .............................................. Terminal Block Section (NCO5) .................................... 50-1332
14 ....................................................... Ground Lug (NCO5) ............................................. 50-1329
15....................................................... Heating Relay (NCO3) ............................................. 50-0433
15.................................................... Heating Contactor (NCO5) .......................................... 66-2017
16 ............................................... Cooling Fan Assembly (NCO3)..................................... 50-0544
16 ............................................... Cooling Fan Assembly (NCO5)................................... 888-5010
17 ..................................................... Door Switch Assembly ......................................... 252-2004
18 ......................................................... Side Rack (NCO3) ............................................... 98-1342
18 ......................................................... Side Rack (NCO5) ............................................... 98-1315
19 ..................................................... Side Rack Mounting Pin ......................................... 700-0016
20 ............................................................... Door Latch .................................................... 50-1360
21 ................................................. Door Latch Strike Assembly ....................................... 98-9439
22 .................................................... Door Assembly (NCO3) ......................................... 98-9438
22 .................................................... Door Assembly (NCO5) ......................................... 98-9436
23 .............................................. Door Gasket Assembly (NCO3) ................................... 70-0369
23 .............................................. Door Gasket Assembly (NCO5) ................................... 70-0370
24 ................................................ Fan \ Element Cover (NCO3) ..................................... 98-1343
24 ................................................ Fan \ Element Cover (NCO5) ..................................... 98-1320
25 ................................................................ Hinge Set ..................................................... 50-1270
26.................................................... 4” Adjustable Leg (NCO3) ..................................... 1523B8301
26.................................................... 4” Adjustable Leg (NCO5) .......................................... 50-0628
PAGE 4
Page 7

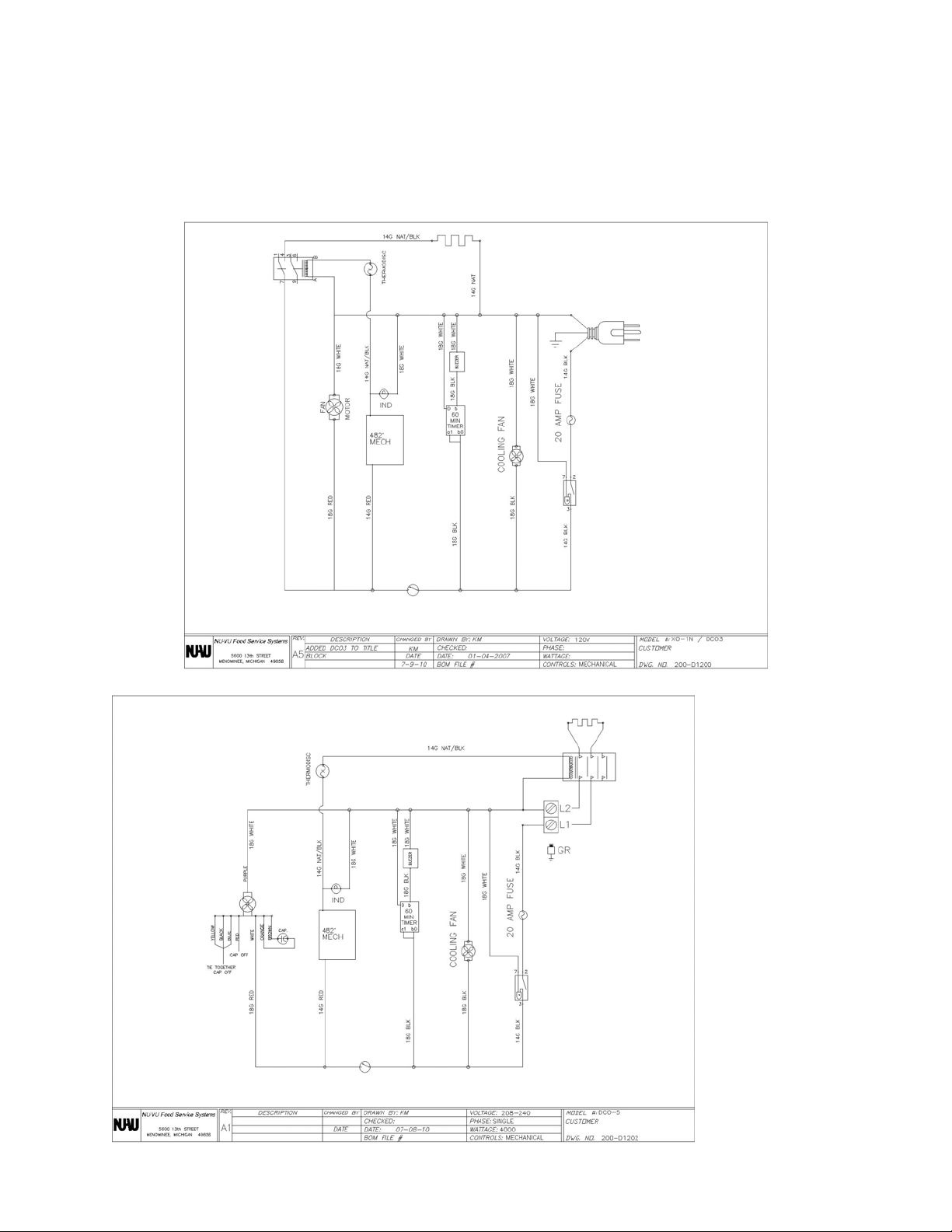

Electrical Schematic
NCO3 & NCO5
Half-Sized Electric Convection Oven
PAGE 5
Page 8
EQUIPMENT WARRANTY
NU-VU warrants to the initial purchaser that all NU-VU products shall be free from defects in
material or factory workmanship, under ordinary use for the purpose for which it is designed, for
a period of one (1) year from the date of shipment from the manufacturing facility. At our option,
any equipment will be repaired or a replacement part furnished FOB our factory. This Warranty
includes one (1) year labor from the date of said shipment.
Return of component parts will not be accepted for credit without prior authorization by our
service department, and then contingent upon our inspection. This Warranty will not apply if,
after examination, it is determined that the equipment or any part thereof is found to be defective
through purchaser’s lack of responsibility for maintenance or storage, shipping damage,
accidental damage by moving or otherwise, improper voltage, misapplication or alteration by
other than ourselves, or use of unauthorized parts. This Warranty does not apply to glass, light
bulbs, or gaskets.
Prior to any service agency performing warranty labor, the NU-VU service department must be
contacted to provide service authorization. Toastmaster assumes no responsibility for any
charges that were not expressly authorized by it for any charges that exceed, in the sole judgment
of NU-VU, normal and customary amounts. If service is required during overtime, the difference
between overtime and standard labor rates shall be paid by the purchaser.
This Warranty does not apply if payment has not been received for the equipment at the time a
claim is made or if the NU-VU serial number has been removed.
WARRANTY EXCLUSIONS AND LIMITATIONS
This Warranty applies only within the United States and Canada. ANY IMPLIED WARRANT
OF MERCANTABLITY OR FITNESS FOR A PARTICULAR PURPOSE IS HERERBY
SPECIFICALLY DISCLAIMED BY DOYON. There are no warranties, expressed or implied,
which extend beyond the description on the face thereof.
This warranty does not cover, and NU-VU shall not under any circumstances be liable for, any
incidental, consequential or other damages (such as injury to persons or property, loss of time,
inconvenience, loss of use, loss of business or profits, or other matters not specifically covered)
arising in connection with the use of, inability to use, or failure of these products.
NU-VU Foodservice Systems Inc.
5600 13
Menominee, MI 49858
1-800-338-9886
th
Street
PAGE 6
