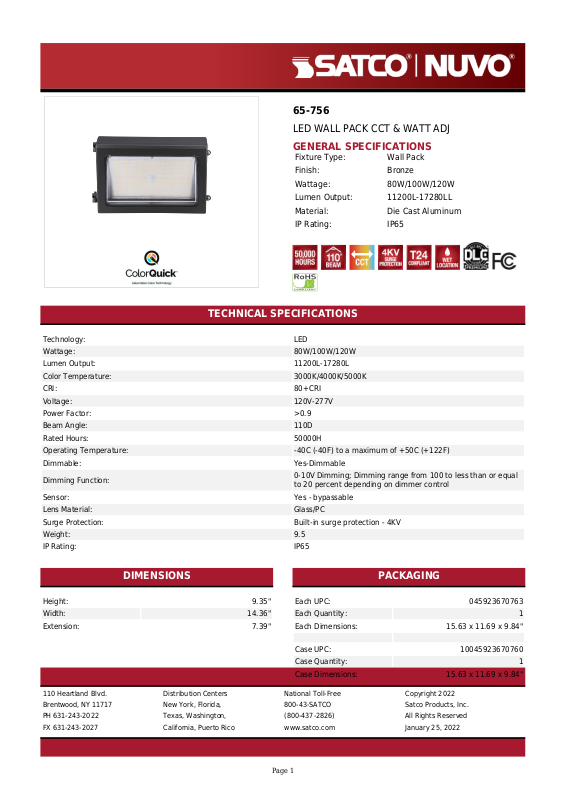

Page 1
65-756
LED WALL PACK CCT & WATT ADJ
GENERAL SPECIFICATIONS
Fixture Type: Wall Pack
Finish: Bronze
Wattage: 80W/100W/120W
Lumen Output: 11200L-17280LL
Material: Die Cast Aluminum
IP Rating: IP65
TECHNICAL SPECIFICATIONS
Technology: LED
Wattage: 80W/100W/120W
Lumen Output: 11200L-17280L
Color Temperature: 3000K/4000K/5000K
CRI: 80+CRI
Voltage: 120V-277V
Power Factor: >0.9
Beam Angle: 110D
Rated Hours: 50000H
Operating Temperature: -40C (-40F) to a maximum of +50C (+122F)
Dimmable: Yes-Dimmable
Dimming Function:
Sensor: Yes - bypassable
Lens Material: Glass/PC
Surge Protection: Built-in surge protection - 4KV
Weight: 9.5
IP Rating: IP65
0-10V Dimming; Dimming range from 100 to less than or equal
to 20 percent depending on dimmer control
DIMENSIONS
Height: 9.35"
Width: 14.36"
Extension: 7.39"
110 Heartland Blvd. Distribution Centers National Toll-Free Copyright 2022
Brentwood, NY 11717 New York, Florida, 800-43-SATCO Satco Products, Inc.
PH 631-243-2022 Texas, Washington, (800-437-2826) All Rights Reserved
FX 631-243-2027 California, Puerto Rico www.satco.com January 25, 2022
Each UPC: 045923670763
Each Quantity: 1
Each Dimensions: 15.63 x 11.69 x 9.84"
Case UPC: 10045923670760
Case Quantity: 1
Case Dimensions: 15.63 x 11.69 x 9.84"
Page 1
PACKAGING
Page 2
COMPATIBLE DIMMERS
Brand Model #
Cooper DF10P
Cooper SF10P
Legrand ADPD4FBL3P2W4
Leviton DS710-10Z
Leviton IP710-LFZ
Lutron DVSCSTV
Lutron DVSTV
Lutron MS-Z101
Lutron MS-Z101V
Lutron NTSTV-DV
Lutron RMJS-8T-DV-B PJ2-3BRL-GWH-L01
110 Heartland Blvd. Distribution Centers National Toll-Free Copyright 2022
Brentwood, NY 11717 New York, Florida, 800-43-SATCO Satco Products, Inc.
PH 631-243-2022 Texas, Washington, (800-437-2826) All Rights Reserved
FX 631-243-2027 California, Puerto Rico www.satco.com January 25, 2022
Page 2
