Page 1
Locat ion Prepared By
[www] 10-12-2020 05:26:19
Project N ame
Notes
General
Status Active
Fixture Type Strip L ight
Finish White
Wattage 40
Lumen Output 4909
CCT (Kelvin) 5000
IP Rating IP44
Ind oor or Outdoor Fixture Ind oor
Spec ifica tions
Technology LED
Color Temperature Natural Light
CRI 80
Voltage 120V-27 7V
Rated Hours 50000
Ope rating Temperatu re
-20C (-4F) to a maximum of +40C
(+104F)
Dimmable 0-10V Dimming Only
Pho tocell Bi-Level Microwave Sen sor
Surge Protection Built-in surge protection - 2K V
Max. Connectable Units
Up to 7 units @ 12 0V; 10 un its @
277V
Weight (lb.) 7.7 0
Dimensions
Height (in.) 2.6 9
Width (in.) 5.1 3
Length (in.) 47.88
Complianc e
Safety Listing cULus
Location Rating Damp
UL Application Ceiling
Ene rgy Star No
DLC Ap prove d Yes
DLC ID PL6 4EZQ0OO0O
CEC Status Not T24 Complian t
CA Prop 65 Lead
RoHS Compliant Yes
Additional Information
Warranty 5 Year Limited - Fixtures

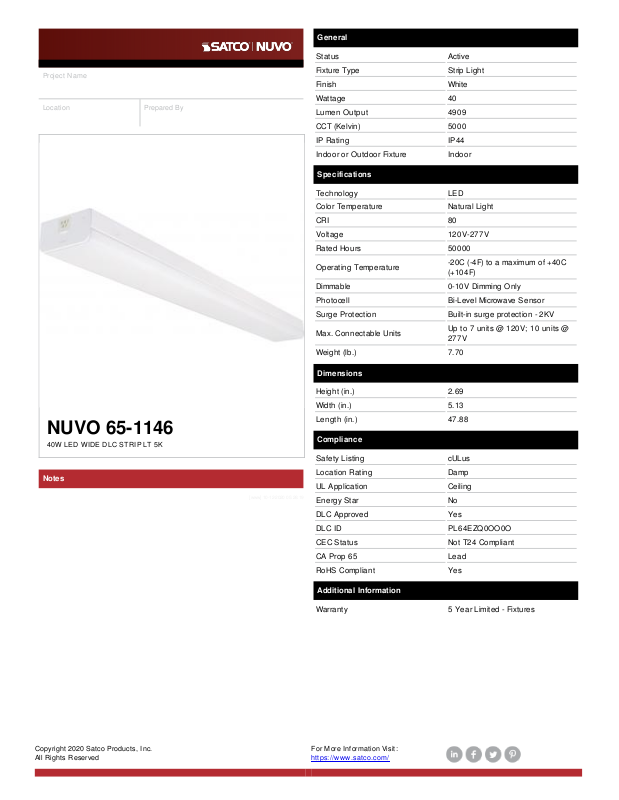

NUVO 65-1146
40W LED WI DE DLC STRIP LT 5K
