NuVision TM808 User Manual

Chapter Title

TM808 Quick Start Guide

v2-073014

For complete Instructions, visit www.nuvision.com

1

Customer Service

NuVision Customer Service
Phone: [phone]

Hours: 8:30am to 5:30pm PST M-F

Email: [e-mail]

For expedited customer service,

please register your tablet at www.nuvision.com

Introduction

Thank you for purchasing the NuVision TM808 8” Windows 8.1 tablet. It utilizes touch
technology to make your personal computing and rich media content experience fast,
seamless and immersive. The tablet is the perfect companion for accomplishing everyday
tasks, enhancing productivity on the go, playing video games, Xbox Music and Video,
taking photos, and surfing the internet with Internet Explorer.

When it’s time to work, the TM808 comes with Microsoft Office 365 Personal which
includes Word, Excel, Outlook, PowerPoint, OneNote, and Access. Find the enclosed
authorization card to begin your one year subscription. In addition, you’ll find many more
features including WiFi, Bluetooth connectivity, mini-HD video port to view content on
an HDTV, a memory card slot for additional storage, dual cameras, and internal storage
of 16GB and 1GB RAM. With a sleek design and bright high-definition IPS touch screen
display, you’ll enjoy your TM808 for many years to come. Using finger gestures you can
swipe down from the top side, up from the bottom edge, or inward from the left and right
edges of the display to navigate the Tablet.

The following information will help you get the most out of your tablet.

3

Features & Package Contents

TM808 Tablet AC Adapter

- 8” 1280 x 800 IPS HD Touch Screen

- Intel Baytrail Quad Core Processor

- Windows 8.1 OS

- 16GB Internal Storage; 1GB RAM

- Front Camera 2.0MP/ Rear Camera 2.0MP

- Bluetooth/ WiFi 802.11b/g/n

- HD video output to TV

- Micro USB

- TF Memory Card Slot

- Office 365 (Authorization Card Included)

4

Transfer Cable

Important Safety Instructions

Please read the following instructions and notices before using your tablet.

1. Avoid using in extremely hot, cold, dusty, damp or wet environments.

2. Excessive use of earphones at high volume may lead to hearing impairment. Limit earphone usage,
and adjust the volume to a moderate level only. Do not use the tablet while walking or driving.

3. Do not suddenly disconnect the tablet when formatting, uploading or downloading data.

This may lead to program errors (e.g. system of screen “freezing”.)

4. If the AC adapter, AC cord or provided cables become damaged in any way, stop using them
immediately. Failure to do so may cause the tablet to malfunction, or corrupt files and/or
memory.

5. Dismantling the tablet will void the manufacturer’s warranty and may present the risk of hazard.

If you are experiencing problems, review the Troubleshooting section of this manual.

6. Improper use of the battery may result in explosion, so please review Batter Care section in this
manual to charge the tablet battery safely.

7. The touch screen is made of glass, so avoid dropping or forcibly placing the tablet onto a hard
surface. Do not use alcohol, thinner or benzene to clean the surface of the tablet.

This may damage the screen or internal electronic components and void warranty.

8. Do not use over-loaded, non-standard power sources or any power cable does not come with
your device.

9. Tablet functions, hardware, software and warranty information may be revised by the
manufacturer or their respective owners, an subject to change without notice.

10. Warning: This product may contain a chemical known to the State of California to cause cancer,
birth defects, or other reproductive harm.

5

Tablet Overview

11

12

14

9

1

3

10

2

13

4

5

6

7

8

6

1. Power: Press and hold for 3 seconds to turn on the tablet.

Press momentarily to enter Sleep mode. This will turn off display and save battery life.
Press and hold to turn off. Slide down to shut off the tablet.

2. DC Indicator: Lit when device is turned on.

3. Headphone: Use headphones for private listening or connect with amplified speakers.

4. Micro USB: Transfer media files to or from your computer to the Tablet; connect
compatible devices like a mouse, keyboard, flash or external hard drive.

5. Mini HD video: Connect to your HDTV and view tablet content on the big screen.

6. Micro TF Memory Card Slot: The built-in storage card reader slot supports an optional
MicroSD memory card for additional storage.

7. MIC: Built-in microphone.

8. DC Input: Plug in AC power adapter to recharge the tablet.

9. Front Camera: Built in 2.0MP front camera to take “selfies”, video chat with

family & friends, or shoot 720p HD videos.

10. Camera Indicator: The indicator will flash on when the built-in camera is in use.

11. Start Menu Button: Press to go directly to the Start Menu to access tiles.

12. Volume- / Volume +: Decrease or increase volume level for speakers or headphones.

13. Loudspeakers: Built in audio speakers to listen to music, podcasts, etc., without
headphones.

14. Camera: Built in 2.0MP rear camera to take HD photos or 720p videos.

7

Starting your Tablet

Power On/Off/Standby Mode

ON: Press and hold the POWER button on the side for about 3 seconds until the logo

screen appears, then release.

OFF: Press and hold the POWER button. When prompted, slide finger downward to

shut off the tablet.

STANDBY MODE: While the Tablet is on, press the POWER button quickly to turn off the

display only. The Tablet will enter a sleep mode which minimizes some of the battery
functions (turn off completely to avoid unnecessary battery drainage).

Press the POWER button quickly to wake from sleep mode so that you can use the

Tablet immediately.
NOTE: Another way to access Power, Shut Down, or Update and Restart is to swipe left
from the right edge of the screen and tap the SETTINGS charm.
To RESET, press and hold POWER button for 10 sec. Press again to turn on.

8

First time Setup

The first time you turn on the tablet, a set up wizard will guide you through a number of
steps to personalize your tablet, set up WiFi and more.

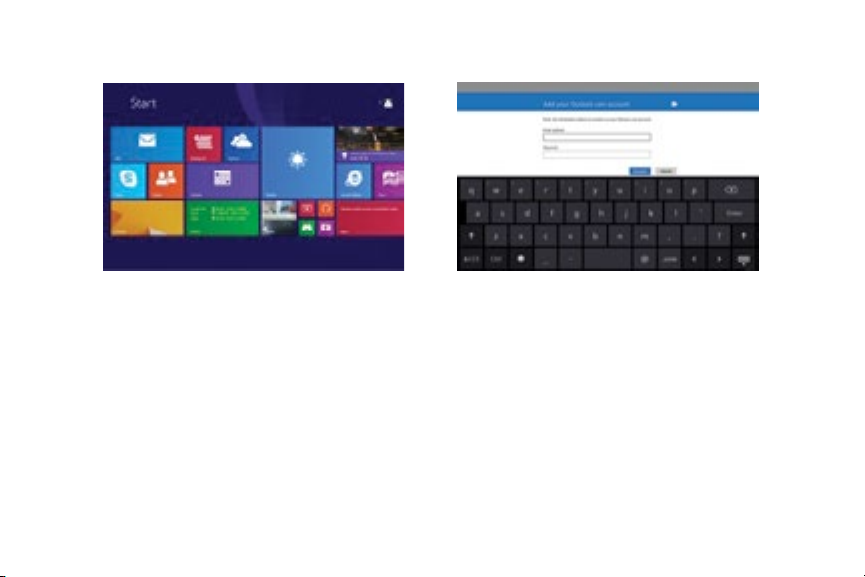

User and Password Setup

Swipe inward at left edge of display to call
up the Charm Menu. when a password is
required You can choose one to sign in to
Surface. Here’s how:

1. Swipe inward at left edge of display
to call up the Charm Menu. Open the
SETTINGS charm, then tap or click PC
settings > Accounts > Sign-in options.

2. Under Password policy, choose an item from the list:
Microsoft account. Choose a time frame or to Always require a password.
Local account. Choose a time frame, Always require a password, or Never require a

password.

NOTE: Password policy setting may not be available if you’ve added a work email
account to the Mail app.

9
