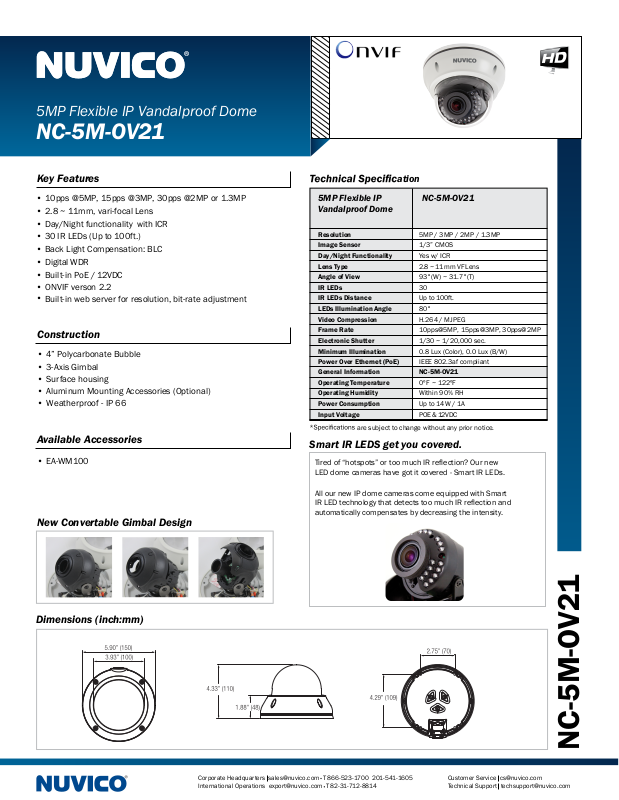

Nuvico NC-5M-OV21 Specsheet

5MP Flexible IP Vandalproof Dome

NC-5M-OV21

Key Features

• 10pps @5MP, 15pps @3MP, 30pps @2MP or 1.3MP

• 2.8 ~ 11mm, vari-focal Lens

• Day/Night functionality with ICR

• 30 IR LEDs (Up to 100ft.)

• Back Light Compensation: BLC

• Digital WDR

• Built-in PoE / 12VDC

• ONVIF verson 2.2

•

Built-in web server for resolution, bit-rate adjustment

Construction

• 4” Polycarbonate

• 3-Axis Gimbal

• Surface housing

• Aluminum Mounting

• Weatherproof - IP 66

Bubble

Accessories (Optional)

Available Accessories

• EA-WM100

ation

5MP Flexible IP
Vandalproof Dome

Resolution
Image Sensor
Day/Night Functionality
Lens Type
Angle of View
IR LEDs
IR LEDs Distance
LEDs Illumination Angle
Video Compression
Frame Rate
Electronic Shutter

Minimum Illumination
Power Over Ethernet (PoE)
General Information
Operating Temperature
Operating Humidity
Power Consumption
Input Voltage

are subject to change without any prior notice.

NC-5M-OV21

5MP / 3MP / 2MP / 1.3MP
1/3” CMOS
Yes w/ ICR

2.8 ~ 11 mm VF Lens
93°(W) ~ 31.7°(T)
30
Up to 100ft.
80°
H.264 / MJPEG
10pps@5MP, 15pps@3MP, 30pps@2MP
1/30 ~ 1/20,000 sec.

0.8 Lux (Color), 0.0 Lux (B/W)
IEEE 802.3af compliant

NC-5M-OV21

0ºF ~ 122ºF

Within 90% RH
Up to 14W / 1A
POE & 12VDC

Smart IR LEDS get you covered.

Tired of “hotspots” or too much IR reflection? Our new
LED dome cameras have got it covered - Smart IR LEDs.

New Convertable Gimbal Design

Dimensions (inch:mm)

All our new IP dome cameras come equipped with Smart
IR LED technology that detects too much IR reflection and
automatically compensates by decreasing the intensity.
