Nuvico EasyView, EasyView MS-Z10N, EasyView MS-Z10P Installation Manual

0

Mini PTZ Speed Dome

1

Mini PTZ Speed Dome

CONTENT VERIFICATION

Before installing the controller, please make sure that the following items are included in
the box:

1. Mini Speed Dome Camera

2. Instruction Manual

3. Mounting Hardware

If any of these materials are missing, please contact the vendor or NUVICO customer
help desk immediately.

2

Mini PTZ Speed Dome

DISCLAIMER

• While every effort has been made to ensure that the information contained in this
guide is accurate and complete, no liability can be accepted for any errors or
omissions.

• NUVICO reserves the right to change the specifications of the hardware and
software described herein at any time without prior notice.

• No part of this guide may be reproduced, transmitted, transcribed, stored in a
retrieval system, or translated into any language in any form, by any means, without
prior written permission of NUVICO.

• NUVICO makes no warranties for damages resulting from corrupted or lost data due
to a mistaken operation or malfunction of the Speed Dome Cameras, peripheral
devices, or unapproved/unsupported devices.

3

Mini PTZ Speed Dome

WARNING AND CAUTION

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR
OTHER OPENINGS ON THE EQUIPMENT.

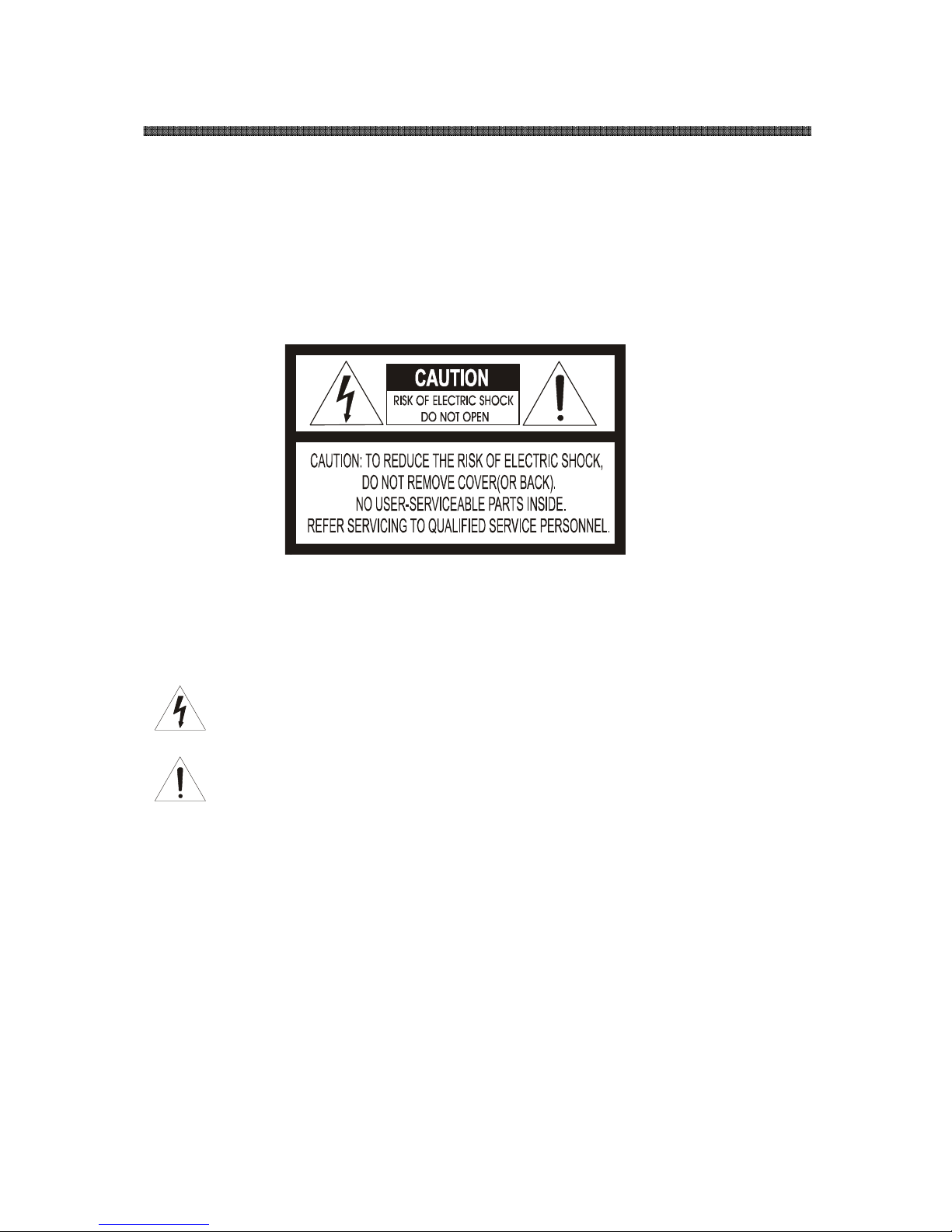

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of uninsulated "dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
persons.

The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instruction in the literature

WARNIN

G

CAUTION

accompanying the product.

4

Mini PTZ Speed Dome

FCC COMPLIANCE STATEMENT

CE COMPLIANCE STATEMENT

FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO

COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO
PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE
REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN
THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. THIS
EQUIPMENT GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY
ENERGY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH THE
INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE TO RADIO
COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL
AREA IS LIKELY TO CAUSE HARMFUL INTERFERENCE IN WHICH CASE THE
USER WILL BE REQUIRED TO CORRECT THE INTERFERENCE AT HIS OWN
EXPENSE.

CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY
THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S
AUTHORITY TO OPERATE THE EQUIPMENT.

THIS CLASS A DIGITAL EQUIPMENT COMPLIES WITH CANADIAN ICES-003.

CET APPAREIL NUMÉRIQUE DE LA CLASSE A EST CONFORME À LA NORME
NMB-003 DU CANADA.

WARNING

THIS IS A CLASS A PRODUCT. IN A DOMESTIC ENVIRONMENT THIS
PRODUCT MAY CAUSE RADIO INTERFERENCE IN WHICH CASE THE USER
MAY BE REQUIRED TO TAKE ADEQUATE MEASURES.

5

Mini PTZ Speed Dome

IMPORTANT SAFEGUARDS

1. Read these instructions.

2. Heed all warnings.

3. Follow all instructions.

4. Do not use this equipment near water.

5. Clean only with dry cloth.

6. Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.

7. Do not install near any heat sources such as radiators, heat registers, stoves, or
other equipment (including amplifiers) that produce heat.

8. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide blade or the third prong is
provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.

9. Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where they exit from the equipment.

10. Only use attachments/accessories specified by the manufacturer.

11. Unplug this equipment during lightning storms or when unused for long periods of
time.

12. Refer all servicing to qualified service personnel. Servicing is required when the
equipment has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the equipment, the
equipment has been exposed to rain or moisture, does not operate normally, or has
been dropped.

13. CAUTION - THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED
SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE
OPERATING INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO.

Use Certified/Listed Class 2 power supply transformer only.

6

Mini PTZ Speed Dome

TABLE OF CONTENTS

CONTENT VERIFICATION............................................................................................. 1

DISCLAIMER.................................................................................................................. 2

WARNING AND CAUTION................. .. .. ... .. .. .. .. .. ... .. .. .. .. .. ... .. ............................ .. .. ... .. .. .. 3

FCC COMPLIANCE STATEMENT.................................................................................4

CE COMPLIANCE STATEMENT ........................ ... .. .. .. .. .. .. ... .. .. .. .. ... .. .. .. .. .. ... .. .. .. .. .........4

IMPORTANT SAFEGUARDS........... ............................ .. .. ... .. .. .. .. .. ............................. .. .. 5

1. INTRODUCTION... .. .. .. ... .. .. .. .. .. ... .. .. .. .. .. ... .. .. .. .. .. ... .. .. .. .. ... .. .. .. .. .. ... .. .. .. ........................ 8

1.1 FEATURES............................................................ .... ... .... .... .... ....... .... .... .... ... .... .... .... ........................8

2. INSTALLATION AND CONFIGURATION........................... .. .. .. ... .. ............................ 9

2.1 TYPICAL SYSTEM CONFIGURATION ..................................................... .... .... .... ....... .... .... .... ... .... ..9

2.2 BASIC CONFIGURATION OF MINI PTZ CAMERA SYSTEM........................................................10

2.3 CONNECTING THE MINI PTZ DIRECTLY INTO THE DVR................................................. ...........11

2.4 CONNECTING THE MINI PTZ INTO THE CONTROLLER VIA J-BOX..........................................11

2.5 CONNECTING BOTH MINI PTZ AND DVR VIA J-BOX..................................................................12

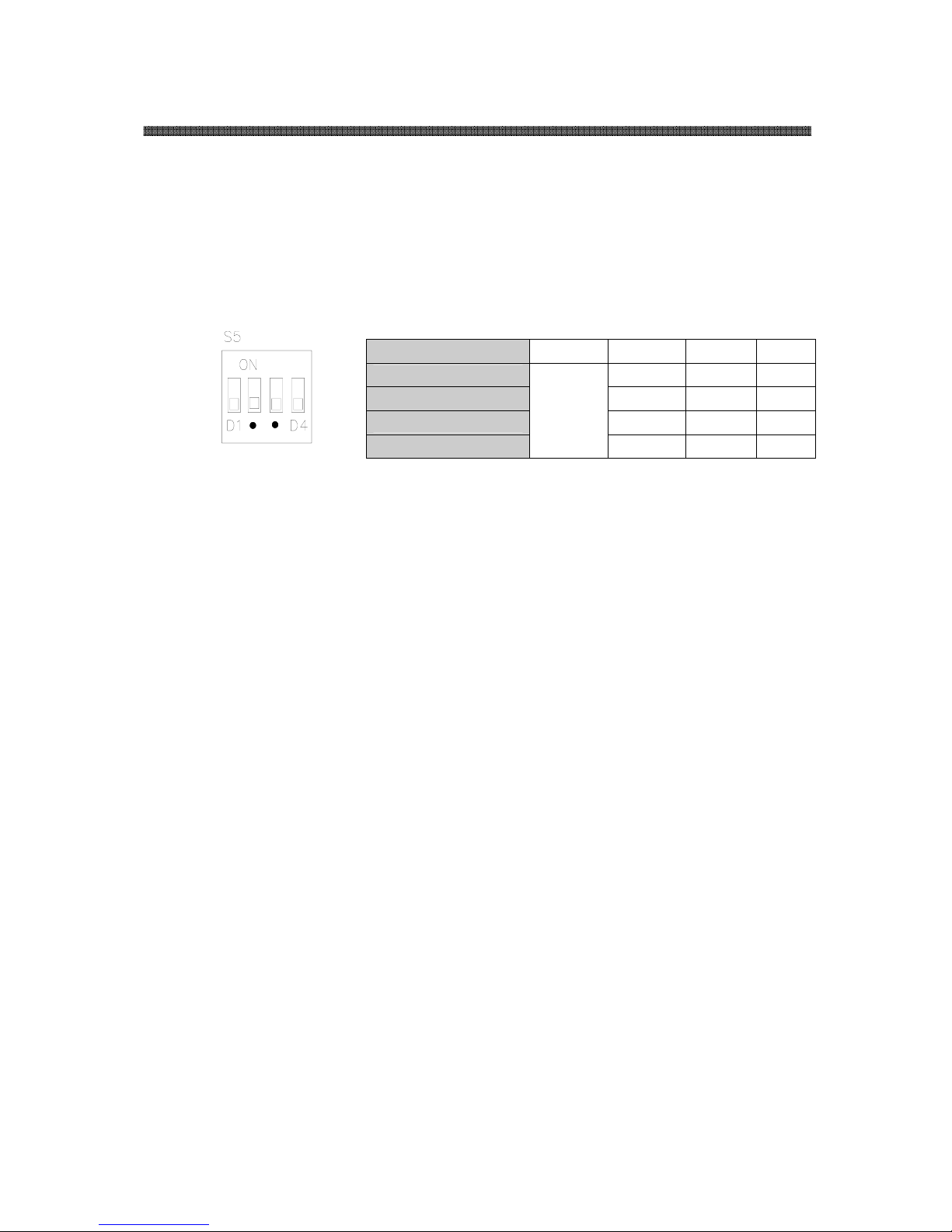

2.6 PRINCIPLE OF TERMINATION.......................................................................................................14

2.7 MINI PTZ ADDRESS (ID)........................................................................ ... .... ........ .... ... .... ...............16

2.8 SETTING PROTOCOLS......................................................................................... ... .... .... .... ...........17

2.9 CONNECTIONS.................................................................... .... ... .... .... .... .... ... ........ .... ... ...................17

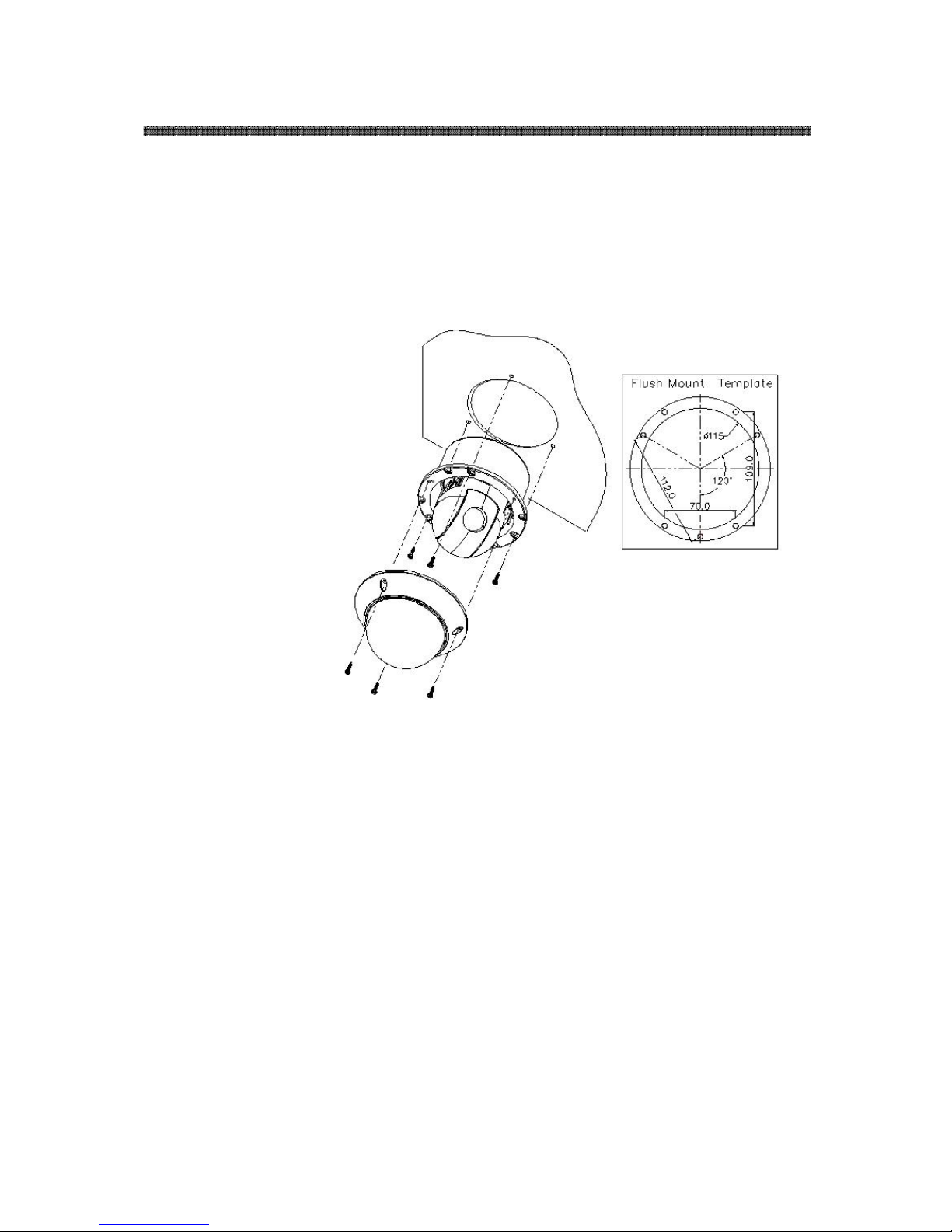

3.0 MOUNTING THE MINI PTZ CAMERA.............................................................................................19

3.1 POWER ON & BOOT-UP SEQUENCE............................................................................................20

3. PROGRAM & OPERATION................ ... .. .. .. .. .. ... .. .. .. .. .. ... .. .. .. .. .. ... .. .......................... 21

Dome Camera Selection.......................................................................................................................21

3.1 FUNCTIONS ......................................................................... .... ... .... .... .... .... ... .... ........ ......................22

3.1.1 HOME FUNCTION (MENU =>FUNCTIONS => HOME FUNCTION) .................................................................................22

3.1.2 PRESET ( MENU => FUNCTIONS => PRESET Shortcut:PRST ) ....................................................................................23

3.1.3 PATTERN ( MENU => FUNCTIONS => PATTERNS or Shortcut: PTRN ).......................................................................25

3.1.4 SCAN ( MENU => FUNCTIONS => SCAN or Shortcut: SCAN ).....................................................................................26

3.1.5 TOUR ( or MENU => FUNCTIONS => TOUR, Shortcut: TOUR ) ...................................................................................28

3.2 ALARM ( MENU => ALARM)............................................................................................................30

3.3 SCREEN ................................................................................... ....... .... .... ... .... .... .... ... .......................31

3.3.1 LANGUAGE ( MENU => SCREEN => LANGUAGE ).......................................................................................................32

3.3.2 PRIVACY ZONE ( MENU => SCREEN => PRIVACY ZONE ) ..........................................................................................32

3.3.3 NORTH DIRECTION ( MENU => SCREEN => NORTH DIRECTION ).............................................................................33

3.3.4 ZONE TITLE ( MENU => SCREEN => ZONE TITLE )......................................................................................................34

3.3.5 CAMERA TITLE ( MENU => SCREEN => CAMERA TITLE ) ..........................................................................................35

3.4 CAMERA ( MENU => CAMERA ).......................................................................................... ....... ....35

3.4.1 FOCUS CONTROL( MENU => CAMERA => FOCUS CONTROL ) .................................................................................36

3.4.2 WB (White Balance) ( MENU => CAMERA => WB CONTROL ) ....................................................................................36

3.4.3 AE CONTROL ( MENU => CAMERA => EXPOSURE SETUP ) ......................................................................................37

3.4.4 BACK LIGHT COMPENSATION ( MENU Î CAMERA ÎBack Light ) .....................................................................37

7

Mini PTZ Speed Dome

3.4.5 SHARPENSS CONTROL ( MENU => CAMERA =>SHAPENESS ).................................................................................37

3.4.6 DIGITAL ZOOM ( MENU => CAMERA =>DIGITAL ZOOM )............................................................................................37

3.4.7 NIGHT SHOT MENU ( MENU => CAMERA =>NIGHT SHOT ) ........................................................................................38

3.4.8 CAMERA INITIALIZE ( MENU => CAMERA =>CAMERA INITIALIZE ) ..........................................................................38

3.5 SETUP ( MENU => SETUP ) ............................................................................................................39

3.5.1 FLIP ( MENU => SETUP => FLIP )...................................................................................................................................39

3.5.2 SPEED ( MENU => SETUP => SPEED )..........................................................................................................................39

3.5.3 PRESET FREEZE ( MENU => SETUP => PRESET FREEZE ).......................................................................................39

3.5.4 PANNING RANGE ( MENU => SETUP => PANNING RANGE )......................................................................................39

3.5.5 CALIBRATION ( MENU => SETUP => CALIBRATION )..................................................................................................40

3.5.6 LINE LOCK CONTROL ( MENU => SETUP => LINE LOCK CONTROL ).......................................................................40

3.5.7 FACTORY DEFAULT ( MENU => SETUP => FACTORY DEFAULT ).............................................................................41

3.5.8 ERASE DATA ( MENU => SETUP => ERASE DATA ) ....................................................................................................41

3.5.9 SYSTEM INFORMATION (MENU => SETUP => SYSTEM INFORMATION)...................................................................41

APPENDIX A — SPECIFICATIONS............................................................................. 42

APPENDIX B — TROUBLESHOOTING ......................................................................44

GLOSSARY.................................................................................................................. 45

8

Mini PTZ Speed Dome

1. INTRODUCTION

1.1 FEATURES

The Speed Dome Camera features a high resolution 1/4” Interline Transfer CCD imager

for enhanced lowlight sensitivity. User friendly, on-screen pull-down menus and short­cuts make it easy to setup and program functions.

System information aides troubleshooting by displaying the hardware and software
version of the camera’s firmware version, baud rate, and protocol.

• Built-in 10X times Optical Power Zoom Camera.

True Night Shot function with ICR Day/Night function.

• 128 programmable Presets with view direction, zoom, and BLC.

• 4 Patterns record and play back user preference of surveillance path up to 120 sec.

• 8 Scans: 8 speed steps from slow to medium panning with smooth DiagonalScan.

• 4 Tours: Each tour consists up to 32 Preset, Pattern, and Scan.

Smooth DiagonalScan mode and programmable Individual dwell time camera

functions.
(Speed, Dwell time BLC, Focus, IRIS of the preset)

• 4 Alarm inputs with 1~4 priority / 1 Auxiliary outputs programmable NC & NO.

• 8 Privacy Zones: Video off or up to 8 masked blocks

• 64 steps of variable speed from 0.4°/sec to 90°/sec.

Max manual speed 410°/sec with Turbo key pressed, Preset speed is 410°/sec.

• Programmable user preferences of speed (Slow, Medium, and Fast).

• Addressable up to 99 camera IDs (Extendable up to 3999 in special mode).

• Built-in RS-485 receiver driver.

• On-site software upgrade and upload/download of programmed data into the

KBD/Dome.

• Built-in power-line surge protection and lightning protection.

• Optional Tinted Bubble, Indoor & Outdoor pendant housing, Heater & Blower.

Flush Mount Kit

9

Mini PTZ Speed Dome

2. INSTALLATION AND CONFIGURATION

2.1 TYPICAL SYSTEM CONFIGURATION

Additional Speed Dome joystick controllers and a variety of external switching devices
such as multiplexers (MUXes) and Digital Video Recorders (DVRs) may be incorporated
to accommodate the needs from a small to a large surveillance/security system.

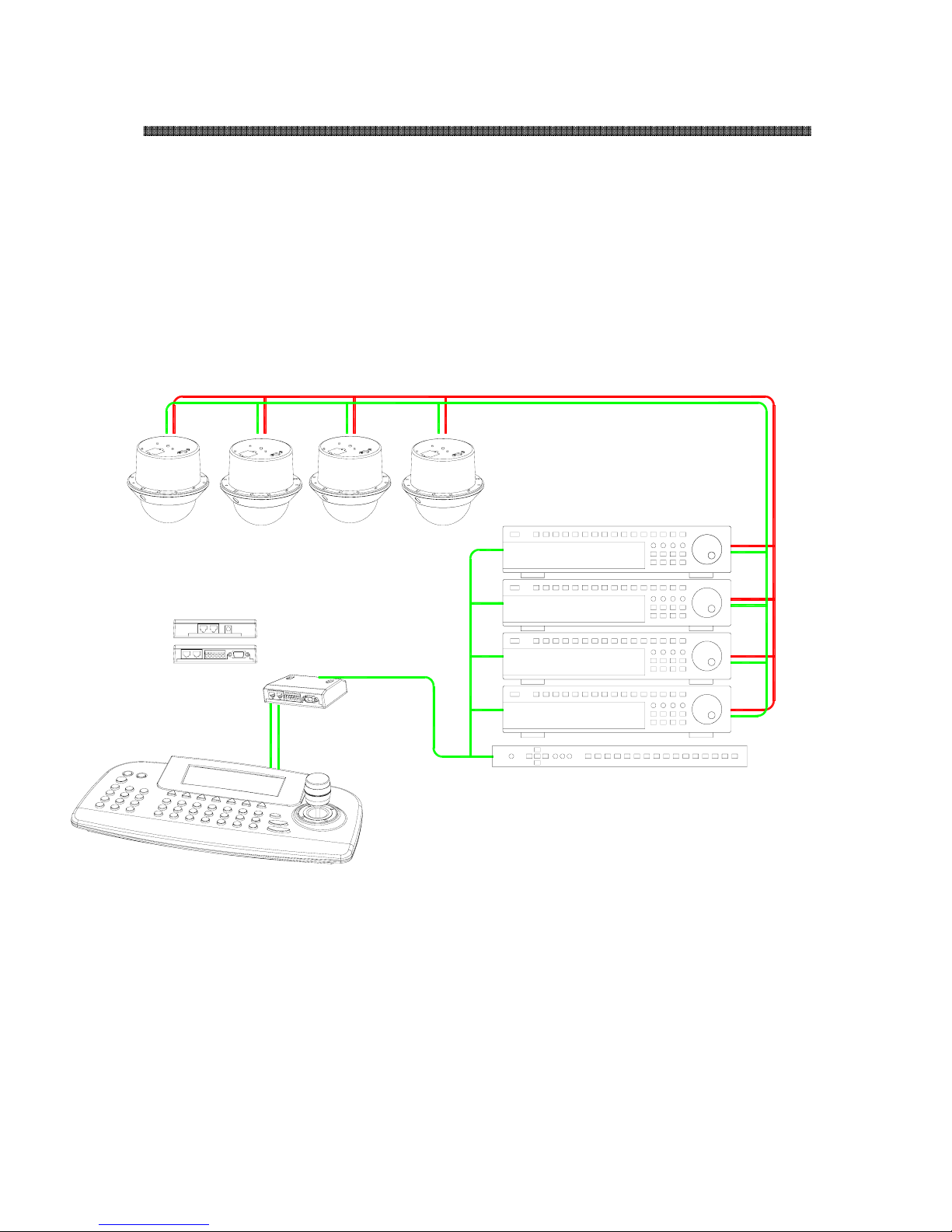

Figure 1 illustrates sample installation.

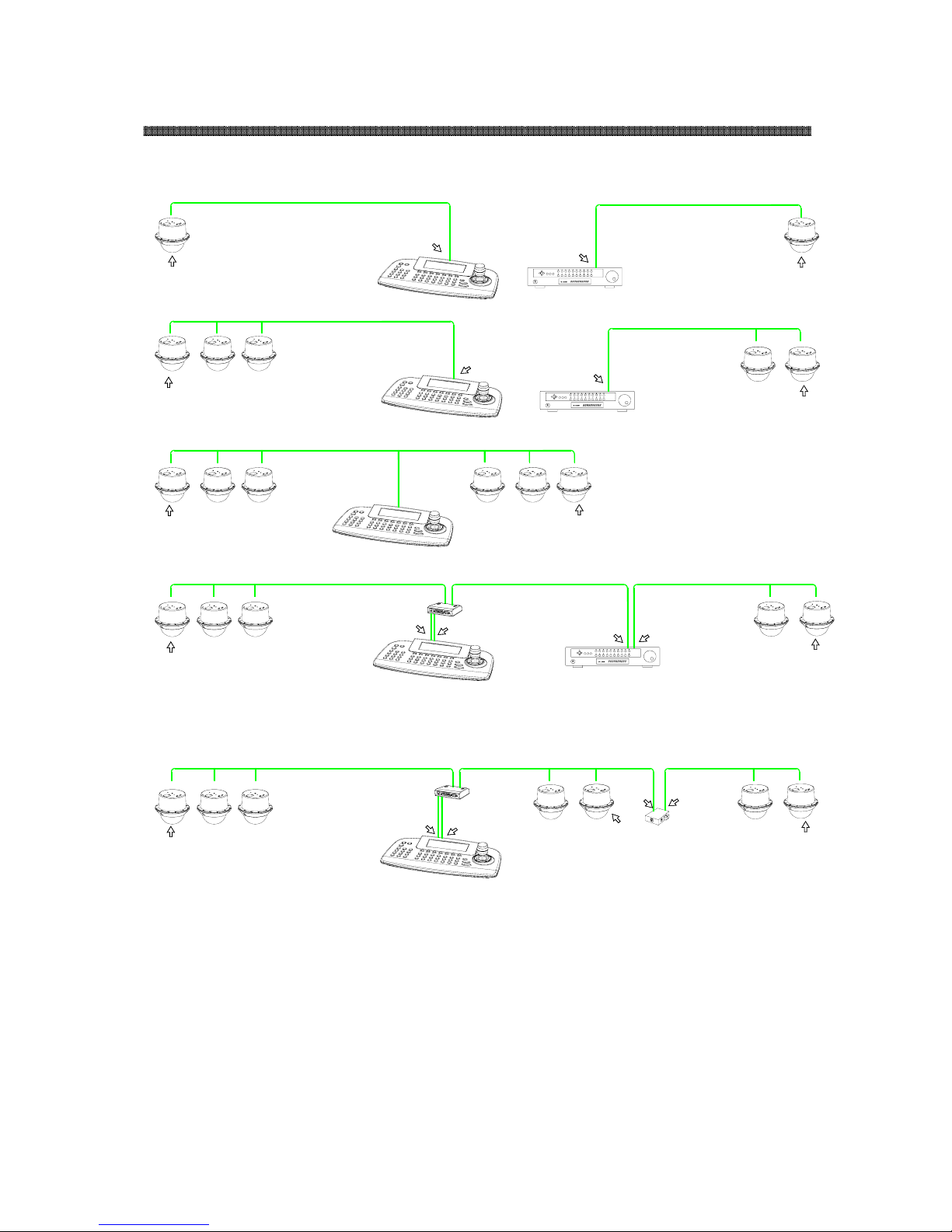

Figure 1 - Typical System Configuration

10

Mini PTZ Speed Dome

STP AWG # 22

V

I

D

E

O

BNC MONITOR

AC 24V

POWER

HALF DUPLEX MODE

RS-485

TRX-

TRX+

TRX+

TRX-

CONTROLLER

DOME

C

O

M

M

.

(

T

R

X

+

/

T

R

X

-

)

P

O

W

E

R

A

C

2

4

V

A

C

2

4

V

H

E

A

T

E

R

1 AUX OUTPUT

4 ALARM INPUT

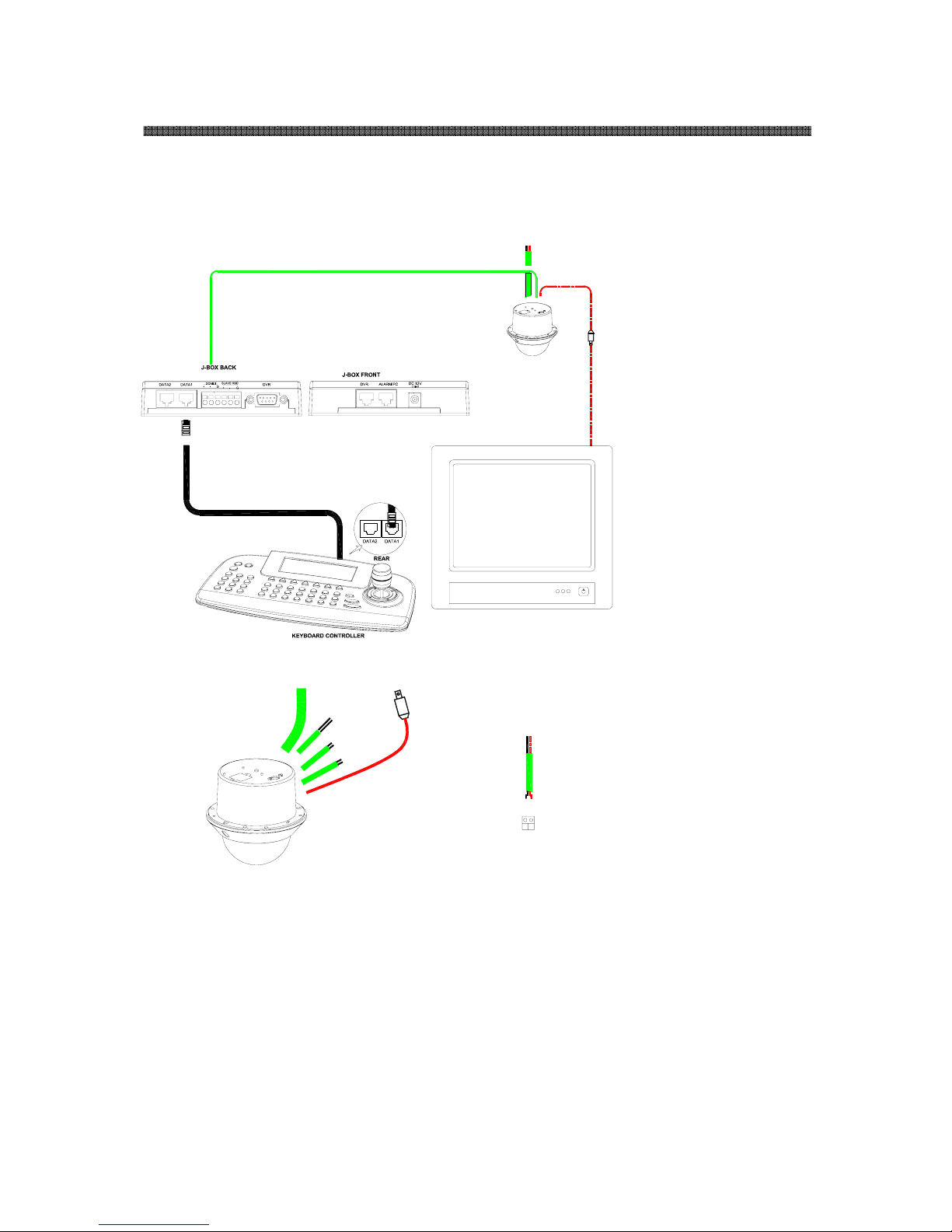

2.2 BASIC CONFIGURATION OF MINI PTZ CAMERA SYSTEM

Figure 2 - Basic Installation Diagram

11

Mini PTZ Speed Dome

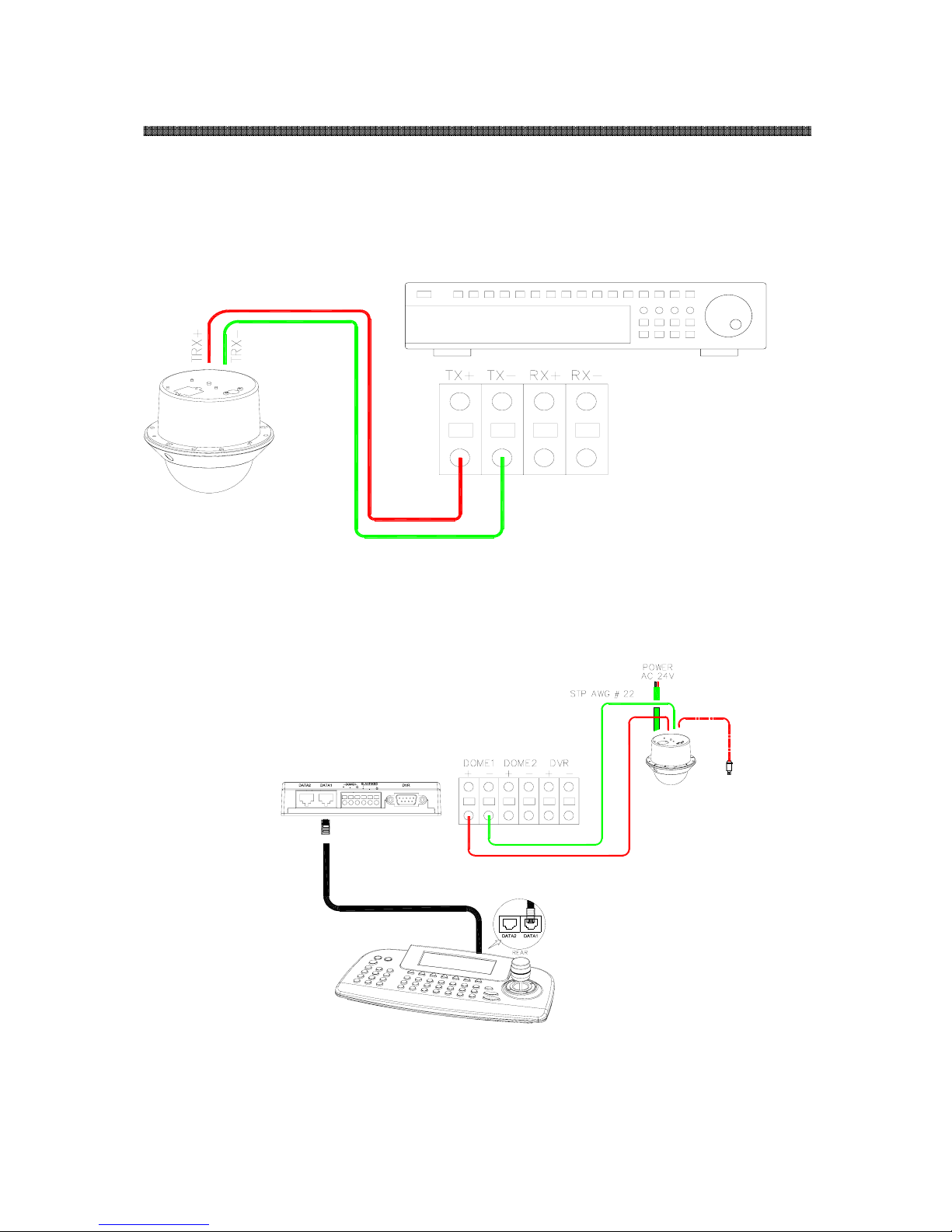

2.3 CONNECTING THE MINI PTZ DIRECTLY INTO THE DVR

• Locate the RS485 + & - conductor wire from the Speed Dome Camera.

• Connect the + & - into the TRX+ & TRX- ports of the DVR. Tx+ & Tx- ports can be

found in the rear part of the DVR.

Figure 3 - Camera into DVR

2.4 CONNECTING THE MINI PTZ INTO THE CONTROLLER

VIA J-BOX

Figure 4 - Camera into Controller

12

Mini PTZ Speed Dome

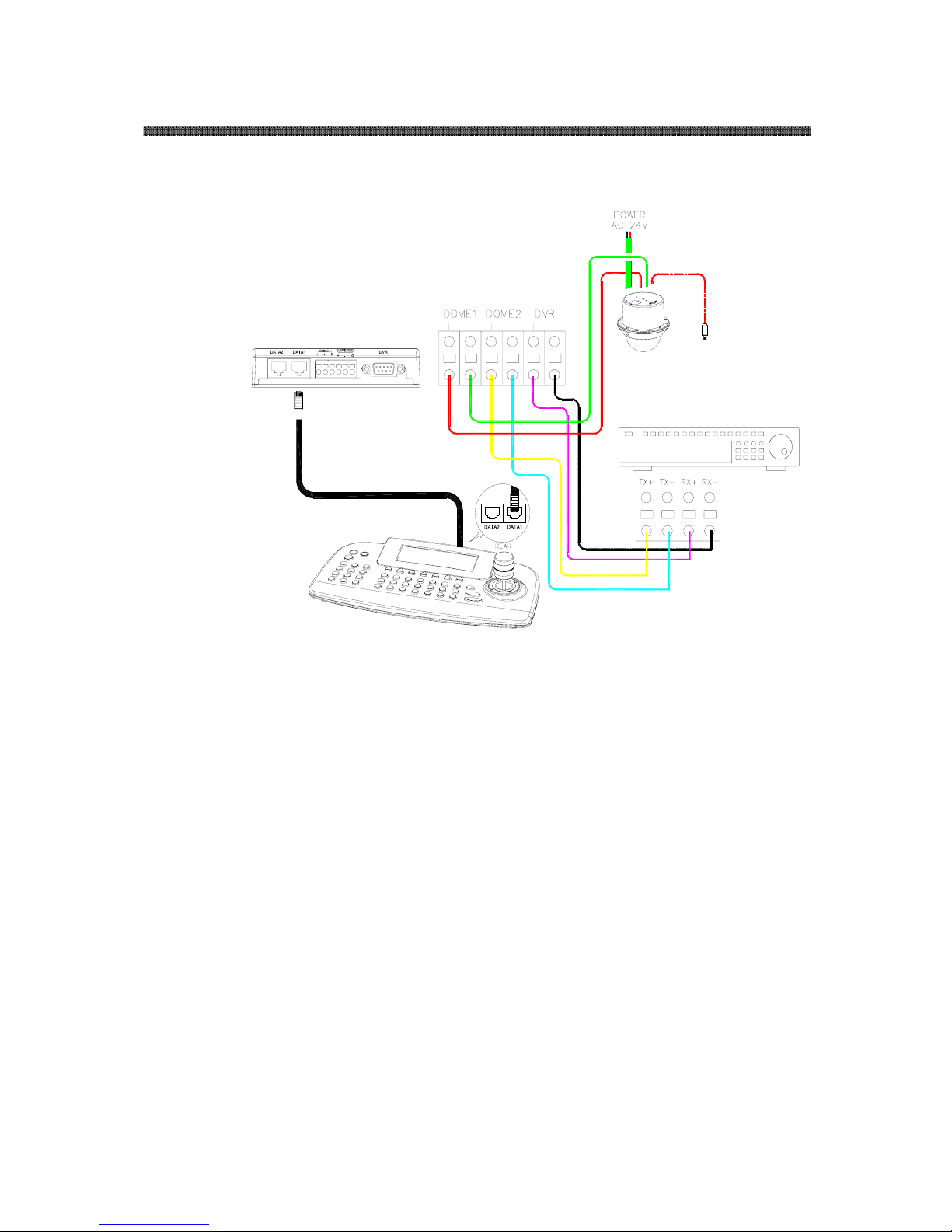

2.5 CONNECTING BOTH MINI PTZ AND DVR VIA J-BOX

Figure 5 - Connecting Camera & DVR into Controller

13

Mini PTZ Speed Dome

Video

Power AC 24V~

Comm.(RX/TX)

Heater AC 24V~

1 Aux Output

4 Alarm Input

Fan

1

2

3

4

5

6

7
8

9

0

S2

S1

9

8

7

6

5

4
3
2

0

1

Selection Switches

S4 S3S5

Address(ID)

Termination

Protocol

The dome camera must be installed by qualified service personnel. Before installing the
dome camera system, this instruction manual must be read thoroughly and understood
fully. Dome cameras must be set up properly before starting the installation. This
involves properly setting configuration switches. Figure 6 shows the location of these
switches.

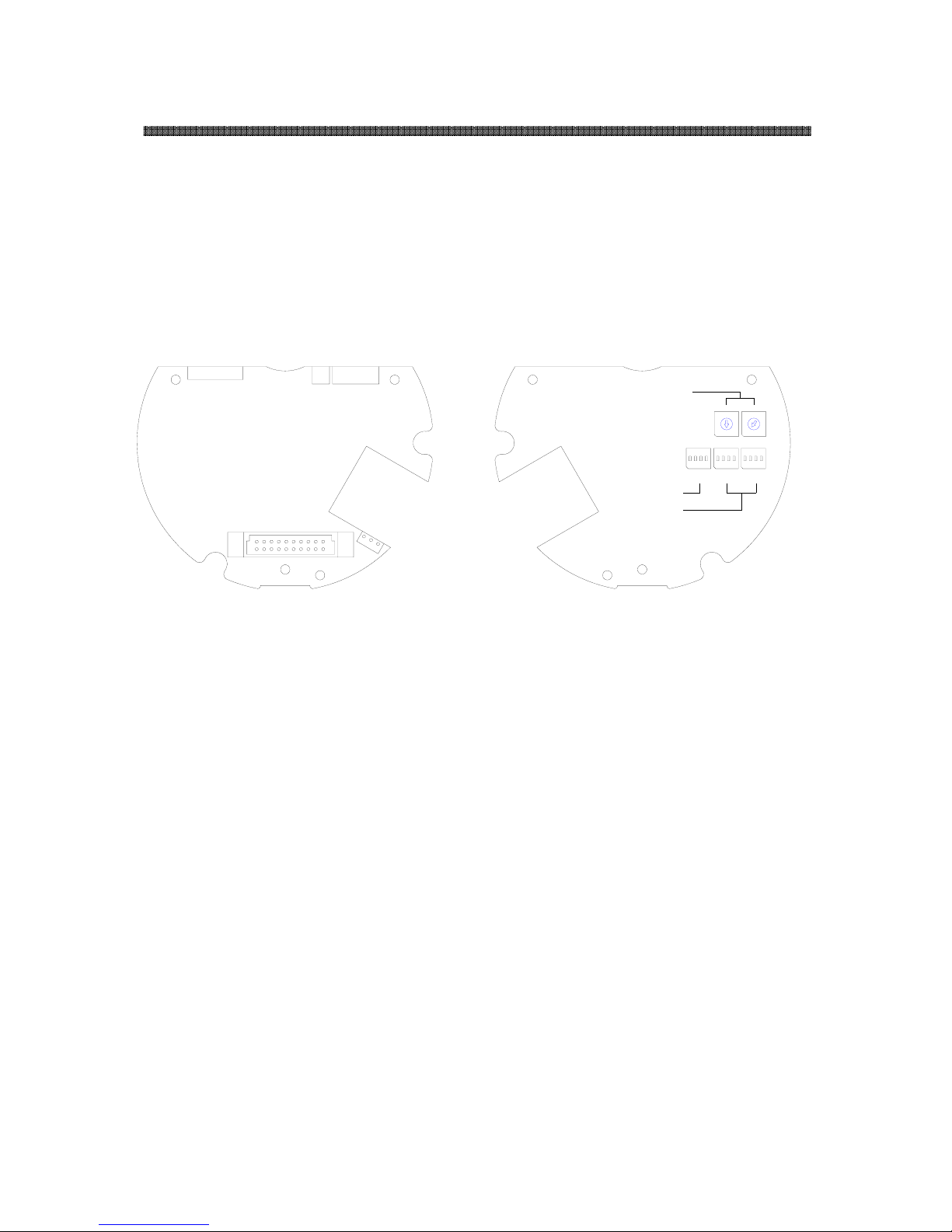

Figure 6 - Layout of Switches

14

Mini PTZ Speed Dome

2.6 PRINCIPLE OF TERMINATION

Every device that is connected at the end of the communication data line must be
terminated by either the DIP switch setting or an appropriate device such as a
termination jumper to prevent potential control signal errors.

See Figure 6 for termination switch settings and Figure 7 for examples of devices
requiring termination. Note: Total length of the cable for communication should not
exceed 1.2Km or .74 mile.

** Unless communication error, put the position 2, 3 of the S5 in OFF state.

Position 2, 3 should be set as a pair. (Both 2, 3 to ON position or OFF position)

Figure 7 - Setting Dome Camera Termination

S5 D1 D2 D3 D4

Terminated X X ON

Not terminated X X OFF

Pull Up/Down ** ON ON X

Normal **

Not

Used

OFF OFF X

15

Mini PTZ Speed Dome

Figure 8 - Termination Diagram

SW1:Termination ON

SW!:Termination ON

TERMINATION ON

SW1:Termination ON

DVR Termination ON

S1:Dome1 po r t Termin a t ion ON

S1:Dome1 port Termination ON

SW1:Termin a t io n ON SW1:Termination ON

DVR Termination ON

SW1:Termin a t io n ONSW1:Termination ON

SW1:Termination ON

SW1:Termination ON

S1:Dome1 port Termination ON

S4:DV R port Terminat ion ON

DVR T e rmination ON

DVR Termination ON

SW1:Termination ON

S1:Dome1 port Termination ON

S3:Do me2 po r t Termination ON

SW1:Termination ON

16

Mini PTZ Speed Dome

1

2

3

4

5

6

7

8

9

0

S2

S1

S3

S4

3
2

6

5

4

8

7

9

1

0

on

on

D1 D4 D5 D8

....

2.7 MINI PTZ ADDRESS (ID)

Each dome camera must have a unique address (ID). Identical IDs on the same line
may damage the control circuit caused by an electrical short. When installing multiple
dome cameras or a DVR, it is recommended that the dome camera ID’s be identical to
the camera port of the DVR.

Cam Port 1 = Dome ID1, Cam Port 2 = Dome ID 2 … Cam Port 16 = Dome ID 16.
If more than 16 dome cameras are installed using two or more DVRs the following

formula is useful to determine the Dome ID: ID =16x (n-1) +m (where n= number of
DVR, m=Camera Port)

Refer to Figures 9 for setting the dome camera address (ID) and protocol selection.

Figure 9 - Setting Dome Camera Address (ID) and Protocol

DOME ID

S2 S1

1 0 1

.

. .

99

9 9

17

Mini PTZ Speed Dome

2.8 SETTING PROTOCOLS

A

Mini PTZ camera is capable of negotiating with multiple protocols if the

communication speed is matched (same baud rate i.e., 9600 bps). See Figure 10 for the
appropriate protocol switch settings.

Note: Consult service personnel if a dome camera is installed with a device other than a

recommended Speed Dome Controller.

Figure 10 - Protocol Selection tables

2.9 CONNECTIONS

• How to Connect RS485

The dome camera has a built-in RS-485 receiver so that it can be controlled
remotely by an external control device such as a joystick controller or a DVR.

RS-485: Connect the TXA (Tx+) and TXB (Tx-) of the RS485 control devices

(KBD, DVR…) to TRX+, TRX- of the dome camera.

RS-485 does not allow for a star connection layout. A splitter is required if a
star connection layout is desired. RS-485 guarantees 1.2 Km of data line
routing. A repeater is recommended to extend over 1.2 Km.

Dip S/W Function

D1
D2
D3

S4

D4

Protocol

D5
D6
D7

Baud Rate

S3

D8 Extended ID

Protocol D1 D2 D3 D4

AUTO Selection(no parity)

DEFAULT

Off Off Off Off

AUTO selection(even parity) On Off Off Off

PP Off On Off Off
EZ On On Off Off
S2 Off Off On Off

PD On Off On Off

VC Off On On Off
SN On On On Off

DC Off Off Off On

KReserved On Off Off On

PPS Off On Off On
SReserved On On Off On
SReserved Off Off On On

VVL On Off On On
DDI Off On On On

Reset On On On On

Baud Rate D5 D6 D7

2400 bps Off Off Off
4800 bps Off Off ON

9600 bps Off ON Off
19200 bps Off ON ON
38400 bps ON Off Off

Extended ID D8

1~99 Off

1~3999 On

18

Mini PTZ Speed Dome

• Connecting Video output
Figure 2 – Basic installation diagram

• Connecting Alarms

AL1 to 4 (Alarm In)

Magnetic, PIR or other external sensor devices can be used to signal the
dome camera reacting to an event.

See Chapter 3.2 — Program and Operation for configuring alarm input.

GND (Ground)

NOTE: All the connectors marked GND are common.

Connect the ground of the Alarm input and/or alarm output to the GND
connector.

NO / NC (Normally Opened or Normally Closed dry contact relay output)

The dome camera can activate external devices such as buzzers or lights
using dry contact relays. Connect the device to the NO (NC) (Alarm Out) and
COM (Common) connectors. See Chapter 3 — Program and Operation for
configuring alarm output.

• Connecting the Power

Connect AC 24V 40VA power to the dome camera.

Use certified / Listed Class 2 power supply transformer only.

19

Mini PTZ Speed Dome

3.0 MOUNTING THE MINI PTZ CAMERA

Once all DIP switches are set properly and all external connections are made, the dome
camera can be mounted.

The

Mini PTZ camera is designed to mount on a structural body supporting loads up to

3 Kg. See Figure 11.

Figure 11 - Example of a flush mounted installation

Installation Hint
Using Four ST4X30 screws, affix flush mount base to sturdy surface

20

Mini PTZ Speed Dome

3.1 POWER ON & BOOT-UP SEQUENCE

When the power is applied to the dome camera, it will start the boot-up sequence.
When boot-up is done, the following information is displayed on the monitor screen.

On Screen Display in normal control mode

RAM TEST

CHECK NO. : OK!

CHECK AAAA : OK!

CHECK 5555 : OK!

SD SERIES Vx.xxx

CAMERA TYPE xxxx

WAIT DOME SETTING.

INIT TILT ORIGIN SET OK

INIT PAN ORIGIN SET OK

INIT CAMERA SET OK

001PRESET W→

EMPTY DATA !

ALARM:1

360.0,090.0 CAM xxxx

Preset No.

Information

Alarm Display

Dome Camera Title

Dome Camera ID

Compass Direction

Pan & Tilt Angle

Preset Title
Or Area Title

21

Mini PTZ Speed Dome

3. PROGRAM & OPERATION

Dome Camera Selection

Prior to start programming or operating a dome camera, please make sure that both the
camera and the joystick controller are communicating. In order for changes to take
effect for a camera, particular camera’s ID must be selected on the controller.

Example: Pressing 1 , 6 and CAM key sequentially will select dome camera 16. The

selected dome camera ID will be displayed on the monitor.

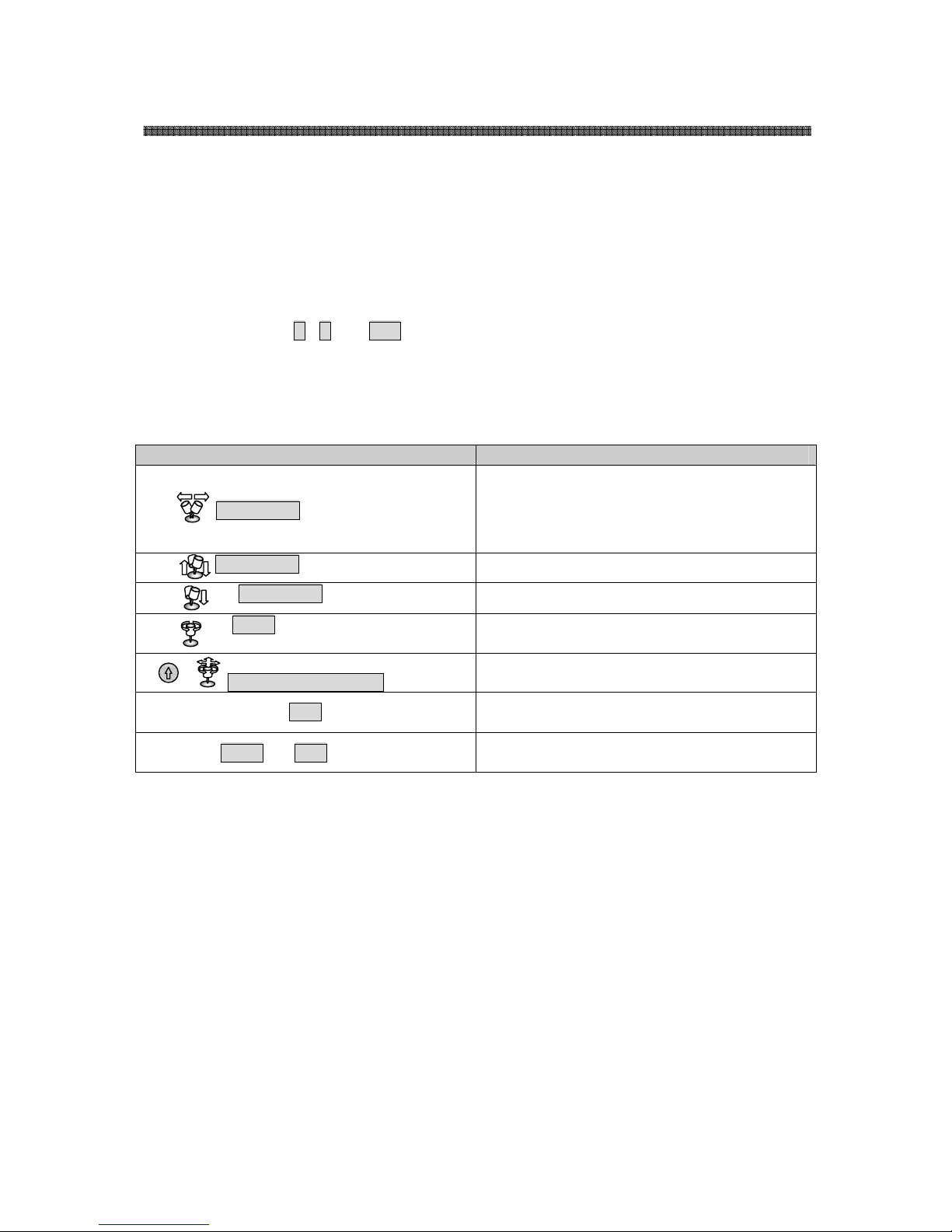

Principle of joystick usage in the programming (editing) mode

Button or Joystick movement in menu Function

Joystick left or right

Go into the sub-menu items.
Execute the command(exit)
Change value.
Navigate through the menu items.

Joystick up or down

Navigate through the menu items.

Joystick down

Finish editing title.

Zoom handle twist

Change value.(Increase / Decrease)
Enter editing title mode.

SHFT + Joystick

PTZ control mode.

ESC

Escape from the menu without change.

Home or Off button

Delete value or name of the field.

22

Mini PTZ Speed Dome

3.1 FUNCTIONS

By pressing the MENU button on the keyboard controller, the following On-screen MAIN

MENU will be shown on the monitor screen.

Select the

FUNCTIONS and then move the joystick to the right to access FUNCTIONS

menu.

3.1.1 HOME FUNCTION (MENU =>FUNCTIONS => HOME FUNCTION)

After

HOME FUNCTION item has been selected, follow the directions below to set

HOME function.

FUNCTION : Tour/ Preset/ Pattern / Autoscan
NUMBER : - - -

MAIN MENU

FUNCTIONS
ALARM
SCREEN
CAMERA
SETUP
EXIT

FUNCTIONS

HOME FUNCTION
PRESET
PATTERN
SCAN
TOUR
EXIT

HOME FUNCTION

FUNCTION : TOUR
NUMBER : --­TIME : 60 SEC
OPERATION : DISABLE
SAVE AND EXIT

23

Mini PTZ Speed Dome

TIME : 10~240 Seconds
OPERATION : DISABLE

The

HOME function applies to the predefined functions such as Preset, Tour, Pattern,

or Scan function after the keyboard controller has been idle for a programmed time.

Follow the steps below to program the

Home function:

1. Select the camera number by pressing No. and CAM

2. Press MENU to display the main menu on the monitor.

3. Moving the Joystick to the right on “FUNCTIONS”.

4. Enter Home Function menu by moving the Joystick to the right.

5. Moving the Joystick to the right/ left (or twist CCW/CW) to scroll Tour, Pattern,
and Auto Scan and Preset functions.

6. Select Function Number by pulling the Joystick down, and twist the Joystick
to the CCW/CW (or turn right/left). The executable function number will be scrolled.
If selected function is not programmed, it won’t change. Go to setup function first.

7. Pull the Joystick down and twist the Joystick to CCW/CW (or twist the
joystick to right/left) to set waiting time.

8. Highlight OPERATION option by pulling the Joystick down. Choose operation
status Enable or Disable by moving the Joystick to the right or to the left (or
twist CCW/CW).

3.1.2 PRESET ( MENU => FUNCTIONS => PRESET Shortcut:PRST )

Preset stores pan, tilt, zoom, focus and iris settings. Once programmed, pressing
combination of 0 ~9 numbers and the Preset button on the controller should
automatically call up the preset position. Presets may be assigned to alarm actions or
as the “home” position for the dome camera.

Highlight

PRESET and then move the joystick to the right to enter PRESET menu.

FUNCTIONS

HOME FUNCTION
PRESET
PATTERN
SCAN
TOUR
EXIT

24

Mini PTZ Speed Dome

There are 8 pages of preset programming menu. Each page can hold up to 8 presets.
Locate the “PREV NEXT”, preset menu pages can be scrolled by moving the
Joystick to the Left or Right on the “PREV NEXT”.

F :

Focus I : IRIS B : BLC

X : 16 digit of preset title

- : not defined

█ : Current cursor position

Follow the steps below to program the Preset positions.

1. Select the camera number by pressing 0 ~9 and CAM.

2. Simply press PRST button to enter preset menu. ( MENU => FUNCTIONS =>

PRESET)

3. Select the empty preset location to be programmed by moving the Joystick
up/down. If selected location is not empty, pressing PRST button will display the
predefined position.

4. After selecting an empty position, press and hold SHFT/PGM then use the

Joystick to control the direction of the camera and lens.(Or twist the zoom handle or

press the zoom button to start PTZ control for view selection.)

5. After aiming the camera (view direction and lens control) to a specific position,
release SHFT/PGM button (or hit the focus button). The selected location No. field
will be filled with “A A F”. Move the joystick to the right to select each Focus/ Iris
/BLC mode using zoom handle.

6. Move to the title field to edit/enter the name. Rotate the handle CW and CCW or
press Tele or Wide button to scroll through the alphanumeric characters. Moving
the handle to right or left to select next or previous digit.

7. To finish entering the title, move the Joystick up/down.

8. Locate the cursor on “PREV NEXT” item to select the previous/next page of
presets, scroll through the page by moving the Joystick to the Left on “PREV

NEXT”.

PRESET 01/8

NO. F I B TITLE
001 A A F xxxxxxxxxxxxxxxx
002 M M O ---------------­003 - - - ---------------­004 - - - ---------------­005 - - - ---------------­006 - - - ---------------­007 - - - ---------------­008 - - - ---------------­PREV NEXT
SAVE AND EXIT

25

Mini PTZ Speed Dome

9. Repeat the steps 2 through 8 for each additional preset position.

10. Select Save and Exit by moving the Joystick to the right. Press ESC to exit the
Preset menu without saving.

NOTE: Press the Home or OFF button at programmed position to delete the
preset.

SHORTCUT TO PROGRAMMING PRESETS.

Select direction of the camera, zoom and focus to be programmed, then press No.
(1~64), and then press SHFT, PRST subsequently. The current view will be stored to
the selected preset number if position is empty. If selected preset number is not empty,
“PRESET EXISTING” message will be displayed on the monitor and you will be
prompted to overwrite.

Example: 1, 0 + PGM + PRST will memorize current view as preset No. 10. In this case,

focus and Iris mode will be memorized as auto and dwell time will be set to 3 sec.

3.1.3 PATTERN ( MENU => FUNCTIONS => PATTERNS or Shortcut:
PTRN )

The Pattern function memorizes and stores movement of the selected dome camera for
up to 60 seconds. Pattern can be stored in 60 seconds of total recording space. Stored
pattern is played back by pressing No.+ PTRN buttons subsequently.

Follow the steps below to program the Pattern:

1. Press MENU key to display the main menu on the monitor.

2. Simply press the PTRN key. (or MENU => FUNCTIONS =>PATTERN)

3. Select the empty Pattern number to be programmed by moving the Joystick Up
or Down. If SEC column is not 000, then the selected No. of pattern is already
recorded.

PATTERN SETUP

NO. TITLE SEC
01 : xxxxxxxxxxxxxxxx 000
02 : xxxxxxxxxxxxxxxx
03 : xxxxxxxxxxxxxxxx
04 : xxxxxxxxxxxxxxxx
TOTAL : 000

SAVE AND EXIT

26

Mini PTZ Speed Dome

4. Press and hold down the SHFT/PGM key while controlling the camera direction
and zoom with the Joystick. The pattern movement will automatically be
recorded until releasing the SHFT/PGM key. This procedure can be repeated to
reprogram the pattern.

(Or twist zoom handle or hit zoom button to start PTZ control for view selection and

hit the Focus button to stop.)

5. Scroll down to the Save and Exit option and move the Joystick to the right to
save and exit.

6. Naming the Pattern can be done by twisting the Joystick. Rotate the handle
clockwise or counterclockwise to scroll through the alphanumeric characters,
move the handle to right or left to select next or previous space.

7. Pressing ESC will not save recorded data and will exit to the previous menu.
Press the HOME or OFF button at any programmed position to delete the
programmed pattern.

NOTE: If total recording time reaches 120 seconds, it will automatically stop for a
moment and start recording again. Previous data will be overwritten.

3.1.4 SCAN ( MENU => FUNCTIONS => SCAN or Shortcut: SCAN )

The Scan function supports up to 4 programmed sections of angles at 8 programmable

speeds.

SPEED (MODE): 1/ 2 / 3/ 4/ 5/ 6/ 7/ 8/ SLOW / MEDIUM

1: SLOWER ↔ 8 FASTER
SLW : smooth DiagonalScan in slowest speed
MID : smooth DiagonalScan in medium speed
DiagonalScan shows moving path from start point to end point
including tilt and zoom** simultaneously.

**Some models do not change zoom ratio

SCAN MENU 01/8

SCAN 01 : AUTOSCAN01
SPEED : 1~8/SLW/MID
START : NONE
END : NONE
DIRECTION : CCW
SWAP : OFF
SAVE AND EXIT

27

Mini PTZ Speed Dome

Follow the steps below to program Scans.

1. Press the SCAN key to enter Auto Scan menu directly. (Or MENU => FUNCTIONS

=> SCAN).

2. Select an Auto Scan number by moving the Joystick left or right.

3. Twist the Joystick to enter the title by scrolling through the alphanumeric
characters and move the handle to the right or left to move to the next space.
Press ENTR key or move the Joystick down to finish title mode.

4. When finish entering the title, select “START ANGLE” with the Joystick. Hold
down the SHFT/PGM key while selecting the start position using the Joystick.
Current panning position will be displayed. Release SHFT/PGM key to complete
the selection of the start position. (Or twist zoom handle or hit zoom button to start
PTZ control for view selection and hit the Focus button to stop.)

5. Move the Joystick downward to select “END ANGLE.” Hold down the
SHFT/PGM key while moving the Joystick to select the end position. The end
position angle should be larger than start position. Release the SHFT/PGM key to
complete the selection of the end position. (Or twist zoom handle or hit zoom
button to start PTZ control and hit the Focus button to stop.)

6. Move the Joystick downward to select “Tilt & Zoom.” Set the zoom and tilt
angle by holding down the SHFT/PGM key.

7. Moving the Joystick downward to select “Speed” and set the speed by twisting
the Joystick clockwise or counterclockwise or move the Joystick left/ right to
select the auto scan speed.

8. Select Save and Exit by moving the Joystick to the right. Press ESC to exit the
program without saving.

Pressing the HOME or OFF button to delete stored data, 000 will be displayed
immediately.

28

Mini PTZ Speed Dome

3.1.5 TOUR ( or MENU => FUNCTIONS => TOUR, Shortcut: TOUR )

There are 4 programmable Tours. Each Tour consists of up to 8 Preset positions,
Patterns, Scans or other Tours. Using second-level Tours, it can be expanded up to 56
functions in a single Tour. However tours in the second level Tour will be ignored when
called by the first level Tour. This can be best illustrated by the following example:

IF Tour 01 : Preset 02, Preset 03,Tour 02, Tour 03
Tour 02 : Preset 05, Preset 06, Tour 04, Preset 05
Tour 03 : Preset 07, Pattern 01
Tour 04 : Preset 08. Preset 05, Pattern 01

Tour1 executes as follows:
Preset 02 Î Preset 03 Î Preset 05 Î Preset 06 Î Preset 05 Î Preset 07 Î
Pattern 01 Î ... (Repeat) ---Tour 04 in Tour 02 will be skipped in Tour 01

Tour 02 executes as follows:

Preset 05 Î Preset 06 Î Preset 08 Î Preset 05 Î Pattern 01 ÎPreset 05
… Repeat (Tour 04 is still valid if called directly from Tour 02.)

xxxxx

: 16 digits of title for tour label

- - - : blank preset position
Speed : F-Normal/ M- Medium D.Scan/ S- Slowest D.Scan
DWell : 03-99 Sec

PRST : PRESET 1~64
PTRN : PATTERN 1
SCAN : SCAN 1~4
TOUR : TOUR 2~4

TOUR 01:xxxxxxxxxxxxxxxx

01/04

FUNC NO S DW TITLE
PRST 064 S 03 ---------------­PTRN 004 S 03 ---------------­SCAN 016 S 03 ---------------­TOUR 004 S 03 ----------------

---- --- - 03 ----------------

---- --- - 03 ----------------

---- --- - 03 ----------------

---- --- - 03 ----------------

PREV NEXT

SAVE AND EXIT

29

Mini PTZ Speed Dome

Follow the steps below to program the Tours:

1. Press MENU => FUNCTIONS => TOUR, Short Cut: TOUR MENU to display the
main menu on the monitor. No. + SHFT+TOUR will open directly Tour No.

2. Choose an empty location of function by moving the Joystick up or down.

3. Stored Preset view can be recalled by pressing Prst button, the camera will move
to the stored Preset view.

4. To place predefined functions as a Tour, press the function buttons (such as Tour,
Ptrn, or Scan ,Prst ).

Then select function No. by twisting the Zoom handle. (Programmed function No.
will be scrolled).
To remove functions from the Tour, press the HOME or Off button, blank position
mark (- - -) will be displayed. You can overwrite the programmed position.

5. Repeat Step 2 through 4 for each desired position. Each title will be displayed on
top of the line.

6. Up to 8 Presets, Tours, Patterns Scans can be selected for a Tour. You can
expand the Tour sequence by calling other programmed tours. Moving the
Joystick handle to right or left while the cursor is on the top of the line (TOUR

01) to select another page of the Tour menu. (TOUR 01)

8. You can enter a title for the selected Tour by twisting the Joystick while the
cursor is on the top of the line (TOUR 01). Rotate the handle clockwise or
counterclockwise to scroll through the alphanumeric characters. Move the handle to
the right or left to select the next or previous digit.

9. Select Save and Exit by moving the Joystick to the right. Press ESC to exit the
program without saving.

NOTE: All functions should be programmed before being referred to in the tour menu.
Otherwise functions won’t be selectable by item 4 in the procedure.

30

Mini PTZ Speed Dome

3.2 ALARM ( MENU => ALARM)

Highlight

ALARM in the main menu and move the joystick to the right to access

ALARM setup.

NO : Alarm input number

FUNC : Priority 1~4 calls Preset(xxx),

Priority 0 supports dedicated functions like a Pattern(Pxx), Tour(Txx),
Scan(Sxx).

PRI : Lower No. has higher priority, Equal priority alarms will be serviced
repeatedly.
IN : NO/NC - normally open /Closed, OFF - ignore
OUT : R01 - Relay out 1, OFF - No output.
HLD : Alarm will be held for programmed time (01 to 99 seconds)
LATCH : ON - Shows all alarms including past alarm, OFF - Shows activated
alarms only.

There are 5 levels of priority. 0 : Highest priority supports repeated/dedicated
functions like a Pattern(Pxx), Tour(Txx), Scan(Sxx). 1~4: Same level of alarm
calls presets one after the other.
Ex) Alarm 01 calls Pattern 01, after alarm 01 is released alarm 02, 03 will call

preset 48 and preset 01

MAIN MENU

FUNCTIONS
ALARM
SCREEN
CAMERA
SETUP
EXIT

ALARM SETUP

NO FUNC PRI IN OUT HLD LATCH
01 P01 0 OFF OFF 001 OFF

02 048 3 OFF OFF 001 OFF
03 001 1 OFF OFF 001 OFF
04 --- 3 OFF OFF 001 OFF

SAVE AND EXIT

31

Mini PTZ Speed Dome

1. Press Menu to display the main menu on the monitor. Select the Alarm option by
moving the Joystick up/down and then move to the right to enter the detail menu.

2. Select the alarm input number by moving the Joystick up or down and select the
column to setup. Selected position will be highlighted.

3. Select the Preset, Status of Input (NC/NO/OFF), and Output (OUT1~2/OFF) by
moving the Joystick to the right or to the left.

4. To increase or decrease the preset number or to change the status or output
number, twist the Joystick clockwise or counterclockwise. In case of preset,
programmed preset number will be scrolled.

5. Locate the cursor on Save and exit and moving the Joystick to the Save and
exit.

Press ESC to exit the program without saving.

3.3 SCREEN

By pressing the MENU button on the keyboard controller, the following On-screen MAIN

MENU will be shown on the monitor screen.

Highlight

SCREEN and then move the joystick to the right to enter SCREEN menu.

MAIN MENU

FUNCTIONS
ALARM
SCREEN
CAMERA
SETUP
EXIT

SCREEN MENU

LANGUAGE
PRIVACY ZONE
NORTH DIRECTION
ZONE TITLE
CAMERA TITLE

OSD DISPLAY

EXIT

32

Mini PTZ Speed Dome

3.3.1 LANGUAGE ( MENU => SCREEN => LANGUAGE )

Moving the joystick handle to the right to select LANGUAGE options.

Preferred language will be scrolled by moving the joystick to the right on LANGUAGE

ENGLISH.

3.3.2 PRIVACY ZONE ( MENU => SCREEN => PRIVACY ZONE )

Highlight PRIVACY ZONE and then move the joystick to the right to enter the menu.

This function disables the viewing of restricted areas for privacy reasons. It offers
masking up to 8 unwanted views in a camera.

LANGUAGE SETUP

LANGUAGE ENGLISH
SAVE AND EXIT

SCREEN MENU

LANGUAGE
PRIVACY ZONE
NORTH DIRECTION
ZONE TITLE
CAMERA TITLE

EXIT

PRIVACY ZONE SETUP

NO TITLE MASK
01 xxxxxxxxxxxxxxxx ON BLOCK
02 xxxxxxxxxxxxxxxx OFF V.OFF
03 NONE ---­04 NONE ---­05 NONE ---­06 NONE ---­06 NONE ---­08 NONE ---­SAVE AND EXIT

33

Mini PTZ Speed Dome

1. Select the Privacy Zone option by moving Joystick Up or Down and move the
joystick to right to enter the detail menu.

2. Select the privacy zone number by moving the Joystick up or down.

3. To enter the zone name, rotate the handle clockwise or counterclockwise. Select
alphanumeric characters by rotating the handle. Move to the next character position by
moving the Joystick to the right. To finish entering the title, move the Joystick down
or press the ENTR key.

4. To adjust the “marked” (privacy) area, press and hold down the SHFT/PGM key and
then use the Joystick (direction and zoom) until getting desired view. Release the
key, the right column will be set to ON. (Or twist the zoom handle or hit the zoom button
to start PTZ control for view selection and hit the Focus button to exit from control
mode.)

5. Use the Home key to delete the marked zone, or move the Joystick to the right or
left to turn the stored zone On or Off.

6. Select the Save and Exit option by moving the Joystick up or down. Save and exit
the program by moving the Joystick to the right. Press ESC to exit the program
without saving.

Press the HOME or Off button to delete programmed privacy zone.

3.3.3 NORTH DIRECTION ( MENU => SCREEN => NORTH DIRECTION )

Move the joystick handle to the right to select NORTH DIRECTION options.

1. Select DISPLAY option to turn on or off the function.

2. Move to POSITION item to set north direction, press and down the SHFT/PGM key
and then use the Joystick (direction and zoom) until to get the desired direction.
Release the key then current pan angle will be displayed on position item. (Or twist the
zoom handle or hit the zoom button to start PTZ control for view selection and hit the
Focus button to exit from control mode.)

NORTH DIRECTION

DISPLAY : OFF
POSITION : 000.0
SAVE AND EXIT

34

Mini PTZ Speed Dome

3.3.4 ZONE TITLE ( MENU => SCREEN => ZONE TITLE )

Enter a specific name in sectioned angle between START and END.

DISPLAY: ON/OFF zone title on the screen

1. Press MENU => SCREEN => ZONE TITLE to display zone title menu on the monitor.

2. Select the zone number by moving the Joystick up or down. Select Start, End or
number column to be set by moving the handle to the right or left. The selected column
will be highlighted.

3. Twist the joystick handle on the No. column to enter zone title. Select alphanumeric
characters by rotating the handle. Move to the next character by moving the Joystick
to the right. To finish entering the title, move the Joystick down.

4. To adjust panning limit, press the SHFT/PGM key and hold down. Then use the
Joystick to go the desired direction. The end limit must be in an increasing direction.
(Start < End). (Or twist the zoom handle or hit the zoom button to start PTZ control for
view selection and hit the Focus button to exit from control mode.)

5. PREV NEXT : go to previous page or next page of the menu

6. Save and exit the program by moving the Joystick to the right. Press ESC to exit the
program without saving.

ZONE TITLE

01/04
DISPLAY : ON
NO TITLE START END
01 WINDOW 123.4 345.6
02 ----- ---­03 ----- ---­04 ----- ---­05 ----- ---­06 ----- ---­PREV NEXT
SAVE AND EXIT

35

Mini PTZ Speed Dome

3.3.5 CAMERA TITLE ( MENU => SCREEN => CAMERA TITLE )

Move the joystick handle to the right to select

CAMERA TITLE options.

This function allows the users to set the title of camera as well as the usage of on

screen display of the title.

1. Twist the joystick handle on the TITLE : CAMERA NO to enter camera title.
Select alphanumeric characters by rotating the handle. Move to the next character
by moving the Joystick to the right. To finish entering the title, move the
Joystick down.

2. Select DISPLAY option to turn on or off the function.

POSITION : turn on or off the coordinates display.
FAN DETECTION : turn on or off the fan icon display.
Save and exit with joystick handle to right ( Or ESC to exit without saving)

3.4 CAMERA ( MENU => CAMERA )

NOTE: The menu features will vary depending on the camera module.

CAMERA MENU

FOCUS CONTROL
WB CONTROL
EXPOSURE SETUP
BACK LIGHT : OFF
SHARPNESS : 31
DIGITAL ZOOM : OFF

(2X/4X/MAX)
NIGHT SHOT
CAMERA INITIALIZE
SAVE AND EXIT

CAMERA TITLE

TITLE : CAM NO
DISPLAY : ON
POSITION : ON
FAN DETECTION : OFF
SAVE AND EXIT

36

Mini PTZ Speed Dome

3.4.1 FOCUS CONTROL( MENU => CAMERA => FOCUS CONTROL )

MODE : AUTO / ONE-PUSH / MANUAL

AUTO : Focus is automatically adjusted with moving zoom.
ONE-PUSH : Focus is automatically adjusted just once, after zoom position is changed.
MANUAL : Focus can be manually adjusted, independent of moving zoom.

CAUTION: Please avoid continuous, 24-hour use of the auto focus under heavy

movement condition. This will shorten the lifespan of the lens.

3.4.2 WB (White Balance) ( MENU => CAMERA => WB CONTROL )

MODE MANUAL / OUTDOOR / INDOOR / AWC
R GAIN 0 ~ 100
B GAIN 0 ~ 100
Use the AWC mode for normal use.
RGAIN / BGAIN modes are controllable only in MANUAL Mode
Moving the Joystick to the right or left to change.

NOTE: “ONE PUSH” means that when rotating the Joystick handle for a
moment the lens moves to adjust the focus for the subject. The focus lens then
holds that position until the Joystick handle rota t io n.

CAMERA MENU

FOCUS CONTROL: AUTO

WB SETUP

MODE : AWC
R GAIN : 30
B GAIN : 40
EXIT

37

Mini PTZ Speed Dome

3.4.3 AE CONTROL ( MENU => CAMERA => EXPOSURE SETUP )

BRIGHT : 0~100
IRIS : AUTO / M.100

SHUTTER : ESC(NOR) / 1/60 / A.FLK
AGC : NORMAL / HIGH / OFF
DNR(SSNR) : OFF / LOW / MID. / HIGH
On screen noise reduction
DSS : AUTO / OFF
This feature ensures clear images at night or under low lighting

conditions.

3.4.4 BACK LIGHT COMPENSATION ( MENU Î CAMERA ÎBack
Light )

Objects in front of bright backgrounds will be clearer with BLC ON.

LOW / MID. / HIGH / OFF

3.4.5 SHARPENSS CONTROL ( MENU => CAMERA =>SHAPENESS )

Higher the value, outlines of the image will be enhanced (0~31)

3.4.6 DIGITAL ZOOM ( MENU => CAMERA =>DIGITAL ZOOM )

OFF - Optical zoom only

2x,4x, Max. - Digitally magnifies up to 2x, 4x 10x respectively.

EXPOSURE SETUP

BRIGHT : 025
IRIS : AUTO
SHUTTER : ESC(NOR)
AGC : NORMAL
DNR(SSNR) : OFF
DSS : AUTO
EXIT MENU

38

Mini PTZ Speed Dome

3.4.7 NIGHT SHOT MENU ( MENU => CAMERA =>NIGHT SHOT )

The NIGHT SHOT option removes the IR Cut filter of the camera and makes
the camera sensitive to near infrared.
If NIGHT SHOT mode of the selected camera is set to Manual, 10+ ON will
enable the NIGHT SHOT mode, 10+ OFF will turn off the NIGHT SHOT
mode.

MODE : MANUAL / AUTO

AUTO – Camera automatically goes into B&W mode at low light.

MANUAL - Manually controls the Night Shot mode in LOCAL
CONTROL option. On/Off Night Shot mode remotely by
pressing 10+ ON/ 10+ OFF.

3.4.8 CAMERA INITIALIZE ( MENU => CAMERA =>CAMERA
INITIALIZE )

Returns all changed camera values to factory default.

NIGHT SHOT SETUP

MODE : AUTO
LOCAL CONTROL : COLOR
EXIT

CAMERA INITIALIZE

ARE YOU SURE : (Y/N)
YES : ENTER OR MENUKEY
NO : ESC KEY

39

Mini PTZ Speed Dome

3.5 SETUP ( MENU => SETUP )

CONFIGURATION MENU

FLIP FUNTION : ON
P/T SPEED : FAST
PRESET FREEZE : OFF
PANNING RANGE
CALIBRATION
LINE LOCK CONTROL
FACTORY DEFAULT
ERASE DATA
SYSTEM INFORMATION
SAVE AND EXIT

3.5.1 FLIP ( MENU => SETUP => FLIP )

When the Speed Dome camera is mounted on a ceiling, it can track a moving target in a
path directly below the camera:

ON - When the camera reaches the moving object directly above the floor, the dome

camera tracks the object smoothly with a digitally corrected image.

OFF – The dome camera does not perform a flip.

3.5.2 SPEED ( MENU => SETUP => SPEED )

User can select preferable speed curves of manual control.( FAST / MEDIUM / SLOW)

3.5.3 PRESET FREEZE ( MENU => SETUP => PRESET FREEZE )

This option is used to set the pause previous image until the preset action is complete.

3.5.4 PANNING RANGE ( MENU => SETUP => PANNING RANGE )

PAN RANGE SETUP

RIGHT LIMITE : 000.0
LEFT LIMT : 007.2
ENABLE : ON / OFF
SWAP RIGHT LEFT
SAVE AND EXIT

40

Mini PTZ Speed Dome

When the dome camera is installed near a wall or on a corner, panning range can be
limited by user.

3.5.5 CALIBRATION ( MENU => SETUP => CALIBRATION )

RESET ORIGIN : Calibrate the ORIGIN point.
OFFSET ORIGIN : Adjust the small amount of position error from re-

installation.
ACTIVE OFFSET : Apply the adjustment above or not
AUTO CALIBRATION : ON – When position error detected, recover

automatically.

OFF – Disregard the position error.

3.5.6 LINE LOCK CONTROL ( MENU => SETUP => LINE LOCK
CONTROL )

MODE INTERNAL / EXTERNAL Adjusts phase of picture with other
PHASE 0~359 cameras in EXTERNAL mode.

EXIT (ESC TO EXIT)

CALIBRATION

RESET ORIGIN
ORIGIN OFFSET : 000.0 , 000.0
ACTIVE OFFSET : DISABLE/ENABLE
AUTO CALIBRATION : OFF
SAVE AND EXIT

LINE LOCK SETUP

MODE : INTERNAL
PHASE : (0~359)
EXIT

41

Mini PTZ Speed Dome

3.5.7 FACTORY DEFAULT ( MENU => SETUP => FACTORY DEFAULT )

Programmed data go back to initial state as ex-factory

3.5.8 ERASE DATA ( MENU => SETUP => ERASE DATA )

Erase programmed data in the EEPROM of the selected dome camera. Press MENU or
ENTER button to erase data, ESC key to exit without erasing. Origin offset value is not

affected.

CAUTION: Unless you download the data into a safe place, all the data in the selected

dome camera will be lost. (Refer to Download/ Upload data function in the
Keyboard Configuration utility)

3.5.9 SYSTEM INFORMATION (MENU => SETUP => SYSTEM
INFORMATION)

This screen shows information of the dome camera for service or trouble shooting

FACTORY DEFAULT

ARE YOU SURE : (Y/N)

YES : ENTER OR MENU KEY
NO : ESC KEY

ERASE PROGRAMMED DATA

ARE YOU SURE : (Y/N)

YES : ENTER OR MENU KEY
NO : ESC KEY

SYSTEM INFORMATION

CAMERA TYPE : XXXXXXX
H/W VERSION : V1.00
ROM VERSION : V1.00
PROTOCOL : EZ
BUADRATE : 9600BPS

TEMPERATURE : XX.X℃
EXIT MENU

42

Mini PTZ Speed Dome

APPENDIX A — SPECIFICATIONS

Lens

Camera(MS-Z10N/MS-Z10P)

Image Sensor 1/4" Interline Transfer CCD(Sony)

Picture elements

NTSC : 768x494 Approx. 380K pixels
PAL : 752x582 Approx. 440K pixels

Horizontal Resolution 500 TV Lines

Lens

10x optical zoom with auto focus
10x digital zoom
F1.8 to F3.0, f=3.8mm to 38mm

View angle

Approx. 51.2° (WIDE end) to 5.58° (TELE end)

Minimum Illumination

0.7 lux(F1.8,normal shutter speed)

0.02 lux (F1.8, IR Cut Filter Removed)

0.005 lux (F1.8, DSS Auto with IR Cut Filter Removed)

S/N ratio more than 50dB

Controller Specifications

General

Certification CE EMC, FCC CLASS A

Electrical

Input Voltage 18 to 30 VAC; 24 VAC nominal, built-in power-line surge
Power Requirement 24 VAC/VDC 700mA

Power Consumption Maximum 15W / 30W(Heater Use)
Alarm Output 1 Normal relays 24 VDC/1A Max (selectable NC/NO)

Alarm Input 4 Normal dry contact (selectable NC/NO)
Control RS-485 baud rate:2400~38400bps (default:9600bps)
Access Time 0.75 second maximum preset recall time
ID (Camera Address) Physical 99, Logical 3999

Mechanical

Dimension See Figure 10
Weight Approx 1.2 kg
Pan Angle

360° continuous rotation

Speed

0.4° to 90°/sec. (proportional to zoom)
360°/sec. maximum (with Turbo key pressed)
Preset Speed : 380°/sec

Repeatability

0.2°

43

Mini PTZ Speed Dome

Flip

Rotate 180° at bottom of tilt

Autoscan 4 auto scan include vector scan/1 Auto Pan
Preset Position 128 positions with camera status (16-character title)
Tour 4 tours
Pattern 4 patterns, 120 second
On-Screen Display Displays camera ID and area name on screen

Environment

Operating temperature

0°C to 50°C (32°F to 122°F)

-30°C to 50°C (-22°F to 122°F)

Operating humidity 0 to 90%RH (non-condensing)
Storage temperature

-20°C to 60°C (4°F to 140°F)

Specifications are subject to change without notice.

Figure 10-Dimension

44

Mini PTZ Speed Dome

APPENDIX B — TROUBLESHOOTING

If problems occur, verify the installation of the camera with the instructions in this manual.
Isolate the problem from the equipments in the system and refer to the equipment manual for
further information.

Problem Solution

No video.

Verify that power is connected to all components in the
system.
Verify that the power switches are ON.
Check that the BNC connectors are securely
connected.
(See Figure 4).

Poor video quality.

Check the voltage level of the dome camera.
Check the power supply voltage (nominal 24VAC)

Dome cameras lose their positions.

Reset the cameras using the Dome configuration
menus.
Check if there is unusual sound.
Check the voltage level of the dome camera.

Camera number does not match the
multiplexer number.

Check the camera ID and connect the BNC cable into
the proper input of the multiplexer.

Picture is torn when switching

Adjust phase of Line Lock.

45

Mini PTZ Speed Dome

GLOSSARY

ALARM ACTIONS

The assigned responses of the dome camera when there is input status change. The
dome may call Presets for each of the eight inputs. The dome reports the alarm states
to the Keyboard controller for processing.

AREA TITLE

It is the name of the horizontal sector from a certain start point to end point of the
selected dome. Up to 24 areas can be programmed for the dome.

AUTOMATIC GAIN CONTROL (AGC)

Allows for the amplification of the video signal in scenes with minimal ambient light.
Many low-light scenes result in picture noise. As gain is increased, the picture noise is
also amplified. When AGC is enabled, the value of the gain setting is based on
feedback from the camera. When AGC is disabled, the camera uses the value set for
the manual gain setting. The trade-off between picture level and noise may be adjusted
when AGC is disabled.

DIAGONALSCAN

Move from start point to end point including tilt and zoom simultaneously and linearly.

DIGITAL SLOW SHUTTER (DSS)

DSS enhances video quality in extreme low-light situations. When the Low Shutter
setting is enabled, low-light information is collected over multiple fields based on the
Shutter Limit setting. As a result, video may appear blurred or choppy in extreme low­light situations. This setting does not effect camera operation in normal lighting
situations. See also Automatic Gain Control (AGC).

FLIP/ DIGITAL FLIP

It allows the dome to turn 180 degrees when the camera tilts to its lower limit. When the
dome flips (rotates), the camera starts moving upward as long as the tilt control is kept
in the down position. Once the control is released, the tilt control returns to its normal
operational mode. The flip feature is useful when you need to track someone who walks
directly beneath the dome and continues on the other side.

HOME POSITION

The default position to which the dome camera returns after an assigned period of
inactivity passes. The default position may be a Preset, Tour, Pattern, or No Action.

INPUT ALARM

A connection point on the dome camera that enables the system to monitor Input
Devices. There are four inputs available for the dome camera.

46

Mini PTZ Speed Dome

INPUT DEVICES

External devices that provide information about the condition of system components
that connect to the inputs on the dome camera. Typical input devices include door
contacts, motion detectors and smoke detectors.

IR MODE

A feature of the camera that permits manual or automatic switching between color and
IR (black-and-white) operation. When IR mode is active, clearer images may be
obtained under low-light conditions.

LINE LOCK

When line lock is enabled, it prevents vertical video rolling when switching multiple
cameras to a single monitor. If text appears slightly tinted on color monitors, disabling
the line lock may prevent this problem.

NORTH DIRECTION

User-definable setting that may correspond to magnetic north or some well-known
landmark. Used to approximate the camera dome's pointing direction when Direction
Indicators are enabled.

ON-SCREEN MENU

The text overlay menu system used for setting dome features. This utility is accessed
using a keystroke combination. The utility provides settings for camera functions, zoom,
alarms, text display, and password protection.

PATTERN

A series of pan, tilt, zoom and focus movements from a single programmable dome. Up
to 8 patterns may be programmed for the dome camera.

PRESET

Programmed video scene, based on a specific pan, tilt, zoom, and focus settings. Up to
240 presets may be programmed for the dome camera.

PRIVACY ZONES

Privacy zones are areas that are masked. These masks prevent operators of the
surveillance system from viewing these designated zones. The Privacy Zones move in
relation to the dome camera’s pan/tilt position. In addition, the apparent size of the
Privacy Zone adjusts automatically as the lens zooms in or out. Up to eight Privacy
Zones may be established for a dome camera.

SHUTTER LIMIT

Setting used to define the maximum exposure time for the Open Shutter setting. The
values for the setting range from 1/2 to 1/60. The default setting is 1/4.

47

Mini PTZ Speed Dome

WHITE BALANCE

Adjustments in the color hue (red and blue) gains for a camera so that true white
appears white in the image. It is normally compensated for by the automatic gain control.
In some lighting conditions, you may need to manually adjust the red and blue settings
for optimal viewing. When Automatic White Balance is enabled, the camera measures
the image and automatically adjusts the red and blue settings to balance white. When
Automatic White Balance is disabled, the camera uses the values set for the red and
blue settings to balance white.

48

Mini PTZ Speed Dome

Notes

49

Mini PTZ Speed Dome

Notes

50

Mini PTZ Speed Dome

Notes

51

Mini PTZ Speed Dome
