Nuvico DT-E810 User Manual

Setup Guide of HDoCS™ Digital Video Recorder NUVICO

TABLE OF CONTENTS

DVR Pre-Installation ....................................................................................................................................... 3

DVR Installation .............................................................................................................................................. 3

Hard Disk Installation ..................................................................................................................................... 3

Front Panels ...................................................................................................................................................... 5

Rear Panels ....................................................................................................................................................... 6

Peripheral Connections ................................................................................................................................... 6

RS-485 and Controller Connection ............................................................................................................ 6

Specifications .................................................................................................................................................... 7

Table 1 Specification for STD Series ......................................................................................................... 7

HDD Storage Calculation Chart ..................................................................................................................... 8

Accessing by Web Browser .............................................................................................................................. 9

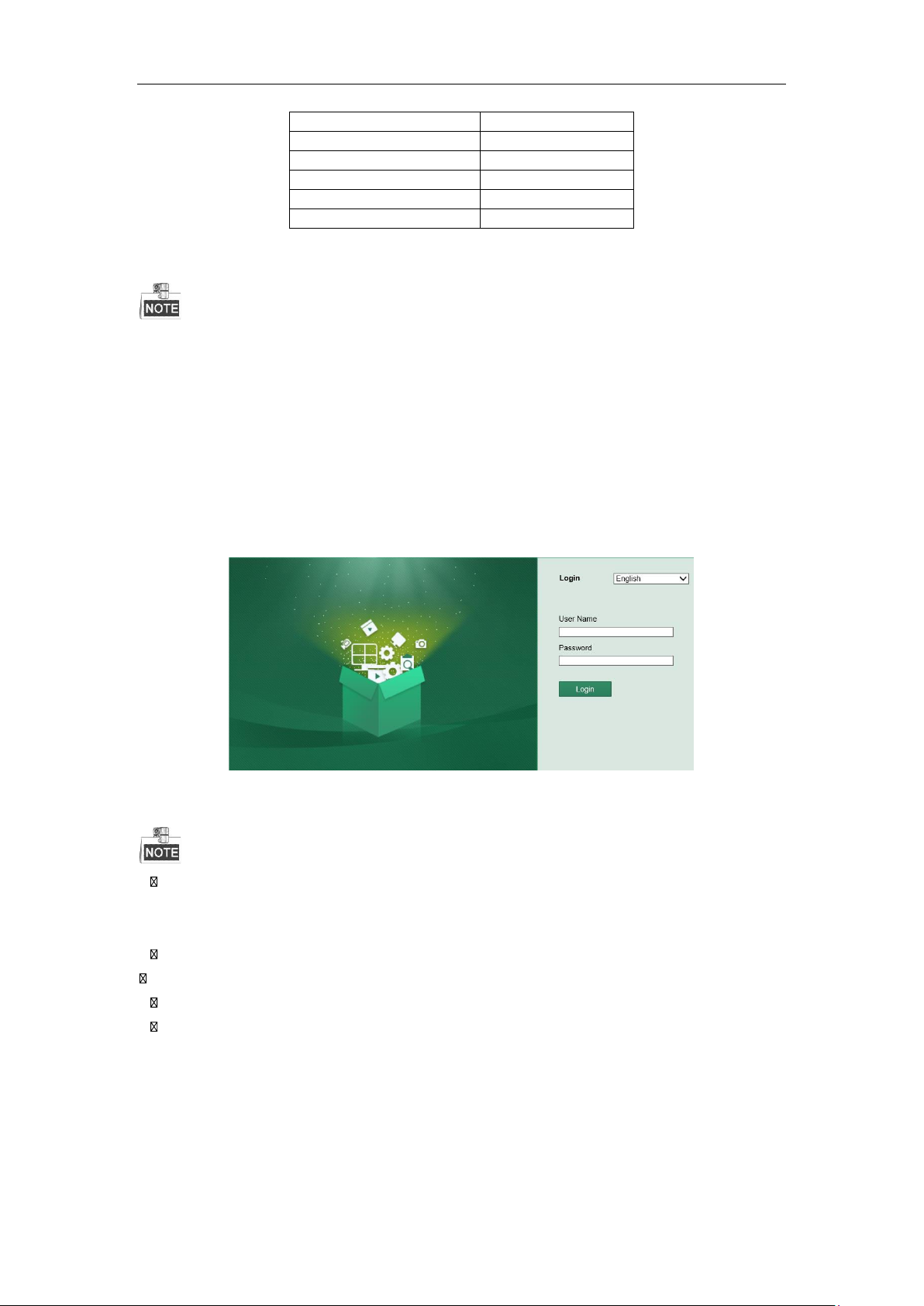

Logging In .................................................................................................................................................. 9

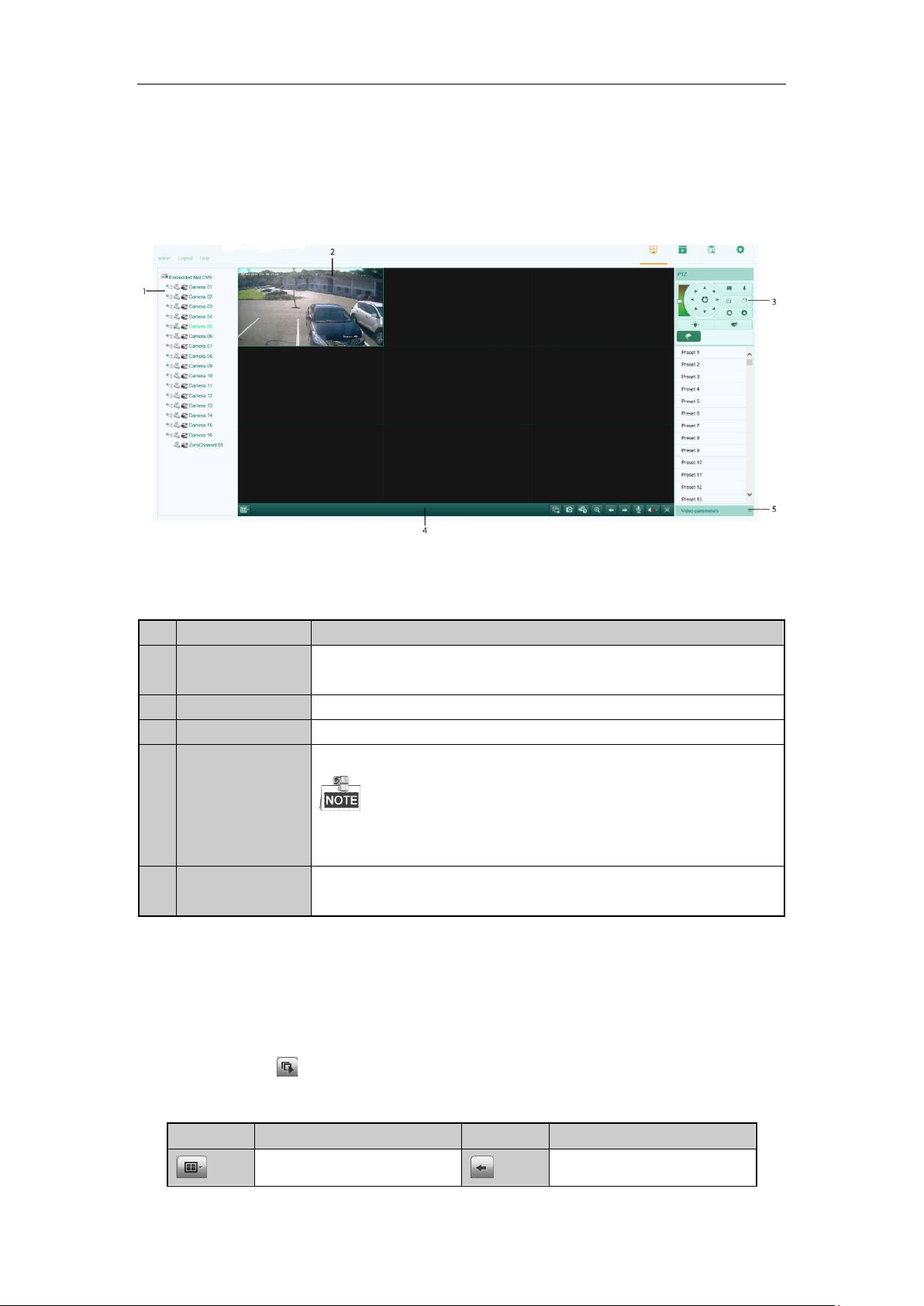

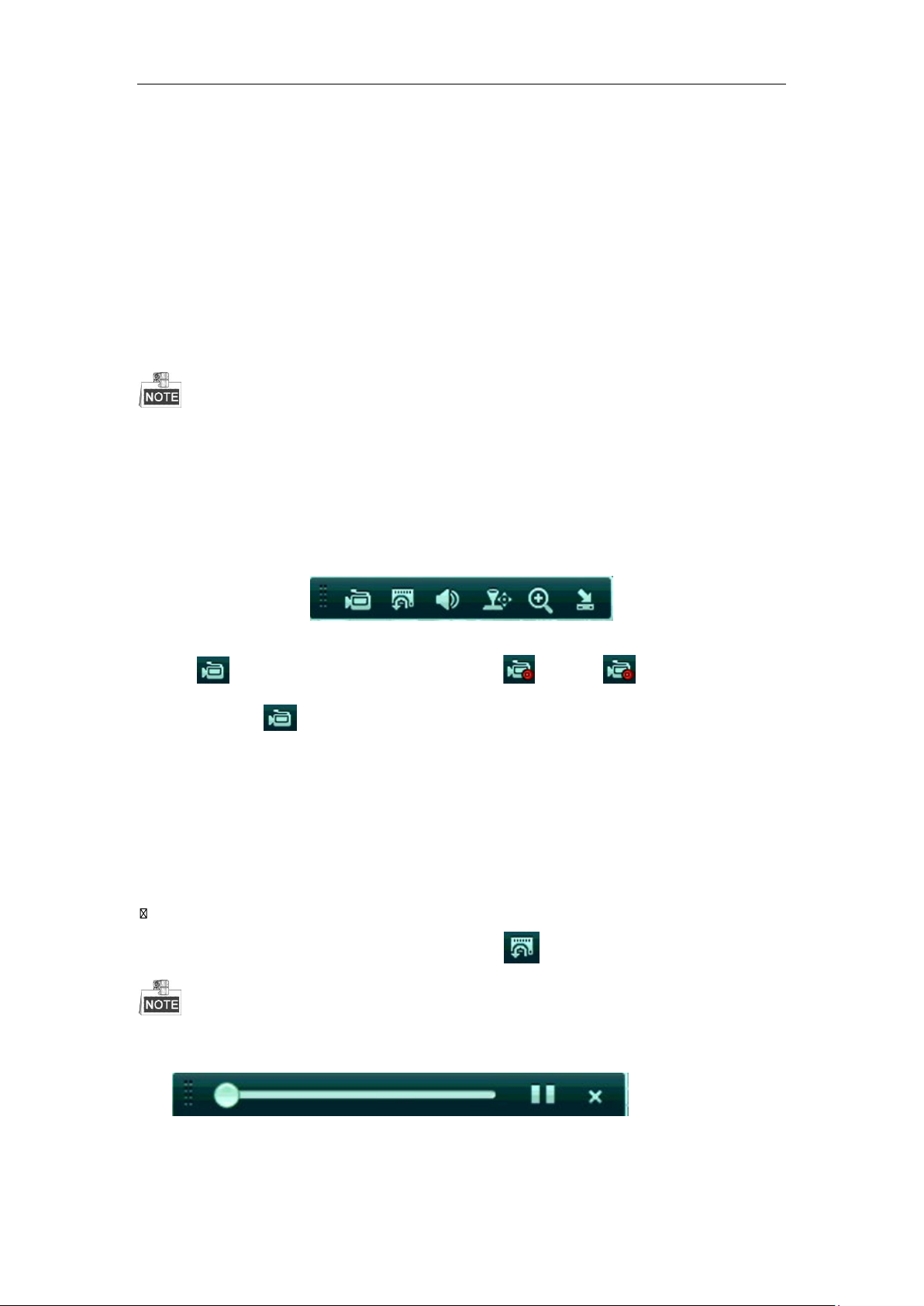

Live View ................................................................................................................................................. 10

Recording ................................................................................................................................................. 11

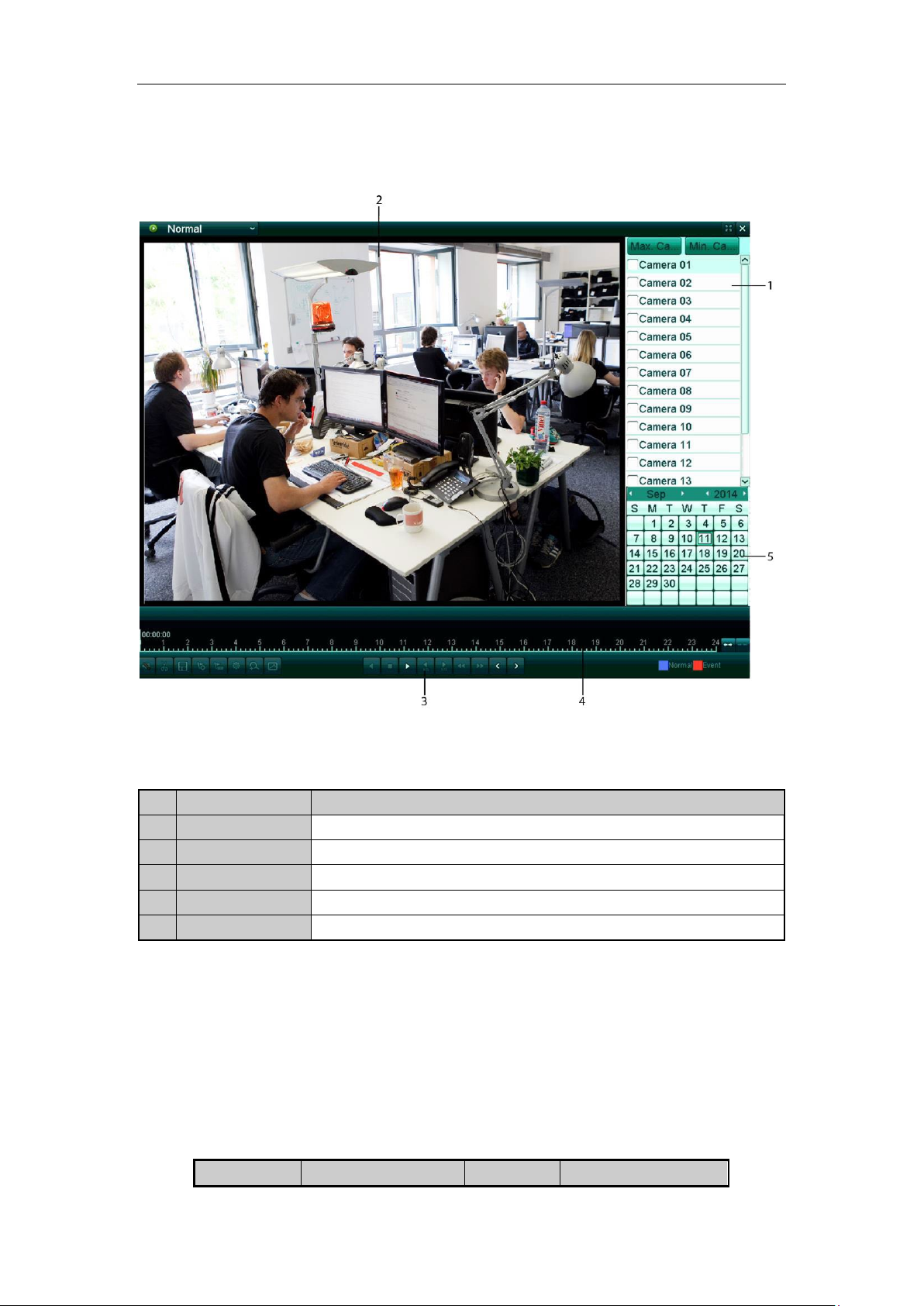

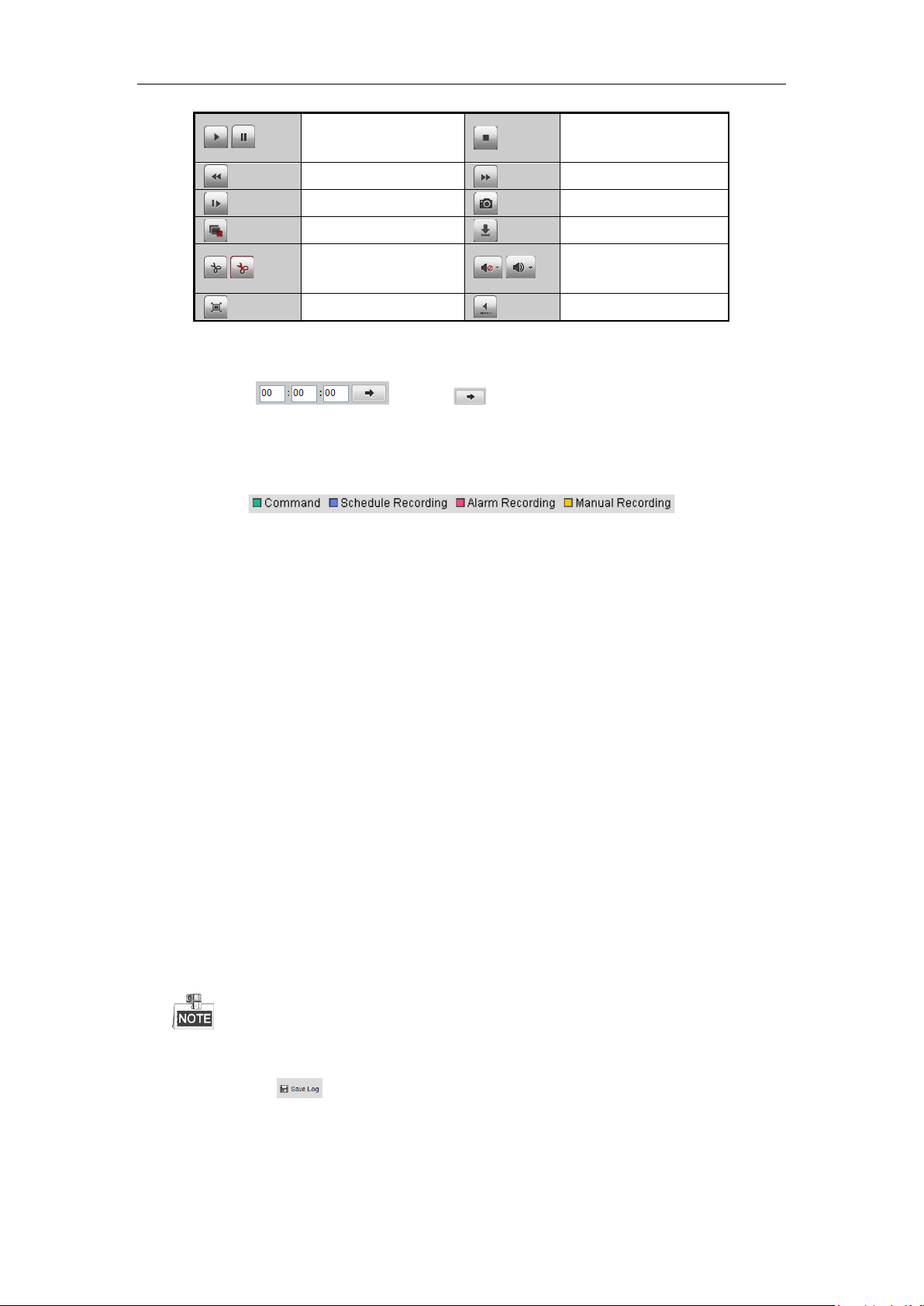

Playback ................................................................................................................................................... 12

Log ....................................................................................................................................................... 13

Menu Operation ............................................................................................................................................. 14

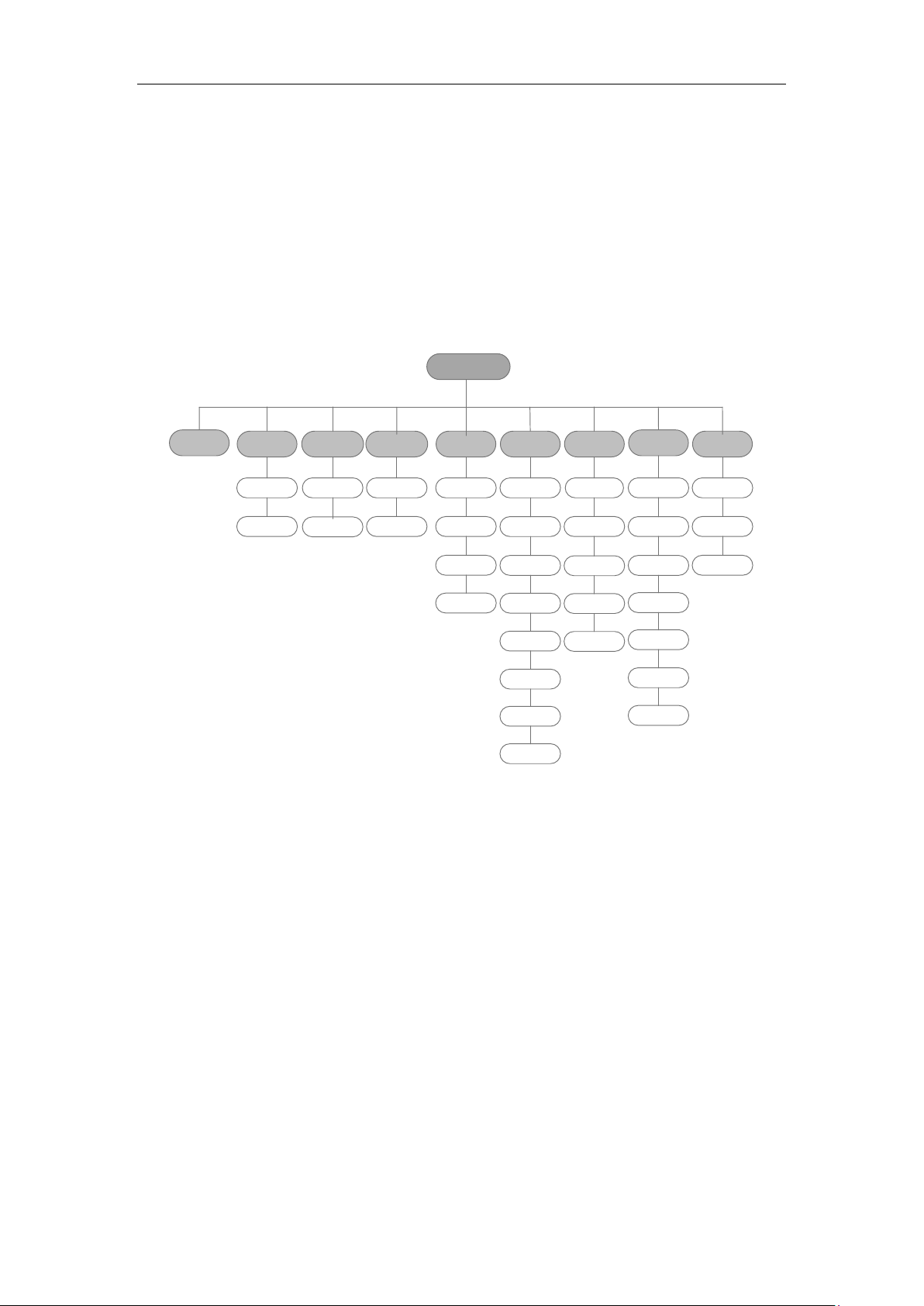

Menu Structure ......................................................................................................................................... 14

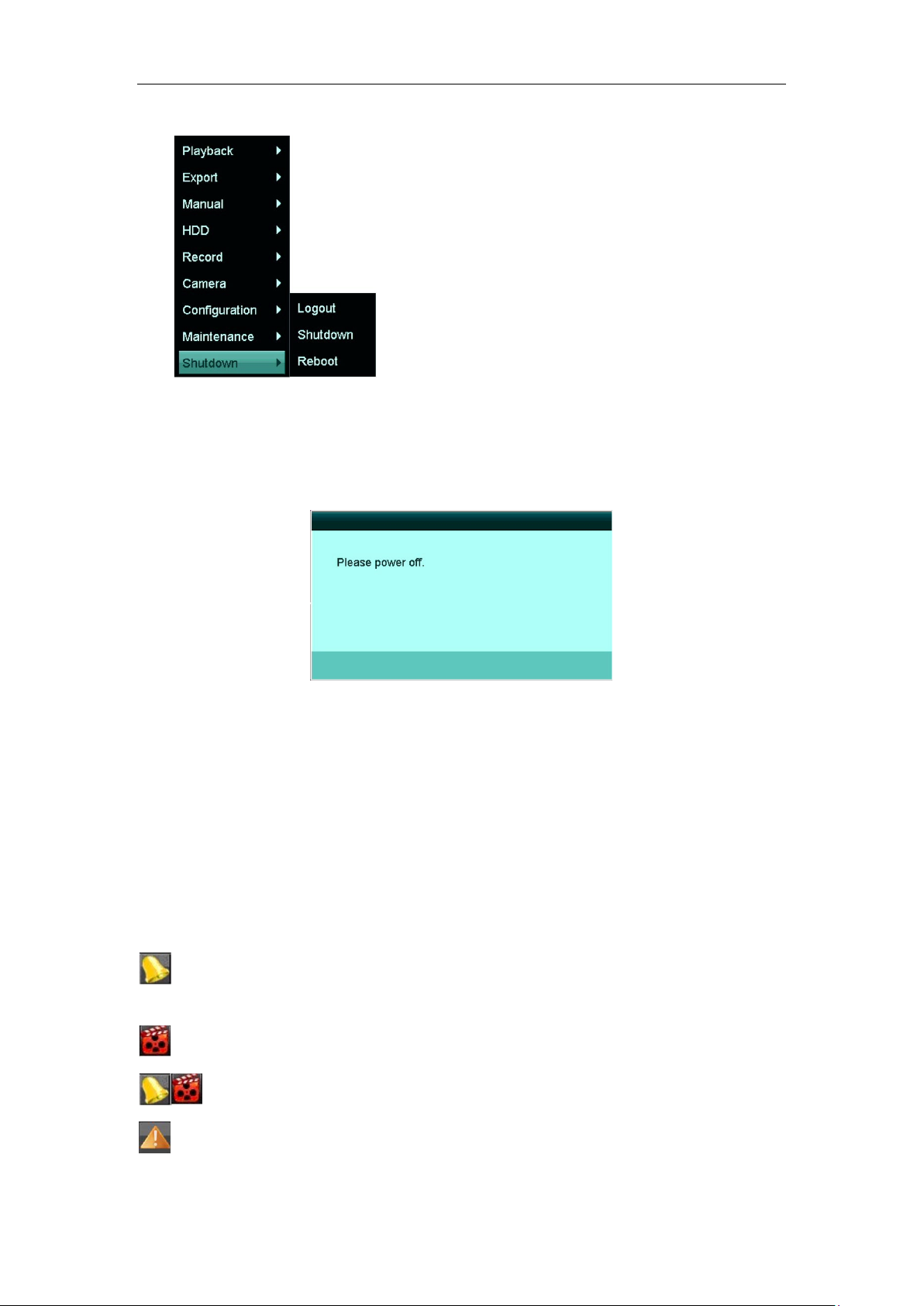

Startup and Shutdown .............................................................................................................................. 14

Live View ................................................................................................................................................. 15

Record Settings ........................................................................................................................................ 15

Instant Recording ............................................................................................................................. 16

All-day Recording ............................................................................................................................ 16

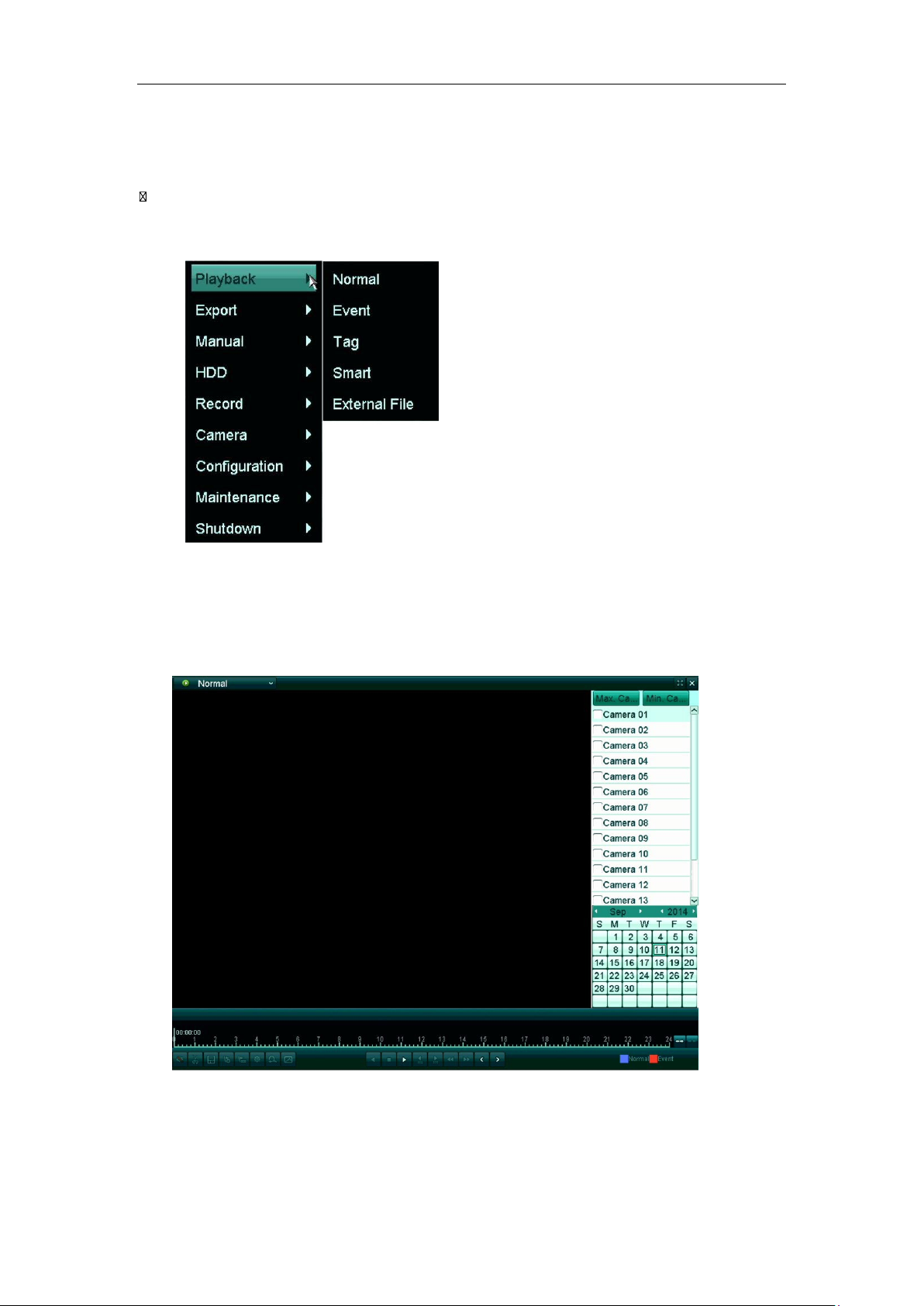

Playback ................................................................................................................................................... 17

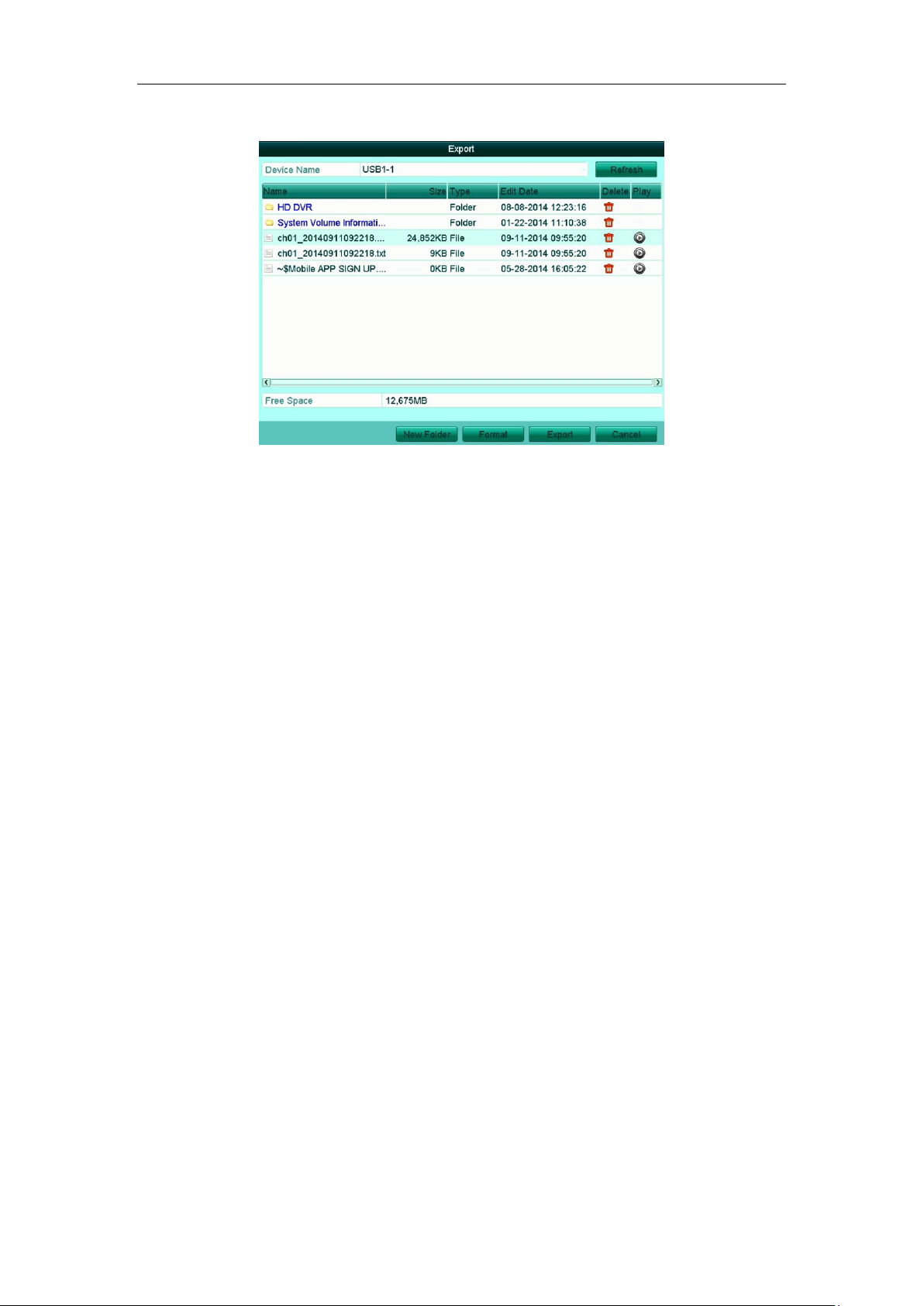

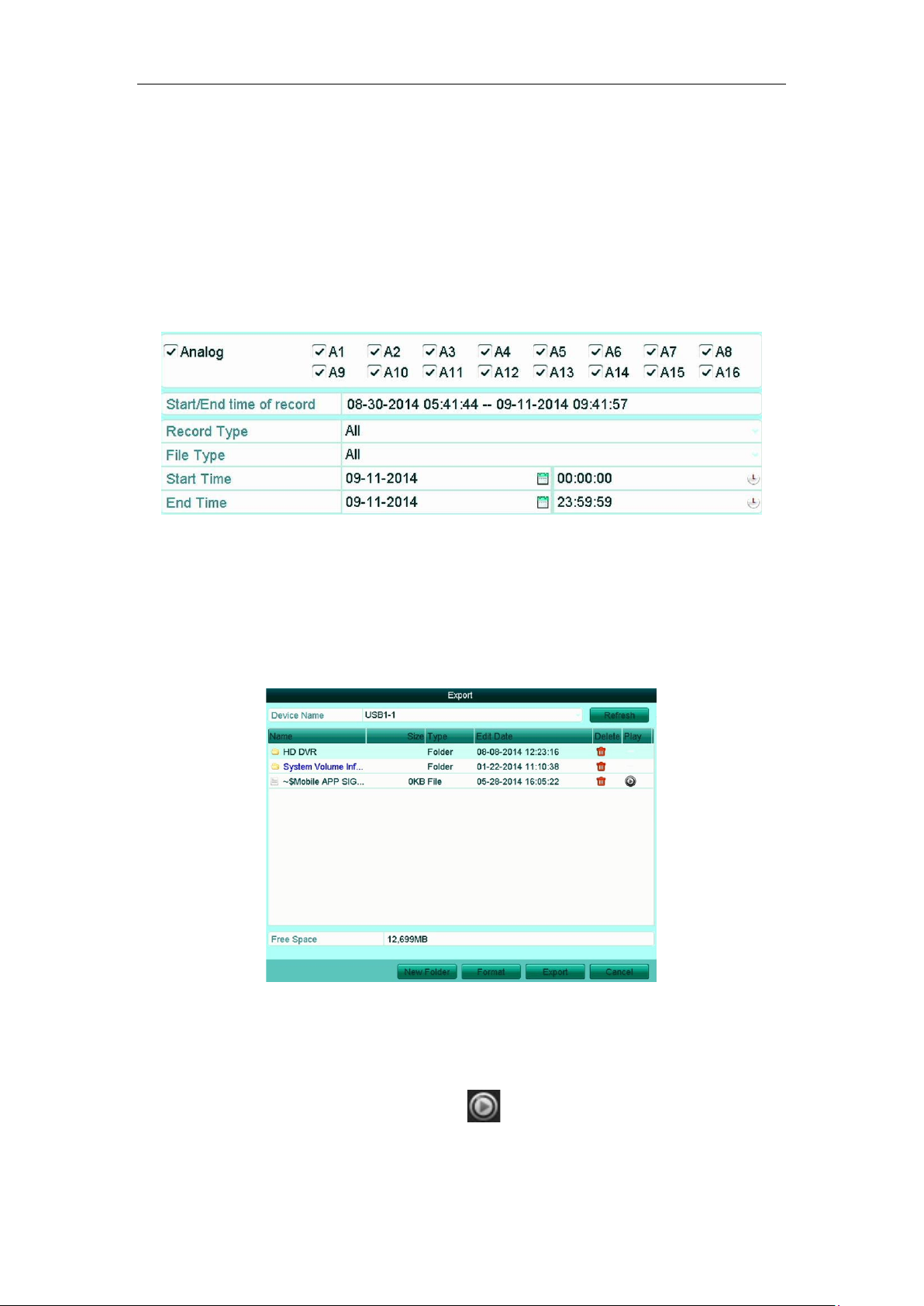

Backup ..................................................................................................................................................... 18

1

Setup Guide of HDoCS™ Digital Video Recorder NUVICO

Regulatory information
FCC information

FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant

to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates, uses, and

can radiate radio frequency energy and, if not installed and used in accordance w

cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be required to correct the interference at his own expense.

ith the instruction manual, may

FCC conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the

applicable harmonized European standards listed under the Low Voltage Directive 2006/95/EC, the EMC

Directive 2004/108/EC, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal

waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of

equivalent new equipment, or dispose of it at designated collection points. For more information see:

www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal

waste in the European Union. See the product documentation for specific battery information. The battery is

marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For

proper recycling, return the battery to your supplier or to a designated collection point. For more inform

www.r

ecyclethis.info.

ation see:

Trademarks and Registered Trademarks

Windows and Windows mark are trademarks or registered trademarks of Microsoft Corporation in the United

States and/or other countries.

HDMI, HDMI mark and High-Definition Multimedia Interface are trademarks or registered trademarks of

HDMI Licensing LLC.

The products contained in this manual are authorized by HDMI Licensing LLC with the use right of the HDMI

technology.

VGA is the trademark of IBM.

UPnPTM is a certification mark of the UPnPTM Implementers Corporation.

Other names of companies and product contained in this manual may be trademarks or registered trademarks

of their respective owners.

2

Series

Model

Type

16-ch

Setup Guide of HDoCS™ Digital Video Recorder NUVICO

Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer.

This manual is applicable to the models listed in the following table.

DT-E 4-ch

8-ch

HD-TVI

DVR Pre-Installation

The HD-TVI DVR is highly advanced surveillance equipment that should be installed carefully. Please take into

consideration the following precautionary steps before installation of the DVR.

1. Keep all liquids away from the DVR.

2. Install the DVR in a well-ventilated and dust-free area.

3. Ensure environmental conditions meet factory specifications.

4. Install a manufacturer recommended HDD.

DVR Installation

During the installation of the DVR:

1. Use brackets for rack mounting.

2. Ensure there is ample room for audio and video cables.

3. When installing cables, ensure that the bend radius of the cables are no less than five times than its diameter.

4. Connect both the alarm and RS-485 cable.

5. Allow at least 2cm (≈0.75-inch) of space between racks mounted devices.

6. Ensure the DVR is grounded.

7. Environmental temperature should be within the ran

8. Environmental humidity should be within the range of 10% ~ 90%.

ge of -10

ºC ~ 55 ºC, 14ºF ~ 131ºF.

3

No.

Name

Function Description

panel is turned on.

HDD.

functioning properly.

fields and items in menus.

the next and previous record files.

channels.

camera.

modes.

video by a single frame.

USB mouse and USB Hard Disk Drive (HDD).

Setup Guide of HDoCS™ Digital Video Recorder NUVICO

Front Panels

Figure 1. 1 Front Panel of 8-ch DVR

Table 1. 1 Description of Front Panel

POWER

1

2

STATUS

Tx/Rx

DIRECTION

ENTER

Power indicator turns yellow when the power switch on the real

Status indicator blinks red when data is being read from or written to

Tx/Rx indictor blinks yellow when network connection is

The DIRECTION buttons are used to navigate between different

In the Playback mode, the Up and Down button is used to speed up

and slow down recorded video. The Left and Right button will select

In Live View mode, these buttons can be used to cycle through

In PTZ control mode, it can control the movement of the PTZ

The ENTER button is used to confirm selection in any of the menu

It can also be used to tick checkbox fields.

In Playback mode, it can be used to play or pause the video.

In single-frame Playback mode, pressing the button will advance the

3 MENU

4 ESC

5 USB Interfaces

6 IR Receiver Receiver for IR remote control.

In Auto-switch mode, it can be used to stop /start auto switch.

Access the main menu interface.

To exit the Menu

Universal Serial Bus (USB) ports for additional devices such as

4

No.

Item

Description

2

AUDIO IN

RCA connector

3

AUDIO OUT

RCA connector

4

VGA

DB15 connector for VGA output. Display local video output and menu.

6

USB Port

Universal Serial Bus (USB) port for additional devices.

8

RS-485 Interface

Connector for RS-485 devices.

9

Power Supply

DC 12V power supply.

10

Power Switch

Switch for turning on/off the device.

Setup Guide of HDoCS™ Digital Video Recorder NUVICO

Rear Panels

8-ch DVR

1 VIDEO IN BNC interface for TVI and analog video input.

5 HDMI HDMI video output connector.

7 Network Interface Connector for network

11 GND Ground

Peripheral Connections

RS-485 and Controller Connection

For 4-ch, 8-ch, and 16-ch

To connect PTZ to the DVR:

1. Disconnect pluggable block from the RS-485 terminal block.

2. Press and hold the orange part of the pluggable block; insert signal cables into slots and release the orange

part. Ensure signal cables are in tight.

3. Connect A+ on PTZ to D+ on terminal block and B- on controller to D- on terminal block. Fasten stop

screws.

4. Connect pluggable block back into terminal block.

5
