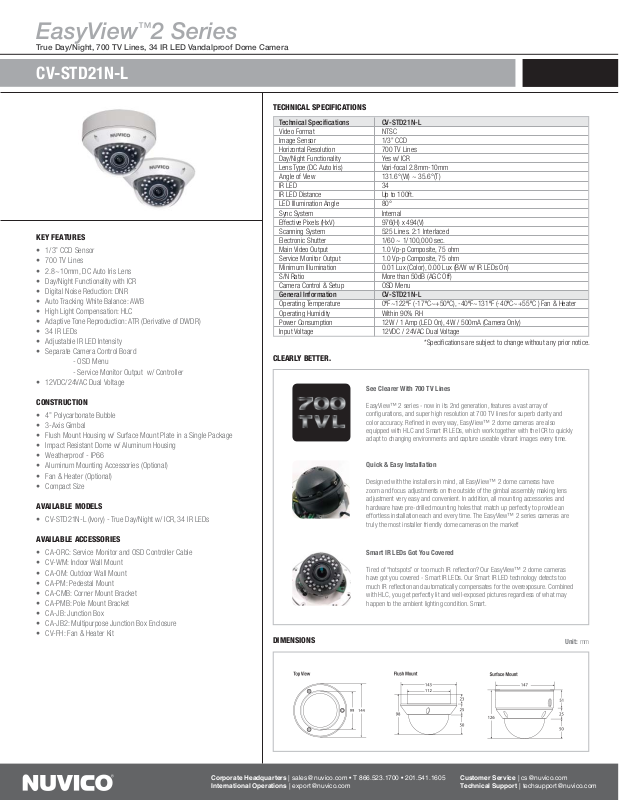

Nuvico CV-STD21N-L Specsheet

EasyView™2 Series

True Day/Night, 700 TV Lines, 34 IR LED Vandalproof Dome Camera

CV-STD21N-L

TECHNICAL SPECIFICATIONS

Technical Specifi cations

Video Format
Image Sensor
Horizontal Resolution
Day/Night Functionality
Lens Type (DC Auto Iris)
Angle of View
IR LED
IR LED Distance
LED Illumination Angle
Sync System
Effective Pixels (HxV)

KEY FEATURES

• 1/3” CCD Sensor

• 700 TV Lines

• 2.8~10mm, DC Auto Iris Lens

• Day/Night Functionality with ICR

• Digital Noise Reduction: DNR

• Auto Tracking White Balance: AWB

• High Light Compensation: HLC

• Adaptive Tone Reproduction: ATR (Derivative of DWDR)

• 34 IR LEDs

• Adjustable IR LED Intensity

• Separate Camera Control Board

- OSD Menu

- Service Monitor Output w/ Controller

• 12VDC/24VAC Dual Voltage

CONSTRUCTION

• 4” Polycarbonate Bubble

• 3-Axis Gimbal

• Flush Mount Housing w/ Surface Mount Plate in a Single Package

• Impact Resistant Dome w/ Aluminum Housing

• Weatherproof - IP66

• Aluminum Mounting Accessories (Optional)

• Fan & Heater (Optional)

• Compact Size

AVAILABLE MODELS

• CV-STD21N-L (Ivory) - True Day/Night w/ ICR, 34 IR LEDs

AVAILABLE ACCESSORIES

• CA-ORC: Service Monitor and OSD Controller Cable

• CV-WM: Indoor Wall Mount

• CA-OM: Outdoor Wall Mount

• CA-PM: Pedestal Mount

• CA-CMB: Corner Mount Bracket

• CA-PMB: Pole Mount Bracket

• CA-JB: Junction Box

• CA-JB2: Multipurpose Junction Box Enclosure

• CV-FH: Fan & Heater Kit

Scanning System
Electronic Shutter
Main Video Output
Service Monitor Output
Minimum Illumination
S/N Ratio
Camera Control & Setup

General Information

Operating Temperature
Operating Humidity
Power Consumption
Input Voltage

CLEARLY BETTER.

DIMENSIONS

CV-STD21N-L

NTSC
1/3” CCD
700 TV Lines
Yes w/ ICR
Vari-focal 2.8mm-10mm

131.6°(W) ~ 35.6°(T)
34
Up to 100ft.
80°
Internal
976(H) x 494(V)
525 Lines. 2:1 Interlaced
1/60 ~ 1/100,000 sec.

1.0 Vp-p Composite, 75 ohm

1.0 Vp-p Composite, 75 ohm

0.01 Lux (Color), 0.00 Lux (B/W w/ IR LEDs On)
More than 50dB (AGC Off)
OSD Menu

CV-STD21N-L

0ºF~122ºF (-17ºC~+50ºC), -40ºF~131ºF (-40ºC~+55ºC ) Fan & Heater
Within 90% RH
12W / 1 Amp (LED On), 4W / 500mA (Camera Only)
12VDC / 24VAC Dual Voltage

*Specifi cations are subject to change without any prior notice.

See Clearer With 700 TV Lines

EasyView™ 2 series - now in its 2nd generation, features a vast array of
confi gurations, and super high resolution at 700 TV lines for superb clarity and
color accuracy. Refi ned in every way, EasyView™ 2 dome cameras are also
equipped with HLC and Smart IR LEDs, which work together with the ICR to quickly
adapt to changing environments and capture useable vibrant images every time.

Quick & Easy Installation

Designed with the installers in mind, all EasyView™ 2 dome cameras have
zoom and focus adjustments on the outside of the gimbal assembly making lens
adjustment very easy and convenient. In addition, all mounting accessories and
hardware have pre-drilled mounting holes that match up perfectly to provide an
effortless installation each and every time. The EasyView™ 2 series cameras are
truly the most installer friendly dome cameras on the market!

Smart IR LEDs Got You Covered

Tired of “hotspots” or too much IR refl ection? Our EasyView™ 2 dome cameras
have got you covered - Smart IR LEDs. Our Smart IR LED technology detects too
much IR refl ection and automatically compensates for the overexposure. Combined
with HLC, you get perfectly lit and well-exposed pictures regardless of what may
happen to the ambient lighting condition. Smart.

Unit: mm
