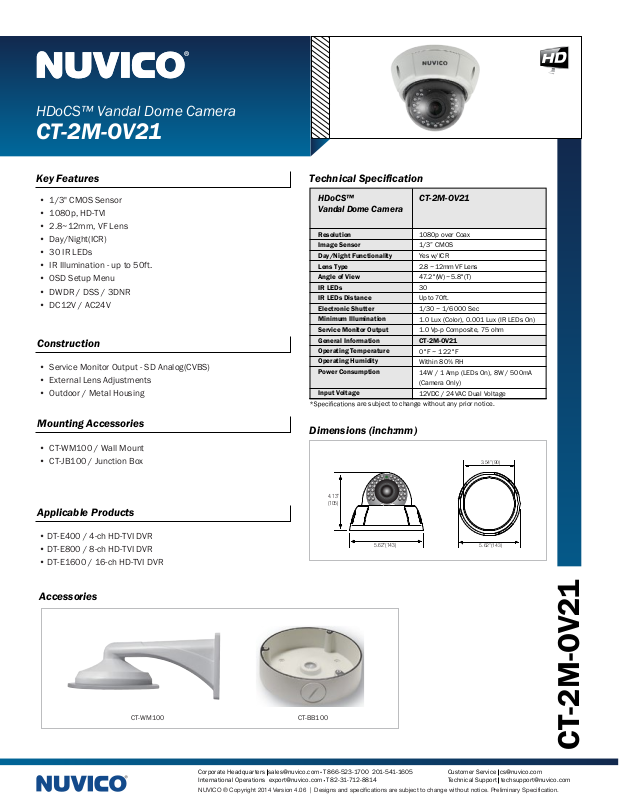

Nuvico CT-2M-OV21 Specsheet
HDoCS™ Vandal Dome Camera
CT-2M-OV21
Key Features
• 1/3" CMOS Sensor
• 1080p, HD-TVI
• 2.8~12mm, VF Lens
• Day/Night(ICR)
• 30 IR LEDs
• IR Illumination - up to 50ft.
• OSD Setup Menu
• DWDR / DSS / 3DNR
• DC12V / AC24V
Construction
• Service Monitor Output - SD Analog(CVBS)
• External Lens Adjustments
• Outdoor / Metal Housing
Mounting Accessories
• CT-WM100 / Wall Mount
• CT-JB100 / Junction Box
Technical Specification
HDoCS™
Vandal Dome Camera
Resolution
Image Sensor
Day/Night Functionality
Lens Type
Angle of View
IR LEDs
IR LEDs Distance
Electronic Shutter
Minimum Illumination
Service Monitor Output
General Information
Operating Temperature
Operating Humidity
Power Consumption
Input Voltage
are subject to change without any prior notice.
Dimensions (inch:mm)
CT-2M-OV21
1080p over Coax
1/3” CMOS
Yes w/ICR
2.8 ~ 12mm VF Lens
47.2°(W) ~ 5.8°(T)
30
Up to 70ft.
1/30 ~ 1/6000 Sec
1.0 Lux (Color), 0.001 Lux (IR LEDs On)
1.0 Vp-p Composite, 75 ohm
CT-2M-OV21
0°F ~ 122°F
Within 80% RH
14W / 1 Amp (LEDs On), 8W / 500mA
(Camera Only)
12VDC / 24VAC Dual Voltage
3.54”(90)
Applicable Products
• DT-E400 / 4-ch HD-TVI DVR
• DT-E800 / 8-ch HD-TVI DVR
• DT-E1600 / 16-ch HD-TVI DVR
Accessories
CT-WM100 CT-BB100
4.13”
(105)
5.62”(143)
Corporate Headquarters sales@nuvico.com T 866-523-1700 201-541-1605
International Operations export@nuvico.com T 82-31-712-8814
NUVICO ® Copyright 2014 Version 4.06 | Designs and specifications are subject to change without notice. Preliminary Specification.
Customer Service cs@nuvico.com
Technical Support techsupport@nuvico.com
5.62”(143)
CT-2M-OV21
