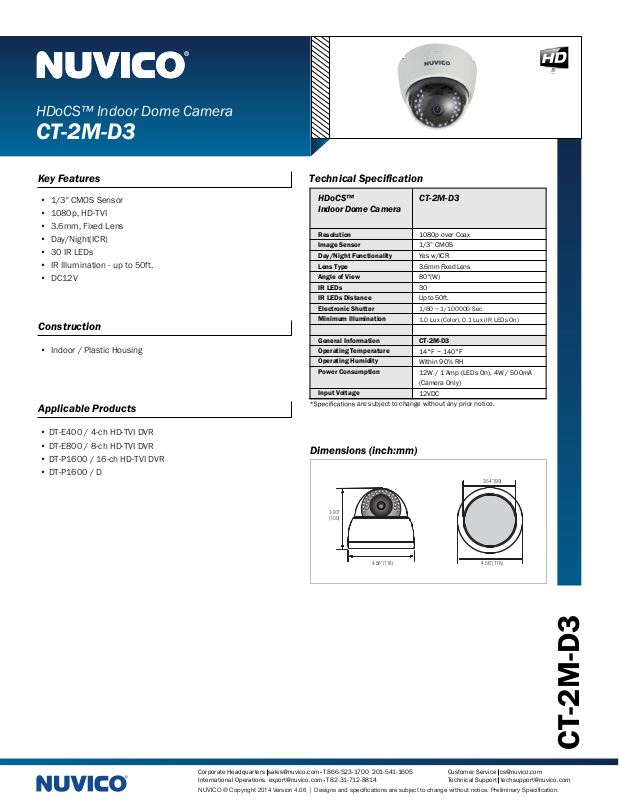

Nuvico CT-2M-D3 Specsheet
HDoCS™ Indoor Dome Camera
CT-2M-D3
Key Features
• 1/3" CMOS Sensor
• 1080p, HD-TVI
• 3.6mm, Fixed Lens
• Day/Night(ICR)
• 30 IR LEDs
• IR Illumination - up to 50ft.
• DC12V
Construction
• Indoor / Plastic Housing
Applicable Products
• DT-E400 / 4-ch HD-TVI DVR
• DT-E800 / 8-ch HD-TVI DVR
• DT-P1600 / 16-ch HD-TVI DVR
• DT-P1600 / D
Technical Specification
HDoCS™
Indoor Dome Camera
Resolution
Image Sensor
Day/Night Functionality
Lens Type
Angle of View
IR LEDs
IR LEDs Distance
Electronic Shutter
Minimum Illumination
General Information
Operating Temperature
Operating Humidity
Power Consumption
Input Voltage
are subject to change without any prior notice.
Dimensions (inch:mm)
CT-2M-D3
1080p over Coax
1/3” CMOS
Yes w/ICR
3.6mm Fixed Lens
80°(W)
30
Up to 50ft.
1/60 ~ 1/100000 Sec
1.0 Lux (Color), 0.1 Lux (IR LEDs On)
CT-2M-D3
14°F ~ 140°F
Within 90% RH
12W / 1 Amp (LEDs On), 4W / 500mA
(Camera Only)
12VDC
3.54”(90)
3.93”
(100)
4.56”(116)
Corporate Headquarters sales@nuvico.com T 866-523-1700 201-541-1605
International Operations export@nuvico.com T 82-31-712-8814
NUVICO ® Copyright 2014 Version 4.06 | Designs and specifications are subject to change without notice. Preliminary Specification.
Customer Service cs@nuvico.com
Technical Support techsupport@nuvico.com
4.56”(116)
CT-2M-D3
