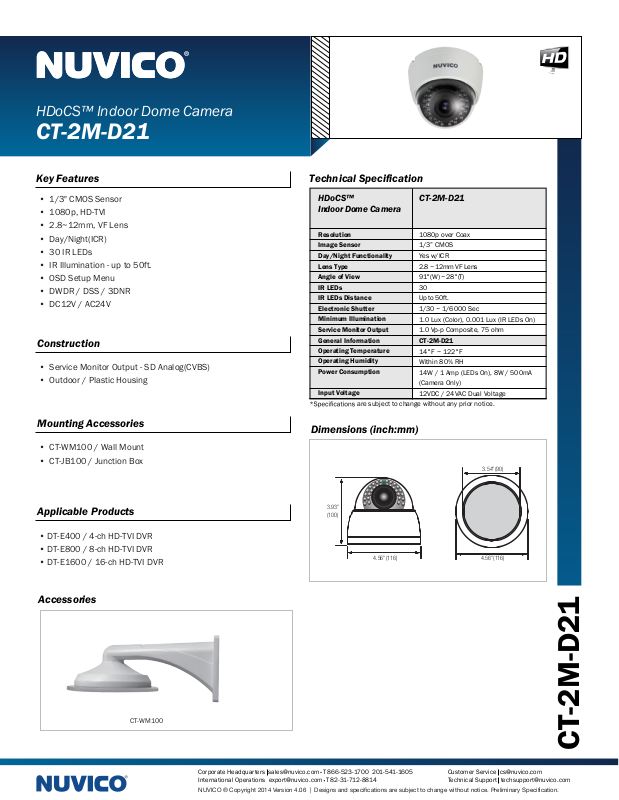

Nuvico CT-2M-D21 Specsheet
HDoCS™ Indoor Dome Camera
CT-2M-D21
Key Features
• 1/3" CMOS Sensor
• 1080p, HD-TVI
• 2.8~12mm, VF Lens
• Day/Night(ICR)
• 30 IR LEDs
• IR Illumination - up to 50ft.
• OSD Setup Menu
• DWDR / DSS / 3DNR
• DC12V / AC24V
Construction
• Service Monitor Output - SD Analog(CVBS)
• Outdoor / Plastic Housing
Mounting Accessories
• CT-WM100 / Wall Mount
• CT-JB100 / Junction Box
Technical Specification
HDoCS™
Indoor Dome Camera
Resolution
Image Sensor
Day/Night Functionality
Lens Type
Angle of View
IR LEDs
IR LEDs Distance
Electronic Shutter
Minimum Illumination
Service Monitor Output
General Information
Operating Temperature
Operating Humidity
Power Consumption
Input Voltage
are subject to change without any prior notice.
Dimensions (inch:mm)
CT-2M-D21
1080p over Coax
1/3” CMOS
Yes w/ICR
2.8 ~ 12mm VF Lens
91°(W) ~ 28°(T)
30
Up to 50ft.
1/30 ~ 1/6000 Sec
1.0 Lux (Color), 0.001 Lux (IR LEDs On)
1.0 Vp-p Composite, 75 ohm
CT-2M-D21
14°F ~ 122°F
Within 80% RH
14W / 1 Amp (LEDs On), 8W / 500mA
(Camera Only)
12VDC / 24VAC Dual Voltage
3.54”(90)
Applicable Products
• DT-E400 / 4-ch HD-TVI DVR
• DT-E800 / 8-ch HD-TVI DVR
• DT-E1600 / 16-ch HD-TVI DVR
Accessories
CT-WM100
3.93”
(100)
4.56”(116)
Corporate Headquarters sales@nuvico.com T 866-523-1700 201-541-1605
International Operations export@nuvico.com T 82-31-712-8814
NUVICO ® Copyright 2014 Version 4.06 | Designs and specifications are subject to change without notice. Preliminary Specification.
Customer Service cs@nuvico.com
Technical Support techsupport@nuvico.com
4.56”(116)
CT-2M-D21
