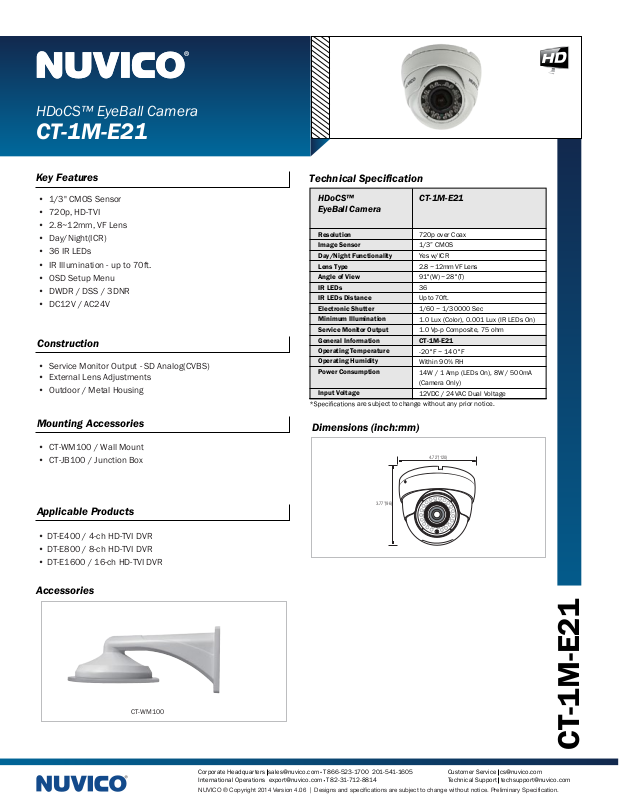

Nuvico CT-1M-E21 Specsheet
HDoCS™ EyeBall Camera
CT-1M-E21
Key Features
• 1/3" CMOS Sensor
• 720p, HD-TVI
• 2.8~12mm, VF Lens
• Day/Night(ICR)
• 36 IR LEDs
• IR Illumination - up to 70ft.
• OSD Setup Menu
• DWDR / DSS / 3DNR
• DC12V / AC24V
Construction
• Service Monitor Output - SD Analog(CVBS)
• External Lens Adjustments
• Outdoor / Metal Housing
Mounting Accessories
• CT-WM100 / Wall Mount
• CT-JB100 / Junction Box
Technical Specification
HDoCS™
EyeBall Camera
Resolution
Image Sensor
Day/Night Functionality
Lens Type
Angle of View
IR LEDs
IR LEDs Distance
Electronic Shutter
Minimum Illumination
Service Monitor Output
General Information
Operating Temperature
Operating Humidity
Power Consumption
Input Voltage
are subject to change without any prior notice.
Dimensions (inch:mm)
CT-1M-E21
720p over Coax
1/3” CMOS
Yes w/ICR
2.8 ~ 12mm VF Lens
91°(W) ~ 28°(T)
36
Up to 70ft.
1/60 ~ 1/30000 Sec
1.0 Lux (Color), 0.001 Lux (IR LEDs On)
1.0 Vp-p Composite, 75 ohm
CT-1M-E21
-20°F ~ 140°F
Within 90% RH
14W / 1 Amp (LEDs On), 8W / 500mA
(Camera Only)
12VDC / 24VAC Dual Voltage
4.72”(120)
Applicable Products
• DT-E400 / 4-ch HD-TVI DVR
• DT-E800 / 8-ch HD-TVI DVR
• DT-E1600 / 16-ch HD-TVI DVR
Accessories
CT-WM100
3.77”(96)
