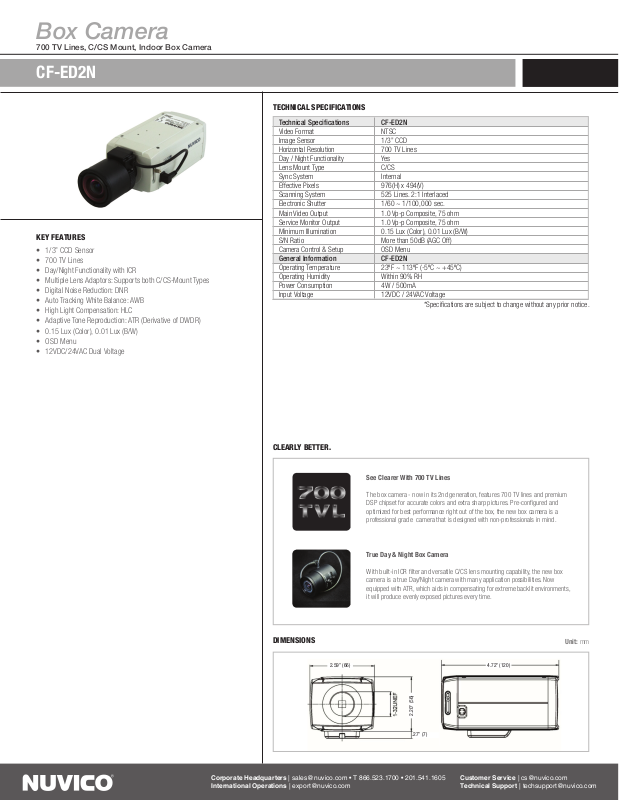

Nuvico CF-ED2N Specsheet
Box Camera
700 TV Lines, C/CS Mount, Indoor Box Camera
CF-ED2N
KEY FEATURES
• 1/3” CCD Sensor
• 700 TV Lines
• Day/Night Functionality with ICR
• Multiple Lens Adaptors: Supports both C/CS-Mount Types
• Digital Noise Reduction: DNR
• Auto Tracking White Balance: AWB
• High Light Compensation: HLC
• Adaptive Tone Reproduction: ATR (Derivative of DWDR)
• 0.15 Lux (Color), 0.01 Lux (B/W)
• OSD Menu
• 12VDC/24VAC Dual Voltage
TECHNICAL SPECIFICATIONS
Technical Specications
Video Format
Image Sensor
Horizontal Resolution
Day / Night Functionality
Lens Mount Type
Sync System
Effective Pixels
Scanning System
Electronic Shutter
Main Video Output
Service Monitor Output
Minimum Illumination
S/N Ratio
Camera Control & Setup
General Information
Operating Temperature
Operating Humidity
Power Consumption
Input Voltage
CF-ED2N
NTSC
1/3” CCD
700 TV Lines
Yes
C/CS
Internal
976(H) x 494(V)
525 Lines. 2:1 Interlaced
1/60 ~ 1/100,000 sec.
1.0 Vp-p Composite, 75 ohm
1.0 Vp-p Composite, 75 ohm
0.15 Lux (Color), 0.01 Lux (B/W)
More than 50dB (AGC Off)
OSD Menu
CF-ED2N
23ºF ~ 113ºF (-5ºC ~ +45ºC)
Within 90% RH
4W / 500mA
12VDC / 24VAC Voltage
*Specications are subject to change without any prior notice.
CLEARLY BETTER.
DIMENSIONS
2.59” (66)
See Clearer With 700 TV Lines
The box camera - now in its 2nd generation, features 700 TV lines and premium
DSP chipset for accurate colors and extra sharp pictures. Pre-congured and
optimized for best performance right out of the box, the new box camera is a
professional grade camera that is designed with non-professionals in mind.
True Day & Night Box Camera
With built-in ICR lter and versatile C/CS lens mounting capability, the new box
camera is a true Day/Night camera with many application possibilities. Now
equipped with ATR, which aids in compensating for extreme backlit environments,
it will produce evenly exposed pictures every time.
Unit: mm
4.72” (120)
2.20” (56)
.27” (7)
