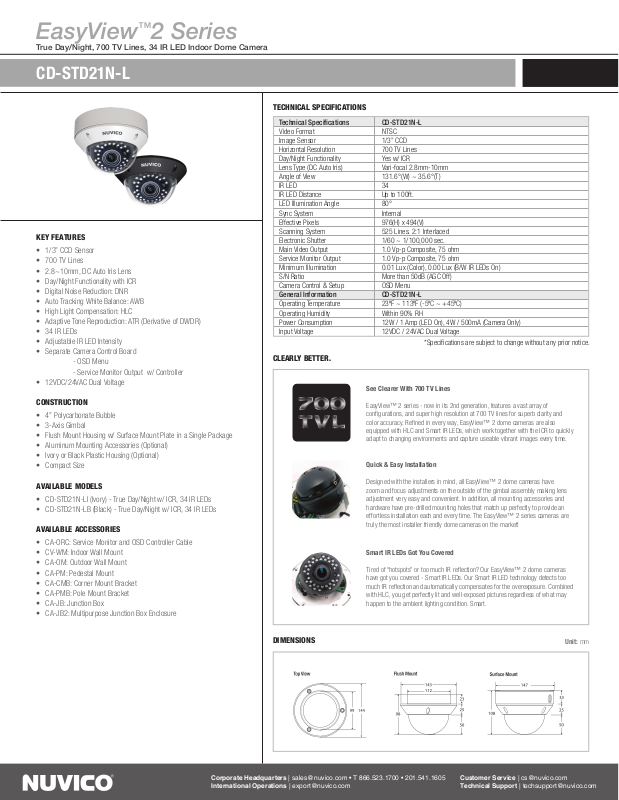

Nuvico CD-STD21N-LB Specsheet

EasyView™2 Series

True Day/Night, 700 TV Lines, 34 IR LED Indoor Dome Camera

CD-STD21N-L

KEY FEATURES

• 1/3” CCD Sensor

• 700 TV Lines

• 2.8~10mm, DC Auto Iris Lens

• Day/Night Functionality with ICR

• Digital Noise Reduction: DNR

• Auto Tracking White Balance: AWB

• High Light Compensation: HLC

• Adaptive Tone Reproduction: ATR (Derivative of DWDR)

• 34 IR LEDs

• Adjustable IR LED Intensity

• Separate Camera Control Board

- OSD Menu

- Service Monitor Output w/ Controller

• 12VDC/24VAC Dual Voltage

CONSTRUCTION

• 4” Polycarbonate Bubble

• 3-Axis Gimbal

• Flush Mount Housing w/ Surface Mount Plate in a Single Package

• Aluminum Mounting Accessories (Optional)

• Ivory or Black Plastic Housing (Optional)

• Compact Size

AVAILABLE MODELS

• CD-STD21N-LI (Ivory) - True Day/Night w/ ICR, 34 IR LEDs

• CD-STD21N-LB (Black) - True Day/Night w/ ICR, 34 IR LEDs

AVAILABLE ACCESSORIES

• CA-ORC: Service Monitor and OSD Controller Cable

• CV-WM: Indoor Wall Mount

• CA-OM: Outdoor Wall Mount

• CA-PM: Pedestal Mount

• CA-CMB: Corner Mount Bracket

• CA-PMB: Pole Mount Bracket

• CA-JB: Junction Box

• CA-JB2: Multipurpose Junction Box Enclosure

TECHNICAL SPECIFICATIONS

Technical Specications

Video Format
Image Sensor
Horizontal Resolution
Day/Night Functionality
Lens Type (DC Auto Iris)
Angle of View
IR LED
IR LED Distance
LED Illumination Angle
Sync System
Effective Pixels
Scanning System
Electronic Shutter
Main Video Output
Service Monitor Output
Minimum Illumination
S/N Ratio
Camera Control & Setup

General Information

Operating Temperature
Operating Humidity
Power Consumption
Input Voltage

CLEARLY BETTER.

CD-STD21N-L

NTSC
1/3” CCD
700 TV Lines
Yes w/ ICR
Vari-focal 2.8mm-10mm

131.6°(W) ~ 35.6°(T)
34
Up to 100ft.
80°
Internal
976(H) x 494(V)
525 Lines. 2:1 Interlaced
1/60 ~ 1/100,000 sec.

1.0 Vp-p Composite, 75 ohm

1.0 Vp-p Composite, 75 ohm

0.01 Lux (Color), 0.00 Lux (B/W IR LEDs On)
More than 50dB (AGC Off)
OSD Menu

CD-STD21N-L

23ºF ~ 113ºF (-5ºC ~ +45ºC)
Within 90% RH
12W / 1 Amp (LED On), 4W / 500mA (Camera Only)
12VDC / 24VAC Dual Voltage

*Specications are subject to change without any prior notice.

See Clearer With 700 TV Lines

EasyView™ 2 series - now in its 2nd generation, features a vast array of

congurations, and super high resolution at 700 TV lines for superb clarity and
color accuracy. Rened in every way, EasyView™ 2 dome cameras are also

equipped with HLC and Smart IR LEDs, which work together with the ICR to quickly

adapt to changing environments and capture useable vibrant images every time.

Quick & Easy Installation

Designed with the installers in mind, all EasyView™ 2 dome cameras have

zoom and focus adjustments on the outside of the gimbal assembly making lens
adjustment very easy and convenient. In addition, all mounting accessories and

hardware have pre-drilled mounting holes that match up perfectly to provide an
effortless installation each and every time. The EasyView™ 2 series cameras are
truly the most installer friendly dome cameras on the market!

Smart IR LEDs Got You Covered

Tired of “hotspots” or too much IR reection? Our EasyView™ 2 dome cameras

have got you covered - Smart IR LEDs. Our Smart IR LED technology detects too

much IR reection and automatically compensates for the overexposure. Combined

with HLC, you get perfectly lit and well-exposed pictures regardless of what may

happen to the ambient lighting condition. Smart.

DIMENSIONS

Corporate Headquarters | [e-mail] • T 866.523.1700 • 201.541.1605
International Operations | [e-mail]

Unit: mm
