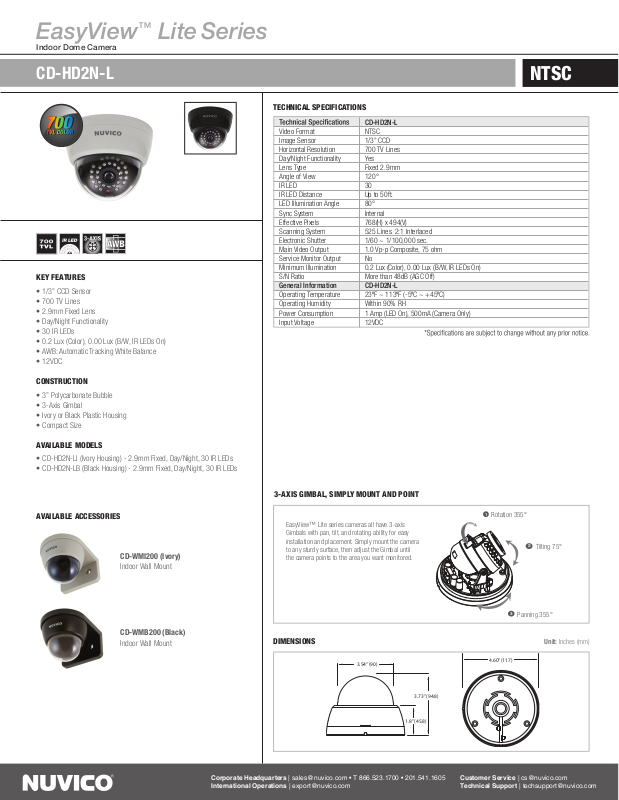

Nuvico CD-HD2N-LB, CD-HD2N-LI Specsheet

EasyView™ Lite Series

Indoor Dome Camera

CD-HD2N-L

KEY FEATURES

• 1/3” CCD Sensor

• 700 TV Lines

• 2.9mm Fixed Lens

• Day/Night Functionality

• 30 IR LEDs

• 0.2 Lux (Color), 0.00 Lux (B/W, IR LEDs On)

• AWB: Automatic Tracking White Balance

• 12VDC

TECHNICAL SPECIFICATIONS

Video Format
Image Sensor
Horizontal Resolution
Day/Night Functionality
Lens Type
Angle of View
IR LED
IR LED Distance
LED Illumination Angle
Sync System
Effective Pixels
Scanning System
Electronic Shutter
Main Video Output
Service Monitor Output
Minimum Illumination
S/N Ratio

General Information

Operating Temperature
Operating Humidity
Power Consumption
Input Voltage

NTSC

CD-HD2N-L

NTSC
1/3” CCD
700 TV Lines
Yes
Fixed 2.9mm
120°
30
Up to 50ft.
80°
Internal
768(H) x 494(V)
525 Lines. 2:1 Interlaced
1/60 ~ 1/100,000 sec.

1.0 Vp-p Composite, 75 ohm
No

0.2 Lux (Color), 0.00 Lux (B/W, IR LEDs On)
More than 48dB (AGC Off)

CD-HD2N-L

23ºF ~ 113ºF (-5ºC ~ +45ºC)
Within 90% RH
1 Amp (LED On), 500mA (Camera Only)
12VDC

CONSTRUCTION

• 3” Polycarbonate Bubble

• 3-Axis Gimbal

• Ivory or Black Plastic Housing

• Compact Size

AVAILABLE MODELS

• CD-HD2N-LI (Ivory Housing) - 2.9mm Fixed, Day/Night, 30 IR LEDs

• CD-HD2N-LB (Black Housing) - 2.9mm Fixed, Day/Night, 30 IR LEDs

AVAILABLE ACCESSORIES

CD-WMI200 (Ivory)

Indoor Wall Mount

CD-WMB200 (Black)

Indoor Wall Mount

3-AXIS GIMBAL, SIMPLY MOUNT AND POINT

EasyView™ Lite series cameras all have 3-axis
Gimbals with pan, tilt, and rotating ability for easy
installation and placement. Simply mount the camera
to any sturdy surface, then adjust the Gimbal until
the camera points to the area you want monitored.

DIMENSIONS

3.54” (90)

1

Rotation 355°

4.60” (117)

2

3

Panning 355°

Tilting 75°

Unit: Inches (mm)

3.73” (94.8)

1.8” (45.8)
