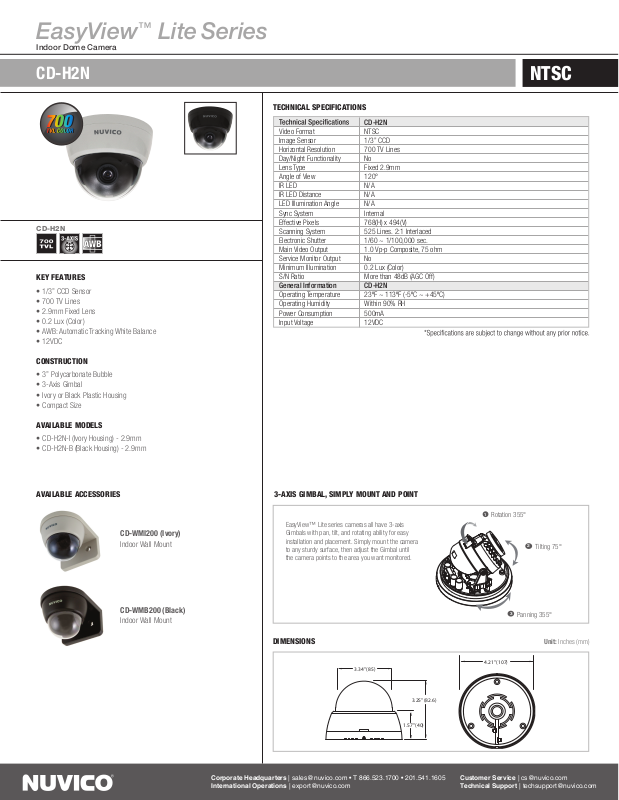

Nuvico CD-H2N-B, CD-H2N-I Specsheet
EasyView™ Lite Series
Indoor Dome Camera
CD-H2N
CD-H2N
KEY FEATURES
• 1/3” CCD Sensor
• 700 TV Lines
• 2.9mm Fixed Lens
• 0.2 Lux (Color)
• AWB: Automatic Tracking White Balance
• 12VDC
CONSTRUCTION
• 3” Polycarbonate Bubble
• 3-Axis Gimbal
• Ivory or Black Plastic Housing
• Compact Size
TECHNICAL SPECIFICATIONS
Video Format
Image Sensor
Horizontal Resolution
Day/Night Functionality
Lens Type
Angle of View
IR LED
IR LED Distance
LED Illumination Angle
Sync System
Effective Pixels
Scanning System
Electronic Shutter
Main Video Output
Service Monitor Output
Minimum Illumination
S/N Ratio
General Information
Operating Temperature
Operating Humidity
Power Consumption
Input Voltage
NTSC
CD-H2N
NTSC
1/3” CCD
700 TV Lines
No
Fixed 2.9mm
120°
N/A
N/A
N/A
Internal
768(H) x 494(V)
525 Lines. 2:1 Interlaced
1/60 ~ 1/100,000 sec.
1.0 Vp-p Composite, 75 ohm
No
0.2 Lux (Color)
More than 48dB (AGC Off)
CD-H2N
23ºF ~ 113ºF (-5ºC ~ +45ºC)
Within 90% RH
500mA
12VDC
AVAILABLE MODELS
• CD-H2N-I (Ivory Housing) - 2.9mm
• CD-H2N-B (Black Housing) - 2.9mm
AVAILABLE ACCESSORIES
CD-WMI200 (Ivory)
Indoor Wall Mount
CD-WMB200 (Black)
Indoor Wall Mount
3-AXIS GIMBAL, SIMPLY MOUNT AND POINT
EasyView™ Lite series cameras all have 3-axis
Gimbals with pan, tilt, and rotating ability for easy
installation and placement. Simply mount the camera
to any sturdy surface, then adjust the Gimbal until
the camera points to the area you want monitored.
DIMENSIONS
3.34” (85)
3.25” (82.6)
1
Rotation 355°
4.21” (107)
2
3
Panning 355°
Tilting 75°
Unit: Inches (mm)
1.57” (40)
