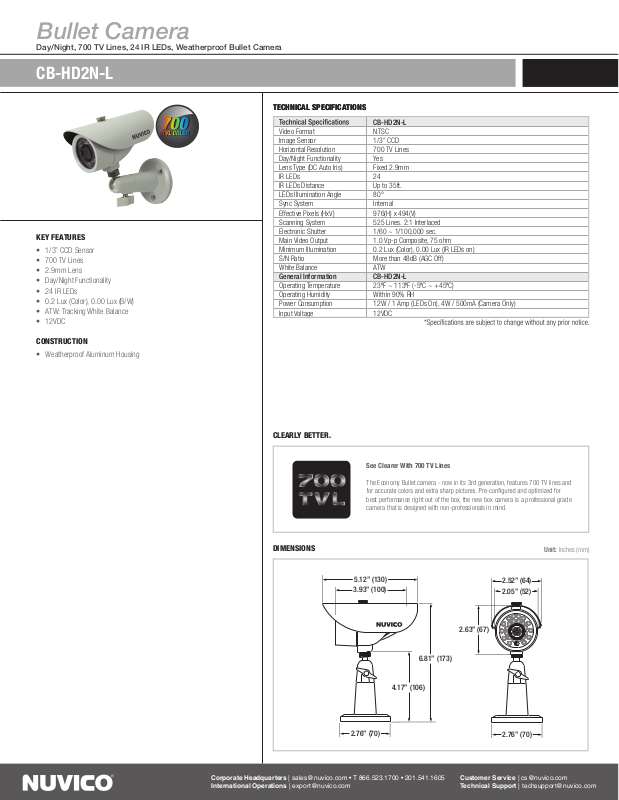

Nuvico CB-HD2N-L Specsheet

Bullet Camera

Day/Night, 700 TV Lines, 24 IR LEDs, Weatherproof Bullet Camera

CB-HD2N-L

TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS

KEY FEATURES

• 1/3” CCD Sensor

• 700 TV Lines

• 2.9mm Lens

• Day/Night Functionality

• 24 IR LEDs

• 0.2 Lux (Color), 0.00 Lux (B/W)

• ATW: Tracking White Balance

• 12VDC

Video Format
Image Sensor
Horizontal Resolution
Day/Night Functionality
Lens Type (DC Auto Iris)
IR LEDs
IR LEDs Distance
LEDs Illumination Angle
Sync System
Effective Pixels (HxV)
Scanning System
Electronic Shutter
Main Video Output
Minimum Illumination
S/N Ratio
White Balance

General Information

Operating Temperature
Operating Humidity
Power Consumption
Input Voltage

CB-HD2N-L

NTSC
1/3” CCD
700 TV Lines
Yes
Fixed 2.9mm
24
Up to 35ft.
80°
Internal
976(H) x 494(V)
525 Lines. 2:1 Interlaced
1/60 ~ 1/100,000 sec.

1.0 Vp-p Composite, 75 ohm

0.2 Lux (Color), 0.00 Lux (IR LEDs on)
More than 48dB (AGC Off)
ATW

CB-HD2N-L

23ºF ~ 113ºF (-5ºC ~ +45ºC)
Within 90% RH
12W / 1 Amp (LEDs On), 4W / 500mA (Camera Only)
12VDC

CONSTRUCTION

• Weatherproof Aluminum Housing

CLEARLY BETTER.

DIMENSIONS

See Clearer With 700 TV Lines

The Economy Bullet camera - now in its 3rd generation, features 700 TV lines and

best performance right out of the box, the new box camera is a professional grade
camera that is designed with non-professionals in mind.

5.12” (130)

3.93” (100)

2.63” (67)

2.52” (64)

2.05” (52)

Unit: Inches (mm)

6.81” (173)

4.17” (106)

2.76” (70)
