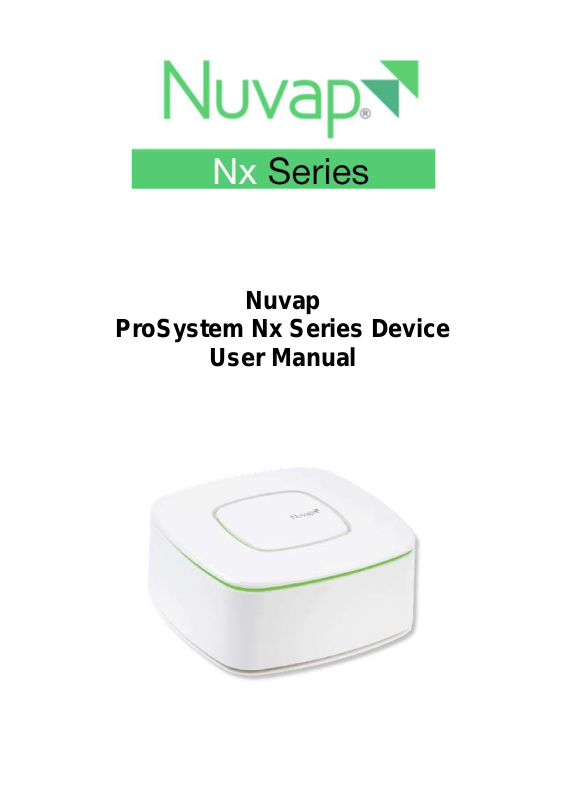

Nuvap
ProSystem Nx Series Device
User Manual
Nuvap ProSystem Nx Series Device User Manual
2
This page is intentionally left blank
Nuvap ProSystem Nx Series Device User Manual
3
Index
Introduction ............................................................................................................................ 11
The Nuvap ProSystem Nx Series .............................................................................................. 12
The Device ...................................................................................................................................... 12
Where to Position the Devices ....................................................................................................... 13
Configuration of the ProSystem devices ................................................................................... 14
Requirements for the configuration of the Nx Series devices ....................................................... 14
Preparing the Nuvap Nx device ...................................................................................................... 14
Configuration of the Nuvap Nx....................................................................................................... 14
Notes on the configuration (in case of problems) ......................................................................... 15
Moving the devices ........................................................................................................................ 15
Reconfiguring the devices .............................................................................................................. 16
Using the ProSystem devices ................................................................................................... 17
Operating mode ............................................................................................................................. 17
Auto-test ......................................................................................................................................... 17
Reset ............................................................................................................................................... 18
Device notifications ........................................................................................................................ 18
Audio Messages .............................................................................................................................. 18
Light signals .................................................................................................................................... 19
Green Signals .............................................................................................................................. 19
Yellow Signals.............................................................................................................................. 19
Red Signals .................................................................................................................................. 20
Blue Signals ................................................................................................................................. 20
Violet Signals ............................................................................................................................... 21
Other Signals ............................................................................................................................... 21
Manual Detection ........................................................................................................................... 21
The Nuvap Application ............................................................................................................ 22
Login ............................................................................................................................................... 22
Register ........................................................................................................................................... 22
Home .............................................................................................................................................. 23
Overview ..................................................................................................................................... 23
Electromagnetic Pollution .......................................................................................................... 23
Nuvap ProSystem Nx Series Device User Manual
4
Acoustic Pollution ....................................................................................................................... 24
Radioactivity ............................................................................................................................... 24
Air Quality ................................................................................................................................... 24
Gas .............................................................................................................................................. 25
Water Measurement .................................................................................................................. 25
Add Water Measurement ....................................................................................................... 25
Previous Water Measurements .............................................................................................. 26
Manage N1s .................................................................................................................................... 26
View Existing N1 Devices ............................................................................................................ 26
Add Viewer ................................................................................................................................. 27
Add Device .................................................................................................................................. 27
Scan the QR Code .................................................................................................................... 27
Join to Nuvap Network ........................................................................................................... 27
IP Settings ................................................................................................................................ 29
Language and Mode Settings .................................................................................................. 29
Connect to the Internet .......................................................................................................... 29
Water Quality ................................................................................................................................. 30
Add new Measure ....................................................................................................................... 31
Previous Measure ....................................................................................................................... 32
Punctual Measures ......................................................................................................................... 33
Punctual History ............................................................................................................................. 34
Notifications Setup ......................................................................................................................... 35
Alarms Log ...................................................................................................................................... 36
User ................................................................................................................................................ 37
My.Nuvap Platform ................................................................................................................. 38
Login Page....................................................................................................................................... 38
Create New Account ................................................................................................................... 38
My N1s ............................................................................................................................................ 39
My N1s History ........................................................................................................................... 39
Home .............................................................................................................................................. 40
Settings ........................................................................................................................................... 40
Tools ............................................................................................................................................... 41
Export .......................................................................................................................................... 41
Nuvap ProSystem Nx Series Device User Manual
5
Export List ................................................................................................................................... 41
General Maintenance .............................................................................................................. 42
SW Maintenance ............................................................................................................................ 42
Calibration ...................................................................................................................................... 42
MTBF Nx Series ............................................................................................................................... 42
Cleaning .......................................................................................................................................... 42
Assistance ....................................................................................................................................... 42
Safety Precautions .......................................................................................................................... 43
Operating Limits ............................................................................................................................. 44
Conformity ...................................................................................................................................... 44
HW Characteristics ......................................................................................................................... 44
Nuvap ProSystem Nx Series Device User Manual
6
This page is intentionally left blank
Nuvap ProSystem Nx Series Device User Manual
7
Index of Pictures
Pic 1: Top of the device ...................................................................................................................... 13
Pic 2: Water analysis kit ..................................................................................................................... 13
Pic 3: QR Code .................................................................................................................................... 13
Pic 4: Power button ............................................................................................................................ 14
Pic 5: Start the measurements ........................................................................................................... 21
Pic 6: Download page ......................................................................................................................... 22
Pic 7: Login page................................................................................................................................. 22
Pic 8: Register page ............................................................................................................................ 22
Pic 9: Accessing the menu .................................................................................................................. 23
Pic 10: Overview ................................................................................................................................. 23
Pic 11: Electromagnetic pollution ...................................................................................................... 23
Pic 12: Acoustic pollution ................................................................................................................... 24
Pic 13: Radioactivity ........................................................................................................................... 24
Pic 14: Air quality ............................................................................................................................... 24
Pic 15: Gas .......................................................................................................................................... 25
Pic 16: Add water measurements ...................................................................................................... 25
Pic 17: Previous measurements ......................................................................................................... 26
Pic 18: Manage N1s ............................................................................................................................ 26
Pic 19: View settings .......................................................................................................................... 26
Pic 20: Add viewer .............................................................................................................................. 27
Pic 21: Device configuration .............................................................................................................. 27
Pic 22: Connect to Wi-Fi ..................................................................................................................... 27
Pic 23: Select Nuvap network ............................................................................................................ 27
Pic 24: Connect to Wi-Fi ..................................................................................................................... 29
Pic 25: Language options ................................................................................................................... 29
Pic 26: Wi-Fi password ....................................................................................................................... 29
Pic 28: Green Test Tube ..................................................................................................................... 30
Pic 29: White Test Tube ..................................................................................................................... 30
Pic 30: Test Strip Type1 ...................................................................................................................... 30
Pic 31: Test Strip Type2 ...................................................................................................................... 30
Pic 27: Water Quality Menu ............................................................................................................... 30
Nuvap ProSystem Nx Series Device User Manual
8
Pic 32: Water Measurement Step1 .................................................................................................... 31
Pic 33: Water Measurement Step2 .................................................................................................... 31
Pic 34: Previous Water Measurements ............................................................................................. 32
Pic 35: Punctual Measurement Starts................................................................................................ 33
Pic 36: Punctual Measurements Ends ................................................................................................ 33
Pic 37: Punctual History ..................................................................................................................... 34
Pic 38: Notification Setup page1 ........................................................................................................ 35
Pic 39: Notification Setup page2 ........................................................................................................ 35
Pic 40: Alarms Log .............................................................................................................................. 36
Pic 41: User Account page1 ............................................................................................................... 37
Pic 42: User Account page2 ............................................................................................................... 37
Pic 43: Change Password ................................................................................................................... 37
Pic 44: My.Nuvap Login page ............................................................................................................. 38
Pic 45: My.Nuvap Create Account page............................................................................................. 38
Pic 46: My N1s page ........................................................................................................................... 39
Pic 47: My N1s History page .............................................................................................................. 39
Pic 48: My Nuvap Home page ............................................................................................................ 40
Pic 49: My.Nuvap Settings page ......................................................................................................... 40
Pic 50: My.Nuvap Export page ........................................................................................................... 41
Pic 51: My.Nuvap Export List page..................................................................................................... 41
Nuvap ProSystem Nx Series Device User Manual
9
Index of Icons
Icon 1: High Frequency ...................................................................................................................... 12
Icon 2: Low-Frequency ....................................................................................................................... 12
Icon 3: Radon Gas .............................................................................................................................. 12
Icon 4: Ionizing Nuclear Radiation ..................................................................................................... 12
Icon 5: Wi-Fi Networks ....................................................................................................................... 12
Icon 6: Noise ....................................................................................................................................... 12
Icon 7: Formaldehyde ........................................................................................................................ 12
Icon 8: VOC ......................................................................................................................................... 12
Icon 9: Air Quality............................................................................................................................... 12
Icon 10: CO ......................................................................................................................................... 12
Icon 11: Relative CO2 ......................................................................................................................... 12
Icon 12: CH4 ....................................................................................................................................... 12
Icon 13: Dust and Smoke ................................................................................................................... 12
Icon 14: Water Quality ....................................................................................................................... 12
Icon 15: Temperature ........................................................................................................................ 12
Icon 16: Humidity ............................................................................................................................... 12
Index of Tables
Table 1: Green Signals table ............................................................................................................... 19
Table 2: Yellow Signals table .............................................................................................................. 20
Table 3: Red Signals Table .................................................................................................................. 20
Table 4: Blue Signals table ................................................................................................................. 21
Table 5: Violet Signals table ............................................................................................................... 21
Table 6: Other Signals table ............................................................................................................... 21
Table 7: Device Characteristics .......................................................................................................... 44
Nuvap ProSystem Nx Series Device User Manual
10
This page is intentionally left blank
Nuvap ProSystem Nx Series Device User Manual
11
Introduction
This manual provides the instructions for the set-up and correct use of devices in the ProSystem Nx
Series, and the Nuvap Application.
Both the manual and the product described in it are protected by copyright, all rights reserved. The
manual therefore may not be reproduced either fully or partially, without written permission from
Nuvap.
Nuvap ProSystem Nx Series Device User Manual
12
The Nuvap ProSystem Nx Series
The Device
The Nuvap ProSystem Nx Series includes devices for the specific monitoring of the main sources of
indoor pollution, which can, over time, be harmful for your health.
The ProSystem Nx devices, together with the relative technology and the techniques used in
association with the device, are protected by patents or international patent applications and
copyright. Thanks to the device sensors, the ProSystem appliances are able to detect up to 26
different parameters, including the following (depending on the version):
Icon 1: High Frequency
Electromagnetic Fields
Icon 2: Low-Frequency
Electromagnetic Fields
Icon 3: Radon Gas
Icon 4: Ionizing Nuclear
Radiation
Icon 5: Wi-Fi Networks
Icon 6: Noise
Icon 7: Formaldehyde
Icon 8: VOC
Icon 9: Air Quality
(H2, LPG, Alcohol, NH3, Ethanol,
Toluene)
Icon 10: CO
Carbon Monoxide
Icon 11: Relative CO2
Carbon Dioxide
Icon 12: CH4
Methane
Icon 13: Dust and Smoke
Icon 14: Water Quality
(Chlorine, Hardness, Alkalinity,
Ph, Nitrine, Nitrate)
Icon 15: Temperature
Icon 16: Humidity
Nuvap ProSystem Nx Series Device User Manual
13
All the d registered by the ProSystem Nx Series devices are available at anytime and anywhere via
the Nuvap App and the My.Nuvap platform.
The Nx ProSystem Series comes with:
1. Status LEDs: Red, Yellow, Green
2. Touch key (on top of the device) (see Pic 1)
3. Loudspeaker for the voice messages (this function can be disabled via the app)
4. 5V DC Connector
5. Test tubes with water analysis kit (for N ° 6 tests) (see Pic 2)
6. QR code with MAC Address number (at the bottom of the device) to activate the services in App
and to request the Calibration Certificate. (see Pic 3)
Pic 1: Top of the device
Pic 2: Water analysis kit
Pic 3: QR Code
Where to Position the Devices
The Nx Series devices function in environments which have a temperature of between -5 e +40°C
and a humidity level of less than 80%.
For the configuration of the devices, a fixing kit is not required, but they should be placed on flat
surfaces, at eye level (e.g. desks, office furniture, bookcases). The ProSystem devices are designed
to be moved around easily, allowing the measuring of the presence of pollutants in work
environments in “roaming”.
The appliances should be placed in rooms where people spend most of their time (offices, meeting
rooms, etc.) and away from sources of heat, air-conditioners and extremely dusty environments.
The devices should also be placed far away from electromagnetic sources such as smart phones and
cordless phones, Smart-TVs, projectors and from sources of local pollution so as not to not to impair
the correct functioning.
It is also recommended that the Nx devices not be placed in environments where there is an
elevated quantity of dust (work premises with high dust residues such as carpenters, car workshops,
bakeries etc.).
The devices are equipped with a battery that allows up to 3 hours of use. Depending on the
characteristics of the environment being monitored (including, for example, ceiling height, number
of floors, thickness of the walls, etc.), the devices may not detect significant levels of some
parameters (see the FAQ section on the Nuvap website). Generally speaking, to understand the data
detected by the device, we recommend that you contact the Nuvap support team when you have
been monitoring for a few weeks.
Nuvap ProSystem Nx Series Device User Manual
14
Configuration of the ProSystem devices
Requirements for the configuration of the Nx Series devices
To configure the ProSystem devices you need:
• 2.4 GHz 802.11 b/g (40Kb/s minimum band upload) Wi-Fi connection
1
• An iOS or Android Smartphone or Tablet
• A Nuvap account.
The Nx devices require a Wi-Fi network with WPA PSK authentication and do not support access via
WPA Enterprise or catch portal. The internet connection via the Wi-Fi network must not be through
proxy and must not filter the HTTP and HTTPS protocols (ports 80 e 443).
The devices use the 80 port to transmit the information via Internet. If this port is inaccessible or
the firewall is configured to block it, data transmission is not possible.
Preparing the Nuvap Nx device
In order to configure and use the device you must:
1. Remove the device and the power supply from the package;
2. Place it in the environment that you want to monitor;
3. Connect to the electricity supply;
4. Connect the power supply and insert the plug into the socket;
5. Press the power button next to the power connector to switch on
the device; (see Error! Reference source not found.)
6. Download the ‘Nuvap App’ Mobile App from Apple Store (™) or
Google Play (™)
7. Have a Nuvap Account, created automatically on the my.nuvap.com
platform, when you install the App.
Configuration of the Nuvap Nx
The device acquires the information from the Wi-Fi network at the moment when it is switched on;
it is therefore extremely important to switch it on and configure it in an area with a good network
coverage.
1. Login from the Mobile App with the credentials provided by the Nuvap account.
2. Select ‘Manage N1s’ from the menu on the left of the app
3. Select ‘Add Device’
4. Scan the QRCODE that is at the bottom of the device to be configured. (see Pic 3)
5. Follow the guided configuration procedure from the Nuvap App (see section Add Device).
6. Wait for the message: “Continuous Monitoring activated” to appear.
1
It is impossible to install the Nx device without a W-Fi connection.
Pic 4: Power button
Nuvap ProSystem Nx Series Device User Manual
15
If the device has been installed correctly, a few minutes after the installation procedure has been
completed, it will transmit the first measurements from the sensors and make them available via
the App. If this does not occur, we recommend that you repeat the installation procedure.
In the case of further installations, you simply need to add a new device from the ‘Manage Devices’
area of the App. All the devices that have been installed and are online will be visible on the account.
When the device has been correctly configured, on the App’s main page under the Nuvap Index
panel, you will be able to see that the device has been updated (grey writing under the device icon).
At this point, the monitoring of the environmental parameters has started, and from this moment,
roughly every quarter of an hour, the data will be updated and can be consulted either via the Nuvap
App or the My.Nuvap platform (see section My.Nuvap Platform).
The data can be only be visualized by authorized profiles (owners and viewers of the device). The
owner of the device can authorize all the viewer users that he likes, provided that they have
previously been registered on the my.nuvap.com platform. The viewer profiles, the notifications
and the function configurations are managed via the APP by the device’s owner.
Notes on the configuration (in case of problems)
The device is not correctly connected to the Wi-Fi network if it does not transmit the data after a
few minutes, or if it sends these messages: “Wi-Fi Password Error” or “IP Address Conflict”.
Any difficulties in configurating the devices can be caused by:
• Entering the wrong Wi-Fi network Password
• Presence of a network Firewall that denies access to Nuvap servers
• The Nuvap Nx device is too far from the Access Point
• The Nx battery is flat or not very charged
• A connection problem with the WAN network (if the device is connected to the Wi-Fi network,
but is not updating the monitored data)
Moving the devices
If the devices are moved, they may lose the internet connection. If this happens, you must put the
device back in the area with Wi-Fi coverage, or reconfigure it in the new environment using the
reconfiguration procedures.
The devices can memorize the data acquired even if they are not connected to the network, for up
to a maximum of 60 days. To allow the Nx Series device to retransmit all the memorized data to the
My Nuvap platform, just bring it back into the zone of the pre-configured Wi-Fi coverage.
The Nx devices have autonomy of around 3 hours, thanks to the built-in back-up battery.
Nuvap ProSystem Nx Series Device User Manual
16
Reconfiguring the devices
To reconfigure the device, just follow these easy steps:
1. Switch the ProSystem off and then on again.
2. Keep the touch button pressed with at least two fingers (on the top of the device, with the
Nuvap logo).
3. The status LED will first become purple and then BLUE. In the presence of the BLUE LED release
the touch button.
4. The device will emit three sounds twice and tell you it is ready for a new configuration by saying
“ready - waiting for configuration”.
5. Follow the installation procedure.
Nuvap ProSystem Nx Series Device User Manual
17
Using the ProSystem devices
Operating mode
The Nx Series devices have three operating modes:
• Continuous mode,
• Punctual mode 1
• Punctual mode 2
After the initial configuration of the device, the continuous mode is automatically activated: the
device constantly analyses the parameters and regularly updates the global assessment of the
quality of the monitored environment2, on the basis of a proprietary algorithm (“NUVAP QUALITY
INDEX”). The data and the index can be consulted via the App and the Platform at
http://my.nuvap.com.
Locally, at any time, by pressing the touch button, the Nx Series device will return a voice message
summarizing the quality of the monitored environment.
A reliable assessment of the quality of the monitored environment requires the use of an Nx Series
device in continuous mode, for a period of at least 30 consecutive days. It is possible to know the
Nuvap Quality Index of the environment in which the device is installed, at any time, through the
App and the Platform, at http://my.nuvap.com.
To pass to the punctual mode, just press the touch button and wait for the violet led.
In the punctual modes, the Nx device supplies the real-time results of the analysis of the
environmental quality parameters of the area monitored via the Nuvap App.
In punctual mode 1, the Nx device supplies the real-time results of the analysis of the environmental
quality parameters of the area monitored via the Nuvap App. We recommend this mode every time
you wish to check a specific environment.
In punctual mode 2, the Nx Series devices supply the reading of one sensor at a time in “live” mode
via the Nuvap App, and update the analyzed data every two seconds, producing a graph of the values
in real-time.
Auto-test
The Nx series is able to perform an automatic correct operation test at predetermined time
intervals. If there are no operating anomalies it emits a green light, which if desired, you can turn
off via the App.
In the event of the auto-test detecting operating anomalies, such as for example, problems with the
Wi-Fi connection, problems with the battery, broken or uncalibrated sensors etc., the device emits
a blue light.
2
The environmental conditions may vary over time.
Nuvap ProSystem Nx Series Device User Manual
18
It is also possible to check the state of the device and any anomalies in the functioning by simply
pressing the touch button.
Any information regarding malfunction is also transmitted to the platform, if the network
connection functions have not been compromised. It is in any case necessary to calibrate the device
at regular intervals to confirm that it is functioning correctly.
Reset
It is possible to reset the Nx Series devices by cancelling all the settings. This operation can be made
necessary, for example in the event of modifications in the Wi-Fi network (change of network name
and/or password, change of modem, moving the device).
It is not possible to carry out the reset only from the Nuvap App. To carry out the reset and cancel
all the data and settings, proceed as follows:
• Switch the device off and switch it on again after a few seconds
• Press the touch button and keep it pressed until the Nx device emits a blue light (after around
20 seconds) and then release the touch button.
• After a few seconds, Nx will start functioning again, ready for a new configuration.
• After the reset, you must follow the initial configuration procedure.
Device notifications
The Nx Series devices can communicate via audio messages, light signals and notifications via App
or web platform.
Each device is able to emit two types of audio notification (Attention and Danger), and five types of
light signals via its leds (green, yellow, red, blue and violet).
In the event of an Nx device detecting the presence of pollutants at Attention or Danger levels, as
well as emitting a local alarm, it sends a notification to the App and the Nuvap platform
(http://my.nuvap.com).
Audio Messages
Each device emits two types of audio message to signal the increase in the levels of the pollutants
monitored: Attention and Danger3.
The notification that the attention level has been exceeded is to signal the increased levels of one
or more of the monitored pollutants before they reach the danger level.
In this case, the Nx device will emit the following message. “Detected presence of (name of
pollutant)”. At the same time, the device will emit an intermittent yellow light.
The danger alarm sounds when the level of one or more pollutants reaches the danger level, and
higher than the values believed to be healthy. The device emits an alarm and the voice message:
"High presence of (name of pollutant)". At the same time, the Nx Series device emits an intermittent
3
Voice notifications can be disabled via APP
Nuvap ProSystem Nx Series Device User Manual
19
red light. In both cases, the device continues to repeat the voice alarm signal and the light signal
until it is deactivated by pressing the touch key on the top of the device.
Light signals
The Nx Series devices are able to send out five types of light signals:
• Green signal: occurs periodically or on request, (Touch) and signifies that the device is
functioning properly and there are no anomalies or pollutants detected. (see Green Signals
table)
• Yellow signal: occurs in the event of detection of higher levels of one or more of the pollutants
monitored before they reach the danger threshold (“ATTENTION”). Simultaneously emits the
voice message: “Presence of (name of pollutant)”. (see Yellow Signals table)
• Red signal: occurs when the level of one or more pollutants reaches the threshold of danger,
(DANGER). The device simultaneously sounds the alarm and the voice message: “Danger, high
presence of (name of pollutant)”. (see Red Signals Table)
• Blue signal: warns about malfunctions, for example, problems with Wi-Fi connection, battery,
sensors. The same blue signal can be seen during the start/reset phase of the Nx Series devices.
(see Blue Signals table)
• Violet signal: indicates that punctual measurement has started. (see Violet Signals table)
Green Signals
Voice Message
What It Means
What You Should Do
Continuous measuring
started
The device has started to monitor the
environment in a continuous manner
Wait for the messages on the state of the
monitored environment
No pollutants detected in
the monitored area
The device did not detect any pollutants
in the monitored area after the
measurement in Punctual mode
Do nothing
Quality of the monitored
environment Excellent /
Good / Insufficient
The device indicates that the monitored
environment has an Excellent / Good /
Insufficient
quality
See the complete measurements carried
out by the device through the NUVAP App
or Platform. (http://my.nuvap.com)
Table 1: Green Signals table
Yellow Signals
Voice Message
What It Means
What You Should Do
Presence of Particulates or
smoke
The device has detected the presence
of Smoke or
particulate matter at ATTENTION levels
See the entry for the pollutant on
www.nuvap.com/en/solutions
Presence of Ionizing
nuclear
radiation
The device has detected the presence
of Ionizing nuclear radiation at
ATTENTION levels
See the entry for the pollutant on
www.nuvap.com/en/solutions
Wi-Fi networks detected
The device has detected the presence
of Wi-Fi networks at ATTENTION levels
See the entry for the pollutant on
www.nuvap.com/en/solutions
Presence of Radon Gas
The device has detected the presence
of Radon Gas at ATTENTION levels
See the entry for the pollutant on
www.nuvap.com/en/solutions
Presence of Carbon
Monoxide
The device has detected the presence
of CO at
ATTENTION levels
See the entry for the pollutant on
www.nuvap.com/en/solutions
Presence of Formaldehyde
The device has detected the presence
of Formaldehyde at ATTENTION levels
See the entry for the pollutant on
www.nuvap.com/en/solutions
Nuvap ProSystem Nx Series Device User Manual
20
Voice Message
What It Means
What You Should Do
Presence of Carbon
dioxide
The device has detected the presence
of Carbon dioxide at ATTENTION levels
See the entry for the pollutant on
www.nuvap.com/en/solutions
Presence of VOC
The device has detected the presence
of VOC at
ATTENTION levels
See the entry for the pollutant on
www.nuvap.com/en/solutions
Quality of the monitored
environment Excellent /
Good / Insufficient
The device indicates that the monitored
environment has an Excellent / Good /
Insufficient
quality
See the complete measurements carried out
by the device through the NUVAP App or
Platform. (http://my.nuvap.com)
Table 2: Yellow Signals table
Red Signals
Voice Message
What It Means
What You Should Do
Danger, high level of
Electromagnetic Fields
NX has detected a high presence of
Electromagnetic Fields
See the entry for the pollutant on
www.nuvap.com/en/solutions
Danger, high level of
Magnetic Fields
NX has detected a high
presence of Magnetic Fields
See the entry for the pollutant on
www.nuvap.com/en/solutions
Danger, high presence of
noise
NX has detected a high presence of
Noise
See the entry for the pollutant on
www.nuvap.com/en/solutions
Danger, high presence of
air pollutants
NX has detected a high presence of air
pollutants
See the entry for the pollutant on
www.nuvap.com/en/solutions
Danger, high presence of
Particulates or Smoke
NX has detected a high presence of
Particulates or Smoke
See the entry for the pollutant on
www.nuvap.com/en/solutions
Danger, high presence of
Ionizing Nuclear Radiation
NX has detected a high presence of
Ionizing Nuclear Radiation
See the entry for the pollutant on
www.nuvap.com/en/solutions
Danger, high presence of
Wi-Fi networks
NX has detected a high presence of WiFi networks
See the entry for the pollutant on
www.nuvap.com/en/solutions
Danger, high presence of
Radon Gas
NX has detected a high presence of
Radon Gas
See the entry for the pollutant on
www.nuvap.com/en/solutions
Danger, high presence of
Carbon Monoxide
NX has detected a high presence of
Carbon Monoxide
See the entry for the pollutant on
www.nuvap.com/en/solutions
Danger, high presence of
Formaldehyde
NX has detected a high presence of
Formaldehyde
See the entry for the pollutant on
www.nuvap.com/en/solutions
Danger, high presence of
carbon dioxide
NX has detected a high presence of
carbon dioxide
See the entry for the pollutant on
www.nuvap.com/en/solutions
Danger, high presence of
VOC
NX has detected a high
presence of VOC
See the entry for the pollutant on
www.nuvap.com/en/solutions
Quality of the monitored
environment Excellent /
Good / Insufficient
The device indicates that the monitored
environment has an Excellent / Good /
Insufficient
quality
See the complete measurements carried out
by the device through the NUVAP App or
Platform. (http://my.nuvap.com)
Table 3: Red Signals Table
Blue Signals
Voice Message
What It Means
What You Should Do
Is starting up
Wait for the start up
Ready awaiting
configuration
The device is awaiting configuration
Configure the device
(see chapter Add Device)
Fatal Error
Generic error
Switch the device off and on again.
If the message is repeated, reset the device
(see section Reconfiguring the devices).
Visit www.nuvap.com/en/support for
information
Nuvap ProSystem Nx Series Device User Manual
21
Voice Message
What It Means
What You Should Do
Please wait
The device cannot perform the
requested action manually
Wait. The device will perform the required
action as soon as it is ready
Low battery
The device signals the battery level
below the minimum threshold
Connect the device to the power supply. Visit
www.nuvap.com/en/support for information.
Wi-Fi password error
The Wi-Fi password is wrong
Reset the device (see section Add Device)
and repeat the configuration.
Wi-Fi IP Conflict
The device reports a conflict of IP
addresses on the network
Reconfigure the device with a different free
address. Visit www.nuvap.com/en/support for
information.
Table 4: Blue Signals table
Violet Signals
Voice Message
What It Means
What You Should Do
Punctual measuring
started
The device has started to monitor the
environment in a punctual mode
Wait for the message of end of punctual
measuring with the relative state of the
environment monitored
Table 5: Violet Signals table
Other Signals
Voice Message
What It Means
What You Should Do
For details access data on
Nuvap application
The device recommends viewing the
data recorded on
NUVAP App
See complete measurements carried out by
the device through the NUVAP App or
Platform.
(http://my.nuvap.com)
Table 6: Other Signals table
Manual Detection
Press the touch key (see Pic 5) to perform the manual operational test. Press the
touch key located on the top of N1 and listen to the message: “No pollutants
were detected in the monitored area”.
View all data monitored by your N1, through Nuvap App, anytime and
anywhere you are.
Pic 5: Start the measurements
Nuvap ProSystem Nx Series Device User Manual
22
The Nuvap Application
The Nuvap Application, which can be found in Apple stores (™) and Google (™) is essential for the
configuration of the Nx series devices.
Login
In this section you can Login and create a Nuvap Account with your e-mail address and password
(see Pic 6).
Execute the application and press register (see Pic 7) to create your Nuvap account.
Register
Insert your name, surname, email and password to identify yourself in the Nuvap system. Accept
Privacy Policy and press Register (see Pic 8).
After registering your user you can enter the Nuvap application.
Pic 6: Download page
Pic 7: Login page
Pic 8: Register page
Nuvap ProSystem Nx Series Device User Manual
23
Home
The main menu can be accessed by clicking on the symbol,
located on the top left. From this menu it is possible to reach
all the available data and functions (see Pic 9).
The first screen you can see when executing the application is
the home screen with the summary of the latest
measurements in graphical mode.
Pic 9: Accessing the menu
Overview
In this screen we can see an overview of the environment in
which we have installed the N1 device (see section Where to
Position the Devices). The current condition is described with
many ways (see Pic 10):
• Text (ex. GOOD)
• Number from 1 to 10
• Color from red to green
If we press anywhere in this area we can see a measurement
variance chart from the day we install the N1 device up to date.
Pic 10: Overview
Electromagnetic Pollution
The factors that the N1 device measures are described as
follows (see Pic 11):
• High frequency with warning signal on 3 V/m and alert
signal on 6 V/m.
• Low frequency with warning signal on 3000 nT and alert
signal on 10000 nT.
• WiFi with warning signal on 15 networks and alert signal
on 20 networks.
If we press anywhere in these areas we can see a measurement
variance chart from the day we install the N1 device up to date
for each of these factors.
Pic 11: Electromagnetic pollution
Nuvap ProSystem Nx Series Device User Manual
24
Acoustic Pollution
The factor that the N1 device measures is described as follows
(see Pic 12):
• Noise with warning signal on 70 db(spl) and alert signal
on 85 db(spl).
If we press anywhere in this area we can see a measurement
variance chart from the day we install the N1 device up to date.
Pic 12: Acoustic pollution
Radioactivity
The factors that the N1 device measures are described as
follows (see Pic 13):
• Radon with warning signal on 100 Bq/m3 and alert
signal on 300 Bq/m3.
• Radioactivity with warning signal on 0.387 uSv/h and
alert signal on 0.95 uSv/h.
If we press anywhere in these areas we can see a measurement
variance chart from the day we install the N1 device up to date
for each of these factors.
Pic 13: Radioactivity
Air Quality
The factors that the N1 device measures are described as
follows (see Pic 14):
• Temparature with no warning or alert limits.
• Hunidity with no warning or alert limits.
• Air pollutants with warning signal on 20 % and alert
signal on 83 %.
• Smoke/Particulate with warning signal on 250 ug/m3
and alert signal on 500 ug/m3.
If we press anywhere in these areas we can see a measurement
variance chart from the day we install the N1 device up to date
for each of these factors.
Pic 14: Air quality
Nuvap ProSystem Nx Series Device User Manual
25
Gas
The factors that the N1 device measures are described as
follows (see Pic 15):
• Methane with warning signal on 500 ppm and alert
signal on 8000 ppm.
• CO with warning signal on 10 ppm and alert signal on 29
ppm.
• Carbon Dioxide with warning signal on 1500 ppm and
alert signal on 1858 ppm.
• Formaldehyde with warning signal on 0.2 ppm and alert
signal on 0.75 ppm.
• VOC with warning signal on 313 ppB and alert signal on
3130 ppB.
If we press anywhere in these areas we can see a measurement
variance chart from the day we install the N1 device up to date
for each of these factors.
Pic 15: Gas
Water Measurement
In this section you can view and add water measurements with the water kit that is attached to dhe
N1 device. For more details you can refer to the Water Quality section.
Add Water Measurement
You can add new measurements by pressing the corresponding
button and inserting the value (see Pic 16) of the colorimetric
comparison chart kit for water analysis found at the bottom of
the N1 device (see Pic 2).
The factors that the N1 device measures are described as
follows:
• Hardness
• Chlorine
• Alkalinity
• Ph
• Nitrites (mg/L)
• Nitrates (mg/L)
You must repeat this test every six months.
Pic 16: Add water measurements
Nuvap ProSystem Nx Series Device User Manual
26
Previous Water Measurements
You can see the previous measurements (see Pic 17) by pressing
the corresponding button.
Pic 17: Previous measurements
Manage N1s
In this screen you can either view or change the existing N1
devices by selecting them from the top of the page or you can
add an extra N1 device (see Pic 18).
Pic 18: Manage N1s
View Existing N1 Devices
By selecting this option you can view or edit your current
settings of an N1 device such as:
• Name of the device
• Language used
• Enable/Disable silent mode
• Allow/Disallow alarms
• Viewer of this application
You can always dissociate an N1 device from your environment
by pressing the existing button (see Pic 19).
Pic 19: View settings
Nuvap ProSystem Nx Series Device User Manual
27
Add Viewer
By pressing the Edit button on the upper right corner of the
screen you can add an extra viewer of this application (see Pic
20). As an extra edition to the previous screen comes the add
viewer option where you must insert a valid Nuvap account
name (see section Register).
Pic 20: Add viewer
Add Device
In this section you can start the configuring the ProSystem device.
To access, select Manage N1 from the drop-down menu and then select ADD N1. You should then
scan the QRCODE on the bottom (see Pic 3) of the device that you want to configure and then follow
the instructions from the App.
Scan the QR Code
The first step is to scan the QR Code that is located under the N1 device (see Pic 21).
Join to Nuvap Network
You must connect N1 to the internet via WiFi. Press the button to go the Wi-Fi settings (see Pic 22).
Once you have selected the Wi-Fi option the App will tell you to connect to the Wi-Fi network’s4
SSID created by the device you are configuring with a name like: “NUVAP_F8F0XXXXXXXX”. The
device creates a unique Nuvap Wi-Fi Network (see Pic 23). You must select it and return to the
previous screen.
Pic 21: Device configuration
Pic 22: Connect to Wi-Fi
Pic 23: Select Nuvap network
4
With some operating systems, this network can be detected 'without internet connectivity'. Despite this,
access must be allowed.
Nuvap ProSystem Nx Series Device User Manual
28
Nuvap ProSystem Nx Series Device User Manual
29
IP Settings
The second phase in the configuration process is connecting your Smartphone/Tablet to the Wi-Fi
network generated by the ProSystem device (see Pic 24).
Select the Wi-Fi option from the configuration screen. You can select other types of connectivity
available for different models. If you prefer, instead of choosing the DHCP option, you can give an
IP address.
Language and Mode Settings
You can set more options of the N1 device such as language and silent mode (see Pic 25).
Connect to the Internet
Once you have selected the network created by the device from the networks available on your
Smartphone or tablet, you must return to the Nuvap App.
Insert the data necessary for the connectivity (SSID and Wi-Fi network password where you want to
register the ProSystem device, or alternatively the APN) and select “CONNECT” (see Pic 26).
Pic 24: Connect to Wi-Fi
Pic 25: Language options
Pic 26: Wi-Fi password
Nuvap ProSystem Nx Series Device User Manual
30
Water Quality
In this section you can view previous water measurements and you can
also add a new water analysis measurement. You can choose between
adding a new measurement and view previous measurement (see Pic
27).
In order to do so you must use the water analysis kit attached to the
bottom of the N1 device (see Pic 2).
The water analysis kit consists of the following items:
• Green Test Tube (see Pic 28): contains a number of test Strips
type1 (see Pic 30).
• White Test Tube (see Pic 29): contains a number of test strips
type 2 (see Pic 31).
• Test Strip Type1 (see Pic 30): we can measure the parameters
of Hardness, Chlorine, Alkalinity and Ph of the sample water.
• Test Strip Type2 (see Pic 31): we can measure the parameters
of Nitrites and Nitrates of the sample water.
Test Tubes
Water Analysis Strips
Pic 28: Green Test Tube
Pic 29: White Test Tube
Pic 30: Test Strip Type1
Pic 31: Test Strip Type2
Pic 27: Water Quality Menu
Nuvap ProSystem Nx Series Device User Manual
31
Add new Measure
We select the Water Quality option in the Nuvap application. Then choose the "Add new measure"
option. We fill the test tubes with the sample water and then we insert the test strips in each of the
test tubes for one minute. The Nuvap application shows the Colorimetric Comparison Chart in order
to select the appropriate values.
We hold the Type1 strip upside down (as shown in Pic 32) and we select (click) the appropriate value
from the table for each row for the parameters of Hardness, Chlorine, Alkalinity and Ph of the
sample water.
We then hold the Type2 strip (as shown in Error! Reference source not found.) and we select (click)
the appropriate value from the table for each row for the parameters of Nitrites and Nitrates of the
sample water.
We save the data and we return the main screen of the N1 device.
Water Measurement Step 1
Water Measurement Step 2
Pic 32: Water Measurement Step1
Pic 33: Water Measurement Step2
Hold Strip from Here
Hold Strip from Here
Nuvap ProSystem Nx Series Device User Manual
32
Previous Measure
In this section we can see the previous water analysis measurements. The screen is shown in Error!
Reference source not found. and we can see the values for each of the measured parameters along
with a relative state of the parameter.
We must repeat this test every six months in order to monitor with accuracy our water supplies.
Pic 34: Previous Water Measurements
Nuvap ProSystem Nx Series Device User Manual
33
Punctual Measures
With this function you can perform manually a complete test of your environment.
When you select this function the application prompts you to press the touch key located on the
top of the N1 device until a violet signal5 lights the device (see Pic 35). You can hear the message:
"Accurate Measurement has Started" from the N1 device. During this phase you will be prompted
to join the N1 WiFi network (see Join to Nuvap Network) in order to update the cloud with the results
of this action.
At the end of the measurements the device will announce the relative state of the environment
monitored and the N1 data of the device will be updated in your application (see Pic 36).
Pic 35: Punctual Measurement Starts
Pic 36: Punctual Measurements Ends
5
see Violet Signals
Nuvap ProSystem Nx Series Device User Manual
34
Punctual History
Within this section you can view all the measurements that have
been made by the N1 device during the Punctual Measurement
procedure (as described previously in Punctual Measures).
By selecting this option you can view all the data that have been
measured ordered by the date that the punctual measurement had
been taken (see Pic 37).
Pic 37: Punctual History
Nuvap ProSystem Nx Series Device User Manual
35
Notifications Setup
In this section you can set on and off all the audio and visual alarms of the N1 device. You can start
by selecting from the drop down list the N1 device you want to setup.
You can turn on and off all 15 different parameters (as seen in Pic 38 and Pic 39):
Electromagnetic
Pollution
Acoustic
Pollution
Radioactivity
Gas
Air Quality
High Frequency
Noise
Radon
Methane
Humidity
Low Frequency
Radioactivity
CO
Air Pollutants
Wi-Fi
CO2
Smoke/Particulate
Formaldehyde
Possibility of Fire
VOC
Pic 38: Notification Setup page1
Pic 39: Notification Setup page2
Nuvap ProSystem Nx Series Device User Manual
36
Alarms Log
In this section you can view all the alarm history of the N1 device.
The alarm log is ordered by the date of the alarm descending
from the newest to the oldest date (see Pic 40).
Pic 40: Alarms Log
Nuvap ProSystem Nx Series Device User Manual
37
User
In this section you can view and edit all the personal information of your account such as (see Pic 41
and Pic 42):
• Application Language
• Account Details such as: Name, Surname, Email and Phone Number
• Address Details such as: Street, ZIP code, City, State/Province and Country
Pic 41: User Account page1
Pic 42: User Account page2
Pic 43: Change Password
You can also change your current password by pressing the Change Password button at the end of
the screen where you must enter your old password once and your new password twice as seen
above (see Pic 43).
Nuvap ProSystem Nx Series Device User Manual
38
My.Nuvap Platform
My.Nuvap is a cloud platform devoted to collect the data monitored by Nuvap Nx devices and enable
multiple actions such as:
• Account management
• Device Management
• Device History Management
• Dashboard (Nuvap Index)
• Notifications Management
• Download Data
Login Page
This is the starting page of
My.Nuvap environment
(www.my.nuvap.com).
You can either insert your
credentials or create o new account.
After inserting your credentials you
can press the confirm button (see
Pic 44)
Pic 44: My.Nuvap Login page
Create New Account
In case you don’t have an account in
Nuvap cloud environment you can
create one (see Pic 45) by clicking
the appropriate button in the login
page.
You must enter:
• First name
*
• Middle name
• Last name
*
• E-mail
*
• Password
*
• Phone number
• Address
• Personalized assistance
(*) Compulsory data field
Pic 45: My.Nuvap Create Account page
Nuvap ProSystem Nx Series Device User Manual
39
My N1s
This is the first page after the login page in which you can choose between all available N1 devices.
(see Pic 46)
This page is always available from the “MY N1s” link shown on the top side of every Nuvap page.
Pic 46: My N1s page
My N1s History
In this page you can see all the data collected from the chosen N1 device.(see Pic 47)
You can select any record by pressing the appropriate pencil icon on the right side of each line and
then see the measurements of the specific date.
This page is always available from the “MY N1s History” link shown on the top side of every Nuvap
page.
Pic 47: My N1s History page
Nuvap ProSystem Nx Series Device User Manual
40
Home
This is the Home page in which you can see the summary of the latest measurements of the chosen
device. (see Pic 48). On the left side you can navigate between the different factors that are
measured (see section The Device) You can select any of these factors in order to see a more detailed
chart. This page is always available from the “Home” link shown on the top side of every Nuvap
page.
Pic 48: My Nuvap Home page
Settings
By selecting the gear icon on the
top right side on the menu you can
view the IP and SSID settings and
you can modify or see the following
settings of the chosen device (see
Pic 49) :
• You can modify the user list.
• You can dissociate the
chosen N1 device.
• Show the full log.
• Show the full ownership log.
• Show the latest
measurements.
• Show the punctual
measurements log.
Pic 49: My.Nuvap Settings page
Nuvap ProSystem Nx Series Device User Manual
41
Tools
In the tools section that you can access through the top right link in the upper right corner of the
Home page with the name “TOOLS”.
Export
With this option (see Pic 50) you can
export data for a specific date range,
MAC address or N1 device.
After inserting the criteria you can
press the Export button to complete
the procedure.
Pic 50: My.Nuvap Export page
Export List
In this page (see Pic 51) you can view
all the exports that you have done
via the previous stage.
Pic 51: My.Nuvap Export List page
Nuvap ProSystem Nx Series Device User Manual
42
General Maintenance
SW Maintenance
No update procedure is required as the devices are always automatically updated to the latest
firmware version available.
Calibration
The ProSystem Devices are accompanied by a calibration certificate, lasting one year. The devices
can be re-calibrated annually at the Nuvap laboratories.
MTBF Nx Series
Like all devices with sensors, the ProSystem Devices have a limited life-span. The Nx series is
designed to operate for a period of about 4 years from its first activation, under normal use and
suitably maintained conditions. At the end of this period, some of the sensors may no longer
function properly. Contact Nuvap customer support to ensure you have regular and reliable checks.
Cleaning
Do not spray water or detergent directly onto the surface. The direct spraying of water or detergent
can cause fire, electric shock, damage to the product surface or removal of warning labels. Do not
apply chemicals containing alcohol, solvents or surfactants such as wax, benzene, thinners,
pesticides, air freshener, lubricants or soap. These chemicals can cause discoloration or cracking of
the frame or remove the labels. Use a clean sponge or chamois cloth dampened with a solution of
nonabrasive detergent and a few drops of warm water; then wipe with a soft, dry cloth.
The ProSystem devices have a built-in rechargeable lithium battery with autonomy of up to hours
without power and in conditions of normal use. It cannot be replaced and its duration is the same
as the device’s. In any case, in the event of battery malfunction, the device will emit a blue signal.
Assistance
For technical assistance, please refer to NUVAP’s Customer Support. More information on
Authorized Assistance numbers is available on the website www.nuvap.com/en/support.
Unauthorized repairs may invalidate your product’s warranty.
Nuvap ProSystem Nx Series Device User Manual
43
Safety Precautions
To ensure a correct use of the product and for your own personal safety please stick to all the rules
and instructions given here. For anything not described in this manual, please refer to our website
www.nuvap.com/en/support.
• DO NOT expose the device to direct sunlight, heat, flames or water. To do so may cause
malfunction or fire.
• DO NOT put the device in dusty or dirty spaces.
• DO NOT use the device near liquids and DO NOT expose it to rain or damp.
• In the event that the device gets wet, unplug the power cord and wait for the device to dry
completely before you turn it back on. Do not try to dry with an external source of heat, like a
microwave oven or hair dryer. Dry it with a soft cloth.
• DO NOT use strong solvents such as benzene or other chemicals on or near the surface of the
Nx Series device.
• DO NOT place the device on unstable worktops.
• DO NOT hold the device on your lap or any other part of your body.
• Make sure that the device does not come into contact with objects that can scratch or damage
it.
• DO NOT place or drop objects on the device and do not shove any object into it.
• DO NOT spill any food or drink on it.
• ALWAYS DISCONNECT THE POWER SUPPLY before cleaning
• Dropping the product may result in malfunction or breakage. When carrying the device around
you should keep it in the original packaging.
• Keep the device out of children’s reach.
• DO NOT UNDER ANY CIRCUMSTANCES attempt to open the device: do not dismantle, try to
repair or adjust the product. Opening or attempting to dismantle the device will compromise
its operativity and will void your warranty.
• DO NOT cover the device while it’s functioning, as this will reduce air circulation and affect its
functions.
• Do not expose the device to heat or cold. For example, do not leave it in the boot of the car at
high temperatures or below zero.
• DO NOT throw the device in waste bins. The product has been designed to allow the
components to be reused and the materials to be recycled. Make sure you dispose of or recycle
the device in accordance with local laws and regulations regarding the disposal of electronic
products. For further information regarding the recycling of Nx Series devices, please consult
the website: www.nuvap.com/en/support.
• IMPORTANT: USE ONLY THE POWER SUPPLY PROVIDED. It is obligatory to use a shielded power
cord, in order to meet emissions limits imposed by current regulations, and to prevent
interference with radio or television reception.
Nuvap ProSystem Nx Series Device User Manual
44
Operating Limits
• The Nx ProSystem devices have been designed for use in indoor environments.
• The Nx ProSystem devices should not be considered as substitutes for complete alarm detection
of pollutants in places that are home to large numbers of people, such as residential hotels and
dormitories.
• Should you need to transport the device by plane, please check with the airline if specific rules
exist.
• The devices might not detect the presence of pollutants if these do not reach its detection
range.
• The device is not able to intervene in any way on the presence of pollutants in the environment
being monitored.
• SAFE TEMPERATURE: the device should be used in temperatures of between -5 ° C (25 ° F) and
40 ° C (105 ° F).
NUVAP declines any responsibility in the event of accidents or damage to people or property not
directly due to intrinsic defects of the product.
NUVAP CANNOT BE HELD LIABLE TO THIRD PARTIES FROM USES OF THE DEVICE OTHER THAN THOSE
SPECIFIED HEREIN.
Conformity
NUVAP Srl, under its sole responsibility, declares that this product complies with the essential
requirements of Directive R&TTE 1999/5/CE, of European Directives 2006/95/CE, 2004/108/CE and
1999/5/CE.
NUVAP states that the following standards and/or specifications have been applied: EN 300 328, EN
301 489-1, EN 301 489-17. EN 55022, EN 55024, EN 61000-3-2 ed EN 61000-3-3.
A copy of the Declaration of Conformity for the European Union can be found at: www.nuvap.com
Nuvap will issue a calibration certificate for the device upon request and presentation of the MAC
address, or the device’s QR code.
HW Characteristics
CPU
100 MHz - 32 bit - FPU
FLASH MEMORY
2 MB
SDRAM
8 MB
STORAGE MEMORY
4 GB
POWER SUPPLY
5V DC
BATTERY
Li-ion 3.7VDC 2200 mAh
DIMENSIONS
18,3 x 18,3 x 8,4 cm
CONNECTIVITY
Wi-Fi – 2,4 GHz
REPORTING APPS
Nuvap App & Nuvap Platform my.nuvap.com
WEIGHT
780 gr.
Table 7: Device Characteristics
