Page 1

and PIPA™ icon instruction manual

Page 2

Smart Design

We like design.

And people who like design get us.

We will not embarrass your kids.

We cannot promise they will stay clean.

But we know it will all be okay. We are parents.

We are Nuna.

Page 3

Illustrations

Usage

Page 4

Page 5

Page 6

Page 7

Page 8

Page 9

Position 1

Position 2

Position 3

Page 10

Page 11

Page 12

Page 13

Contents

Illustrations 1-10

English

(

) 11

Safety and Recommendations 12

Important – Keep these instructions for future reference 12

WARNINGS 13-15

Parts List 16-17

Contents of the Box 18

How to Set Up the Nuna TAVO 18-19

How to Use the Nuna TAVO 20-22

Use with Nuna Pipa Infant Carrier Module 23-26

Cleaning and Maintenance 27-28

Warranty and Service 29

Where to Find Nuna Products 30

Page 14

Safety and Recommendations

Please take note of the following before using the Nuna TAVO.

Safety is very important to us and you can be assured that our products comply with the relevant standards and that they have been tested by a number of independent testing panels and laboratories.

The Nuna TAVO is a patented product and complies with the European standard of wheeled child conveyances EN 1888:2012.

To use this infant carrier module with vehicle belt, your child must meet the

following requirements. Child weight≤13kg/ Child age≤15 months.

If you have any questions or comments regarding the product, we will be glad to hear them through our web site nuna.eu or nunababy.ca.

Read these instructions carefully before use and keep them for future reference. Your child’s safety may be affected if you do not follow these instructions.

This stroller is intended for children from birth and up to

20kg maximum.

This infant carrier module is intended for children from

birth and up to 13kg maximum.

IMPORTANT – KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

Page 15

WARNINGS

Please read all the instructions in the manual before using the product. Please save instruction manual for future use. Failure to follow these warnings and instructions may result in serious injury or death.

WARNING Always use the restraint system. Safety belts and restraint systems must be used correctly.

WARNING Ensure that all the locking devices are

engaged before use.

WARNING Do not let your child play with this product.

WARNING Check that the

infant carrier module

attachment devices are correctly engaged before use.

Adult assembly required.

Use the stroller with a child weighing less than 20kg. It will cause damage to the stroller with an untted child.

To prevent a hazardous, unstable condition, do not

place more than 4.5kg in the storage basket.

Never leave your child unattended. Always keep child

in view while in stroller.

Use the stroller with only one child at a time. Never place purses, shopping bags, parcels or accessory items on the handle or hood.

Accessories which are not approved by the manufacturer shall not be used. Only replacement parts supplied or recommended by the manufacturer shall be used.

Page 16

Overloading, folding incorrectly, or using component parts from other manufacturers may cause the stroller

to be damaged, broken or unsafe. Please read the

instruction manual carefully.

Never use it along with component parts from other manufacturers.

Make sure your child’s body is clear from the moving

parts when adjusting the stroller.

Child may slip into leg openings and be strangled if the

harness is not used.

Never use stroller on stairs or escalators.

Keep away from high temperature objects, liquids, and electronics.

Never allow your child to stand on the stroller or sit in the stroller with head toward front of stroller.

Never place the stroller on roads, slopes or dangerous areas.

Do make sure all mechanisms are xed before using

the stroller.

To avoid strangulation, DO NOT place items with a

string around your child’s neck, suspend strings from

this product, or attach strings to toys.

DO NOT use storage basket as a child carrier.

To prevent tipping, never let child climb the stroller. Always lift the child in and out of the stroller.

To prevent tipping, do not put anything on the handle,

back of the backrest or side of the stroller.

Page 17

To avoid nger entrapment, use care when folding and

unfolding the stroller.

To avoid injury ensure that your child is kept away

when unfolding and folding this product.

To ensure your child’s safety, please make sure all parts

are assembled and fastened properly before using the stroller.

To avoid strangulation, do make sure your child is clear

from the hood.

Always engage the brakes when parking the stroller.

Discontinue using stroller if it is damaged or broken.

Stroller to be used only at walking speed. This product

is not intended for use while jogging.

To avoid suocation, remove plastic bag and packaging materials before using this product. The plastic bag and packaging materials should then be kept away from babies and children.

This product is not suitable for running or skating.

Pushchair designed to be used from birth shall recommend the use of the most reclined position for new born babies.

The parking device shall be engaged when placing and

removing children.

For PIPA

icon infant carrier module used in

conjunction with a chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable pram body, cot or bed.

Page 18

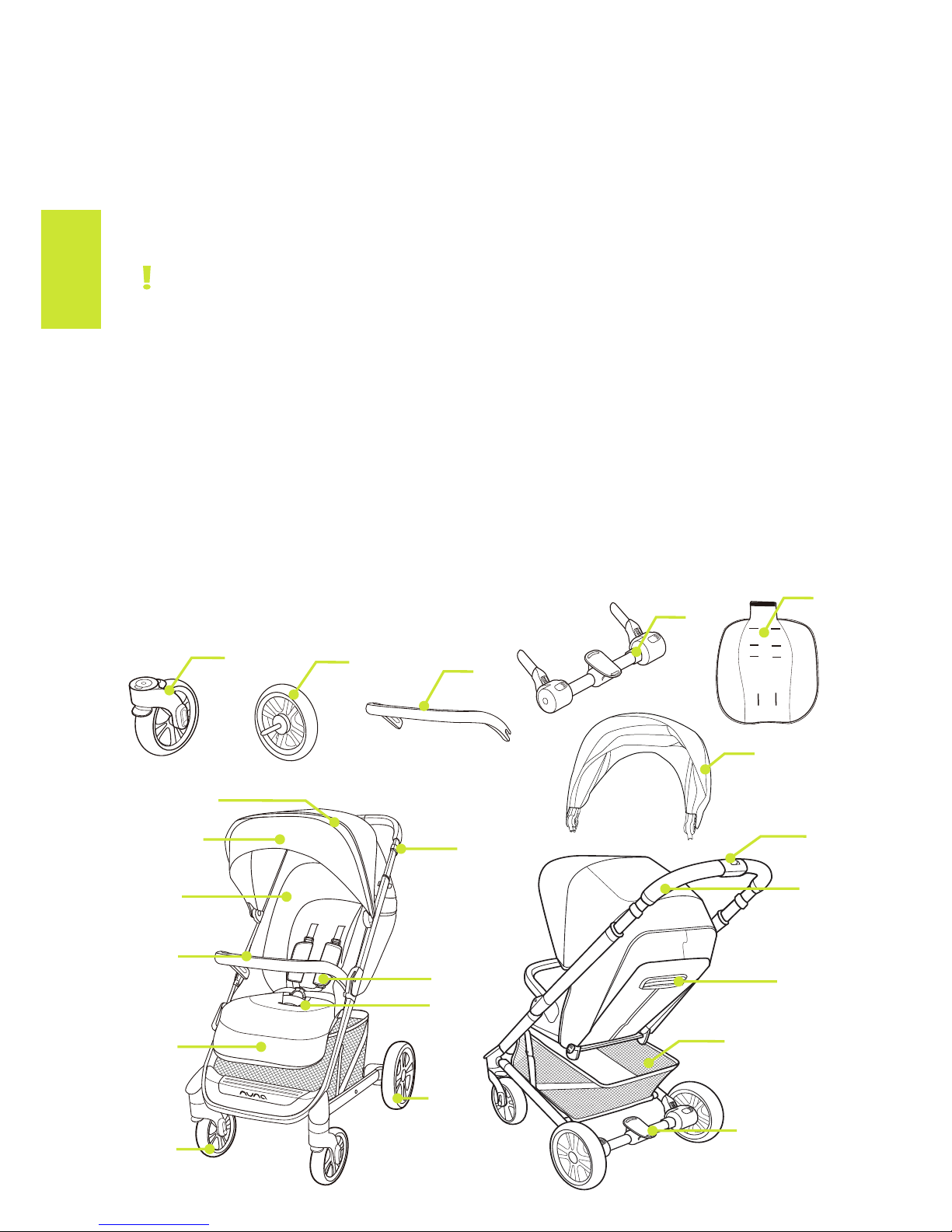

Parts List

Make sure all parts are available before assembly. If any

part is missing, please contact local retailer. No tools are required for assembly.

Choking Hazard: Remove and immediately discard

protective end caps from each wheel, wheel hub axle and

covered zipper.

1 Front Wheel (x2)

2 Rear Wheel (x2)

3 Armbar

4 Canopy

5 Canopy Visor

6 Seat Pad

7 Armbar

8 Calf Support

9 Front Wheel

10 Rear Wheel

11 Buckle

12 Shoulder Harness

Pads

13 Handle Adjustment

Button

14 Folding Button

15 Handle

16 Recline Handle

17 Storage Basket

18 Brake Lever

19 Brake assembly

20 Insert

21 Canopy

Page 19

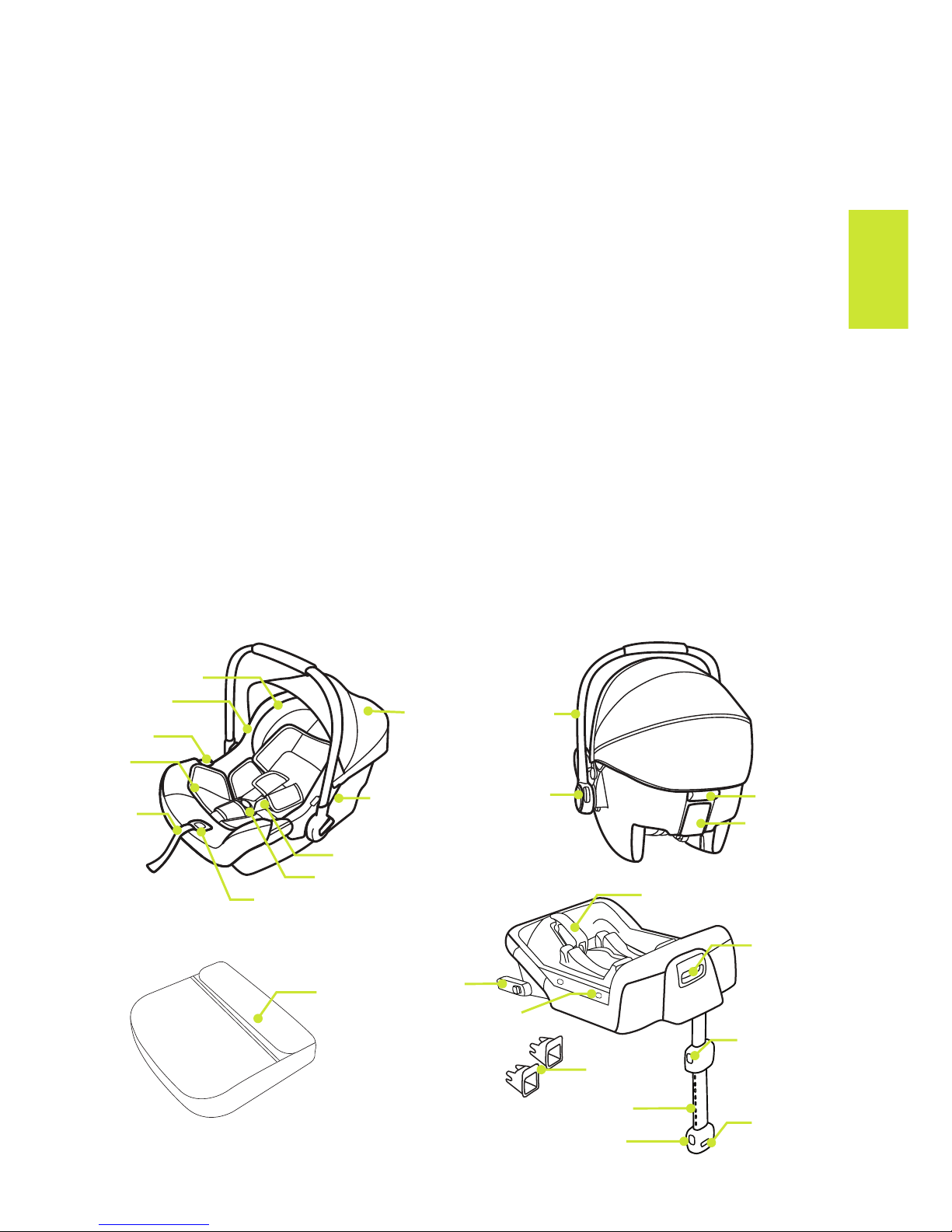

22 Head Support

23 Seat Pad

24 Side Guides

25 Infant Insert

26 Adjustment Webbing

27 Adjustment Button

28 Safety Buckle

29 Shoulder Harness Straps

30 Canopy Mount

31 Canopy

32 Handle

33 Handle Button

34 Rear Guide

35 Stroller Release Handle

36 Cold Weather Boot

37 ISOFIX Connector

38 Shell Indicator

39 ISOFIX Guides

40 Load Leg

41 Load Leg Adjust Button A

42 Load Leg Indicator

43 Load Leg Adjust Button B

44 Infant Carrier Module

Release Button

45 Lock-off

Page 20

Contents of the Box

Stroller Frame Front Wheel Rear Wheel Armbar

Brake Assembly Canopy

Infant Carrier Module Cold Weather Boot

Base (Please refer to the base instruction manual

)

No tools required for assembly

How to Set Up the Nuna TAVO

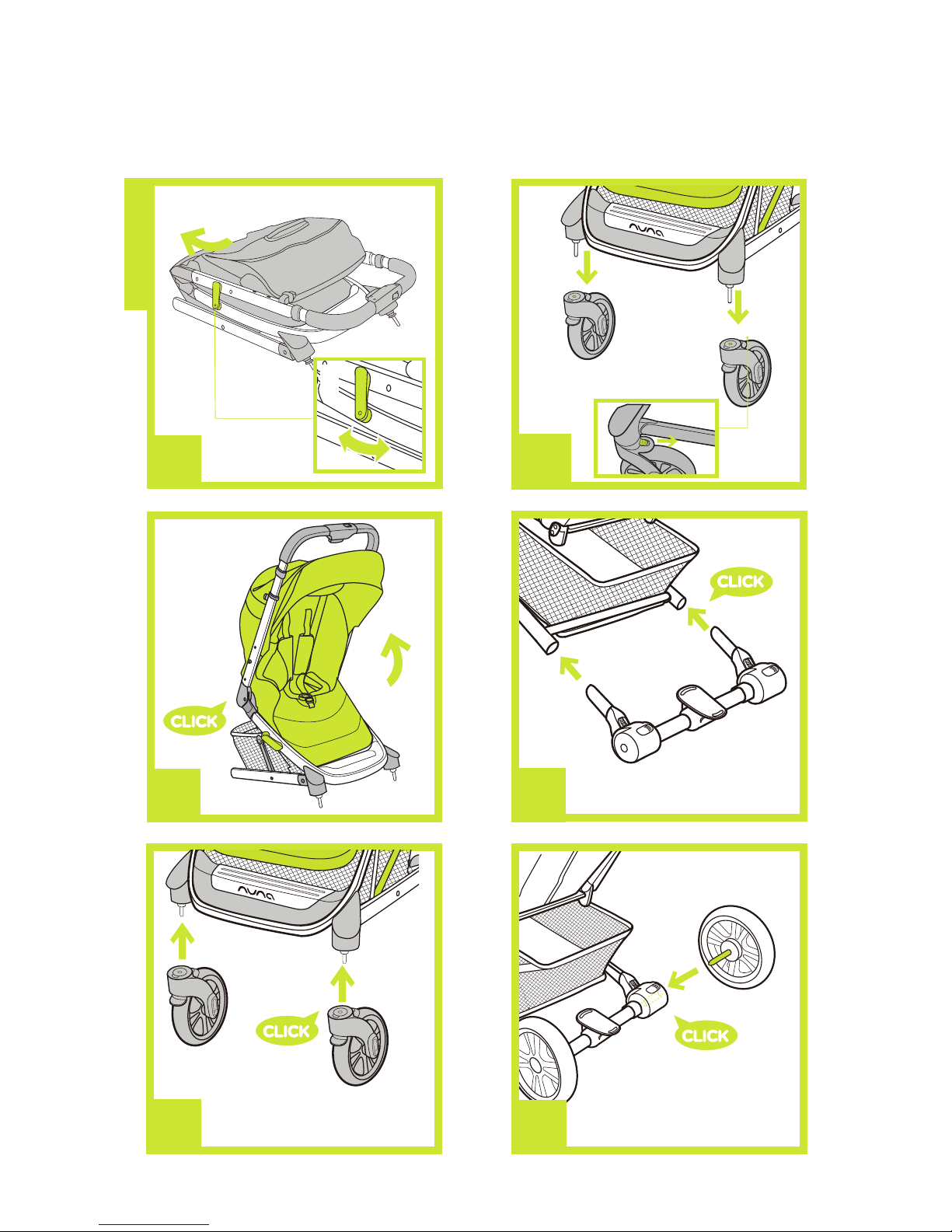

Opening the Nuna TAVO

Check that you have all the parts for this product before using it.

The assembly should be performed only by adults.

1 Separate storage latch from storage mount (1), and then lift the handle upwards (2), a click sound means the stroller is open completely.

2 Check that the stroller is completely latched open before continuing.

Assemble Front Wheels

1 Assemble front wheels to front legs.

(3)

Check that wheels are securely attached by pulling down.

2 To disassemble front wheel, detach front wheel from front leg

(4)-2

while pushing the release button.

(4)-1

Page 21

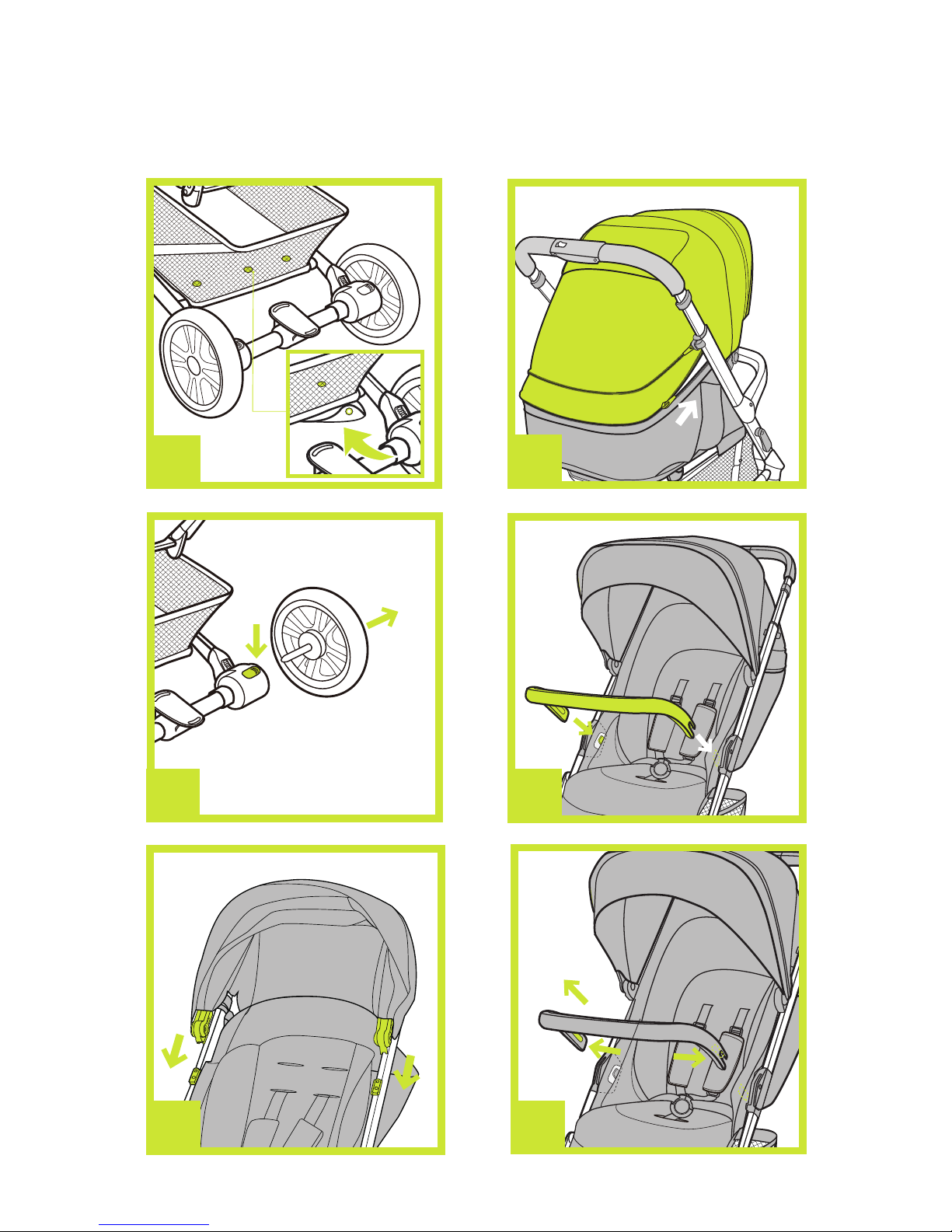

Assemble Rear Wheels

1 Assemble brake assembly to rear legs. Make sure that the brake lever

is on top.

(5)

2 Assemble rear wheels to brake assembly. A click sound means they are locked.

(6)

Check that wheels are securely attached by pulling on wheel assemblies.

3 Wrap the rear leg connecting tube with the fabric ap from the storage basket and connect the three snaps.

(7)

4 To disassemble rear wheel, detach rear wheel from rear wheel mount

(8)-2

while pressing the release button.

(8)-1

Assemble Canopy

1 Align the Clips of the canopy with the mounts on the tubes, and then slide to assemble the canopy.

(9)

2 Please zip the zippers.

(10)

Assemble Armbar

1 Align the armbar ends with the armbar mounts, and then slide down to lock.

(11)

Check that armbar is securely attached by pulling on each end.

2 To disassemble armbar, press armbar release buttons

(12)-1

, and then

pull out the armbar.

(12)-2

3 The completely assembled stroller is shown as

(13)

Page 22

How to Use the Nuna TAVO

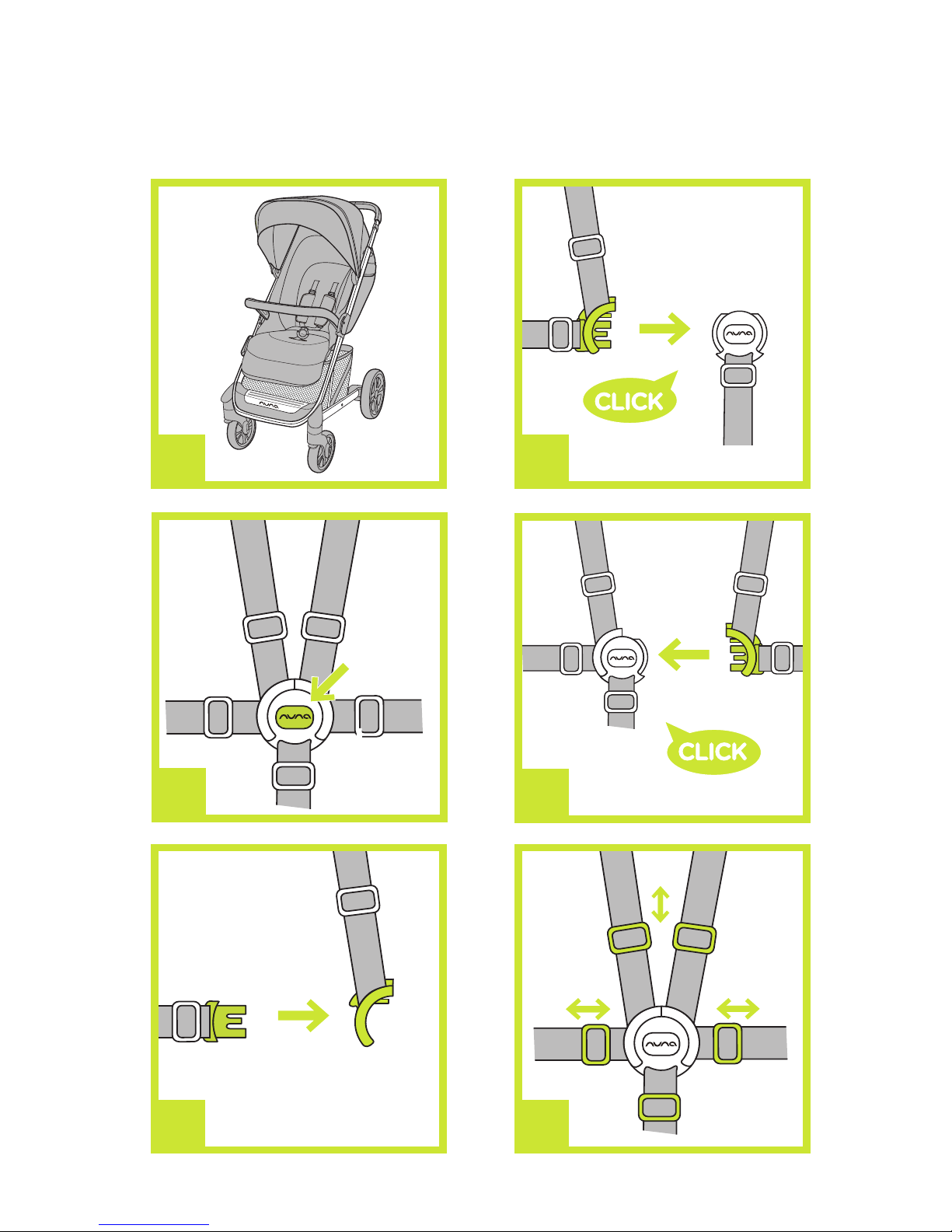

Securing child

To release the buckle latch, push on center button and remove the clips.

(14)

2 To secure child, assemble buckle and latch.

(15, 16, 17)

3 Fit harness snugly to child by sliding each adjustment buckle.

(18)

Adjusting the shoulder harness position

1 To adjust the position of the shoulder harness anchor, open the zipper of

seat back, turn the anchor to align with slot. Thread it through the shoulder harness slot from back to front

(19)

. Rethread it through the slot that is

closest to child's shoulder height

(20)

2 For smaller children, the top two harness anchors can be threaded through

the seat back in order to make the harness shorter.

(21)

To avoid serious injury from falling or sliding out,

always secure your child with harness.

Make sure your child is snugly secured. The space

between the child and the shoulder harness should be

about the thickness of one hand.

Do not cross the shoulder belts. This will cause

pressure on child’s neck.

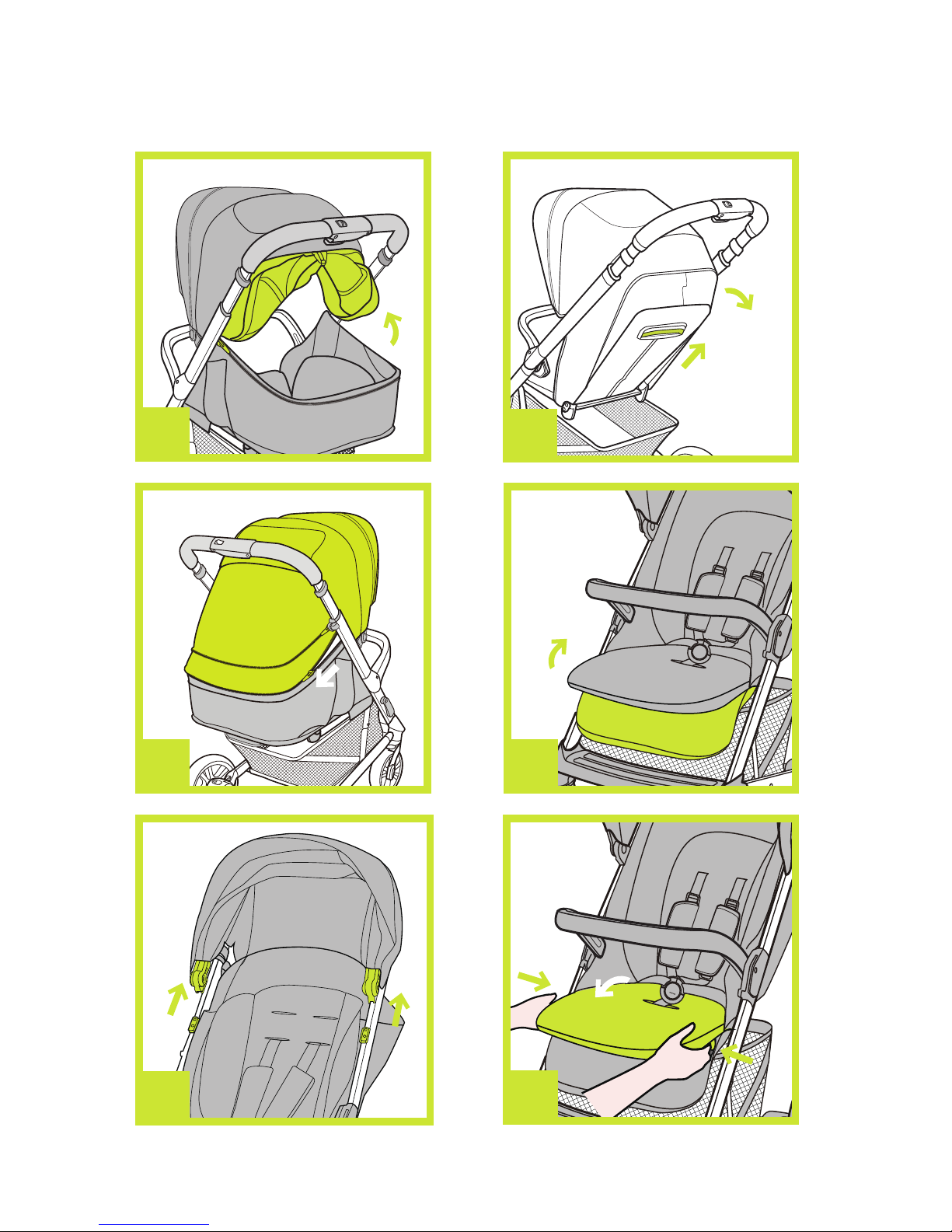

Use Canopy

To open the canopy, pull canopy toward front. To fold the canopy, pull canopy

toward back.

(22)

Page 23

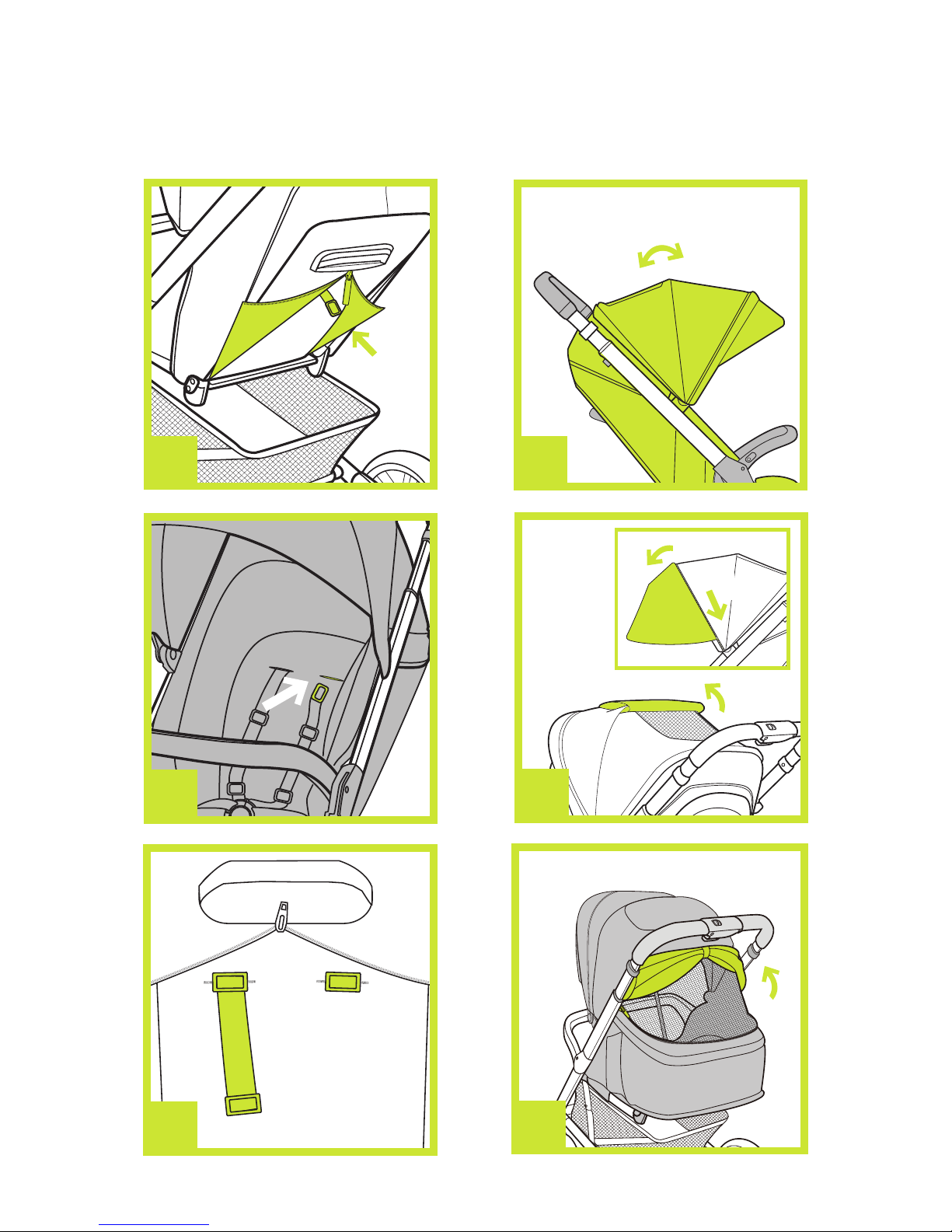

1 Open the canopy window

(23)

. Open the zipper to open the compartment.

(23)-1 (23)-2

2 For added air ow, unzip the top zipper to expose the mesh. Roll the fabric ap up and secure using the webbing. (24)

3 To access child from the back of the stroller, unzip the bottom zipper. Roll the fabric ap up and secure using the webbing. (25)

4 To remove the canopy mount rst unzip the zippers then remove the

canopy mount.

(26) (27)

Adjust Recline

There are 4 positions for the recline.

1 To recline the backrest, squeeze the backrest adjustment handle on the back of the seat

(28)-1

, pull down the recline .

(28)-2

2 To raise the recline, push up.

Make sure the recline is adjusted properly for use.

Adjust Calf Support

1 The calf support has 2 positions.

2 To raise the calf support, push it upwards.

(29)

3 To lower the calf support, press in both buttons on the sides and rotate the calf support downward.

(30)

Front Swivel Locks

1 Pull up the front swivel locks to maintain the moving direction.

(31)

2 It is recommended to use swivel locks on uneven surfaces.

Page 24

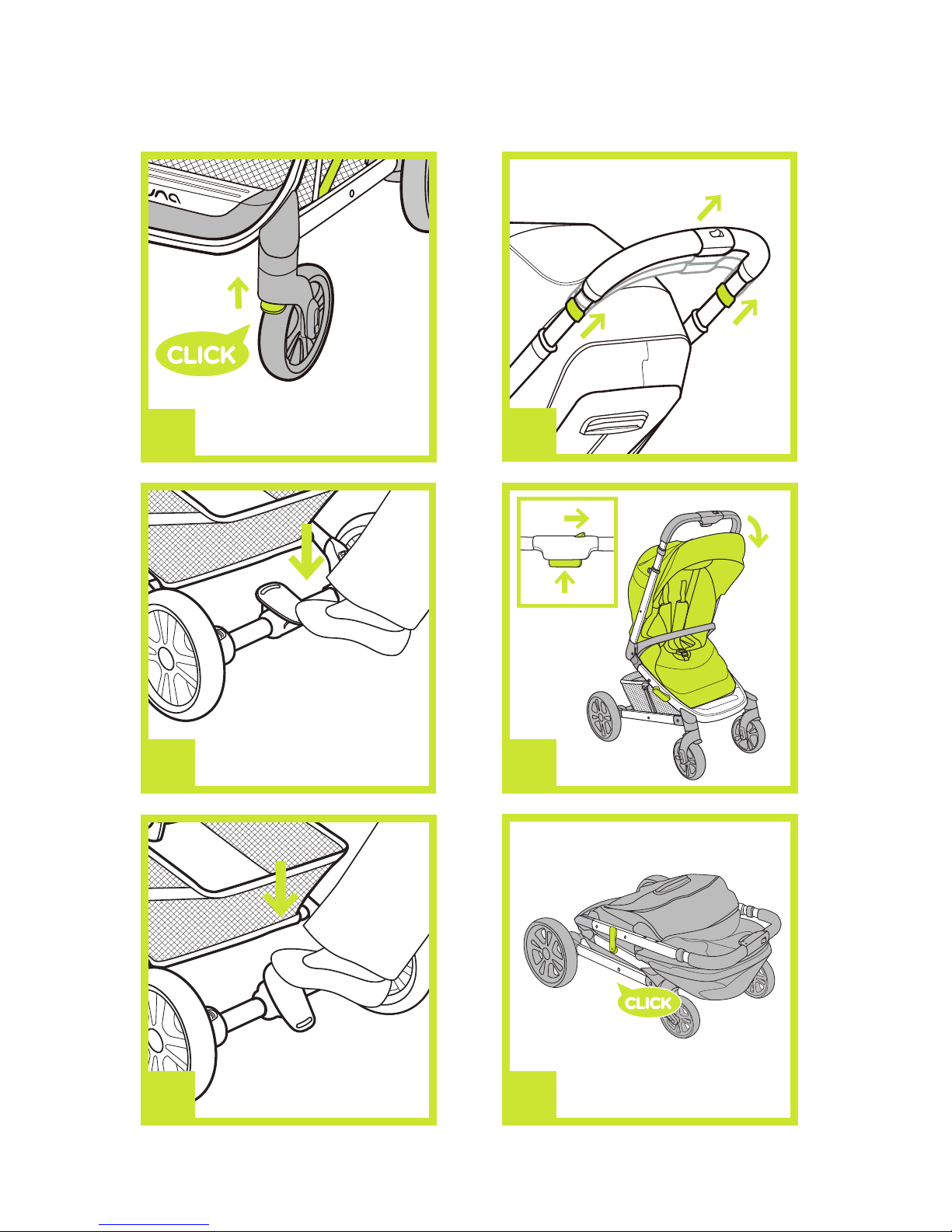

Brake

To lock wheels, step on the back of the brake lever and push downwards.

(32)

2 To release wheels, step on the front of brake lever and push

downwards.

(33)

Always apply brake when stroller is in stopped position.

Adjust Handle

1 The handle has 4 positions.

2 To adjust the height of the handle, pull the handle upward or downward

(34)-2

while pulling up on the handle adjustment button.

(34)-1

Fold Stroller

Fold the canopy before folding the stroller.

1 Push the stroller forward to fold while activating both of the folding buttons. (35)

2 Attach the storage latch. (36)

3 The complete folded stroller is as shown (36)

Page 25

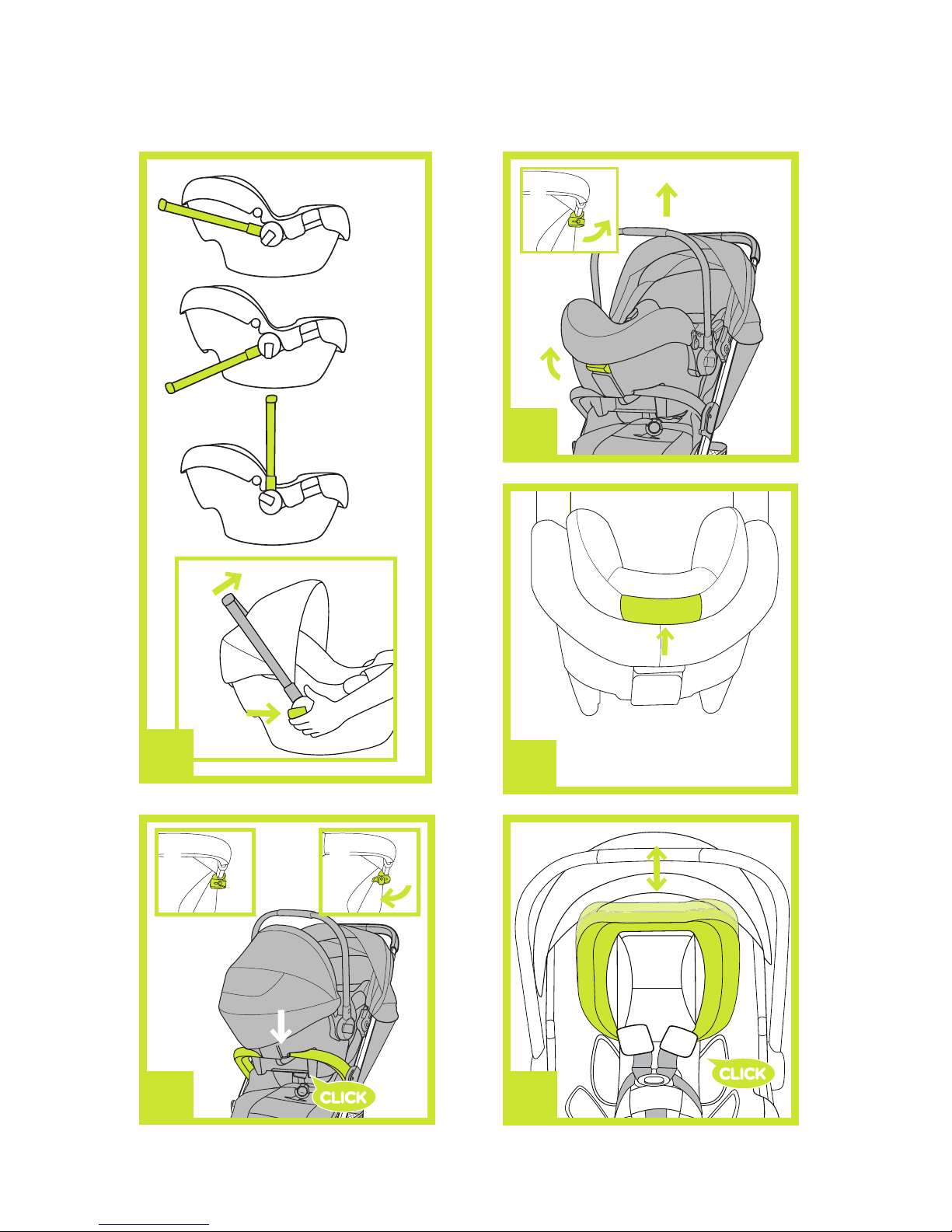

Use with Nuna Pipa Infant Carrier Module

Handle Adjustment

1 The handle of the PIPA icon infant carrier module can be adjusted to 3

positions.

Rocking position. (37) -1

Baby chair position. (37) -2 Position for car, hand or stroller transportation. (37) -3

2 To adjust the handle positon, squeeze handle buttons on both sides to

release it. (37) -4

3 Rotate handle until it clicks into any of the 3 positions. (37) -5

When using with PIPATM icon infant carrier module, please refer to the following instructions.

Recline the stroller backrest to the lowest position.

1 Make sure the infant carrier module lock is open on the right stroller

handle.

(38)-1

2 Place infant carrier module into stroller so notches in rockers t over edge of armbar. Then click the infant carrier module into place.

(38)-2

3 Lock the infant carrier module lock.

(38)-3

Pull up on the infant carrier module to check that it is fully locked to

the stroller.

4 To remove the infant carrier module, Open the infant carrier module

lock, squeeze the stroller release handle to release the infant carrier

module from armbar, and then lift infant carrier module out of stroller

(39)

Remove infant carrier module before folding.

Page 26

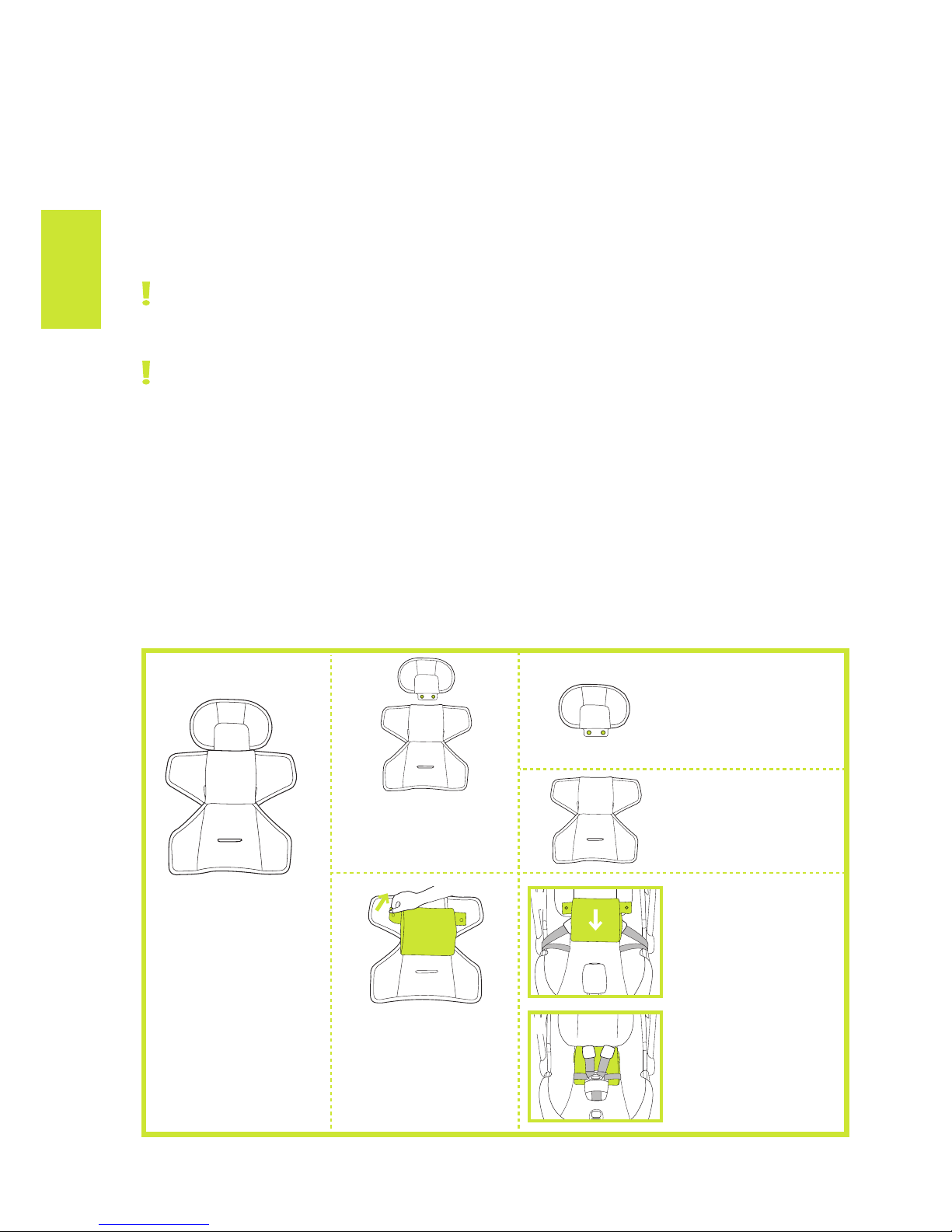

Height Adjustment for Head Support and Shoulder Harnesses

Check that Shoulder Harness Straps are set at the proper height. Please choose the proper pair of shoulder harness slots according to the child’s

height.

Shoulder Harness Straps must go into the harness slots nearest to your

childs shoulders, but not above the shoulder line.

If the Shoulder Harness Straps are not at proper height, the child might

be ejected the PIPA icon infant carrier module if there is a crash.

Squeeze the head support adjustment lever

(40)

, meanwhile pull up or push down the head support until it snaps into one of the 7 positions. The head support positions are shown as

(41)

Securing Child

Use Infant Insert

Detach the snaps on

the head support to

remove the head

portion of the insert.

We recommend

using the full infant

insert while the baby

is under 60 cm or

until they outgrow

the insert. The infant

insert increases side

impact protection.

Remove the head

support portion of

the infant insert

when the child’s

head no longer ﬁts

comfortably.

Remove the body

portion of the infant

insert when the

infant’s shoulders no

longer ﬁt comfortably.

The cushion can

be used separately

without being

attached to the

insert to bolster

the infant's back

for more comfort.

Remove the infant

insert cushion by

detaching the snaps

to allow more space

when the infant does

not ﬁt comfortably.

Page 27

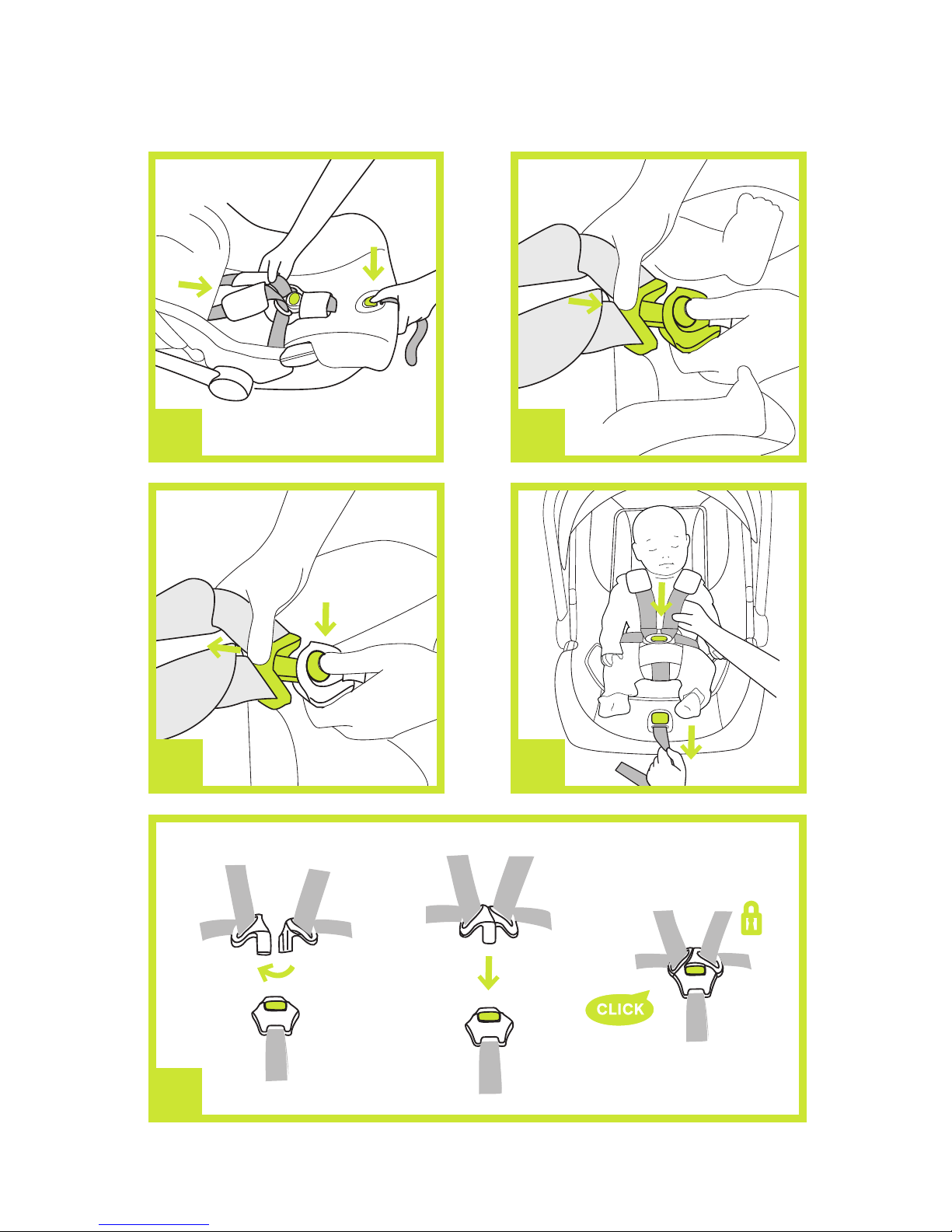

After the child is placed into the seat, check whether the Shoulder Harness

Straps are at proper height.

1 While pressing the adjustment button located at the front of the PIPA

icon infant carrier module, pull completely the two Shoulder Harness

Straps of the PIPA icon infant carrier module.

(42)

2 Unlock the buckle of the harnesses by pressing the red button.

(43)

3 Place the child into the PIPA icon infant carrier module and lock the

buckle. (45) Please refer to (44)

4 Tighten the shoulder harness straps by pulling the adjustment webbing.

(46)

Make sure the space between the child and the Shoulder

Harness Straps is about the thickness of one hand.

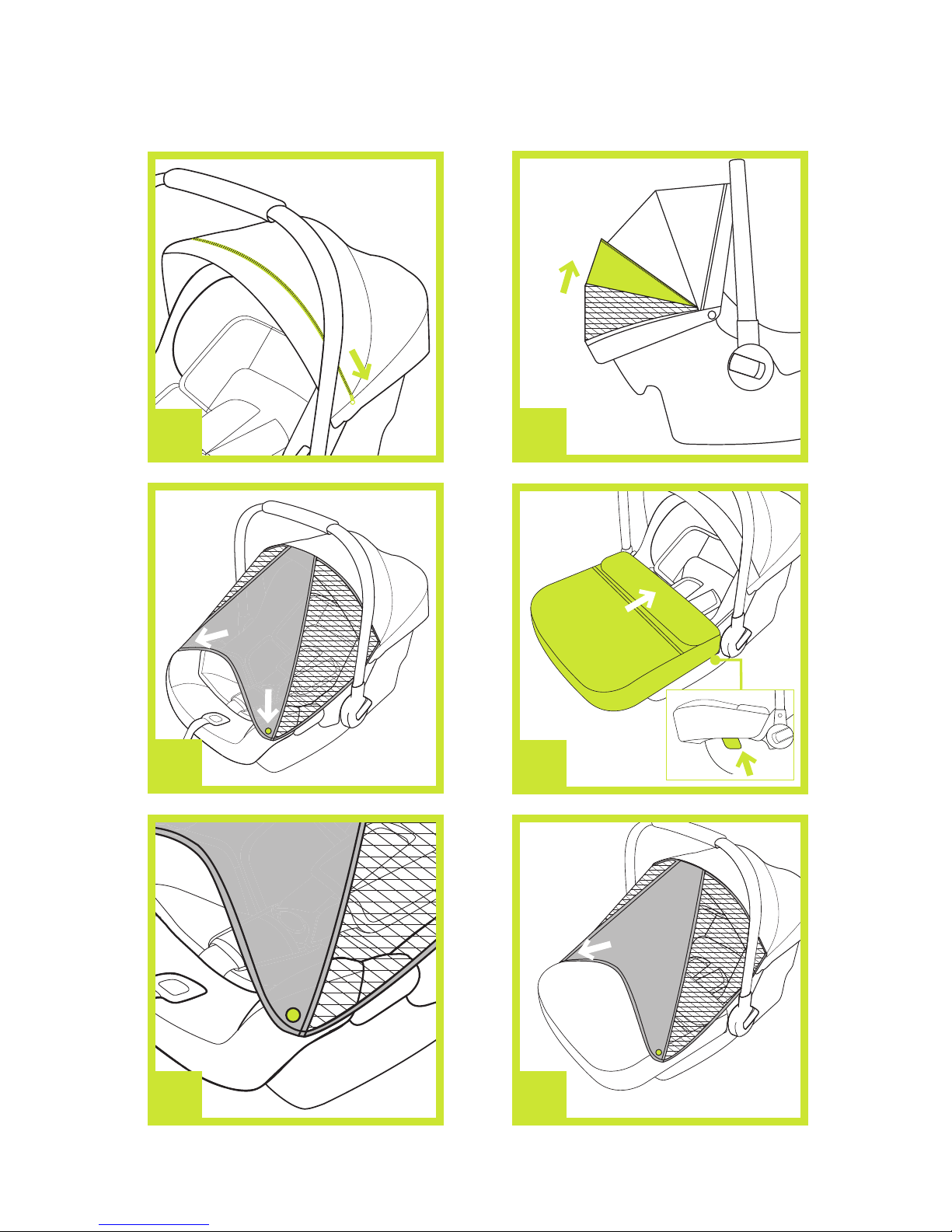

Canopy

1 Unzip the zipper behind the front canopy bow. (47)

2 Pull the canopy out of the compartment. (48)

3 Attach the magnets on each corner to the front of the PIPA icon infant

carrier module. (49)

4 The zipper on the back of canopy can be opened for ventilation. (50)

Cold Weather Boot

1 Cover the cold weather boot onto the PIPA icon infant carrier module,

then attach the both sides to the PIPA icon infant carrier module with plastic pieces. (51)

2 You can use cold weather boot and canopy simultaneously. (52)

Page 28

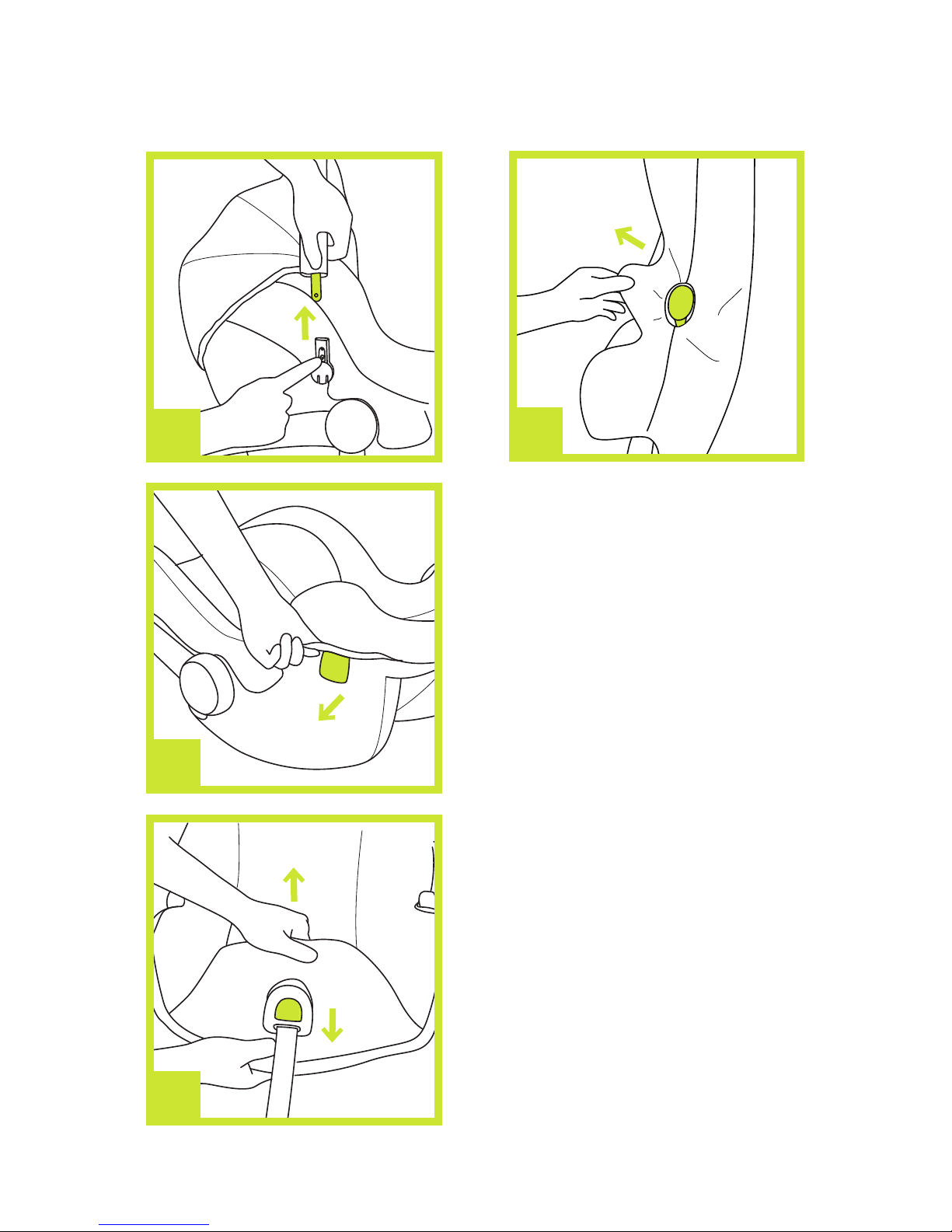

Detach Canopy and Seat Pad

1 Detach the snaps to disassemble the canopy, press the button in the

canopy mount and pull the canopy bow out. (53)

2 Pull the fastening pieces underneath the edge of the seat out. (54)

3 Press the red button to disengage the buckle

(43). Remove the Infant

Insert and crotch strap.

4 Detach the elastic band on the head support, and then remove the head

support.

5 Remove the seat pad from the adjustment button as shown in

(55)

6 Remove the seat pad from the Stroller release button as shown in

(56)

Page 29

Cleaning and Maintenance

Stroller

Your TAVO is a valuable piece of equipment and deserves careful handling.

You can clean the frame, the plastic parts, and the fabric with a damp cloth,

but don’t use abrasives or bleach. Do not use silicon lubricants, as they will attract dirt and grime. Continued and extended exposure to sunlight

can change the color of many materials. Do not store your TAVO in a damp place. Always allow the fabric to dry naturally away from direct heat.

For reasons of safety, only use original Nuna parts.

Clean the wheels regularly with water and remove the dirt.

To ensure the long-lasting use of your TAVO, wipe it o with a soft,

absorbent cloth after using it in rainy weather.

It is normal for fabric to discolor from sunlight and to show wear and tear after a long period of use, even when used normally.

Check regularly if any parts are torn, broken, or missing and that every-

thing functions properly. If this is the case, stop using the TAVO.

Page 30

Infant Carrier Module

After removing the wedge from the insert, please store it somewhere that the child cannot access it.

Please wash the soft goods with cold water under 30°C.

Do not iron the soft goods.

Do not bleach or dry clean the soft goods.

Do not use undiluted neutral detergent, gasoline or other organic solvent to wash the PIPA icon infant carrier module and base. It may cause damage to the product.

Use only mild detergent, water and a soft cloth to clean the PIPA icon infant carrier module shell, handle and harness straps and base.

Do not twist the soft goods to dry with great force. It may leave the soft

goods with wrinkles.

Please hang dry the soft goods in the shade.

Please remove the PIPA icon infant carrier module and base from the vehicle seat if not in use for a long period of time. Put the PIPA icon infant carrier module and base in a cool, dry place and somewhere your child can not access it.

Page 31

Warranty and Service

The Nuna

TAVO

and PIPA icon is covered by a one-year warranty. If this

product shows a defect during the warranty period, please contact your

retailer. If the retailer is unable to help you, they will make contact with the

local Nuna distributor.

Please be aware that the model number and serial number located on the bottom of the product will be required in the event of a warranty claim.

To register your product, please go to our website at nuna.eu

Terms of warranty

The warranty takes eect at the date of purchase of the product and is

valid for one year. The warranty provides you with a right of repair but not

a product exchange or return. The warranty will not be extended even if

some repairs have been made. Nuna has the right to improve the design of the product without any obligation to update the products manufactured previously..

The warranty will not apply in the following circumstances:

• If you can not provide the sales receipt or proof of purchase of the product.

• If the defect results from normal wear.

• If the defect results from an accident.

• If the defect results from a failure to follow the instructions of assembly, use, care, and maintenance provided in the instruction manual.

• If the defect results from overloading (maximum weight = 20 kg).

• If repairs have been carried out by a third party.

• If the defect results from the use of accessories others than Nuna.

Page 32

Where to Find Nuna products?

If you are looking for Nuna retailers in your area, please consult our

website: nuna.eu

Contact

We always look forward to improving our products and developing new

ideas, so please feel free to contact us to submit any comments or questions regarding the Nuna products.

www.nuna.eu

Nuna International BV.

De Beeke 8, 5469 DW,

ERP The Netherlands

Thanks for Choosing Nuna!

Page 33

IM-0202B
