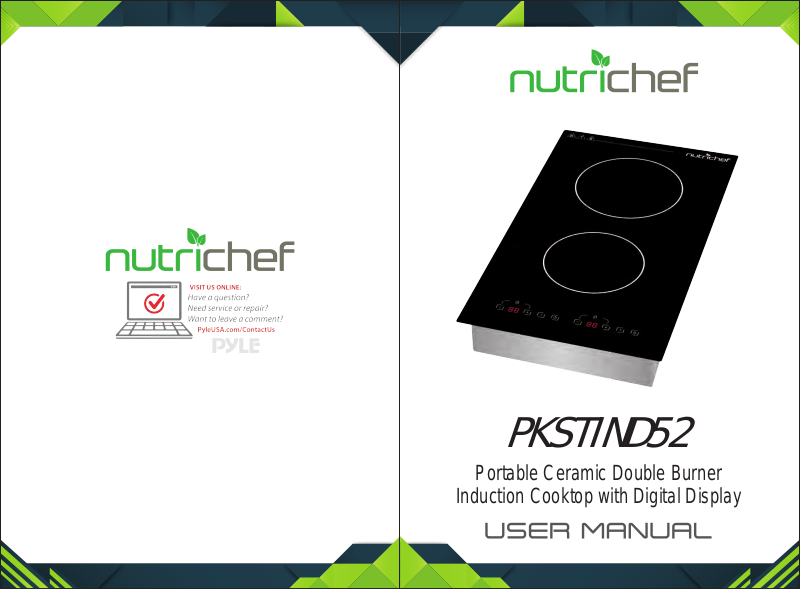

NutriChef PKSTIND52 User guide

Download

Page 1

PKSTIND52

Portable Ceramic Double Burner

Induction Cooktop with Digital Display

Page 2

PRODUCT CONFIGURATION

CONTROL PANEL:

Lock Button

Timer Button

Black Crystal Plate

Heating Area

Control Board

Lock Button

Timer Button

1. SAFETY CAUTIONS WARNING: SWITCH OFF THE INDUCTION COOKER IN CASE OF ANY

CRACK ON THE COOK-TOP PANEL

1. Do not place the unit in any place that is near gas or hot environment in order to avoid damages or malfunction.

2. To reduce the risk and damage, this plug should be t into and individual outlet. The rated electrical current is not less than 15A.

3. Place the unit on a level surface, the distance between the unit and background surrounding must be not less than 10cm.

4. Do not immerse the appliance and electric cord in water liquid, or allow liquid to go into the cabinet and get short/contact inner electrical parts, the power cord must be plugged out before cleaning.

5. Do not cover gas vent with anything during cooking, otherwise it will cause danger.

6. To avoid danger, please uncap the cover before heating tinned food.

7. If it is still not working after inspection,please immediately contact our service center and do not open the unit to avoid any danger.

8. Do not operate any appliance with a damaged cord or plug, or after appliance malfunctions or has been damaged in any manner

9. It would get dangerous when the metal gets heated directly or indirectly.

10. Do not place any metal on the plate and also to the nonmetal pad within 10cm.

11. Do not cook with an empty pot to avoid malfunction or danger.

12. Always clean the unit and avoid any dirt that may go into the fan to eect normal working.

13. Do not touch the plate while the unit is working to avoid getting burned.

14. To avoid injuries such as scalding, do not let children operate the appliance alone.

www.NutriChefKitchen.com

Page 3

15. If you have a pacemaker, you should consult with your doctor before you take advantage of any induction cooking device.

16. Do not place on or near a hot gas , electric burner, or in a heated oven

17. To avoid danger, do not place paper, aluminium foil, cloth or other unsuitable articles onto the induction cooker heating plate for indirect heating.

18. Do not place the unit on the cloth or carpet to avoid blocking the rear exhaust vent.

19. Please kindly avoid hitting the plate of the unit, in case of getting cracked, should turn o the unit and plug out immediately and then contact with service points of our company.

20. Do not touch the control panel with any sharp objects.

21. Do not place any metal on the unit while operating.

2. PRODUCT OPERATING INSTRUCTIONS

1. Place suitable cooking utensils in the center of the top plate.

2. Insert the plug in to AC 120V, 60Hz Socket. Press ON/OFF to switch ON, after pressing Function. The default ”Power” P4 will auto select. Dierent cooking functions, setting and adjustments.

3. To switch o, Press ON/OFF again, then plug out to shut o power.

2.1 COOKING MODE

1. Front Side: The Right Control Panel Rear Side: The Left Control Panel

2.2 Timer Function: (99 Minutes Timer)

1. User can set the cooking time when the cooking modes is selected.

2. Press the [Timer] key ,display will show the default time [00], user can press [+] or [] key to set for the desired time.

3. Press [+] or [] key once can increase or decrease1minute.

4. Press and hold to access quick adjustment, the time can be adjusted from 0 minute to 99 minutes.

5. After setting, user can press Cooking key once to conﬁrm or wait until the display stop.

6. To Cancel this mode, press [ON/OFF] key to stop the operation.

2.3 Lock Function:

• Press the [+/-] key together ,the Lock indicator will light up

representing that the appliance is locked.

• To Cancel this mode, press to [+/-] key and hold for 3 second or

[ON/OFF] to stop the operation.

3. SELECTION OF COOKWARE:

1. Material Required:

• Steel, cast iron, enameled iron, stainless steel, ﬂat-bottom pans/pots

with diameter from 12 to 26cm.

• It is suggested to use the required pot. Do not attempt to use other

pot instead (especially pressure sensors vessels).

• Press the [ON/OFF] key display will show [P4], It can be adjusted by

pressing the [+] or [] key to set the desired power level.

• There are 9 power levels in total

(P1-P2-P3-P4-P5-P6-P7-P8-P9)

• To Cancel this mode, press [ON/OFF] key to stop the operation.

www.NutriChefKitchen.com

2. Please kindly check according to the below requirements if its necessary to use the vessel.

• Pan/Pot must be suitable for induction cooker.

• Pan/pot should be tried out if it's bought by self to see if compatible

with the induction cooker

• Pan/Pot should be ﬂat and comes with cover and gas vent.

www.NutriChefKitchen.com

Page 4

4. MAINTENANCE AND DAILY CARE

1. Remove the power plug prior to clean the unit. Do not clean it until the surface cools down.

2. Glass Plate, Panel and Shell:

• Soft Cloth for slight stain.

• For greasy, dirt, blot by using a clean damp cloth with neutral

detergent.

3. While the radiator-fan is working,dust and dirt would remain on the gas vent, please clean it by brush or cotton stick regularly.

4. Do not wash the unit by water directly to avoid damage.

5. TROUBLESHOOTING AND TREATMENT

During operations, if any errors occurred, please check the following table before calling for service. Below are common errors and solutions.

PROBLEM

After connecting

CHECK

POINTS SOLUTION

Power outage?

Use when electricity resumes

the power and pressing the Power key, the appliance has no response

Is the plug connected

rmly?

Check the root causes carefully. If the problem can't be xed, please contact service

Is the fuse broken down?

center for checking and repairing.

5. To protect the induction cooker,be sure to have a good contact between plug and socket before use.

6. Do not pull out the power cord directly during operation. To extend the appliance's life, press then ON/OFF button rst to power o then pull out the power cord.

7. In order to make operating time longer,the fan will still work for cooling the plate, it is better to plug out after the fan stops working.

8. If the appliance is not be used for a long period of time, pull out the power plug.

9. Some models have structural design against cockroaches, if needed, you can put something like mothball to expel the cockroaches.

Induction Cooker send out "Beep Sound"

No operation during the heating being in use

Incompatible cookware or

no cookware is used?

Is the cookware not

considerable placed from the

center of the heating zone?

Is the cookware bigger

than 12cm?

Is the cookware empty or

the temperature too high?

Is the air intake/exhaust vent clogged or dirt has

accumulated

Is the cooker working

over 2 hours without any

external instruction?

Replace compatible cookware for the induction cooker Replace the cookware at the center of the dened heating zone

Change the diameter of cookware bigger than 12

Please check whether the appliance is being misused

Remove the stu clogging the air intake /exhaust vent. Operate the appliance again after cooling down.

Reset cooking modes or use timer function

www.NutriChefKitchen.com

Page 5

PHENOMENON

Error Codes

Occur EO

Error Codes

Occur E1

Error Codes

Occur E2

CHECK POINTS

No Cookware or

Incompatible cookware used

Low-Voltage

High-Voltage

SOLUTION

If error signal EOE, 3, ES shows, please check whether the cookware is not suitable or switch on the appliance again after it cooled down

Error Codes

Occur E3

Error Codes

Occur E4

Error Codes

Occur E5

Error Codes

Occur E6

Error Codes

Occur E7

Top Plate Overheat

Top Plate Sensor Open Circuit

IGBT Overheat

Top Plate Sensor Short Circuit

Internal Circuit Error

naturally.

If error signal E1,E2, E4, E6, E7, occurs please contact service center for checking and repairing

If the above solutions can't x the problem, unplug the appliance immediately, contact service center for inspection and repairing, note the error code and report it to service center ltd.

To avoid any danger and damage to the appliance, do not

disassemble or repair it by yourself.

PKSTIND52

Portable Ceramic Double Burner Induction Cooktop

with Digital Display

Features:

• Ceramic Tempered Glass Induction Cooktop

• Simple Electronic Plug-in Flameless Burner Design

• (2) Circular Top Panel Heating Zones

• Independent Congurable Temperature Zone Setting

• High-Powered Heating Elements

• Quickly Heats for Instant Food Prep

• Digital LCD Display Screens

• Sensor Touch Controls

• Countdown Timer Setting

• Stain-Resistant & Easy-to-Clean

• Compact & Space-Saving Style

• Energy Ecient: Low Power Consumption

• Safety Certied & Approved

• For Use with All of Your Steel Kitchen Cookware, Pots & Pans

Technical Specs:

• Dual Heating Element Power: 1800 Watt

• Circular Heat Zone Diameter: 5.9’’ -inches (-Each)

• Max. Timer Setting: Up to 99 minutes

• Construction Materials: Tempered Ceramic Glass, Metal Housing

• Power Cord Length: 4.9’ ft

• Power: 120V

• Unit Size (L x W x H): 20.47’’ x 11.42’ x 3.15’’ –inches

• Sold as: 1

www.NutriChefKitchen.com
