READ AND SAVE THESE INSTRUCTIONS
Installer: leave this guide with homeowner.
Register your product online at www.nutone.com/register.
XN50L
n
XN80L n XN110L
X1 | Single-Speed Ventilation
Fan with Light and Night Light
INSTALLATION GUIDE
Easy installation in both
new construction and retrofit
© 2011 Broan-NuTone LLC
Table of Contents
Warnings and Cautions 2
Typical Installation 2
New Construction Installation 3
Retrofit Installation 7
Operation 12
Cleaning and Maintenance 12
Troubleshooting 12
Service Parts 13
Warranty 13
Page 2
XN50L
n
XN80L
n
XN110L Installation Guide
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer.
If you have questions, contact the manufacturer at the address
or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a
qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction codes and
standards.
4. Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equipment
to prevent backdrafting. Follow the heating equipment
manufacturer’s guideline and safety standards such as those
published by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and
Air Conditioning Engineers (ASHRAE), and the local code
authorities.
5. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this fan with any solid-state speed control device.
8. Acceptable for use over a tub or shower when connected to
a GFCI (Ground Fault Circuit Interrupter) - protected branch
circuit.
9. This unit must be grounded.
CAUTION
1. For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
2. This product is designed for installation in ceilings up to a
12/12 pitch (45 degree angle). Duct connector must point up.
DO NOT MOUNT THIS PRODUCT IN A WALL.
3. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power
unit.
4. Please read specification label on product for further
information and requirements.
NOT FOR USE IN A COOKING AREA
Do not install above or inside this area
45° 45°
Cooking
Equipment
Floor
Typical Installation
• Installation is the same for:
Joists I-Joists Trusses
• Fits in 2" x 8" ceiling construction.
• Infinitely adjust the fan position
between joists from 14" to 24"
on center.
HOUSING
POWER
CABLE*
Seal gaps
around
Housing.
*Purchase
separately.
INSULATION*
(Place around and
over Fan Housing.)
FAN
ROUND
DUCT*
Seal duct
joints with
tape.
OR
ROUND
ELBOWS*
ROOF CAP*
(with built-in
damper)
Keep duct
runs short.
WALL CAP*
(with built-in
damper)
Page 3
New Construction Installation
XN50L
n
XN80L
n
XN110L Installation Guide
Tools needed
• Power screwdriver with a Phillips bit
• Phillips screwdriver
• Flathead screwdriver
• Pliers
• Wire insulation stripper
• Wire cutter
Remove Packaging
1
Parts Bag holds
Knockout Plate
and six (6)
screws
Materials needed
• 6" round metal ducting recommended for best performance.
Use of other ducting is acceptable but may impact performance.
• Roof cap or wall cap (built-in damper recommended)
• Tape to seal duct connections
• Electrical wiring and supplies per local code requirements
• 4W (max.) C7-type night light bulb
Remove CFL Bulbs
from protective packaging
Remove
Instruction
Sheet
Punch out Mask from
packaging. See Step 6.
Install
2
Mounting
Frame
2
1
4
3
Page 4
New Construction Installation
Snap-in and
3
Secure Housing
2
snap!
XN50L
n
XN80L
n
XN110L Installation Guide
1
4
Attach Duct Connector and Ducting
4
Top and bottom flanges
go outside Housing
Insert tab into slot
inside Housing
1
6" Ducting
Tape
Screws from Parts Bag
3
3
4" Ducting
Tape
Position Housing
between joists and
crimp channel on both
sides of Mounting Frame
to lock Housing in place.
Do not crimp Housing.
Screw from
2
Parts Bag
Tape
6" to 4" Reducer provided in select models
Page 5
LI NE
IN
GR D
WH T
BL K
GR D
WH T
WH T
WH T
WH T
WH T
BL K
BL K
RE D
BL U
RE D
RE D
BL K
LI GHT
SW ITCH
NI GHT LIGH T
SW ITCH
FA N
SW ITCH
FA N
LI GHT
NI GHT
LI GHT
UN ITSW ITCH BOX

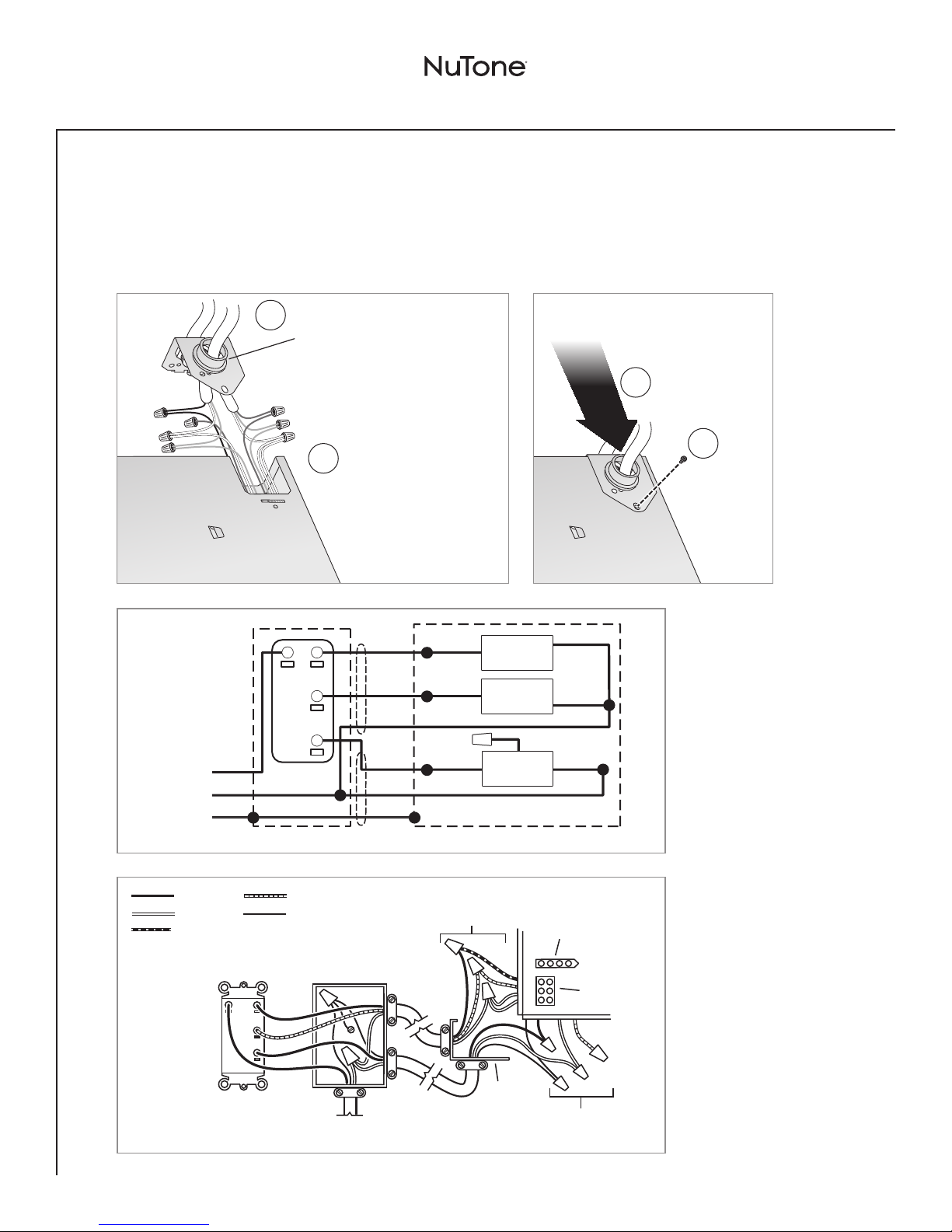

New Construction Installation
Connect Wires and Install Knockout Plate
5
• Run 120VAC electrical wiring to the installation location.
• Use proper UL-approved connectors to secure wiring to the Knockout Plate provided in Parts Bag.
• Connect wires as shown in wiring diagram.
• Do not use a dimmer switch to operate the light.
Attach cable clamps to Knockout
1
Plate. Knockout Plate mounts to
outside of Housing and may be
oriented as desired.
XN50L
3
n
XN80L
n
XN110L Installation Guide
Fan
NI GHT LIGH T
LI NE
IN
BLACK
WHITE
BLUE
LI GHT
SW ITCH
SW ITCH
FA N
SW ITCH
BL K
WH T
GR D
Light
Connect wires
2
RED
GROUND
(green or bare)
BL K
RE D
WH T
BL K
WH T
GR D
BL U
RE D
BL K
LIGHT
RECEPTACLE
WIRES
LI GHT
NI GHT
LI GHT
FA N
UN ITSW ITCH BOX
RE D
4
Screw from
Parts Bag
WH T
WH T
WH T
FAN
RECEPTACLE
SWITCH BOX
LIGHT
NIGHT LIGHT
FAN
MULTI CONTROL
(purchase separately)
120 VAC
LINE IN
KNOCKOUT
PLATE
LIGHT
RECEPTACLE
FAN
RECEPTACLE
WIRES
Page 6

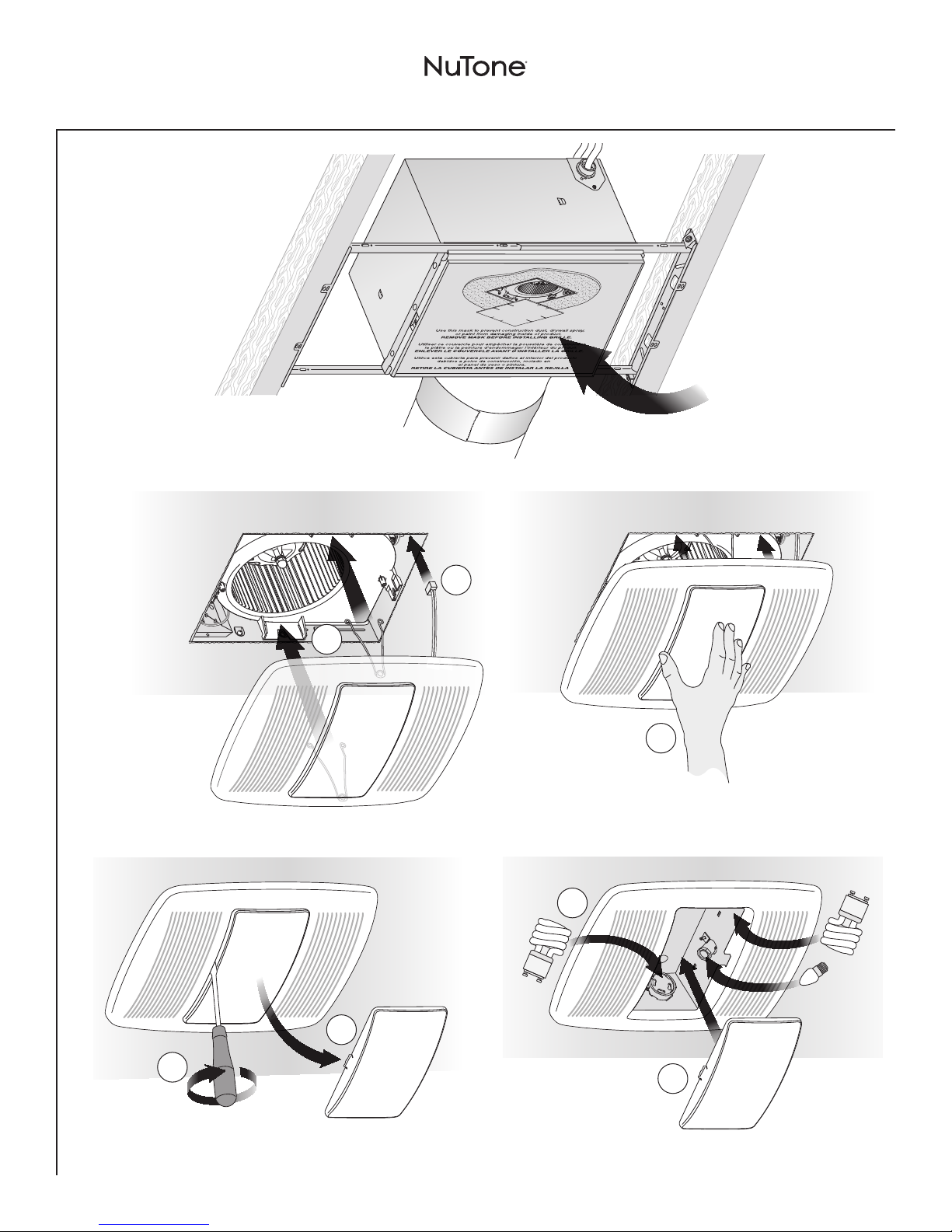

New Construction Installation
Insert Mask and
6
Finish Ceiling
• Install ceiling material.
• Cut out around Housing.
Install Grille
7
XN50L
n
XN80L
n
XN110L Installation Guide
Mask protects unit
during construction.
Remove before
installing Grille.
Install Bulbs
8
1
2
3
3
Night Light
(purchase
separately)
2
1
See Page 12 for Operations, Cleaning and Maintenance, and Troubleshooting.
4
Page 7
Retrofit Installation
XN50L
n
XN80L
n
XN110L Installation Guide
Tools needed
• Power screwdriver with a Phillips bit
• Phillips screwdriver
• Flathead screwdriver
• Pliers
• Wire insulation stripper
• Wire cutter
• Ruler
• Pencil
• Drywall saw
• Claw hammer or pry bar
• Utility knife
Materials needed
• Tape to seal duct connections
• Existing rigid duct will require the
addition of a short length of flexible duct
• Electrical wiring and supplies per
local code requirements
• 4W (max.) C7-type night light bulb
Remove Packaging
1
Remove
Instruction
Sheet
Parts Bag holds
Knockout Plate
and six (6)
screws
Remove CFL Bulbs
from protective packaging
Switch Off Power
2
WARNING
Before removing existing fan, switch power off at service panel and lock the service disconnecting
means to prevent power from being switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
Punch out Mask from
packaging. See Step 12.
Enlarge Ceiling Opening and Remove Existing Fan
3
12" (30.5 cm)
1
11" (27.9 cm)
parallel with joists
Existing ductwork and
wiring left in place
Examine Wiring
4
Examine the existing wiring to make sure it is not damaged. If any damage is found,
DO NOT CONTINUE INSTALLATION of this product. Contact a qualified person(s) for repair.
2
Page 8
Retrofit Installation
Remove Blower Assembly
5
2
Both sides
Remove Wiring Panel
6
XN50L
1
3
Set aside
Wiring Panel
n
XN80L
n
XN110L Installation Guide
Set aside
Blower Assembly
Insert
7
Mounting
Frame
1
Set aside
screw
4
2
3
3
5
1
Remove screws from
Mounting Frame
and set aside
2
Bend up
four tabs
Page 9
Retrofit Installation
Secure
8
Mounting
Frame
Snap-in Housing
9
Screws set
aside
in Step 7
2
XN50L
n
XN80L
n
XN110L Installation Guide
10
Pull existing
ductwork
into Housing
1
Pull existing wiring into
Housing as it is inserted
into Mounting Frame
snap!
Attach Ducting and Duct Connector
1
2
6" Ducting
Tape
4" Ducting
Tape
Tape
4
Screw from
Parts Bag
3
Insert tab into
slot inside
Housing
6" to 4" Reducer provided in select models
Page 10
LI NE
IN
GR D
WH T
BL K
GR D
WH T
WH T
WH T
WH T
WH T
BL K
BL K
RE D
BL U
RE D
RE D
BL K
LI GHT
SW ITCH
NI GHT LIGH T
SW ITCH
FA N
SW ITCH
FA N
LI GHT
NI GHT
LI GHT
UN ITSW ITCH BOX
Retrofit Installation
Install Knockout Plate, Connect Wires and Install Wiring Panel
11
• Use proper UL-approved connectors to secure wiring to the Knockout Plate provided in Parts Bag.
• Connect wires as shown in wiring diagram.
• Do not use a dimmer switch to operate the light.
mounts to inside of
2
Screw from
Parts Bag
1
Attach cable
clamps to
Knockout Plate.
Knockout Plate
Housing and may
be oriented
as desired.
Screw set
aside in
Step 6
5
XN50L
4
n
XN80L
n
XN110L Installation Guide
6
Fan
Connect wires
3
Light
LI GHT
SW ITCH
NI GHT LIGH T
LI NE
IN
BLACK
WHITE
BLUE
LIGHT
SW ITCH
SW ITCH
FAN
NIGHT LIGHT
FA N
BL K
WH T
GR D
RED
GROUND
(green or bare)
SWITCH BOX
BL K
RE D
WH T
BL K
WH T
GR D
BL U
RE D
BL K
RECEPTACLE
LI GHT
NI GHT
LI GHT
LIGHT
WIRES
RE D
FA N
UN ITSW ITCH BOX
RECEPTACLE
WH T
WH T
WH T
FAN
LIGHT
RECEPTACLE
MULTI CONTROL
(purchase separately)
120 VAC
LINE IN
KNOCKOUT
PLATE
FAN
RECEPTACLE
WIRES
Page 11

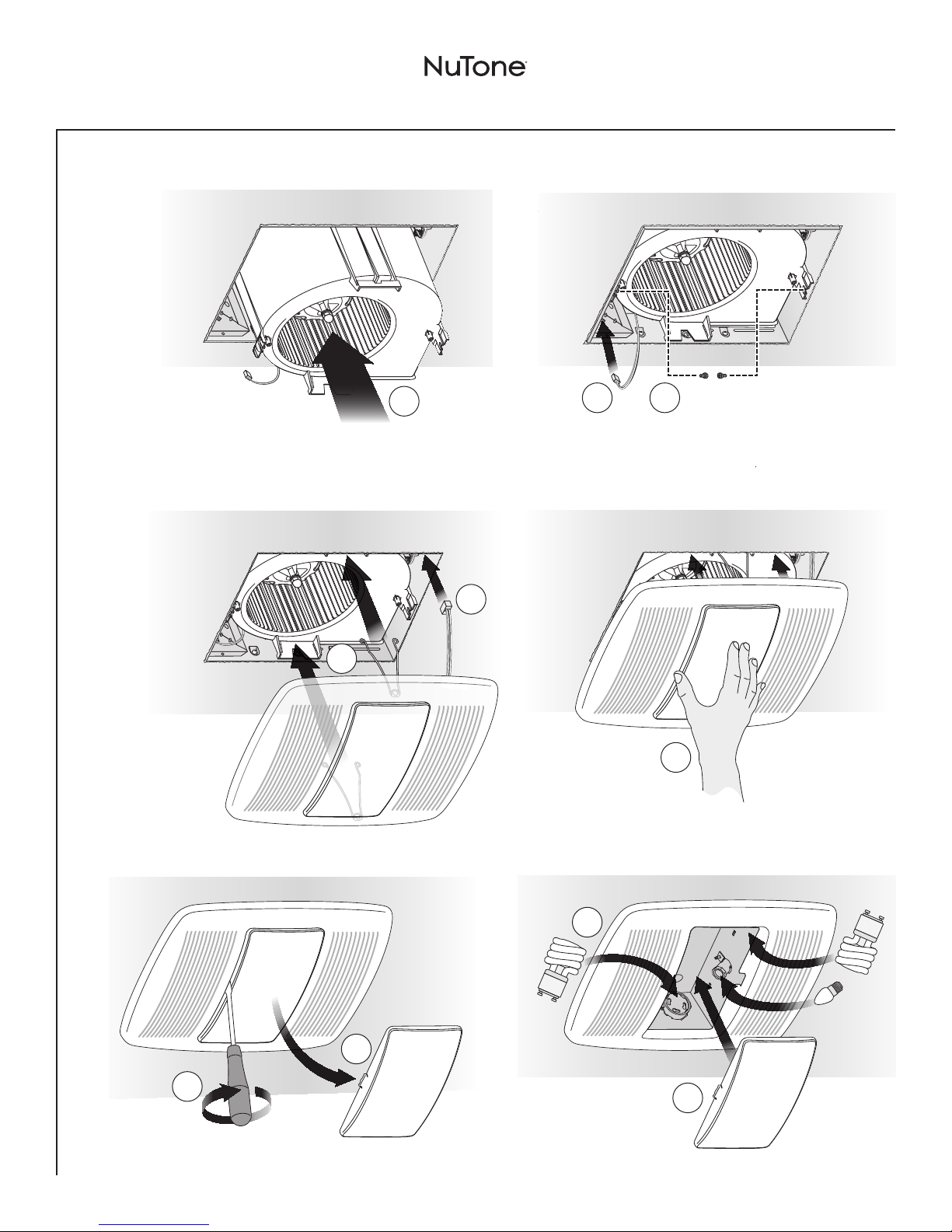

Retrofit Installation
Insert and Secure Blower Assembly
12
XN50L
n
XN80L
n
XN110L Installation Guide
13
Install Grille
1
1
2
2 3
If ceiling repairs are needed, place Mask in
Housing after Blower Assembly is secured.
See New Construction Installation Step 6.
Remove Mask before installing Grille.
Screws from Parts Bag
3
Install Bulbs
14
1
3
Night Light
(purchase
2
4
separately)
Page 12
XN50L
n
XN80L
n
XN110L Installation Guide
WARNING Before servicing or cleaning unit,
switch power off at service panel and lock the service
disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
Operation
To Operate Fan
Use an ON/OFF switch to operate this ventilator.
To Operate Lights
The light and night light can be operated independently,
using separate on/off switches.
Cleaning and Maintenance
To Clean
For quiet and efficient operation, long life and attractive
appearance, remove Grille and vacuum interior of unit
with a dusting brush attachment.
The Motor is permanently lubricated and never needs
oiling. If the motor bearings are making excessive or
unusual noises, replace the Control Assembly and Motor.
To Change Bulbs
Refer to Retrofit Installation Step 14 (page 11).
1. Carefully insert a small
flathead screwdriver
between the Grille and Lens,
then twist to remove Lens.
2. Purchase two (2) 18W (max.)
type GU24 fluorescent
lamps with Maximum Overall
Length (MOL) of 3.9" (100
mm). Purchase a 4W (max.)
C7-type incandescent night
light bulb.
3. Insert bulbs into their sockets. Replace Lens.
M.O.L.
3.9" (100 mm)
Troubleshooting
Symptom: The fan does not run.
• Check for an open fuse or circuit breaker in the
building’s service panel.
• Check that the two (2) plug-in connections for the Motor
and the Control are seated firmly in place.
• Check that the Blower Wheel spins freely.
Symptom: The fan runs erratically.
• Check that the Blower Wheel is firmly attached to the
Motor shaft and both spin freely.
Symptom: The fan seems noisy.
• Check that the back draft damper in the fan’s Duct
Connector pivots freely. Screws used to attach the duct
to the Duct Connector may be preventing the damper
from opening.
• Check that the back draft damper in the wall or roof cap
pivots freely. These dampers are sometimes mistakenly
painted shut or obstructed by bird and insect debris..
Page 13
XN50L
n
XN80L
n
XN110L Installation Guide
Service Parts
1
2
3
4
5
6
7
Order replacement
parts by Part No.,
not by Key No.
12
Key No. Part No. Description
1 97018349 Mounting Frame
2 97018721 Knockout Plate & Screws
3 97018382 Housing
4 97018473 Wiring Panel/Harness Assembly
5 97018766 Control Assembly & Motor (XN50L)
97018765 Control Assembly & Motor (XN80L)
97018763 Control Assembly & Motor (XN110L)
6 97018331 Duct Connector - 6"
7 99111513
6" to 4" Reducer (models XN50L and XN80L only)
8 99020301 Blower Wheel
9 97018768 Scroll Assembly
10 97018533 Grille Assembly (includes 11, 12, 13)
11 99140208 Grille Spring (2 req’d)
12 99111400 Lens
13 99271381 Bulb, GU24 18W 3500K Fluorescent (2 req’d)
8
9
11
13
10
Warranty
NuTone Ventilation Fan/Lights Limited Warranty
WARRANTY PERIOD: NuTone warrants to the original consumer purchaser
of its NuTone Ventilation Fan/Light (the “Fan”) that your Fan (excluding lamps/
bulbs) will be materially free from defects in materials or workmanship for a
period of three (3) years from the date of original purchase. The warranty on
the lamps/bulbs provided with the Fan is one (1) year and does not cover
lamp/bulb breakage. This warranty does not cover accessories, such as
speed controls, that may be purchased separately and installed with the Fan.
The limited warranty period for replacement parts, and for Fans repaired or
replaced under this limited warranty, shall continue for the remainder of the
original warranty period.
NO OTHER WARRANTIES: THE FOREGOING WARRANTIES ARE
EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR
IMPLIED. NUTONE DISCLAIMS AND EXCLUDES ALL OTHER EXPRESS
WARRANTIES, AND DISCLAIMS AND EXCLUDES ALL WARRANTIES
IMPLIED BY LAW, INCLUDING WITHOUT LIMITATION THOSE OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. TO
THE EXTENT THAT APPLICABLE LAW PROHIBITS THE EXCLUSION
OF IMPLIED WARRANTIES, THE DURATION OF ANY APPLICABLE
IMPLIED WARRANTY IS LIMITED TO THE PERIOD SPECIFIED FOR THE
EXPRESS WARRANTY. Some states do not allow limitations on how long
an implied warranty lasts, so the above limitation may not apply to you. Any
oral or written description of the Fan is for the sole purpose of identifying it
and shall not be construed as an express warranty.
REMEDY: During the applicable limited warranty period, NuTone will, at its
option, provide replacement parts for, or repair or replace, without charge,
any Fan or part thereof, to the extent NuTone finds it to be covered by and
in breach of this limited warranty. NuTone will ship the repaired or replaced
Fan or replacement parts to you at no charge. You are responsible for all
costs for removal, reinstallation and shipping, insurance or other freight
charges incurred in the shipment of the Fan or part to NuTone. This warranty
does not cover (a) normal maintenance and service, (b) normal wear and
tear, (c) any Fans or parts which have been subject to misuse, abuse,
abnormal usage, negligence, accident, improper or insufficient maintenance,
storage or repair (other than repair by NuTone), (d) damage caused by
faulty installation, or installation or use contrary to recommendations or
instructions, (e) any Fan that has been moved from its original point of
installation, (f) damage caused by environmental or natural elements,
(g) damage in transit, (h) natural wear of finish, (i) Fans in commercial or
nonresidential use, or (j) damage caused by fire, flood or other act of God.
This warranty covers only Fans sold in the United States or through U.S.
distributors authorized by NuTone.
EXCLUSION OF DAMAGES: NUTONE’S OBLIGATION TO PROVIDE
REPLACEMENT PARTS, OR REPAIR OR REPLACE, AT NUTONE’S
OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER
THIS LIMITED WARRANTY AND NUTONE’S SOLE AND EXCLUSIVE
OBLIGATION. NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL,
INDIRECT, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT
OF OR IN CONNECTION WITH THE FAN, ITS USE OR PERFORMANCE.
Incidental damages include but are not limited to such damages as loss of
time and loss of use. Consequential damages include but are not limited to
the cost of repairing or replacing other property which was damaged if the
Fan does not work properly.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply
to you. This warranty gives you specific legal rights, and you may also have
other rights, which vary from state to state.
This warranty supersedes all prior warranties and is not transferable from
the original consumer purchaser.
NUTONE SHALL NOT BE LIABLE TO YOU, OR TO ANYONE CLAIMING
UNDER YOU, FOR ANY OTHER OBLIGATIONS OR LIABILITIES,
INCLUDING, BUT NOT LIMITED TO, OBLIGATIONS OR LIABILITIES
ARISING OUT OF BREACH OF CONTRACT OR WARRANTY,
NEGLIGENCE OR OTHER TORT OR ANY THEORY OF STRICT LIABILITY,
WITH RESPECT TO THE FAN OR NUTONE’S ACTS OR OMISSIONS OR
OTHERWISE.
This warranty covers only replacement or repair of defective Fans or parts
thereof at NuTone’s main facility and does not include the cost of field
service travel and living expenses.
Any assistance NuTone provides to or procures for you outside the terms,
limitations or exclusions of this limited warranty will not constitute a waiver
of such terms, limitations or exclusions, nor will such assistance extend or
revive the warranty.
NuTone will not reimburse you for any expenses incurred by you in repairing
or replacing any defective Fan, except for those incurred with NuTone’s prior
written permission.
HOW TO OBTAIN WARRANTY SERVICE: To qualify for warranty service,
you must (a) notify NuTone at the address or telephone number stated below
within seven (7) days of discovering the covered defect, (b) give the model
number and part identification and (c) describe the nature of any defect in
the Fan or part. At the time of requesting warranty service, you must present
evidence of the original purchase date.
Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027
(1-888-336-6151)
www.nutone.com
If you must send the Fan or part to NuTone, as instructed by NuTone, you
must properly pack the Fan or part—NuTone is not responsible for damage
in transit.
Loading...
