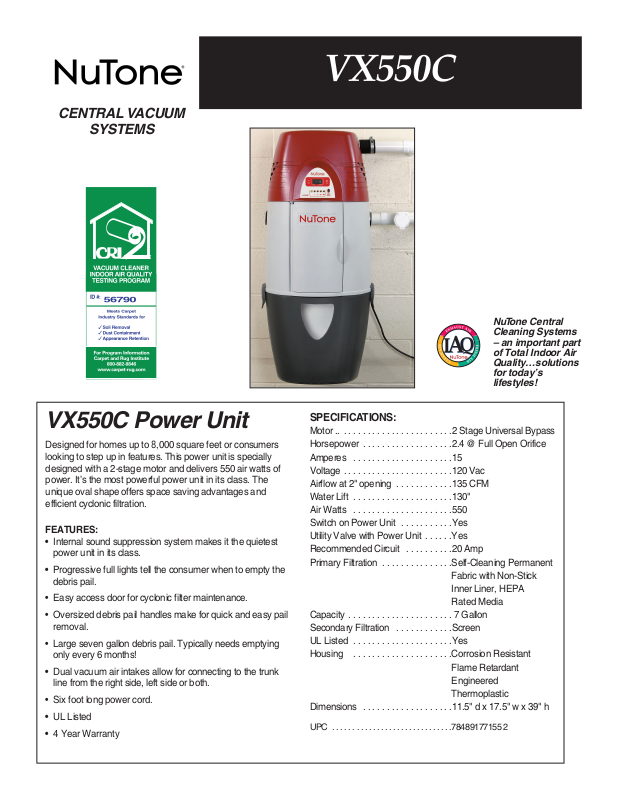

NuTone VX550C User Manual

CENTRAL VACUUM

SYSTEMS

VX550C

NuTone Central
Cleaning Systems
– an important part
of Total Indoor Air
Quality…solutions
for today’s
lifestyles!

VX550C Power Unit

Designed for homes up to 8,000 square feet or consumers

looking to step up in features. This power unit is specially
designed with a 2-stage motor and delivers 550 air watts of
power. It’s the most powerful power unit in its class. The
unique oval shape offers space saving advantages and
efficient cyclonic filtration.

FEATURES:

Internal sound suppression system makes it the quietest

•

power unit in its class.

• Progressive full lights tell the consumer when to empty the
debris pail.

• Easy access door for cyclonic filter maintenance.

• Oversized debris pail handles make for quick and easy pail
removal.

• Large seven gallon debris pail. Typically needs emptying
only every 6 months!

• Dual vacuum air intakes allow for connecting to the trunk
line from the right side, left side or both.

• Six foot long power cord.

• UL Listed

• 4 Year Warranty

SPECIFICATIONS:

Motor .. . . . . . . . . . . . . . . . . . . . . . . .2 Stage Universal Bypass

Horsepower . . . . . . . . . . . . . . . . . . .2.4 @ Full Open Orifice

Amperes . . . . . . . . . . . . . . . . . . . . .15

Voltage . . . . . . . . . . . . . . . . . . . . . . .120 Vac

Airflow at 2" opening . . . . . . . . . . . .135 CFM

Water Lift . . . . . . . . . . . . . . . . . . . . .130"

Air Watts . . . . . . . . . . . . . . . . . . . . .550

Switch on Power Unit

Utility Valve with Power Unit . . . . . .Yes

Recommended Circuit

Primary Filtration . . . . . . . . . . . . . . .Self-Cleaning Permanent

Capacity . . . . . . . . . . . . . . . . . . . . . . 7 Gallon

Secondary Filtration . . . . . . . . . . . .Screen

UL Listed . . . . . . . . . . . . . . . . . . . . .Yes

Housing . . . . . . . . . . . . . . . . . . . . .Corrosion Resistant

Dimensions

UPC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78489177155 2

. . . . . . . . . . . . . . . . . . .

. . . . . . . . . . .Yes

. . . . . . . . . .

20 Amp

Fabric with Non-Stick
Inner Liner, HEPA
Rated Media

Flame Retardant
Engineered
Thermoplastic

11.5" d x 17.5" w x 39" h
