NuTone VSM4SK, VSM4RK User Manual

READ & SAVE THESE INSTRUCTIONS!
OPERATING INSTRUCTIONS

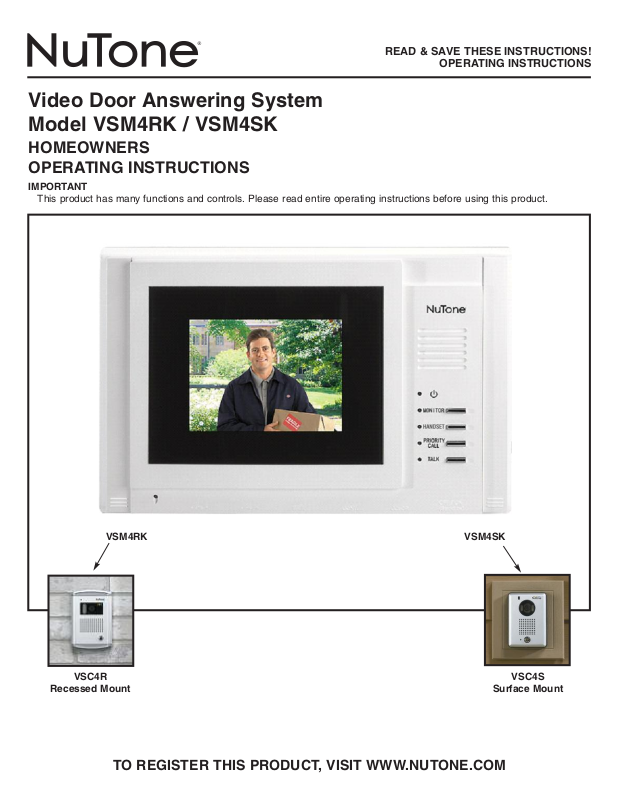

Video Door Answering System Model VSM4RK / VSM4SK
HOMEOWNERS OPERATING INSTRUCTIONS
IMPORTANT
This product has many functions and controls. Please read entire operating instructions before using this product.
VSM4RK VSM4SK
Recessed Mount
TO REGISTER THIS PRODUCT, VISIT WWW.NUTONE.COM
VSC4S
Surface Mount
Caution
RISK OF ELECTRIC SHOCK
DO NOT OPEN
AUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT
C
EMOVE COVER (OR BACK). NO USER-SERVICEABLE
R PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACE ON THE APPARATUS
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead, within an equilateral triangle, is intended to alert the user to the presence of uninstalled “dangerous voltage” within the product’s enclosure. This voltage may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or
9) grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult and electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Unplug the apparatus during lighting storms or when unused for long period of time.
13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
, such as power-supply cord or plug
Date of Purchase Dealer Purchased From
Address
s
Dealer Dealer’s Phone No. Model No. & Serial No.
2
Table of Contents
Illustration of Model VSM4 Monitor . . . . . . . . . . . . . .3
Monitor Station Controls . . . . . . . . . . . . . . . . . . . . . .4
onitor Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
M
Intercom Volume Control . . . . . . . . . . . . . . . . .4
hime Volume Control . . . . . . . . . . . . . . . . . . .4
C
Brightness Control . . . . . . . . . . . . . . . . . . . . . .4
Contrast Control . . . . . . . . . . . . . . . . . . . . . . . .4
Color Control . . . . . . . . . . . . . . . . . . . . . . . . . .4
On/Off/ Standby Control . . . . . . . . . . . . . . . . . .4
Monitor Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Monitor Button . . . . . . . . . . . . . . . . . . . . . . . . .4
Handset Button . . . . . . . . . . . . . . . . . . . . . . . .4
Priority Call Button . . . . . . . . . . . . . . . . . . . . . .4
alk Button . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
T
Optional Handset Operation . . . . . . . . . . . . . .5
Camera Operation . . . . . . . . . . . . . . . . . . . . . .5
Ending Door Call . . . . . . . . . . . . . . . . . . . . . . .5
Video Timeout . . . . . . . . . . . . . . . . . . . . . . . . .5
Resetting the Monitor . . . . . . . . . . . . . . . . . . . . . . . . .5
Illustrations of Cameras
SC4S
V
VSC4R
Camera Volume Adjustment . . . . . . . . . . . . . . . . . . . .5
Camera Lens Adjustment . . . . . . . . . . . . . . . . . . . . . .5
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Illustrations of Model VSM4 Monitor
Speaker
Monitor
Handset
Priority
Call
alk
T
Intercom
olume
V
Chime
Volume
LCD Display
Brightness Contrast Color
3
On/Off
Stand by
Monitor Controls
Intercom Volume Control
The slide control switch for this volume control is located on the left front edge of the bottom of the VSM4 Monitor. This control switch is moved to the left to decrease the volume level of the intercom. It is moved to the right to increase the volume level of the intercom.
Chime Volume Control
The slide control switch for this volume control is located on the left middle front edge of the bottom of the VSM4 Monitor. This control switch is moved to the left to decrease the chime volume level on the VSM4. It is moved to the right to increase the chime volume level on the VSM4.
Brightness Control
The slide control switch for this brightness control is the left most middle located controls located on the middle front edge of the bottom of the VSM4 Monitor. This control switch is moved to the left to decrease the brightness of the display level on the VSM4. It is moved to the right to increase the brightness level on the VSM4.
Contrast Control
The slide control switch for this contrast control is the right most middle located controls located on the middle front edge of the bottom of the VSM4 Monitor. This control switch is moved to the left to decrease the contrast of the display level on the VSM4. It is moved to the right to increase the contrast level on the VSM4.
Color Control
The slide control switch for this color control is located on the right middle front edge of the bottom of the VSM4 Monitor. This color switch is moved to the left to decrease the color level on the VSM4. It is moved to the right to increase the color level on the VSM4.
ON / OFF / Standby Control
The slide control switch for this on / off / standby control is located on the right front edge of the bottom of the VSM4 Monitor. This control switch is moved to the left to turn off the power to the monitor. It is moved to the right to turn on the power to the monitor.
Monitor Operation
Monitor Button
This button is used to activate the camera that will display on the monitor the video image captured. Details for button and system operation below; Press the “Monitor Button”.
• Camera activates (Powers on).
• Picture displays on monitor (no audio). Press “Talk Button” to establish audio between monitor and camera locations.
* If optional handset (VSA4S) is lifted while audio established between monitor and camera, it also will
now have audio established to those devices. If “Monitor Button” is left on, it will turn off after 60 seconds. Monitor mode may be terminated by pressing “Monitor Button” turning off the “red monitor” LED.
Handset Button
This button is used together with the Press the “Talk Button” then press the “Handset Button”.
• Ring tone beep will be generated at the optional handset each time the “Handset Button” is pressed.
• Once the handset is lifted, audio communication is established between the handset and the monitor location.
Priority Call Button
This button is used together with the Talk Button and Monitor Button to disable the microphone at the camera. Normal use would be to cut out unwanted outside noise during conversation heard at the main unit. Press the “Talk Button” and the “Monitor Button”.
• Lift the optional handset (VSA4S) to initiate all three calling devices
• Press the “Priority Call Button”. The camera microphone is disabled so no audio communication will be heard while the “Priority Call Button” is active. Audio and video remain normal at the monitor and the handset retains normal audio communication.
Talk Button
This button is used for all audio communications. If this button is activated (red
• If the optional handset is lifted, audio communication is established between the handset and the monitor
To turn off the “Talk and the Talk LED” , Press the “Talk Button” and any communication is terminated.
T
Talk Button to activate the beep tone at the optional handset (VSA4S).
alk LED remains on) it will remain on indefinitely
4
.
.
