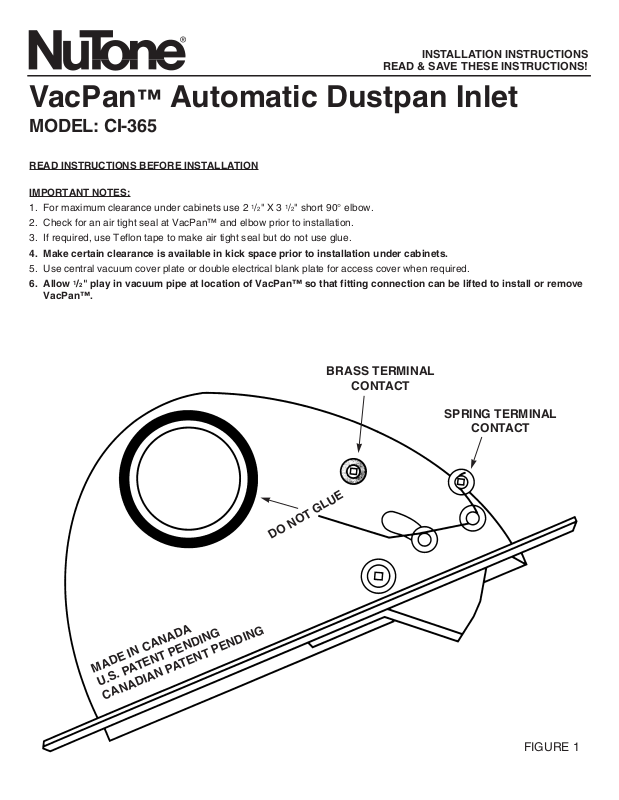

NuTone CI-365 User Manual

READ INSTRUCTIONS BEFORE INSTALLATION

IMPORTANT NOTES:

1. For maximum clearance under cabinets use 2 1/2" X 3 1/2" short 90° elbow.

2. Check for an air tight seal at VacPan™ and elbow prior to installation.

3. If required, use Teflon tape to make air tight seal but do not use glue.

4. Make certain clearance is available in kick space prior to installation under cabinets.

5. Use central vacuum cover plate or double electrical blank plate for access cover when required.

6. Allow 1/2" play in vacuum pipe at location of VacPan™ so that fitting connection can be lifted to install or remove VacPan™.

INSTALLATION INSTRUCTIONS

READ & SAVE THESE INSTRUCTIONS!

VacPan™ Automatic Dustpan Inlet

MODEL: CI-365

FIGURE 1

BRASS TERMINAL

CONTACT

SPRING TERMINAL

CONTACT

DO NOT GLUE

MADE IN CANADA

U.S. PATENT PENDING

CANADIAN PATENT PENDING

INSTALLATION OPTION #1 - UNDER CABINET ACCESS TO PIPING FROM BELOW

Refer to Figure 2

1. Select a location under cabinet for VacPan™ (6) so that new fittings can be connected to existing pipe. Drill small reference hole under location of VacPan™ to determine position in basement or crawl space.

2. Using a hole saw, cut access hole (3) in floor under cabinet. Position access hole (3) so that final fittings (7) can be installed by reaching through access hole (3).

3. Cut 6 3/4" long slot along kick (4) of cabinet.

4. Make terminal connections (5).

5. Slide VacPan™ (6) into slot and secure using #6 painted wood screws provided.

6. Reach through access hole (3) and make final fitting connections (7).

IF ACCESS CANNOT BE MADE FROM BELOW

1. Rough-in pipe (8) through floor, provide 1/2" play in pipe.

2. Provide slack in low voltage lines for future connection.

3. Once cabinets are installed, cut access hole (13) and cover with cover plate (14). Reach through and make final

connections as per previous installation.

FIGURE 2

COVER ACCESS PLATE (IF REQUIRED ACCESS CANNOT BE MADE FROM BELOW)

KICKSPACE

FINAL FITTING CONNECTIONS

VACPAN™

SUBFLOOR

JOIST SPACE

ALLOW 1/2" FLEX IN PIPE

TERMINAL CONNECTIONS

HATCHED AREA REPRESENTS “ROUGH-IN” PIPING

ACCESS HOLE IN SUBFLOORING UNDER CABINET

TO CENTRAL VAC

IF CEILING IS INSTALLED - PROVIDE COVER PLATE IN BOTTOM OF CABINET TO MAKE FITTING CONNECTIONS. (IF CEILING IS NOT INSTALLED, FINAL FITTING CONNECTIONS CAN BE MADE THROUGH ACCESS HOLE IN SUBFLOOR.

CABINET
