Nutek NTREC Users Manual

Model W1WT

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions.
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may cause undesired 
operation.

Per FCC 15.21, you are cautioned that changes or modifications not expressly approved by the part 
responsible for compliance could void the user’s authority to operate the equipment.

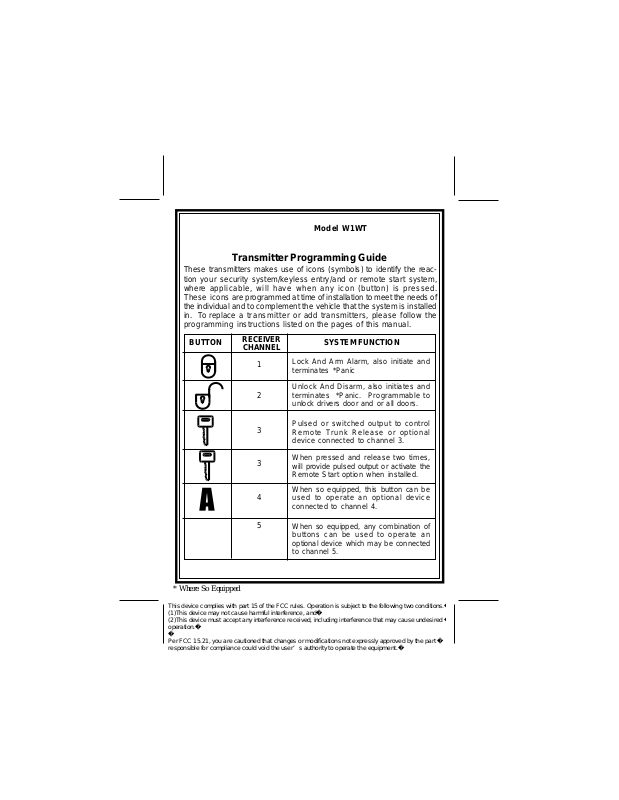

Transmitter Programming Guide

These transmitters makes use of icons (symbols) to identify the reac­tion your security system/keyless entry/and or remote start system,
where applicable, will have when any icon (button) is pressed.
These icons are programmed at time of installation to meet the needs of
the individual and to complement the vehicle that the system is installed
in. To replace a transmitter or add transmitters, please follow the
programming instructions listed on the pages of this manual.

BUTTON

RECEIVER
CHANNEL

1

2

Lock And Arm Alarm, also initiate and
terminates *Panic

Unlock And Disarm, also initiates and
terminates *Panic. Programmable to
unlock drivers door and or all doors.

SYSTEM FUNCTION

* Where So Equipped

3

3

4

5

Pulsed or switched output to control
Remote Trunk Release or optional
device connected to channel 3.

When pressed and release two times,
will provide pulsed output or activate the
Remote Start option when installed.

When so equipped, this button can be
used to operate an optional device
connected to channel 4.

When so equipped, any combination of
buttons can be used to operate an
optional device which may be connected
to channel 5.
