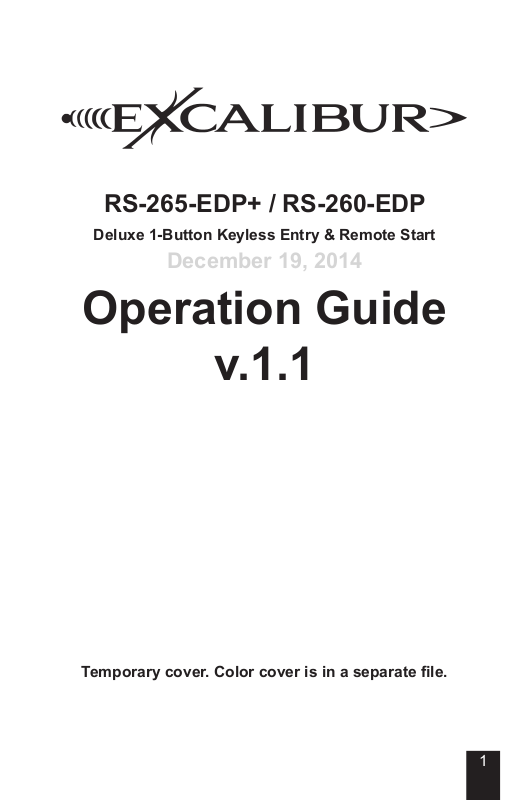

RS-265-EDP+ / RS-260-EDP
Deluxe 1-Button Keyless Entry & Remote Start
December 19, 2014
Operation Guide
v.1.1
Temporary cover. Color cover is in a separate le.
1
Table Of Contents
Transmitter Overview ................................................................................................... 2
Transmitter Functions ................................................................................................... 3
Other Remote Start Features ....................................................................................... 4
Low Battery/Low Temp Automatic Starting ............................................................... 4
Turbo Timer Feature ................................................................................................. 4
Pit-Stop Feature ....................................................................................................... 4
Manual Transmission Starting .................................................................................. 4
2-Way Controller Options (RS-265-EDP+ Only) .......................................................... 4
Selecting Mute & Audible Modes .............................................................................. 4
Security System Features (OPTIONAL) ....................................................................... 5
Last Door Arming ...................................................................................................... 5
Automatic Rearming ................................................................................................. 5
Pre-Warn Detection .................................................................................................. 5
When The System Triggers ...................................................................................... 5
Using The Valet Switch ................................................................................................. 6
Emergency Override ................................................................................................ 6
Valet Mode ................................................................................................................ 6
The Status Light ........................................................................................................... 6
Anti-Carjacking Protection ............................................................................................ 7
Programming Transmitters ........................................................................................... 7
Programming Features ................................................................................................. 8
User Programmable Features ...................................................................................... 8
Installer Programmable Features ............................................................................... 10
Programmable Features Matrix .................................................................................. 15
Transmitter Overview
Transmitter part number:
2-way: 115-03 (RS-265-EDP+ only)
1-way: 117-03
Call your dealer or visit
www.caralarm.com to order
replacement transmitters.
Battery replacement:
Remove the small screw from the
lower back case, and separate
the transmitter halves. Replace
the battery and reassemble the
transmitter case.
2
115-03
Battery type:
CR2032 (Qty: 1)
“start”
button
117-03
Battery type:
CR2016 (Qty: 2)
Transmitter Functions
LOCK / ARM: While the system is unlocked / disarmed, Press
and hold the “START” button for 1 second.
• THE SIREN / HORN WILL CHIRP & THE PARKING
LIGHTS WILL FLASH ONCE.
• 2-WAY RESPONSE: CONTROLLER WILL BEEP ONCE
AND THE BUTTON WILL FLASH ONCE.
UNLOCK / DISARM: While the system is locked / armed, Press
and hold the “START” button for 1 second.
• THE SIREN / HORN WILL CHIRP TWICE & THE
PARKING LIGHTS WILL FLASH TWICE, THEN ILLUMINATE
FOR 30 SECONDS.
• 2-WAY RESPONSE: CONTROLLER WILL BEEP TWICE
AND THE BUTTON WILL FLASH TWICE.
REMOTE START: Press and release the “START” button twice
within 5 seconds. (see user feature #8 for additional options)
• THE PARKING LIGHTS WILL FLASH ONCE & THE STATUS LIGHT
WILL FLASH RAPIDLY.
• 2-WAY RESPONSE: THE CONTROLLER WILL PLAY A MELODY.
• THE SYSTEM WILL PROCEED TO START THE ENGINE.
• ONCE THE ENGINE IS RUNNING, THE PARKING LIGHTS WILL FLASH
x2
EVERY 1.5 SECONDS & THE STATUS LIGHTS WILL FLASH SLOWLY.
• 2-WAY RESPONSE: THE CONTROLLER BUTTON WILL FLASH ONCE
EVERY 2 SECONDS.
• If the engine stalls, the system will make up to 3 more attempts.
• Each time you park, set the climate controls as desired when you use the remote start. The
engine will run for the preset run time (see user feature #1).
• Run Time Expiration Warning (2-way models only): The controller will beep once when 1
minute remains in remote start cycle.
• Run Time Extender: Press the “START” button one time during remote start to restart the
engine run timer.
NOTE: This can only be used once per remote start cycle.
• If you decide not to drive your vehicle, you can turn off the remote start using the same method
to turn it on (Default = press “START” twice in 5 seconds)
NOTE: If remote start activation is programmed for 1 press, the 1st press activates Run
Time Extender so an additional press is required to turn off remote start.
• Upon entering the vehicle during remote start mode, turn the ignition key to the “ON/RUN” position (NOT START!!). When you press the brake pedal, the remote start will turn off,
allowing the ignition key to take over.
3
Other Remote Start Features
LOW BATTERY/LOW TEMP AUTOMATIC STARTING
NOTE: Temperature Related Features Are Only Available On EDP+ models.
This feature will automatically start the engine if the vehicle battery drops below 11 volts or the
interior temperature drops to 15 (or 32) degrees fahrenheit. You must activate these features each
time you park your car to use them. They can be activated with the following steps:
• Turn the ignition switch “on”, then “off” (engine not running), and within 7 seconds press the
valet switch twice. If there is a 2 second delay without additional valet button presses, the horn
will honk 3 times activating low voltage start mode.
• To activate low temp starting, enter low voltage start mode as described above but, before the
horn honks, press the valet switch 1 time (15 degrees) or 2 times (32 degrees) within 5 seconds.
The horn will honk to conrm your selection.
NOTE: When low temp start mode is activated, low voltage start is also activated. These
features will operate once every two hours until the ignition key is turned “ON”.
TURBO TIMER FEATURE
This is recommended for vehicles equipped with a turbocharger. It allows the engine to idle
after driving to cool the turbo. When this Installer Programmable Feature (#10) is enabled, the
system will automatically keep the engine running as follows:
• With the engine running, hold the brake pedal and engage the parking brake.
When the brake pedal is released, the system will keep the engine running for the programmed
time (1, 2, or 3 minutes), and then automatically turn it off.
• The system may be locked while the engine is running. Turbo Timer can be prevented from
engaging, or “bypassed” if desired, by turning the engine off before engaging the parking brake.
PIT-STOP FEATURE
This feature allows you to leave your engine running for making quick errands. To use this
feature, have the engine running normally from the ignition switch and your foot off the brake
pedal. Press the Valet Switch twice; the parking lights will ash to conrm. Turn the key off and
the engine will remain running for the programmed run time.
MANUAL TRANSMISSION STARTING
Remote starting with a manual transmission requires a different installation method and
installer feature #11 must be turned on. Also, a setup procedure that ensures the transmission
was left in neutral must be performed each time you leave your vehicle and intend to use remote
start later. Make sure the system is in an “UNLOCKED” state then perform these steps:
1) With the car running, hold the brake pedal, apply the parking brake, release the brake pedal.
2) Use the transmitter as if you were activating remote start (default: press START twice). The
status light will start to ash slow.
3) Turn off the ignition key and exit the vehicle.
4) LOCK the vehicle with the remote. The engine will shut down (unless turbo timer is on) and the
status light will ash every 2 seconds to indicate it is ready to be remote started.
NOTE: Manual transmission setup will cancel if you enter the vehicle.
2-Way Controller Options (RS-265-EDP+ Only)
SELECTING MUTE & AUDIBLE MODES
To select between audible (default mode) and mute modes, open the controller case, remove
the battery and do one of the following:
• AUDIBLE MODE: Insert the battery without pressing the controller button
• MUTE MODE: Insert the battery while pressing the controller button. The green light above the
button will ash once, indicating that the controller is in mute mode. You will only receive visual
conrmations (ashing button light) for system functions.
4
Security System Features (OPTIONAL)
This system is equipped with our exclusive VIRTUAL ALARM technology. The security functions described in this section are available as a simple upgrade from your
dealer. It may require a plug-in module and some additional conguration, but will
greatly enhance your system’s capabilities and add theft deterrence to your vehicle.
TALK TO YOUR DEALER TODAY ABOUT UPGRADING!
LAST DOOR ARMING
This system can be congured to arm automatically when all the vehicle’s doors are closed
(see user feature #9). When enabled, the siren/horn will chirp once when all of the doors are
closed. It will start a 30 second countdown (indicated by a fast ashing status light) after which,
the system will lock and/or arm. The 30 second arming delay will paused while a point of entry is
open. Turning ON the ignition key will cancel the arming sequence until the key is turned off and
the doors are all closed once again.
NOTE: Installer feature #13 must be on and the system must be wired for security.
AUTOMATIC REARMING
This automatically rearms the alarm if the system is disarmed from the remote. (see user
feature #10). When disarmed by remote, the system will start a 90 second countdown (fast ashing status light) to arm the system. This is useful if the controller accidentally disarms the system
when it’s kept in a purse or pocket where other items could potentially press the buttons.
NOTE: Installer feature #13 must be on and the system must be wired for security functions
PRE-WARN DETECTION
EXTERNAL SENSORS ARE OPTIONAL UPGRADES. TALK TO YOUR DEALER. The optional
impact sensor is designed, in addition to detecting a full impact, to warn away potential violators
when it detects a light impact to the vehicle. The system will respond by chirping the siren/horn 3
times and locking the doors. This is very useful when an intruder attempts to unlock the door.
WHEN THE SYSTEM TRIGGERS
If the system were to be compromised while armed, it will trigger sounding the siren/horn and
ashing the parking lights for 30 seconds (programmable). When disarming the system after a
trigger event, the siren/horn will chirp 4 times and the parking lights will ash 4 times instead of the
standard 2 times.
LOCK ON TRIGGER: If a door is opened when the system is triggered, it will wait until the door is
closed again, then lock the doors. This patented feature is useful to further deny a thief of further
access to the vehicle.
STORM SAFE MODE: When the system is triggered, disarming the system will stop the alarm
from sounding but will leave the doors locked. This function is useful if you have a false triggering
situation due to violent weather.
ZONE VIOLATION RECALL: The system is capable of telling you which zones were triggered
last. The system’s status light will ash to indicate which zone was triggered. This occurs during the alarm cycle AND after disarming. The system will store the last triggered zone until the
vehicle’s ignition key is turned on. See “The Status Light” section on page 9 for further explanation
of this feature.
NUISANCE PREVENTION: If the system prewarns 5 times within 15 minutes, it will bypass the
zone for the remainder of the 15 minutes before rearming the pre-warn zone. Additionally, if a full
trigger zone is left open, the system will trigger a total of 3 times before bypassing the zone. Once
the zone is closed, it will re-arm that zone.
5
