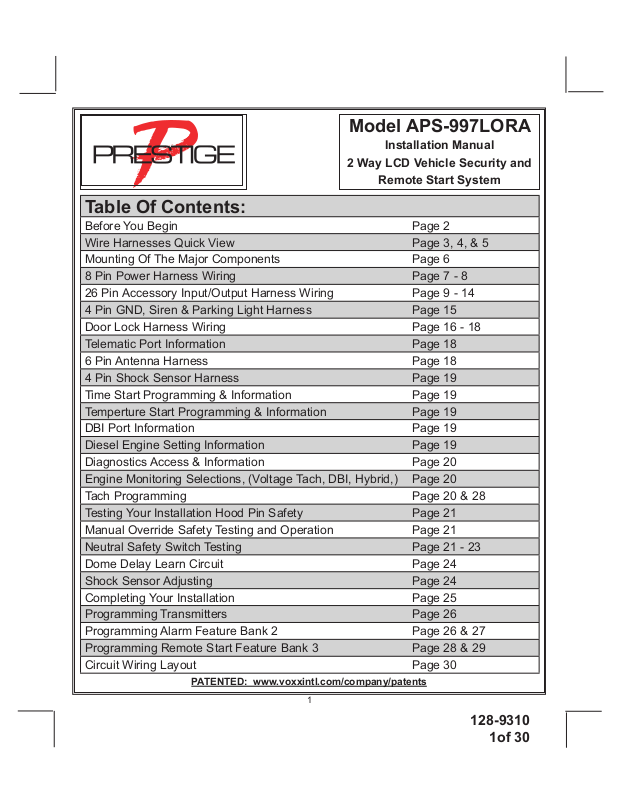

Nutek ATRRF User Manual
Model APS-997LORA
Installation Manual
2 Way LCD Vehicle Security and
Remote Start System
Table Of Contents:
Before You Begin Page 2
Wire Harnesses Quick View Page 3, 4, & 5
Mounting Of The Major Components Page 6
8 Pin Power Harness Wiring Page 7 - 8
26 Pin Accessory Input/Output Harness Wiring Page 9 - 14
4 Pin GND, Siren & Parking Light Harness Page 15
Door Lock Harness Wiring Page 16 - 18
Telematic Port Information Page 18
6 Pin Antenna Harness Page 18
4 Pin Shock Sensor Harness Page 19
Time Start Programming & Information Page 19
Temperture Start Programming & Information Page 19
DBI Port Information Page 19
Diesel Engine Setting Information Page 19
Diagnostics Access & Information Page 20
Engine Monitoring Selections, (Voltage Tach, DBI, Hybrid,) Page 20
Tach Programming Page 20 & 28
Testing Your Installation Hood Pin Safety Page 21
Manual Override Safety Testing and Operation Page 21
Neutral Safety Switch Testing Page 21 - 23
Dome Delay Learn Circuit Page 24
Shock Sensor Adjusting Page 24
Completing Your Installation Page 25
Programming Transmitters Page 26
Programming Alarm Feature Bank 2 Page 26 & 27
Programming Remote Start Feature Bank 3 Page 28 & 29
Circuit Wiring Layout Page 30
PATENTED: www.voxxintl.com/company/patents
1
128-9310
1of 30
Before You Begin
FCC COMPLIANCE
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Warning!
Changes or modifications not expressly approved by the part responsible for compliance could void the use's authority to operate the equipment
NOTE:The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this
equipment. Such modifications could void the user's authority to operate the equipment.
PROFESSIONAL INSTALLATION IS
STRONGLY RECOMMENDED
Roll down window to avoid locking the keys in the vehicle during
installation
Avoid mounting components or routing wires near hot surfaces
or near moving parts like the steering wheel as it may prevent
proper operation of the vehicle
Tape or loom wires under the hood and dash for protection as
well appearance
Use grommets when routing wires through metal surfaces to prevent
chang and shorting
Use a Digital Multi Meter for testing and verifying circuits. DO
NOT USE A "TEST LIGHT" OR "COMPUTER SAFE PROBE" as
these can set o air bags or damage sensitive vehicle computers
and electronics
For technical support go to www.avxtech1.com
or call 1 800 225 6074
FCC COMPLIANCE
This device complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including any interference that may
cause undesired operation.
Warning!
Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment
NOTE:The manufacturer is not responsible for any radio or TV interference caused by unauthorized modications to
this equipment. Such modications could void the user’s authority to operate the equipment
2
128-9310
2of 30
26 Pin Main Wiring Harness #1124302
1 Green/White Dome Light Output (-)
2 LT. Blue Ground While Running Output (-)
3 Black/White Horn Output (-)
4 Purple (+) Door Trigger input
5 Brown/Black (+) Inhibit/Shutdown To Brake Switch
6 DK. Blue/Black External Remote Start Trigger Input (-)
7 Orange/Black (-) Parking Brake Input
8 Green/Yellow Glow Plug Input
9 Brown (-) Door Trigger Input
10 Green/Orange Tachometer Input
11 DK Green (-) Instant Trigger Input
12 NC No Connection, Empty Cavity
13 LT. Green (-) Trigger Input
14 DK. Blue Channel 3 Trunk Release Output (-)
15 Green/Black Channel 4 Output (-)
16 DK.Blue/Red Channel 7 Output (-)
17 Black/LT.Green Pulse Aer Start Output (-)
18 Black/Blue Pulse Before Start Output (-)
19 Black/Red Pulse Aer Shut Down Output (-)
20 Black/Yellow Pulse During Crank Output (-)
21 LT. Blue/Black Channel 6 Output (-)
22 LT.Blue/Green Channel 5 Output (-)
23 Gray/Black (-) Inhibit/Shutdown To Hood Switch
24 Orange Start Inhibit Relay Control (-)
25 White/Blue (-) Headlight Activation Output
26 Orange/White N.O Start Inhibit Relay Control (-)
3
128-9310
3of 30
8 Pin Power / Start Harness #1124299
1
Blue Ignition 1 (+)
2
Red/White Battery 1 - 12V (+)
3
Green Ignition 2 (+)
4
Pink
5
Purple
6
Red
7
Yellow
8
Red/Black
Ignition 3 Common Contact
Accessory (+)
Battery 2 - 12V (+)
Starter Output
Ignition 3 Normally Open Contact
4 Pin 2nd Main Harness #1124301
1 Black Chassis Ground
2 White/Red Parking Light Relay Input
3 White/Black (+) Siren Output
4 White Parking Light Relay Output
3 Pin Door Lock Output Harness #1122906
1 Red (-) Door Lock Output
2 Green (-) Door Unlock Output
3 Red/Black (-) 2nd Door Unlock Output
4 Pin Shock Sensor Harness #1122591
1 Blue Predetect
2 Green Full Trigger
3 Black Chassis Ground
4 Red + 12 Volts
4
128-9310
4of 30
6 Pin Antenna Harness #1124293
1 Red + 5 VDC
2 Green RX
3 Black Ground
4 Grey Valet Enable
5 Blue LED Cathode
6 Blue TX
TRX17LORA
1181259
5
128-9310
5of 30
This unit is to be used in vehicles with AUTOMATIC TRANSMISSIONS only! Although this combination
Alarm/Remote Start unit is a sophisticated system with many advanced features, IT MUST NOT be installed into a vehicle with a manually operated transmission. Doing so may result in serious personal
injury and property damage!
INSTALLATION OF THE MAJOR COMPONENTS:
CONTROL MODULE: PART # 1365405
Select a mounting location inside the passenger compartment (up behind the dashboard). The mounting
location selected must be within 24" of the ignition switch wiring harness to allow connection of the 6 pin
main wiring harness. Be certain that the chosen location will not interfere with proper operation of the
vehicle. Avoid mounting the module to or routing the wiring around the steering shaft/column, as the module or wiring may wrap around or block the steering wheel preventing proper control of the vehicle. The
module will be secured after all wiring is completed which will allow complete access until the job is done.
Do Not Mount The Module In The Engine Compartment, as it is not waterproof.
SIREN: PART# AS9903E
Select a location in the engine compartment that is not accessible from below the vehicle. The selected
location must be clear of hot or moving parts within the engine compartment The siren must be pointed
downward to prevent water retention and the open or ared end must be pointed away from and out of
the engine compartment for maximum sound distribution. Before securing the siren, check behind your
chosen location to assure that the mounting screws will not penetrate any factory wiring or uid lines.
Secure the siren mounting bracket using #8 self taping screws.
HOOD PIN SWITCH: PART # 1363699
The pin switch included in this package is intended for protecting the hood area of the vehicle. In all cases,
the switch must be mounted to a grounded metal surface. When the pin switch is activated, (hood open),
it will supply a ground to the input wire activating the alarm. In addition, the hood switch is required for
the safety shut down of the remote start unit. If the vehicle is being worked on, this hood switch prevents
the remote start activation even if the RF command to start is issued. This switch must be installed in
all applications. Failure to do so may result in personal injury or property damage.
PUSH-BUTTONPROGRAM SWITCH/LED/RECEIVER/ANTENNA ASSEMBLY: PART # 1181259
The Superheterodyne Receiver Antenna Assembly provided with this unit allows routing from below the
dash board for maximum operating range. Choose a location above the belt line (dashboard) of the vehicle
for best reception. Special considerations must be made for windshield glass as some newer vehicles
utilize a metallic shielded window glass that will inhibit or restrict RF reception. In these vehicles, route
the antenna toward a rear window location for best reception. Secure the antenna with double stick tape
provided.
SHOCK SENSOR: PART # AS9492a
Select a centrally located, solid mounting surface for the shock sensor that will allow consistent operation
from all areas of the vehicle. The selected location must be within 18" of the control module to allow
routing and connecting of the 4 pin harness. Secure the shock sensor to the chosen location using two
#8 self tapping sheet metal screws. The sensor can also be secured to an existing dash brace using
cable tie straps. Whichever mounting method is used be sure to allow access to the sensitivity adjustment
potentiometer for use later in the installation.
STARTER INHIBIT RELAY: PART # 1363731
Select a mounting location within 12" of the ignition switch's low current start solenoid wire. Secure the
relay to an existing harness in the chosen location using a cable tie around the relay's wiring harness.
CAUTION! Do not wire tie the metal bracket to an existing wiring harness as vibration may cause
chang and shorting damaging the factory wiring. If an existing harness is not available then
secure the relay's metal mounting tab to an under dash metal brace with a #8 self tapping
sheet metal screw. Wire the relay as per the diagram found later in this manual.
6
6
128-9310
6of 30
IMPORTANT!
DO NOT PLUG THE EIGHT PIN MAIN POWER HARNESS OR THE MULTI PIN INPUT / OUTPUT
HARNESS INTO THE CONTROL MODULE UNTIL ALL CONNECTIONS TO THE VEHICLE HAVE BEEN
MADE. AFTER SELECTING YOUR TARGET WIRES AS DEFINED BELOW, DISCONNECT THE NEGATIVE BATTERY CABLE FROM THE VEHICLE BATTERY PRIOR TO MAKING ANY CONNECTIONS.
Note: Do not remove the fuse holders from this wire harness. Fuses must be used and located
as close as possible to the power source for adequate protection of the vehicle.
WIRING THE 8 PIN MAIN POWER HARNESS: PART # 1124299
Note: Do not remove the fuse holders from this wire harness. Fuses must be
used and located as close as possible to the power source for adequate protection of the vehicle.
1 BLUE Wire: Ignition 1 Output
Connect this wire to the ignition 1 wire from the ignition switch. This wire will show +12 volts when the
ignition key is turned to the "ON" or "RUN" and the "START" or CRANK" positions, and will have 0 volts
when the key is turned to the "OFF" and "ACCESSORY" positions.
For Diesel Applications, this wire must be connected to the ignition circuit that powers the glow plugs if
the vehicle requires glow plug pre-heating. (See selectable feature Bank 3 #12)
2 RED/WHITE WIRE: + 12 volt Battery 1 Source Fused 30A
Locate the vehicle battery wire(s) at the ignition switch. Verication: These wires will register voltage in all positions
of the ignition switch. Connect the Red w/White wire to the vehicle's battery wire. This wire provides power for the
control circuit as well as the ignition 1 and ignition 2 relays.
3 GREEN Wire: Ignition 2 Output
Connect this wire to the ignition 2 wire from the ignition switch. This wire will show + 12 volts when the
ignition key is turned to the "ON" or "RUN" position and is some cases the "START" or CRANK" position.
This wire will show 0 volts when the key is turned to the "OFF" and "ACCESSORY" positions.
NOTE: See programming information (Bank 3 Selection #7) concerning this wire to allow output during
the "START" mode.
4 PINK Wire: Additional Ignition Output
This wire can be used as an additional + 12 Volt ignition output supplied by the Red/Black wire. This
output can be selected to be on or o during the start cycle. (See feature bank 3 selection # 8) Connect
this wire to the third ignition circuit in the vehicle and set the selectable feature # 8 of Bank 3 according
to the way in which the vehicle's ignition switch operates.
5 PURPLE Wire: Accessory Output
Connect this wire to the Accessory wire from the ignition switch. This wire will show + 12 volts when the
ignition switch is turned to the "ACCESSORY" or "ON" and "RUN" positions, and will show 0 volts when
the key is turned to the "OFF" and "START" or "CRANK" positions.
6 RED WIRE: + 12 Volt Battery 2 Source Fused 30A
Locate the vehicle battery wire(s) at the ignition switch. Verication: These wires will register voltage in all positions
of the ignition switch. Connect the Red wire to the vehicle's battery wire. This wire provides power for the start
relay and the accessory relay.
7 YELLOW Wire: Starter Output
Careful consideration for the connection of this wire must be made to prevent the vehicle from
starting while in gear. Understanding the dierence between a mechanical and an electrical
7
128-9310
7of 30
Closed In Park & Neutral
Neutral Start Switch will allow you to properly identify the circuit and select the correct installation
method. In addition you will realize why the connection of the safety wire is required for all
mechanical switch congurations.
Failure to make this connection properly can result in personal injury and property damage.
In all installations it is the responsibility of the installing technician to test the remote start unit and ensure
that the vehicle cannot start via RF control in any gear selection other than park or neutral.
In both mechanical and electrical neutral start switch congurations, the connection of the Yellow wire
will be made to the low current start solenoid wire of the ignition switch harness. This wire will have +12
volts when the ignition switch is turned to the start (crank) position only. This wire will have 0 volts in all
other ignition switch positions.
NOTE: This wire must be connected to the vehicle side of the starter cut relay (when used). For the
electrical neutral switch conguration, this connection must be made between the starter inhibit relay,
( when used ) and the neutral safety switch as shown in the following diagram.
Failure to connect this wire to the ignition switch side of the of the neutral safety switch can result in personal injury and property damage.
SEE NEUTRAL START SAFETY TEST FOR FURTHER DETAILS.
YELLOW START WIRE DETAIL
Remote Start Connection
Neutral Safety Switch
Start Inhibit Relay
(When Used)
8 RED/BLACK Wire: + 12 Volts Input
Note: The Red/Black and Pink are dry contacts and may be used for negative switching when necessary.
Connecting the Red/Black to chassis ground will result in Pink being ground when the R/S is activated.
This input is to be connected to a separate, (Other than the wire Red or Red/White is connected to), constant on + 12 volt source which will supply + 12 volt power to the additional ignition output, (Pink), wire.
Connect this wire to a separate + 12 Volt source.
8
128-9310
8of 30
WIRING CONNECTIONS: 26 Pin Accessory Input/Output Harness PART # 1124299
1 Green w/ White trace Wire: Entry Illumination Ground Output
This wire provides a 30 second ground output, (300 mA Max.), whenever the remote is used to disarm
the alarm or to unlock the doors. It also provides a continuous pulsed output whenever the alarm is
triggered. This wire should be connected to an external relay and wired to the vehicles interior entry
lighting circuit whenever the optional Entry Interior Illumination feature is desired.
2 LT. Blue Wire: Ground Output While Running (-) 300mA
This wire provides a 300mA ground output that becomes active 1.5 seconds before the Remote Start
Unit initializes and remains grounded while running plus an additional 2 seconds after the Remote
Start Unit turns o. In all of the applications described below, a relay will be required.
The Light Blue wire can be used to accommodate the following situations:
A. Sensor By Pass:
If there is a Non Plug in Sensor used with the alarm system and it is not shunted during the Remote
Start activation period, then vibration or noise from the running vehicle can cause the alarm to trigger.
In this case, connect the Light Blue Wire to terminal #86 of a external relay. Connect terminal # 85 of
the relay to a fused + 12 volt battery source. Cut the sensor's trigger wire and connect one end of the
cut wire to terminal #30 and the other end of the cut wire to terminal #87a. Just before the Remote
Start unit is activated, the relay contacts will open, preventing the sensor's operation until the Remote
Start unit shuts o.
B. Additional Ignition Output:
Some vehicle's may require more than three ignition outputs to start and keep the vehicle's engine
running. If this is the case, connect the Light Blue wire to terminal #86 of an external relay. Connect
terminal # 85 to a fused + 12 volt source. Dependent on the vehicle's requirement, connect terminal
#30, to a fused + 12 volt source, or to ground, and connect terminal 87 to the vehicle to supply the
additional ignition source.
C. GM VATS Key Override:
If the vehicle has the General Motors VATS system installed, you will need to bypass the system while
the vehicle is operating under the control of the Remote Start Unit. To Do This:
1. Measure the resistance of the resistor pellet on the ignition key then select a resistor within 5% of
the key's value
2. Locate the pair of VATS wires in the vehicle, usually a pair of thin gauge wires running from the
ignition switch to the VATS control module.
NOTE: These wires are typically White w/ Black trace and Violet w/ Yellow trace, however in later model
Cadillacs, they are run through an orange sleeve, and are either both Black, both Yellow, or both White
wires. Consult the factory service manual for additional information.
3. Connect the Light Blue Wire from the Remote Start Unit to terminal #86 of an external relay. Connect terminal #85 of the relay to a fused + 12 volt battery source.
4. Cut (#1) wire (as shown), and connect the ignition switch side of the cut wire to terminal #87a of
the relay. Connect the other side of the (#1) wire to terminal #30.
5. Connect the previously selected resistor from terminal #87 to the second (#2) wire (as shown).
NOTE: The above information and following diagram is for the GM VATS system only.
9
128-9310
9of 30
Loading...
