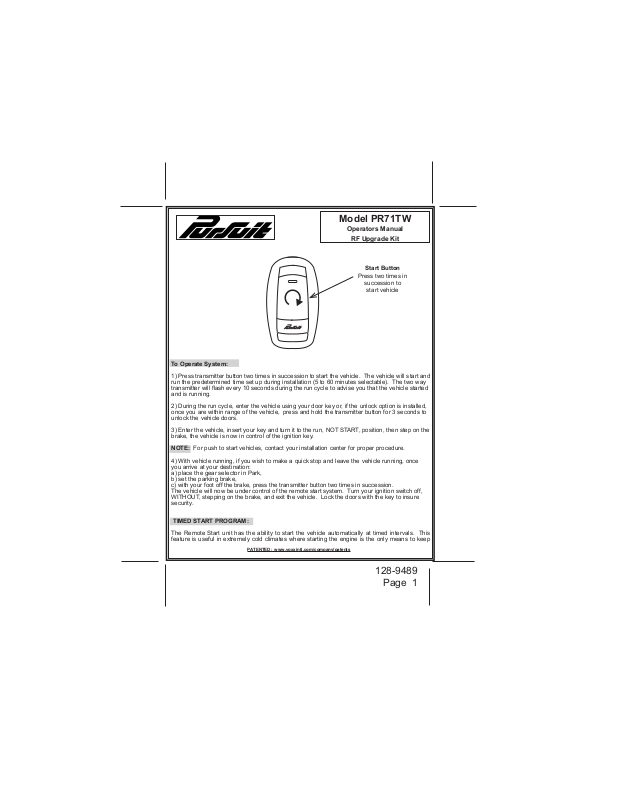

Nutek ATRA User Manual
Model PR71TW
Operators Manual
RF Upgrade Kit
Start Button
Press two times in
succession to
start vehicle
To Operate System:
1) Press transmitter button two times in succession to start the vehicle. The vehicle will start and
run the predetermined time set up during installation (5 to 60 minutes selectable). The two way
transmitter will ash every 10 seconds during the run cycle to advise you that the vehicle started
and is running.
2) During the run cycle, enter the vehicle using your door key or, if the unlock option is installed,
once you are within range of the vehicle, press and hold the transmitter button for 3 seconds to
unlock the vehicle doors.
3) Enter the vehicle, insert your key and turn it to the run, NOT START, position, then step on the
brake, the vehicle is now in control of the ignition key.
NOTE: For push to start vehicles, contact your installation center for proper procedure.
4) With vehicle running, if you wish to make a quick stop and leave the vehicle running, once
you arrive at your destination:
a) place the gear selector in Park,
b) set the parking brake,
c) with your foot off the brake, press the transmitter button two times in succession.
The vehicle will now be under control of the remote start system. Turn your ignition switch off,
WITHOUT, stepping on the brake, and exit the vehicle. Lock the doors with the key to insure
security.
TIMED START PROGRAM:
The Remote Start unit has the ability to start the vehicle automatically at timed intervals. This
feature is useful in extremely cold climates where starting the engine is the only means to keep
PATENTED: www.voxxintl.com/company/patents
128-9489
Page 1
the battery charged and uids warm. The operator has the option to have the unit start every 2 or
4 hours for a maximum of 48 hours. Factory preset is to start at 4 hour intervals. To select 2 or
4 hour automatic start timer:
1. Start By Holding the Push Button Switch found on the windshield mount receiver on.
2. While Holding the Push Button Switch Turn The Ignition Switch On Then Off
3a) Within 10 seconds of turning the ignition switch off, Release and then Push On and release
the Push Button Switch 2 times holding it on the second time until the siren and or lights ash
and chirp 2 times indicating that the 2 Hour Start Interval has successfully been set. or
3b) Within 10 seconds of turning the ignition switch off, (Step 2) Release
and then Push On and release the Push Button Switch 4 times holding it on the fourth time until
the siren and or lights ash and chirp 4 times indicating that the 4 Hour Start Interval has successfully been set.
NOTE: Once selected, 2 or 4, this timer interval will remain in memory until it is manually
changed. To change, the above sequence will have to be followed.
TIMED START OPERATION:
To begin the start timer, within 10 seconds of turning off the ignition switch, activate the RF com-
mand to start 2 times. (Press the start button four times). The lights will ash and the siren will
chirp 4 times. Indicating timed interval mode has been initiated. The vehicle will automatically start
every 2 or 4 hours as programmed. To cancel the timed start mode start the vehicle either by RF
or by the ignition key.
REMOTE START OVERRIDE MODE / MANUAL SHUT DOWN:
The intent of the remote start override / manual shut down circuit is to allow the vehicle operator to
prevent operation of the Remote Start Unit regardless of the RF transmitter operation.
To Enter The Remote Start Override Mode:
1) With the system disarmed/unlocked, and the ignition switch off Press and Hold the pushbutton
switch located on the receiver unit on.
2) Turn the ignition switch on, off, on, off, on, off.
3) The LED begins to ash two short ashes followed by one long ashes and continues this
pattern until returned to normal mode of operation.
The action above puts the unit into the Remote Start Override mode or vehicle service mode and
will not start from the RF transmitter or any other input.
To Exit Remote Start Override Mode:
1) With the system disarmed, Press and Hold the PBLED on.
2) Turn the ignition switch on, off, on, off, on, off.
3) The LED turns off indicating that the R/S unit is fully functional one again.
