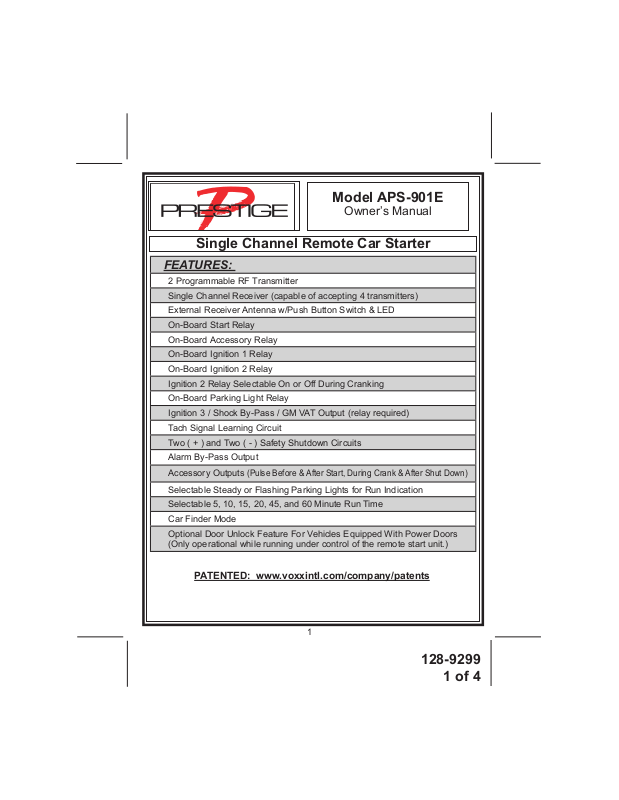

Model APS-901E

Owner’s Manual

Single Channel Remote Car Starter

FEATURES:

2 Programmable RF Transmitter

Single Channel Receiver (capable of accepting 4 transmitters)

External Receiver Antenna w/Push Button Switch & LED

On-Board Start Relay

On-Board Accessory Relay

On-Board Ignition 1 Relay

On-Board Ignition 2 Relay

Ignition 2 Relay Selectable On or Off During Cranking

On-Board Parking Light Relay

Ignition 3 / Shock By-Pass / GM VAT Output (relay required)

Tach Signal Learning Circuit

Two ( + ) and Two ( - ) Safety Shutdown Circuits

Alarm By-Pass Output

Accessory Outputs

Selectable Steady or Flashing Parking Lights for Run Indication

Selectable 5, 10, 15, 20, 45, and 60 Minute Run Time

Car Finder Mode

Optional Door Unlock Feature For Vehicles Equipped With Power Doors
(Only operational while running under control of the remote start unit.)

(Pulse Before & After Start, During Crank & After Shut Down)

PATENTED: www.voxxintl.com/company/patents

1

128-9299

1 of 4

REMOTE STARTING THE VEHICLE

The vehicle will not start if any one of the following situations exists:

PRESTIGE

NOTE: The engine will stop running before the pre-programmed run cycle has expired if

• The vehicle's hood lid is opened.

• The gear shift selector is not in Park.

• The brake pedal is depressed.

• The safety control switch is in the Off position.

1) To start the vehicle, press and release the transmitter button two
times within 2 seconds. The vehicle will start and remain running
for the pre-programmed run cycle. As a visual indication, the

parking lights will ash or remain on depending on the setting by

your installation center.

2) When you arrive at the vehicle, turn the ignition key to the ON
position (not the spring loaded start position), then step on the
brake pedal to disengage the remote starter. The vehicle will
continue to run, but now on its own power.

you perform any one of the following functions:

- Press the button on the key-chain transmitter two times within 2 seconds

-Depress the brake pedal

-Open the vehicle's hood

-Place the unit in the safety control disabled mode.

VALET/OVERRIDE/SAFETY CONTROL SWITCH

The Push-Button LED switch located in the receiver allows you to temporarily
disable the remote starting function of the system. This recommended whenever
the vehicle is being serviced. To place the system in the service mode:

1) With the system disarmed/unlocked, and the ignition switch Off, Press and
Hold the Push-Button, found on the windshield receiver, in.

2) Turn the ignition switch On, Off, On, Off, On, Off.

3) The LED begins to ash two short ashes followed by one long ashes and

continues this pattern until returned to normal mode of operation.

This puts the unit into the R/S Override mode indicating that the remote start is in
the service mode and will not start from RF or any other input Posse or other­wise.

To Exit R/S Override Mode

1) With the system disarmed, press and hold the Push-Button, found on the
windshield receiver, in.

2) Turn the ignition switch On, Off, On, Off, On, Off.

3) The LED turns Off indicating that the R/S unit is fully functional once again.

PUSH-BUTTON LED RECEIVER
